Sprayers & Applicators

John Deere F4365 with LS475

Now the John Deere F4365 gives you the option to apply liquid fertilizer and herbicide with the LS475.

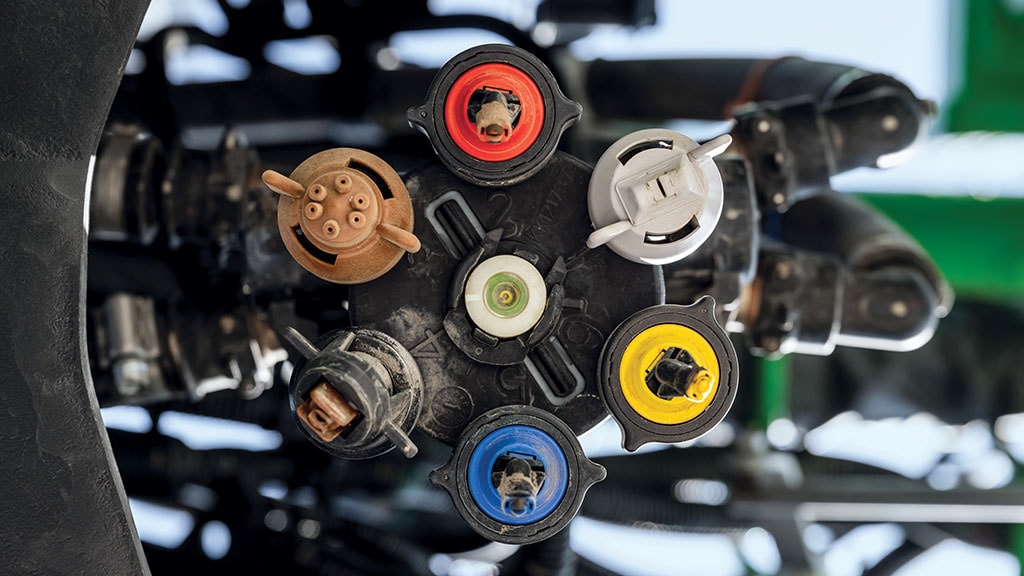

ExactApply™ Nozzle Control Performance Upgrade Kit

Make every drop count with ExactApply™

Add individual nozzle control to your R4030, R4038, R4044, R4045 or R4060 with an ExactApply™ Performance Upgrade Kit, giving you precise droplet sizing for consistent application management. ExactApply™ provides three times the pulsing frequency of competitive systems, along with industry-exclusive A-B nozzle design.

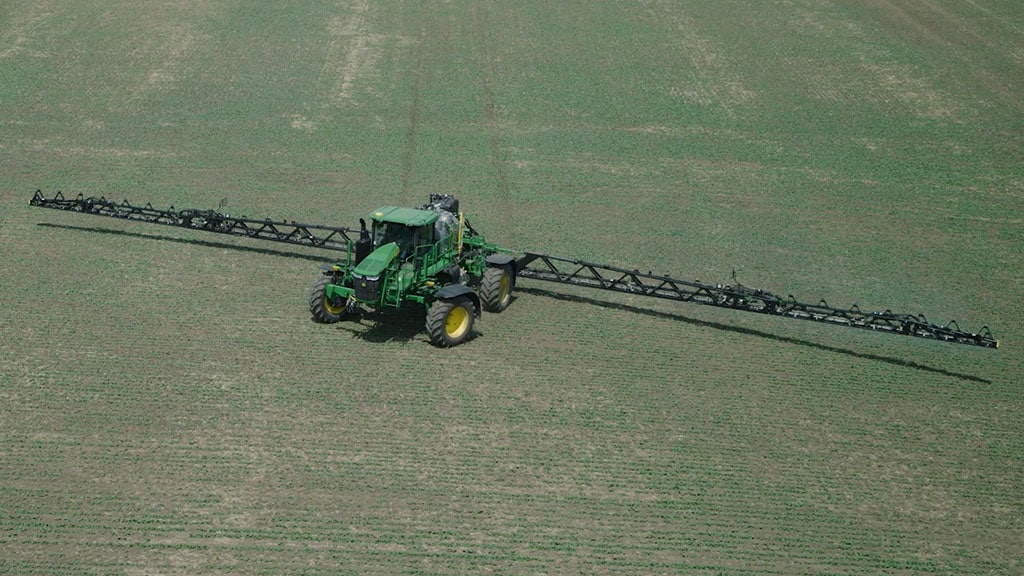

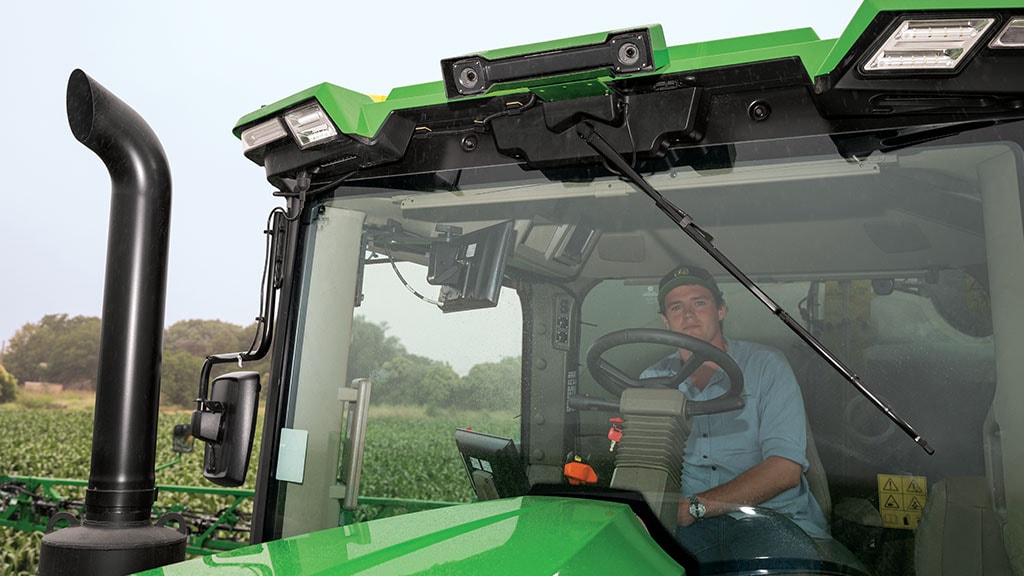

More Acres. Less Fatigue. AutoTrac™ Sprayer Guidance System

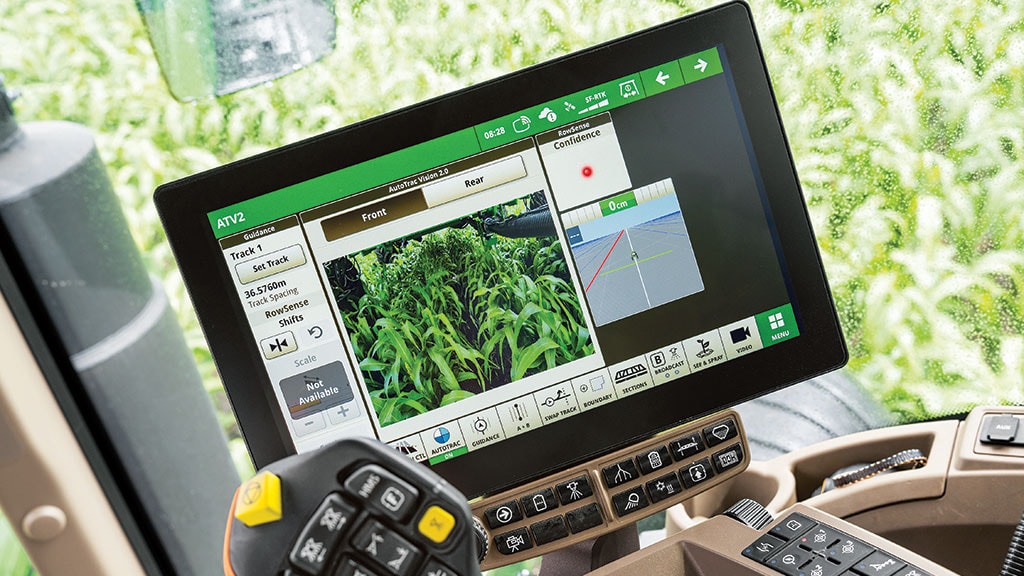

Stay on track with AutoTrac™ Vision and RowSense™.

John Deere AB485 Air Boom

The John Deere AB485 Air Boom allows you to variable-rate apply 1 to 3 products through a 70-foot wide boom.

ModelEngine hpSolution CapacityBoom WidthBoom SectionsApplication SpeedTransport Speed

173 (129 kW)

600 gallons (2,300 L)

Up to 90 feet (27 m)

5, 7

20 mph (32.2 km/h)

27 mph (43.5 km/h)

280 (209 kW)

800 gallons (3,000 L)

Up to 132 feet (40 m)

7, 9, 11, 13

20 mph (32.2 km/h)

30 mph (48 km/h)

310 (231 kW)

1,000 gallons (3,800 L)

Up to 132 feet (40 m)

7, 9, 11, 13

25 mph (40 km/h)

35 mph (56 km/h)

325 (242 kW)

1,200 gallons

(4,542 L)

Up to 132 feet (40 m)

7, 9, 11, 13

25 mph (40 km/h)

35 mph (56 km/h)

346 (258 kW)

1,200 gallons (4,542 L)

Up to 132 feet (40 m)

7, 9, 11, 13

25 mph (40 km/h)

35 mph (56 km/h)

346 (258 kW)

1,600 gallons (6,057 L)

Up to 132 feet (40m)

7, 9, 11, 13

25 mph (40 km/h)

35 mph (56 km/h)

365 (272 kW)

330 cu. ft. (9.34 cu.m)

up to 70 feet (21.3 m)

N/A

30 mph (48 kph)

46 mph (74 kph)

365 (272 kW)

2,000 gallons (7,570 L)

Up to 90 feet (27.4m)

7

23 mph (37 km/h)

46 mph (74 km/h)

225 (167 kW)

1,000 gallons (3,800 L)

up to 90 feet (27 m)

5

20 mph (32 km/h)

30 mph (45 km/h)

300 (221 kW)

1,000 gallons (3,800 L)

up to 120 feet (36.6 m)

9

20 mph (32 km/h)

35 mph (56 km/h)

300 (221 kW)

1,200 gallons (4,542 L)

up to 120 feet (36.6 m)

9

20 mph (32 km/h)

35 mph (56 km/h)

300 (221 kW)

1,400 gallons (5,300 L)

up to 120 feet (36.6 m)

9

20 mph (32 km/h)

35 mph (56 km/h)

375 (279 kW)

1,600 gallons (6,000 L)

up to 120 feet (36.6 m)

9

20 mph (32 km/h)

35 mph (56 km/h)

MODELLENGTHMATERIALFOLDS/BREAKAWAY POINTSMOUNTEDMACHINE COMPATABILITYNOZZLE SPACING OPTIONS

120 ft. (36.6m)



Steel/aluminum hybrid



60 ft.,100 ft.,120 ft. (18.3m, 30.5m, 36.6m)



Front-mounted



MY 2014-2017 Hagie STS Sprayers



15 in or 20 in
(38cm or 51cm)



ModelEngine hpDetasseling SpeedToolbar OptionsFrame ClearanceToolbar HeightsApproximate Dry Weight

Tier 4 - 195hp (145 kW)
Tier 3 - 190 hp (141 kW)

0.5 to 19 mph (30.6 km/h)

8-, 10-, or 12-row outriggers

72 in. (182.9 cm)

69.3 in. (176 cm)

20,900 lbs. (9,490 kg)

ModelNumber of RowsEngine hp NeededSeasonGasLiquidDry

19, 21, 23, 24, 25

18-27.5 hp/row 19-row
20-27 hp/row 21-row
18-25 hp/row 23-row
19-26 hp/row 24-row
22.5-25 hp/row 25-row

Pre-plant
Post-harvest




11, 15, 23

15-25 hp/row

Pre-plant
Post-harvest
In-season




15

15-28 hp/row

Pre-plant
Post-harvest
In-season



Vertical-fold with 30- and 40-ft widths
Side-fold with widths up to 66 ft.

140-190 hp
200-220 hp

In-season




Side-fold with 60 ft and 66 ft widths

200-220 hp

295-345 hp

In-season




12, 16

20-27 hp/row

Pre-plant
Post-harvest

12, 16

25-50 hp/row

Pre-plant
Post-harvest

30-ft:
12Row/30" spacing
18 Row/20" spacing

40-ft:
16 Row/30" spacing
24 Row/20" spacing

Hagie STS

In-season
High clearance




The Frontier™ Liquid Sprayers are a dependable solution for your liquid application needs.

  • Working widths from 10' to 45'
  • Folding breakaway boom and boomless models
  • Hydraulic, electric, and PTO pumps options depending on model

ModelWorking WidthTank CapacityOperating Weight*Hitch Type

25 ft. (7.62 m)

Tank One - 250 gal. (946 L)
Tank Two - 300 gal. (1136 L)

2,920 lb (1,324.5 kg)
3,350 lb (1,519.5 kg)

Cat. 2 and 3
3-pt hitch with quick-hitch

30 ft (9.14 m)

Tank One - 250 gal. (946 L)
Tank Two - 300 gal. (1136 L)

2,950 lb (1,338.1 kg)
3,375 lb (1,530.9 kg)

Cat. 2 and 3
3-pt hitch with quick-hitch

Up to 30 ft (up to 9.14 m)

Tank One - 250 gal. (946 L)
Tank Two - 300 gal. (1136 L)

2,730 lb (1,238.3 kg)
3,155 lb (1,431.1 kg)

Cat. 2 and 3
3-pt hitch with quick-hitch

40 ft (12.19m)

Tank One - 250 gal. (946 L)
Tank Two - 300 gal. (1136 L)

2,970 lb (1,347.2 kg)
3,400 lb (1,542.2 kg)

Cat. 2 and 3
3-pt hitch with quick-hitch

45 ft (13.72 m)

Tank One - 250 gal. (946 L)

Tank Two - 300 gal. (1136 L)

3,470 lb (1,573. kg)
3,900 lb (1,769. kg)

Cat. 2 and 3 3-pt hitch with quick hitch

10 ft (3 m)
12.5 ft (3.8 m)
24 ft (7.3 m)

45 gal. (170 L)

460 lb (209 kg)

Limited Cat 1. and Cat. 1 with quick-hitch

12.5 ft (3.8 m)
18 ft (5.5 m)
24 ft (7.3 m)

60 gal. (227 L)

610 lb (277 kg)

Cat. 1 with quick-hitch

18 ft (5.5 m)
24 ft (7.3 m)
30 ft (9.1 m)

110 gal. (416 L)

1,216 lb (551 kg)

Cat. 1 or Cat. 2 (with optional kit) with quick-hitch

24 ft (7.3 m)
30 ft (9.1 m)

150 gal. (568 L)

1,619 lb. (734 kg)

Cat. 2 with quick-hitch

*Weight estimated with water. Properly ballasted tractor required for lifting and operation.

fpo

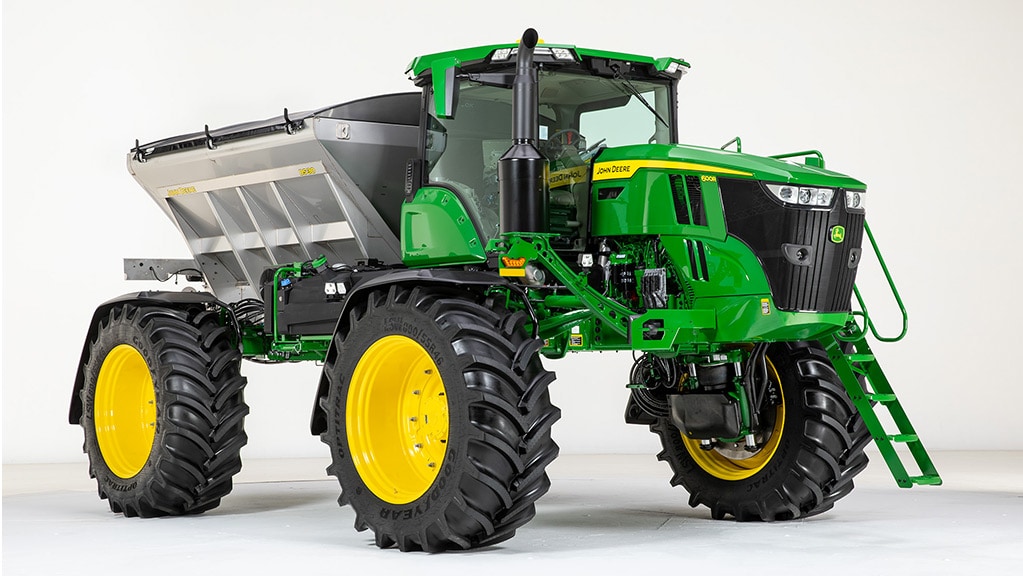

F4365 High-Capacity Nutrient Applicator

The high-capacity dry spinner spreader allows you to deliver higher volumes of N, P, K and lime to replenish the soil and feed your crops.

image of seed being poured into a dn485 dry spinner spreader

Dry Spinner Spreaders

Turn your 4 Series sprayer into a 3-season applicator with a DN456, DN485 or DN495 G5 Dry Spinner Spreader.

fpo

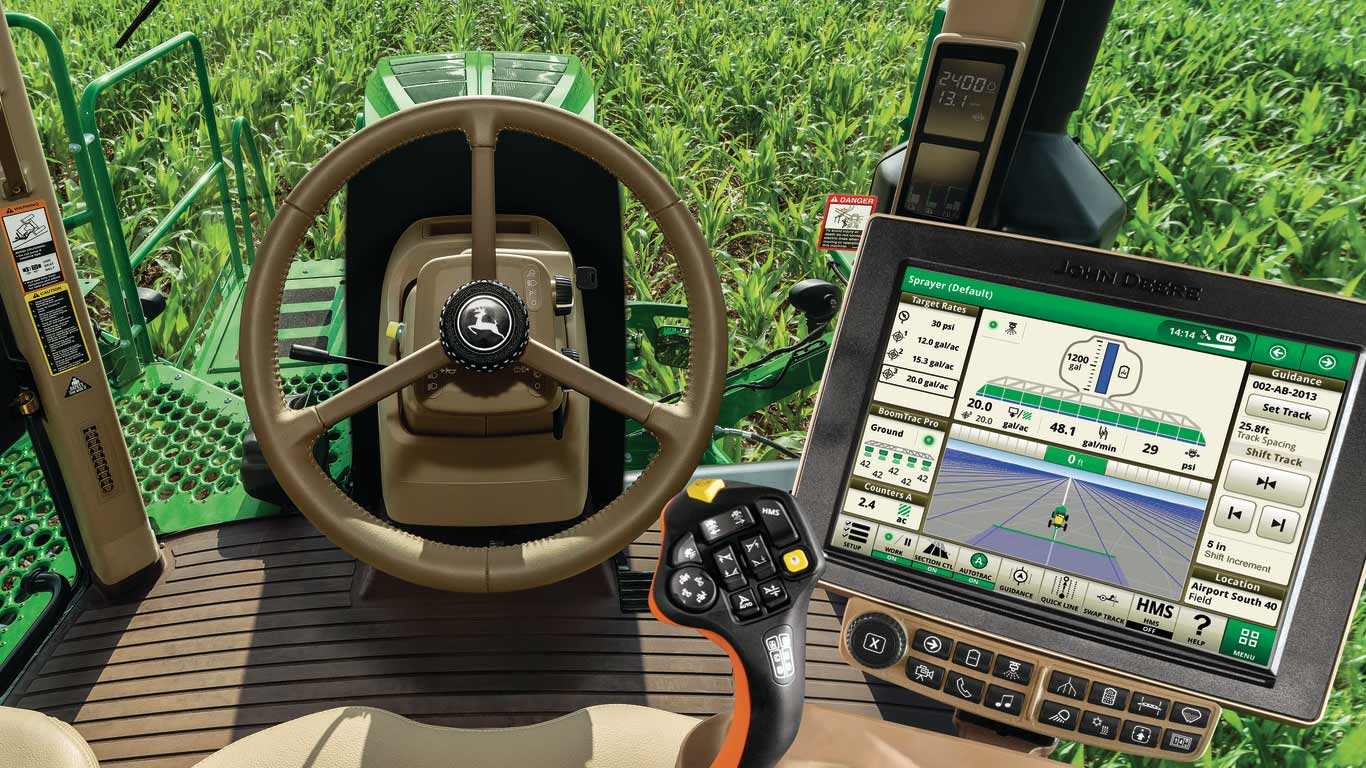

Precision Ag Technology

John Deere's fully integrated technologies give you the best data management, guidance, variable rate applications and more.

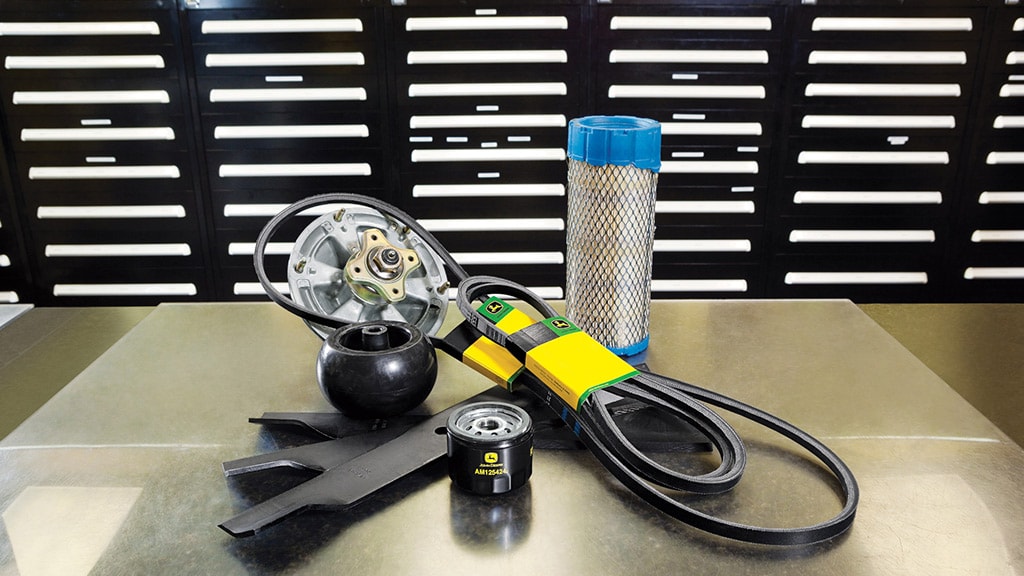

display of machine parts

Parts

Find the new nozzles, sprayer parts, Express Boom Assembly, mobile apps and more.

close up of a tractor grill

Used Equipment

Search the inventory of thousands of dealers across the country for used sprayers and more.

sprayer in a field

a

ApplyPlus™ Mobile App for Sprayers

The ApplyPlus™ App for John Deere 4 Series Sprayers helps you with proper setup and maintenance. Right from your phone or tablet, you can select and buy nozzles, calculate tank mix, calculate pump rate capacity for Direct Injection, and more!
