In 1837, field preparation would forever change, thanks to our founder’s self-scouring plow. Today, we continue to innovate and lead in those same fields, with the industry’s most complete tillage line. It is our birthright. But more importantly, it is our passion. And we vow to bring you the best tools to prepare your fields with. Because a successful growing season for you means the world to us.

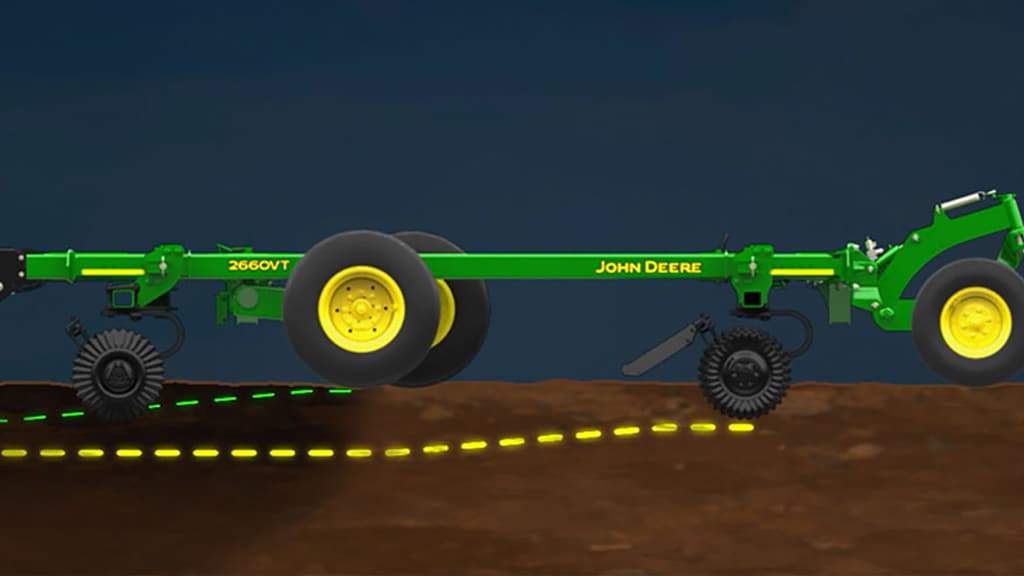

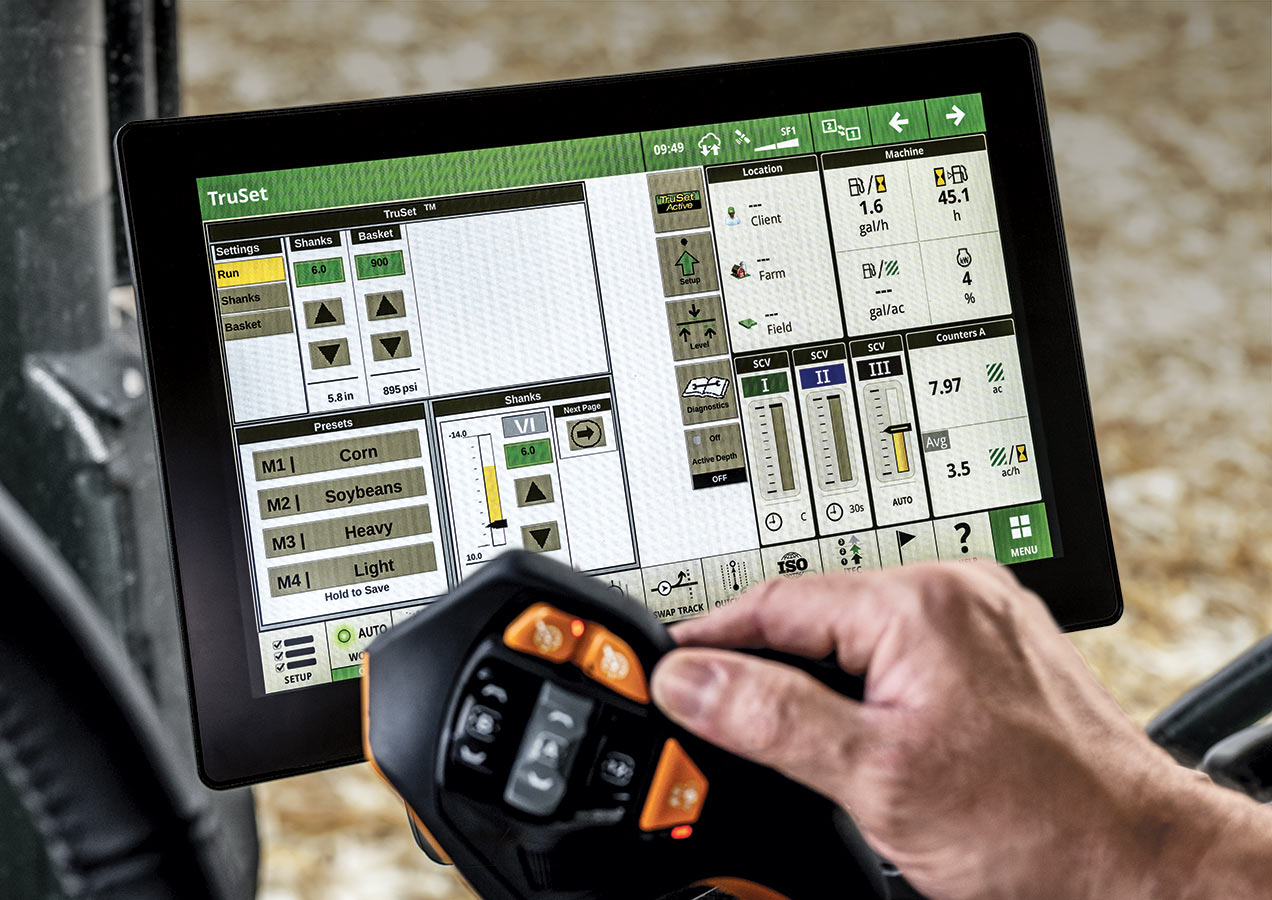

Make on-the-go adjustments with TruSet
Spend more time tilling and less time making adjustments using TruSet with your equipment. Make adjustments on-the-go and from the cab in only seconds, and execute prescriptions and document the tillage operation. Available factory-installed on new equipment, or as a Performance Upgrade Kit for many current tillage tools.
Models | Working Depth | Working Speed | Required HP (PTO)/FT | Spacing Option | Residue Conditions | Depth Control |
---|---|---|---|---|---|---|
up to 5 in (127 mm) |
6 to 10 mph (10 to 16 km/h) |
8-12 (19.6-29.4 kw/m) |
6 in (152 mm) split-the-middle / 9 in (229 mm) / S-tine 4.5 in (114 mm) |
light/medium |
TruSet/Single-point |
|
up to 5 in (127 mm) |
6 to 10 mph (10 to 16 km/h) |
8-12 (19.6-29.4 kw/m) |
6 in (152 mm) split-the-middle / 9 in (229 mm) / S-tine 4.5 in (114 mm) |
light/medium |
TruSet/Single-point |
|
up to 6 in (152 mm) |
6 to 10 mph (10 to 16 km/h) |
10-14 (24.5-34.2 kw/m) |
9 in (229 mm) split-the-middle |
N/A |
TruSet/Single-point |
From planning to harvest, you can count on John Deere tillage tools to build the foundation that next year's yields will stand upon.
Models | Working Depth | Working Speed | Required HP (Engine)/FT | Weight /blade | Residue Conditions | Depth Control |
---|---|---|---|---|---|---|
3.5 in (88.9 mm) |
8 to 10 mph (13 - 16 km/h) |
10-14/ft. (24.5 - 34.25 kw/m) |
Estimated Avg 260 lbs (118 kg) |
light/medium/heavy |
TruSet/Single Point |
|
up to 3 in (76 mm) |
7 to 10 mph (11.4-16 km/h) |
8.5 to 11 (20.8-26.95 kw/m) |
197 lbs to 227 lbs (89.4-103 kg) |
light/medium/heavy |
TruSet/Single point |
|
2-6 inches (51-152 mm) |
10 to 14 mph (16-22.5 km/h) |
11-15/ft. (26.9-36.7 kw/m) |
A210 - 380 lbs (95.25-172.4 kg)* |
light/medium/heavy |
Easy to set shims |
|
up to 5 in (127 mm) |
5 to 7 mph (8-11.3 km/h) |
7 to 11 (17.15-26.95 kw/m) |
179 lbs to 209 lbs (81.2-94.8 kg) |
light/medium |
TruSet/Single-point |
|
up to 6 in (152 mm) |
5 to 7 mph (8-11.3 km/h) |
7 to 11 (17.15-26.95 kw/m) |
201 lbs to 243 lbs (91.2-110.2 kg) |
light/medium/heavy |
TruSet/Single-point |
|
up to 8 in (203 mm) |
5 to 7 mph (8-11.3 km/h) |
9 to 12 (22.05-29.4 kw/m) |
280 lbs to 286 lbs (127-129.7 kg) |
medium/heavy |
TruSet/Single-point |
Models | Working Depth | Working Speed | Required HP (PTO)/FT | Residue Management | Residue Conditions | Depth Control |
---|---|---|---|---|---|---|
up to 16 in (406 mm) |
5 to 6 mph (8-9.7 km/h) |
35 to 55 (26.1-41 kW)/ standard |
fracture/size/ mix/bury |
Heavy |
Single-point |
|
up to 16 in (406 mm) |
5 mph (8 km/h) |
335 to 620 * (250-462.5 kW) |
fracture/size/ mix/bury |
Heavy |
TruSet/Single-point |
|
up to 16 in (406 mm) |
5 mph (8 km/h) |
30 to 40 / standard (22.3-29.8 kW) |
fracture |
Light/medium/heavy |
3pt hitch |
|
up to 23 in (584 mm) |
5 mph (8 km/h) |
75 to 150 PTO HP Tractor* (56.5-113 kW) |
fracture |
medium/heavy |
gauge wheels |
|
up to 23 in (584 mm) |
5 mph (8 km/h) |
up to 360 PTO HP Tractor* (up to 268 kW) |
fracture |
medium/heavy |
gauge wheels |
* dependent on mainframe size, # of shanks, see dealer for details
Models | Working Depth | Working Speed | Required HP (PTO) | Residue Management | Residue Conditions | Depth Control |
---|---|---|---|---|---|---|
up to 12 in (306 mm) |
5 to 7 mph (8-11.3 km/h) |
6 to 14 HP/FT (4.5-10.4 kW) |
fracture/mix |
medium/heavy |
3pt hitch |
|
up to 12 in (306 mm) |
5 to 7 mph (8-11.3 km/h) |
7 to 14 HP/FT (4.5-10.4 kW) |
fracture/mix |
medium/heavy |
TruSet/Single-point |

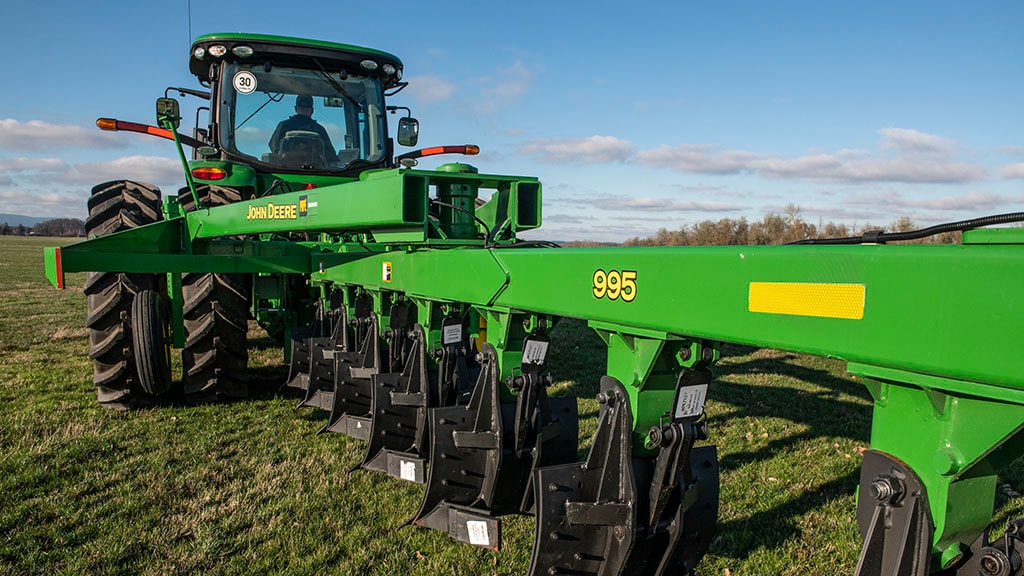

Models | Working Depth | Working Speed | Required HP (PTO) | # of bottoms | Residue Conditions | Depth Control |
---|---|---|---|---|---|---|
up to 14 in (356 mm) |
5 mph (8 km/h) |
22 to 35 (16.4-26.1 kW)PTO HP/bottom |
3, 4, or 5 |
medium/heavy |
gauge wheels |
|
up to 14 in (356 mm) |
5 mph (8 km/h) |
23 to 35 (16.4-26.1 kW)PTO HP/bottom |
5, 6, or 7 |
medium/heavy |
gauge wheels |
|
up to 14 in (356 mm) |
5 mph (8 km/h) |
235 (175.3 kW)PTO HP minimum |
6, 7, 8, 9 or 10 |
light/medium/heavy |
gauge wheels |
Models | Working Depth | Working Speed | Required HP (PTO) | Residue Management | Residue Conditions | Depth Control |
---|---|---|---|---|---|---|
up to 12 in (306 mm) |
5 to 7 mph (8-11.3 km/h) |
12 to 20 (9-15 kW)/ standard |
fracture/size/bury |
medium/heavy |
Single-point |
Eliminate standing water. Rip tree roots along a fence line so your pasture isn't deprived of precious water. Break up tough, compacted soil, giving your garden or crop a chance to really grow.
Model | Number of Shanks | Working Depth | PTO HP | Hitch |
---|---|---|---|---|
1 |
14 - 18 in. (35.6 - 45.7 cm) |
25 - 60 hp (18.6 - 44.7 kW) |
Cat. 1 and 2 |
|
2 |
14 - 18 in. (35.6 - 45.7 cm) |
50 - 110 hp (37.2 - 82 kW) |
Cat. 2 |
|
3 |
14 - 18 in. (35.6 - 45.7 cm) |
75 - 110 hp (55.9 - 82 kW) |
Cat. 2 |

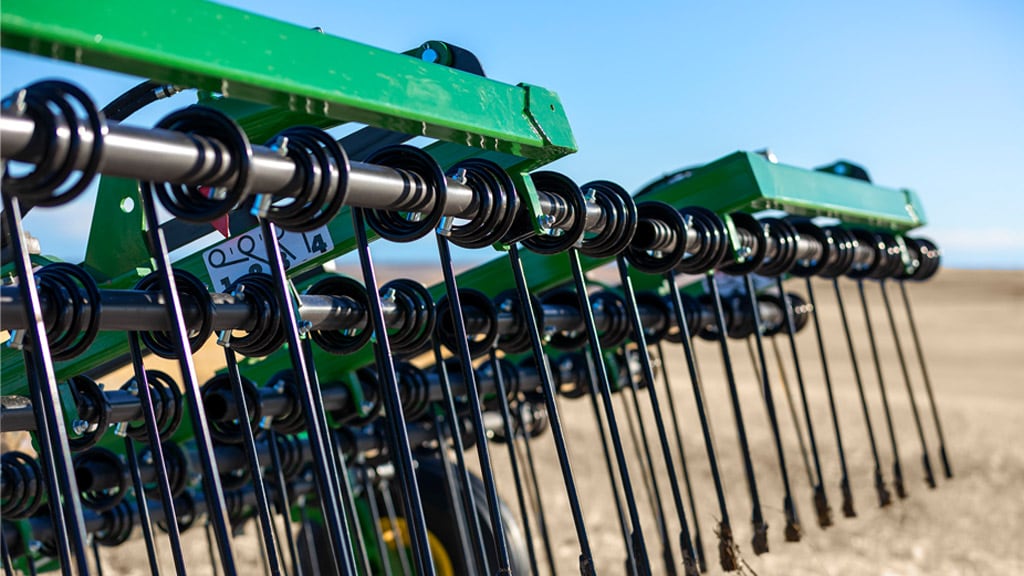

Models | Engine Horsepower | Harrow Sections | Tine Size | Tine Spacing | Working Width |
---|---|---|---|---|---|
HH50 |
285 - 325
|
5 |
5 bar: 26-in. (66 cm) by 5/8-in.(1.5 cm) |
5 bar: 18-in. (46 cm) centers |
50 ft. (15 m) |
HH70 |
5 bar: 200 - 300 |
7 |
5 bar: 26-in. (66 cm) by 5/8-in.(1.5 cm) |
5 bar: 18-in. (46 cm) centers |
70 ft. (21 m) |
HH82 |
5 bar: 300 - 350 |
9 |
5 bar: 26-in. (66 cm) by 5/8-in.(1.5 cm) |
5 bar: 18-in. (46 cm) centers |
82 ft. (25 m) |

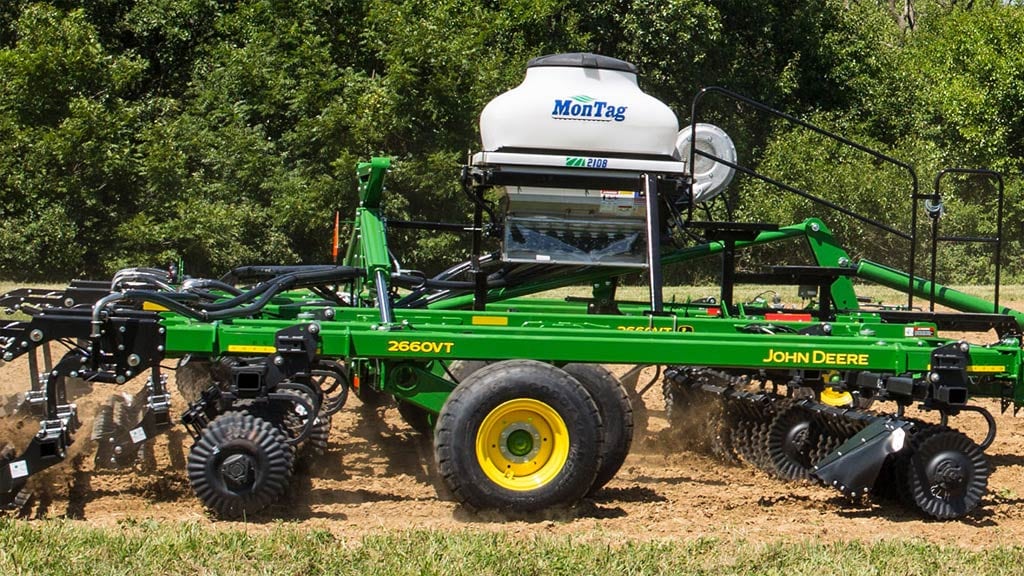

Now your 2660VT can broadcast dry material without pulling additional tanks or carts. Introducing the new cover crop seeder for the 2660VT from MonTag Mfg. The metering system fits conveniently onto the frame of the 30-foot 3-inch 2660VT without sacrificing any transport dimensions. Using MonTag’s metering system and controlled with only one additional SCV, tank sizes of 30 or 50 cubic feet give you the ability to apply up to 500 lb (227 kg) per acre of dry material.
The broadest portfolio in our history.
Customize your new John Deere Tillage equipment for your unique needs with options, attachments, and accessories.
Data matters, now more than ever. That’s why we built Operations Center – the industry’s leading cloud-based farm management system. Securely collect, organize, and analyze your ag data… and view or share it with trusted advisors anytime, anyplace. When improving yields and profits matter, only Operations Center brings your connected machines together so you can Gain Ground every season, every field, every pass.
