John Deere Forwarder Hauling Wood

Forwarders

ModelLoad RatingBoom ReachEngine PowerTractive EffortGross Lifting TorqueGross Slewing Torque

9 tonne (9.9 ton)

7.2 m (23.6 ft.) / 8.7 m (28.5 ft.) / 9.8 m (32.2 ft.)

95 KW (127 hp)

110 kN (24,729 lb.)

76 kNm (56,054.56 lb.-ft.)

19 kNm (14,013.64 lb.-ft.)

11 tonne (12.1 ton)

7.2 m (23.6 ft.) / 8.5 m (27.9 ft.) / 10.0 m (32.8 ft.)

115.5 kW (155 hp) at 1,900 rpm

150 kN (33,721 lb.)

102 kNm (75,235 lb.-ft.)

24 kNm (17,700 lb.-ft.)

12 tonne (13.2 ton)

7.2 m (23.6 ft.) / 8.5 m (27.9 ft.) / 10.0 m (32.8 ft.)

136 kW (183 hp) at 1,900 rpm

160 kN (35,970 lb.)

102 kNm (75,235 lb.-ft.)

24 kNm (17,700 lb.-ft.)

13 tonne (14.3 ton)

7.2 m (23.6 ft.) / 8.5 m (27.9 ft.) / 10.0 m (32.8 ft.)

145 kW (195 hp) at 1,900 rpm

175 kN (39,340 lb.)

125 kNm (92,195 lb.-ft.)

32 kNm (23,602 lb.-ft.)

15 tonne (16.5 ton)

7.2 m (23.6 ft.) / 8.5 m (27.9 ft.) / 10.0 m (32.8 ft.)

145 kW (195 hp)

185 kN (41,589 lb.)

125 kNm (92,195 lb.-ft.)

2 kNm (23,602 lb.-ft.)

9 tonne (20.9 ton)

7.2 m (23.6 ft.) / 8.5 m (27.9 ft.)

86 kW (249 hp)

220 kN (49,458 lb.)

151 kNm (111,372 lb.-ft.)

41 kNm (30,240 lb.-ft.)

Features

TimberMatic™ H-16 Control System

Timbermatic H-16 provides reliable, efficient control of all forwarder functions, for more precise, quicker boom movements and greater productivity.

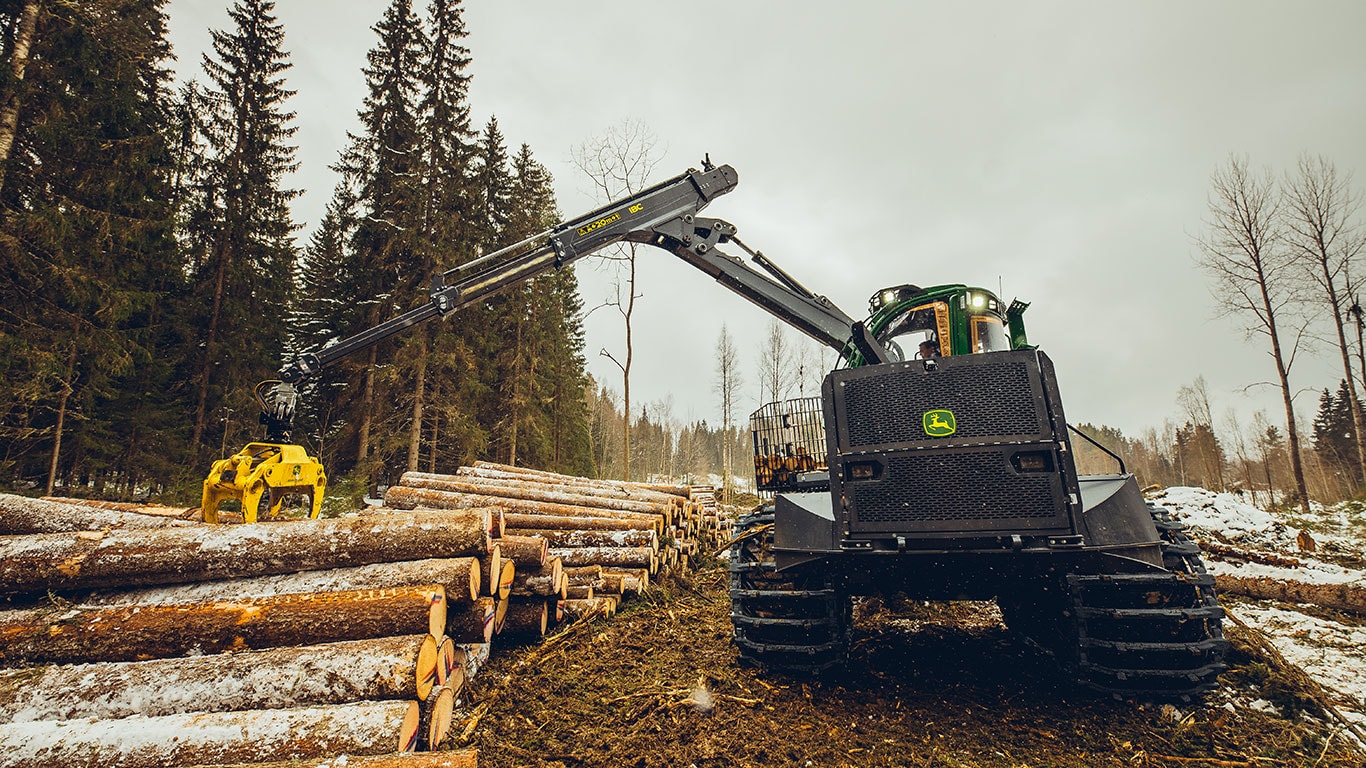

Intelligent Boom Control

Optional intelligent boom control (IBC) allows the operator to direct the reach and height of the boom tip parallel to the ground.

*Not available on all models.

Rotating Cab Option

The rotating cab turns 290 degrees, providing a 360-degree view and gives a superior vision to the tires and surrounding area close to the machine.

Rotating & Leveling Cab Option

The rotating and leveling cab option turns 290 degrees, providing a 360-degree view of the machine's surroundings and boom movements for safe, efficient log loading.

Fixed Cab Option

The new fixed cabin is a durable, cost-effective alternative to the rotating and leveling cabin options, yet still delivers unmatched comfort and visibility for a fixed or standard cabin equipped machine.

A Tablet featuring JDLink sits next to a smartphone featuring JDLink

JDLink™ Telematics

JDLink, the core component of John Deere ForestSight™, enables you to manage your entire fleet from your desktop or mobile device and gives you anytime remote access to machine hours and location, fuel consumption, idle time, maintenance reminders, and more.
