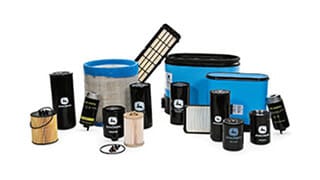

Oil, Filter, Grease, and Coolants
One engine oil on the farm. In the field. On the highway.
You're in the right place to learn about John Deere Plus-50™ II Engine Oil – including our brand new line of SAE 5W-40. Check out how Plus-50™II oil is specially formulated to keep engines running smoothly and efficiently. In tractors. In trucks. In utility vehicles. In pickups. In the field and on the highway. It's the one engine oil to use on your farm.
Topics
- Oil
- Grease, Grease Guns, and Accessories
- Coolants

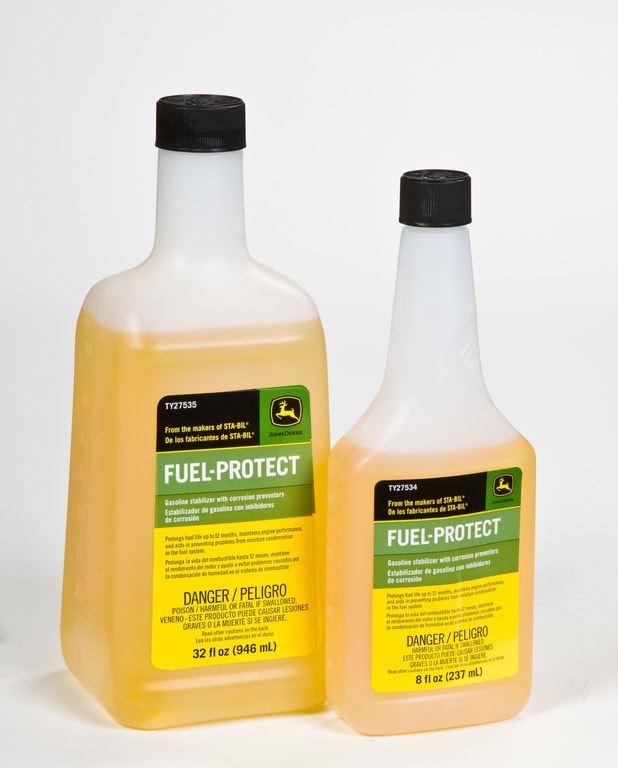

- Fuel Solutions

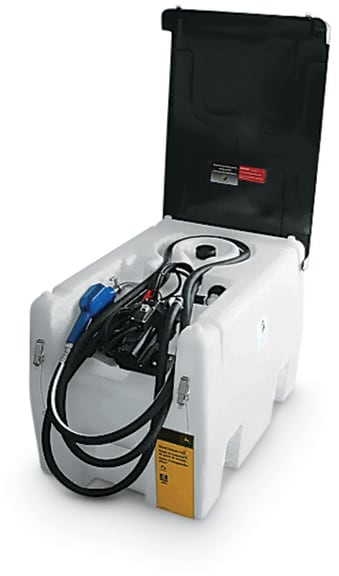

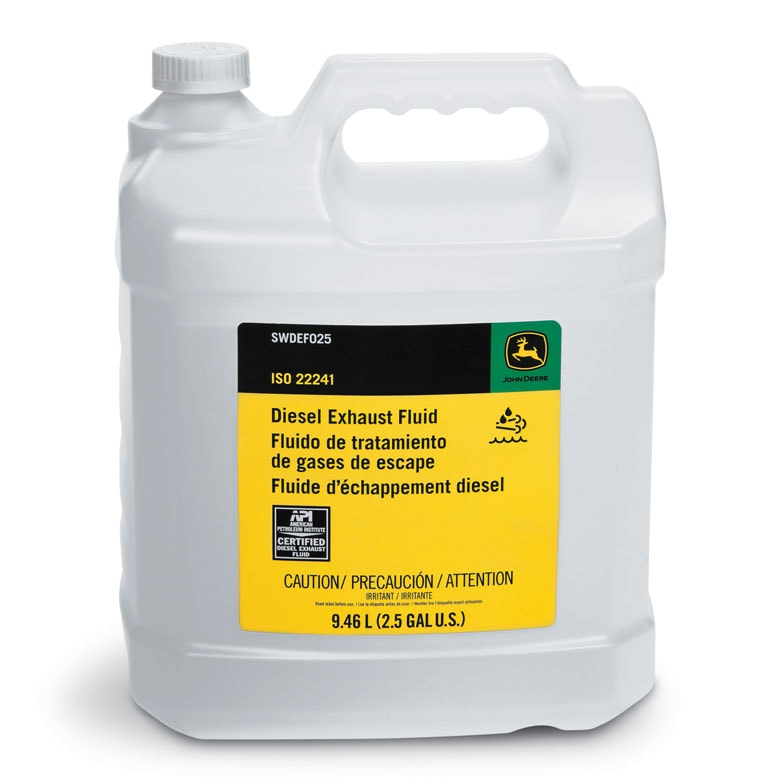

- Diesel Exhaust Fluid and Supporting Equipment
Oil

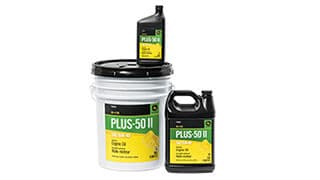

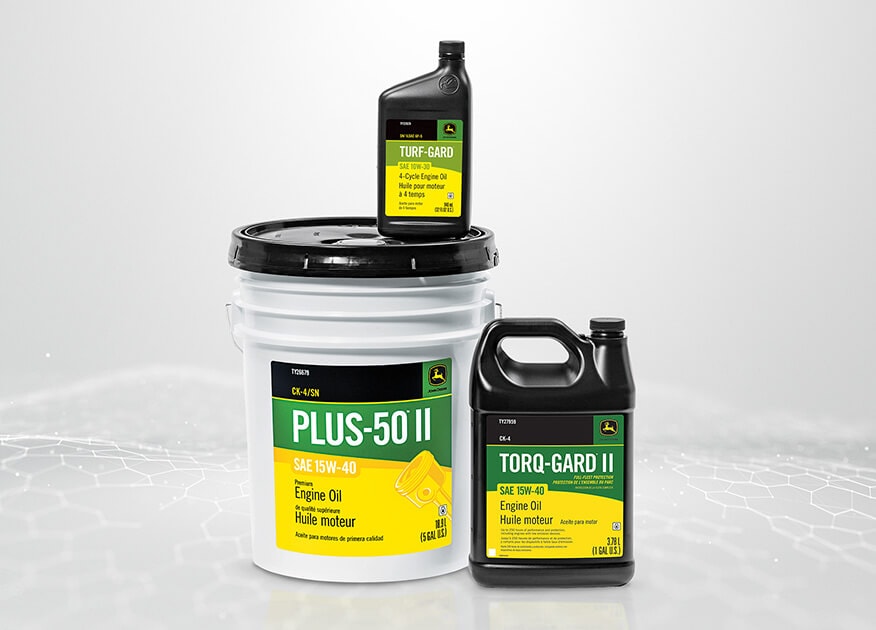

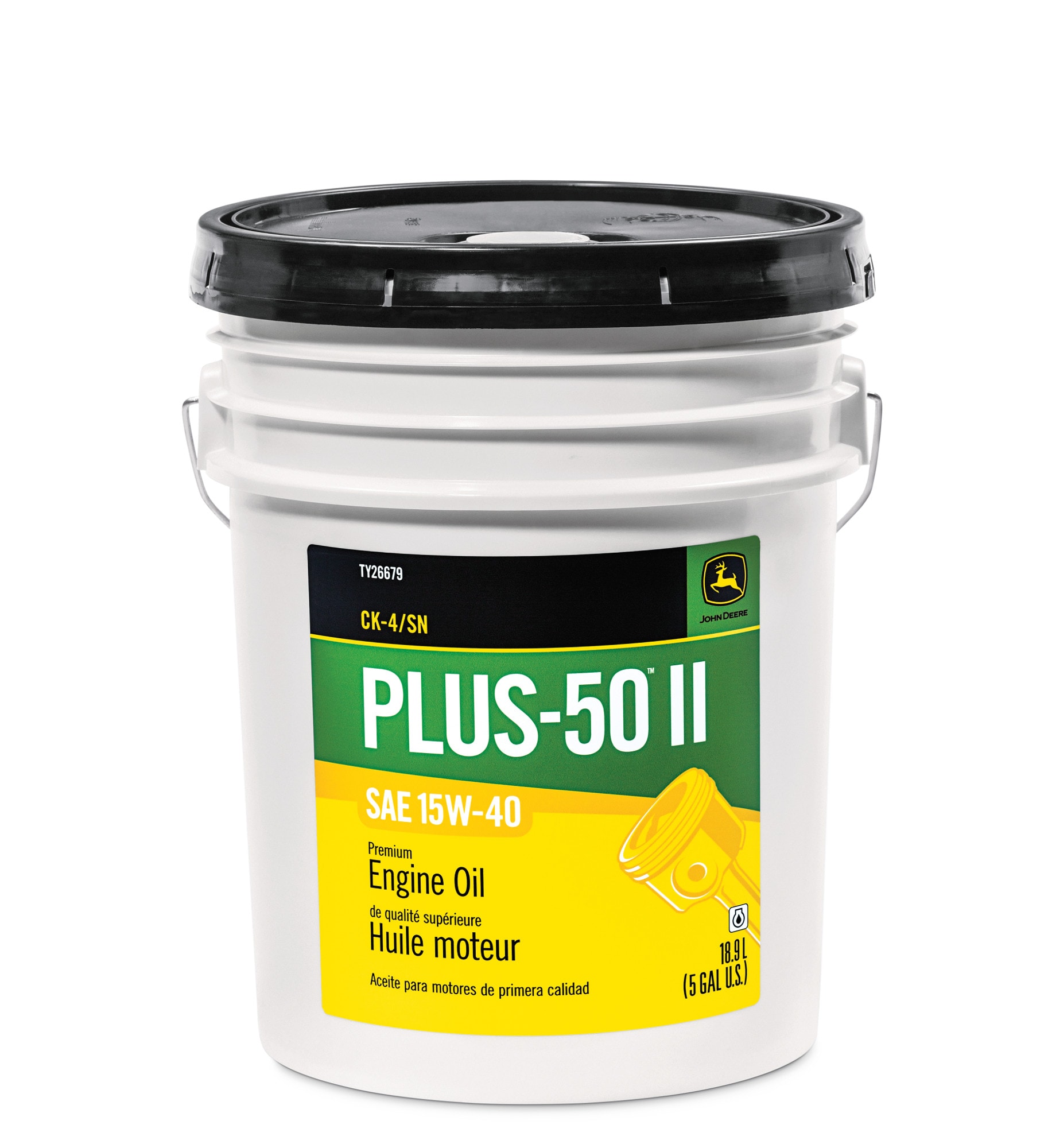

Plus-50™ II Premium Engine Oil
- Designed and tested by John Deere engineers.
- Recommended by engineers who design, develop, and test John Deere engines.
- Formulated to perform up to 500 hours in your John Deere engine*.
- Reduces downtime.
- Next generation low ash CK-4 formula.
- Meets performance and emission requirements for all four-stroke diesel engines.
- Supports engines with diesel particulate filters, including 2007 and newer on-highway vehicles.
- Backward compatible for all current applications.
- So good it's guaranteed (view oil warranty).
- Available in 15W-40, 10W-30, 5W-40, and full synthetic 0W-40.
- Increased drain intervals when used with John Deere fluids.
For more details on service ratings, features, and warranty information, contact your dealer today.
*See dealer for details

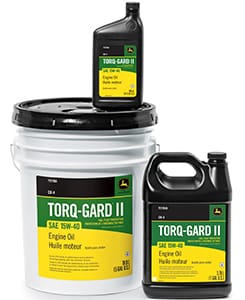

Torq-Gard™ Engine Oil
- Reduces corrosion
- Controls sludge for a cleaner engine
- Low-temp fluidity for reduced engine startup wear
APPLICATIONS:
SAE 15W-40 with API CI-4 PLUS / SL
Recommended for both diesel and gasoline engines in all types of service; ideal for mixed commercial fleets.
SAE 10W-30 with API CI-4 PLUS / SL
Premium quality recommended for both diesel and gasoline engines in all types of service; ideal for mixed commercial fleets.
SAE 5W-30 with API CI-4 / SL
High-performance oil that offers maximum protection for diesel and gasoline engines where excellent low-temperature, pump-ability is required.
SAE 30 with API CF / SL
Recommended for all diesels and gasoline engines with superior resistance to wear, oxidation and deposit characteristics.
Break-In™ Plus Engine Oil
- Designed for new, rebuilt, or remanufactured engines.
- Formulated to provide a controlled environment for establishing a good wear pattern along with protection on piston rings, cylinder liners, valve train and gears for maximum performance and extended engine life.
- Meets the oil requirements for Tier 4 engines and supports legacy engines.
- Maximum service interval is the same service-interval recommendation for Plus-50 II (up to 500 hours).*
Product Availability
|
PART # |
SIZE |
|
TY26661 |
3.78L (1 gal) |
|
TY26663 |
18.9L (5 gal) |
*Always follow Operator's Manual.
Turf-Gard™ Multi-Viscosity 4-Cycle Motor Oil
- Recommended for lawn and garden tractors, riding mowers, walk-behind mowers, edgers, generators and other outdoor equipment with four-cycle gasoline engines.
- Protects all-year long, providing rapid circulation in both hot and cold weather.
- Keeps engines clean while protecting against wear.
- Meets ILSAC GF-6A "Energy Conservation Classification" for improved fuel economy.
- Multiple viscosity grades produce rapid oil circulation in both cold and hot weather.
- Available in SAE 10W-30 and SAE 5W-30.
Product Availability
|
PART # |
DESCRIPTION |
SIZE |
|
TY25121 |
5W-30 |
946mL (1 qt) |
|
TY22029 |
10W-30 |
946mL (1 qt) |
|
TY22076 |
10W-30 |
9.46L (2.5 gal) |
|
TY25121 |
10W-30 |
208L (55 gal) |
For more details on service ratings, features, and warranty information, contact your dealer today.

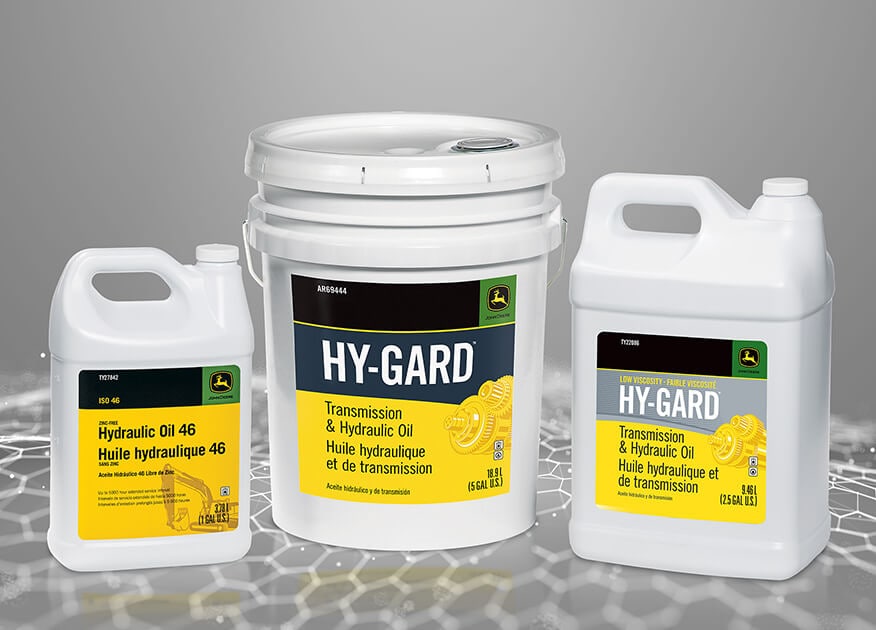

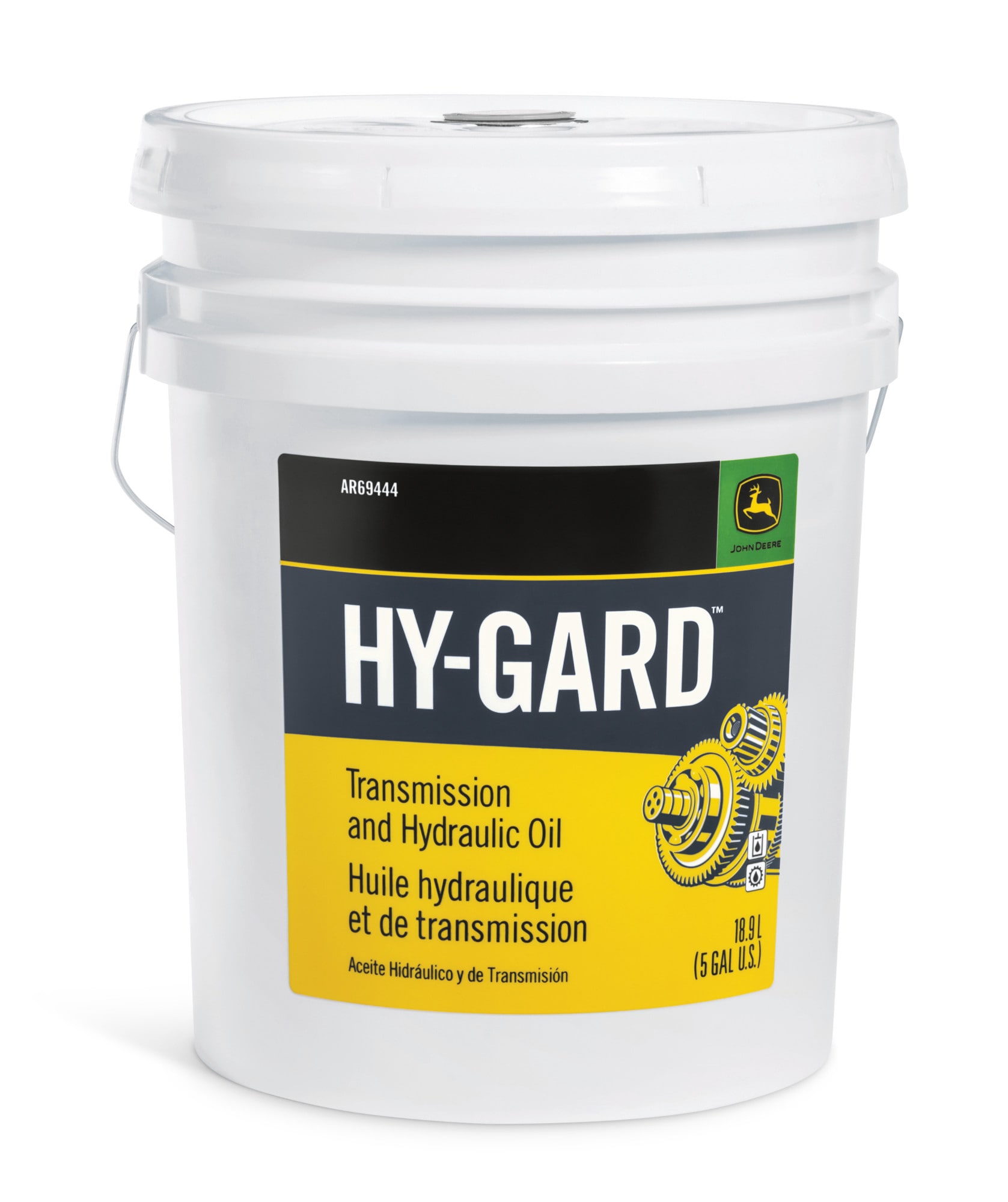

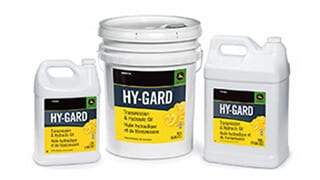

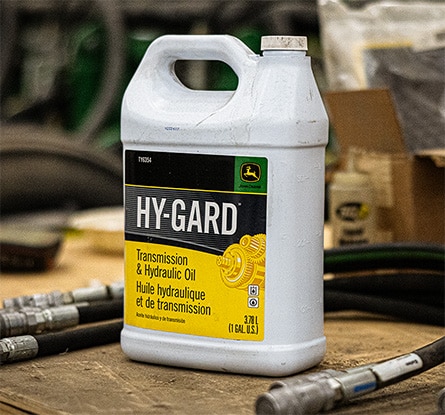

Hy-Gard™ Transmission and Hydraulic Oil
- Recommended for equipment with common system reservoirs or separate transmissions, wet clutches, brakes, and hydraulic systems.
- Provides superior protection to enhance cost savings for your equipment.
- Viscosity between ISO grades of 46 and 68 at 104°F (40°C).
- Works well in all temperatures.
- Meets John Deere established JDM J20 specifications for maximum THF performance.
- Provides protection against rust and corrosion.
- Withstands extreme pressures in hydraulic system without breaking down.
- Prevents formation of deposits, foam and water damage to all internal parts.
- Proper friction provided for brakes to ensure low chatter, long life, and high capacity.
APPLICATIONS: 5W-30, 10W-30 and all applications calling for JDM J20C
For more details on service ratings, features, and warranty information, contact your dealer today.
Bio Hy-Gard™ II Transmission and Hydrualic Oil
- Formulated for multi-functional systems including transmissions, axles, hydraulics, wet brakes, and wet clutches.
- 94% Biodegradable and eco-friendly.
- Made with canola.
- 100 percent compatible with petroleum oils.
- Will not harm grass or soil if it's leaked or spilled.
APPLICATIONS:
Forestry, turf care (golf courses/cemetaries), construction, city services (garbage collection/street services), waterway operations, orchards, and farming operations
Product Availability
|
PART # |
SIZE |
|
TY26252 |
18.9L (5 gal) |
|
TY22063 |
208L (55 gal) |

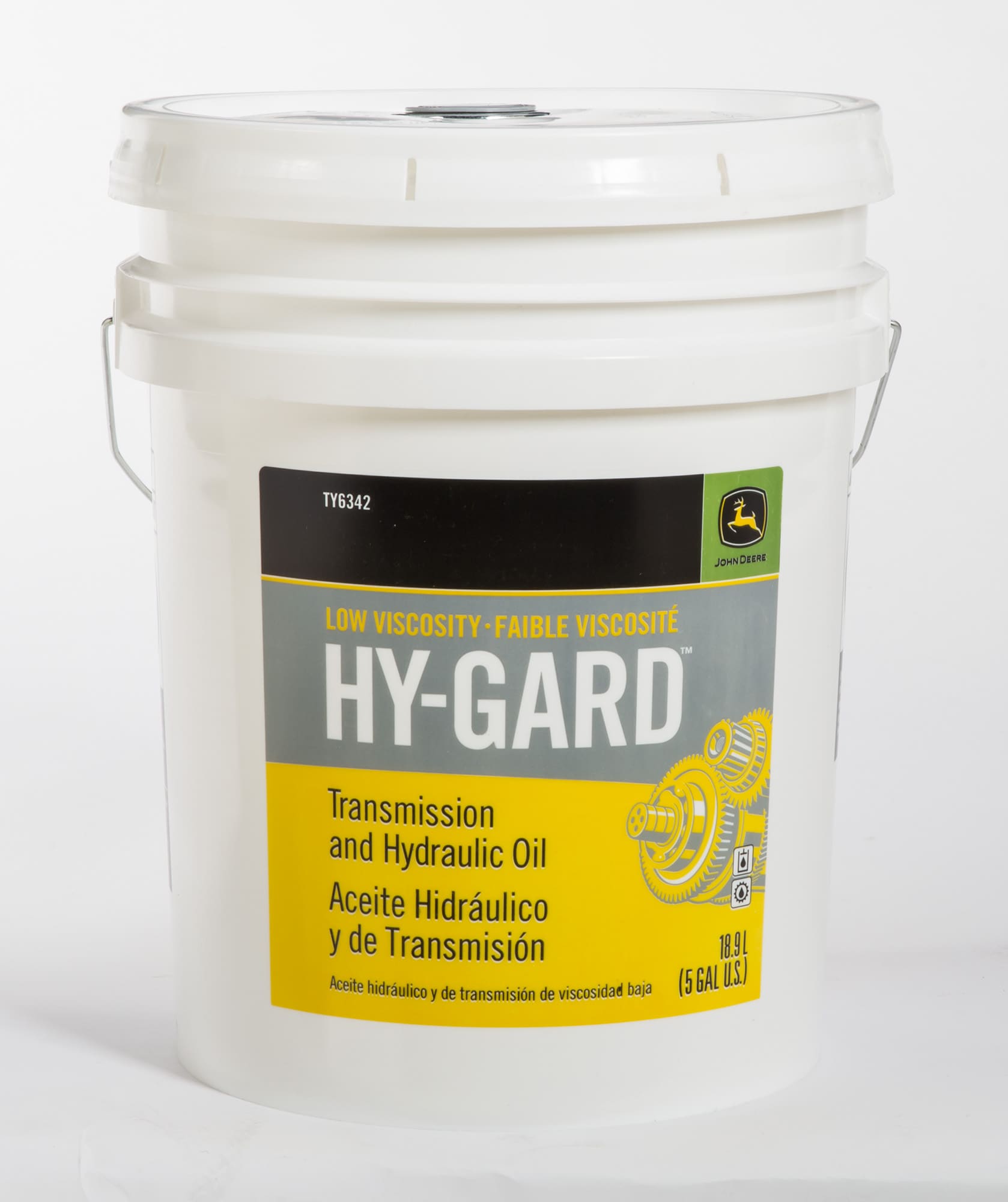

Low-Viscosity Hy-Gard™ Transmission and Hydraulic Oil
- Perfect for cold-region use.
- A direct replacement for all-weather hydrostatic oil.
- ISO 32 viscosity grade.
- Formulated for use in all applications calling for JDM J20D.
Product Availability
|
PART # |
SIZE |
|
TY22035 |
946mL (1 qt) |
|
TY22000 |
3.78L (1 gal) |
|
TY22086 |
9.46L (2.5 gal) |
|
TY6342 |
5 gal (18.9L) |
|
TY6344 |
208L (55 gal) |
|
TY27707 |
1041L (275 gal) |
Hydrau™ Hydraulic Oil
- Approved for use in hydraulic and hydrostatic systems of construction and forestry equipment.
- All-season capability in ambient temperatures of -13°F (-25°C) to 122°F (50°C).
- Factory fill fluid.
- Exceptional anti-wear performance over the life of the fluid.
- Protects against rust and corrosion.
Product Availability
|
PART # |
SIZE |
|
TY27827 |
3.78L (1 gal) |
|
TY27366 |
9.46L (2.5 gal) |
|
TY27367 |
18.9L (5 gal) |
|
TY27368 |
208L (55 gal) |
|
TY27369 |
1041L (275 gal) |
For more details on service ratings, features, and warranty information, contact your dealer today.
Hydrau™ XR Hydraulic Oil
- Approved for use in hydraulic and hydrostatic systems of construction and forestry equipment.
- All-season capability in ambient temperatures of -40°F (-40°C) to 104°F (40°C).
- Exceptional anti-wear performance over the life of the fluid.
- Protects against rust and corrosion.
Product Availability
|
PART # |
SIZE |
|
TY27828 |
3.78L (1 gal) |
|
TY27318 |
5 gal (18.9L) |
|
TY27319 |
208L (55 gal) |
|
TY27735 |
1041L (275 gal) |
For more details on service ratings, features, and warranty information, contact your dealer today.

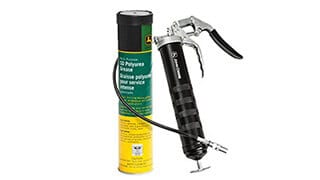

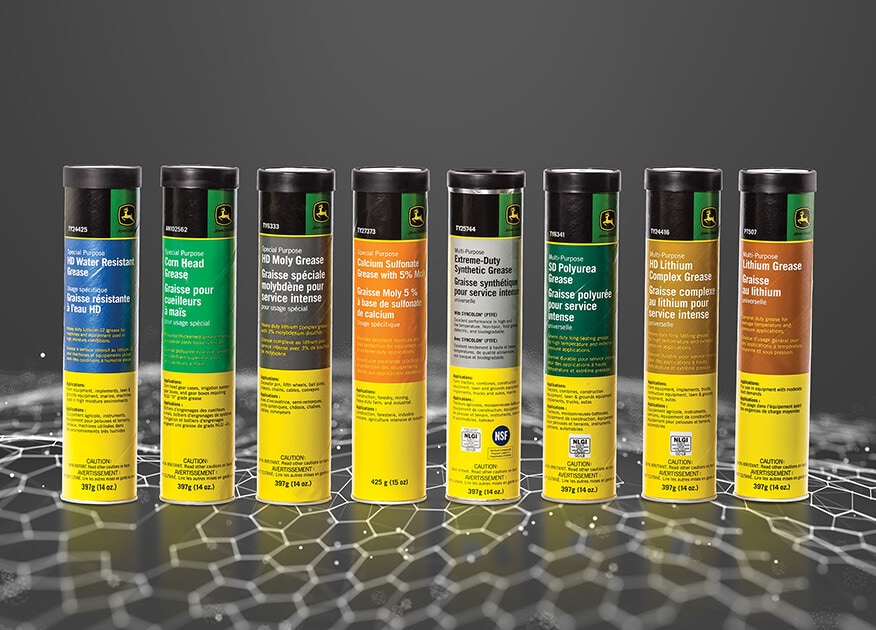

Grease, Grease Guns, and Accessories
Multi-Purpose SD Polyurea Grease
- John Deere's best multi-purpose grease.
- Top-notch protection against high temperatures and extreme pressure.
- Ideal for wheel bearings, U-joints, and other grease points that need heavy-duty protection.
Best Temperature Performance: -26 to 193° C (-15 to 380° F)
NLGI Grade 2 & GC-LB
Product Availability
|
PART # |
SIZE |
|
CXTY24419 |
85g (3 oz) |
|
TY6341 |
397g (14 oz) |
|
TY24421 |
15.88 kg (35 lb pail) |
|
TY24422 |
54.43 kg (120 lb keg) |
Multi-Purpose Extreme Duty Synthetic Grease
- Synthetic with Teflon™; no silicone
- Food-grade, non-toxic, and odorless
- Repels dirt, dust, and grime
- Prevents rust and corrosion
Best Temperature Performance: -42.7 to 232° C (-45 to 450° F)
NLGI Grade 2 & GC-LB | Food Grade NSF H-1 Registered
Product Availability
|
PART # |
SIZE |
|
TY25744 |
397g (14 oz) |
Multi-Purpose HD Lithium Complex
- High-quality protection for wheel bearings, U-joints, and other grease points where lithium grease is recommended.
- For use in high-temperature and extreme-pressure conditions.
- Formulated to prevent corrosion ad water washout.
Best Temperature Performance: -26 to 177° C (-15 to 350° F)
NLGI Grade 2 & NLGI GC-LB
Product Availability
|
PART # |
SIZE |
|
TY24416 |
397g (14 oz) |
|
TY24417 |
15.88 kg (35 lb pail) |
|
TY24418 |
54.43 kg (120 lb keg) |
Multi-Purpose Lithium Grease
- Ideal for all-season, general purpose use.
- Excellent performance in light- to medium-duty applications.
- High quality rating for light- to medium-duty wheel bearings and U-joints.
Best Temperature Performance: -34 to 143° C (-30 to 290° F)
NLGI Grade 2
Product Availability
|
PART # |
SIZE |
|
PT507 |
397g (14 oz) |
|
PT575 |
15.88 kg (35 lb pail) |
Corn Head Grease
- Thins to gear oil when working; thickens to grease when resting.
- Factory fill for all John Deere corn heads.
- Resists moisture and water washout.
- For high- and low-temperature applications.
Best Temperature Performance: -34 to 165° C (-30 to 330° F)
NLGI Grade 0
Product Availability
|
PART # |
SIZE |
|
AN102562 |
397g (14 oz) |
|
AH80490 |
15.88 kg (35 lb pail) |
|
TY24428 |
54.43 kg (120 lb keg) |
Heavy-Duty Water-Resistant Grease
- For use in lawn and grounds care equipment, agricultural, industrial and marine applications.
- Exceptional performance in extremely high-moisture operating conditions.
Best Temperature Performance: -18 to 143° C (0 to 290° F)
NLGI Grade 2
Product Availability
|
PART # |
SIZE |
|
TY24425 |
14 oz |
|
TY24427 |
35 lb pail |
Heavy-Duty 3% Moly Grease
- For use in construction, mining and heavy industrial equipment.
- Protects against extreme pressure.
- Contains 3% Moly to smooth rough spots when under sliding pressure.
Best Temperature Performance: -23 to 177° C (-10 to 350° F)
NLGI Grade 2
Product Availability
|
PART # |
SIZE |
|
TY6333 |
397g (14 oz) |
|
TY22017 |
15.88 kg (35 lb pail) |
|
TY24502 |
54.43 kg (120 lb keg) |
Calcium Sulfonate 5% Moly
- For use in construction, mining, heavy industrial equipment, high-temperature and extreme-pressure conditions.
- Extreme protection provided for pin & bushing, metal-to-metal contact and sliding pressures.
- Not recommended for high-speed bearings.
Best Temperature Performance: -35 to 149° C (-25 to 300° F)
NLGI Grade 2
Product Availability
|
PART # |
SIZE |
|
TY27373 |
425g (15 oz) |
|
TY27372 |
15.88 kg (35 lb pail) |
|
TY27370 |
54.43 kg (120 lb pail) |
|
TY27371 |
181.44 kg (400 lb drum) |
14.4V battery powered grease gun
- High-torque 14.4V (1,900 mAh) motor
- Two battery packs
- High-capacity 14.4V NiCd battery (1,900 mAh)
- Chrome-plated barrel with patented Automatic Universal Follower
- High-pressure delivery: 10,000 PSI (68,948 kPa) 10 tubes of grease per charge (with 1,000 PSI [6,895 kPa] back pressure)
- Part #TY26699
12V battery powered grease gun
- Two heavy-duty 12V (1700 mAh) NiCad batteries standard
- High pressure delivery — 6,500 PSI (44,816 kPa)
- Rapid flow rate — 5.5 oz (156 mL) per minute
- 6 tubes of grease per charge (with 1,000 PSI [6,895 kPa] backpressure)
- High-pressure delivery: 10,000 PSI (68,948 kPa)
- 10 tubes of grease per charge
- Part #TY26698
Heavy-duty silver grease guns
- Pistol-grip gun dual-leverage design allows choice between high-pressure or high-volume output
- Develops 7,500 PSI (51,711 kPa)
- Part #TY26689
Heavy-duty silver grease guns
- Lever action gun
- Develops 10,000 PSI (68,948 kPa)
- Part #TY26288
John Deere green grease guns — Pistol-grip gun
- 5,000 PSI (34,474 kPa) without deformation
- Part #TY26517
John Deere green grease guns — Lever action gun
- Pressures up to 10,000 PSI (68,948 kPa)
- Part # TY26518
Air-operated, continuous-flow grease gun
- Delivery 60 oz. (1.75 L) per each 40 strokes
- Maximum 4,000 PSI (27,579 kPa)
- Part # TY26519
Mini-grease gun with two 3-oz. (89 mL) grease cartridges
- Part #TY26200
Universal Grease Gun Bracket
- A universal bracket compatible to most makes and models of lever- and pistol-grip-action grease guns and the Deere battery-operated grease guns
- Part #TY26844
7-Piece Quick Connector Grease Kit
- A simple and effective system that renders versatility to grease guns of all makes for quick and efficient greasing in inaccessible, difficult-to-reach areas.
- Part #TY26631
Professional Grease Joint Cleaner Kit
- The Grease Joint Cleaner Tool quickly dissolves and removes these blockages by injecting penetrating oil into the grease joint, through the standard grease fitting.
- The tapping action flushes out the passageways and relief slots allowing for new grease to be applied.
- Part #TY26457
Pocket Grease Joint Cleaner Tool
- The Grease Joint Cleaner Tool quickly dissolves and removes these blockages by injecting penetrating oil into the grease joint, through the standard grease fitting.
- The tapping action flushes out the passageways and relief slots allowing for new grease to be applied.
- Part #TY26401
Coolants

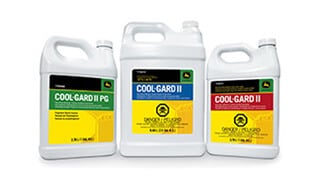

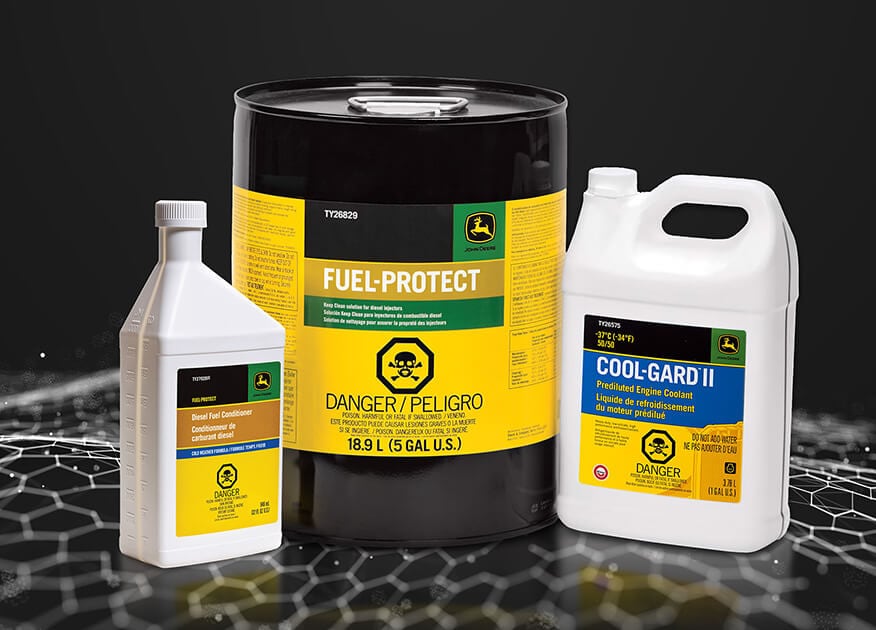

Cool-Gard™ II Concentrate
- Service life of 6 years / 6,000 hours
- Fully formulated for heavy-duty cooling systems
- Reduces downtime and lowers operating costs
- Protects against corrosion and cavitation
- Thermally stable
- Mix on-site
- Contains bittering agent
- Recommended for heavy- and light-duty diesel, natural gas, and gasoline engines
|
PART # |
SIZE |
|
TY26573 |
3.78L (1 gal) |
|
TY26574 |
208L (55 gal) |
Cool-Gard™ II Pre-Mix
- Service life of 6 years / 6,000 hours
- Fully formulated for heavy-duty cooling systems
- Reduces downtime and lowers operating costs
- Protects against corrosion and cavitation
- Thermally stable
- Pre-mixed with premium quality water
- Contains bittering agent
- Recommended for heavy- and light-duty diesel, natural gas, and gasoline engines
- Pre-mixed -34°F (-37°C)
|
PART # |
SIZE |
|
TY26575 |
3.78L (1 gal) |
|
TY26576 |
9.46L (2.5 gal) |
|
TY26577 |
208L (55 gal) |
|
TY26578 |
1249L (330 gal) tote |
Cool-Gard™ II PG
- Service life of 6 years / 6,000 hours
- Fully formulated for heavy-duty cooling systems
- Environmentally friendly and non-toxic
- Propylene glycol base
- Thermally stable
- Contains bittering agent
- Recommended for heavy- and light-duty diesel, natural gas, and gasoline engines
- Pre-mixed -52°F (-47°C)
|
PART # |
TYPE |
|
TY26968 |
3.78L (1 gal) |
|
TY26969 |
208L (55 gal) |
|
TY26970 |
1249L (330 gal) tote |

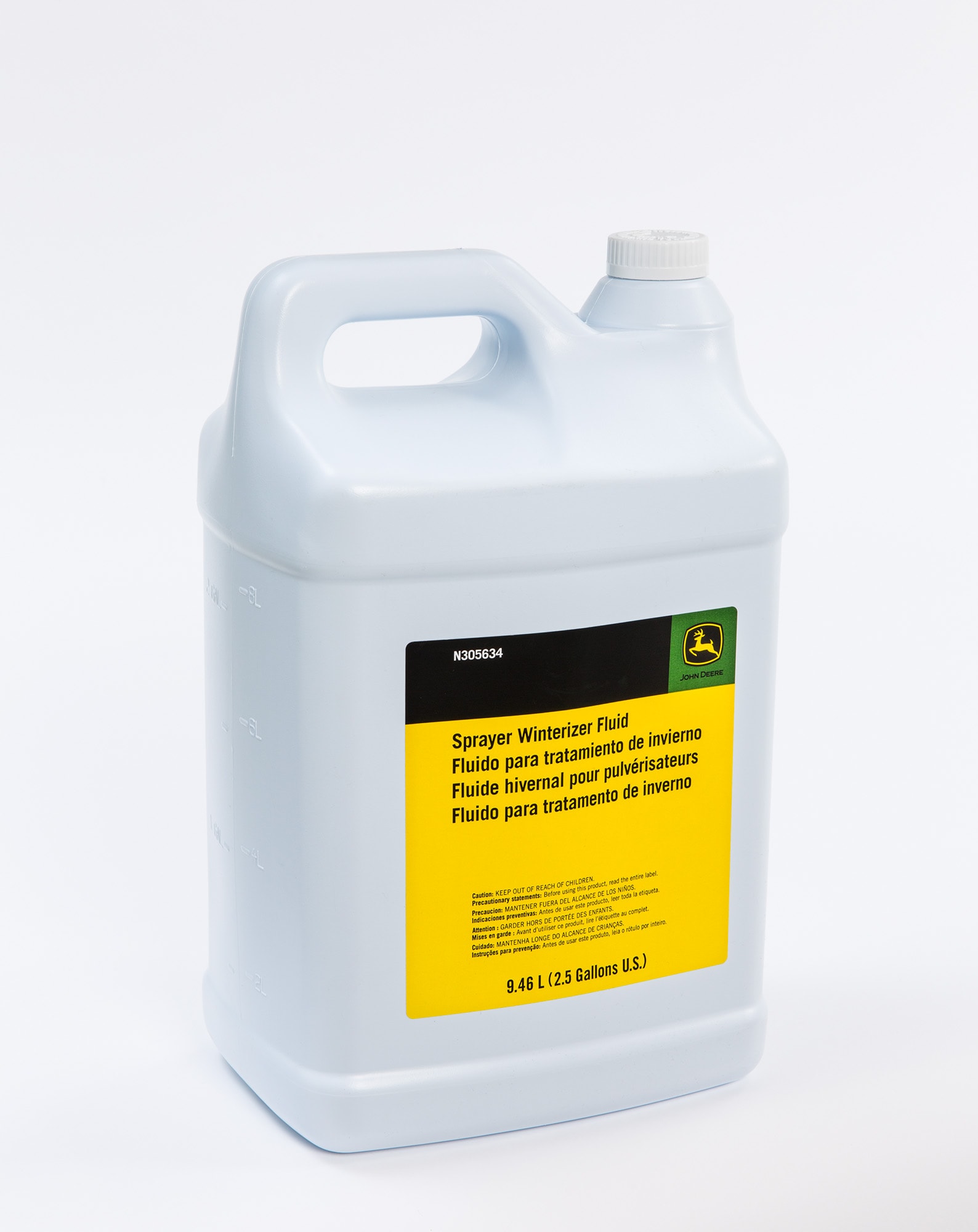

Winterizer
- Protection to -54°F (-48°C)
- Protect sprayer parts
- Protects sprayer's entire wet system
- Protects pumps, valves, seals
- Won't plug nozzles
- Enhanced system life
- Environmentally friendly
- Propylene Glycol base

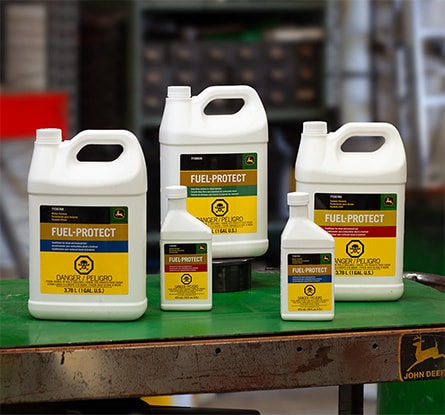

Fuel Solutions

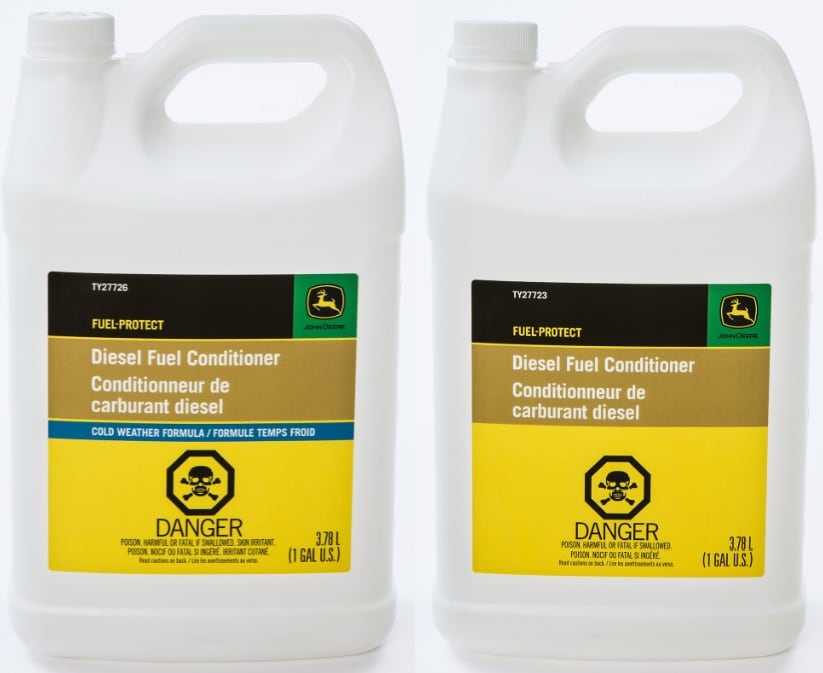

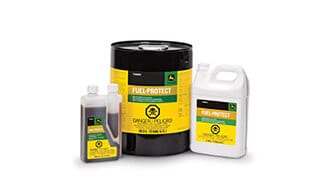

Fuel-Protect Diesel Fuel Conditioner
- Uphold diesel fuel performance and maintain peak engine efficiency year-round.
- Boosts fuel's cetane number for faster, smoother and more fuel-efficient starting
- Detergents clean the fuels system and injectors work to prevent performance-robbing erosion
- Lubricants protect and reduce injector and pump wear
- Maintains fuel pump warranty
- Minimizes smoking
- Compatible with all diesel fuels, including biodiesel up to B20 blends
- Available in Summer and Winter formulas
- Recommended for use with low-sulfur diesel (LSD) and up to 20% (B20) biodiesel
FQS 1.5 Microbicide®
Safeguards diesel, biodiesel and fuel oils, by providing the following benefits:
- Provide excellent bactericidal and fungicidal efficacy.
- Works effectively in both fuel and water.
- Leaves no corrosive deposits when burned in fuel.
- Reduces engine maintenance cost.
- Helps prevent fuel system failures
- Meets ultra-low sulfur diesel (ULSD) guidelines
- < 15ppm sulfur content
Fuel-Protect Keep Clean Solution
- Formulated to restore and maintain performance in engines with modern high-pressure diesel fuel systems
- Works to prevent deposits from forming in injectors
- Can be used to recover injector performance and prevent problems like injector sticking, misfiring, rough idling, excessive exhaust smoking, power loss or hard starting
- Use in new diesel engines to engines that have been cleaned by a certified technician with John Deere Clean-up and a flush tool
- Use in bulk fuel tanks for easy distribution across entire fleet
- Compatible with all makes of diesel equipment
- Works well with Fuel-Protect Diesel Conditioner
Fuel-Protect Gasoline Stabilizer
- Prevent corrosion, gum and varnish from clogging the fuel system in your gas-powered equipment.
- Protect fresh gasoline in your stored vehicles for up to 12 months
- Keep fuel from breaking down into gum and varnish
- Protect both two- and four-cycle gasoline engines
- Ensure quick and easy starts
- Eliminate the need to drain and dispose of gasoline
- Protect fuel systems of stored equipment all year long
Diesel Exhaust Fluid and Supporting Equipment
Diesel Exhaust Fluid
- Compatible with all engines using selective catalytic reduction (SCR) aftertreatment technology
- Nontoxic, nonhazardous, nonflammable
- Corrosive properties similar to salt water with a slight ammonia smell
- ISO 22241 compliant for DEF handling procedures
- American Petroleum Institute (API) certified
- Freezes at 12°F (-11°C)
- Translucent containers to monitor fluid levels
- Drums outfitted with 2″ (.3 m) opening for direct pump or closed-system dispensing valve and drop tube installation
- Totes include integrated closed-system dispensing valve and drop tube
- Fork-lift tubes beneath tote cage for ease in handling
- Convenient container sizes
Also available in bulk quantities:
- Lowest price/gal
- 600 gal (2,268 L) minimum (US)
- 2,500 gal (9,450 L) minimum (CA)
|
PART # |
SIZE |
|
SWDEF025 |
9.46 L (2.5 gal) |
|
SWDEF055 |
208 L (55 gal) |
|
SWDEF275 |
1041 L (275 gal) |
|
SWDEF330 |
1249 L (330 gal) |
Portable Dispensing Unit
- 12V self-priming transfer pump with a 20-ft. (6 m) hose capable of delivering 7–10 GPM (26–37 LPM)
- Stainless steel auto shutoff nozzle
- Integrated forklift pockets to be used with full tank & handles for lifting or carrying an empty tank
- All wetted parts are compatible with DEF and will not rust
|
PART # |
SIZE |
|
SWDEFPDU65P |
246 L (65 gal) |
Dispensing Package
- DEF pump with 20′ (6.1 m) hose
- Auto shutoff stainless steel nozzle
- Closed System Dispense Coupler
- Drum valve and tube
- Hook up ready
|
PART # |
TYPE |
|
SWDEF110VKIT |
110V pump kit |
|
SWDEF12VKIT |
12V pump kit |
Information on John Deere maintenance parts
Lawn & Garden
Oil Change, Filter & Service Intervals
Genuine John Deere Parts are your best choice.
Compare John Deere oil and filter annual costs with the competitor's offerings.

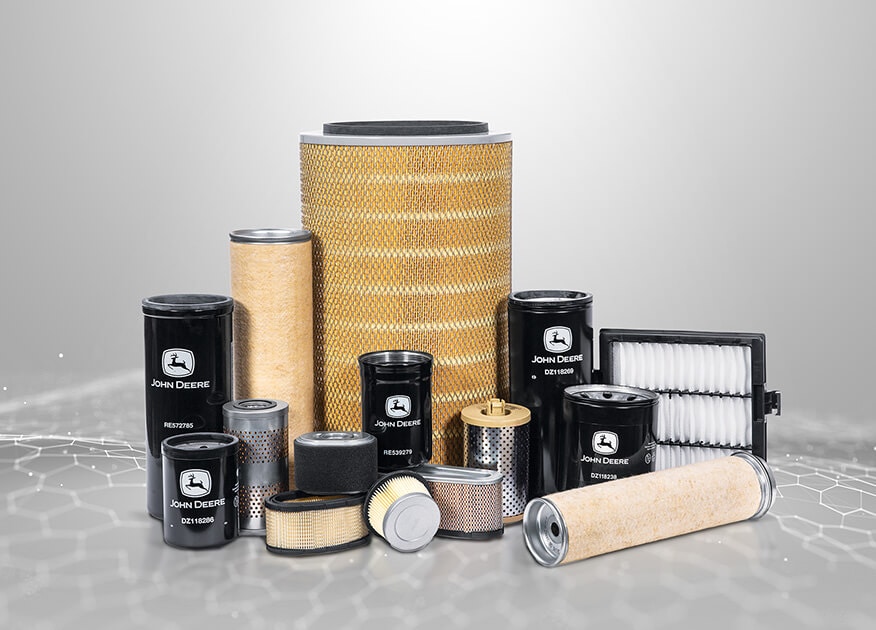

Find your filter
Look for your suggested John Deere replacement filters and service intervals when you need to replace your filters.

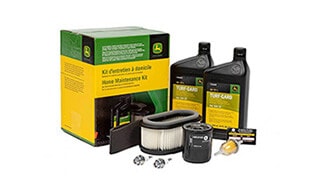

Maintenance made easy
If your mower is ready for a tune up, and you want to do it yourself, check out our Home Maintenance Kits for almost everything you need — oil, air and fuel filters — all in one convenient box.
Compact Utility Tractors (22.4 - 66 HP Engine)
Oil Change, Filter & Service Intervals
Genuine John Deere Parts are your best choice.
Compare John Deere oil and filter annual costs with the competitor's offerings.
Find your filter
Look for your suggested John Deere replacement filters and service intervals when you need to replace your filters.

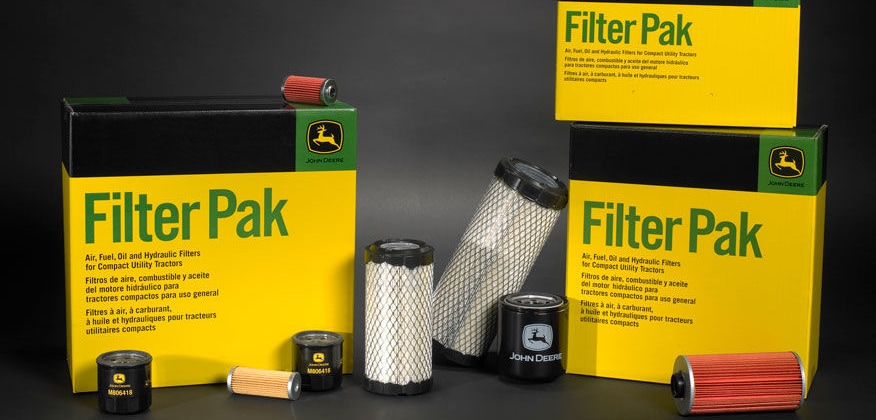

Filter Paks
Oil Change, Filter & Service Intervals
Carbon Filter Plus
Available for new and late-model tractors, combines, sprayers and other machines, Carbon Filter Plus offers three active layers to protect your equipment.
It all adds up.

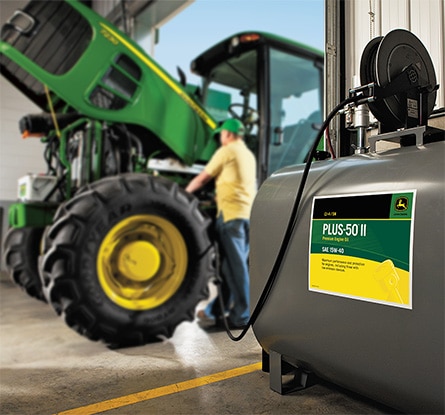

With Plus-50™ II and John Deere Filters, there’s no stopping you for up to 500 hours.* Our engineers designed and tested these products to work hand-in-hand to defend your machine from harsh conditions and wear.
*500-hour drain interval applies to John Deere diesel engines when the following criteria are met: 1. Engine is equipped with an extended drain interval oil pan, 2. Machine operates with Plus-50 II engine oil API CJ-4/SN. 3. Machine uses a John Deere engine oil flter, 4. Machine uses only Ultra Low Sulfur Diesel fuel.
Genuine John Deere Parts are your best choice.
Compare John Deere oil and filter annual costs with the competitor's offerings.
Find your filter
Look for your suggested John Deere replacement filters and service intervals when you need to replace your filters.
