SEE & SPRAY SELECT

Broadcast and Targeted Spray on Fallow Ground

See it in Action
×

TARGETED SPRAYING

77%1 Average Herbicide Savings

APPLICATION

Targeted spray + broadcast spray

TANK SYSTEM

Single Tank

DATA INSIGHTS

As-Applied Maps and Savings

PRECISE TARGETED SPRAYING
+PRECISION
Using computer vision and advanced technology to Target Spray weeds in fallow fields, you can significantly reduce your herbicide use by applying only what you need.
Calculate Your Savings

Cover your fallow fields with advanced camera and nozzle-control technology to spray only weeds.

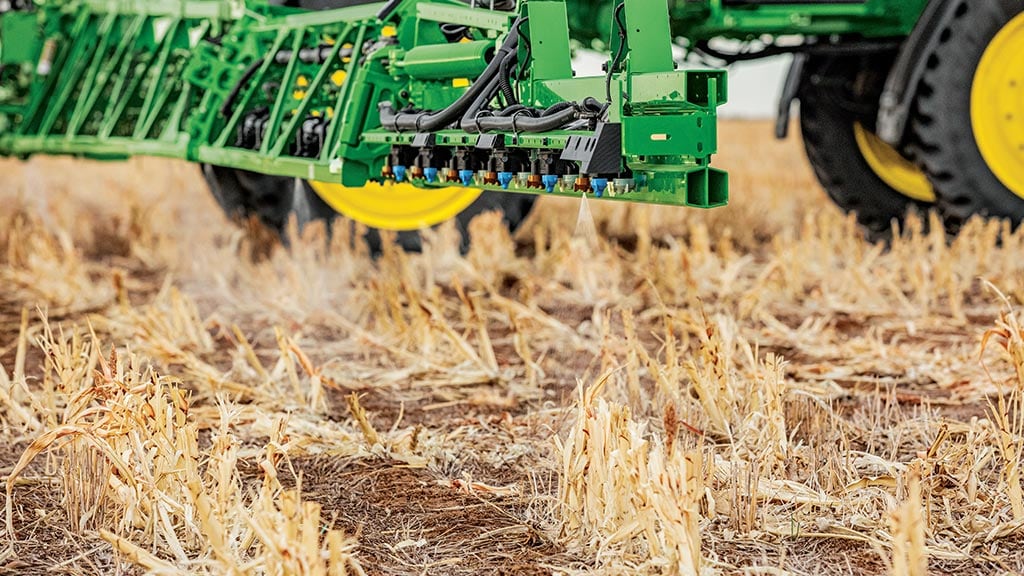

Sprayer with See & Spray Select in field

IMPROVED COST EFFICIENCY

77%1 Average Herbicide Savings

By only spraying weeds, you'll reduce your herbicide use and lower your input cost per pass. Or, invest your savings into more advanced tank mixes to gain cost efficiency in your spraying applications.

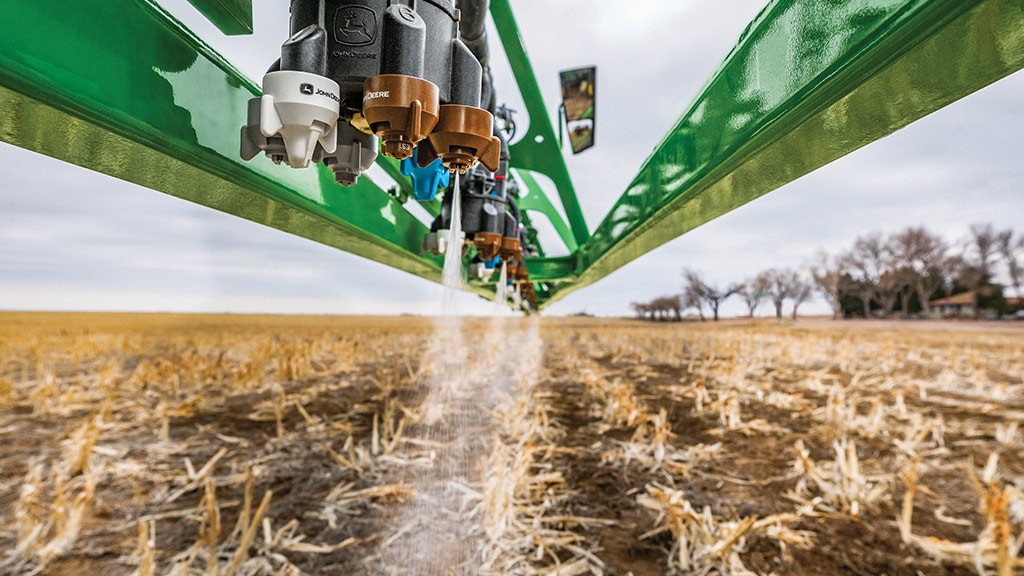

Close up of sprayer nozzles

SUSTAINABILITY

Reduce Herbicide Use

See & Spray™Select delivers a targeted spay to weeds, applying herbicide only where needed. Plus, our ExactApply nozzle control technology helps reduce potential drift.

ACTIONABLE DATA
+INSIGHTS
View As-Applied Maps and make informed decisions regarding field prescriptions faster with the Analyze Tool within the John Deere Operations Center™.

See how you get Targeted and Broadcast Spray capabilities in one sprayer, with Targeted Spraying achieving a similar hit rate to Broadcast Spraying.

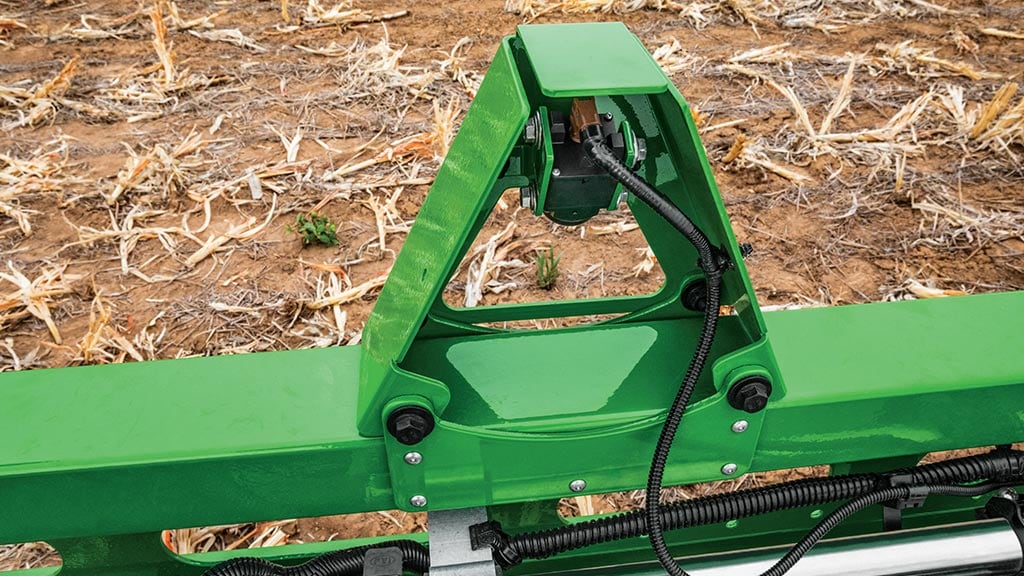

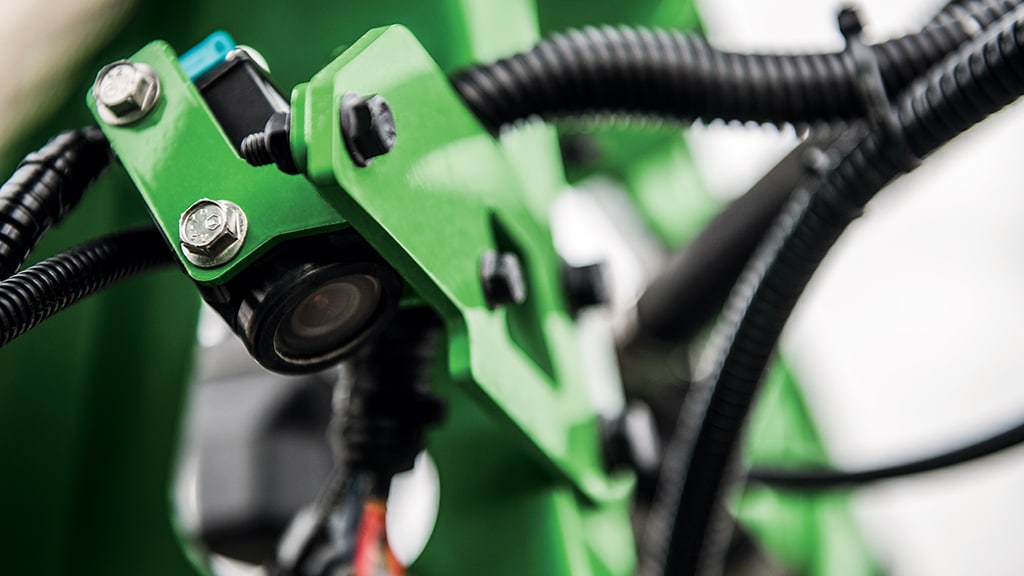

Close up of camera on See & Spray Select

Cameras

Scan Fallow Ground

When using the targeted spray, small cameras integrated into the boom continuously scan the field and send data to the sprayer’s vision processing unit.

Close up of processors on See & Spray Select

VISION PROCESSING UNITS

Identifies Weeds

See & Spray Selects processors detect the color green, applying non-residual herbicide only on weeds.

See & Spray Nozzles

TARGETED SPRAYING

Activate only Nozzles Needed

Once weeds are identified, specific nozzles are activated to target spray them. The number of nozzles activated can vary based on weed pressure within that area of the field. When necessary, the sprayer can switch from Targeted Spraying to Broadcast Spraying, all with the push of a button on the in-cab display.

a 612R Sprayer with See & Spray Lights spraying a field at night.

LIGHTING

Spray At Night

Spray when the conditions are right with additional lighting. With a light above every camera, the sprayer can target spray day and night.

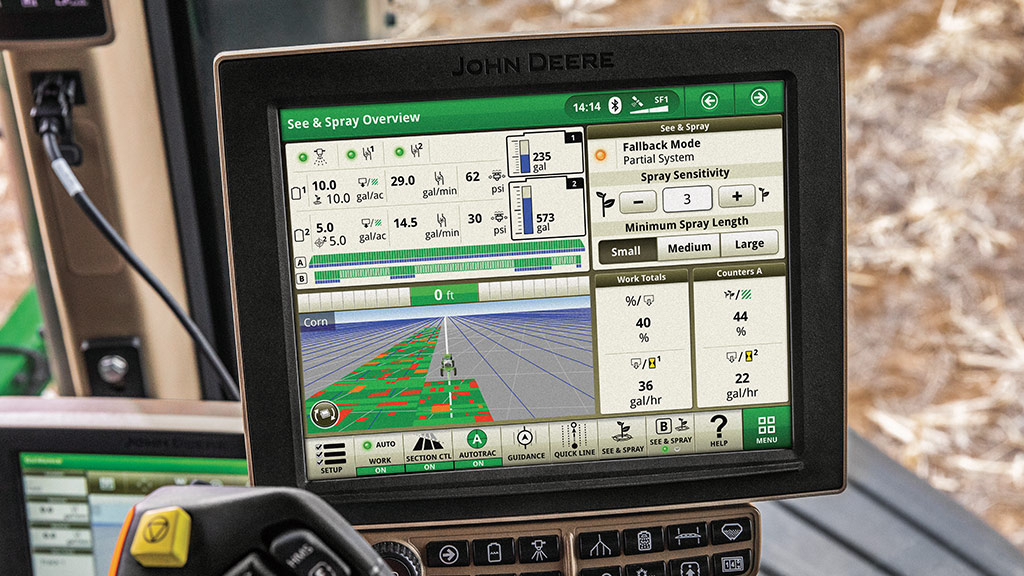

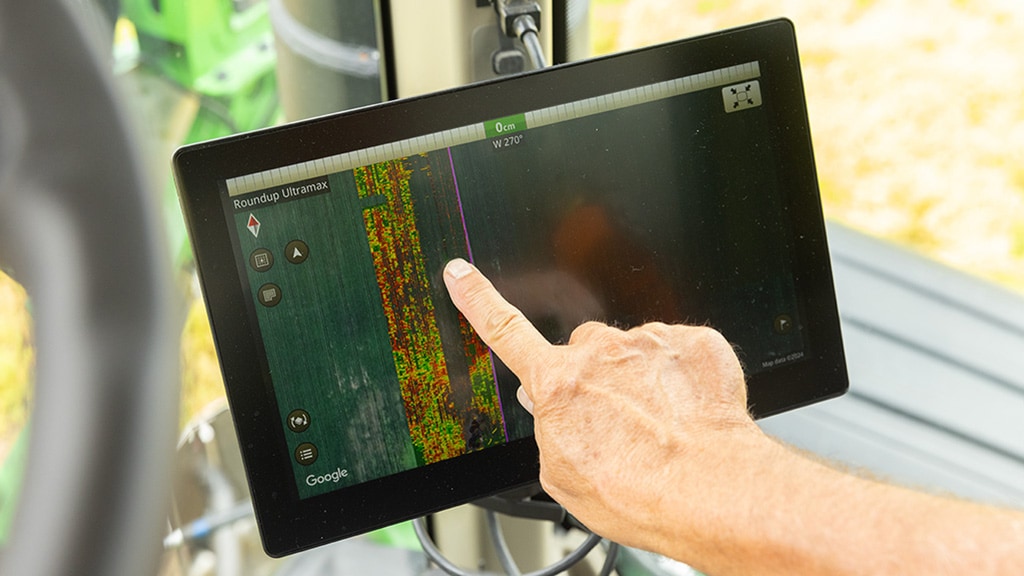

Image of map on screen

As-Applied Coverage Maps

Record Where Herbicide Was Applied

Using the in-cab display, See & Spray Select documents where herbicide was applied. In addition, the display provides a coverage map of the area traveled where herbicide was not applied. This documentation is streamed to your John Deere Operations Center™ account, and enables you to track performance data and savings, to make informed decisions in your weed management program.

See & Spray Select
Amazing Content is Loading...
600 Series Sprayers Drag to Rotate

Select to Learn More About Key Features

    Frequently Asked Questions

    Expand AllCollapse All

    What’s the difference between See & Spray Ultimate and See & Spray Select?

    See & Spray Ultimate detects weeds among corn, soybean, and cotton plants. It uses cameras, processors, a carbon-fiber truss-structure boom and a dual product tank. It enables targeted application of non-residual herbicides on weeds within corn, soybean and cotton fields. It can also be used for traditional broadcast spraying.

    See & Spray Select is for use in fallow ground only. It uses a color-detecting technology to identify green plant material on brown soil and then target sprays herbicide on green areas. See & Spray Select can revert to broadcast spraying when weed pressure warrants.

    Reference chart below for features:

      See & Spray Select See & Spray Ultimate
    Fallow use X X
    In-season use   X
    See & Spray + Broadcast (single tank) X X
    Single Tank X

    Dual Product Solution System / Split Tank

    (NOTE:ability to combine tanks to use as full capacity See & Spray or broadcast)

      X

    Can I add See & Spray Select to my current sprayer?

    No. See & Spray Select is a factory-install option only.

    What model sprayers is See & Spray Select available on?

    See & Spray Select is available as a factory install option on 408R, 410R, 412R, 612R and 616R sprayers.

    What boom sizes are available on See & Spray Select?

    120 ft. (36.6 m) steel booms are available on See & Spray Select.

    Is See & Spray Select available to use on any crop?

    See & Spray Select is focused on fallow ground or traditional broadcast application.

    Can I use See & Spray Select at night?

    No, model Year 2022 Sprayers equipped with See & Spray Select cannot spray at night.

    THERE WHEN YOU NEED US
    +SUPPORT
    See & Spray Select is factory installed, completely integrated, and supported by your local dealer.
    Contact Your Dealer

    1. Based on tank-level sensor values taken at a steady state on John Deere sprayers equipped with and without See & Spray™ Select, before and after covering 75,000 acres of fallow ground with a typical weed pressure of 3,000 weeds per acre, using small and medium spray-length settings starting at 2.3 to 3.2 ft. (0.7 to 1 m) and average growing conditions (seasonal precipitation and temperature) across the US and Canadian plains and Australian farms. Spray-length settings varied based on ground speed, spray pressure, and boom height. Sprayers were equipped with current hardware and software at time of study. Individual results may vary based on field and growing conditions, weed pressure, spray-length settings, and software version.

    2. See & Spray targeted spray application uses broadcast product label instructions.

    3. Internal John Deere study comparing fuel consumption of sprayers equipped with and without CommandDrive™ all-wheel drive. CommandDrive™ reduces fuel consumption up to 20% when operating in Auto Mode. Individual results may vary.

    4. Internal John Deere study comparing chemical usage between sprayers equipped with and without the ExactApply nozzle-control system. ExactApply is an optional feature and can reduce chemical usage from 2 to 5%. Individual results may vary.
