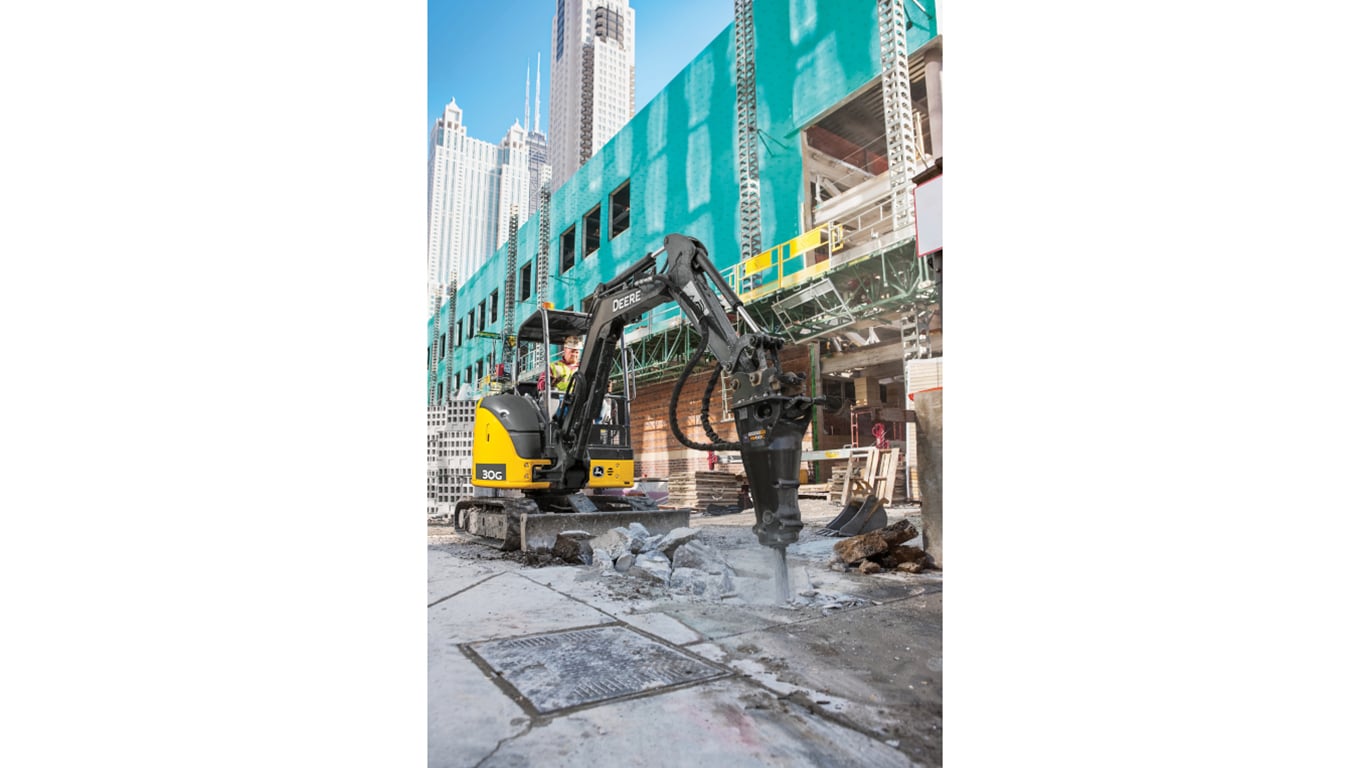

Think of changing attachments as a system. With the quick connect auxiliary couplers and the manual quick coupler for attachments, changeover to the next attachment is quick with minimal downtime. When using hydraulic attachments, the auxiliary selector valve lets you quickly choose between attachment one-way and two-way flows.
Make a sizable impact on your productivity and profitability with the backfill blade. The backfill blade can be used to level and backfill trenches. It is the same width as the undercarriage width. The blade can add versatility by using the blade and bucket to clamp and carry pipe, rocks, or other bulky items. A bolt-on cutting edge is available as optional equipment for the backfill blade.
Low daily operating costs with improved fuel economy and economy/power modes. These machines have improved fuel economy over the previous series.

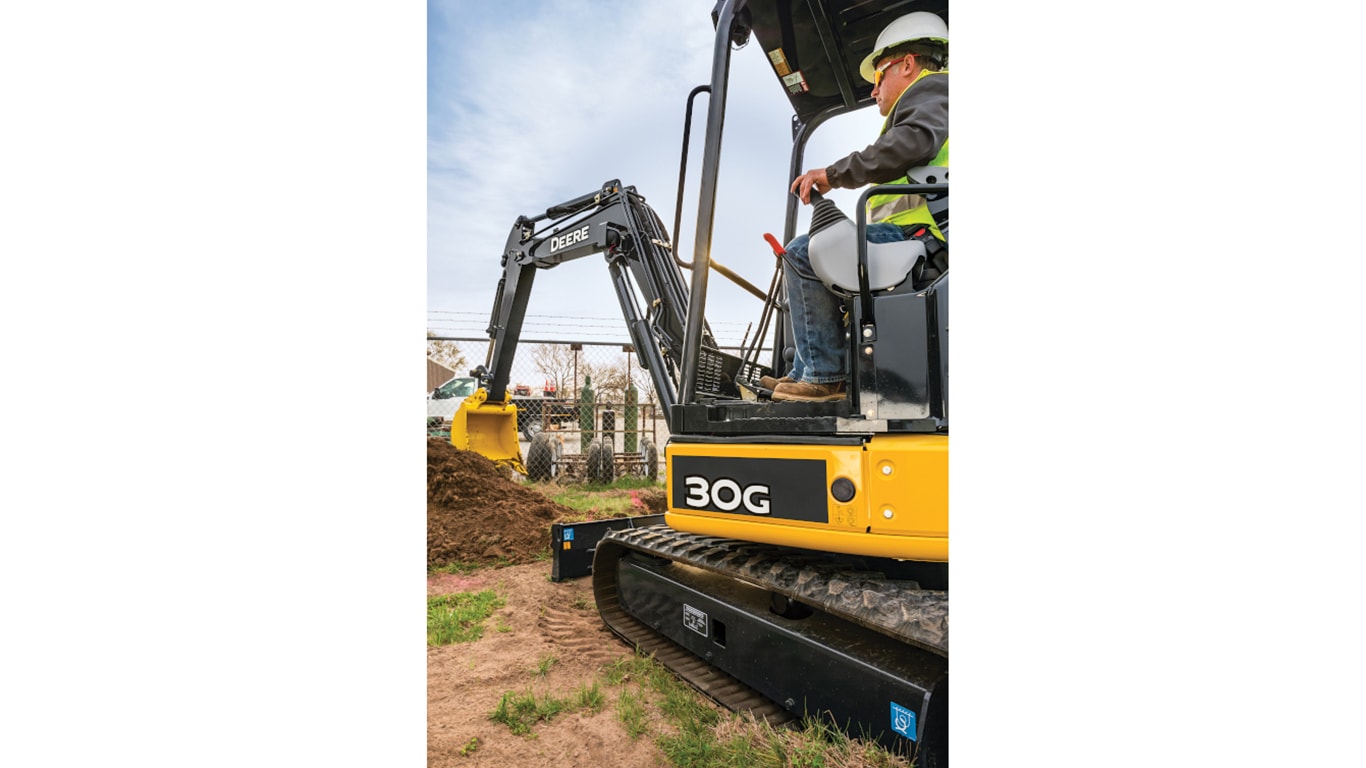

With large entryways and virtually unrestricted sightlines, the G-Series’ spacious operator stations deliver all the comfort, convenience, and visibility operators need to bring out their best. Their ergonomically designed operator stations are built to accommodate even larger operators.
Extended maintenance intervals enable the machine to remain working for longer periods of productive work before the need to service. This greatly increases uptime and productivity of the unit. Hinged door provides wide-open access to the side-by-side oil cooler and radiator. Cooler design resists trash buildup and allows easier core cleanout. Access is quick and convenient.
The X-frame undercarriage is similar to that of larger excavators, and it is designed to shed dirt and debris from the track frames. A track adjuster is located in each track frame and can be adjusted using a standard high pressure grease gun.
|Specs & Compare|
|Select up to 4 models to compare specifications||
|Emission Rating||Tier 4 / Stage IV|
|Number Of Cylinders||3|
|Displacement, ltr (Inches³)||1.642 (100.2)|
|Rated speed, rpm||2400|
|Engine Output - Net, kW (hp)||17.4 (23)|
|Number Of Carrier Rollers - Each Side||1|
|Number Of Track Rollers - Each Side||4|
|Track Shoe Width, mm (inches)||300 (12)|
|Transport Length Mono Boom, mm (ft/in)||4450 (14 ft 7 in)|
|Transport Height - Maximum, mm (ft/in)||2480 (8 ft 2 in)|
|Overall Undercarriage Width, mm (ft/in)||1550 (5 ft 1 in)|
|Track Length On Ground, mm (ft/in)||1660 (5 ft 5 in)|
|Overall Undercarriage Length, mm (ft/in)||2110 (6 ft 11 in)|
|Tailswing Radius, mm (ft/in)||775 (2 ft 7 in)|
|Ground Clearance, mm (inches)||280 (11)|
|Dozer Blade Height, mm (inches)||373 (15)|
|Dozer Blade Width, mm (ft/in)||1740 (5 ft 9 in)|
|Width over fixed tracks, mm (ft/in)||1550 (5 ft 1 in)|
|Track Gauge, mm (ft/in)||1250 (4 ft 1 in)|
|Digging Reach - Mono Boom, mm (ft/in)||4890 (16 ft 1 in)|
|Dig Height - Mono Boom, mm (ft/in)||4620 (15 ft 2 in)|
|Dump Height - Mono Boom, mm (ft/in)||3200 (10 ft 6 in)|
|Dig Depth - Mono Boom, mm (ft/in)||2790 (9 ft 2 in)|
|Standard Arm, mm (ft/in)||1170 (3 ft 10 in)|
|Fuel Tank, ltr (gallons (US))||42 (11.1)|
|Hydraulic Tank, ltr (gallons (US))||43 (11.4)|
|Number Of Batteries||1|
|Ground Bearing Pressure, kPa (PSI)||28 (4.1)|
|Swing Speed, rpm||9.1|
|Travel Speed - High, kph (mph)||4.3 (2.7)|
|Total Flow, lt/min (gallons (US) / min)||76.8 (20.2)|
|Operating Weight, kg (lbs)||3105 (6850)|
