Hammer Attachments for Compact John Deere Heavy Construction Equipment

Hydraulic Hammers for Compact Equipment


Like all John Deere attachments, these hydraulic hammers are optimized to work with Deere skid steers, compact track loaders, and compact excavators. They’re also compatible with most competitive models.

Download Hammer Brochure >

ModelWeightOperating PressurePressure ReliefImpact Rate

HH20C Hammer

150 kg (270 lb.)

90–150 bar (1,305–2,175 psi)

220 bar (3,190 psi)

800–3,000 blows/min.

HH40C Hammer

190 kg (420 lb.)

100–170 bar (1,450–2,465 psi)

220 bar (3,190 psi)

700–2,600 blows/min.

HH60C Hammer

228 kg (500 lb.)

80–130 bar (1,160–1,885 psi)

220 bar (3,190 psi)

600–1,800 blows/min.

HH80C Hammer

315 kg (690 lb.)

90–140 bar (1,305–2,030 lb.)

220 bar (3,190 psi)

500–1,700 blows/min.

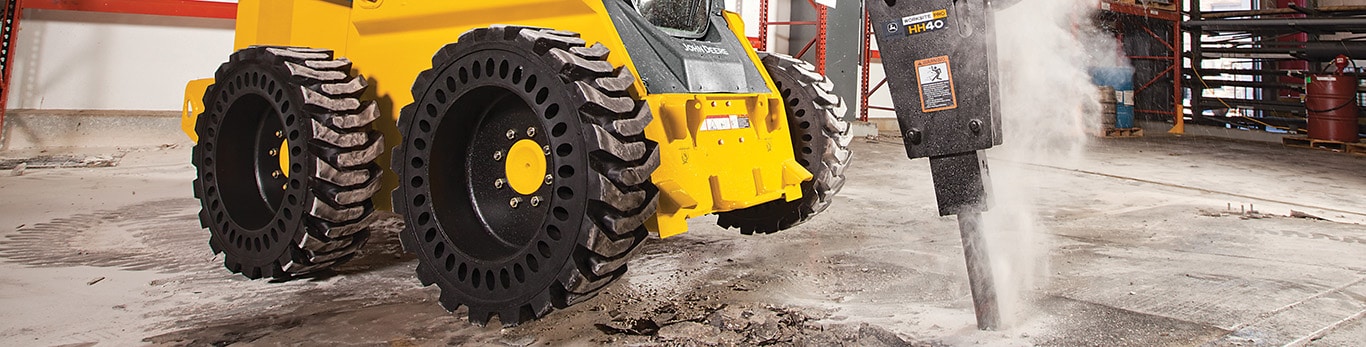

Hydraulic Hammer Attachment for John Deere Construction Equipment

About Our Hammers

These are the fastest hydraulic hammers on the market, with 30-percent fewer parts than either competitive or previous models, for simplified maintenance. Redesigned to provide two to three times more blows per minute (BPM) than previous models, for increased efficiency. Exclusive tool retention enables quick installation and removal using only one small screwdriver.

Quick-Tatch Attachment System for John Deere


With our universal, self-cleaning Quik-Tatch easy-attachment system, you can switch from one type of attachment to another in no time flat.

How to Buy

Start by contacting your dealer directly. Or check out our complete line of compact equipment to pair with our attachments.
