Plate Compactor Attachments for John Deere Equipment

Plate Compactors for Compact Equipment

Plate Compactors

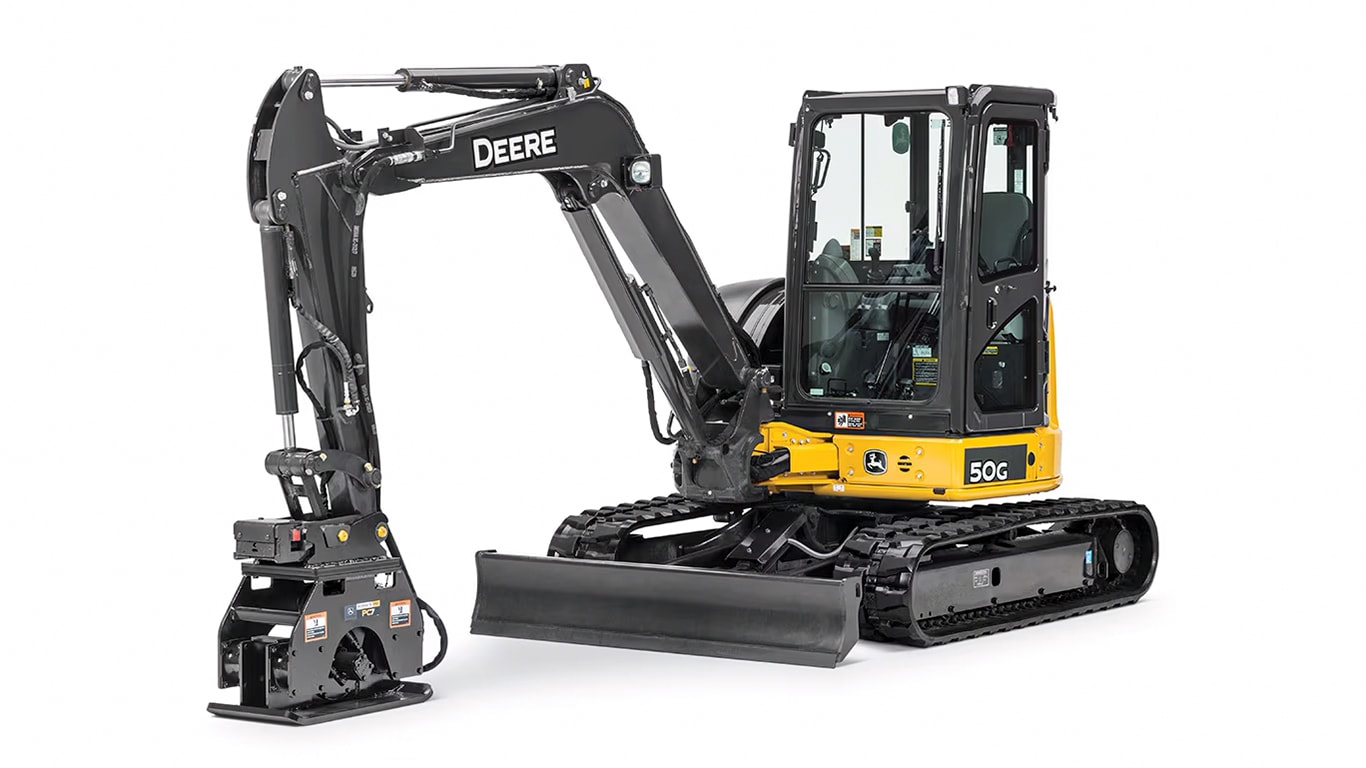

Designed for trench, slope, and excavation compaction, plate compactors are available in widths from 13 to 24 inches. These plate compactors are optimized to work with John Deere compact excavators and backhoe loaders. They're also compatible with most competitive models.

Download Plate Compactors Brochure

MODELIMPULSE FORCECYCLES/MINUTEBASEPLATE DIMENSIONSFLOW RANGE

PC4 Plate Compactor

17.8 kN (4,000 lbf)

2,000 rpm

330 x 635 mm (12 x 25 in.)

34-53 L/min (9-14 gpm)

PC7 Plate Compactor

28.5 kN (6,400 lbf)

2,000 rpm

460 x 700 mm (18 x 27.5 in.)

57-76 L/min (15-20 gpm)

PC10 Plate Compactor

35.6 kN (8,000 lbf)

2,000 rpm

610 x 710 mm (24 x 28 in.)

76-91 L/min (20-24 gpm)

Plate Compactors for John Deere Construction Equipment

About Our Plate Compactors

Plate Compactors are designed specifically for trench, slope, and excavation compaction applications.

Quick-Tatch Attachment System for John Deere

Quik-Tatch™

With our universal, self-cleaning Quik-Tatch easy-attachment system, you can switch from one type of attachment to another in no time flat.

How to Buy

Start by contacting your dealer directly. Or check out our complete line of compact equipment to pair with our attachments.
