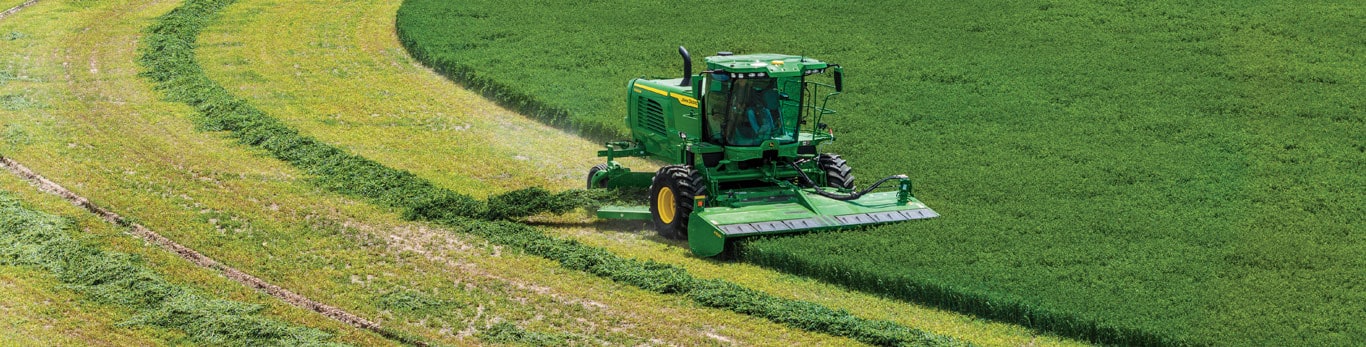

Windrower in field

Windrowers and Draper Platforms

Tailor-made for your herd

Faster dry-down times and transport speeds. Easy in-cab machine adjustments. Our windrowers are made for managing your crop efficiently.

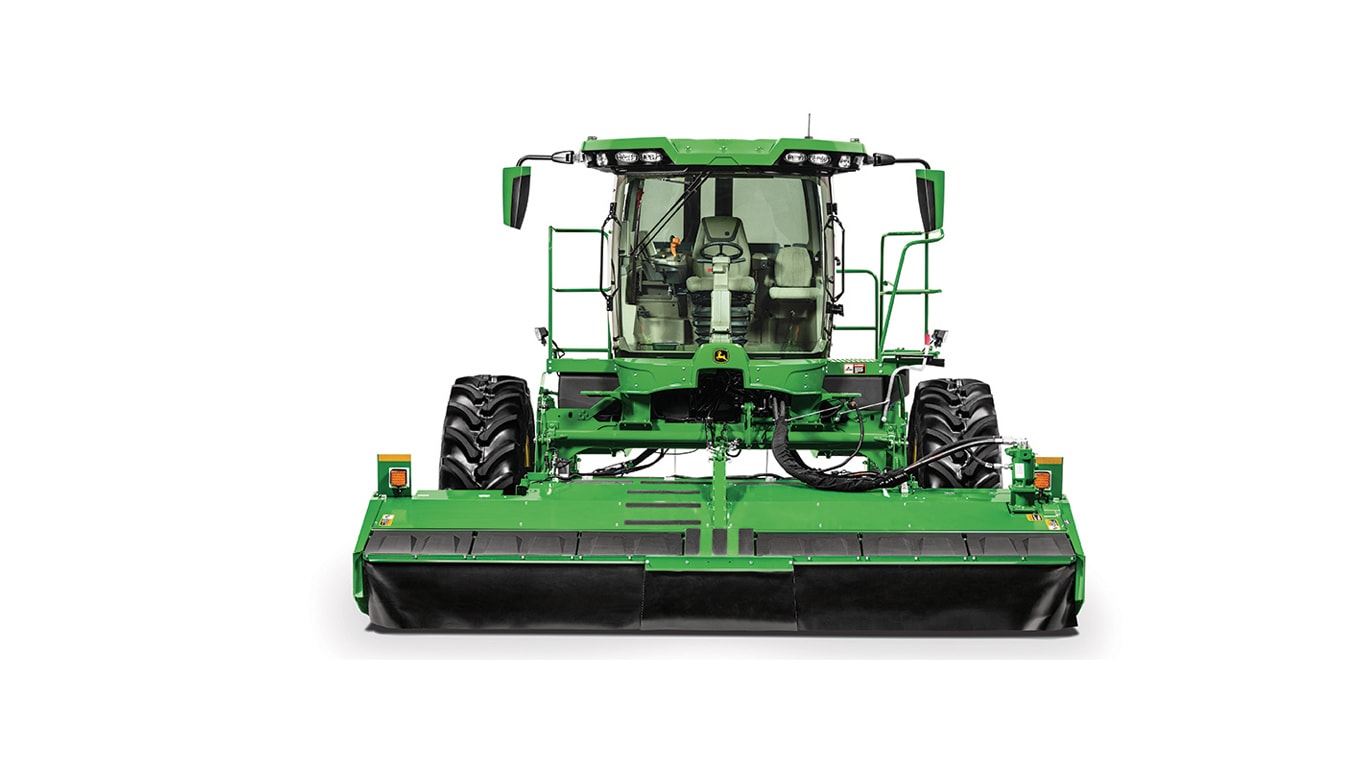

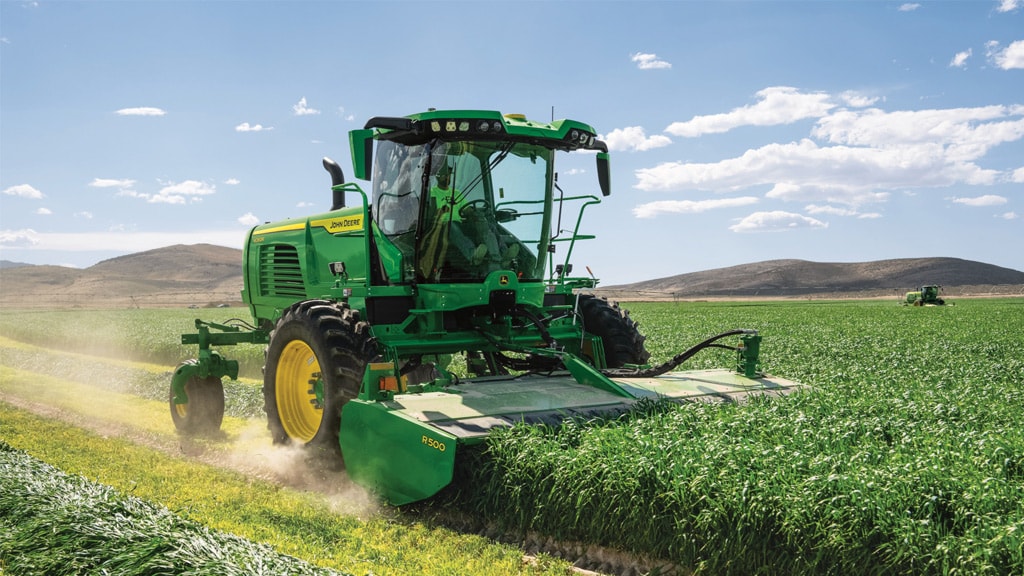

W260R

W260R

NEW
  • 260 Engine HP

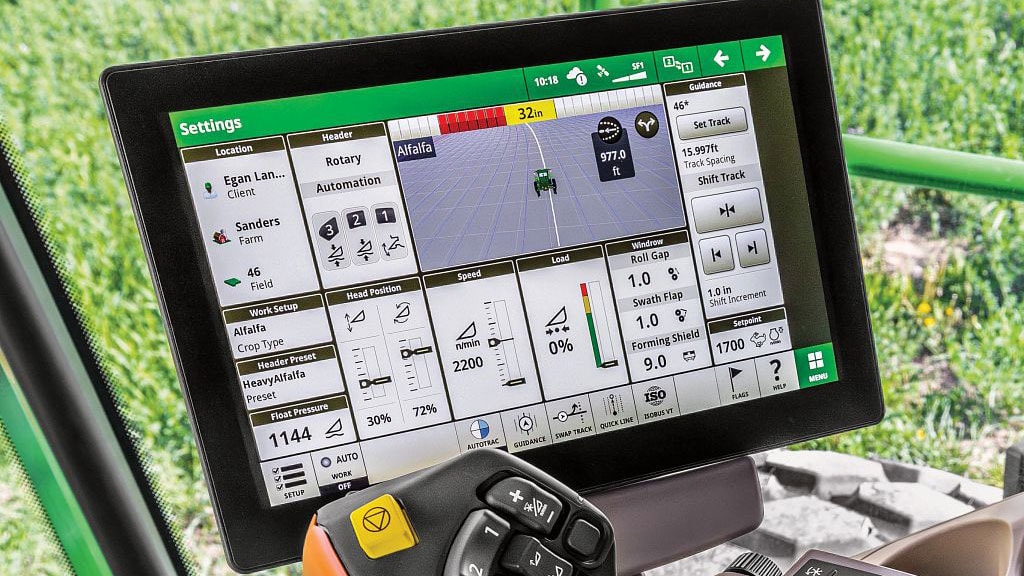

  • Optional TouchSet™ Adjustments

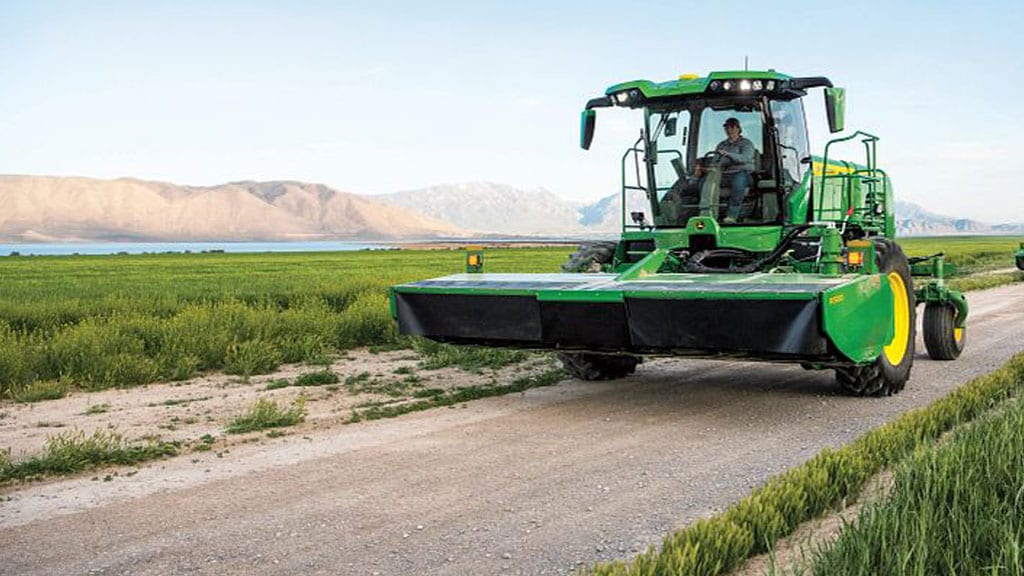

  • Transport speed up to 24 mph

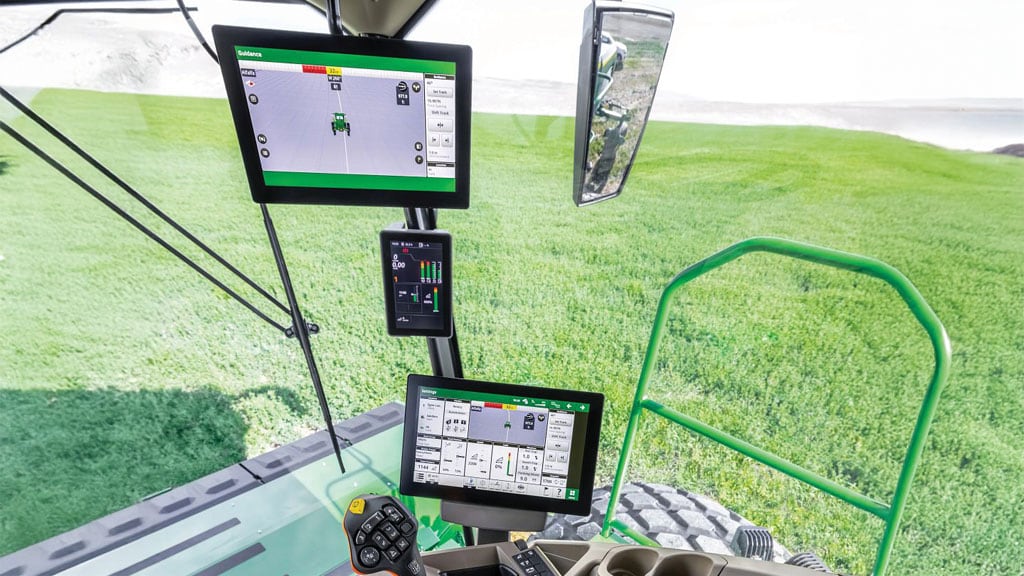

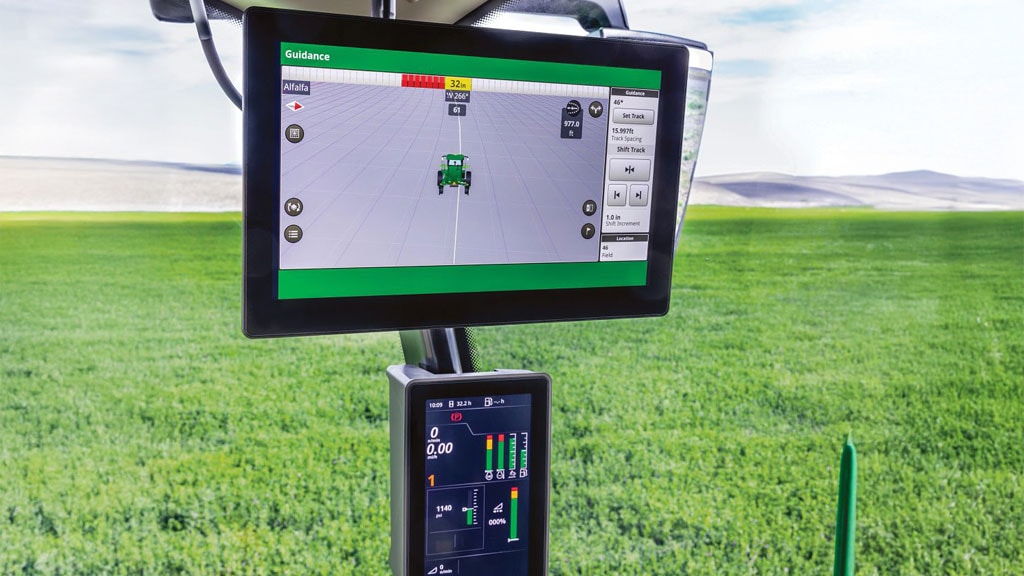

  • 4600 Generation 4 CommandCenter

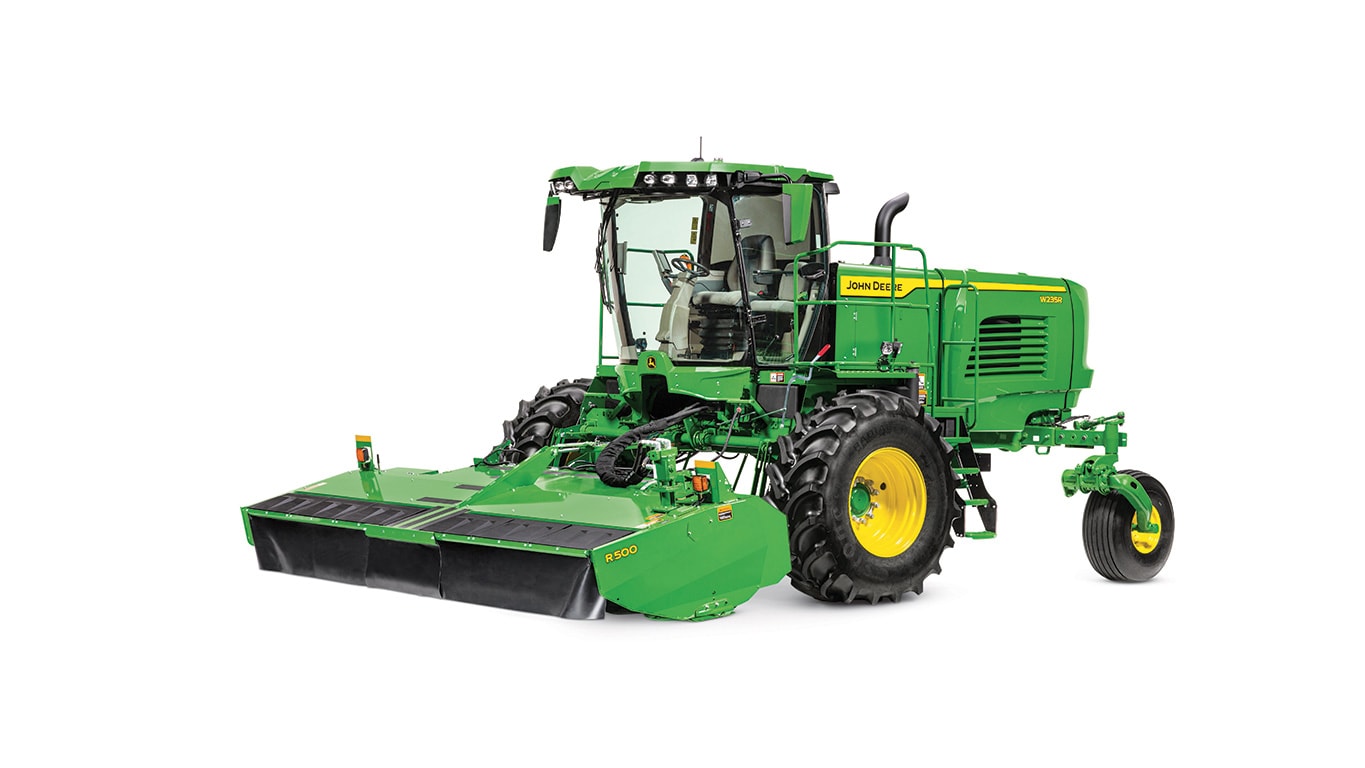

W235R

W235R

NEW
  • 235 Engine HP
  • Optional TouchSet™ Adjustments
  • Transport speed up to 24 mph
  • 4600 Generation 4 CommandCenter

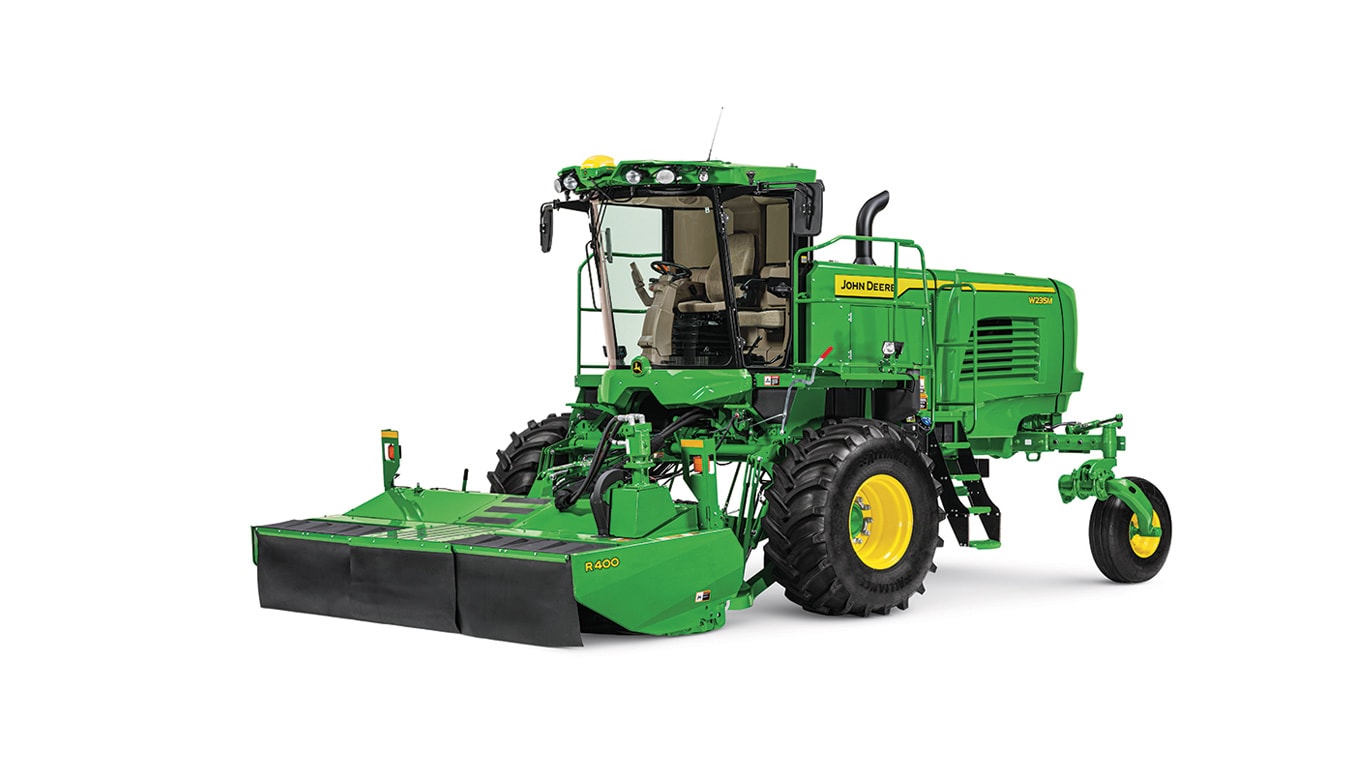

W235M

W235M

NEW
  • 235 Engine HP
  • Optional TouchSet™ Adjustments
  • Optional R400 (4M) or R500 (5M) head
  • 4200 Generation 4 CommandCenter

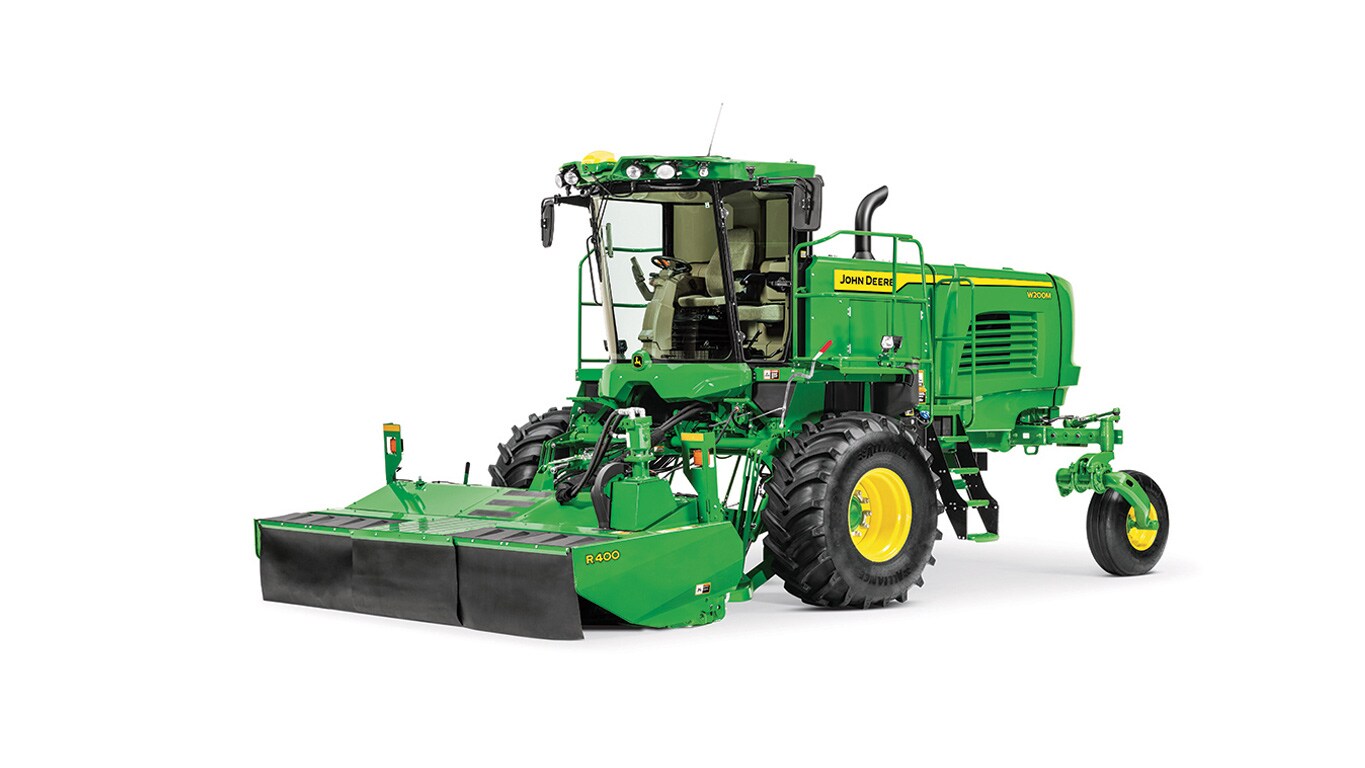

W200M Windrower

W200M

NEW
  • 200 Engine HP
  • Optional TouchSet™ Adjustments
  • Optional R400 (4M) or R500 (5M) head
  • 4200 Generation 4 CommandCenter
W170

W170

  • 170 Engine HP

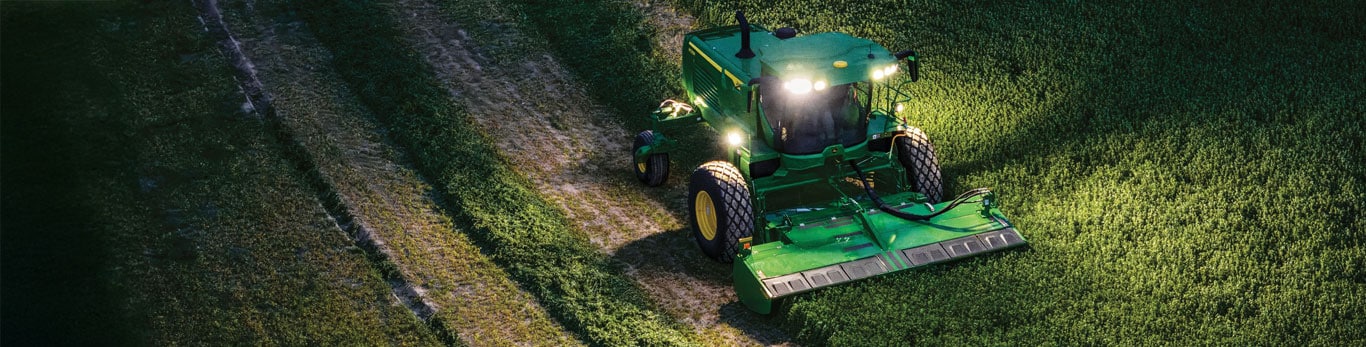

  • Powerful exterior lighting
  • Optional reverser
  • Quick-attach platform for easy transport and storage
W155 Windrower

W155

  • 155 Engine HP
  • Powerful exterior lighting
  • Optional reverser
  • Quick-attach platform for easy transport and storage

Compare our Windrower Traction Units and Platforms

The 400D Draper Platforms for the W155 are available in 15-, 20-, 25-, 30-, 35-, and 40-ft widths with many options for varying crop conditions and customer needs. The 1400D Draper Platforms for the W170 are available in the same widths plus a 45-ft option for even more capacity. These machines are designed to cut well on and off the ground. They also have a very strong reel for uniform feeding.

With the D625, D630, D636 Draper Platforms and 400R/500R Rotary Platforms, your W200 Series Windrowers can deliver a quality cut and even windrows every time. On the new R500, a new design converges more crop toward the center of the windrow for consistently even windrow formation. This reduces your dry down time without compromising cut quality.

ModelHPDraper PlatformsAuger PlatformsRotary Platforms

155

160A, 160A Grass Seed, 180A

N/A

173

1160A, 1160A Grass Seed, 1180A

N/A

200

D625, D630, D636

N/A

R400, R500

235

D625, D630, D636

N/A

R400, R500

235

D625, D630, D636

N/A

R500

260

D625, D630, D636

N/A

R500

w200 autotrac

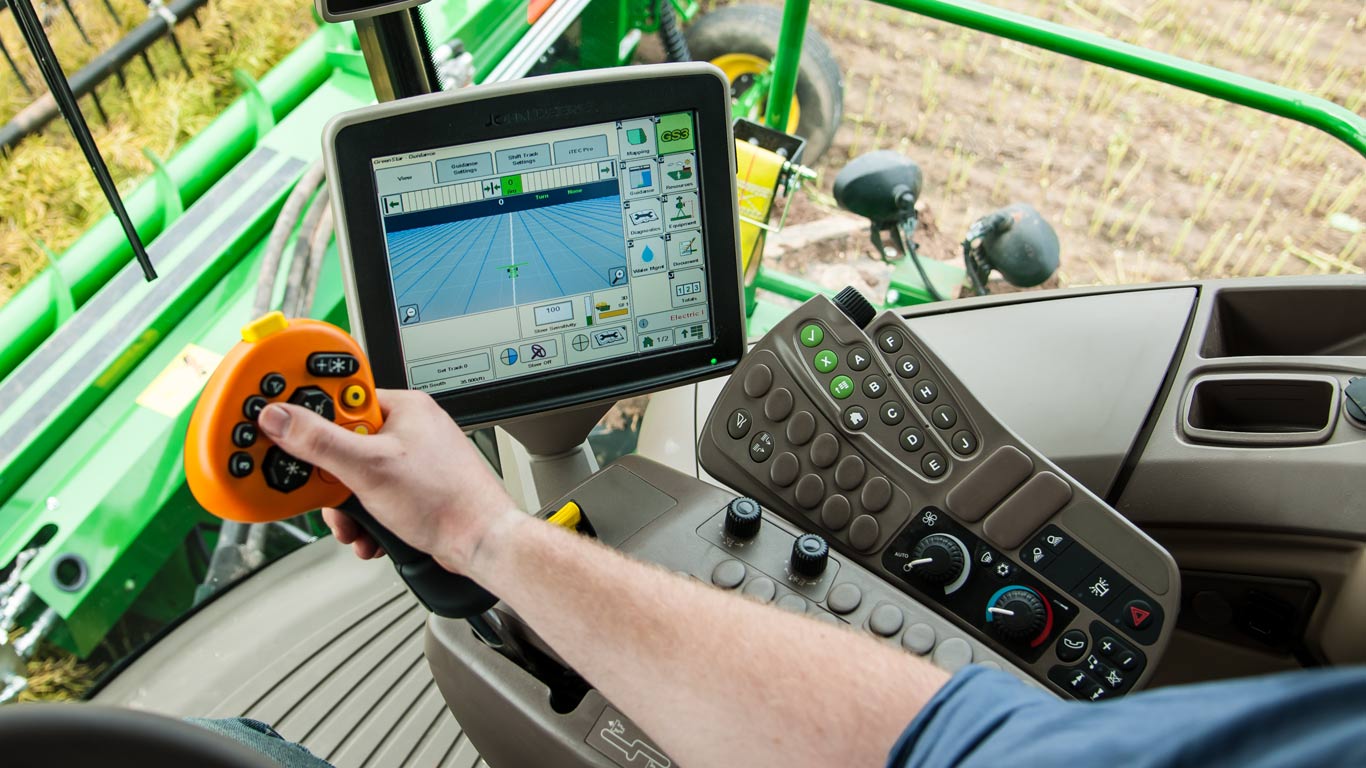

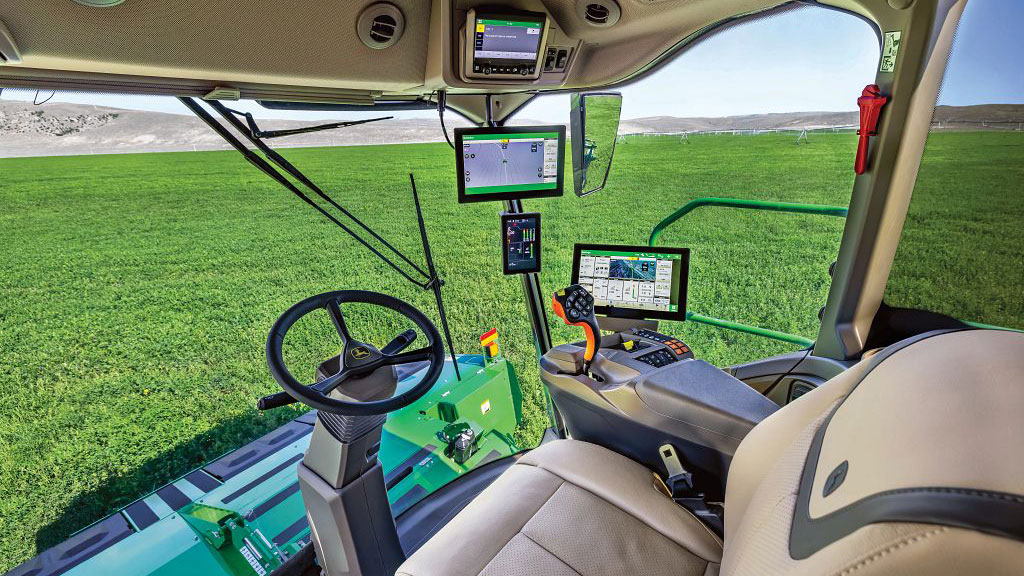

Integrated AutoTrac™

W200 Series Self-Propelled Windrowers feature a fully integrated AutoTrac steering system. This increased accuracy and control allows for faster operating speeds. Integrated AutoTrac on the W200 Series can run up to 17 mph if conditions allow.

W200 Traction Unit

Constant Header Speed

The W200 Traction Units feature constant header speed for a consistent cut quality and uniform windrow formation throughout varying crop conditions and terrain changes.

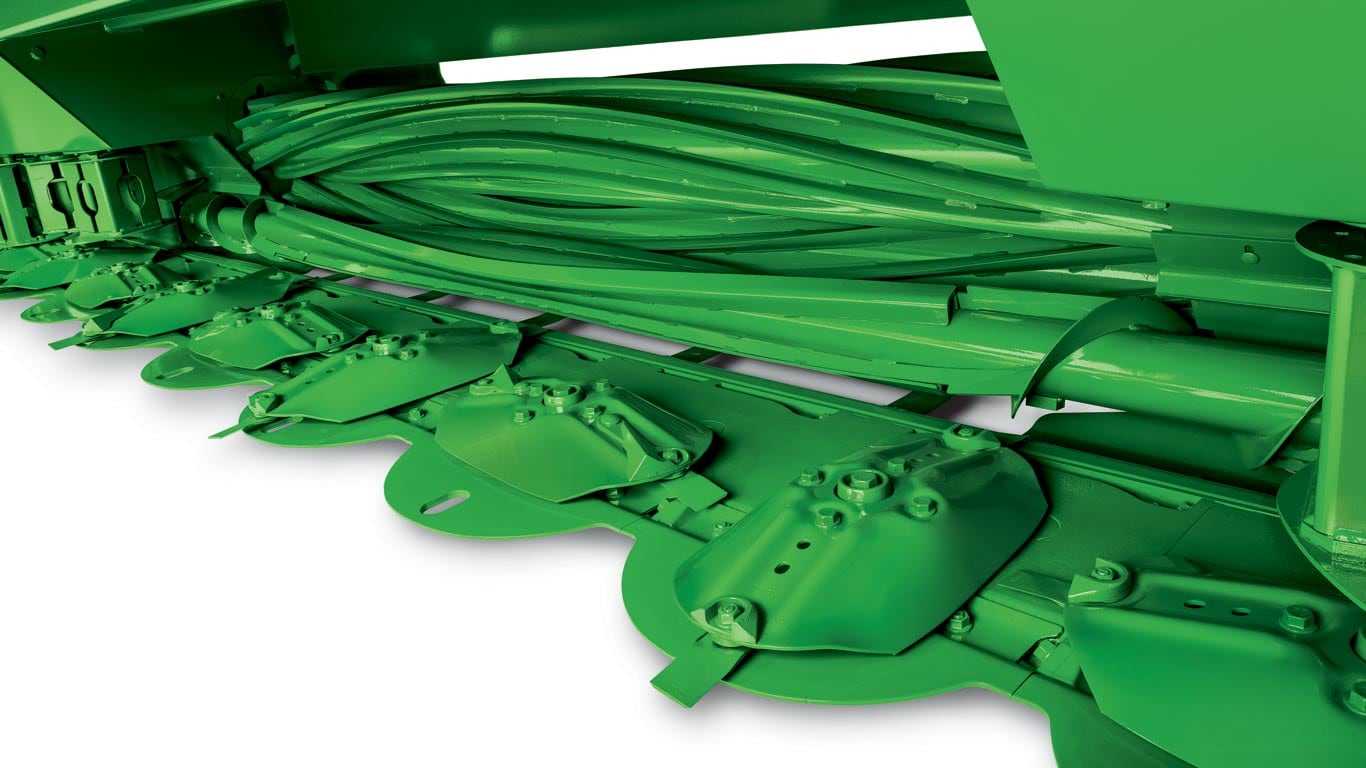

rotary heads

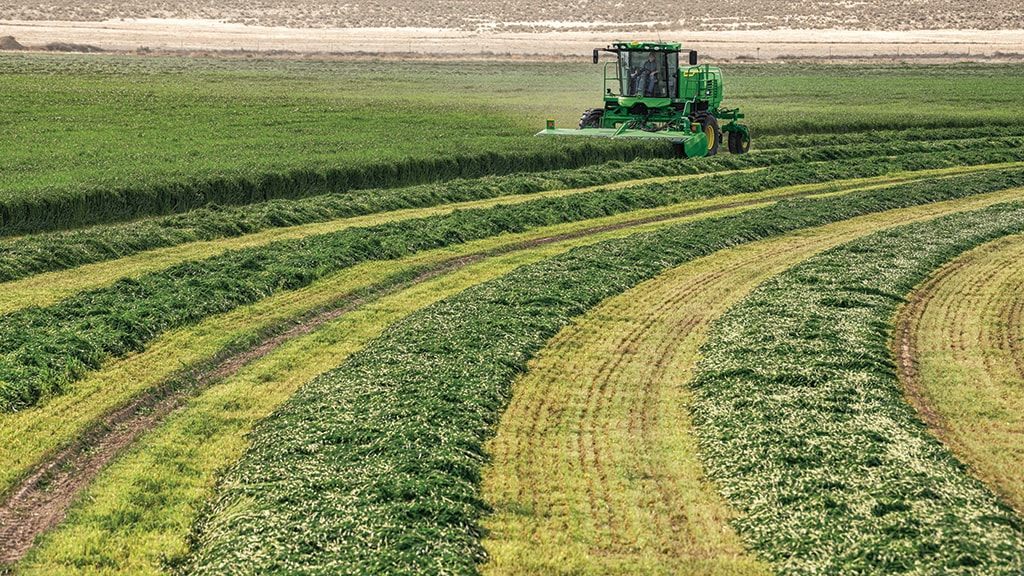

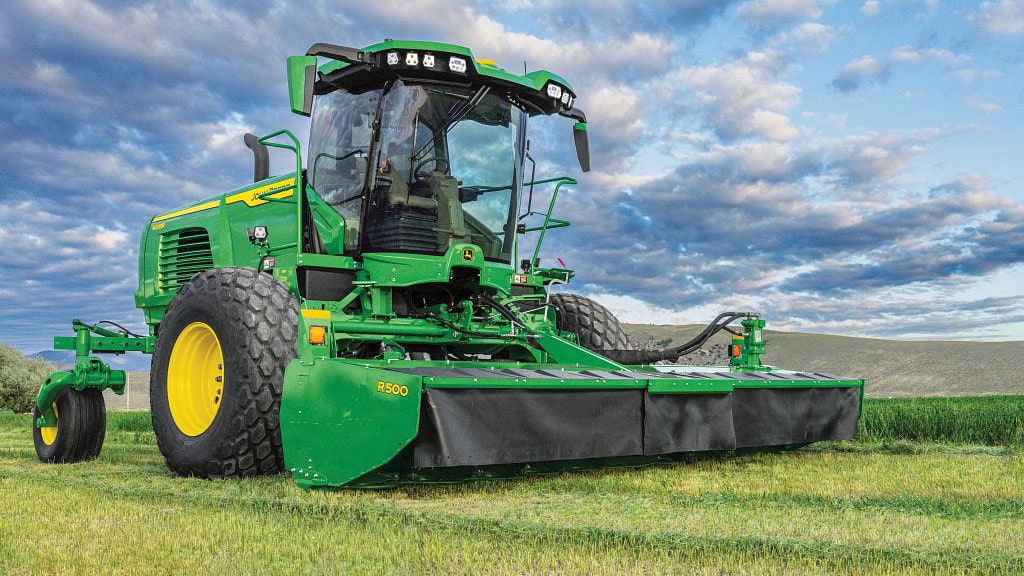

Consistent Dry Down

Varying crop types require different conditioners to deliver maximum performance and optimal dry down. John Deere Rotary Heads offer four conditioner choices: impeller, urethane rolls, V-10 steel conditioning rolls, and Tri-Lobe™ steel conditioning rolls.

500D Draper Platforms

Higher Productivity with Center-Driven Belts

The 500D Draper Platforms feature center belt drives. Which deliver increased torque, enabling greater productivity with minimal belt slippage and increased performance in heavy crop conditions.

Narrow Draper Transport

Narrow Draper Transport

With the W100 Series, you can transport wide draper platforms with ease and control using the ballast box and 400D/1400D with an integrated transport system.

optional reverser

Effortlessly Clear Plugs

An optional reverser is available on the W100 Series. Activate it from the operator station to clear the platform of plugs.

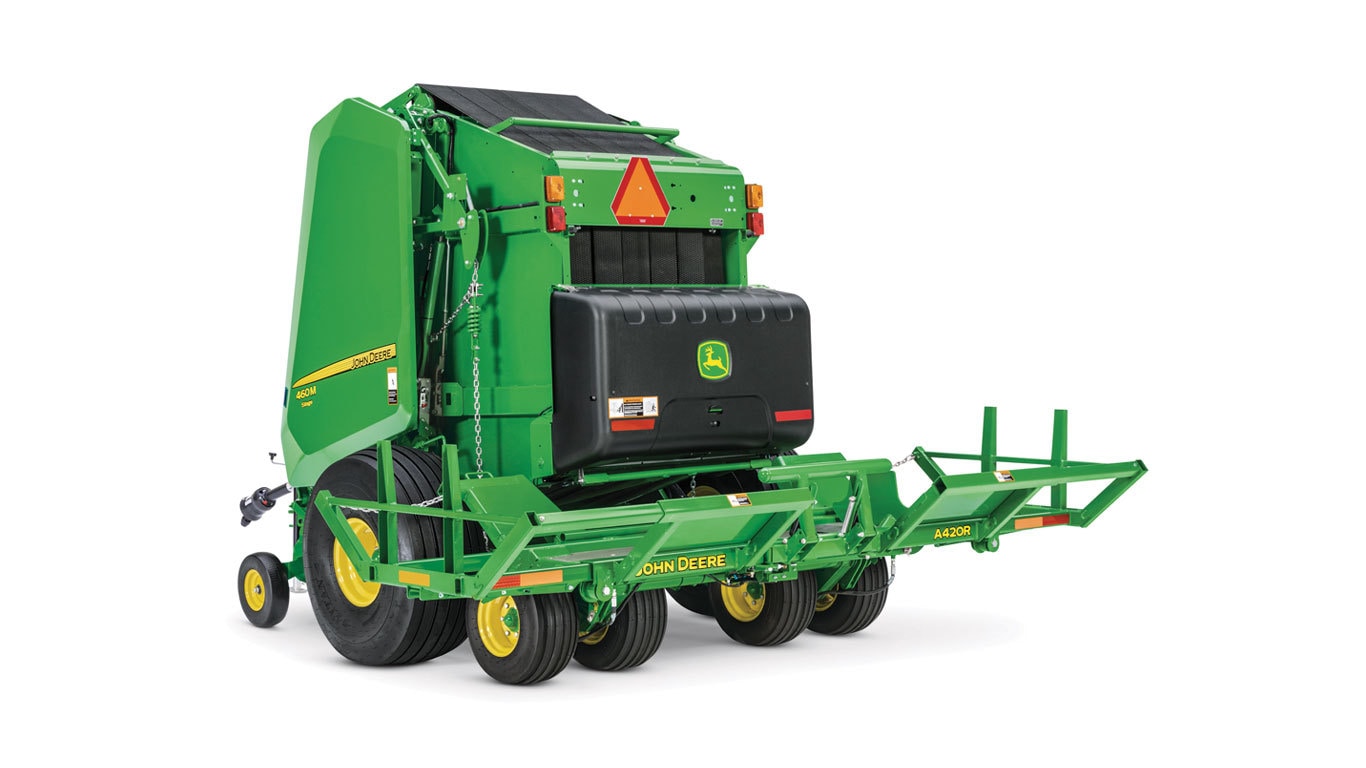

Round Baler Wear Parts Box
