Hay and Forage Raking Equipment
Rotary rakes and wheel rakes that perform
The Frontier™ Rotary Rakes are perfect for hay producers looking to maximize their output of crops, and for commercial haymakers looking to shave a little time in the field, High-Capacity Wheel Rakes give you high-performance and consistency to tackle nearly any type of terrain.
Compare Frontier™ High-Capacity Wheel Rakes
For commercial hay makers looking to shave a little time in the field, High-Capacity Wheel Rakes from Frontier™ give you the performance and consistency to engage nearly any type of terrain.
- Wheel lift cylinders retract in the storage position
- Ratchet jack adjusts main frame so axle uprights are perpendicular to ground
| Model | Raking Width | Windrow Width | # of Wheels |
|---|---|---|---|
|
24 ft. (7.3 m) maximum |
38 - 58 in. (96.5 - 147.3 cm) |
12 Wheels |
|
|
28 ft. (8.5 m) maximum |
38 - 58 in. (96.5 - 147.3 cm) |
14 Wheels |
|
|
32 ft. (9.8 m) maximum |
38 - 58 in. (96.5 - 147.3 cm) |
16 Wheels |
Compare Frontier™ High-Capacity Carted Wheel Rakes
Frontier™ High-Capacity Carted Wheel Rakes provide fast raking speed without sacrificing performance to maximize hay quality and retain feed value.
- Rake arm and rake wheel pivot joints provide flexibility over uneven ground
- Rake arms and beams designed for higher ground clearance maximize crop volume
- Rake with one or both arms as needed
- Standard 60 in. rake wheels turn more slowly, reducing leaf loss
| Model | Raking Width | Windrow Width | # of Wheels |
|---|---|---|---|
|
19 ft. (5.79 m) maximum |
36 - 60 in. (91.4 - 152.4 cm) |
8 Wheels |
|
|
22 ft. (6.71 m) maximum |
48 - 72 in. (121.9 - 183 cm) |
10 Wheels |
|
|
24 ft. 4 in. (7.32 m) maximum |
48 - 72 in. (121.9 - 183 cm) |
12 Wheels |
Compare Frontier™ Rotary Rakes
With a gentle sweeping action, Frontier™ Rotary Rakes reduce dry-down time while keeping dirt and debris out of your windrows for higher-quality bales.
- Tilt rotor with front crank adjustment
- Adjustable tine height
- Removable tine arms and folding guards for transport and storage (except on RR2109)
- Constant-velocity overload clutch
| Model | Raking Width | PTO HP | # of Tine Arms |
|---|---|---|---|
|
9 ft. (2.7 m) |
30 hp (22.4 kW) |
9 |
|
|
11 ft. (3.4 m) |
40 hp (29.8 kW) |
11 |
|
|
13 ft. (4.0 m) |
40 hp (29.8 kW) |
13 |
|
|
24 ft. (7.3 m) |
50 hp (37.3 kW) |
26 |

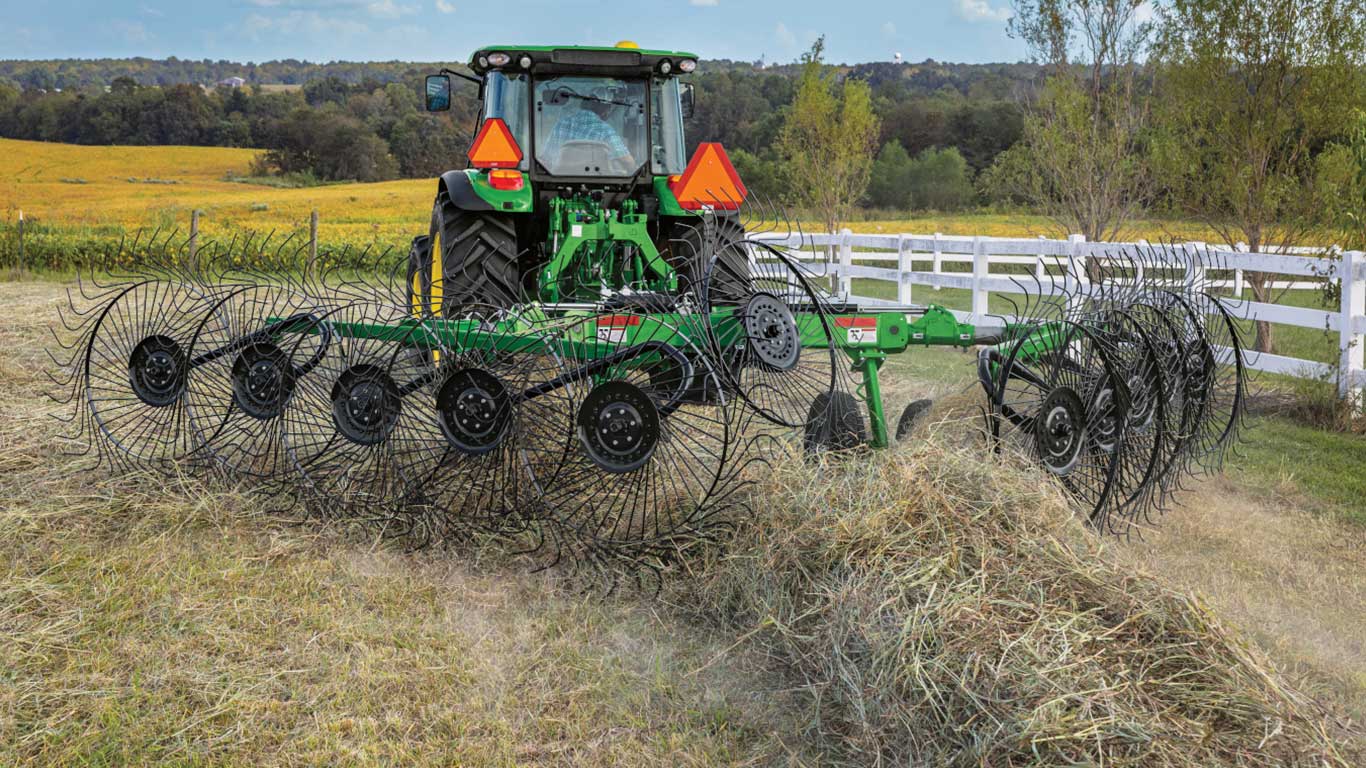

Compare Frontier™ Carted Wheel Rakes
Frontier™ Carted Wheel Rakes provide optimum maneuverability and extra down-pressure to adjust to land contours for tough raking jobs.
- Floating arms enable rake wheels to follow ground contour
- Adjustable ground pressure allows each rake beam to adapt to various crops and conditions
- Vary windrow width with simple 2-point position, pin-and-hole, or bolt adjustment
| Model | Raking Width | Windrow Width | # of Wheels |
|---|---|---|---|
|
17 ft. 8 in. (5.4 m) maximum |
24 - 51 in. (61 - 130 cm) |
8 Wheels |
|
|
21 ft. (6.4 m) maximum |
24 - 51 in. (61 - 130 cm) |
10 Wheels |
|
|
24 ft. 4 in. (7.4 m) maximum |
24 - 51 in. (61 - 130 cm) |
12 Wheels |
|
|
15 - 19 ft. (4.6 - 5.8 m) |
36 - 60 in. (91.4 - 152.4 cm) |
8 Wheels |
|
|
18 - 22 ft. (5.5 - 6.7 m) |
48 - 72 in. (121.9 - 182.9 cm) |
10 Wheels |
|
|
20 - 24 ft. (6.1 - 7.3 m) |
48 - 72 in. (121.9 - 182.9 cm) |
12 Wheels |
