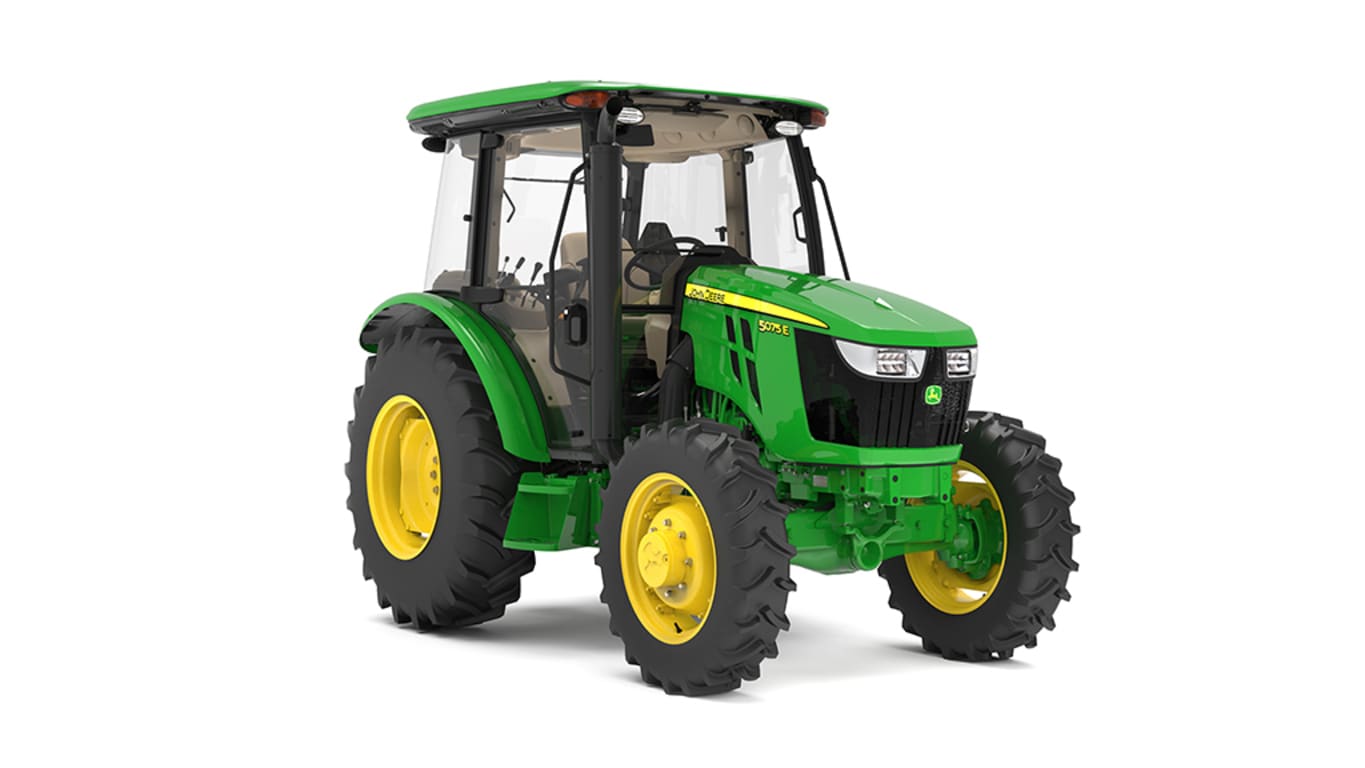

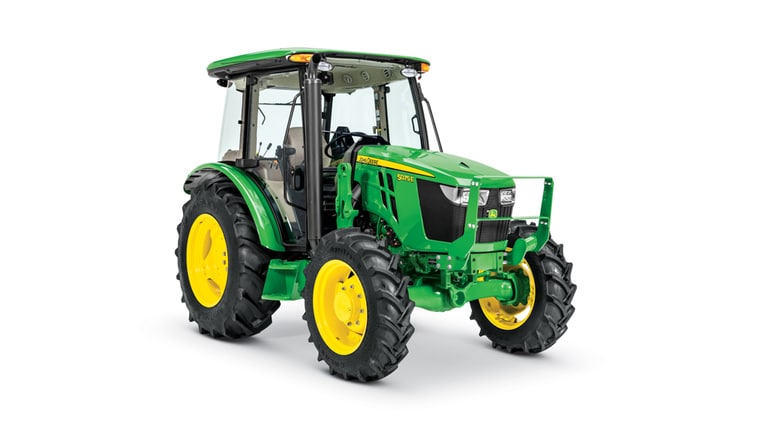

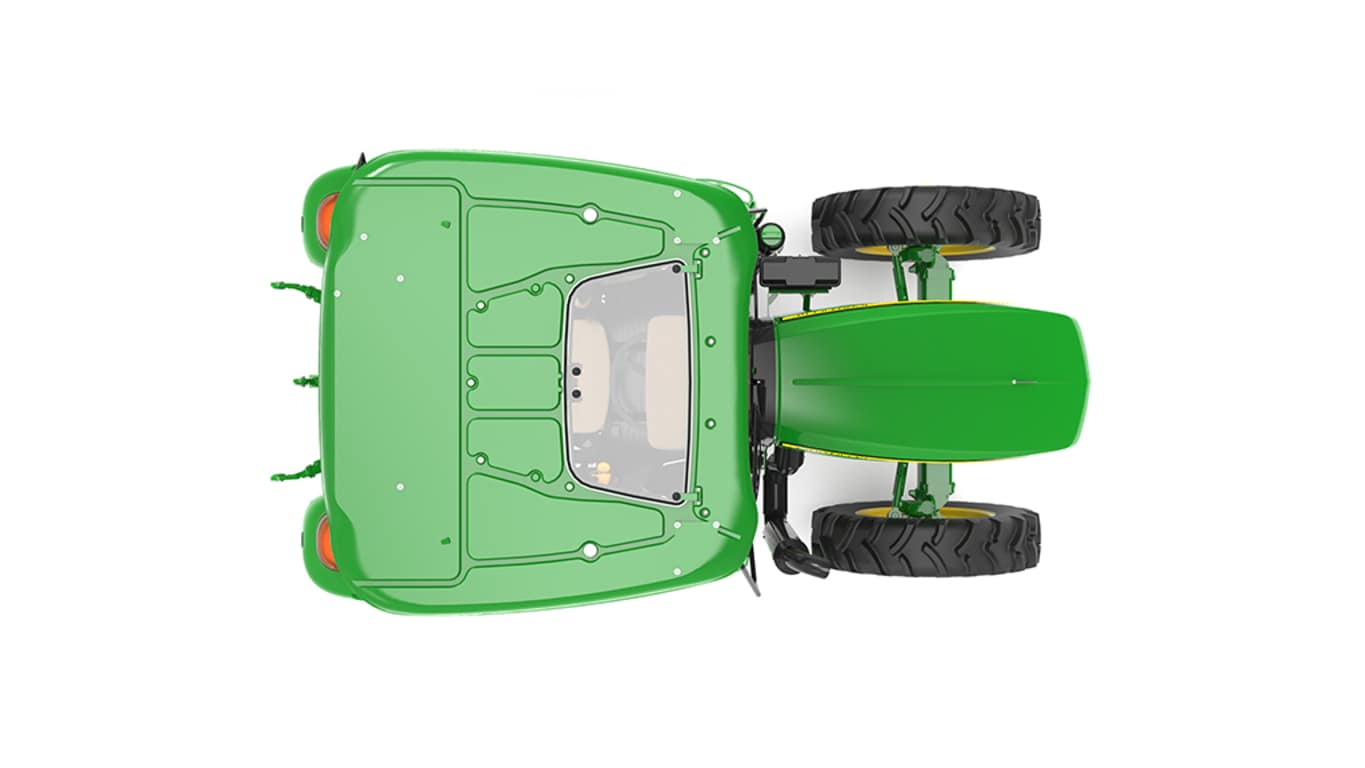

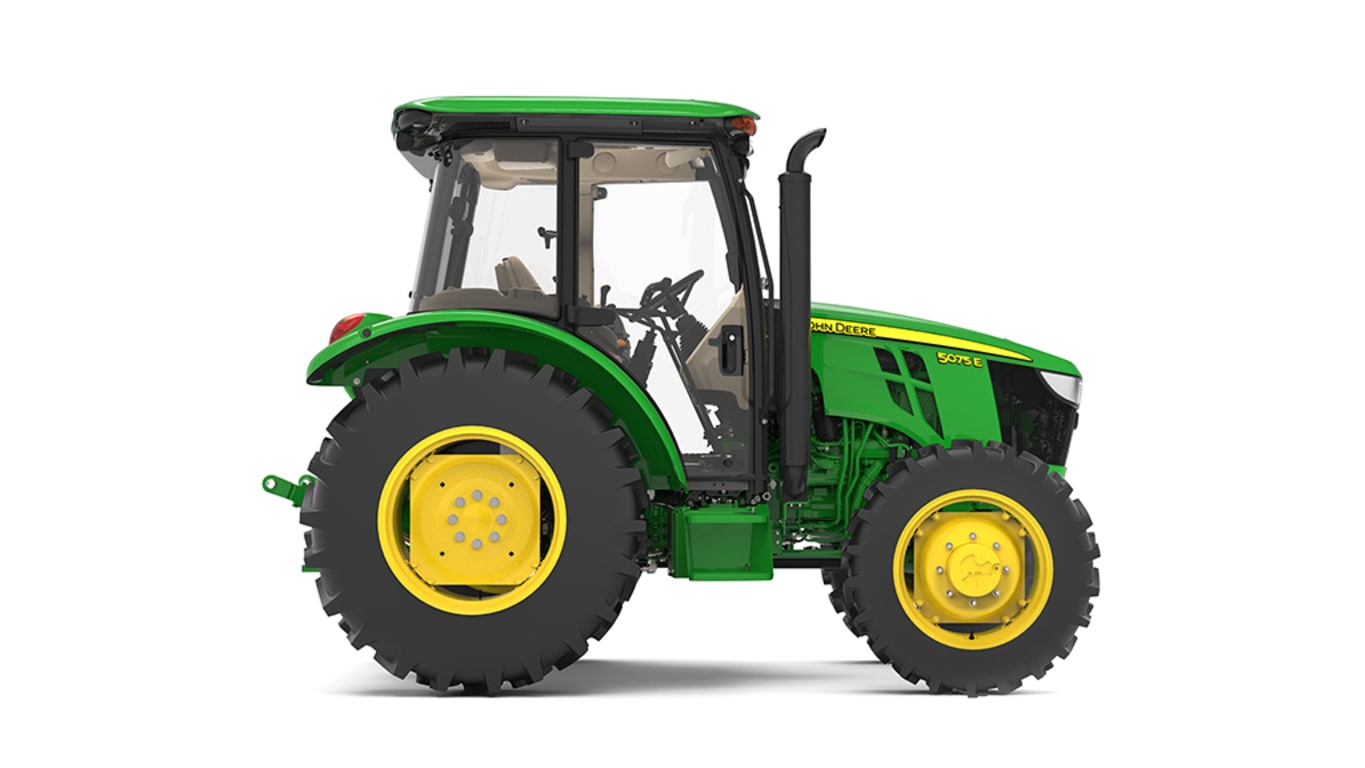

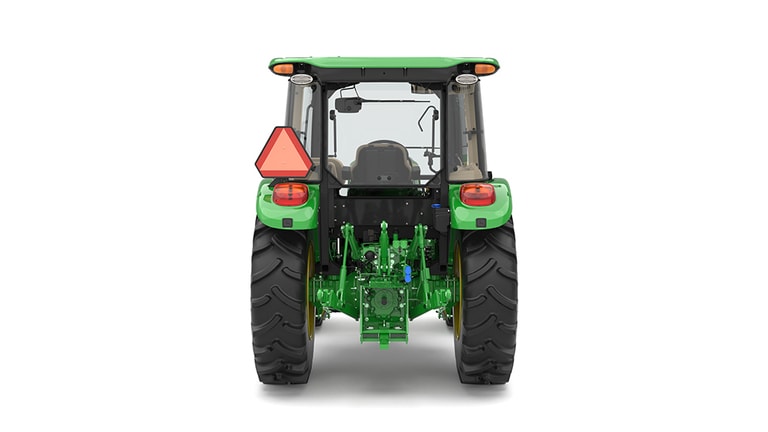

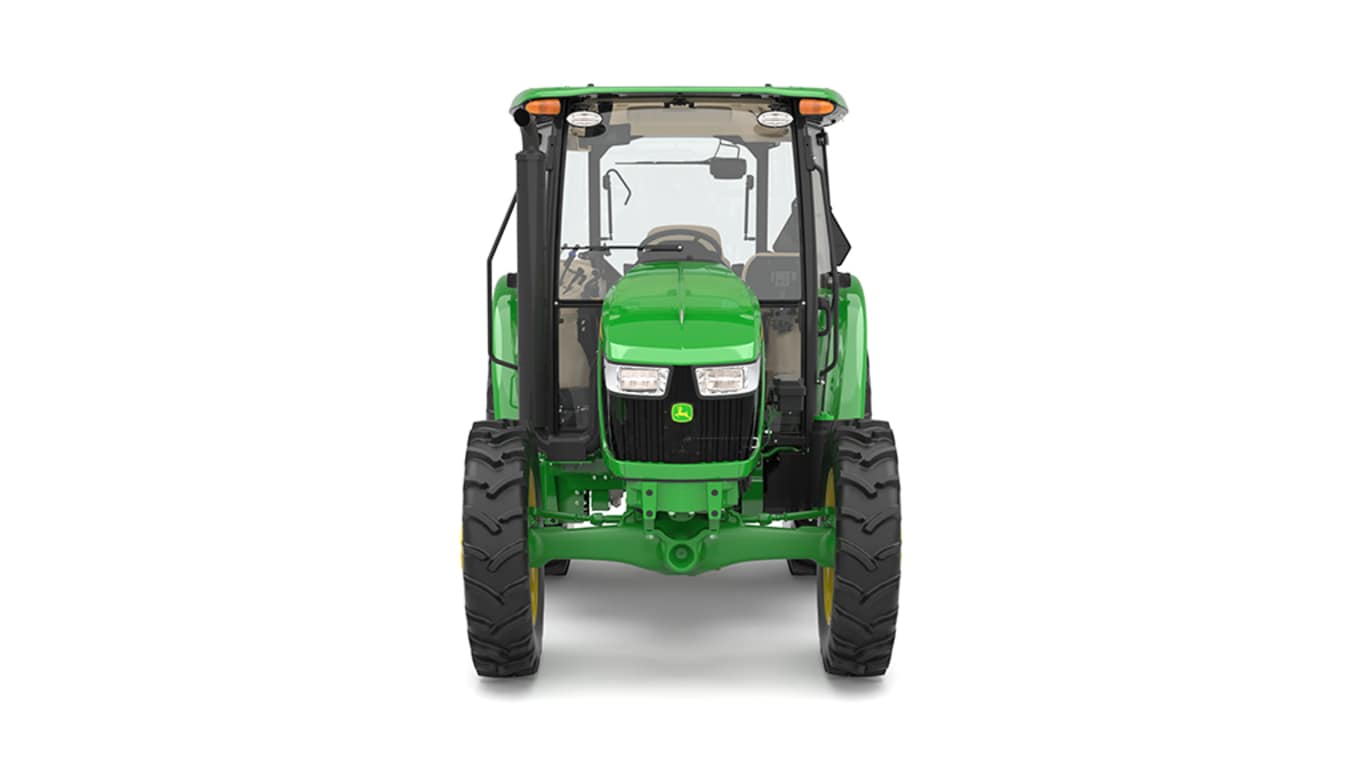

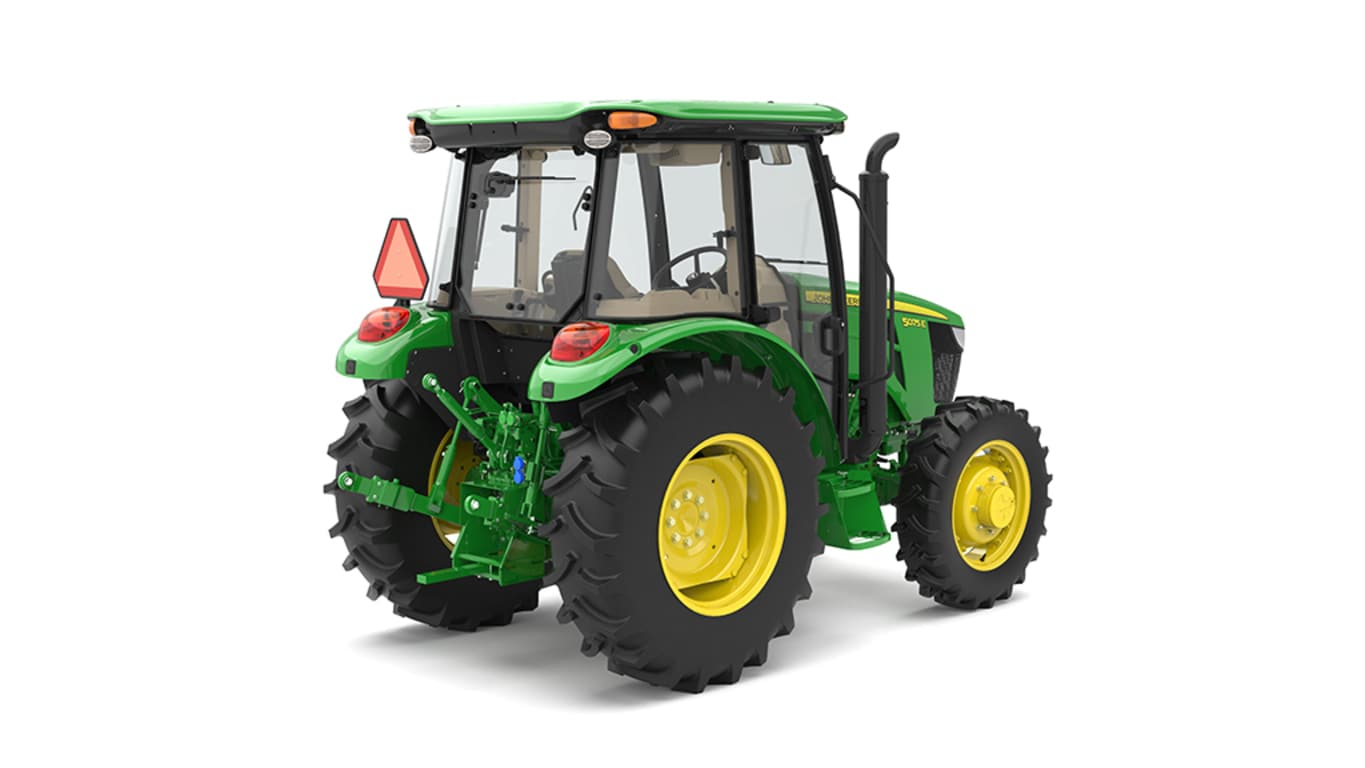

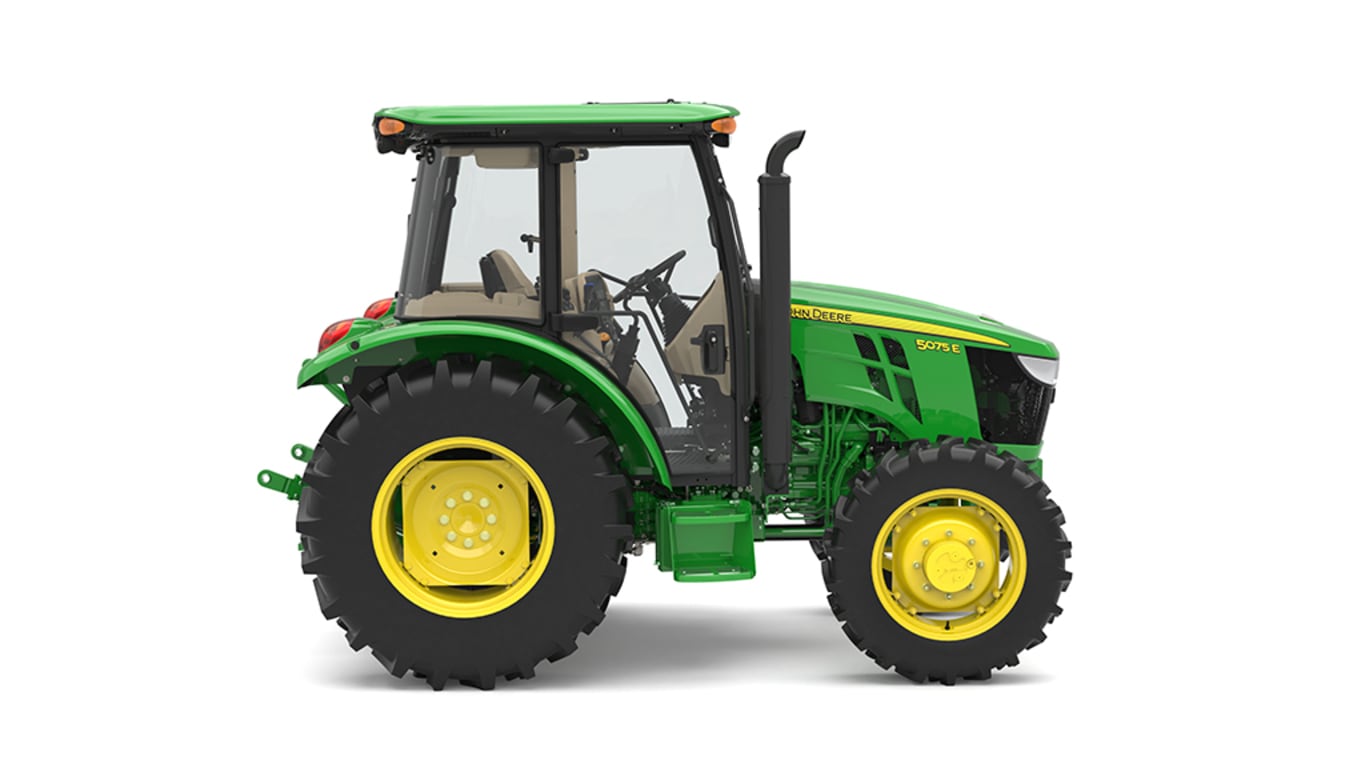

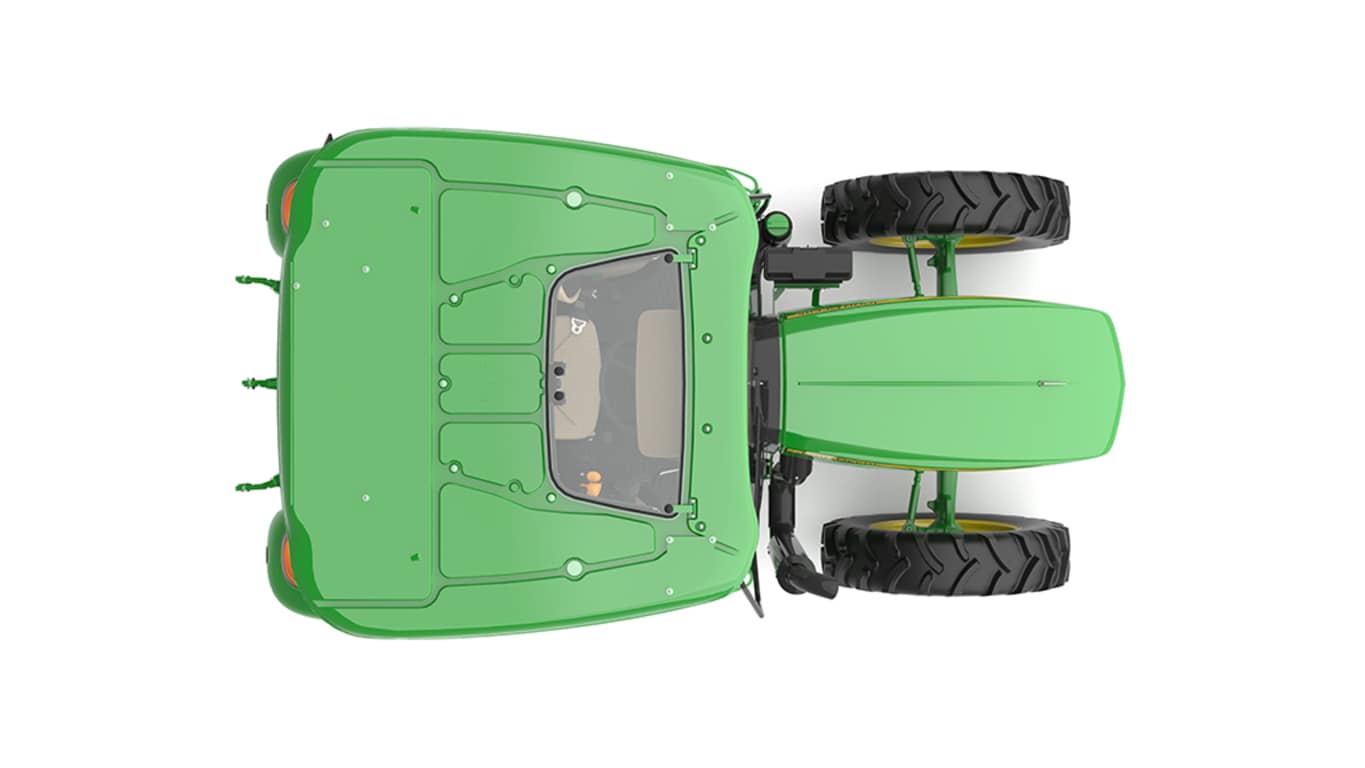

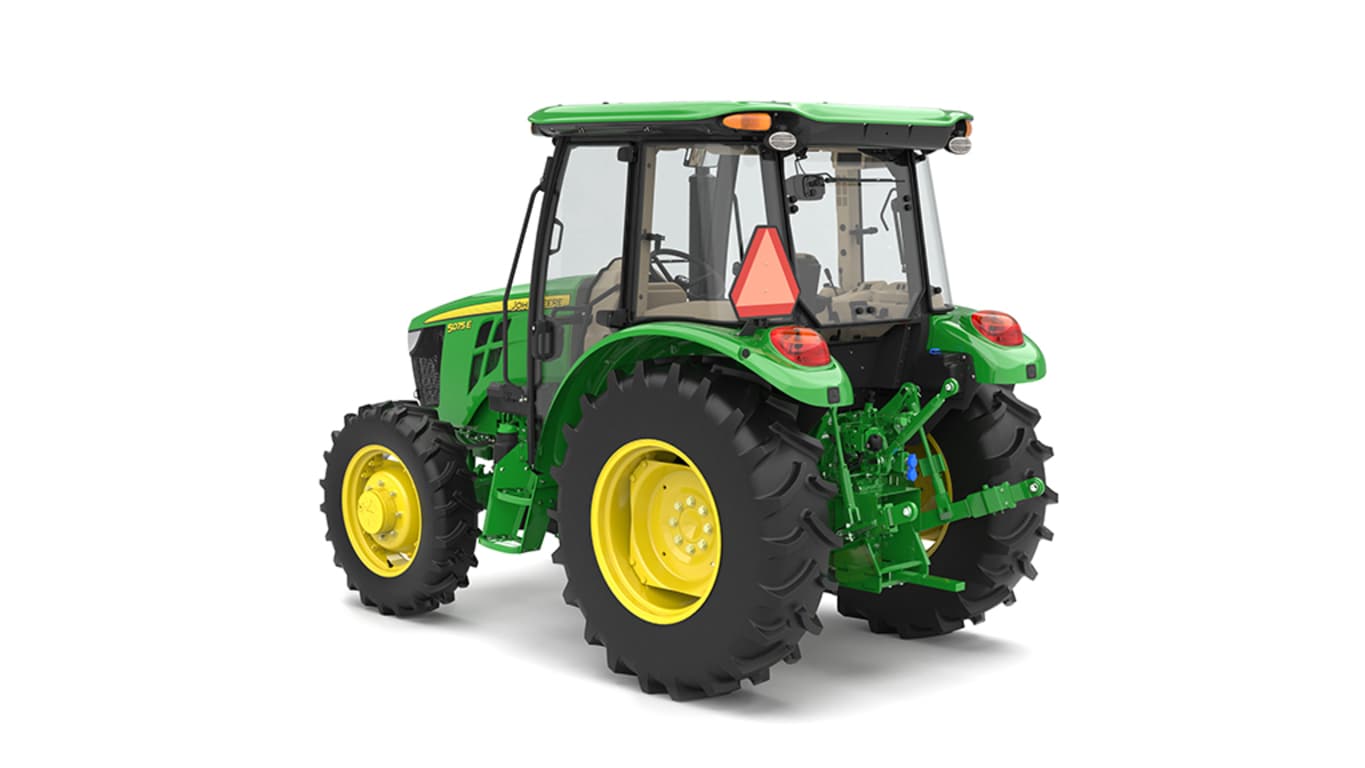

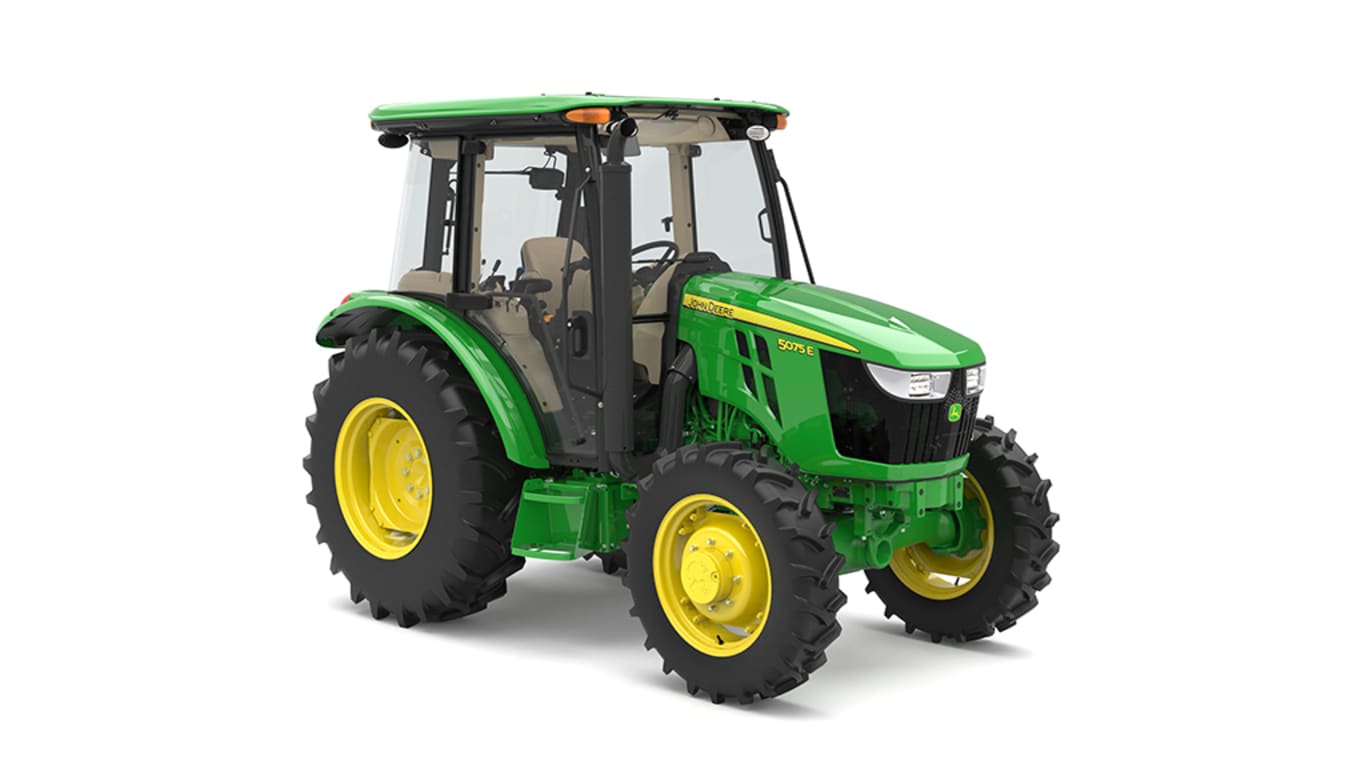

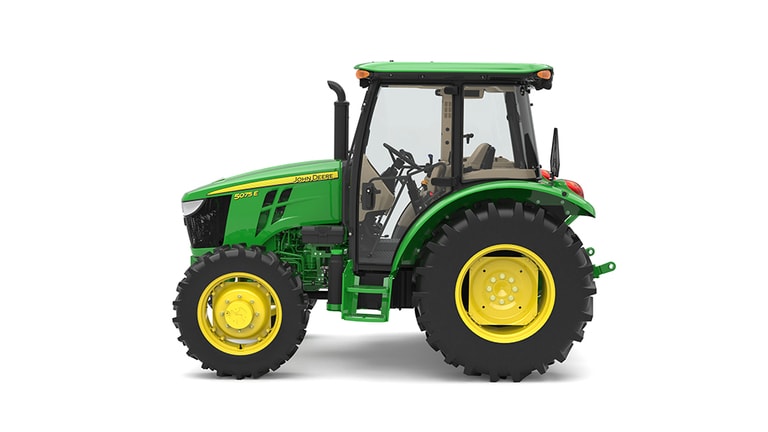

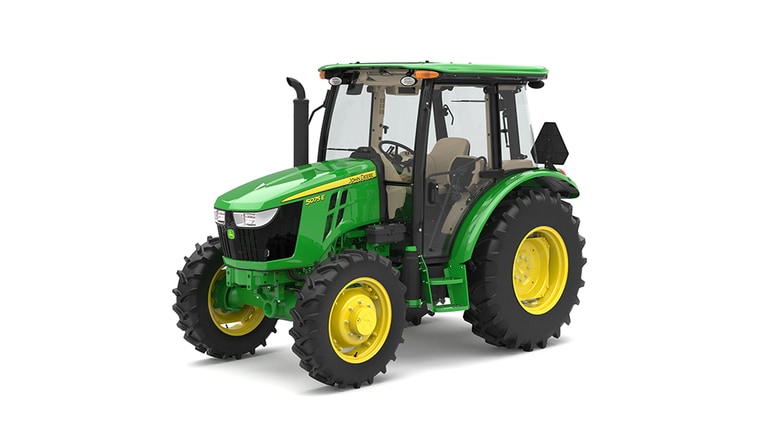

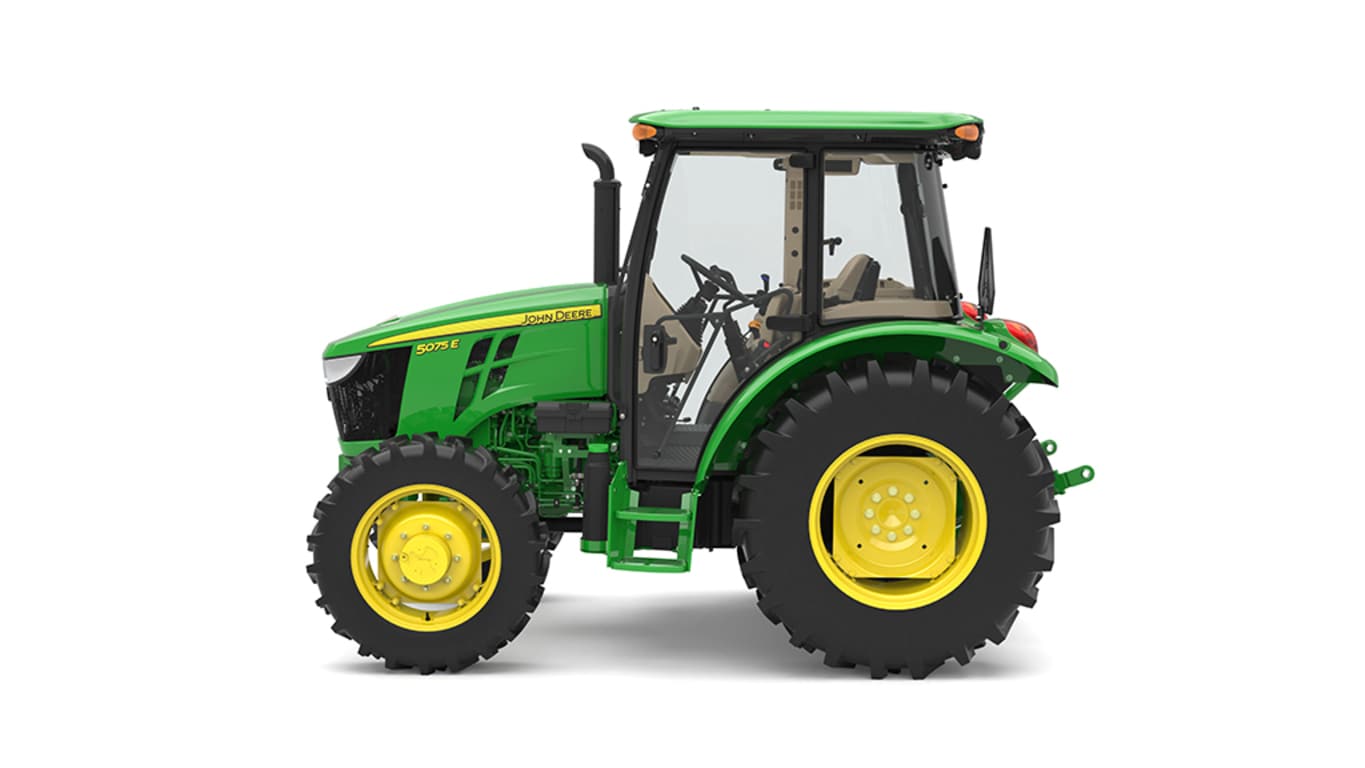

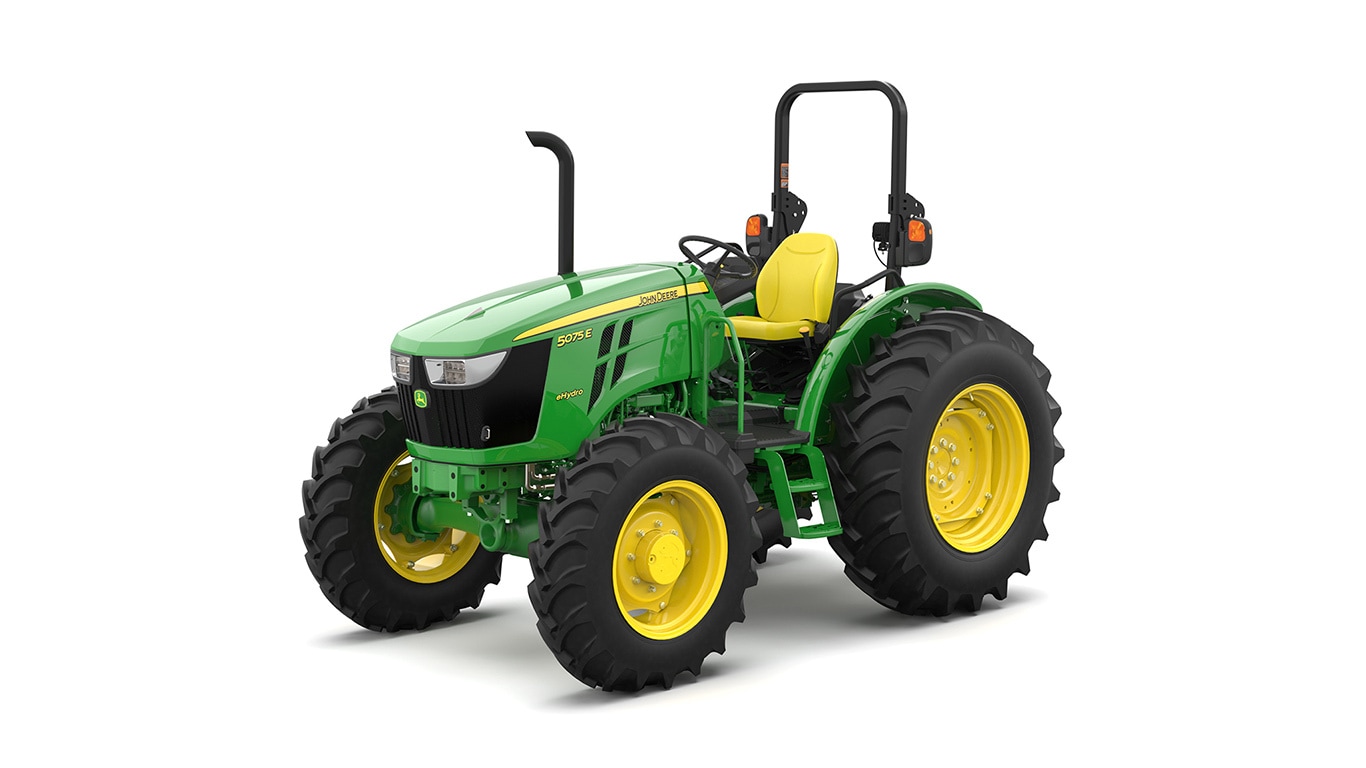

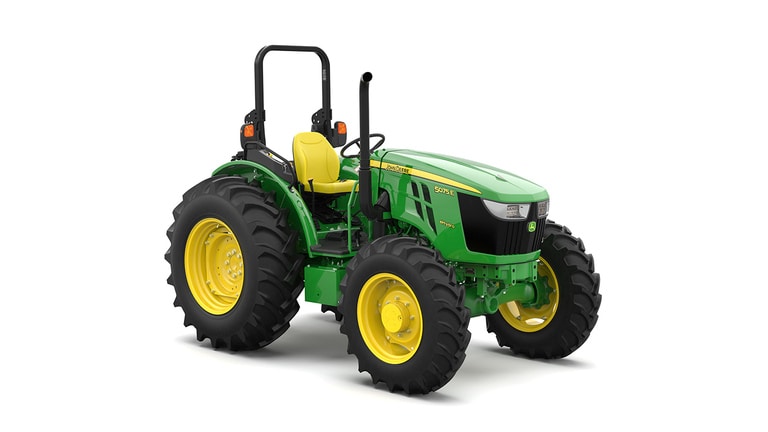

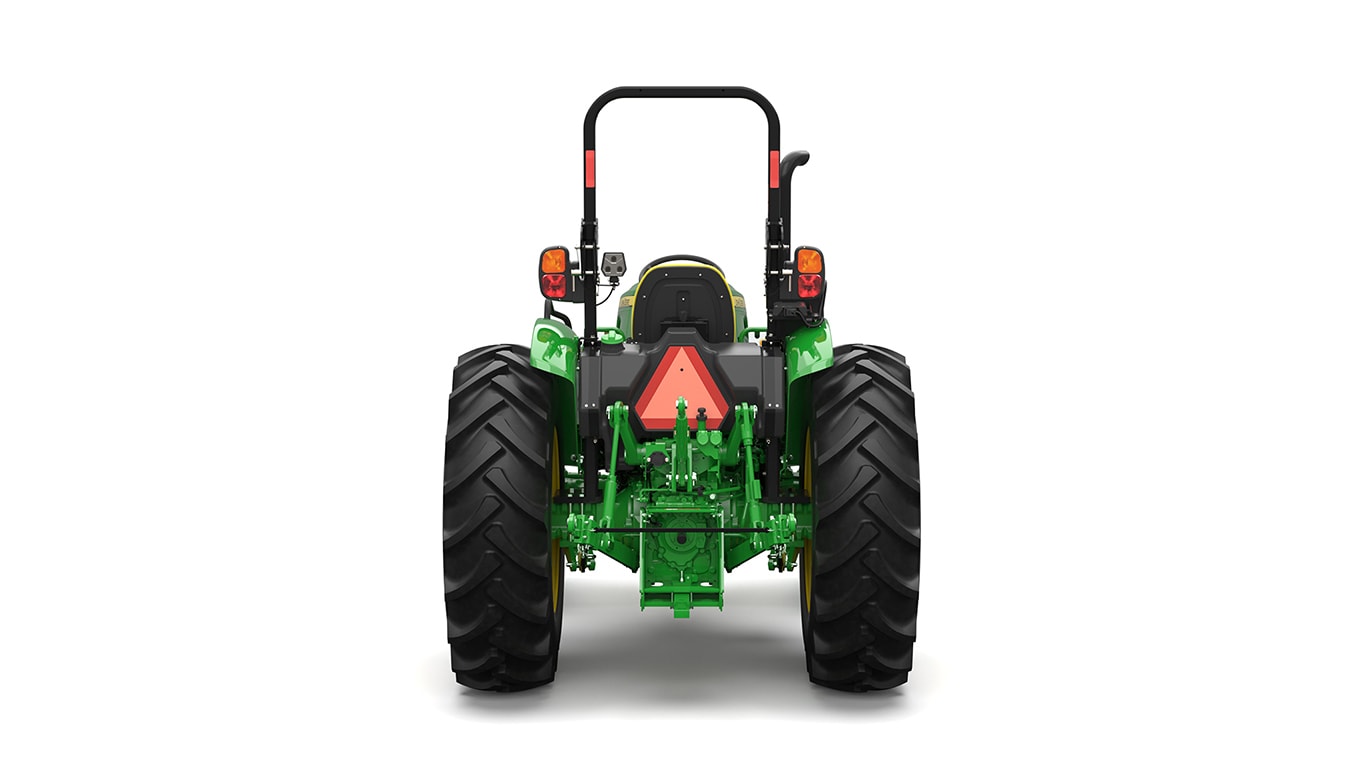

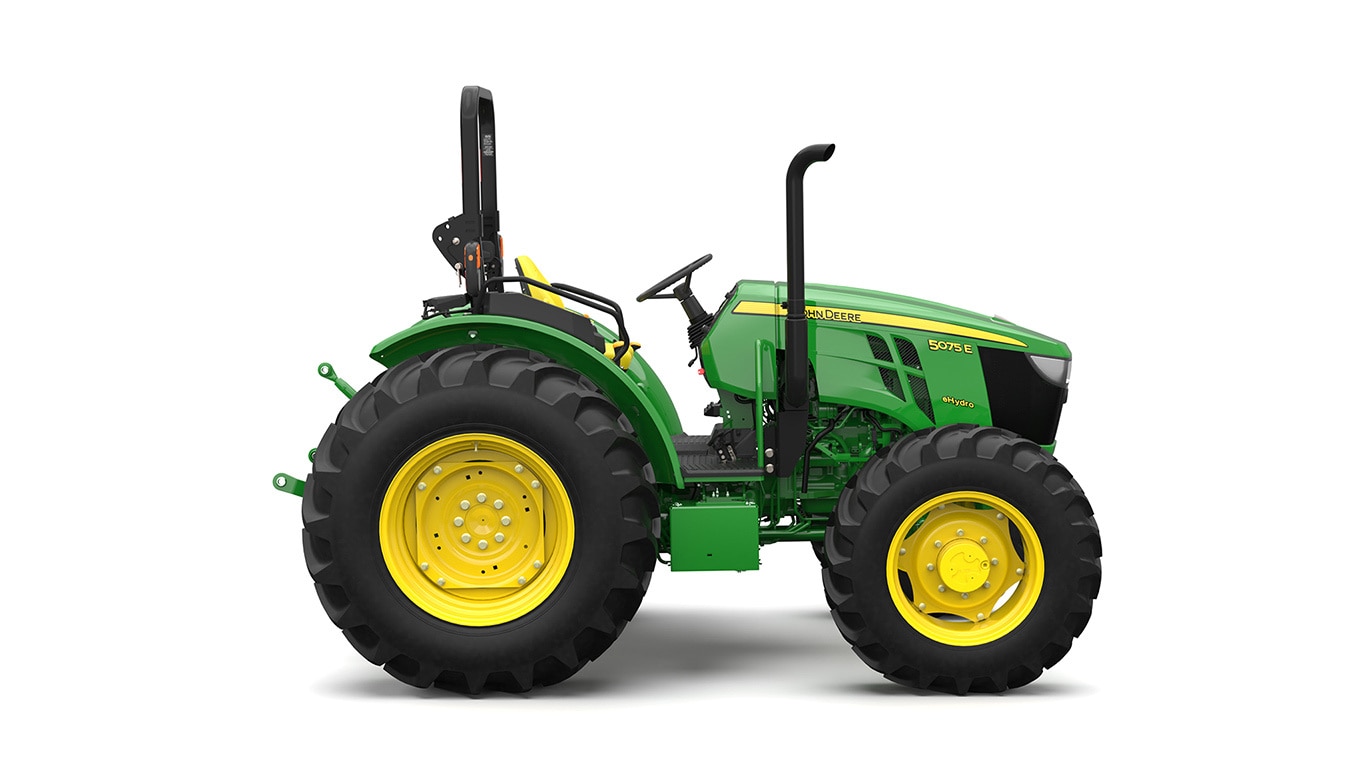

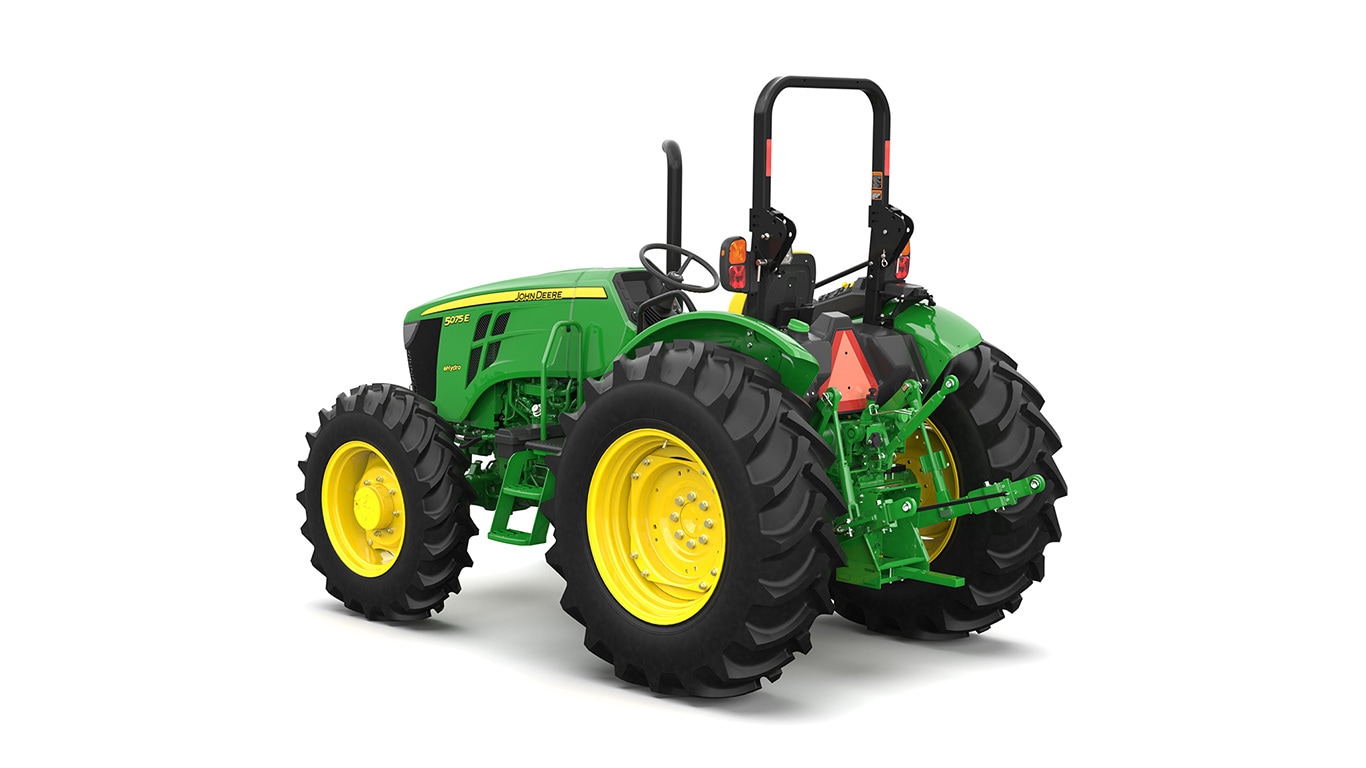

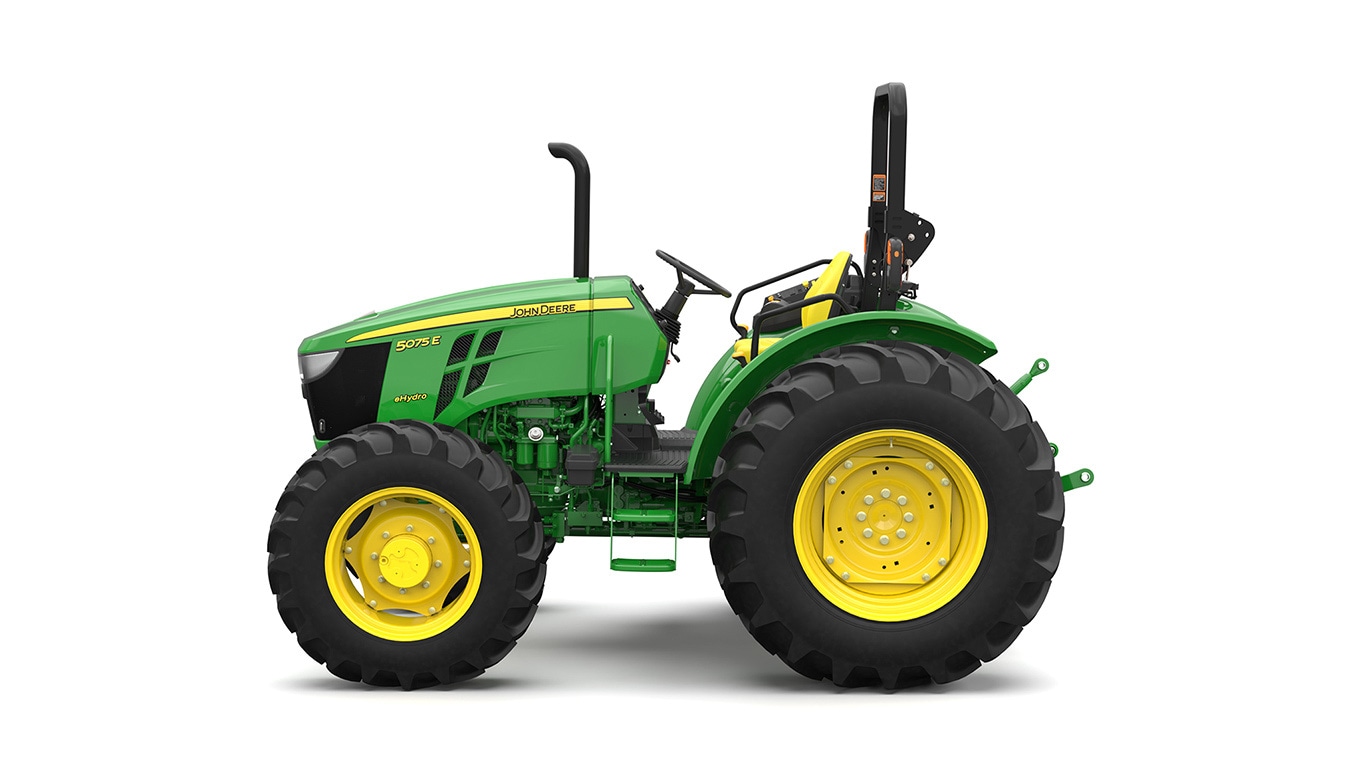

5E Utility Tractors | 5075E

Enjoy premium comfort and value of Premium Cab

5E 3-Cylinder Premium Cab offers enhanced comfort and value

5E 3-Cylinder Premium Cab

Jobs seem easier when you are comfortable and the premium cab on the 5E 3-Cylinder Tractor is designed for you to enjoy. No matter the weather, the Premium Cab is ready for you to climb in and explore the value in the same-sized utility tractor to get the job done. With exclusive features like sunroof with sunshade, Electronic Quick Raise-Lower (EQRL) hitch controls, Go-Home Lighting, and loaded with features that are extras on a standard cab, this 5E Cab has lots to experience.

Controls at your fingertips including the ergonomic controls on the right-hand console
Smooth ride for any operator by adjusting the air suspension seat to the operator's weight and height
Training new operators is easier with the instructional seat that can be folded away when not in use
Listen to music or make hands-free calls with included Bluetooth radio and microphone
See clearly out the back window thanks to rear windshield wiper and washer
Light the night with LED headlights and work lights for improved visibility
Gain visibility above roof line when stacking bales or let in air on a nice day with sunroof
Access through right-hand door makes grabbing items from cab easy from either side
Exit the cab and find your way home or to the truck thanks to go-home lighting
Effortlessly shut the rear window with the improved grab handle

NOTE: Auxiliary power strip field kit shown is not included in Premium Cab image at top left.

Compare features offered in 5E 3-Cylinder Premium Cab versus Standard cab:
Features	Standard Cab	Premium Cab
Sunroof with sunshade	---	Exclusive
Front and rear LED work lights	---	Exclusive
Go-home lighting	---	Exclusive
EQRL - Electronic Quick Raise/Lower: right hand console mounted	---	Exclusive
USB and auxiliary audio port	---	Exclusive
Rear window pull handle	---	Exclusive
Instructional seat	Extra	X
Bluetooth radio with microphone	Extra	X
Two rear SCVs	Extra	X
Rear window wiper with washer	Extra	X
Right-hand door and steps	Extra	X
Tilt and telescopic steering column	With PowrReverser™	X
Cloth seat with retractable seat belt	Mechanical seat suspension	Air ride seat suspension
Single rear SCV	X	X
Air conditioning and heater	X	X
Convenience power outlet	X	X
LED headlights (high and low beam)	X	X
Three-position (on/off/auto) interior dome light	X	X
Right-hand console ambient lighting	X	X
Beverage holders	X	X
Sun visor	X	X
Rearview mirror	X	X
Two mounting bosses for monitors or accessories on B-pillar	X	X
Radio Preparation (with speakers and wiring)	X	X
Front windshield wiper with washer	X	X
Amp-style, three-socket power connector	X	X
Stationary PTO enable switch	X	X

Climate controls and rearview mirror

5E 3-Cylinder Premium Cab with EQRL

Radio and rear window grab handle

Visibility to hook up rear implements

Easy headland turns with electronic quick raise lower (EQRL) of rear hitch

Land planning with Frontier LP1184

Mowing with MX7

Moving bales with rear bale spear

Easily perform repeatable raising and lowering of the rear hitch with EQRL

Simplify repetitive rear hitch lifting and lowering tasks with the Electric Quick Raise Lower (EQRL) on 5E 3-Cylinder Premium Cabs. EQRL uses one button to raise to transport height and another to lower the rear hitch back to your prescribed depth.

Reduce effort performing raise/lower functions of rear hitch
Save time setting the prescribed depth and consistently returning to it
Accurately maintain depth or lift height
Comfortably complete repeatable tasks with ergonomic controls at your fingertips and proximity to other common controls like throttle, PTO, and MFWD engagement

EQRL efficiency gains:

Moving bales – keeping your rear bale spear depth perfectly set to align to the center of the bale then raise to transport height
Disking/Mowing – raise mower when making turns and return to desired height
Box Blade/Land planning – creating smooth surfaces for your driveway or field
Snow blading/blowing – reduce the risk of damaging driveways and roads

EQRL buttons work in tandem with rear hitch depth control and top-link load sensing draft control levers

Light the way as you Go-Home from your day

When parking after a long day or in a dark shed

Go-Home lighting lights your path

Overview

When leaving the field or parking the tractor in the shed, Go-Home lighting will provide light as you make your way to your vehicle or house. Included with the Premium Cab on 5E 3-Cylinder tractors.

Allow for 30 seconds of light after the engine is shut off when Go-Home lighting is activated
Avoid battery drain with automatic shut off headlights

Through the following steps, the go-home lighting is engaged:

Park the tractor
Move the key to off position
Press the Go-Home Lighting button within 15 seconds

After pressing Go-Home Lighting button, the go-home feature is activated (headlight turns on automatically) and the operator can easily walk home with the help of the headlights. After 30 seconds, the headlights switch off automatically.

No regen required with final tier 4-compliant PowerTech™ engines on 5E 3-Cylinders

A simplified aftertreatment requires no regen and keeps visibility over the hood

The same powerful, reliable engine you love, but now no regen required on 5E 3-Cylinder models while still meet the U.S. Environmental Protection Agency (EPA) Final Tier 4 (FT4) exhaust emissions regulations. The John Deere PowerTech™ 3029 EWR engine utilizes a diesel oxidation catalyst (DOC) and cooled exhaust gas recirculation (EGR) aftertreatment system – with no DEF fluid, no DPF, and no regen required, you can focus on completing your jobs while your tractor keeps providing the power you need.

Provide excellent torque and fuel efficiency
See over the hood with compact aftertreatment design
Outstanding performance and durability

The engine in this machine is not equipped with a spark arrestor muffler. It is a violation of California Public Resource Code Section 4442 to use or operate this engine on or near any forest-covered, brush-covered or grass-covered land unless the exhaust system is equipped with a spark arrestor meeting any applicable local or state laws. Other states or federal areas may have similar laws. See 'Spark Arrestor Screen' in exhaust attachments section if required for your operating area.

For more information regarding EPA regulations and the technology behind John Deere Integrated Emissions Control systems, please visit the following link: http://www.deere.com/wps/dcom/en_US/campaigns/ag_turf/emissions/final_tier_4.page or https://www.deere.ca/en/engines-and-drivetrain/final-tier-4/

Economical and versatile selective control valve (SCV) options

Manure spreader with dual rear SCV

Premium cab with triple mid SCV operating grapple

Overview

5E 3-Cylinder Series Tractors can be equipped with as many as five (up to two rear and three mid) economical and versatile spool-type SCVs. These SCVs provide a high-flow rate for the tractor's hydraulic system with the open-center hydraulic system.

Benefits

Additional versatility in configuration for one up to five total SCVs depending on needs with ability to upgrade in the future
Color coordinated controls located on the right side provide a user-friendly and ergonomic operator experience
Upgradable, stackable mid SCVs give producers a cost-effective way to add a true third function to your tractor
Operators not using the tractor for loader work can select a less mid SCV option

Additional details

		Open Operator Station (OOS)	Standard Cab	Premium Cab
Rear SCV	Single	Base	Base	---
Rear SCV	Two	Field-Install Only	Field-Install Only	Base
Mid SCV	Less	Base	Base	---
	Dual	Option	Option	Base
	Triple	Option	Option	Option

Rear SCVs

Single rear SCV

Dual rear SCV

The valves are a stackable design and controlled by color-coded levers at the operator's right hand. The single SCV features a detented float position, while the two rear SCV’s first valve features a detented float position and the second valve has a regenerative position.

Mid-mount SCVs

Dual mid-mount SCVs on OOS tractors

Triple Mid-SCV with 520M loader lines installed

Mid-mount SCVs are the recommended option for loader operation and feature a detented float position on the first valve and a regenerative position on the second valve for faster loader bucket dump cycles.

Add more versatility to loader with a third function allowing use of grapple, 4-in-1 bucket, or other loader implements requiring additional hydraulic function. Factory-installed triple mid-SCV available starting with model year 2023 provides true third function over previously available field-installed diverter kit (2+1 function). Also starting with model year 2023 the dual mid-SCV has a stackable design to allow for future upgrade to a triple mid-SCV if third loader function is required.

Each valve features extend, retract, neutral, and float positions and is controlled by a unique joystick-control lever mounted on the operator's right-hand side.

Mid-SCV joystick-control lever

Joystick-control mid-mount SCVs on OOS tractorst

Third function button on joystick control

Tractors that are equipped with dual or triple mid-mount SCVs are controlled by a user-friendly and ergonomic joystick, operating independently of the rear SCVs.

The joystick is designed to mold to the hand for increased comfort which comes standard on factory-installed dual or triple mid hydraulics
Securely move around the work site with confidence the material will stay in the bucket with the safety lockout feature that guarantees the joystick does not respond when the lock is on

Effective in demanding applications - PowrReverser™ 12Fx12R transmission

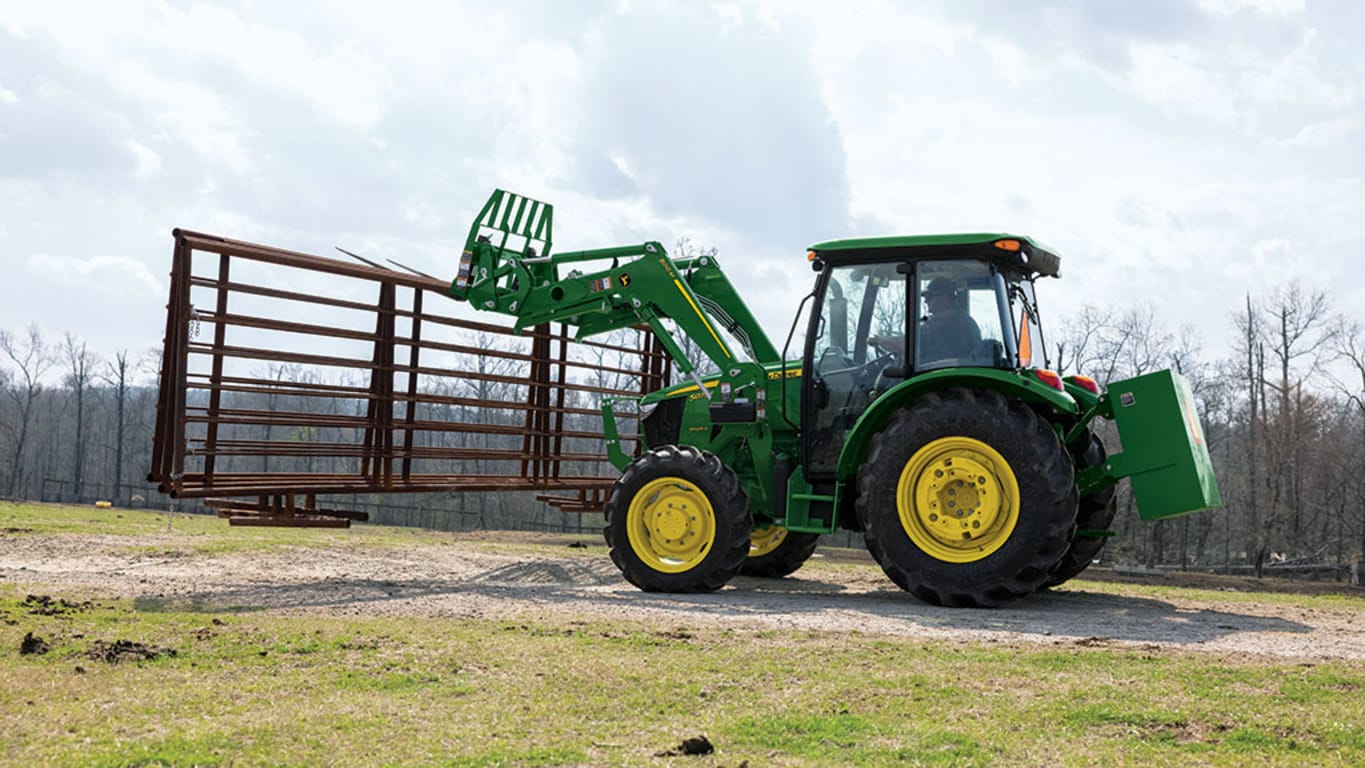

5075E doing loader work

5EN mowing

Overview

Ample speeds and ease of operation for demanding applications with the 12F x 12R PowrReverser. The PowrReverser™ 12F/12R transmission provides a wide range of speed options, with twelve forward gears and twelve reverse gears. This versatility allows operators to select the appropriate gear for different tasks and operating conditions. This transmission comes standard with a dual speed 540/540 economy power take-off (E-PTO) which is ideal for applications requiring frequent directional changes such as loader work.

Benefits

Effortlessly switch directions with a small finger motion using the clutch-less electrohydraulic fingertip directional lever
- Frees the right-hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left-hand
- The control is located on the left side of the steering column and selects forward, reverse, and neutral positions
Ideal for rear blading and any applications that require frequent directional changes in tight spaces
Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)

Standard Orange gear shift levers 5EN

Additional detail

Electrohydraulic reverser lever

NOTE: A neutral start switch requires the directional lever be in the neutral position to start the engine.

12F/12R transmission includes:

Hydraulic wet clutches (forward and reverse)
- Maximize durability and outlast the life of any dry clutch
- When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs
Platform-mounted shift levers (four gears, three ranges)
- Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience
- The gear-shift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two
Left-hand reverser
Constant-mesh helical-cut gears
- Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability
- Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating
Pressure-lubricated top shaft
Positive park pawl: provides positive park and eliminates the need for a hand brake
Neutral start switch

The forward lever selects one of four gears. The operator must depress the clutch while shifting. The rear lever selects one of three ranges: A, B, or C.

The PowrReverser has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.

The speed of directional changes can be adjusted to the operator's preference or application demands with the field-installed infinitely-variable control kit.

See the PTO functional area for more information on E-PTO.

A durable, mechanical front-wheel drive (MFWD) axle increases traction in tough conditions

Heavy-duty MFWD front axle on 5E

MFWD front axle on 5M with turnable fenders

Overview

Increase drawbar pull and improve traction when operating in slippery conditions with a limited-slip, heavy-duty MFWD front axle.

Benefits

Reduce wheel slippage in demanding conditions by getting the required torque to the ground
Diminish soil compaction with less tractor ballasting compared to two-wheel drive (2WD)
Increase fuel economy
Longer tire life
Excellent maneuverability and high crop clearance

Additional details

MFWD engagement switch on right hand console on 5M

Steering connections are protected by axle shown on 5E 3-Cylinder

MFWD on 5ENt

Narrow MFWD Axle on 5ML Cab

Turn around in tight spaces with a tight turning radius. Operate with consistent performance and enjoy a comfortable ride from axle oscillation that follows uneven terrain.

Axle oscillation also reduces the stress and maintenance cost on the axle spindles because loads are consistently spread across the entire axle. The centerline design eliminates the need for drive shaft universal joints that require regular maintenance. Anti-wrap shielding on the driveline is standard to prevent crop material and debris from building around the driveline and ensures tractor performance. Minimize maintenance time while maximizing front axle performance with three grease points conveniently located.

NOTE: When MFWD is engaged, an indicator light will appear on the dash. See operator’s manual for additional details on operation and adjustment.

Excellent maneuverability, visibility, and comfort in one package with heavy-duty, two-wheel drive (2WD) front axle and cab

2WD front axle and cab on 45- to 55-kW (60- to 73.7-hp) 5E Tractors

Made of heavy-duty steel for added reliability, the 2WD front axle is adjustable in 50.8-mm (2-in.) increments to adapt to a wide variety of applications.

The front axle provides 10 degrees of axle oscillation, allowing the axle to follow uneven terrain for a consistent performance, comfortable ride, and reduced stress and maintenance costs on axle spindles.
A 55-degree turn angle provides excellent maneuverability for high-torque tasks in tight spaces.
The steering cylinder is bolted directly to the rear of the front axle, so the axle housing protects the steering cylinder from potential punctures created by rough terrain, rocky soil conditions, or thick crop material.

Broadening the 5E 3-Cylinder Tractor product lineup to offer a 2WD front axle in a cab configuration provides you with the well-known benefits of the 5E 3-Cylinder Tractors in conjunction with the ability to stay out of the elements and have the tighter turning radius that 2WD front axles provide.

2WD front axle

SyncShuttle™ 9F/3R transmission - An easy-to-use transmission which saves time and effort

Overview

The SyncShuttle transmission is designed to match the excellent power and torque characteristics of the John Deere PowerTech™ engines. The 9F/3R SyncShuttle provides nine forward and three reverse speeds with in-line synchronized shuttle shifting.

Benefits

Transmission durability is enhanced with the pressure-lubricated top shaft, allowing the operator to achieve performance from one working season to the next
Easy and comfortable shifting
Operator-friendly transmission controls with hand throttle

Additional detail

Additionally, the in-base transmission is configured with fixed draft links, single-speed power take-off (PTO) and mechanical PTO engagement.

The transmission is characterized as full top shaft synchronized (TSS) when forward shifting on-the-go between speeds and is characterized a synchronized while depressing the clutch.

Easy and comfortable shifting

Operator-friendly transmission controls with hand throttle

Synchronized shifting in all forward and reverse gears

Range selection pattern

Nine forward and three reverse (9F/3R) speeds are achieved by using two platform-mounted levers for shift operation. The gear lever at the operator's right hand selects one of three forward gears and one reverse gear, as well as the integrated park position. The range lever at the operator's left hand selects collar-shift A, B, and C ranges.

Operators can easily switch directions without having to completely stop the tractor with synchronized, in-line, shuttle-shift capability between forward and reverse gears on the gear-shift lever in all three ranges (A, B, and C ranges).

A neutral start switch requires the gear-shift lever be in the neutral or park positions to start the engine.

A positive park pawl on the transmission provides positive park and eliminates the need for a hand brake. This also eliminates clutch service costs that occur when the park brake is accidentally left engaged.

Standard independent 540-rpm rear power take-off (PTO) performs well in normal or heavy applications

PTO speed selector lever – 5M cab

Open operator station (OOS) 540E selector lever

Overview

Power an implement at 540 PTO rpm at a lower tractor engine rpm with Economy PTO (540E PTO). Depending on the transmission, the 540E PTO engine requirement could be as low as 1588 rpm. 540E PTO is ideal for many lighter-duty applications including mowing or spraying that do not require full engine horsepower.

Benefits

Save fuel
Reduce vibration and noise level
Increase engine life

Additional details

How does 540E PTO work?
On John Deere Tractors, the shiftable 540/540E mode operates a little like shifting gears on the transmission. By engaging economy mode, the operator changes the gear reduction ratio keeping the PTO spinning at 540 rpm while reducing the engine rpm. When the operator shifts the PTO back into the standard 540 mode, a different gear ratio is used to operate the PTO at 540 rpm and the engine at standard PTO rated speed.

To operate in economy mode, the shiftable 540/540E lever must be in 540E and then the throttle can be increased to the appropriate rpm. When in 540E, the tractor has a throttle limiter that keeps the operator from increasing engine rpm over the 540E setting. The limiter is used to prevent accidental over-speeding of PTO implements and protection against binding the PTO shaft.

The 540E setting cannot be used with full advertised PTO horsepower. If full PTO horsepower is required, operate the tractor in the standard 540 mode.

Details on the engine rpm required for standard 540 and 540 economy mode can be found in the operator’s manual along with additional details on operation and adjustment.

Stationary operation of the rear PTO with operator out of seat

Stationary PTO enable switch (cab)

Stationary PTO enable switch (OOS)

The stationary PTO enable switch is in base for all 5000 Utility Tractors produced starting on 1 November 2020 (except for the 5E 3-Cylinder Tractors with 9F/3R transmission which began in November 2021). The PTO shuts down if the operator leaves the seat with the PTO on. Stationary operation of a tractor PTO-powered implement allows the operator to leave the driving position with the PTO engaged by pressing the stationary PTO enable switch. See operator’s manual for additional details on operation and adjustment. Refer to the chart below for models with the stationary PTO enable switch in base.

Engine description	John Deere PowerTech™ 3029 EWR
Engine displacement	3 cylinders: 2.9 L 179 cu in.
Rated engine power	At 2100 rpm: 55 kW 75 hp
Maximum engine power	55 kW 75 hp
Rated PTO power (hp SAE)	At 2100 rpm: OOS 45 kW (60.3 hp) Cab 43 kW (57.6 hp)
Maximum PTO power
Transmission type	Standard: SyncShuttle™ 9F/3R Optional: PowrReverser™ 12F/12R
Hydraulic pump rated output	68.8 L/min 18.2 gpm
Rear hitch category (SAE designation)	Category 2; convertible to 1
Base machine weight
Hydraulic Pumps Nominal Flow
Maximum PTO power at rated engine speed with intellegent power management (IPM)
Maximum engine power (ECE-R120)
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
Rated Engine Power (SAE J1995)
Rated PTO Power
Rated engine power (ECE-R120)
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)
Rear Hitch Category (ISO 730-2009)

Description	John Deere PowerTech™ 3029 EWR
Engine type	3029HPY110
Engine family	NJDXL02.9339
Rated speed	2100 rpm
Aspiration	Turbocharged
Cylinders liners	Wet sleeved
Emission level	Final Tier 4
After treatment type	DOC/EGR
Displacement	3 cylinders: 2.9 L 179 cu in.

Rated power	At 2100 rpm: 55 kW 75 hp
Rated PTO power (hp SAE)	At 2100 rpm: OOS 45 kW (60.3 hp) Cab 43 kW (57.6 hp)
Maximum PTO power
Intelligent Power Management (IPM)
Power boost	0 percent
Maximum engine power	55 kW 73.7 hp
Engine peak torque	At 1500 rpm: 304 Nm 224 lb-ft
Drawbar power
PTO torque rise	21 percent
Fuel injection system and control
Air cleaner type
Maximum Engine Torque
Maximum PTO power at rated engine speed with intellegent power management (IPM)
Maximum engine torque (without power boost at 1.600 engine rpm)
Maximum engine power (ECE-R120)
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
Maximum engine power with intelligent power management (IPM)
Rated PTO Power
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)
Rated power (ECE-R120)
Torque Reserve

Type	Standard: SyncShuttle™ 9F/3R Optional: PowrReverser™ 12F/12R
Reverser	SyncShuttle™: No PowrReverser™: Yes
Clutch; wet/dry	SyncShuttle™: Dry PowrReverser™: Wet
Creeper	Kit available for OOS SyncShuttle™ 9F/3R transmission
Integrated Electric Power Generation

Type	Open center
Pump rated output	68.8 L/min 18.2 gpm
Available flow at a single rear SCV	43.1 L/min 11.4 gpm
Available flow at front SCVs
Number of rear selective control valves (SCVs)	Standard: One Optional: Two
Number of mid selective control valves (SCVs)	Standard: Zero Optional: Up to Three
Number of front selective control valves (SCVs)
Joystick SCV control	Mechanical
Auxiliary hydraulic features
SCV control
Available oil flow at a single rear SCV (200 Type)
Available oil flow at a single rear SCV (450 Type)
Available oil flow at a single rear SCV (450E Type)

Drawbar category
Maximum vertical load	Road/field use (short position): 1120 kg 2470 lb Field use (fully extended): 760 kg 1675 lb

Rear	2WD: 16.9-28 R1 Bias MFWD: 16.9-28 R1 Bias
Wheel tread range
Turning radius with brakes	2WD: 3.1 m 10.2 ft MFWD: 3.94 m 12.9 ft
Turning radius without brakes	2WD: 3.5 m 11.5 ft MFWD: 4.65 m 15.3 ft
Central Tire Inflation System (CTIS)
Front

Tread spacing
Drive type
Track width
Mid-rollers

Primary brake (foot brake)
Secondary brake
Park lock
MFWD braking
Front axle brakes
Auxiliary brakes
Hydraulic trailer brakes
Pneumatic trailer brakes

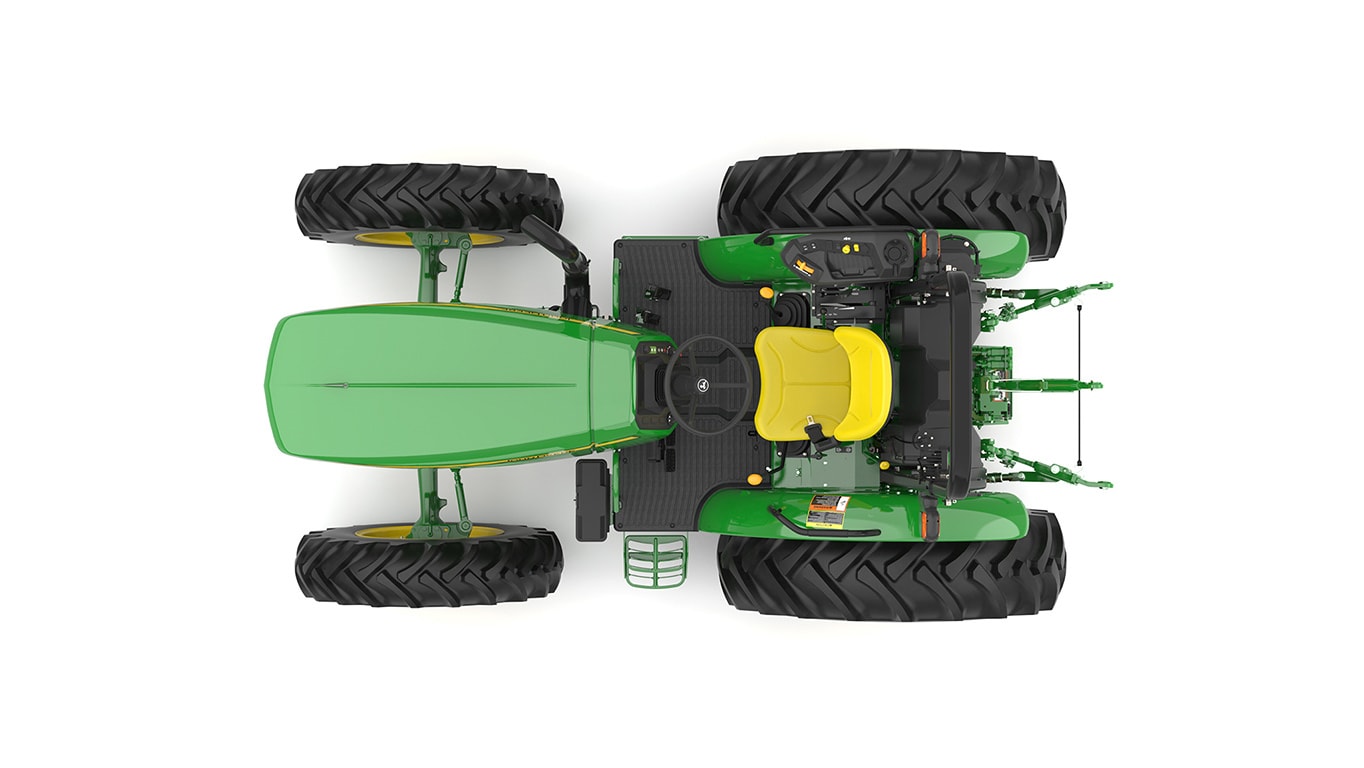

5075EUtility Tractor

SHARE

Features

Overview

Overview

Benefits

Additional details

Overview

Benefits

Additional detail

12F/12R transmission includes:

Overview

Benefits

Additional details

Overview

Benefits

Additional detail

Easy and comfortable shifting

Overview

Benefits

Additional details

Stationary operation of the rear PTO with operator out of seat

Specifications

Add Model

Key Specs

Engine specifications

Engine performance

Transmission

Hydraulic system

Rear hitch

Drawbar

Rear power take-off (PTO)

Front hitch

Rear axle

Front axle

Tires

Tracks

Steering

Brakes

Electrical system

Operator station

Dimensions

Weight

Capacities

Serviceability

Loaders

Precision AG

Miscellaneous

Additional information

Offers and Discounts

Related Products

Shop and Buy

Maintenance and Support

You May Also Be Interested In
