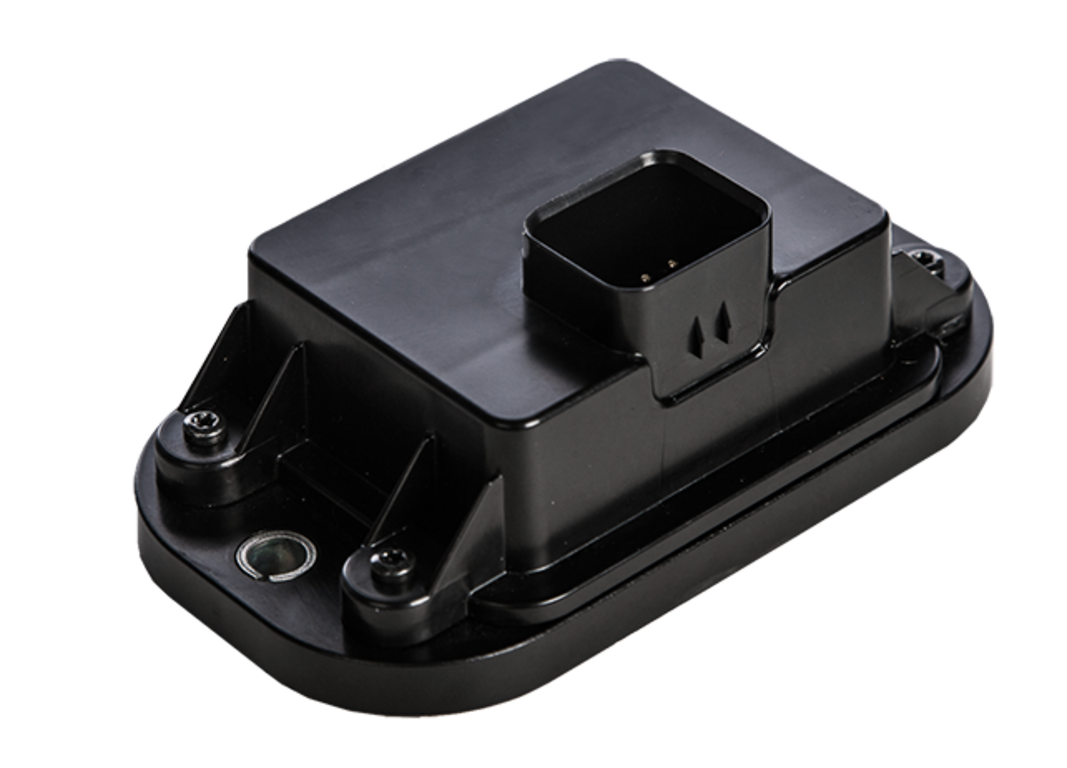

Sensing Solutions

  • Three axis MEMS accelerometer
  • Three axis MEMS gyroscope
  • Tracks changes up to ±90°/s
  • Resolution 0.01°
Complete Specifications
Print

Environmental Specifications

Mechanical

  • Operating temperature -40°C to +85°C
  • Storage temperature -55°C to +85°C
  • Sealed to IP67
  • Random vibration tested to 5 Hz to 2 kHz, 14.88 gRMS
  • Shock (less than 11 ms) tested to 51 g

Electrical

  • Broad range of battery voltages (9-32 VDC)
  • EMI according to JDQ 53.3.8.4.1, Level 2 and SAE J1113-41, over frequency range of 0.53MHz – 2MHz
  • EMC according to SAE J1113-26, 30kV/m field strength at 50/60 Hz
  • ESD power off: max ±8kV contact, ±25kV air
  • ESD power on: max ±8kV contact, ±15kV air

Specifications

  • Power Supply: 9VDC to 32 VDC (broad range of systems) 100 mA supply current
  • Startup Timing: 1000 ms (typical)
  • Environment: -40°C to +85°C Operating Temperature (-55°C to +85°C Storage Temperature)
  • Communications: J1939 at 250 kHz or 500 kHz
  • MatingConnector: Tyco Ampseal 776494-1
  • Dimensions: 113.3 mm x 65.8 mm x 42.1 mm
  • Weight: 150 g

Applications

Application Background

  • Used in vehicle cab leveling, general motion sensing, load weigh calibration, and others
