316GRSkid Steer
- Rated Operating Capacity: 795 kg (1,750 lb.)
- Gross Horsepower: 48.5 kW (65 hp)
- Net Horsepower: 45.6 kW (61 hp)
- Operating Weight: 2806 kg (6,180 lb.)
STARTING AT
$44,180.00USD1
Features
Expand All
Collapse All
John Deere 316GR equipped with an auger

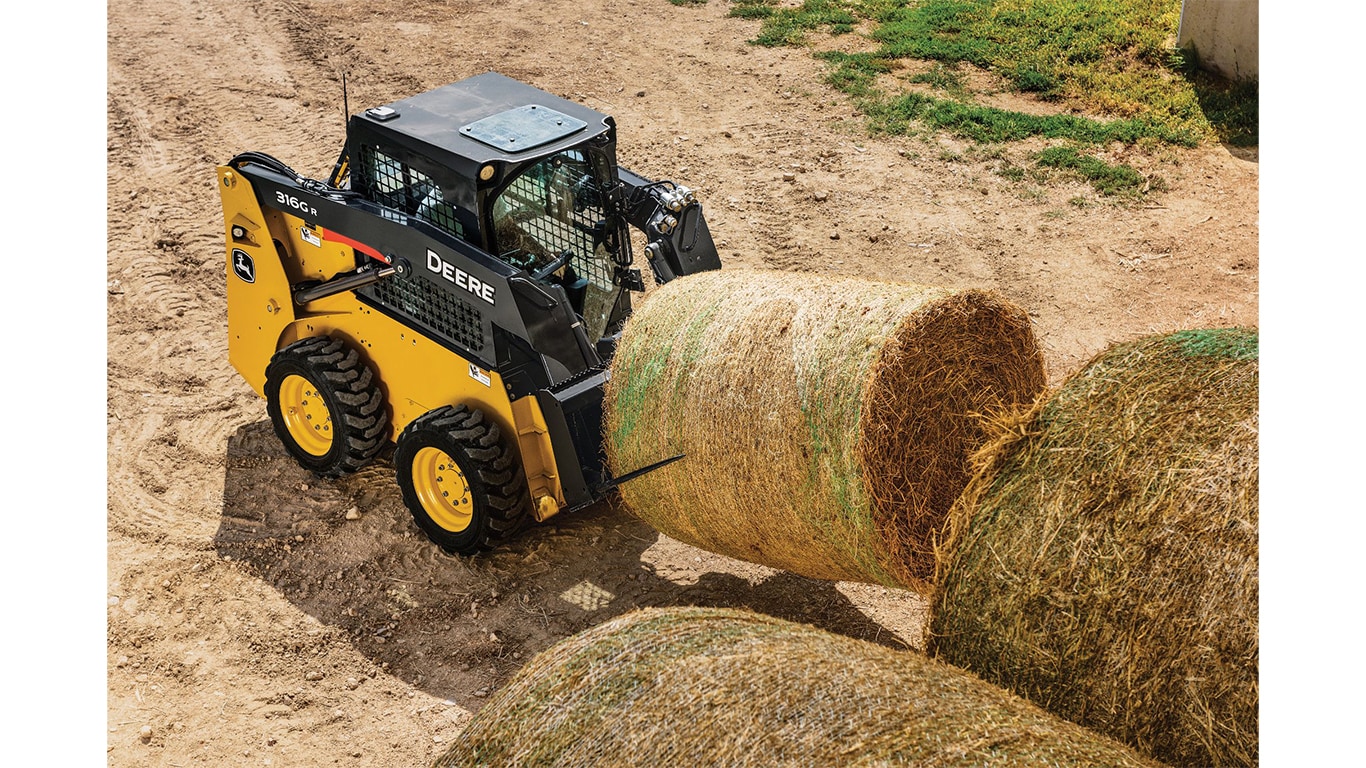

John Deere 316GR equipped with bale spear
John Deere 317G equipped with pallet forks
John Deere 318G equipped with a rock grapple
The updated G-Series cab complete with a lap bar
Optional ISO-H switchable controls on the SSM
Left-hand EH joystick
Right-hand EH joystick
Full view of operator station

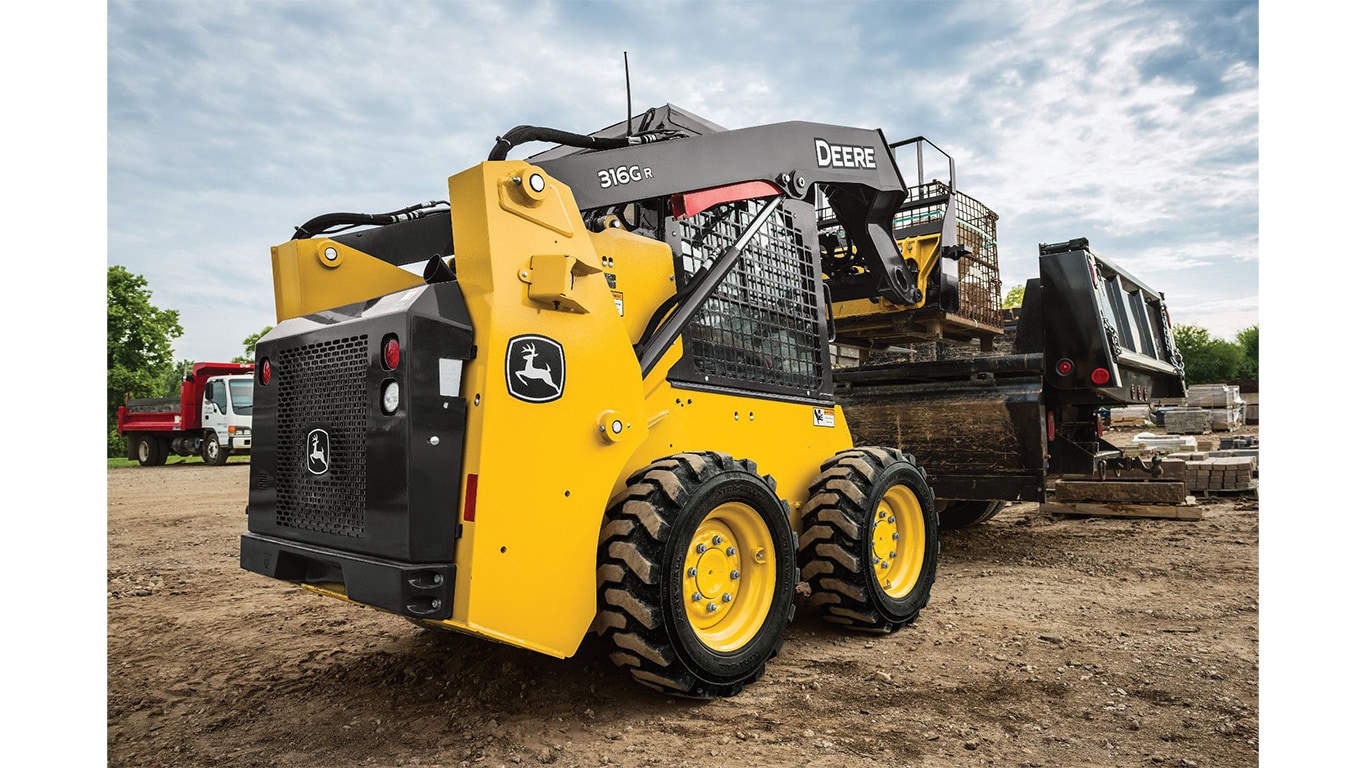

316GR skid steer with radial lift
317G working in soft underfoot conditions
318G maneuvering within a small area
317G transport behind a standard pickup
Integrated front tie-down on boom
Integrated rear tie-down
Small-Frame Skid Steer
Swing-out rear door and hydraulic cooler
Deluxe lighting package with LED side-lighting
Low-sloped rear hood
Rearview camera attachment
Removable glass windows from inside the cab
Increase your machine’s versatility with John Deere’s wide array of attachment offerings
John Deere 316GR equipped with an auger
John Deere 316GR equipped with bale spear
John Deere 317G equipped with pallet forks
John Deere 318G equipped with a rock grapple
With over 100 attachments offered in the John Deere portfolio you can make the most out of your skid steer by equipping it with several popular attachments.
- Increased auxiliary hydraulic flows and power over previous models enable greater performance while running attachments
- Optional electrically actuated Quik-TatchTM enables some attachment connecting to take place within the cab reducing the need for exiting and re-entering the cab to manually connect attachments.
- Creep control (offered within the Joystick Performance Package) allows operators to perform precise tasks that require full hydraulic flow and power while running at lower travel speeds
- Vertical lift configuration on the 317G and 318G allows for higher attachment reach and increased stability
For additional information on attachments and compatibility, check out the John Deere attachments guide:
Enjoy all day comfort and operational ease with the spacious, updated cab
The updated G-Series cab complete with a lap bar
Optional ISO-H switchable controls on the SSM
To maximize productivity and comfort, an array of enhancements have been made to the cab and controls to keep operators satisfied throughout the entire day.
- 25 percent more cab volume than the E-Series including the addition of a lap bar
- The sealed and pressurized cab reduces outside noise and keeps the dust out
- Optional air ride heated seat provides customers working throughout the cold winter months increased comfort
- Optional Bluetooth radio enables streaming of content from a cell phone.
- Optional ISO-H switchable controls with EH Joystick Performance Package allows operators to easily select the pattern they prefer
- Differential steering allows the operator to maintain speed and traction when pushing through a turn
Increase Productivity with EH Controls
Left-hand EH joystick
Right-hand EH joystick
Full view of operator station
Overview
Electrohydraulic (EH) controls offer increased functionality to allow operators to customize machine operations based on preference. The EH controls also require less operator effort and are not as fatiguing over longer periods of operation compared to manual linkages. With fewer physical components and maintenance requirements, EH control machines provide operators with increased productivity across a variety of job applications.
Benefits
- EH tracking is adjusted electronically from the monitor and can be tuned while machine is in operation
- Joysticks provide low effort fingertip operations and can be modified for each control style or application
- Anti-stall engine software prevents operator from unintentionally stalling the engine under heavy loads
- True Auto-Idle automatically idles engine when static for 5 seconds to save on fuel and component wear
- EH machines offer differential steering, an exclusive John Deere feature that speeds up the outside turning of tires/tracks for faster jobsite maneuvering
- EH control transition unlocks design improvements to reduce cab noise, significantly lower vibration, and offer better cab sealing, pressurization, and HVAC performance
Maneuverability of small frame machines allows for quality performance in tight spaces
316GR skid steer with radial lift
317G working in soft underfoot conditions
318G maneuvering within a small area
Small frame G-Series machines accomplish heavy work in smaller spaces without sacrificing performance.
- Multiple tire and track options enable G-Series machines to slim down and fit through narrow openings
- 316GR and 318G have a width below 63 in. while the 317G equipped with a standard 12.6-in. track has a width just over 65 in.
- 317G equipped with optional 15.8 in. wide track has a ground pressure of 4.5 psi that enables work in soft underfoot conditions
- Two-pin attachment on the 316GR radial lift means fewer pivot points and less side-to-side movement
- Clear sightline to the cutting edge and bucket corners instills confidence when working in close quarters
Added mobility features allow for easier transport on and between job sites
317G transport behind a standard pickup
Integrated front tie-down on boom
Integrated rear tie-down
The size and design of small frame G-Series machines makes them easy to transport which provides owners and operators with a machine containing many features of larger machines but with a more compact footprint.
- Integrated and easily accessible tie-downs in the front and rear of machines ensure safe and secure transport between job sites and allow for faster securing without the need to crawl under or over the machine
- Operating weight between 6,542 and 8,423 pounds enables lightweight trailer transport behind a standard pickup truck
- Two-speed power train option on the 316GR and 318G delivers travel speeds up to 10.1 mph allowing operators to move from one side of the job site to the other much faster
Ease of serviceability allows you to spend more time completing the tasks at hand
Small-Frame Skid Steer
Swing-out rear door and hydraulic cooler
Enhanced serviceability features and ease of access to daily and preventative maintenance points ensures that these tasks do not significantly cut into working hours
- Swing-out rear door enables easy access to daily service checkpoints and cooling system
- The hood tilts up for ground level access to the dipstick, fuel and fluid filler necks, filters, and see-through reservoirs
- A single person can lock the boom and swing the operator’s station up in less than two minutes for easy drivetrain reach.
- Redesigned Quik-Tatch system optimized for effortless reach to grease zerks
- Optional JDLink provides machine data and health alerts to help decrease costly downtime
Excellent visibility for increased situational and jobsite awareness
Deluxe lighting package with LED side-lighting
Low-sloped rear hood
Rearview camera attachment
Removable glass windows from inside the cab
Enhanced visibility features increase jobsite awareness and allow operators to be as precise and productive as possible.
- Optional deluxe lighting package with LED lamps and side lights provides increased visibility early in the morning or at night over the standard halogen package
- Clear sight from the seat to the tires when boom arms are raised, and great visibility to the cutting edges and Quik-TatchTM lock indicators when boom is lowered
- Rear view camera, low-sloped hood, and a high cross-tube on the upper-linkage result in unmatched rear visibility
- Removable glass windows from inside the cab ensure that windows can be easily and adequately cleaned to improve visibility
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 316GR Skid Steer |
DESCRIPTION
| Lift Geometry | Radial | |||
|---|---|---|---|---|
| Fleet Management | Yes | |||
| Precision Guidance | No | |||
| Proximity Guidance | No |
DRIVELINE
| Engine Manufacturer | Yanmar | |||
|---|---|---|---|---|
| Engine Model | 4TNV86CHT | |||
| Emission Rating | Tier 4 / Stage IV | |||
| Aspiration | Turbo | |||
| Displacement, ltr (Inches³) | 2.1 (128) | |||
| Rated Engine Speed, rpm | 2600 | |||
| SAE Net Power, kW (hp) | 45.6 (61) | |||
| SAE Gross Power, kW (hp) | 48.5 (65) | |||
| Max. Gross Torque, Nm (lbf / ft) | 207 (153) | |||
| Drive Chain Rating [ANSI] | 80 - HD | |||
| Tire size - Standard | 10 - 16.5 |
DIMENSIONS
| Length - No Bucket, mm (inches) | 2630 (103) | |||
|---|---|---|---|---|
| Length - With Bucket Foundry, mm (inches) | 3240 (127.6) | |||
| Width - No Bucket, mm (inches) | 1600 (62.9) | |||
| Overall Height, mm (inches) | 1960 (77.2) | |||
| Ground Clearance, mm (inches) | 180 (7) | |||
| Wheelbase, mm (inches) | 1050 (41.5) | |||
| Rear Departure Angle, Degrees | 22.3 | |||
| Height to Hinge Pin, mm (inches) | 2920 (115.1) | |||
| Dump Angle, Degrees | 45 | |||
| Dump Height - Maximum Foundry, mm (inches) | 2250 (88.6) | |||
| Reach - Max Dump Height Foundry, mm (inches) | 400 (15.8) | |||
| Rollback - Ground Level, Degrees | 30 |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 71 (19) |
|---|
PERFORMANCE
| Rated Operating Capacity - Optional Counterweight Foundry, kg (lbs) | 863 (1900) | |||
|---|---|---|---|---|
| Rated Operating Capacity - Foundry, kg (lbs) | 795 (1750) | |||
| Tipping Load - Foundry, kg (lbs) | 1589 (3500) | |||
| Axle Torque - Maximum, Nm (lbf / ft) | 6459 (4764) | |||
| Speed - Maximum, kph (mph) | 11.1 (6.9) | |||
| Speed - Maximum Option, kph (mph) | 16.3 (10.1) | |||
| Breakout - Lift Foundry, kN (lbf) | 21.1 (4750) | |||
| Breakout - Bucket Foundry, kN (lbf) | 23.3 (5250) | |||
| Hydraulic Power, kW (hp) | 24.729 (33.1) | |||
| Pump Output, lt/min (gallons (US) / min) | 63 (17) | |||
| System Pressure, bar (PSI) | 237.87 (3450) |
WEIGHTS
| Operating Weight - Foundry, kg (lbs) | 2806 (6180) |
|---|
