Air Compressors

Air Compressors

Close up image of a John Deere air compressor

Open up an entirely new toolbox with a powerful John Deere air compressor. Power up everything from air wrenches to drills, grinders and paint guns. You'll find a wide range of horsepower and capacity to suit your needs. And you'll get the satisfaction of a job well done.

Find a Dealer

View Operating Manuals

Air Compressors

HR Series / Electric / Oil-Less

Image	Product	Details
	HR1-2Q List Price: $315.00 (USD)* Buy Your HR1-2Q Now	2.5-Gallon, Oil-Less, Electric Hand-Carry 1.0 HP, 120V Induction Motor 2.4 CFM @ 90 PSI Compact and portable 2.5-gallon receiver tank Canister intake filter Regulator and two gauges for tank and outlet pressure Also start/stop control set at 95-125 PSI Drain valve and pressure relief valve 1/4-inch quick connect fittings Rubber isolators 45 lbs. 15.7” x 15.5” x 14.7” (L x W x H)
	HR1-20Q List Price: $520.00 (USD)*	20-Gallon, Oil-Less, Electric 1.5 HP, 120V Induction Motor 4.0 CFM @ 90 PSI – Upright portable design 20-gallon receiver tank 2 semi-pneumatic tires Protective pump/motor housing Dual canister intake filters Regulator and two gauges for tank and outlet pressure Also start/stop control set at 95-125 PSI Drain valve and pressure relief valve 1/4-inch quick connect fittings Rubber isolators 109 lbs. 21.3” x 17.4” x 41.2” (L x W x H)

HR Series / Electric

Image	Product	Details
	HR1-5E List Price: $540.75 (USD)* Buy Your HR1-5E Now	5-Gallon, Single-Stage, Electric Hand Carry 2.0 HP, 120V Motor 4.1 CFM @ 100 PSI Compact and portable twin-tank design 5-gallon twin tank receivers, side stack Protective pump/motor housing Canister intake filter Regulator and two gauges Also start/stop control set at 95-125 PSI Drain valves and pressure relief valve Quick connect fittings Rubber isolators
	HR1-20E List Price: $627.00 (USD)*	20-Gallon, Single-Stage, Electric 2.0 HP, 120V Motor 2.0 HP, 120V Motor 4.1 CFM @ 100 PSI – Upright portable design 20-gallon receiver tank 2 semi-pneumatic tires Protective pump/motor housing Canister intake filter Regulator and two gauges Auto start/stop control set at 95-125 PSI Drain valves and pressure relief valve Quick connect fittings

Premium Series / Gasoline

Image	Product	Details

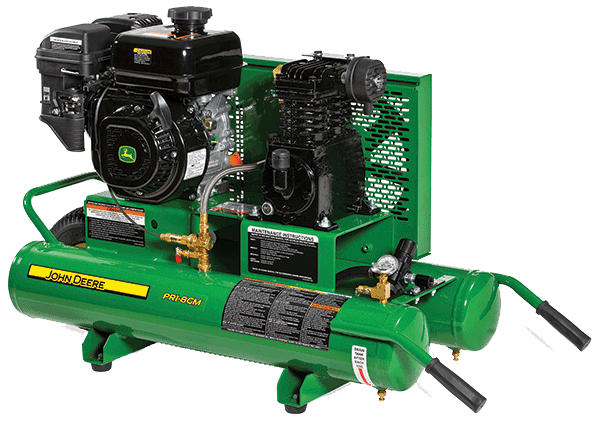

	PR1-8GM List Price: $886.00 (USD)*	8-Gallon, Single-Stage, Gas 212cc OHV Engine 7.5 CFM @ 100 PSI Canister intake filter Convenient lifting handles 7-gauge base plate to reduce vibration Pneumatic tire with tube and steel hub Idle control with continuous run Regulator and two gauges Manual drain valves for proper maintenance
	PR2-8GM List Price: $1,458.00 (USD)*	8-Gallon, Two-Stage, Gas 300cc OHV Engine 17.2 CFM @ 175 PSI Canister intake filter Convenient lifting handles 7-gauge base plate to reduce vibration Pneumatic tire with tube and steel hub Idle control with continuous run Regulator and two gauges Manual drain valves for proper maintenance

AC Series / Gasoline

Image	Product	Details
	AC1-5GH List Price: $880.00 (USD)*	5-Gallon, Single-Stage, Gas Hand-Carry 118cc Honda GX Engine 4.4 CFM @ 100 PSI Splash-lubricated aluminum crankcase Aluminum head for heat dissipation Compact and portable twin-tank design 5-gallon twin-tank receivers Powder-coated steel frame design Rubber isolators Drain valves and pressure relief valve Quick connect fitting
	AC1-8GH List Price: $1,102.00 (USD)*	8-Gallon, Single-Stage, Gas 196cc Honda GX Engine 13.1 CFM @ 100 PSI Powder-coated 8-gallon twin-tank receivers 10-in. flywheel for extra cooling and longer life Splash-lubricated cast iron crankcase Cast iron head for heat dissipation 7-gauge base plate to reduce vibration Convenient lifting handles Pneumatic tires with tubes and steel hubs Manual drain valves for proper maintenance
	AC2-8GH List Price: $1,739.00 (USD)*	8-Gallon, Two-Stage, Gas 270cc Honda GX Engine 17.2 CFM @ 175 PSI Powder-coated 8-gallon twin-tank receivers Splash-lubricated cast iron crankcase Cast iron head for heat dissipation 7-gauge base plate to reduce vibration Convenient lifting handles Pneumatic tires with tubes and steel hubs Manual drain valves for proper maintenance 161⁄2 flywheel for extra cooling and longer life
	AC1-20GH List Price: $1,306.00 (USD)*	20-Gallon, Single-Stage, Gas 196cc Honda GX Engine 13.1 CFM @ 100 PSI – Powder-coated ASME coded 20-gallon receiver tank 12-in. flywheel for extra cooling and longer life Splash-lubricated cast iron crankcase Cast iron head for heat dissipation 7-gauge base plate to reduce vibration Convenient lifting handles Pneumatic tires with tubes and steel hubs Manual drain valves for proper maintenance
	AC2-20GH List Price: $1,870.00 (USD)*	20-Gallon, Two-Stage, Gas 270cc Honda GX Engine 17.2 CFM @ 175 PSI Powder-coated ASME coded 20-gallon receiver tank Splash-lubricated cast iron crankcase Cast iron head for heat dissipation 7-gauge base plate to reduce vibration Convenient lifting handles Pneumatic tires with tubes and steel hubs Manual drain valves for proper maintenance 161⁄2-in. flywheel for extra cooling and longer life

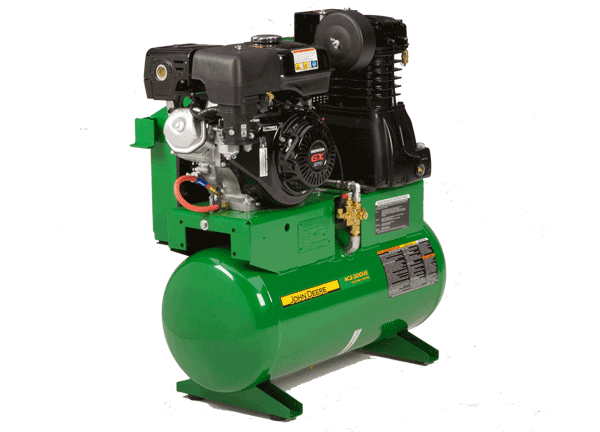

	AC2-20GHS List Price: $1,815.00 (USD)*	20-Gallon, Two-Stage, Gas 270cc Honda GX Engine 17.2 CFM @ 175 PSI Powder-coated ASME coded 20-gallon receiver tank Splash-lubricated cast iron crankcase Cast iron head for heat dissipation 7-gauge base plate to reduce vibration Manual drain valves for proper maintenance 161⁄2-in. flywheel for extra cooling and longer life
	AC2-30GHS List Price: $2,795.00 (USD)*	30-Gallon, Two-Stage, Gas 389cc Honda GX Engine 29.0 CFM @ 175 PSI Powder-coated ASME coded 30-gallon receiver tank Electric start standard, battery and cables not included Stationary truck mount kit standard, must be used when installing stationary unit to truck bed Splash-lubricated cast iron crankcase Cast iron head for heat dissipation 7-gauge base plate to reduce vibration Manual drain valves for proper maintenance 161⁄2-in. flywheel for extra cooling and longer life

AC Series / Diesel

Image	Product	Details
	AC2-30KDS List Price: $4,952.00 (USD)*	30-Gallon, Two-Stage, 441cc Diesel 9.1 HP Kohler OHV Engine 29.0 CFM @ 175 PSI Powder-coated ASME coded 30-gallon receiver tank Electric start standard, battery, box and cables not included Glow plug equipped engine for easy starting in cold temperatures Stationary truck mount kit standard, must be used when installing stationary unit to truck bed Splash-lubricated cast iron crankcase Cast iron head for heat dissipation 7-gauge base plate to reduce vibration Manual drain valves for proper maintenance 161⁄2-in. flywheel for extra cooling and longer life (two-stage models)

AC Series / Electric

Image	Product	Details
	AC2-80ES List Price: $2,402.00 (USD)*	80-Gallon, Two-Stage, Electric 5.0 HP, 230V Motor 16.9 CFM @ 175 PSI – Electric motor, CSA listed 230V single phase 60 Hz Splash-lubricated cast iron crankcase Aluminum head for heat dissipation Cast iron cylinder Powder-coated ASME coded 80-gallon receiver tank Auto start/stop 12-in. flywheel for extra cooling and longer life Tank pressure gauge Magnetic starter with mounting box and wire Manual drain valves for proper maintenance
	AC2-80ES-1 List Price: $2,610.00 (USD)*	80-Gallon, Two-Stage, Electric 7.5 HP, 230V Motor 23.5 CFM @ 175 PSI Electric motor, CSA listed 230V single phase 60 Hz Splash-lubricated cast iron crankcase Aluminum head for heat dissipation Cast iron cylinder Powder-coated ASME coded 80-gallon receiver tank Auto start/stop 12-in. flywheel for extra cooling and longer life Tank pressure gauge Magnetic starter with mounting box and wire Manual drain valves for proper maintenance

Air Compressor Accessories

Buy Your Air Compressor Accessories Now

Couplers

Item	Model/Part Number	List Price (USD)*
1/4” MPT Industrial Interchange Style	AWJ-0017-0043	$6.00
1/4” MPT Automotive Style	AWJ-0017-0044	$6.99
1/4” FPT Industrial Interchange Style	AWJ-0017-0045	$7.25
1/4” FPT Automotive Style	AWJ-0017-0046	$10.25
1/4” FPT Lincoln Style	AWJ-0017-0047	$15.00
1/4” MPT ARO Style	AWJ-0017-0048	$11.50
Coupler Test Bar	AWJ-0017-4952	$26.00

Plugs

Item	Model/Part Number	List Price (USD)*
1/4” MPT Industrial Interchange Style	AWJ-0017-0049	$2.25
1/4” MPT Automotive Style	AWJ-0017-0050	$2.50
1/4” MPT Lincoln Style	AWJ-0017-0051	$4.00
1/4" MPT ARO Style	AWJ-0017-0052	$2.25
1/4” FPT Industrial Interchange Style	AWJ-0017-0053	$5.99
1/4” FPT Automotive Style	AWJ-0017-0054	$2.50
1/4” FPT Lincoln Style	AWJ-0017-0055	$4.50
1/4” FPT ARO Style	AWJ-0017-0056	$2.99

Couplers/Plug Sets

Item	Model/Part Number	List Price (USD)*
1/4” F Coupler, 1/4” M Plug Ind. Inter. Set	AWJ-0017-0045K	$8.99
1/4” F Coupler, 1/4” M Plug Automotive Set	AWJ-0017-0046K	$11.75

Fittings

Item	Model/Part Number	List Price (USD)*
Barbed Hose Fitting (1/4” MNPT fits 3/8” ID Hose)	AWJ-0023-0069	$2.99
Barbed Hose Fitting (1/4” MNPT fits 1/4” ID Hose)	AWJ-0023-0051	$2.99
Brass Coupling (1/4” FNPT x 1/4” FNPT)	AWJ-0023-0002	$5.25
Brass Coupling (1/4” MNPT x 1/4” MNPT)	AWJ-0023-0103	$3.75
Barbed Hose Splicer (Fits 1/4” ID Hose)	AWJ-0023-0415	$4.50
Barbed Hose Splicer (Fits 3/8” ID Hose)	AWJ-0023-0416	$5.25

Air/Water Adapter Kit

Item	Model/Part Number	List Price (USD)*
For Filling Tires with Liquid	AWJ-0023-0414	$19.75

Chucks

Item	Model/Part Number	List Price (USD)*
Dual Foot Direct Air Line Chuck (1/4” FNPT)	AWJ-00AT-3001	$21.75
Ball Foot Direct Air Line Chuck (1/4” FNPT)	AWJ-00AT-3002	$5.75
Deluxe Inflator Gauge with 12” Hose	AWJ-00AT-3003	$64.75

Blow Guns

Item	Model/Part Number	List Price (USD)*
Blow Gun with Standard Rubber Nozzle	AWJ-00AT-3004	$12.75
Blow Gun with Safety Nozzle	AWJ-00AT-3005	$13.50
12” Blow Gun w/Standard Rubber Nozzle (6 per pack)	AWJ-00AT-3007	$20.90 ea.
24” Blow Gun w/Standard Rubber Nozzle (6 per pack)	AWJ-00AT-3008	$21.75 ea.
48” Blow Gun w/Standard Rubber Nozzle (6 per pack)	AWJ-00AT-3009	$27.50 ea.

Air Hose

Item	Model/Part Number	List Price (USD)*
24” Leader Hose with Swivel	AWJ-0015-0229	$15.25
50’ x 3/8” Hybrid Hose	AWJ-0015-0328	$58.00
25’ x 3/8” Hybrid Hose	AWJ-0015-0327	$33.00

Filters

Item	Model/Part Number	List Price (USD)*
1/4” Poly Bowl w/Bowl Guard & Manual Drain	AT-4004-J	$46.99
1/2” Metal Bowl w/Sight Glass & Manual Drain	AT-4005-J	$52.50
3/8” Poly Bowl w/Bowl Guard & Manual Drain	AT-4006-J	$46.50
Disposable In-line Filter	AWJ-00AT-4007	$11.75
Air Tool Filter	AWJ-00AT-4008	$6.99
3/8” Filter/Regulator-Poly Bowl w/Manual Drain	AT-4011-J	$90.00

In-Line Regulators

Item	Model/Part Number	List Price (USD)*
1/4” Mini Regulator w/Gauge	AWJ-0022-0326	$27.99
3/8” Regulator w/Gauge	AWJ-0022-0231	$51.99

In-Line Lubricators

Item	Model/Part Number	List Price (USD)*
1/4” Poly Bowl	AT-4009-J	$62.25
3/8” Poly Bowl	AT-4010-J	$63.00

High Flow Accessories

Item	Model/Part Number	List Price (USD)*
EXTENSION TUBE-CYCLONE 12 IN	AT-3001-J	$12.75
AIR GUN WITH CONE TIP	AT-3002-J	$45.50
COUPLER-HF 1/4 BODY X 1/4 FNPT	AT-4013-J	$14.50
PLUG-HF 1/4 BODY X 1/4 MNPT	AT-4014-J	$4.99
SWIVEL PLUG-HF1/4 BODYX1/4MNPT	AT-4015-J	$8.50
COUPLER AND PLUG KIT-HF 3 PC	AT-4016-J	$18.99
COUPLER AND PLUG KIT-HF 7 PC	AT-4017-J	$37.75
COUPLER-HF 1/4 BODY X 3/8 FNPT	AT-4018-J	$14.50
PLUG-HF 1/4 BODY X 3/8 MNPT	AT-4019-J	$6.25
COUPLER AND PLUG KIT-HF 7 PC	AT-4020-J	$43.99
REUSABLE END - 3/8	AT-4808-J	$7.25
REUSABLE END - 1/2	AT-4809-J	$8.99
REUSABLE SPLICER - 3/8	AT-4810-J	$7.25
REUSABLE SPLICER - 1/2	AT-4811-J	$8.99
250’ x 1/2” Hybrid polymer Hose Spool	AT-4805-J	$1.25 / foot
250’ x 3/8” Hybrid polymer Hose Spool	AT-4806-J	$0.93 / foot
Coupler-HF 1/4 BODY X 1/4 MNPT	AT-4021-J	$14.50
PLUG-HF 1/4 BODY X 1/4 MNPT - 2 PACK	AT-4022-J	$4.99
Coupler-HF 1/4 BODY X 3/8 MNPT	AT-4023-J	$14.50
PLUG-HF 1/4 BODY X 3/8 MNPT - 2 PACK	AT-4024-J	$6.25

Topics

Air Compressor Operating Manuals

Air Compressor Operating Manuals

AC1-8GH / AC1-8GS / AC1-20GH / AC1-20GS / AC2-8GH / AC2-8GS / AC2-20GH / AC2-20GS / AC2-20GHS / AC2-20GSS

Manual

AC2-30GHS

Manual

AC2-30KDS

Manual

AC2-80ES / AC2-80ES-1

Manual

CC1-8GH / CC2-8GH

Manuals

CC2-30GHS

Manuals

CC2-30KDS

Manuals

CQM10E100 / CQM15E200 / CQM20E200

Manual

90 days warranty is offered for Couplers, Plugs, Couplers/Plug Sets, Fittings, Air/Water Adapter Kit, Chucks, Blow Guns, Air Hose, Filters, In-Line Regulators, In-Line Lubricators, and Auto Electric Drain.

*Manufacturer's suggested list price at time of posting. Unless otherwise indicated, taxes, freight, setup and delivery not included. Dealers may sell for less. Equipment, models and prices may vary by dealer. Product features subject to change. Prices and offers valid in the United States. Prices in U.S. dollars and are subject to change without notice.
Third party trademarks referenced herein are trademarks of those third parties.
Please contact your local John Deere dealer for more detailed information.
