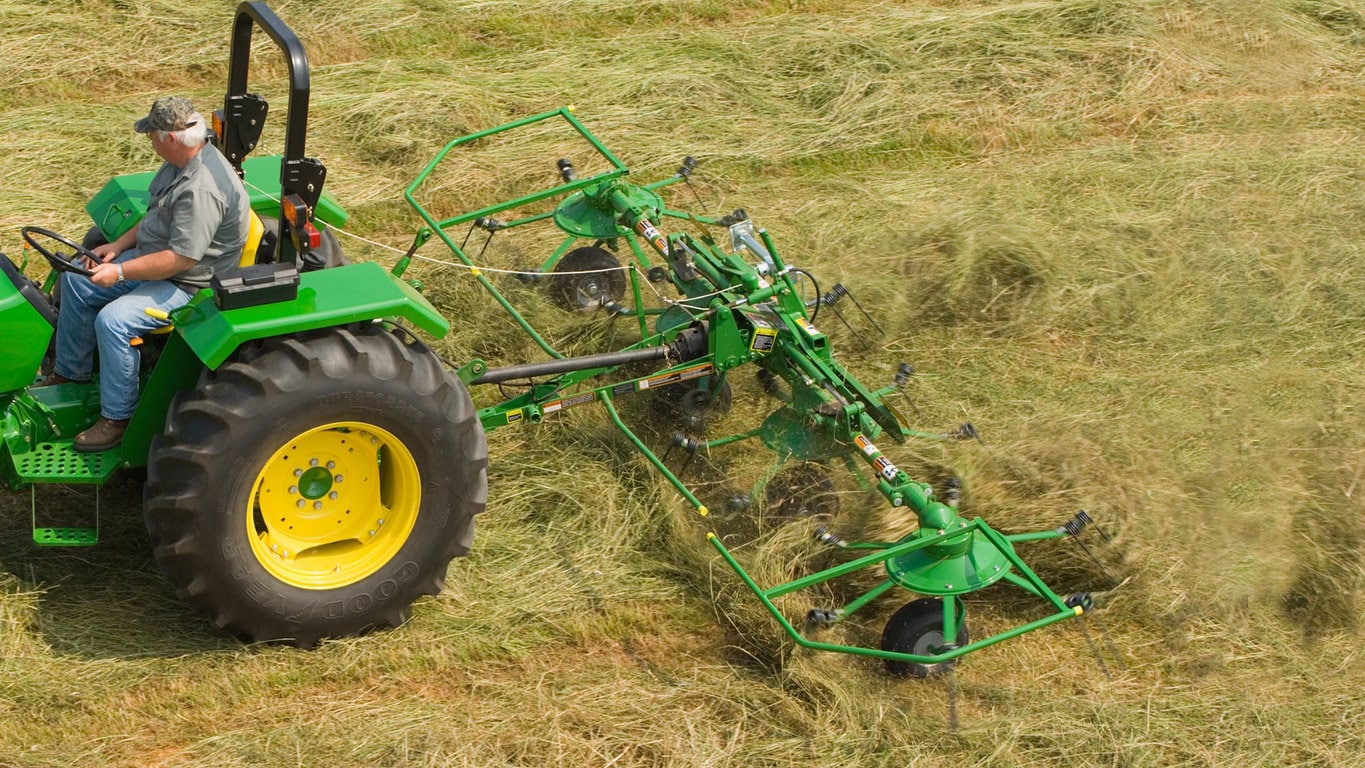

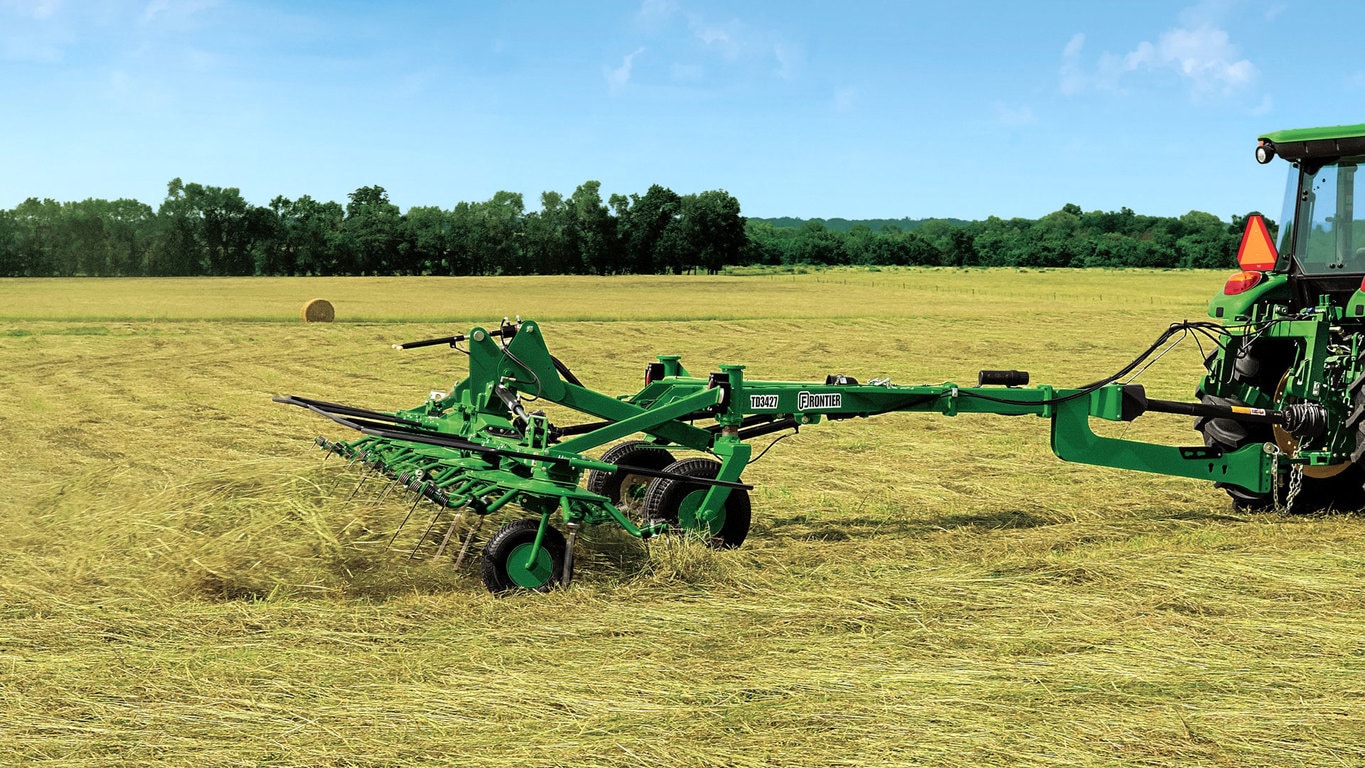

TD13 SeriesHay Tedder
- DigidriveTM drive system ensures maximum life
- Hydraulic working angle adjustment
- Durable Steel tines
- Balloon tires operates smoothly on bumpy ground
Features
Expand All
Collapse All
Digidrive system
Hydraulic angle adjustment for easy transport
Flexible steel for durability and dependability
Balloon-technology tires on Frontier™ TD13 Series
Digidrive® drive system ensures maximum life
Digidrive system
The exclusive Digidrive rotor drive fingers on the TD13 Series Hay Tedder are made from forged, case-hardened, heat-treated steel for maximum life and smooth power transmission.
Digidrive is a trademark of Kuhn, S.A. Joint Stock Company.
Rotor adjustment
Hydraulic angle adjustment for easy transport
The Frontier™ TD13 Series Hay Tedder comes standard with hydraulic angle adjustment, perfect for transporting the tedder to multiple fields.
It allows the operator to set the working angle of the tedder one time, and then quickly and easily go from the transport to the working position using the tractor hydraulics from the comfort of the seat.
Durable steel tines resist fatigue
Flexible steel for durability and dependability
The TD13 Series Hay Tedder has flexible, steel tines that are heat treated for durability and highly resistant to fatigue.
Balloon tires operate smoothly, even over bumpy ground
Balloon-technology tires on Frontier™ TD13 Series
The TD13 Series Hay Tedder has large balloon tires that allow smoother operation over irregular ground.
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere TD13 Series Hay Tedder |
Dimensions
| Width in working position | 5.4 m 17.7 ft |
|||
|---|---|---|---|---|
| Tedding width | 5.0 m 16.4 ft |
|||
| Transport width | 2.8 m 9.2 ft |
|||
| Transport height | 2.7 m 8.7 ft |
|||
| Transport length | 2.3 m 7.6 ft |
Weight
| Machine | ||||
|---|---|---|---|---|
| Shipping | 456 kg 1,005 lb |
Tractor requirements
| Minimum hp (kw) | 14.9 L 20 hp |
|||
|---|---|---|---|---|
| Hydraulic valves (SCVs) required | One |
PTO
| Type | Torque Limiter | |||
|---|---|---|---|---|
| rpm | 540 rpm |
Working position for other crop flow
| Straight, right-hand, left-hand angles | Standard |
|---|
Hitch
| Type | Drawbar |
|---|
Rotor
| Quantity | Four |
|---|
Tine arms
| Quantity per rotor | Six | |||
|---|---|---|---|---|
| Type | Round tubular | |||
| Size, in. (cm) |
Tine
| Height adjustment | Hydraulic tilt | |||
|---|---|---|---|---|
| Angle adjustment |
Tires
| Working size | 6 ply: 38x15 cm 15x6 in. |
|||
|---|---|---|---|---|
| Transport size | ||||
| Working type | Balloon | |||
| Transport type |
Lighting and safety
| Transport lights | ||||
|---|---|---|---|---|
| Safety chain | Standard | |||
| Safety guards | Standard | |||
| SMV | Standard |
Transport position
| Hydraulic vertical fold with hydraulic tilt | Standard | |||
|---|---|---|---|---|
| Integrated transport frame |
Set-up time
| Labor hours | 6 |
|---|
Warranty
| Time period | 1 year |
|---|
Additional information
| Date collected |
|---|
