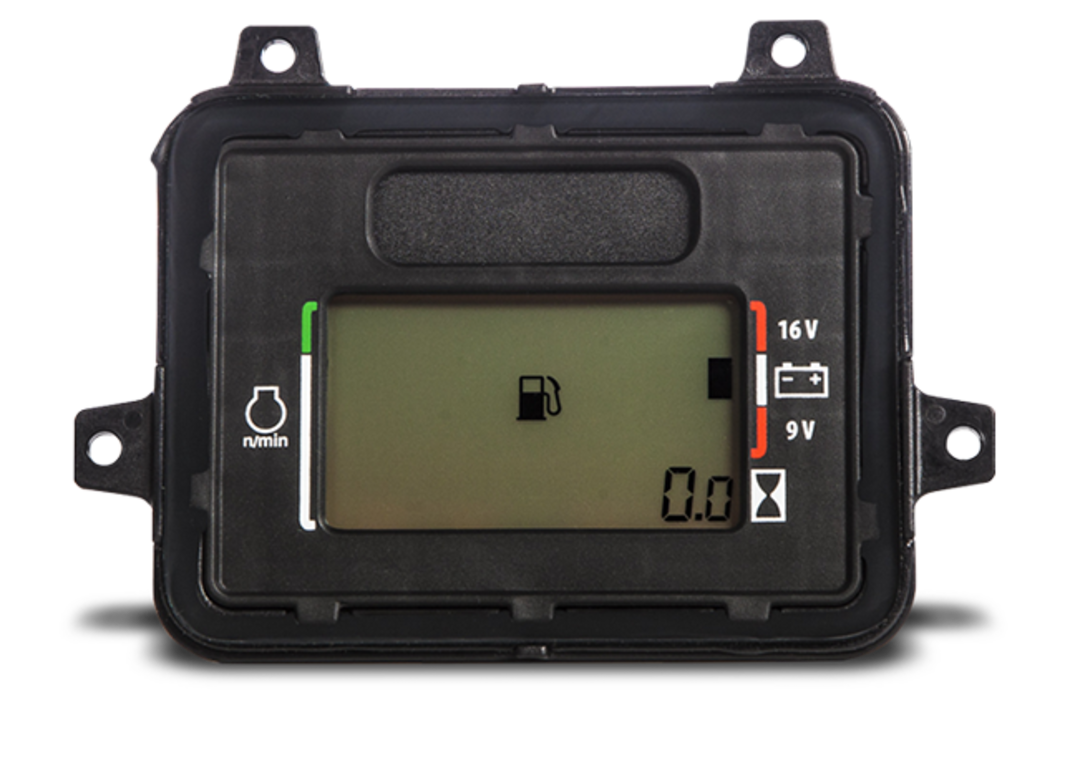

DF3-L

– 65x38mm TN LCD with 80 fixed segments

– Several dead-fronted LED indicators

 – 3 LED vehicle status indicators

 – Sealed unit vented to reduce fogging

Print

Features

Controller Platform

– XC2234L Infineon Microcontroller

– 160 KBytes application code flash memory

– 12 KBytes of RAM memory

– Reprogramming and diagnostics using J1939 CAN protocol

– 10 digital inputs

– 1 analog input

– 4 high side driver outputs

– Magneto disable

Environmental Specifications

  • Operating Temperature: -30oC to 70oC
  • Storage Temperature: -40oC to 85oC
  • Operating Humidity: 0-95%, at ≤ 40oC
  • Electrostatic Discharge: 8 kV Contact Discharge
  • EMC Immunity: 200 mA BCI from 500 kHz to 400 MHz and 100 V/m from 400 MHz to 1 GHz
  • EMC Emissions: Meets ISO 14982

Additional Specifications

  • Operating Voltage: 12 VDC system (9 to 16 VDC)
  • Network Communications: J1939 CAN Communications
  • Mating Connector: Molex MX150 20 pin connector part number 334722001
