Front-mounted roller shown
Each deck on the FM3012 has three anti-scalping rollers that keep the deck following the ground contour for a more uniform cut.
Deck depth ensures optimum cut quality
The FM3012 deck depth with baffling around the blades ensures exceptional material distribution and a higher quality of cut.
3-year residential gearbox warranty
The FM3012's gearbox has a 3-year residential warranty.
Cylinder latch position for transport
The FM3012 has hydraulic lifts for the wing and rear decks to automatically lock them in the up position for transport. A rope-pull latch release comes standard.
NOTE: An optional hydraulic-wing latch release kit is available.
FM3012 blade spindle assembly
The FM3012 has reinforced cast-iron blade spindles with ball bearings that can be greased for increased strength and long life.

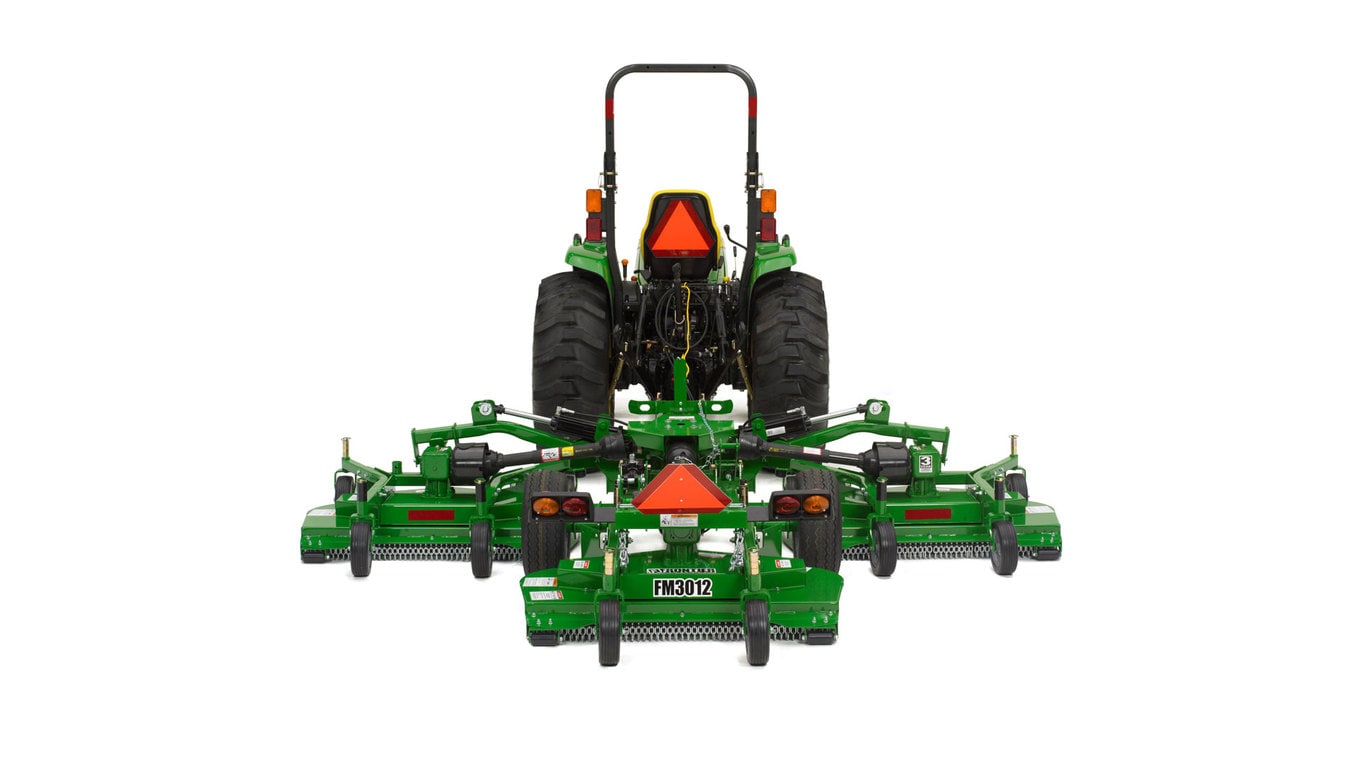

Unit in transport position shown
The FM3012 has a transport width of 2.4 m (7.75 ft), which allows for storage in a standard-sized garage.
Tubular caster arms shown
The heavy tubular caster arm supports are designed to prolong the life of the FM3012 Flex-Wing Grooming Mower.
Includes lights, a harness, and brackets
The light bar is standard on these units; however, it is offered as an aftermarket field conversion kit rather than ordering each piece separately through Parts. It includes the two lights, a harness, and required brackets.
