AR10GRock Bucket
- Quick and easy connection
Features
Expand All
Collapse All
Fits current 300 to 500 Series Loader attachment carriers
Fits current 600 and 700 Series Loader attachment carriers
Global carrier

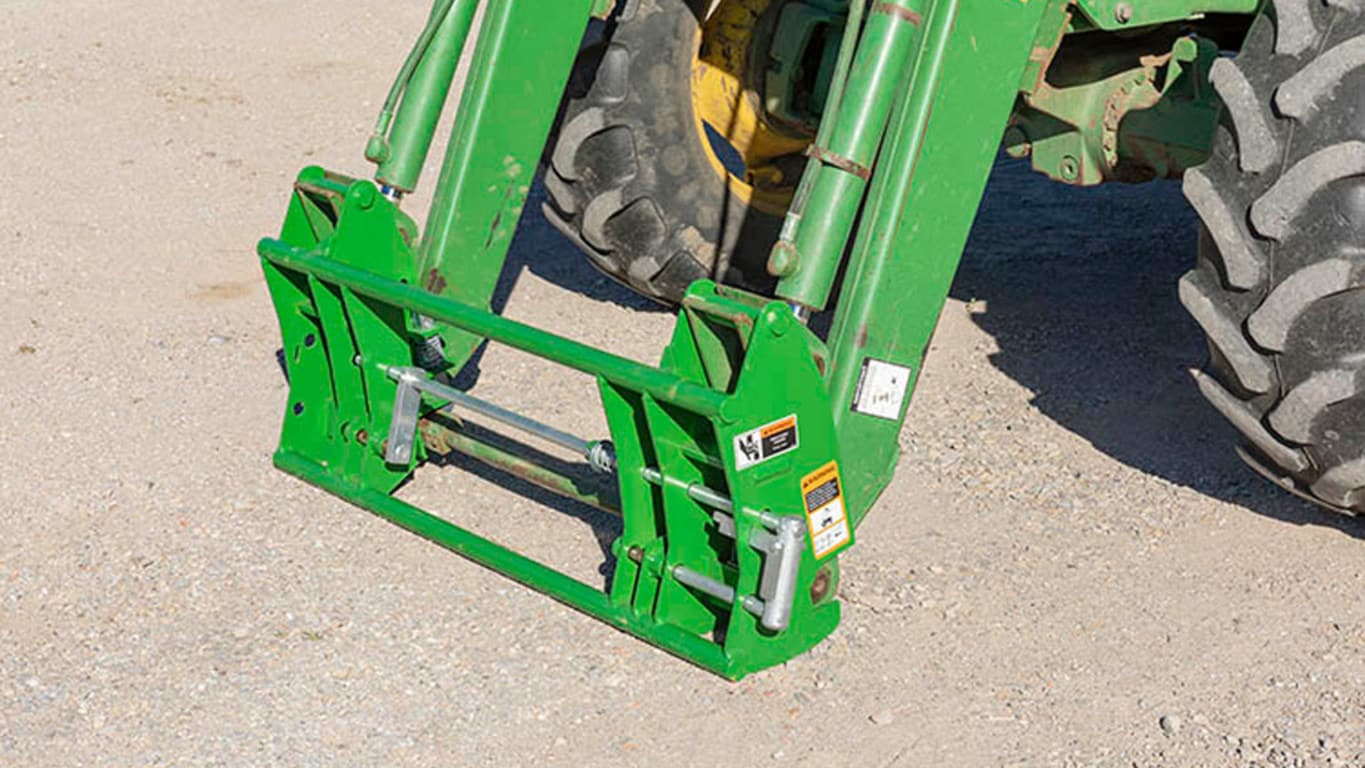

Quick and easy connection
Fits current 300 to 500 Series Loader attachment carriers
Fits current 600 and 700 Series Loader attachment carriers

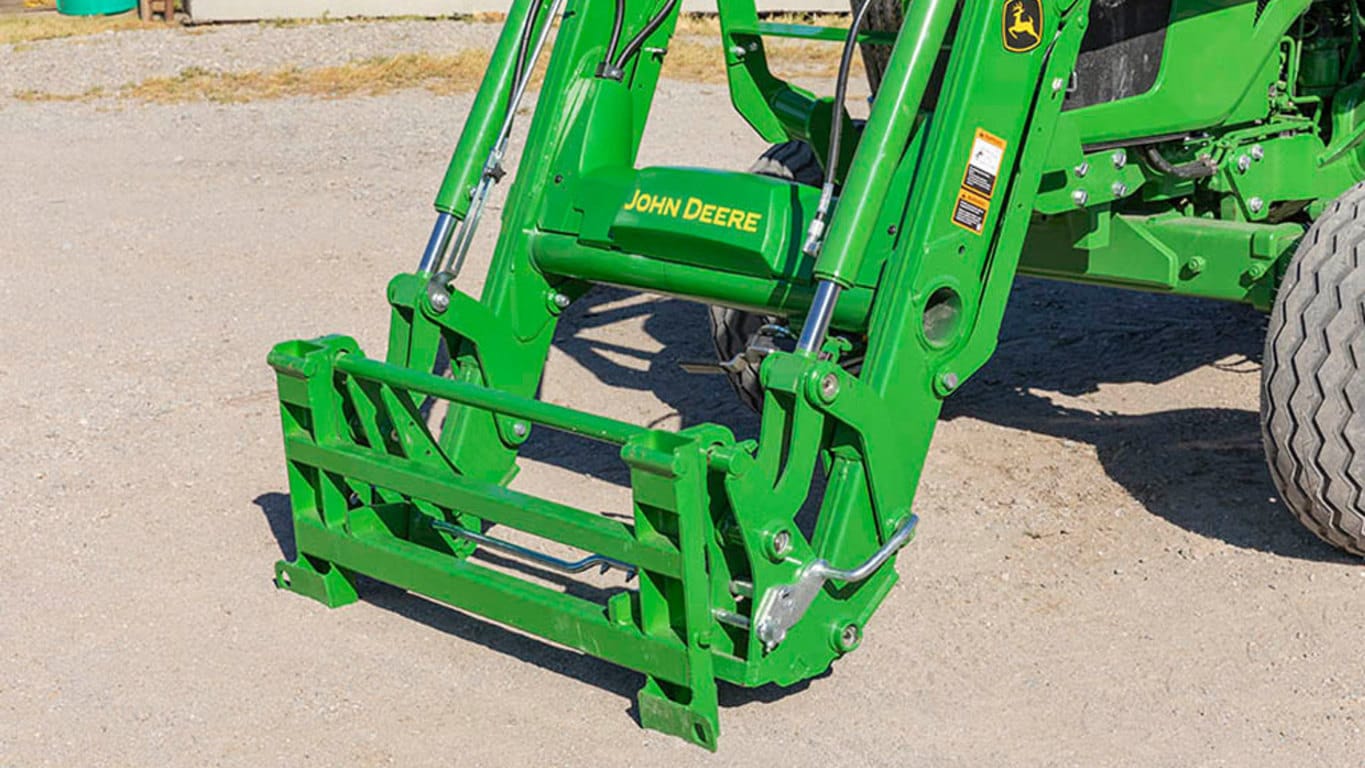

Attaching the AR10 Series Rock Buckets to a John Deere loader is easy with quick-change and global attaching systems. Just line up the loader's connecting points to the attachment frame and lock in place.

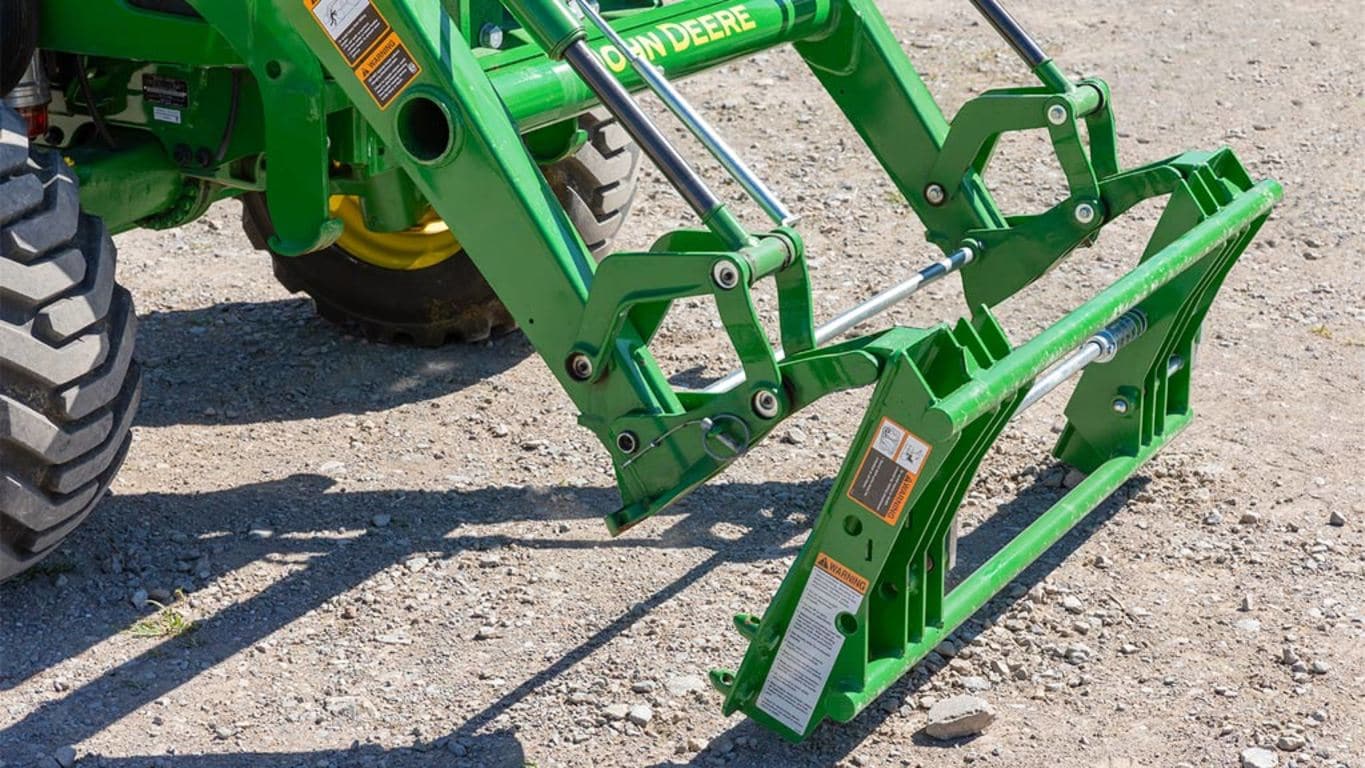

Global carrier
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere AR10G Rock Bucket |
Dimensions
| Width | 189.7 cm 74.7 in. |
|||
|---|---|---|---|---|
| Height | 55.1 cm 21.7 in. |
|||
| Depth | 129.5 cm 51 in. |
|||
| Cutting width | 190.5 cm 75 in. |
Attachment carrier
| Current series style | 600 and 700 |
|---|
Tine
| Spacing | 5.1 cm 2 in. and 7.6 cm 3 in. |
|||
|---|---|---|---|---|
| Diameter | 2.9 cm 1.125 in. |
|||
| Length | 99.1 cm 39 in. |
Weight
| 2-in. tine spacing operating | 313 kg 690 lb |
|||
|---|---|---|---|---|
| 2-in. tine spacing shipping | 347 kg 765 lb |
|||
| 3-in. tine spacing operating | 262.2 kg 578 lb |
|||
| 3-in. tine spacing shipping | 296.2 kg 653 lb |
Optional rock bucket grapple
| Available | Yes | |||
|---|---|---|---|---|
| Grapple opening | 152.4 cm 60 in. |
|||
| Clamp force | Open 10,675.7 N 2,400 lb-ft Closed 9,163.3 N 2,060 lb-ft |
Bucket
| Capacity |
|---|
Set-up time
| Labor hours | 0.25 |
|---|
Warranty
| Time period | 1 year |
|---|
Additional information
| Date collected |
|---|
Key Specs
| Current series style | ||||
|---|---|---|---|---|
| Cutting width | ||||
| Depth |
-
AB11D Bale Spear -
AB11G Bale Spear
-
AB12 Series Bale Spears -
AB12D Bale Spear
-
AB12E Bale Spear
-
AB13D Bale Spear -
AB13E Bale Spear
-
AB13G Bale Spear
-
AB13K Bale Spear -
AB14G Bale Spear -
AD11 Series Debris Grapples -
AD12 Series Grapple Buckets -
AF11G Series Front Blades -
AH11D Bale Hugger -
AH11G Bale Hugger
-

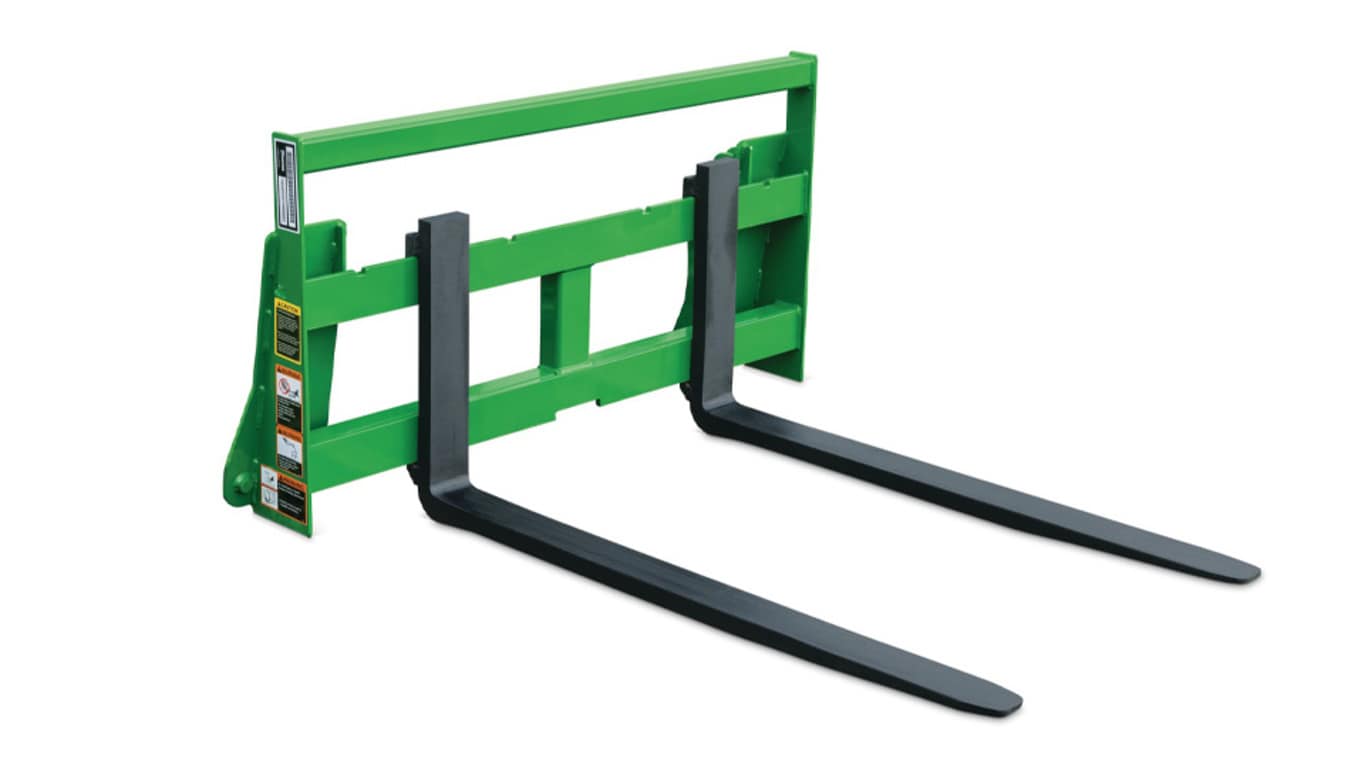

AP10 Series Pallet Fork -
AP11F Series Pallet Fork -
AP11G Pallet Fork
-
AP12 Series Pallet Fork -
AP12D Pallet Fork
-
AP12F Pallet Fork
-
AP12G Pallet Fork
-
AP12K Pallet Fork
-
AP13D Pallet Fork -
AP13G Pallet Fork
-
AP13K Pallet Forks
-
AR10 Series Rock Buckets -
AR10E Rock Bucket
-
AR10G Rock Bucket
-
AR10H Rock Bucket
-

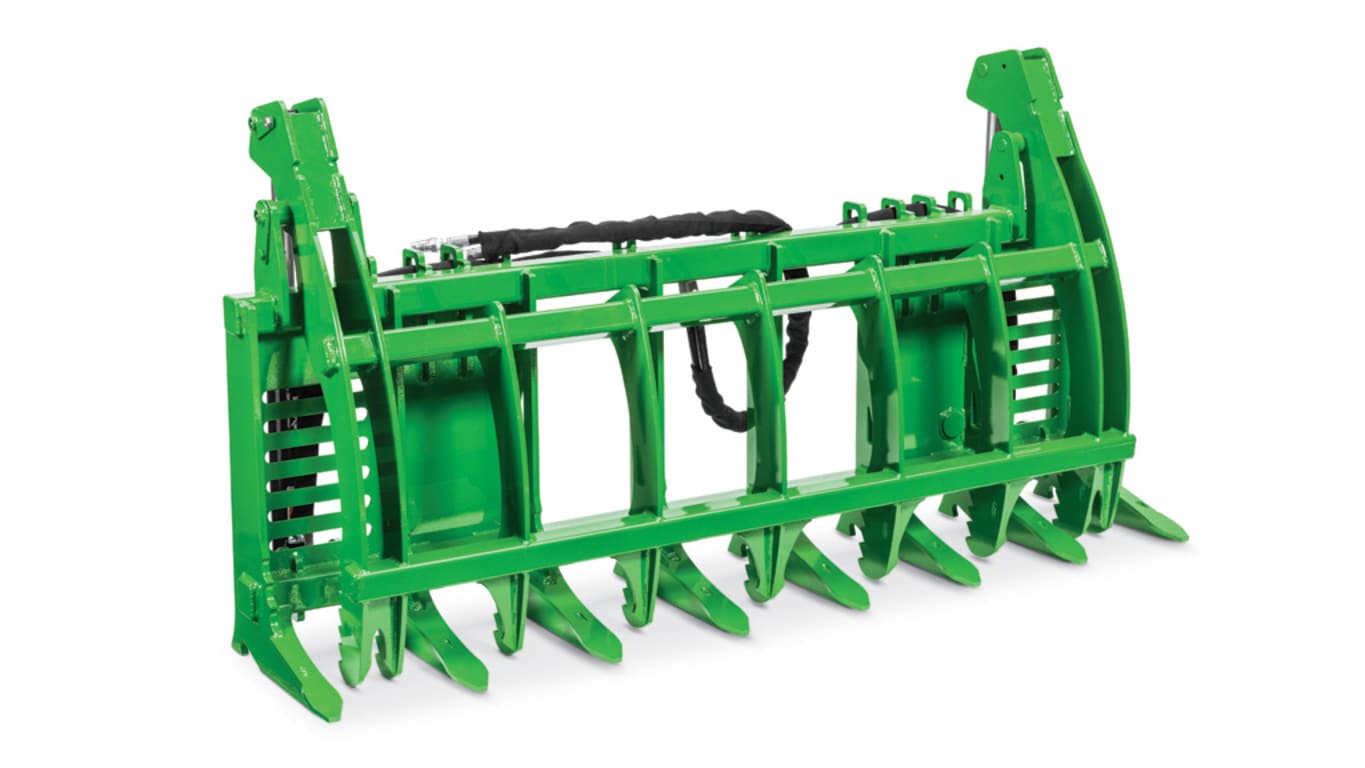

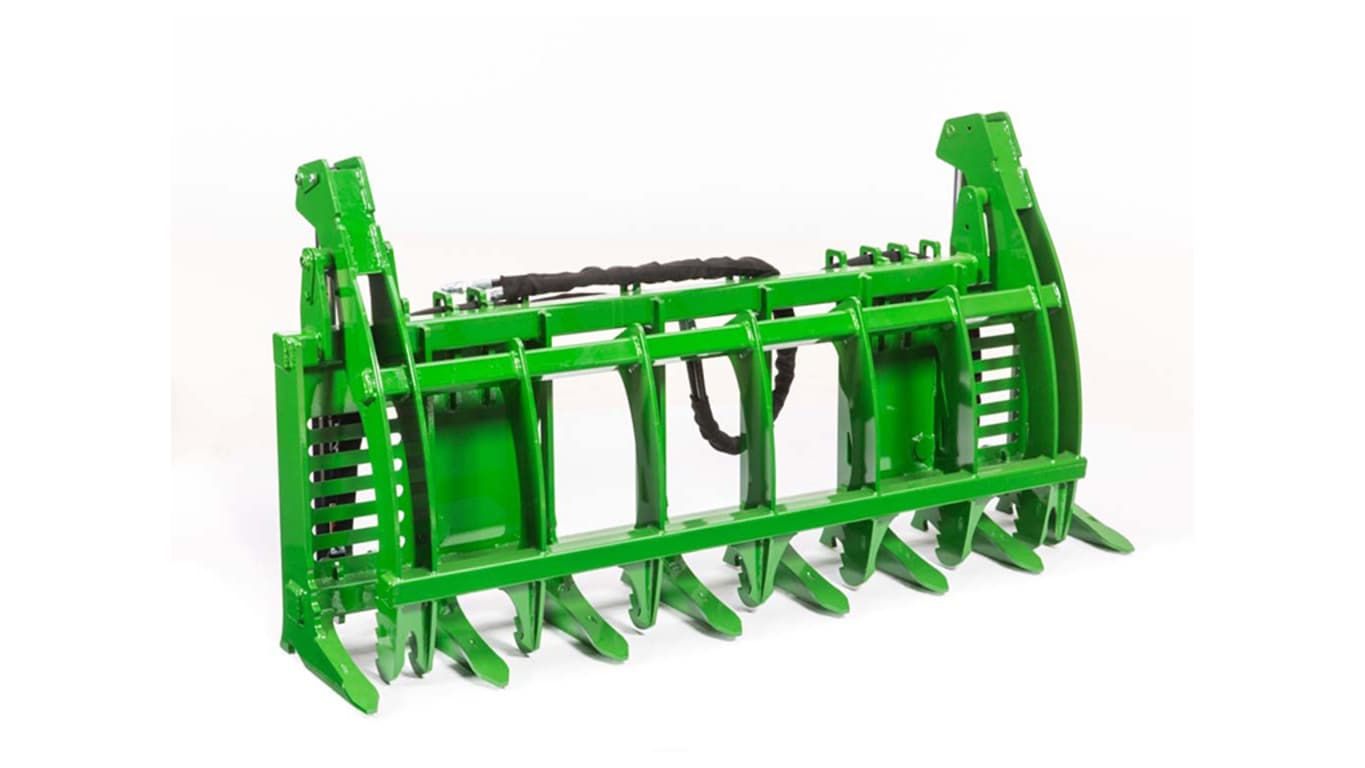

AV20E Series Root Grapples -
