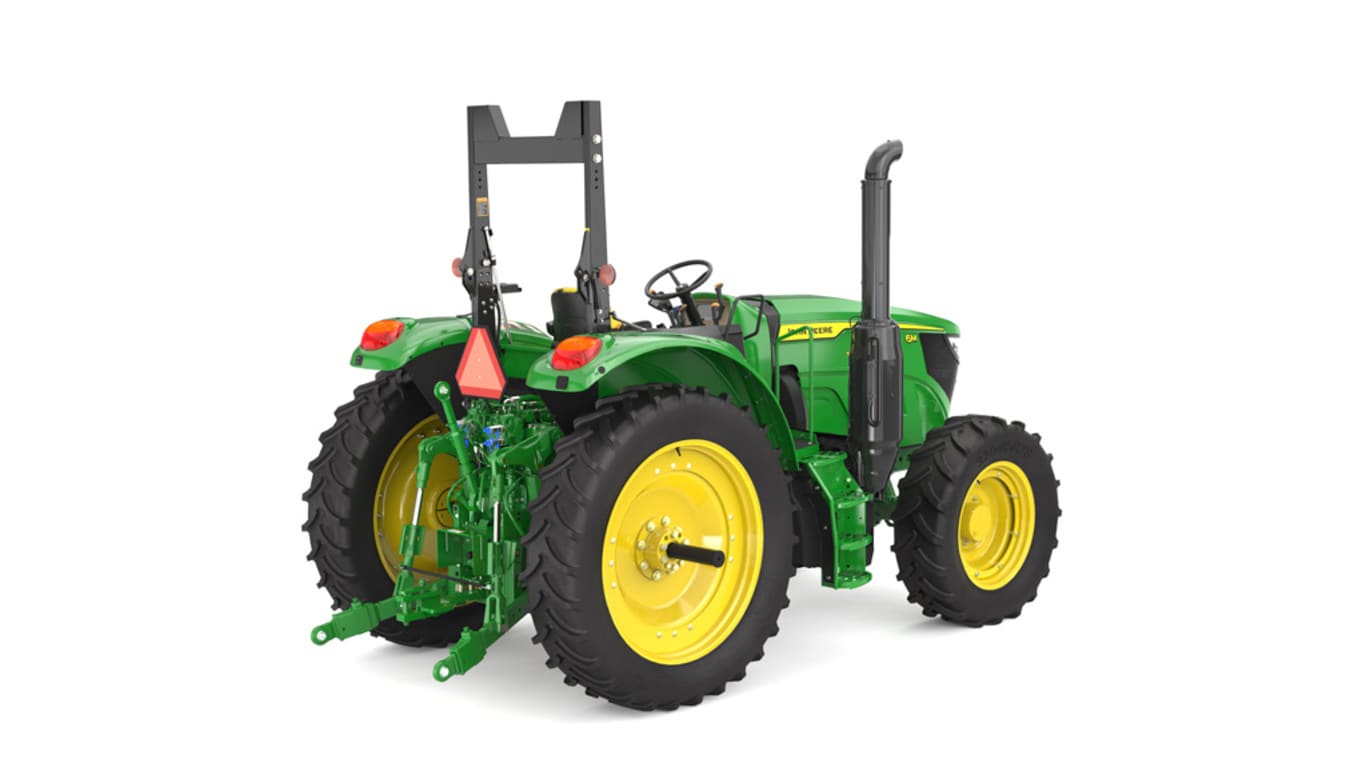

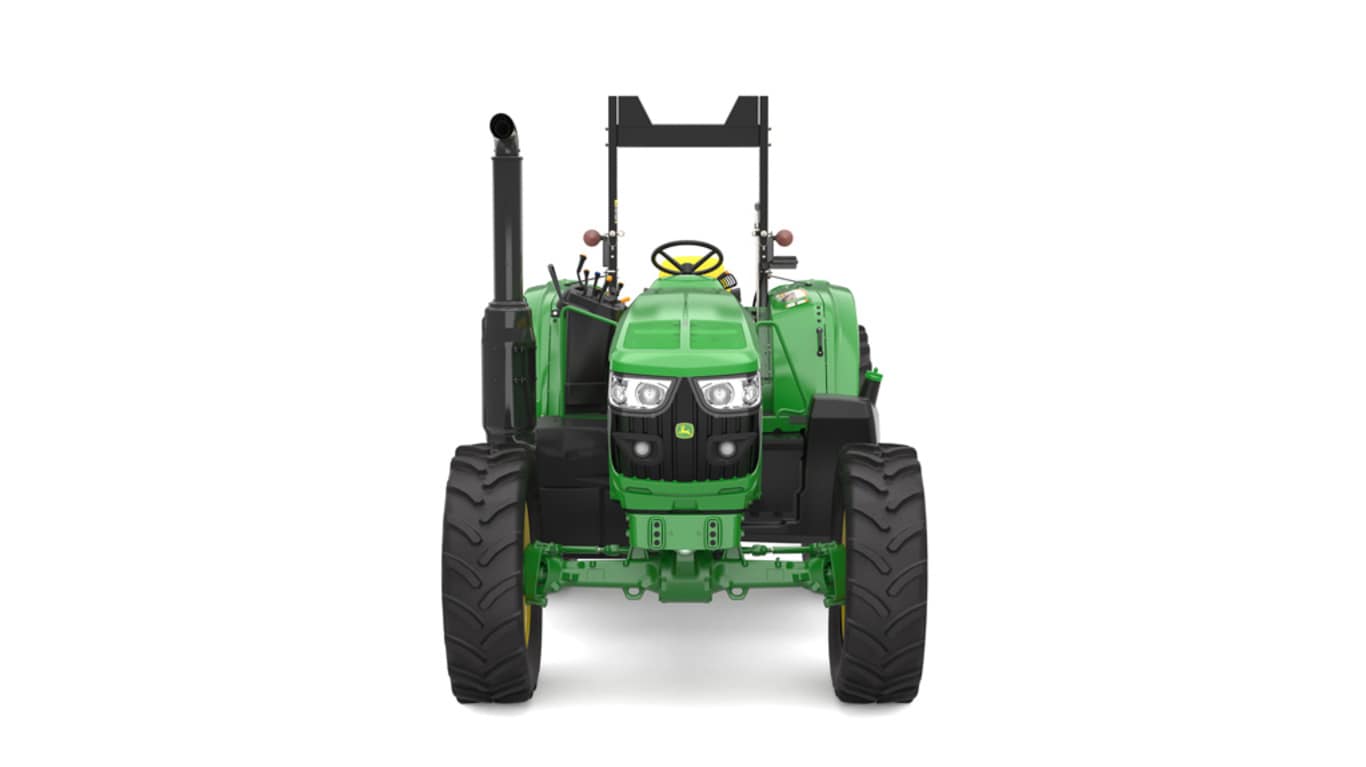

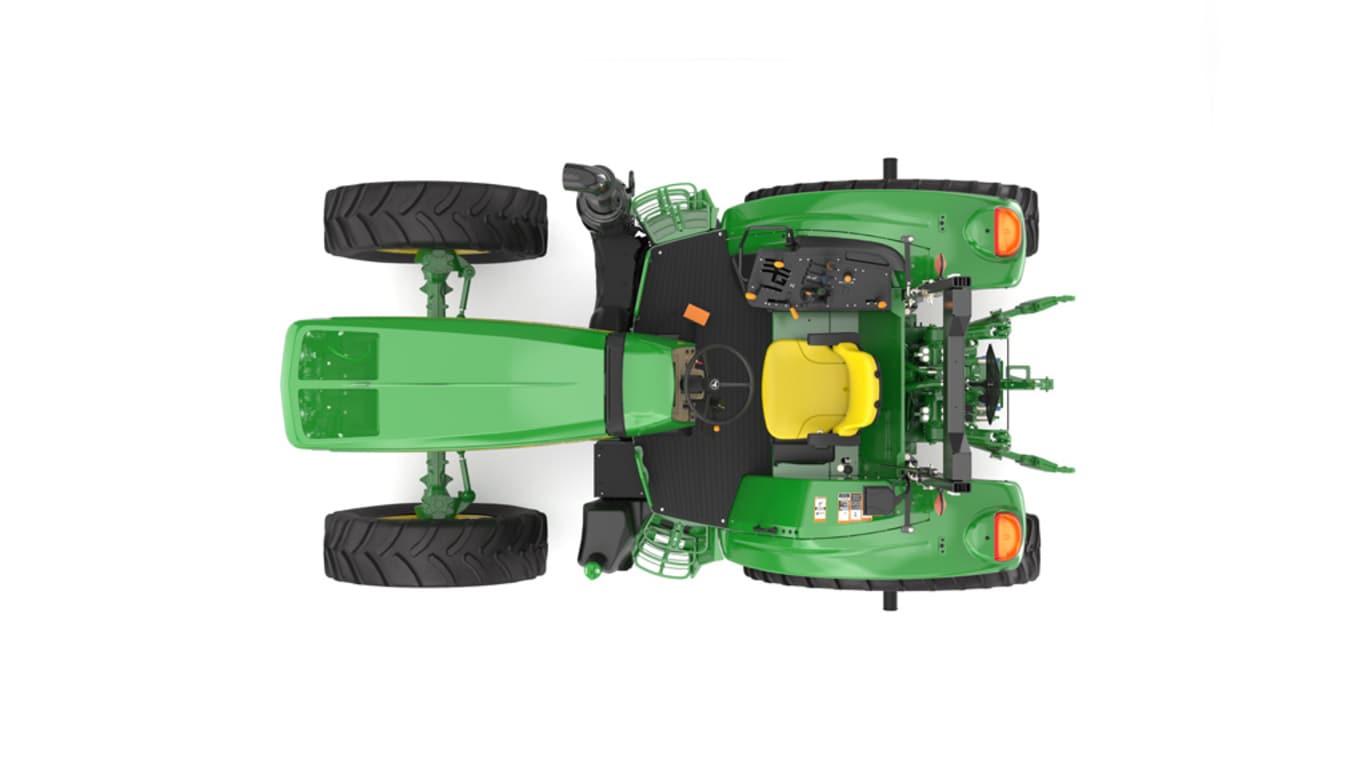

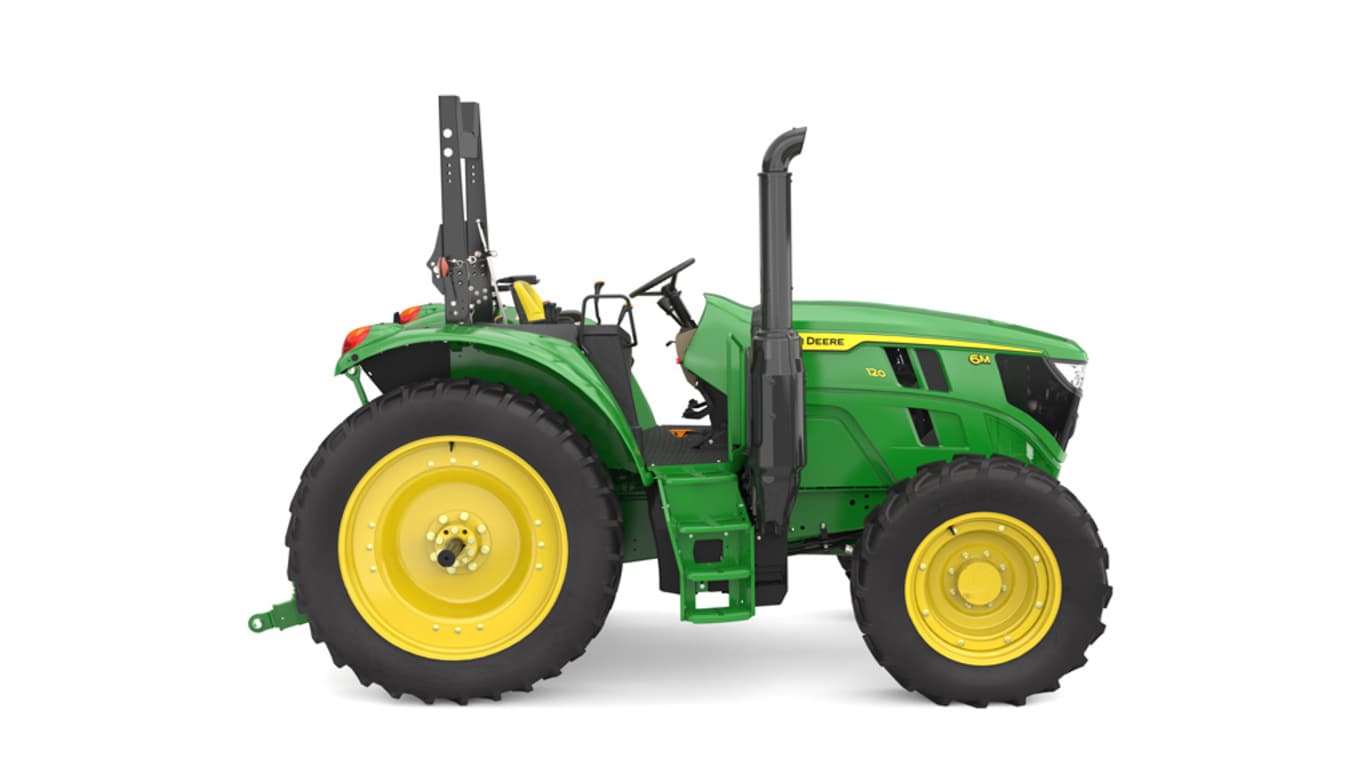

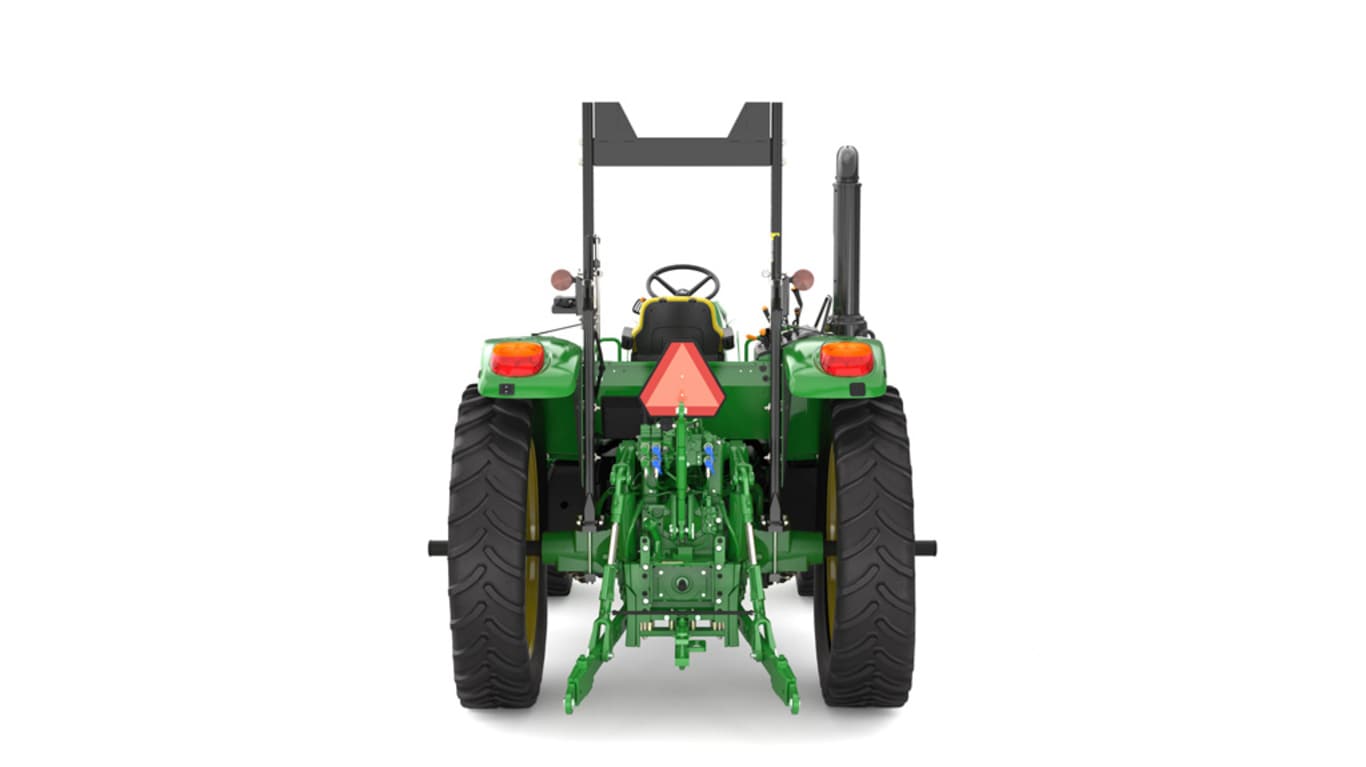

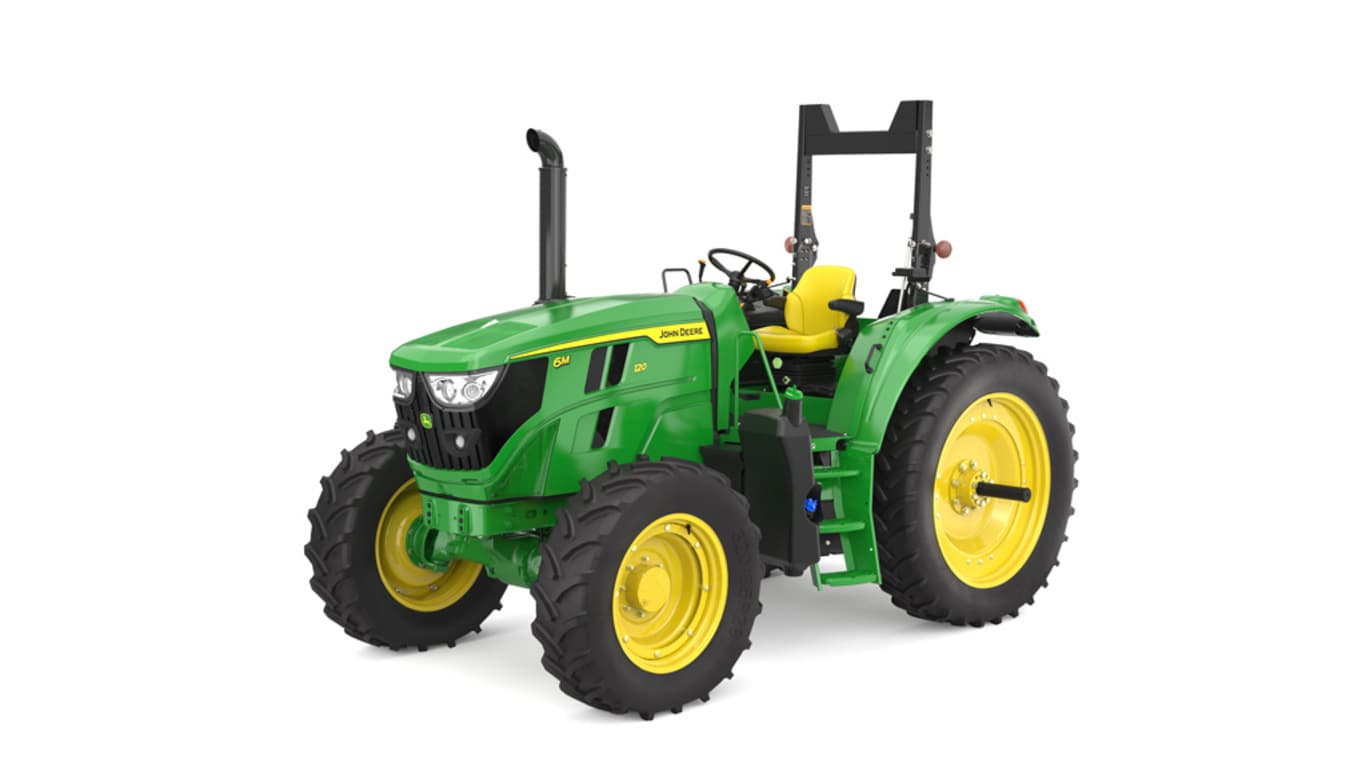

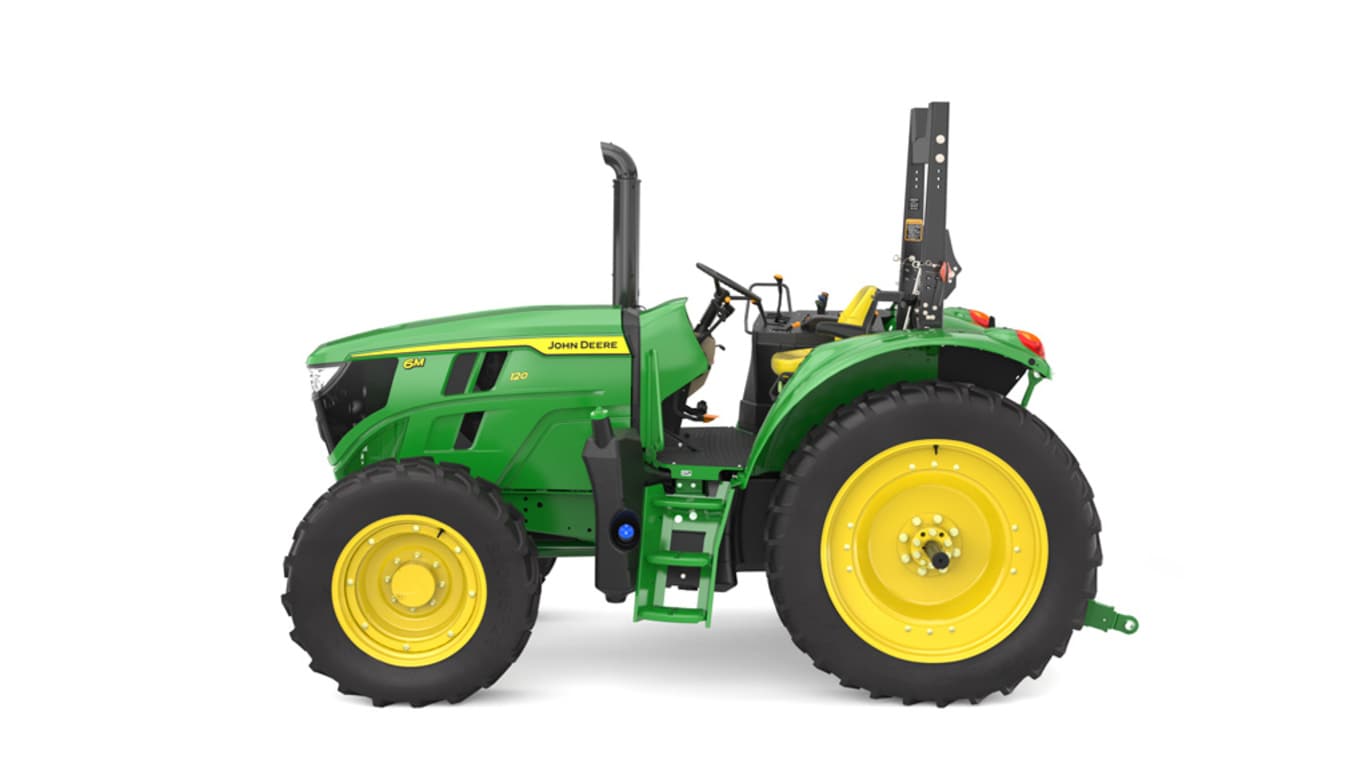

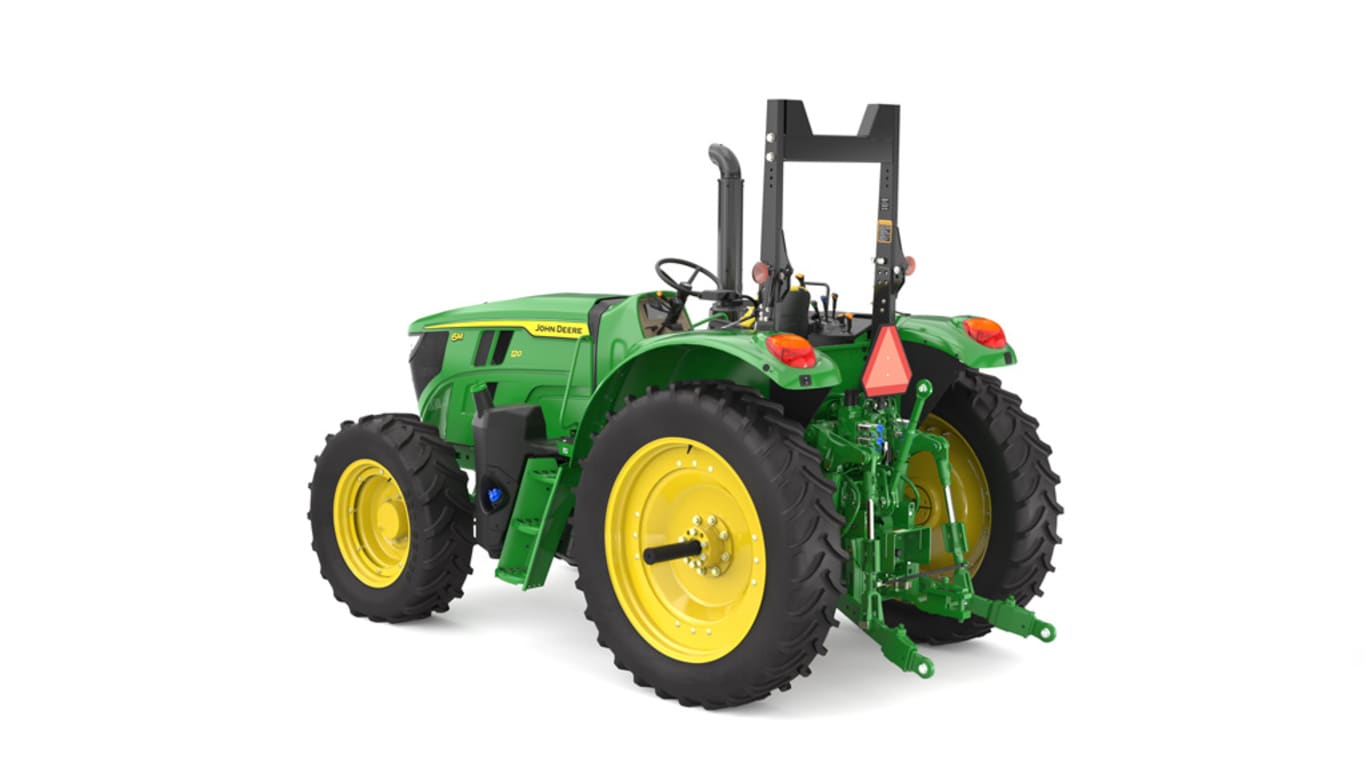

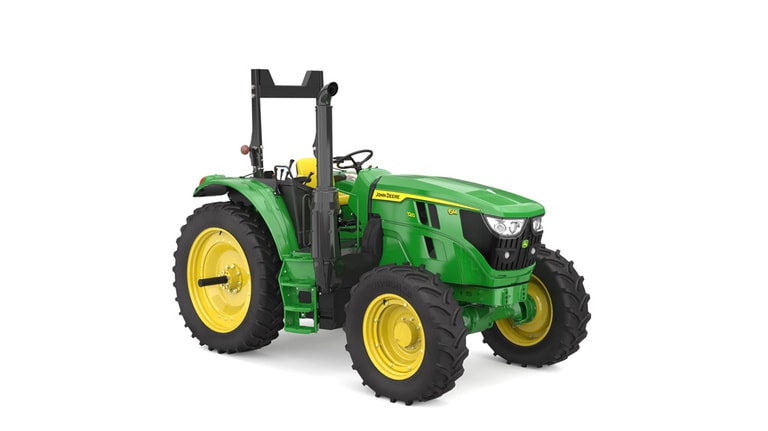

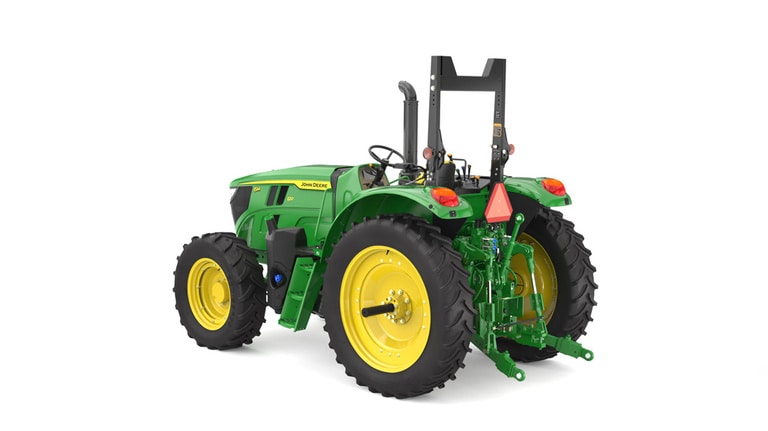

6M 120Utility Tractor
- Multiple transmission choices with creeper available
- Factory-installed JDLink™ Modem
- Closed Center Hydraulics
- Rear hitch lift capacity- Standard: 7,048 lb (3,200 kg) Optional: 7,930 lb (3,600 kg)
Features
Expand All
Collapse All
6M Open Operator Station with Right-hand Console
Right-hand Console
Rear hitch controls
6M OOS Standard Seat
Reversible fan
Functionality of the reversable fan
PowerQuad™ transmission
6M 130 OOS with 2580 mm wheelbase
6M 155 OOS with 2765 mm wheelbase
The 6M Open Operator Station
6M Open Operator Station with Right-hand Console
Operators rely on a high quality and functional operator station environment to complete their job. Many of these jobs require frequent stops and starts and the 6M Open Operator Station Tractor provides easy entry and exit from the operator platform with two handles supporting the operator. Open station tractors offer great visibility, which can be crucial for tasks that require precise maneuvering, such as working in tight spaces or around obstacles. Operators can enjoy the direct connection they have with their surroundings and appreciate the ability to communicate with others around the tractor.
The 6M OOS delivers a more productive, comfortable, and efficient experience through customizable options. Several options are available to let you configure your 6M OOS to fit any operation including:
- PowrQuad™ Transmissions w/ left hand reverser for quick and easy change of directions with optional creeper speeds
- Right-hand Console and Standard Seat allowing for seat swivel of 5°to the left/20° to the right to provide great visibility and control
- Pressure compensated hydraulic system with an optional pressure flow compensated system providing up to 114 l/min (30.1 g/min) flow and up to 3 rear SCVs
- Manual Telescopic Mirrors for increased visibility and awareness of surroundings
- Floor Mat to provide a safe and clean operator station
- Work lights to extend operating hours and support jobs in low light conditions
Right-hand Console controls
Right-hand Console
Rear hitch controls
The Right-hand Console provides an enhanced customer experience through intuitive controls you needed for daily work at your fingertips, such as the transmission, loader joystick (optional), rear hitch, and PTO controls.
Operator Seats
6M OOS Standard Seat
You can choose between the Economy Seat and the Standard Seat. The Standard Seat comes with additional features,
such as Mechanical Lumbar Support for a more comfortable operator experience and a Swivel that provides a 15° angle
to the left and a 20° angle to the right.
Power without limits
Engine
The high-power output of the John Deere 4-cylinder, 4.5L (274.6-cu in.) engine and the 6-cylinder, 6.8L (415-cu in.) engine is made possible by refined, four-valve, high-pressure common rail (HPCR) technology with an injection pressure of up to 2500 bar (36,259.4 psi). The 6M OOS leverages different levels of technology and turbocharger configurations to efficiently deliver peak performance throughout the portfolio.
Reversible fan
Reversible fan
Functionality of the reversable fan
Optimize engine performance in dusty environments by utilizing the optional reversible fan technology available on all 6M OOS Tractors. The reversible fan allows the operator to quickly clean radiator screens from the comfort of the operator station. By manually activating the system with a switch in the operator station, the radiator fan blades blow out dust and debris away from the radiator. This enables the engine to run cooler, resulting in fuel savings, less downtime, and overall increased efficiency.
You’re in full control
Customers rely on the 6M Open Operator Station tractor for many different applications such as cultivating, seeding, harvesting, transport, etc. This requires a reliable and efficient transmission to support the unique requirements of the various applications. The 6M Open Operator Station allows the customer to select the controls and speeds to best fit their applications.
Operators will have the ability to select transmission solutions offering:
- Speeds ranging from 30k/h (19 mph) to 40k/h (25 mph).
- Creeper options with minimum ground speed of 0.16 km/h (0.1 mph).
PowrQuad™ transmission
PowerQuad™ transmission
PowrQuad™ transmissions feature a partial PowerShift technology. An operator selects a desired range using the range lever on the right-hand console and the gears using the gear lever right beside the range lever. For specialty uses like vegetable, orchard and other operations that need extremely slow speeds, creeper speeds are available with the PowrQuad™ transmission.
Frames that suit your application
Looking for a reliable all-around tractor to support a variety of applications? The 6M Open Operator Station offers a portfolio of 5 models with 2 frame sizes (2580 mm and 2765 mm wheelbase) to meet the customer’s needs on maneuverability. The compact size and visibility of open station tractors help navigate in tight spaces and bedded crops. The broad offering of hydraulics, rear axles, tires and a reliable PowrQuadTM transmission on multiple frame-sizes, allows the operator to match the right weight to horsepower to meet the unique challenges of any operation.
6M 130 OOS with 2580 mm wheelbase
6M 155 OOS with 2765 mm wheelbase
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 6M 120 Utility Tractor |
Key Specs
| Engine description | John Deere PowerTech™ EWL | |||
|---|---|---|---|---|
| Engine displacement | 4.5 L 275 cu in. |
|||
| Rated engine power | 88 kW 120 hp w/ IPM: 103 kW 140 hp |
|||
| Maximum engine power | 98 kW 133 hp w/ IPM: 106 kW 144 hp |
|||
| Rated PTO power (hp SAE) | 69 kW 94 hp |
|||
| Maximum PTO power | At 1000 PTO rpm with IPM: 87 kW 118 hp |
|||
| Transmission type | Standard: John Deere 24-speed PowrQuad™ Plus 40 km/h Optional: John Deere 16-speed PowrQuad Plus 30 km/h John Deere 24-speed AutoQuad™ Plus 40 km/h John Deere 24-speed CommandQuad™ Plus 40 km/h AutoPowr™/IVT™ 40 km/h Creeper (PowrQuad Plus and AutoQuad Plus) |
|||
| Hydraulic pump rated output | Standard: 35-cc pump: 80 L/min 21 gpm Optional: 45 cc-pump: 114 L/min 30 gpm |
|||
| Rear hitch category (SAE designation) | 2/3N | |||
| Base machine weight | 5680 kg 12,522 lb |
|||
| Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | ||||
| Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) |
Engine specifications
| Description | John Deere PowerTech EWL | |||
|---|---|---|---|---|
| Engine type | 4045HL290 | |||
| Engine family | JDXL04.5317 | |||
| Rated speed | 2100 rpm | |||
| Aspiration | Single turbocharger with wastegate | |||
| Cylinders liners | ||||
| Emission level | Final Tier 4 | |||
| After treatment type | Diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) using diesel exhaust fluid (DEF) | |||
| Displacement | 4.5 L 275 cu in. |
Engine performance
| Rated power | 88 kW 120 hp w/ IPM: 103 kW 140 hp |
|||
|---|---|---|---|---|
| Rated PTO power (hp SAE) | 69 kW 94 hp |
|||
| Maximum PTO power | At 1000 PTO rpm with IPM: 87 kW 118 hp |
|||
| Intelligent Power Management (IPM) | ||||
| Power boost | 10 percent | |||
| Maximum engine power | 98 kW 133 hp w/ IPM: 106 kW 144 hp |
|||
| Engine peak torque | At 1600 U/min: 562 Nm 414.50 lb-ft |
|||
| Drawbar power | ||||
| PTO torque rise | 40 percent | |||
| Fuel injection system and control | ||||
| Air cleaner type | ||||
| Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | ||||
| Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) |
Transmission
| Type | Standard: John Deere 24-speed PowrQuad Plus 40 km/h Optional: John Deere 16-speed PowrQuad Plus 30 km/h John Deere 24-speed AutoQuad Plus 40 km/h John Deere 24-speed CommandQuad Plus 40 km/h AutoPowr/IVT 40 km/h Creeper (PowrQuad Plus and AutoQuad Plus) |
|||
|---|---|---|---|---|
| Reverser | Electronic left-hand reverser | |||
| Clutch; wet/dry | ||||
| Creeper | Optional |
Hydraulic system
| Type | Standard: Pressure compensated (PC) Optional: Pressure-and-flow compensated (PFC) system with Load Sensing function |
|||
|---|---|---|---|---|
| Pump rated output | Standard: 35-cc pump: 80 L/min 21 gpm Optional: 45-cc pump: 114 L/min 30 gpm |
|||
| Available flow at a single rear SCV | ||||
| Available flow at front SCVs | ||||
| Number of rear selective control valves (SCVs) | Standard: Two ISO couplers Optional: Two to four ISO couplers |
|||
| Number of mid selective control valves (SCVs) | Up to three | |||
| Number of front selective control valves (SCVs) | ||||
| Joystick SCV control | Mechanical/electrical | |||
| Auxiliary hydraulic features | ||||
| SCV control |
Rear hitch
| Hitch draft control load sense type | ||||
|---|---|---|---|---|
| Remote control valves available | Standard | |||
| Hitch category (SAE designation) | 2/3N | |||
| Maximum lift capacity behind lift points | Standard: 3750 kg 8267.3 lb Optional: 5000 kg 11,023.1 lb |
|||
| Lift capacity at standard frame | ||||
| Sensing type | Electronic lower link | |||
| Rear axle differential lock | Electrohydraulically with oil-cooled clutch |
Drawbar
| Drawbar category | Category 2 | |||
|---|---|---|---|---|
| Maximum vertical load | Road/field use (250-mm extended): 2000 kg 4409.2 lb Field use (350-mm extended): 1400 kg 3086.5 lb Field use (400-mm extended): 1200 kg 2645.5 lb |
Rear power take-off (PTO)
| Type | Electrohydraulically operated, oil-cooled, multi-disc design Standard: 38 mm (1.496 in.) 540, 1000 reversible shaft |
|||
|---|---|---|---|---|
| Engine rpm (at rated PTO speeds) | 540: 1977 rpm 1000: 1972 rpm |
|||
| Economy PTO speeds | ||||
| Reverse PTO speeds | ||||
| Multispeed PTO option availability | ||||
| Ground speed PTO option availability | ||||
| PTO actuation | In-cab switch and external fender-mounted remote control |
Front hitch
| Category | 3N | |||
|---|---|---|---|---|
| Electric power | Seven-pin electrical socket | |||
| Standard lift capacity | 4400 kg 9700.3 lb |
|||
| Front power take-off (PTO) | Electrohydraulically engaged with oil-cooled, multi-disc design | |||
| PTO speed | 1000 PTO: 1969 rpm |
Rear axle
| Type | Standard: Flange-type rear axle Optional: Rack-and-pinion rear axle - 79-mm (3.1-in.) shaft (2.556-m/8.4-ft length) Rack-and-pinion rear axle - 79-mm (3.1-in.) shaft - short version (2.286-m/7.5-ft length) mm |
|||
|---|---|---|---|---|
| Final drive type | Three planetary gear reduction | |||
| Differential controls | ||||
| Axle type | ||||
| Brakes, type and control | Primary brake (footbrake): Oil-cooled self-equalizing, self-adjusting, hydraulically actuated Secondary brake: Hydraulically actuated, integrated into primary brake (lever on left-hand side of operator seat) Park lock: Mechanical transmission park lock Mechanical front-wheel drive (MFWD) braking: Automatic MFWD engagement (MFWD engaged for braking at speeds less than 5 km/h [3.1 mph]) Front axle brakes (optional): TLS™ with front axle brakes (oil cooled, self-equalizing, self-adjusting, hydraulically actuated) |
|||
| Rear differential lock | Electrohydraulically with oil-cooled clutch | |||
| Load rating |
Front axle
| Type | Standard: MFWD Optional: Two-wheel drive (2WD) Triple-Link Suspension (TLS) MFWD axle (hydro-pneumatic, permanently active, triple link, self-leveling suspension with 100-mm [3.9-in.] suspension range) Triple-Link Suspension MFWD with brakes |
|||
|---|---|---|---|---|
| Front axle differential lock | Self-locking differential | |||
| Load rating |
Tires
| Rear | 600/65R38 (175) | |||
|---|---|---|---|---|
| Wheel tread range | ||||
| Turning radius with brakes | ||||
| Turning radius without brakes | ||||
| Central Tire Inflation System (CTIS) | ||||
| Front |
Tracks
| Tread spacing | ||||
|---|---|---|---|---|
| Drive type | ||||
| Track width | ||||
| Mid-rollers |
Steering
| Type | Dynamic load sensing, hydrostatic, flow metering |
|---|
Brakes
| Primary brake (foot brake) | ||||
|---|---|---|---|---|
| Secondary brake | ||||
| Park lock | ||||
| MFWD braking | ||||
| Front axle brakes | ||||
| Auxiliary brakes | ||||
| Hydraulic trailer brakes | ||||
| Pneumatic trailer brakes |
Electrical system
| Alternator size | Standard: 14 V/120 amp Optional: 14 V/150 amp 14 V/200 amp |
|||
|---|---|---|---|---|
| Battery options | Standard: 12 V/154 amp-hr Optional: 12 V/174 amp-hr |
|||
| Working lights | ||||
| Type of bulb in headlight (Halogen, Zenon, LED) | ||||
| Type of bulb in beacon (Halogen, Zenon, LED) | ||||
| dB(A) rating for backup alarm | ||||
| Total cold cranking amps |
Operator station
| Rollover protective structure, OOS | Gearshift location - console/floor Console |
|||
|---|---|---|---|---|
| Seat | Standard: Economy seat with mechanical suspension Optional: Standard seat with air suspension |
|||
| Cab suspension | Optional: Mechanical Cab Suspension (MCS) | |||
| Instructional seat | Optional | |||
| Display | Cornerpost display (right-hand A-post) Functionalty: Performance monitor and individual settings |
|||
| Radio | Optional integrated | |||
| Inner cab volume | 2.73 m3 96.41 cu ft |
|||
| dB(A) rating | 70 dBA | |||
| Cab glass area | Without roof hatch or panoramic roof: 4.85 m2 52.2 sq ft |
|||
| Safety glass rating | ||||
| Front visibility |
Dimensions
| Wheelbase | 2400 mm 94.5 in. |
|||
|---|---|---|---|---|
| Overall width | Minimum: 2000 mm (420/85R30 (148)) 78.74 in. Maximum: 2550 mm (600/65R38 (175)) 100.39 in. |
|||
| Overall length | 4377 mm 172.3 in. |
|||
| Overall height | 2940 mm 115.75 in. |
|||
| Drawbar clearance | ||||
| Front axle center | Ground clearance: Minimum.: 364 mm 14.3 in. Maximum: 559 mm 22 in. |
|||
| Approximate shipping weight, Open;Cab | Cab: 5680 kg 12,522 lb |
Weight
| Base machine weight | Front axle 2180 kg 4806 lb Rear axle 3500 kg 7716 lb 5680 kg 12,522 lb |
|||
|---|---|---|---|---|
| Maximum ballast level | ||||
| Maximum permissible weight | 9500 kg 20,944 lb |
Capacities
| Crankcase oil volume | 17 L 4.5 U.S. gal. |
|||
|---|---|---|---|---|
| Fuel tank | 175 L 46.2 U.S. gal. |
|||
| Diesel exhaust fluid (DEF) tank | 19 L 5.0 U.S. gal. |
|||
| Cooling system | 20 L 5.3 U.S. gal. |
|||
| Transmission-hydraulic system | PowrQuad Plus/AutoQuad Plus: 60 L 15.9 U.S. gal. |
Serviceability
| Interval for engine oil change | 500 hours | |||
|---|---|---|---|---|
| Interval for hydraulic/transmission oil change | 1500 hours | |||
| Interval for engine coolant change | 6000 hours |
Loaders
| Loader | 600R | |||
|---|---|---|---|---|
| Lift capacity at full height | Non-self-leveling (NSL): 2347 kg 5174.24 lb Mechanical self-leveling (MSL): 1898 kg 4184.37 lb |
|||
| Maximum lift height | NSL/MSL: 3.9 m 153.56 in. |
|||
| Leveling type |
Precision AG
| Guidance | Optional: AutoTrac™ on cornerpost display (straight track only), AutoTrac with 4240/4640 Universal Display | |||
|---|---|---|---|---|
| Telematic | Optional: JDLink™ | |||
| Remote diagnostics | Optional: JDLink |
Miscellaneous
| AutoTrac ready | ||||
|---|---|---|---|---|
| ISOBUS ready | ||||
| CommandCenter video inputs | ||||
| Immobilizer | ||||
| Side slope rating | ||||
| Uphill/downhill slope rating | ||||
| Country of manufacture | Germany |
Additional information
| Date collected | 19-Mar-20 |
|---|
-
