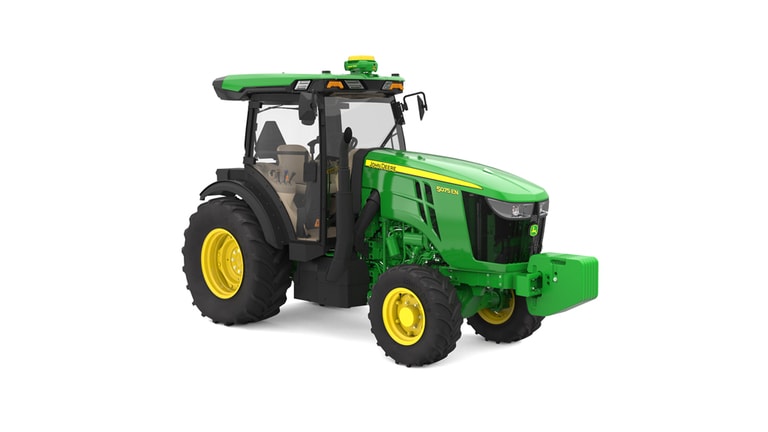

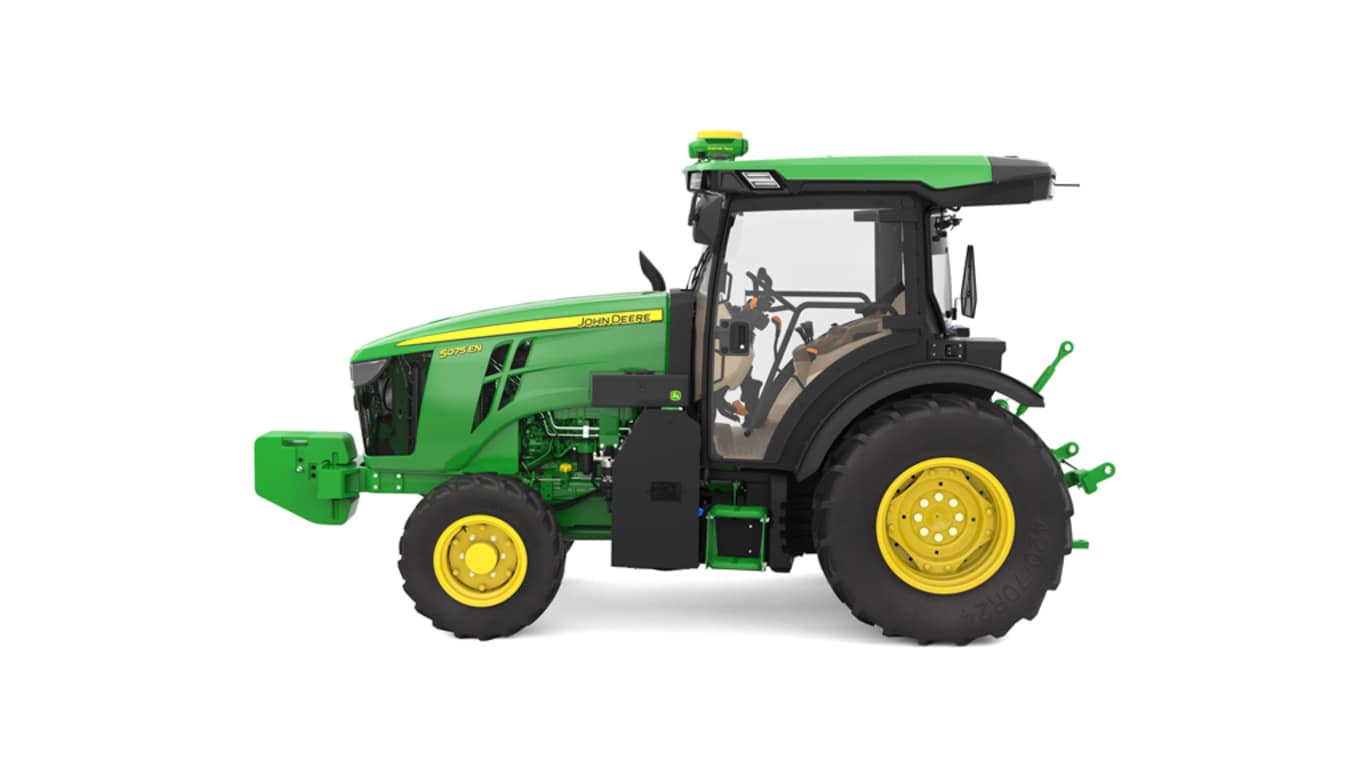

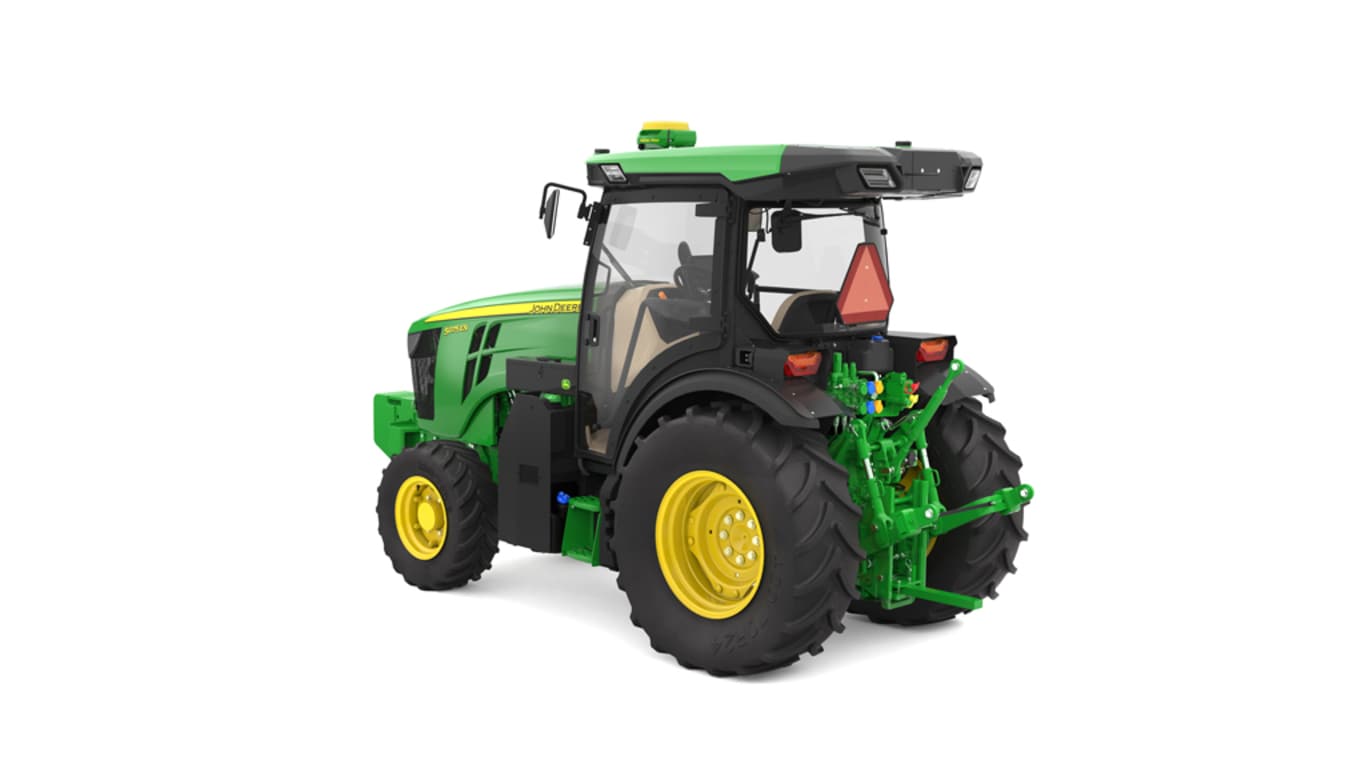

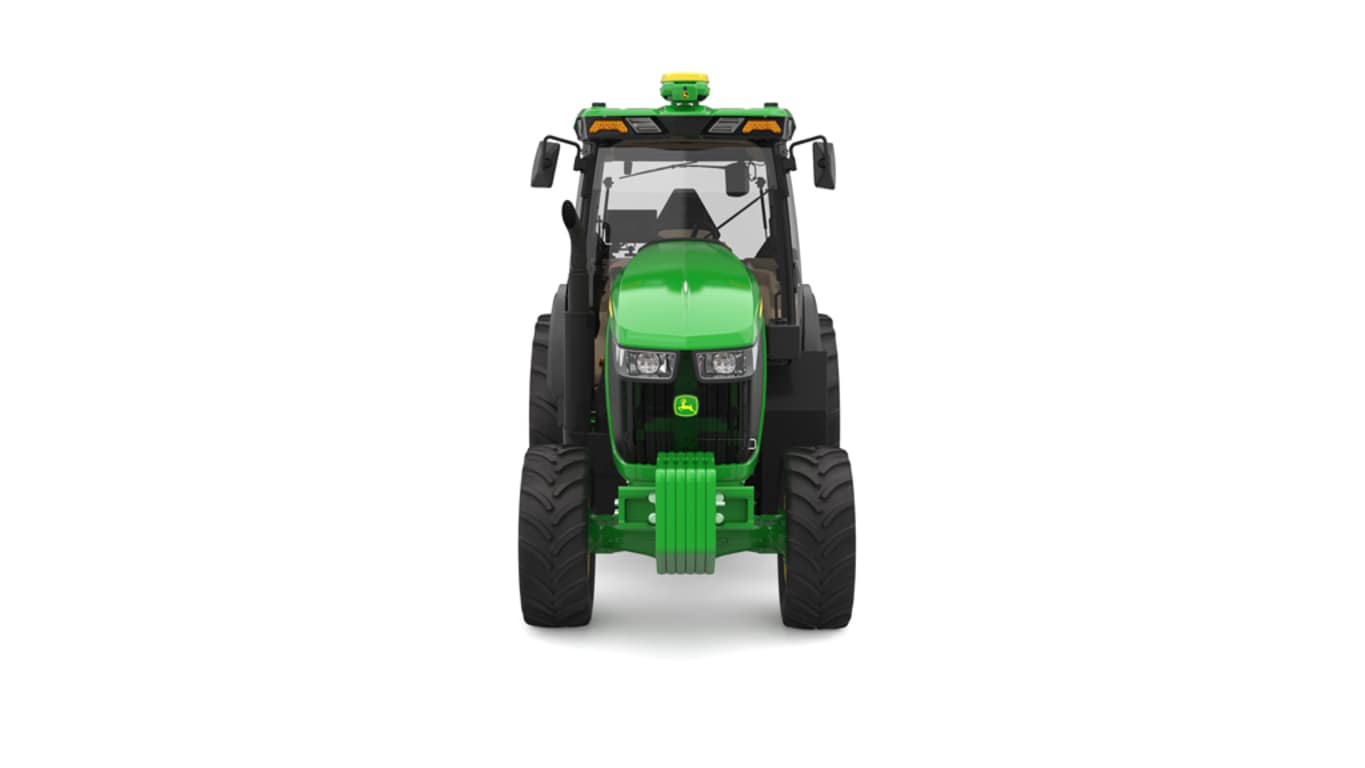

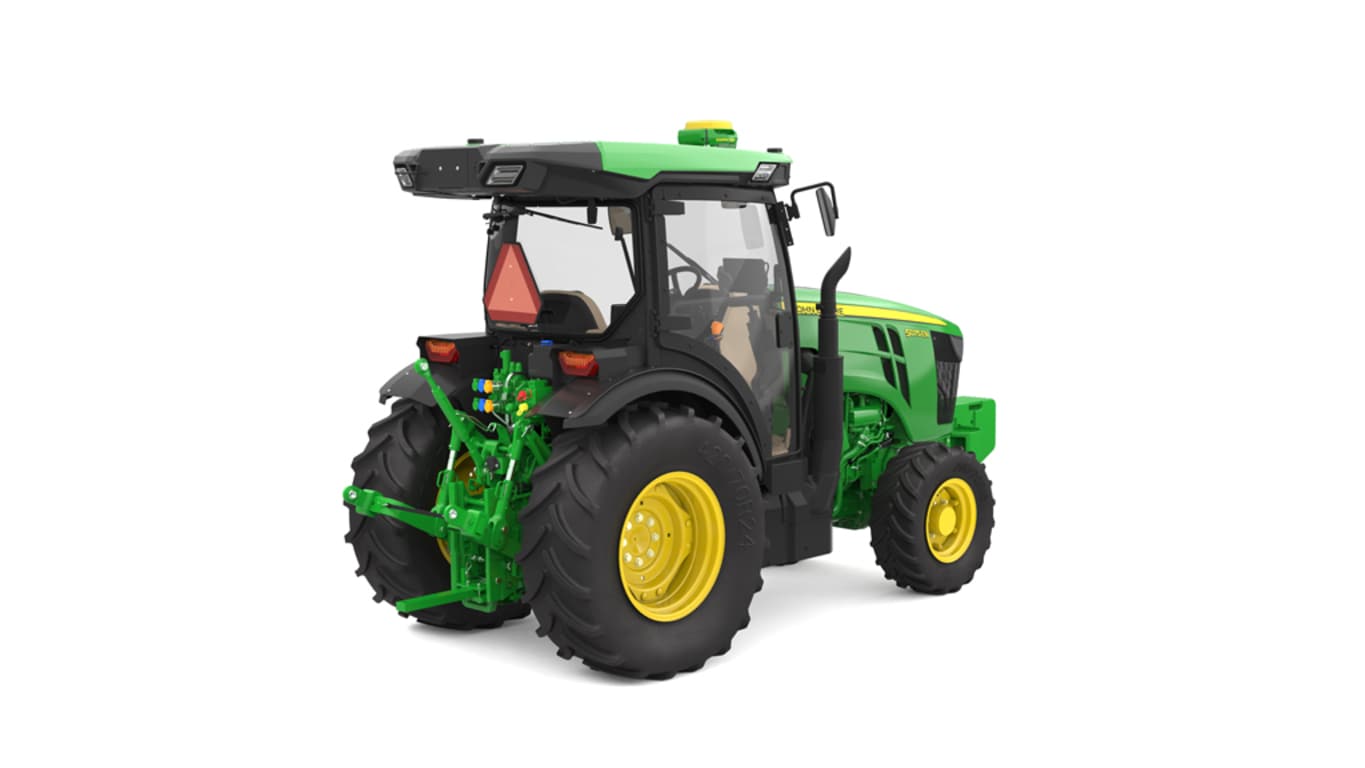

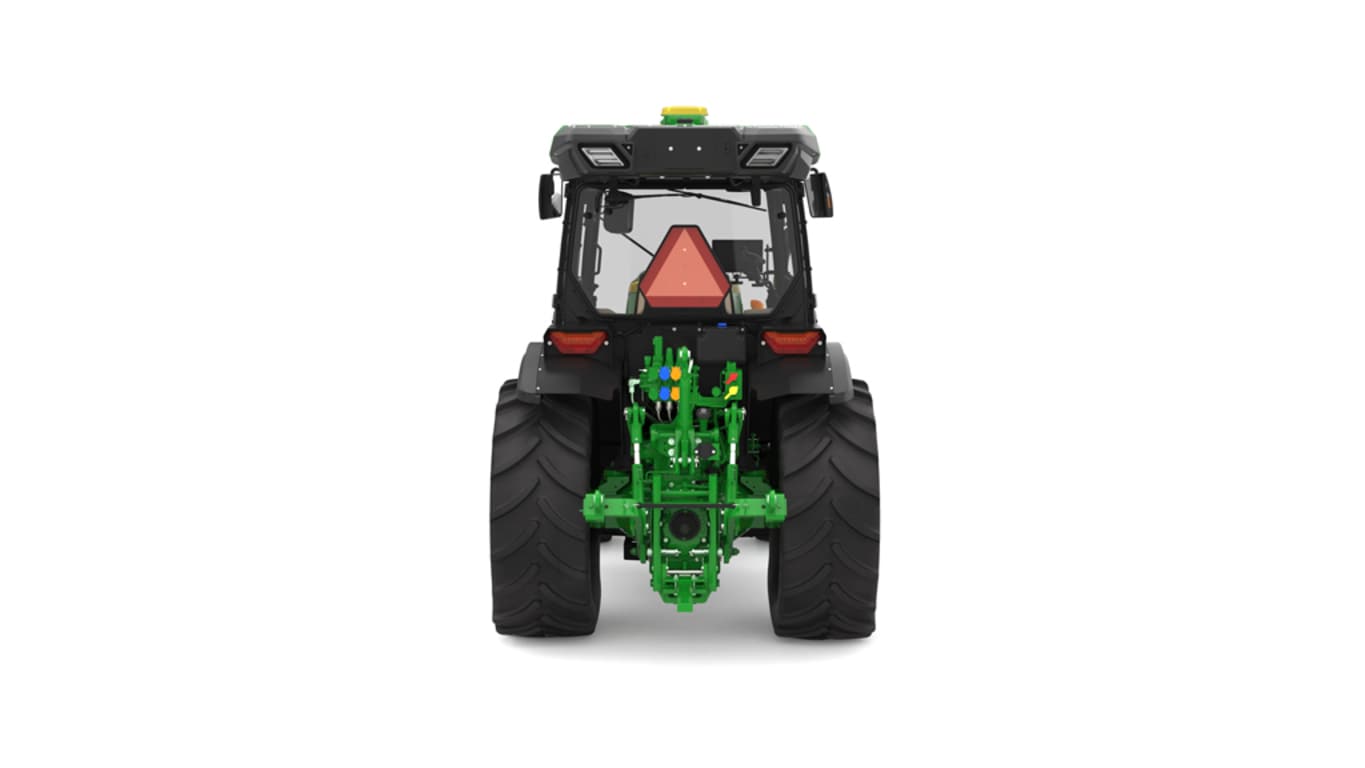

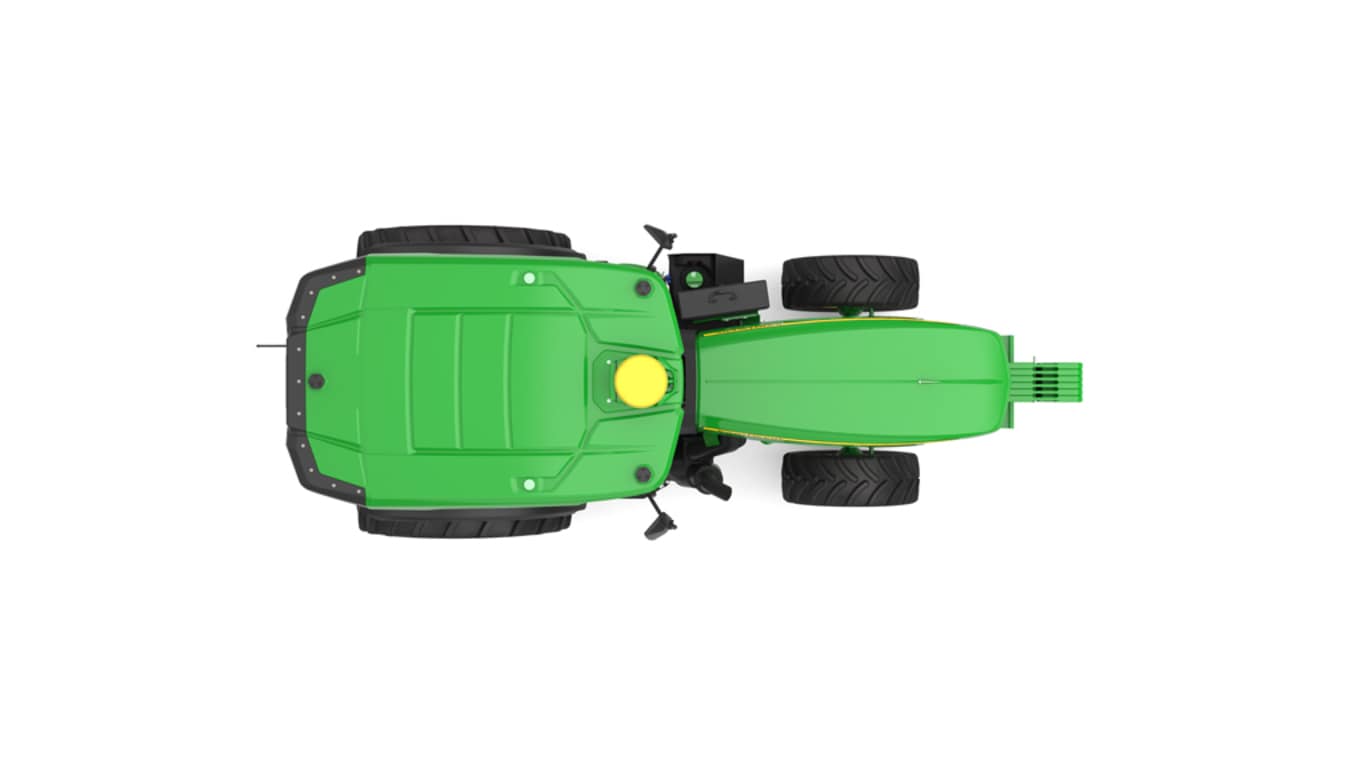

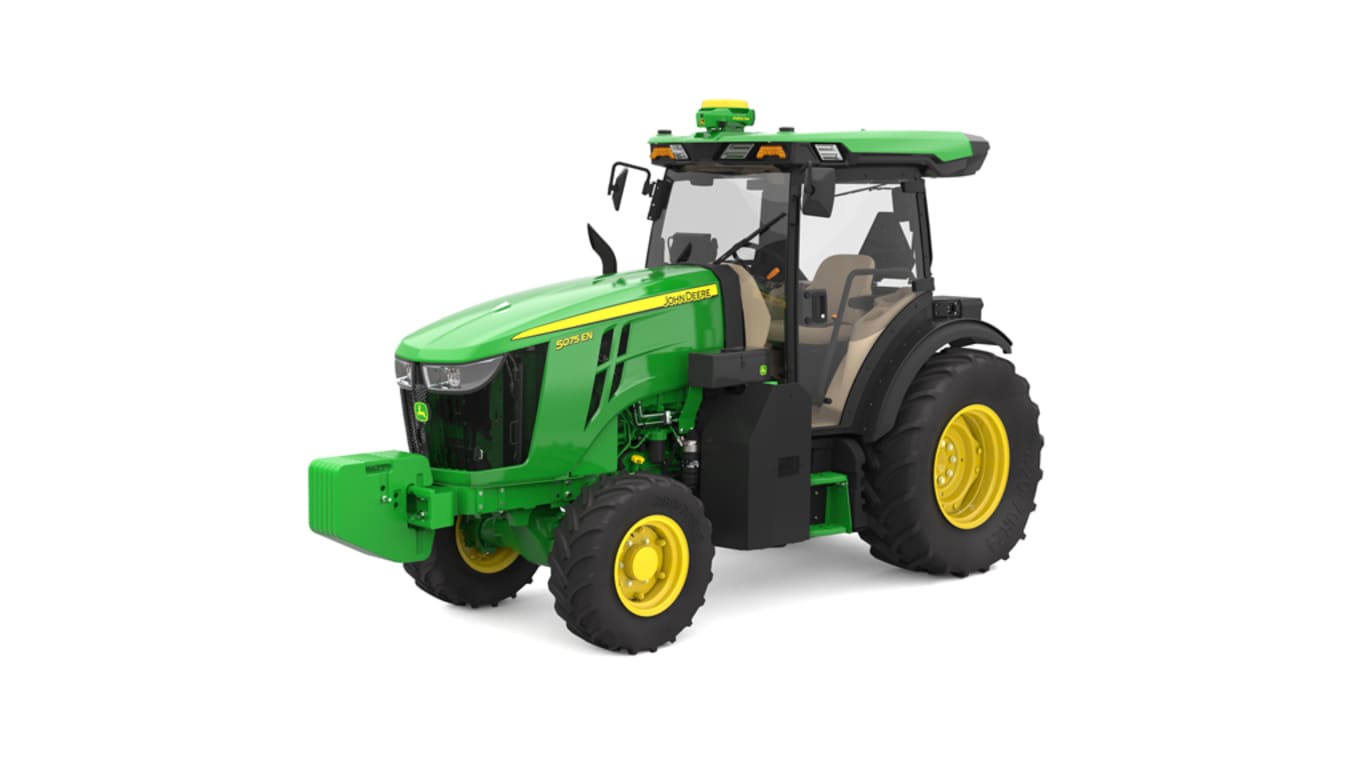

5075ENTractor
- Working widths down to 55 inches
- 75 hp engine/60 hp PTO
- Front hitch option and Mid SVC's available
- Two PowrReverser™ transmissions available: 12F/12R and 24F/12R
- Creeper option available
- Open Operator’s Station or Cab Option
Features
Expand All
Collapse All
AutoTrac™ Guidance in a vineyard
Installing StarFire™ Receiver
Equipping tractor with an AutoTrac™ Universal 300
Utilizing Gen 4 display
JDLink™ standard on 5EN tractors
Moving to the next job
Change gears with ergonomic lever
Range lever with creeper gear
5075EN Cab vineyard mowing
5075EN Open Station tractor
Cab right-hand console controls
Cab storage and charging ports
5075EN working alongside a 5101EN
OOS controls layout
5075EN mowing
5075EN hauling barrels
Spraying in a vineyard
Apple orchard mowing
5EN mowing in vineyard
5ML spraying in orchard
Effectively Manage Equipment and Crops - Technology
AutoTrac™ Guidance in a vineyard
Manage your vineyard or orchard better by accessing key machine and job data. Know where your tractor is and basic machine health data with the help of JDLink™ which comes standard on 5EN tractors. Significantly reduce install time of an AutoTrac™ Universal 300 on 5EN cab tractors by adding the AutoTrac Universal Ready option which enables hands free guidance. Map the jobs that are most important to you, like spraying, by adding a Gen 4 Display and StarFire™ Receiver.
- Enable job mapping and entry level machine guidance
- Pinpoint future efficiency gains by reviewing job and machine health information
- Reduce operator fatigue and improve job efficiency when running AutoTrac guidance
- Quick install and removal of the AutoTrac Universal 300 system which makes it mobile between tractors
- Manage employees and tasks by using JDLink and other John Deere Precision Ag technologies that were previously not accessible to the narrow Tractors
Installing StarFire™ Receiver
Equipping tractor with an AutoTrac™ Universal 300
Utilizing Gen 4 display
JDLink™ standard on 5EN tractors
Moving you forward – PowrReverser™ transmissions
Moving to the next job
Get in the field and ready to work with the proven, reliable PowrReverser™ transmission. Find the right working range and gear to complete a variety of tasks such as mowing, spraying, harvesting, and transport. Ideal for applications requiring frequent directional changes, like moving crates, the left-hand reverser allows for quick forward and reverse changes. Increase fuel saving by using 540 economy PTO or switch to standard 540 PTO for more power. Increase transmission functionality and productivity by upgrading from a 12F/12R PowrReverser transmission to a 24F/12R PowrReverser transmission. Work in slow speeds by adding optional creeper which could be useful when planting.
- Easy to use 12F/12R PowrReverser transmission
- Increase working speed ranges by upgrading to 24F/12R PowrReverser transmission
- Unlock fuel savings when doing simple PTO tasks such as mowing by using 540E PTO
- Achieve slow working speeds by adding creeper gear
- Improved acceleration during transport or infield work with foot throttle
- Ensure the tractor is in park by having it in the transmission vs extra lever
Change gears with ergonomic lever
Range lever with creeper gear
Back “EN” Action – Cab and Open Station Options

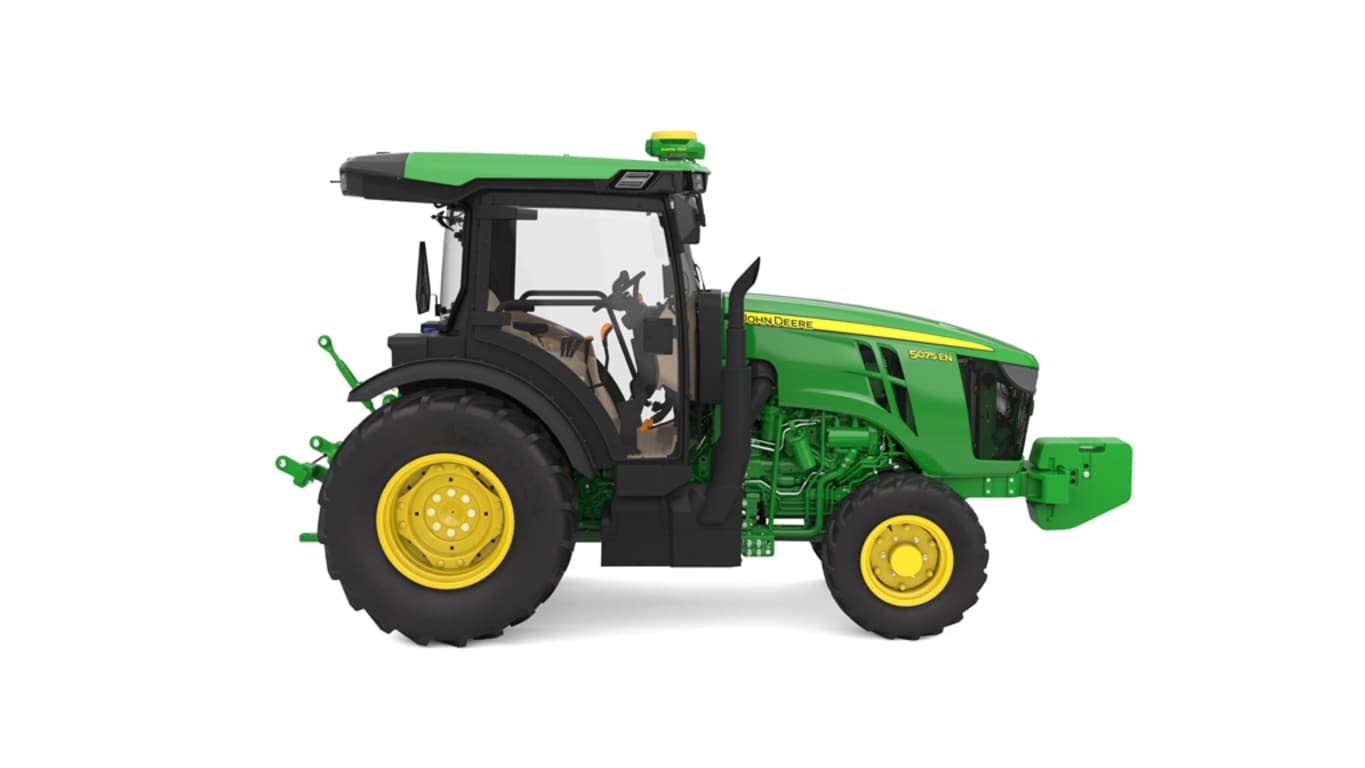

5075EN Cab vineyard mowing

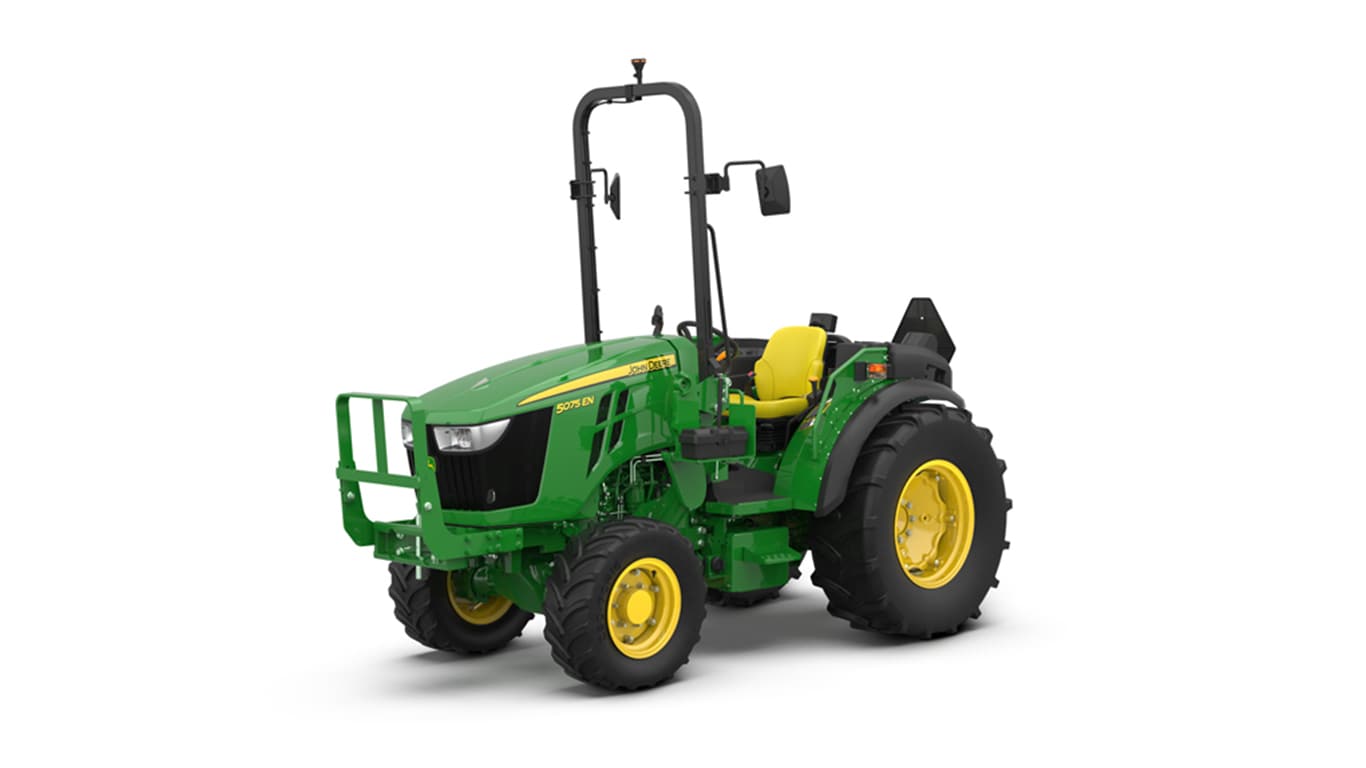

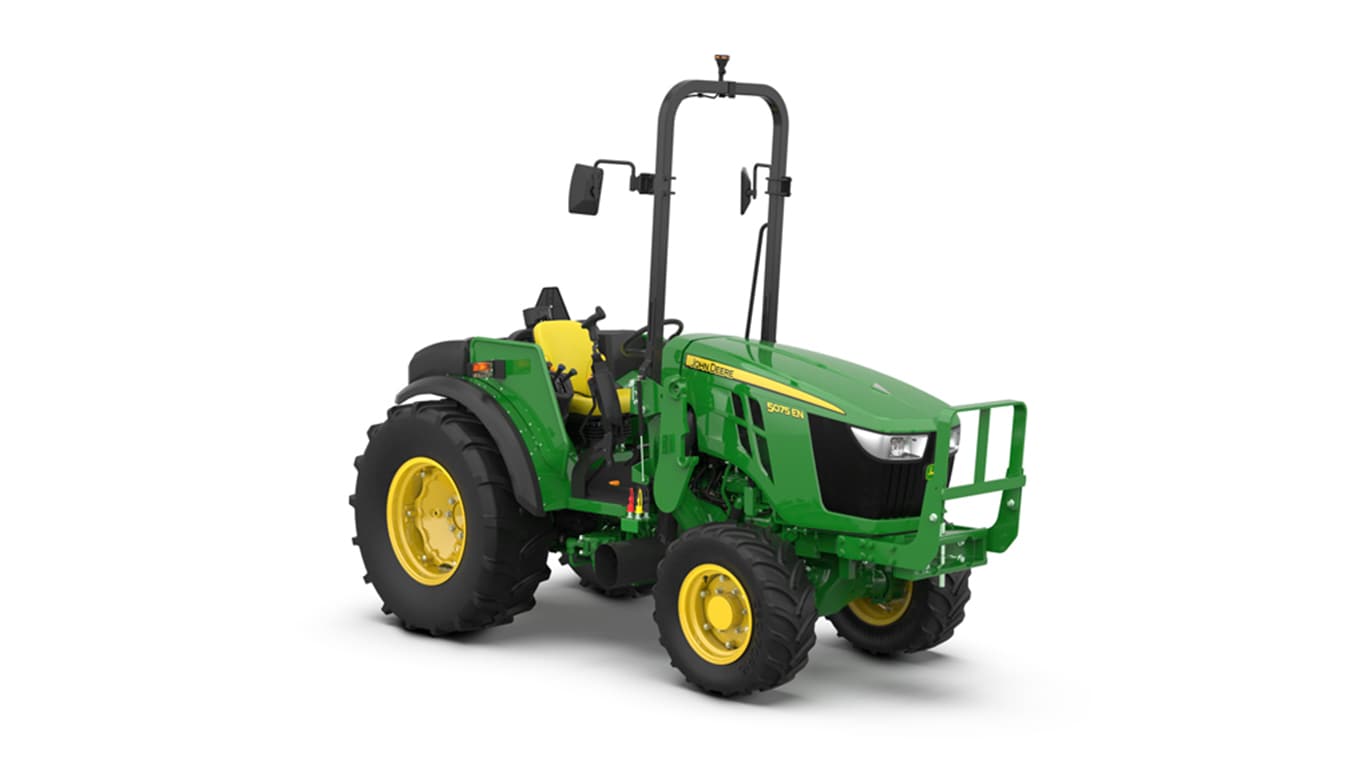

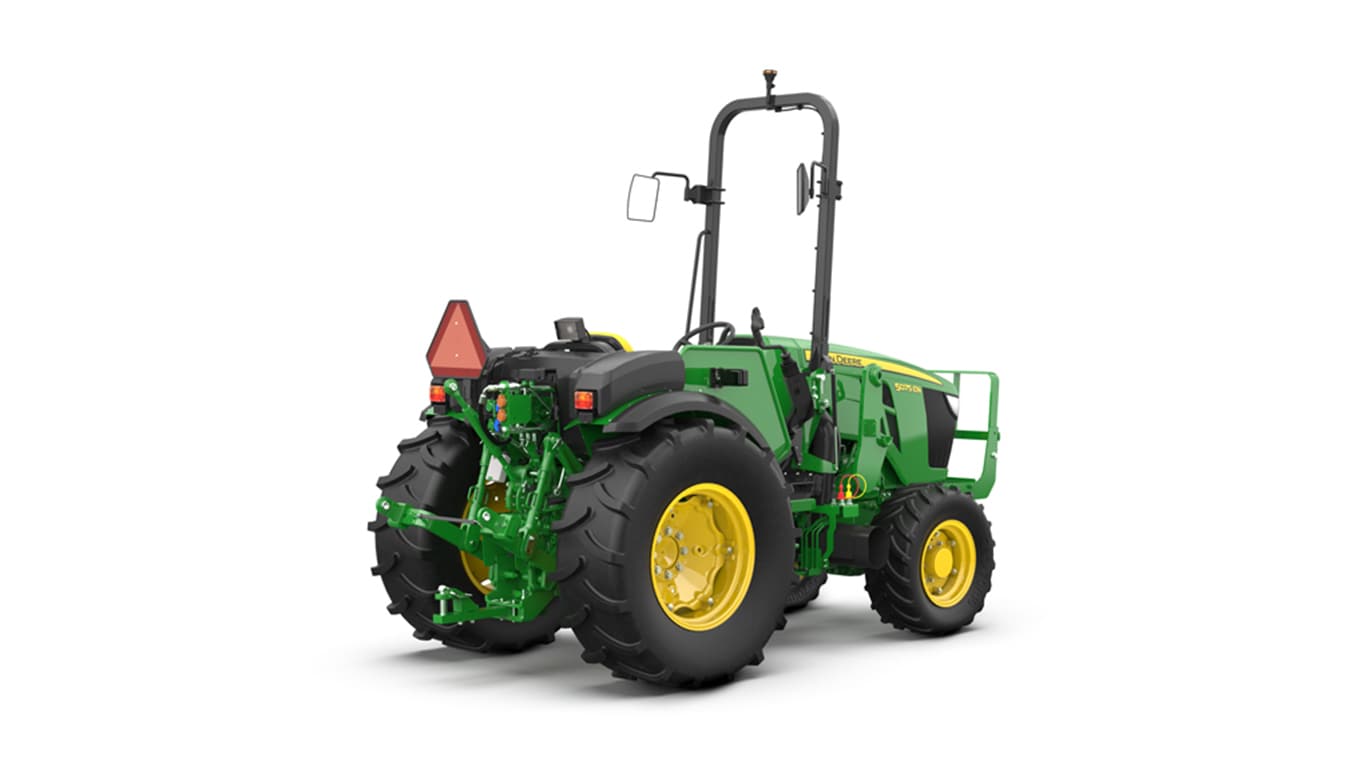

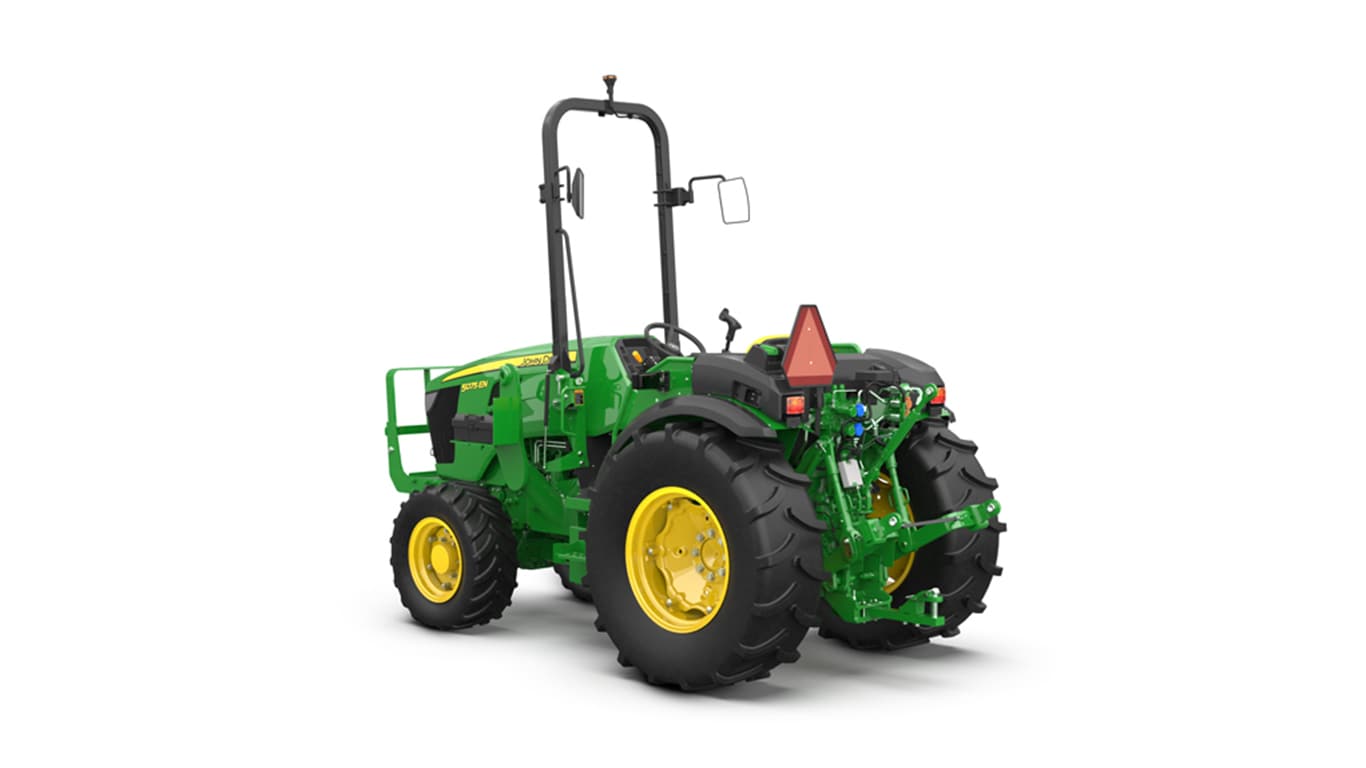

5075EN Open Station tractor
The 5EN is back “EN” action with improved operator comfort features and key product updates. Depending on what jobs you are needing to perform, you can equip your tractor with an open station or cab to fit your specific needs.
- Conveniently located levers that control key tractor and implement functions
- Operate the tractor in comfort year-round no matter the elements by adding a cab
- Keep the operator comfortable during long days with mechanical or air suspension seat options
- Maneuver the ROPS (Roll Over Protective Structure) up and down on tractors with an open operator station using less force than previously models
- When using mid- or front mount-implements with an open operator station tractor you can lock the ROPS in place
Cab right-hand console controls
Cab storage and charging ports
5075EN working alongside a 5101EN
OOS controls layout
Reduce input costs when completing tasks – No Diesel Exhaust Fluid required
5075EN mowing
Reduce the cost of operation when purchasing the 5075EN by not having to add Diesel Exhaust Fluid (DEF). This small, nimble tractor is the ideal size for smaller vineyard/orchard applications related to mowing, weed spraying, and pulling harvest wagons or carts.
- No after-treatment system required on 75hp tractor
- Reduce cost of operation by not requiring DEF
5075EN hauling barrels
Efficiency gains by increasing implement compatibility
Spraying in a vineyard
Hook a variety of front-, mid-, and rear-mounted implements to the 5EN to get work done. Be more efficient with your time by completing multiple jobs during one pass and utilizing the full tractor capabilities.
- Front and rear attachment locations
- Easily attach mid and front mounted implements to the mid-SCVs
- Save on fuel cost by using 540E PTO with implements not requiring full PTO strength
- Unlock new tractor functions with future loader capabilities
Apple orchard mowing
Maneuvering between the rows – Turning Radius
5EN mowing in vineyard
5ML spraying in orchard
While working in your orchard or vineyard, getting in and out the rows effortlessly is important. Turning radius is a top priority for high value crops growers and was a top priority when designing our high value crops tractors.
- Efficiency gains when making turns in and out of rows
- Worry less about making tight headland turns
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 5075EN Tractor |
Key Specs
| Engine description | John Deere PowerTech™ 3029 EWX | |||
|---|---|---|---|---|
| Engine displacement | 3 cylinders: 2.9 L 179 cu in. |
|||
| Rated engine power | At 2100 rpm: 55 kW 75 hp |
|||
| Maximum engine power | 55 kW 75 hp |
|||
| Rated PTO power (hp SAE) | At 2100 rpm: OOS 45 kW (60.3 hp) Cab 43 kW (57.6 hp) |
|||
| Maximum PTO power | ||||
| Transmission type | Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ 24F/12R |
|||
| Hydraulic pump rated output | 68.8 L/min 18.2 gpm |
|||
| Rear hitch category (SAE designation) | Category 2N; convertible to 2 & 1 | |||
| Base machine weight | ||||
| Hydraulic Pumps Nominal Flow | ||||
| Maximum PTO power at rated engine speed with intellegent power management (IPM) | ||||
| Maximum engine power (ECE-R120) | ||||
| Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | ||||
| Rated Engine Power (SAE J1995) | ||||
| Rated PTO Power | ||||
| Rated engine power (ECE-R120) | ||||
| Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) | ||||
| Rear Hitch Category (ISO 730-2009) |
Engine specifications
| Description | John Deere PowerTech™ 3029 EWX | |||
|---|---|---|---|---|
| Engine type | 3029HPY110 | |||
| Engine family | NJDXL02.9339 | |||
| Rated speed | 2100 rpm | |||
| Aspiration | Turbocharged | |||
| Cylinders liners | Wet sleeved | |||
| Emission level | Final Tier 4 | |||
| After treatment type | DOC/DPF | |||
| Displacement | 3 cylinders: 2.9 L 179 cu in. |
Engine performance
| Rated power | At 2100 rpm: 55 kW 75 hp |
|||
|---|---|---|---|---|
| Rated PTO power (hp SAE) | At 2100 rpm: OOS 45 kW (60.3 hp) Cab 43 kW (57.6 hp) |
|||
| Maximum PTO power | ||||
| Intelligent Power Management (IPM) | ||||
| Power boost | 0 percent | |||
| Maximum engine power | 55 kW 73.7 hp |
|||
| Engine peak torque | At 1500 rpm: 304 Nm 224 lb-ft |
|||
| Drawbar power | ||||
| PTO torque rise | 21 percent | |||
| Fuel injection system and control | ||||
| Air cleaner type | ||||
| Maximum Engine Torque | ||||
| Maximum PTO power at rated engine speed with intellegent power management (IPM) | ||||
| Maximum engine torque (without power boost at 1.600 engine rpm) | ||||
| Maximum engine power (ECE-R120) | ||||
| Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | ||||
| Maximum engine power with intelligent power management (IPM) | ||||
| Rated PTO Power | ||||
| Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) | ||||
| Rated power (ECE-R120) | ||||
| Torque Reserve |
Transmission
| Type | Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ 24F/12R |
|||
|---|---|---|---|---|
| Reverser | Yes | |||
| Clutch; wet/dry | Wet | |||
| Creeper | Optional | |||
| Creeper Transmission (Reducer) | ||||
| Integrated Electric Power Generation |
Hydraulic system
| Type | Open center | |||
|---|---|---|---|---|
| Pump rated output | 68.8 L/min 18.2 gpm |
|||
| Available flow at a single rear SCV | 43.4 L/min 11.5 gpm |
|||
| Available flow at front SCVs | ||||
| Number of rear selective control valves (SCVs) | Standard: Two Optional: Three |
|||
| Number of mid selective control valves (SCVs) | Standard: Zero Optional: Up to Two |
|||
| Number of front selective control valves (SCVs) | ||||
| Joystick SCV control | Mechanical | |||
| Auxiliary hydraulic features | ||||
| SCV control | ||||
| Available oil flow at a single rear SCV (200 Type) | ||||
| Available oil flow at a single rear SCV (450 Type) | ||||
| Available oil flow at a single rear SCV (450E Type) | ||||
| Flow Control Valve | ||||
| Hydraulic Pumps Nominal Flow |
Rear hitch
| Hitch draft control load sense type | Electrohydraulic | |||
|---|---|---|---|---|
| Remote control valves available | Standard: Two | |||
| Hitch category (SAE designation) | Category 2N; convertible to 2 & 1 | |||
| Maximum lift capacity behind lift points | 1390 kg 3604 lb |
|||
| Lift capacity at standard frame | ||||
| Sensing type | Top link | |||
| Rear axle differential lock | ||||
| Maximum Lift Capacity (SAE J283) | ||||
| Maximum lift capacity directly at coupling points | ||||
| Maximum lift capacity at coupling points | ||||
| Rear Hitch Category (ISO 730-2009) | ||||
| Rear hitch lift capacity (SAE designation) | ||||
| Throughout lift capacity, 610 mm behind the coupling points |
Drawbar
| Drawbar category | ||||
|---|---|---|---|---|
| Maximum vertical load | Road/field use (short position): 1120 kg 2470 lb Field use (fully extended): 760 kg 1675 lb |
Rear power take-off (PTO)
| Type | Standard: 540/540E | |||
|---|---|---|---|---|
| Engine rpm (at rated PTO speeds) | 540 at 2100 rpm 540E at 1588 rpm |
|||
| Economy PTO speeds | ||||
| Reverse PTO speeds | ||||
| Multispeed PTO option availability | ||||
| Ground speed PTO option availability | ||||
| PTO actuation | Electrohydraulic | |||
| E-PTO (Economy Rear Power Take-Off) | ||||
| Engine rpm at rated PTO speeds (540/1.000) | ||||
| Engine rpm at rated PTO speeds (540/540E/1.000) | ||||
| Engine rpm at rated PTO speeds (540E/1000/1.000E) |
Front hitch
| Category | ||||
|---|---|---|---|---|
| Electric power | ||||
| Standard lift capacity | ||||
| Front power take-off (PTO) | ||||
| PTO speed |
Rear axle
| Type | Flange | |||
|---|---|---|---|---|
| Final drive type | Planetary | |||
| Differential controls | Mechanical (pedal) | |||
| Axle type | ||||
| Brakes, type and control | Hydraulic wet disc | |||
| Rear differential lock | ||||
| Load rating |
Front axle
| Type | Mechanical Front Wheel Drive (MFWD) | |||
|---|---|---|---|---|
| Front axle differential lock | ||||
| Load rating | ||||
| Seal Type |
Tires
| Rear | 14.9-24 In. 8PR R1 Bias | |||
|---|---|---|---|---|
| Wheel tread range | ||||
| Turning radius with brakes | 3.2 m 10.5 ft |
|||
| Turning radius without brakes | 4.65 m 15.3 ft |
|||
| Central Tire Inflation System (CTIS) | ||||
| Front |
Tracks
| Tread spacing | ||||
|---|---|---|---|---|
| Drive type | ||||
| Track width | ||||
| Mid-rollers |
Steering
| Type |
|---|
Brakes
| Primary brake (foot brake) | ||||
|---|---|---|---|---|
| Secondary brake | ||||
| Park lock | ||||
| MFWD braking | ||||
| Front axle brakes | ||||
| Auxiliary brakes | ||||
| Hydraulic trailer brakes | ||||
| Pneumatic trailer brakes |
Electrical system
| Alternator size | OOS: 70 amp Cab: 110 amp |
|||
|---|---|---|---|---|
| Battery options | 12 V | |||
| Working lights | Standard: Halogen Optional: LED |
|||
| Type of bulb in headlight (Halogen, Zenon, LED) | Standard: Halogen Optional: LED |
|||
| Type of bulb in beacon (Halogen, Zenon, LED) | Kit: LED | |||
| dB(A) rating for backup alarm | ||||
| Total cold cranking amps | ||||
| Lighting Type |
Operator station
| Rollover protective structure, OOS | Rigid - foldable - telescopic Foldable, two-post Platform - flat/straddle Straddle Gearshift location - console/floor Floor, on the side |
|||
|---|---|---|---|---|
| Seat | Standard: Mechanical Optional for Cab: Air Ride |
|||
| Cab suspension | ||||
| Instructional seat | Not Available | |||
| Display | Simple automotive-style instrument cluster | |||
| Radio | Optional | |||
| Inner cab volume | ||||
| dB(A) rating | 82 dBA | |||
| Cab glass area | ||||
| Safety glass rating | ||||
| Front visibility | ||||
| CAB Type | ||||
| Roll-Over Protective Structure (ROPS) | ||||
| Seat / Suspension |
Dimensions
| Wheelbase | 1950 mm 76.77 in. |
|||
|---|---|---|---|---|
| Overall width | ||||
| Overall length | 3639 mm 143.3 in. |
|||
| Overall height | ||||
| Drawbar clearance | ||||
| Front axle center | ||||
| Approximate shipping weight, Open;Cab | OOS: 2735 kg 6029 lb Cab: 3090 kg 6812 lb |
|||
| Approximate Shipping Weight | ||||
| Turning radius without brakes |
Weight
| Base machine weight | ||||
|---|---|---|---|---|
| Maximum ballast level | ||||
| Maximum permissible weight | ||||
| Approximate Shipping Weight | ||||
| Maximum Ballast |
Capacities
| Crankcase oil volume | ||||
|---|---|---|---|---|
| Fuel tank | 66 L 17.43 U.S. gal. |
|||
| Diesel exhaust fluid (DEF) tank | Not Applicable | |||
| Cooling system | ||||
| Transmission-hydraulic system |
Serviceability
| Interval for engine oil change | ||||
|---|---|---|---|---|
| Interval for hydraulic/transmission oil change | ||||
| Interval for engine coolant change |
Loaders
| Loader | ||||
|---|---|---|---|---|
| Lift capacity at full height | ||||
| Maximum lift height | ||||
| Leveling type |
Precision AG
| Guidance | Optional: AutoTrac™ Universal Ready | |||
|---|---|---|---|---|
| Telematic | JDLink™ Modem | |||
| Remote diagnostics | ||||
| Auto Pilot | ||||
| Connectivity | ||||
| Monitor | ||||
| Receiver |
Miscellaneous
| AutoTrac ready | Optional for cab models | |||
|---|---|---|---|---|
| ISOBUS ready | No | |||
| CommandCenter video inputs | ||||
| Immobilizer | ||||
| Side slope rating | ||||
| Uphill/downhill slope rating | ||||
| Country of manufacture | Saltillo, Mexico |
Additional information
| Date collected | 6-Jan-2023 |
|---|
-
5075EN Tractor -
5075GL Tractor -
5075GN Tractor -
5075GV Tractor
-
5090EL Low-Profile Utility Tractor -
5090GN Tractor -
5090GV Tractor
-
5100GN Tractor -
5105MH High-Crop Utility Tractor -
5105ML Low-Profile Utility Tractor -
5120ML Low-Profile Utility Tractor -
5130ML Low-Profile Utility Tractor
-
6120EH High-Crop Tractor
Shop and Buy
Maintenance and Support
You May Also Be Interested In
Images of equipment models may be digitally generated, are for illustration purposes only, and are subject to change. Equipment models shown are typically base models and may not reflect all features, options, or attachments. Equipment availability may be limited. See your John Deere dealer for additional information.
