Replacement Parts Guide:
|
|
6D Tier 3 Tractors Replacement Parts
The 6D Tier 3 Tractors keep your worksite running with ease and comfort. John Deere Connected Support prevents downtime and efficiently resolves issues with revolutionary technology-based solutions. These replacement parts will help ensure your projects stay on track.

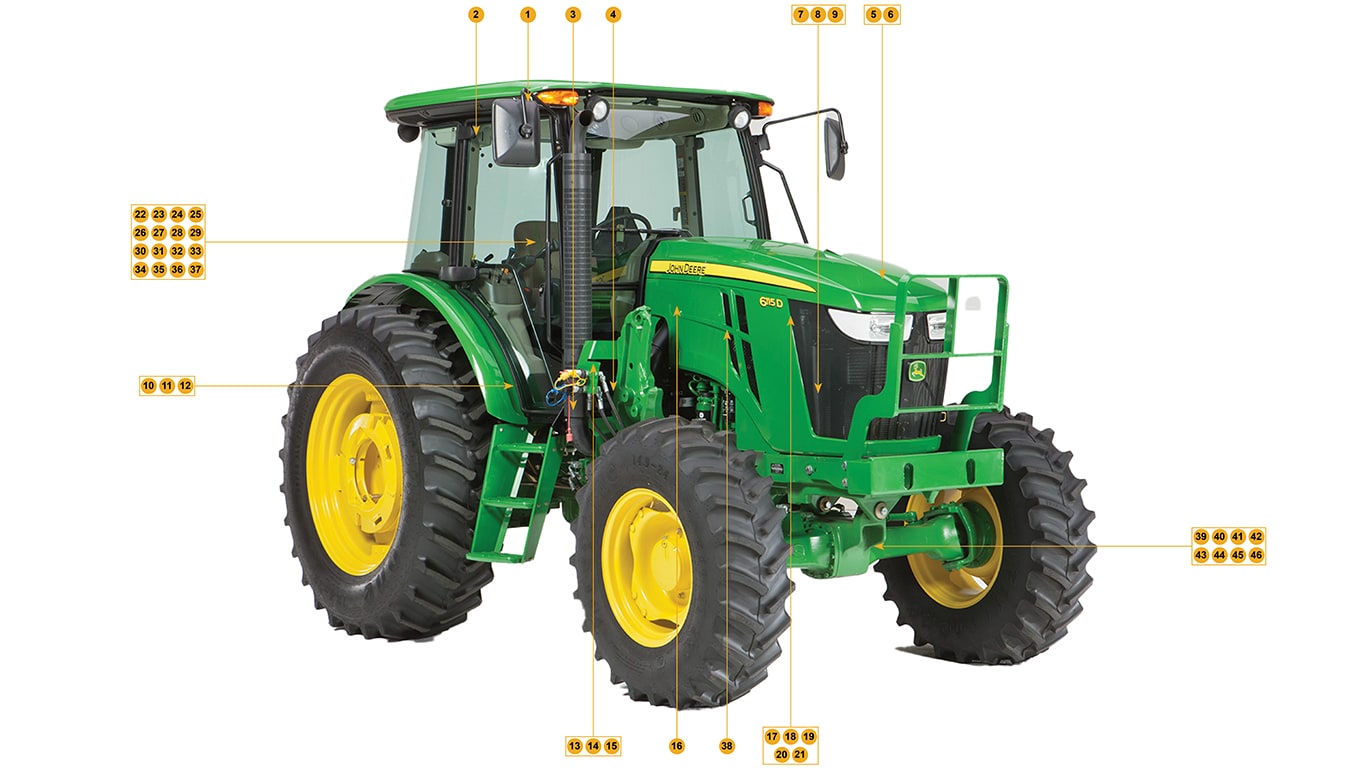

| Reference # | Frequency (Hours) | Part | Part Number | Quantity | Image | Remarks |
|---|---|---|---|---|---|---|
|
1 |
Every 250 Hours |
Fresh Air Filter |
2 |
|
|
|
|
2 |
Every 250 Hours |
Recirculation Air Filter |
2 |
|
|
|
|
3 |
Every 250 Hours |
Engine Oil Filter |
1 |
|
|
|
|
4 |
Every 500 Hours |
Hydraulic/Transmission Oil Filter |
1 |
|
|
|
|
5 |
Every 500 Hours |
Primary Fuel Filter |
1 |
|
(MY2008-2010)- 6100D -ENGINE: 4045HP053, 4045TP060, 4045TP070, 4045TP071 |
|
|
6 |
Every 500 Hours |
Secondary Fuel Filter |
1 |
|
(MY2008-2010)- 6100D -ENGINE: 4045HP053, 4045TP060, 4045TP070, 4045TP071 |
|
|
7 |
Every 500 Hours |
Secondary Fuel Filter |
1 |
|
(MY2011-2012)- (6100D, 6110D, 6115D, 6125D, 6130D and 6140D)- ENGINE: 4045HP052 |
|
|
8 |
Every 1000 Hours |
Engine Primary Air Filter |
1 |
|
|
|
|
9 |
Every 1000 Hours |
Engine Secondary Air Filter |
1 |
|
|
|
|
10 |
As Required |
Brake Disk |
2 |
|
(S.N. - 050000) |
|
|
11 |
As Required |
Brake Disk |
2 |
|
(MFWD) |
|
|
12 |
As Required |
Brake Disk |
8 |
|
(HAND BRAKE) (S.N. - 059999) |
|
|
13 |
As Required |
Clutch Disk |
1 |
|
(TRACTION DRIVE)(S.N. - 050000) |
|
|
14 |
As Required |
Clutch Dusk |
7 |
|
PowrReverser™ |
|
|
15 |
As Required |
Clutch Disk |
6 |
|
PTO CLUTCH |
|
|
16 |
As Required |
Battery |
1 |
|
650 CCA, DRY CHARGED |
|
|
17 |
As Required |
Fan Belt Drive |
1 |
|
(LGTH = 2189 mm) (6100D, 6110D) |
|
|
18 |
As Required |
Fan Belt Drive |
1 |
|
(LGTH = 1568 mm) (6100D, 6110D) |
|
|
19 |
As Required |
Fan Belt Drive |
1 |
|
(LGTH = 1548 mm)(6110D, 6125D) |
|
|
20 |
As Required |
Fan Belt Drive |
1 |
|
(LGTH = 2164 mm) (6100D, 6115D, 6125D) |
|
|
21 |
As Required |
Fan Belt Drive |
1 |
|
(LGTH = 2154 mm) (6130D) |
|
|
22 |
As Required |
Seat Assembly |
1 |
|
(OOS)(S.N. - 050000) |
|
|
23 |
As Required |
Seat Assembly |
1 |
|
(BACK)(S.N. - 050000) |
|
|
24 |
As Required |
Seat Assembly |
1 |
|
(BOTTOM)(S.N. - 050000) |
|
|
25 |
As Required |
Seat Assembly |
1 |
|
(AIR SUSPENSION) (CAB) |
|
|
26 |
As Required |
Seat Assembly |
1 |
|
(MECHANICAL SUSPENSION) |
|
|
27 |
As Required |
Seat Assembly |
1 |
|
(BACK) |
|
|
28 |
As Required |
Seat Assembly |
1 |
|
BOTTOM |
|
|
29 |
As Required |
Seat Assembly |
1 |
|
(AIR SUSPENSION) (CAB) |
|
|
30 |
As Required |
Seat Assembly |
1 |
|
(BOTTOM) |
|
|
31 |
As Required |
Seat Assembly |
1 |
|
(OOS) |
|
|
32 |
As Required |
Seat Assembly |
1 |
|
(BACK) |
|
|
33 |
As Required |
Seat Assembly |
1 |
|
(BOTTOM) |
|
|
34 |
As Required |
Seat Assembly |
1 |
|
(WITH SWITCH) (6100D, 6110D, 6115D, 6125D) |
|
|
35 |
As Required |
Seat Assembly |
1 |
|
(INSTRUCTIONAL SEAT) |
|
|
36 |
As Required |
Seat Assembly |
1 |
|
(BOTTOM) |
|
|
37 |
As Required |
Seat Assembly |
1 |
|
(BACK) |
|
|
38 |
As Required |
Alternator |
1 |
|
(70A) |
|
|
39 |
As Required |
Axle Tie Rod |
2 |
|
(USE WITH AL221102)(MFWD) (6100D,6110D,6115D,6125D,6130D) |
|
|
40 |
As Required |
Axle Tie Rod |
2 |
|
(TIE ROD END) |
|
|
41 |
As Required |
Axle Tie Rod |
2 |
|
(BALL JOINT) |
|
|
42 |
As Required |
Axle Tie Rod |
2 |
|
(USE WITH AL232263) (MFWD)(6100D,6110D,6115D,6125D,6130D) |
|
|
43 |
As Required |
Axle Tie Rod |
2 |
|
(TIE ROD END) |
|
|
44 |
As Required |
Axle Tie Rod |
2 |
|
(BALL JOINT) |
|
|
45 |
As Required |
Axle Tie Rod |
2 |
|
(TIE ROD END) (2WD)(6100D, 6110D, 6115D) |
|
|
46 |
As Required |
Axle Tie Rod |
2 |
|
(BALL JOINT) (2WD) (6100D, 6110D, 6115D) |
Capacities1
| Component | Oil Grade | Part Number | Qty or capacity |
|---|---|---|---|
|
Fuel Tank |
|
156 L (41.2 gal) |
|
|
Engine Oil |
John Deere Plus-50™ II |
16.5 L (4.35 gal) |
|
|
Coolant |
Cool-Gard™ |
12 L (3.2 gal) |
|
|
Transmission And Hydraulic Axle Oil |
John Deere Hy-Gard™ |
58 L (15.3 gal) |
|
|
Mechanical Front Wheel Drive (MFWD) Axle Oil |
John Deere Hy-Gard™ |
6.5 L (1.72 gal) |
|
|
Hub oil |
John Deere Hy-Gard™ |
2 L (0.53 gal) |
1See operator's manual for recommended oil type and oil viscosities based on operating temperatures.
