Quick Reference Guide

Maintenance Parts

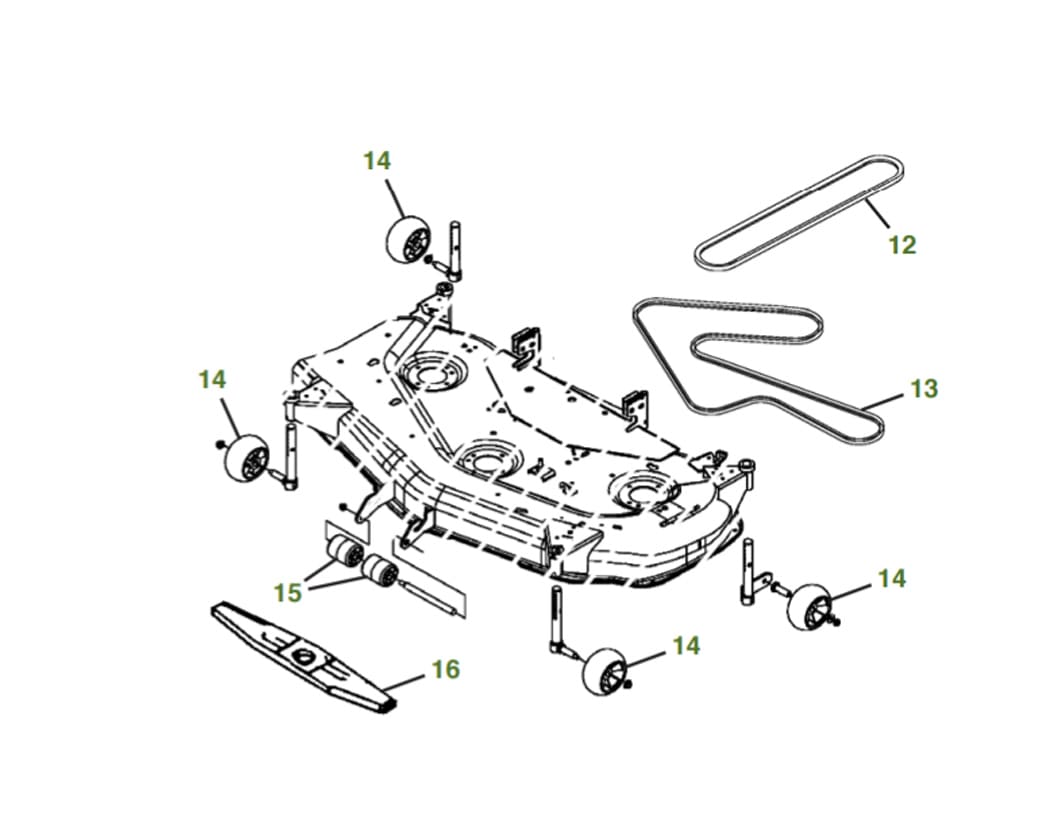

X534 - 48" Rotatable Mower Deck

X540 Lawn Tractor
X540 Lawn Tractor
42" Mower Deck
48" Rotatable Mower Deck

Yearly Maintenance Kits

Home Maintenance Kit

Part Number LG251

Available to buy on JohnDeereStore.com

Shop This Website

Maintenance Parts

1 - Engine Oil Filter

Part Number AM107423
Qty 3

Available to buy on JohnDeereStore.com

Shop This Website

2 - Filter - Fuel

Part Number AM116304
Qty 2

Available to buy on JohnDeereStore.com

Shop This WebSite

3 - Air Filter - Paper

Part Number MIU10905
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

3 - Air Filter - Foam

Part Number M140295
Qty 2

Available to buy on JohnDeereStore.com

Shop This Website

10 - Transmission Filter

Part Number MIA881446
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

4 - Key

Part Number GY20680
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

5 - Ignition Switch

Part Number AM133596
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

8 - Spark Plug (S/N 120001-)

Part Number M805853
Qty 4

Available to buy on JohnDeereStore.com

Shop This WebSite

11 - Fuel Cap

Part Number AM137724
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

11 - Fuel Cap

Part Number AM141406
Qty 1

This product is unavailable online. Please consult your nearest dealer.

As Needed Parts

6 - Battery

Part Number TY25878
Qty 1

This product is unavailable online. Please consult your nearest dealer.

7 - Belt - Traction Drive

Part Number M151276
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

12 - Belt - Mower - Primary (S/N 150001-)

Part Number M172924
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

13 - Belt - Secondary Deck Drive Belt

Part Number M154960
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

15 - Front Roller

Part Number M113955
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

16 - Kit - Mulching Attachment 54”

Part Number BM20827
Qty 1

This product is unavailable online. Please consult your nearest dealer.

16 - Blade - Side Discharge

Part Number M143520
Qty 1

Available to buy on JohnDeereStore.com

Shop This WebSite

16 - Blade - Mulching 54”

Part Number M145516
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

16 - Blade - High Lift 54”

Part Number M152726
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website
