Quick Reference Guide

Maintenance Parts

X520 - 42" Mulch Mower Deck

X520 Lawn Tractor
X520 Lawn Tractor

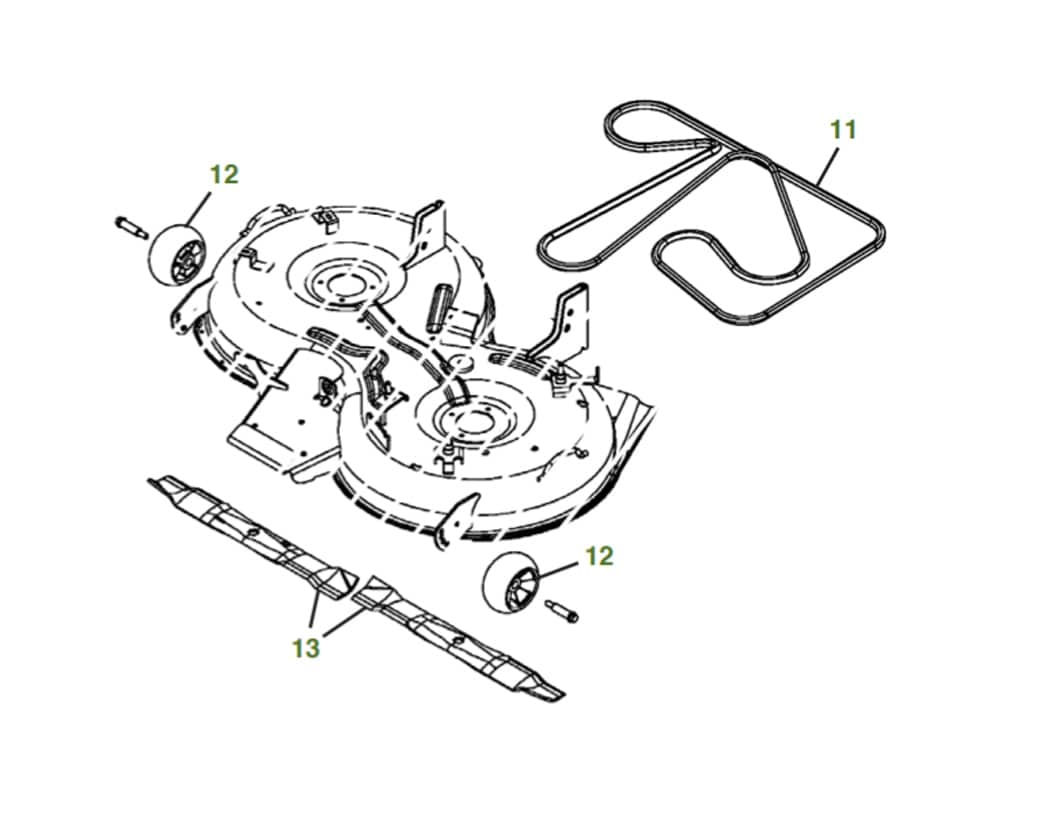

42" Mulch Mower Deck
42" Mulch Mower Deck

Yearly Maintenance Kits

Home Maintenance Kit

Part Number LG251

Available to buy on JohnDeereStore.com

Shop This Website

Maintenance Parts

1 - Engine Oil Filter

Part Number AM107423
Qty 3

Available to buy on JohnDeereStore.com

Shop This Website

2 - Filter - Fuel

Part Number AM116304
Qty 2

Available to buy on JohnDeereStore.com

Shop This WebSite

3 - Air Filter - Paper

Part Number MIU10905
Qty 2

Available to buy on JohnDeereStore.com

Shop This Website

3 - Air Filter - Paper

Part Number MIU10906
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

4 - Key

Part Number GY20680
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

5 - Ignition Switch

Part Number AM133596
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

8 - Spark Plug (S/N 120001-)

Part Number M805853
Qty 4

Available to buy on JohnDeereStore.com

Shop This WebSite

6 - Battery - Dry Charged

Part Number TY25876
Qty 1

This product is unavailable online. Please consult your nearest dealer.

7 - Belt - Traction Drive

Part Number M151276
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

11 - Belt - Mower (S/N -150000)

Part Number M153160
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

10 - Fuel Cap

Part Number AM137724
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

12 - Gage Wheel

Part Number M111489
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

As Needed Parts

Mower Deck Leveling Gauge

Part Number AM130907
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

13 - Mulch Kit

Part Number BM21816
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

Grease Gun

Part Number TY26518
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

13 - Kit - Low Lift 42”

Part Number AM140332
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

13 - Kit - Mulching 42”

Part Number AM140973
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

13 - Kit - Mulching 42”

Part Number AM140973
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website
