Quick Reference Guide

Maintenance Parts

X360 - 42" Mulch Mower Deck

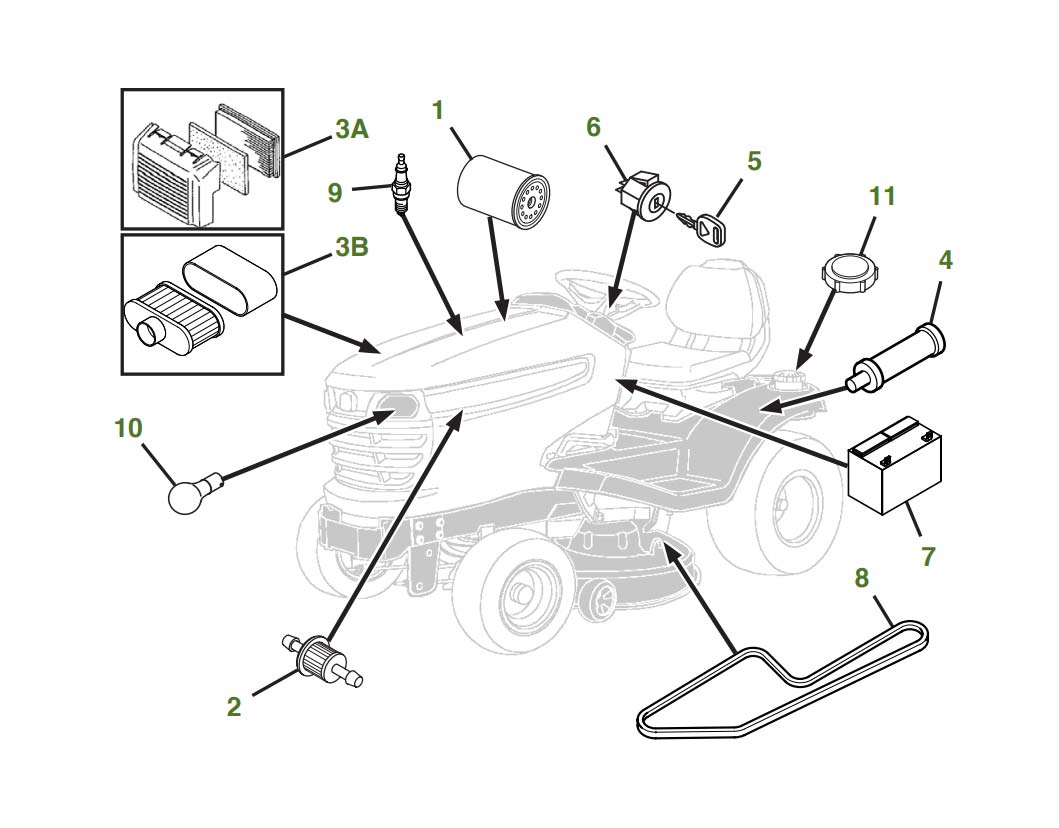

X360 Lawn Tractor
X360 Lawn Tractor

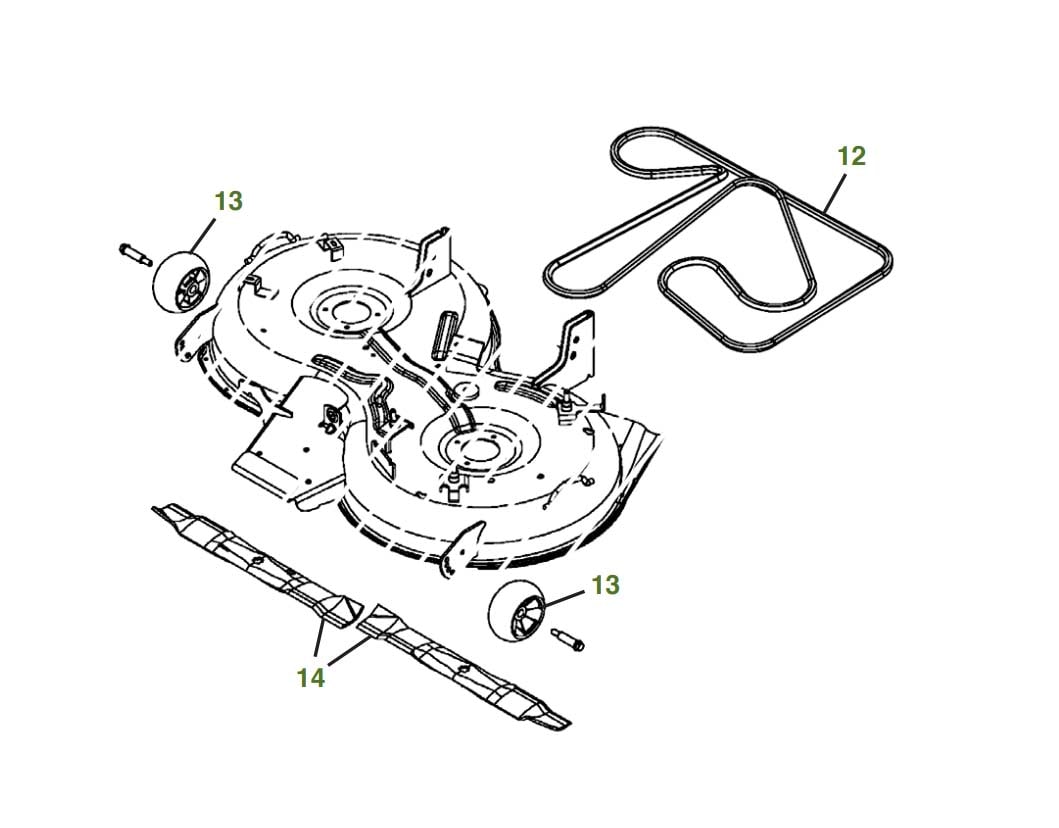

42" Mulch Mower Deck
42" Mulch Mower Deck

Yearly Maintenance Kits

Home Maintenance Kit

Part Number LG249

Available to buy on JohnDeereStore.com

Shop This Website

Home Maintenance Kit

Part Number LG265

Available to buy on JohnDeereStore.com

Shop This Website

Maintenance Parts

1 - Engine Oil Filter

Part Number AM107423
Qty 3

Available to buy on JohnDeereStore.com

Shop This Website

1 - Engine Oil Filter

Part Number AM125424
Qty 3

Available to buy on JohnDeereStore.com

Shop This Website

2 - Filter - Fuel

Part Number AM116304
Qty 2

Available to buy on JohnDeereStore.com

Shop This WebSite

3A - Air Filter - Foam

Part Number M140295
Qty 2

Available to buy on JohnDeereStore.com

Shop This Website

3A - Air Filter - Paper

Part Number M150949
Qty 2

Available to buy on JohnDeereStore.com

Shop This Website

3B - Air Filter - Foam

Part Number MIU12554
Qty 2

Available to buy on JohnDeereStore.com

Shop This WebSite

3B - Air Filter - Paper

Part Number MIU12555
Qty 2

Available to buy on JohnDeereStore.com

Shop This WebSite

4 - Transmission Filter

Part Number MIU800986
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

5 - Key

Part Number GY20680
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

6 - Ignition Switch

Part Number AM133597
Qty 1

Available to buy on JohnDeereStore.com

Shop This WebSite

9 - Spark Plug (S/N 120001-)

Part Number M805853
Qty 4

Available to buy on JohnDeereStore.com

Shop This WebSite

10 - Headlight Bulb

Part Number AD2062R
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

1 Qt - Engine Oil Turf-Gard™ 10W-30

Part Number TY22029
Qty 7

Available to buy on JohnDeereStore.com

Shop This Website

John Deere Multi Purpose SD Polyurea Grease

Part Number TY6341
Qty 2

Available to buy on JohnDeereStore.com

Shop This Website

Grease Gun

Part Number TY26518
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

1 Gal - Hy-Gard™ Low Viscosity Oil

Part Number TY22000
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

As Needed Parts

7 - Battery - Dry Charged

Part Number TY25878
Qty 1

This product is unavailable online. Please consult your nearest dealer.

7 - Battery

Part Number TY25221
Qty 1

This product is unavailable online. Please consult your nearest dealer.

8 - Belt - Traction Drive (S/N 045000-)

Part Number M144044
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

12 - Belt - Mower (S/N -150000)

Part Number M153160
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

11 - Fuel Cap

Part Number AM137724
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

11 - Fuel Cap

Part Number AM141406
Qty 1

This product is unavailable online. Please consult your nearest dealer.

13 - Gage Wheel

Part Number M111489
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

Mower Deck Leveling Gauge

Part Number AM130907
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website

14 - Kit - Mulching 42”

Part Number AM140973
Qty 1

Available to buy on JohnDeereStore.com

Shop This Website
