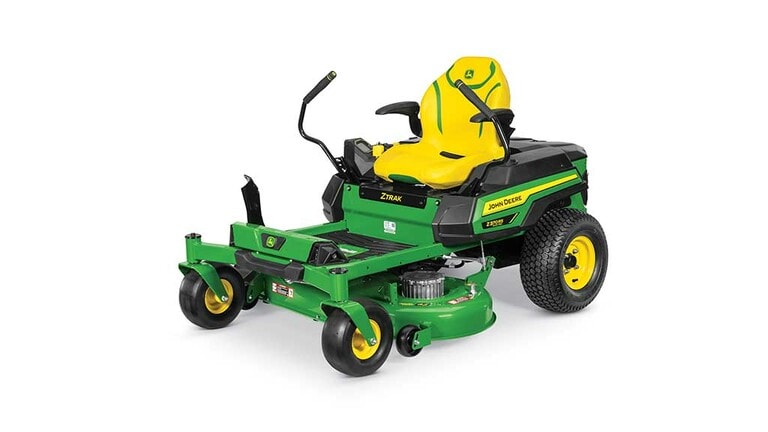

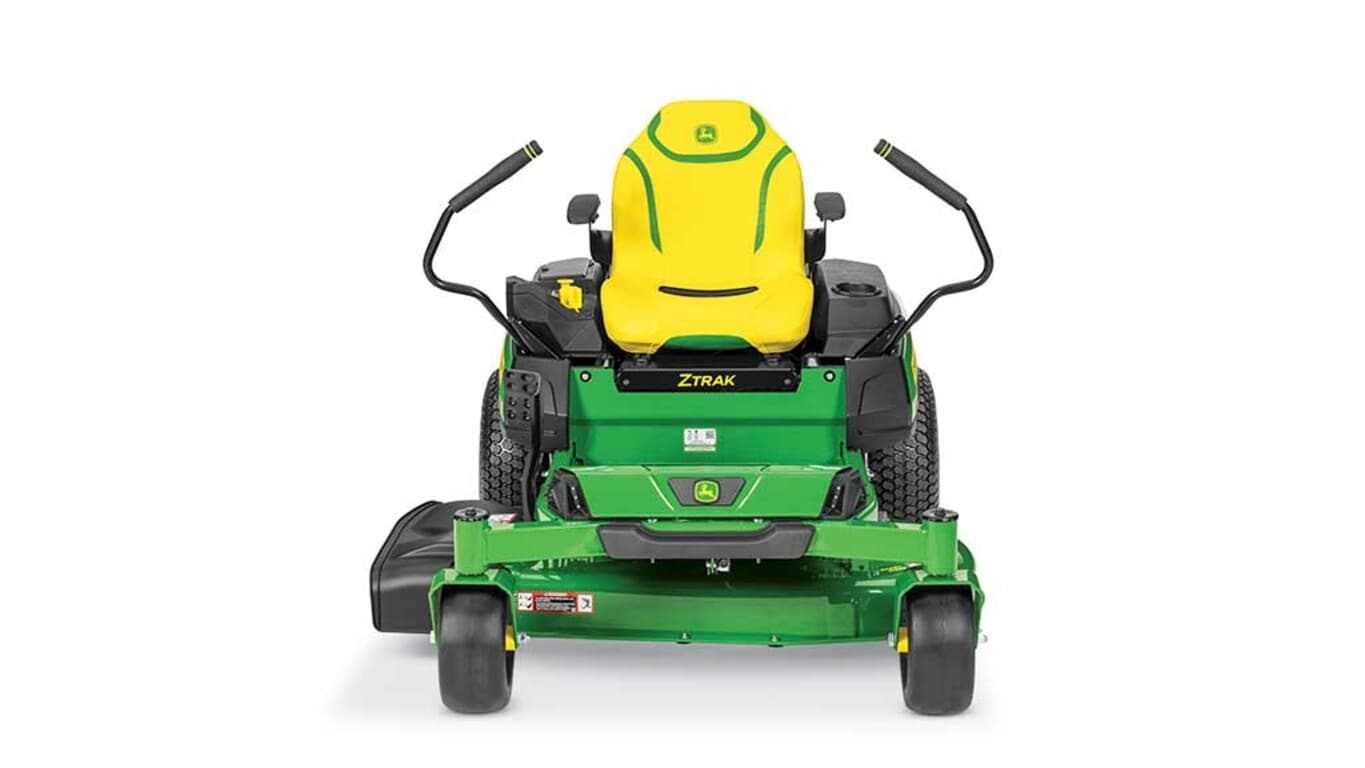

Z370R Electric ZTrak™ Mower
Z380R Electric ZTrak Mower
The Z300 Electric ZTrak Mowers deliver the productivity and cut quality of a gas-powered Z300 ZTrak Mower. Many proven components, including the frame and Accel Deep™ Mower Decks, are shared with the gas-powered models.
Accel Deep Mower decks are 4.83 to 4.97-in. (12.3 to 12.6-cm) deep with a flat top and large discharge opening.
Cut and suspended material can exit the mower deck without getting recut:
Stamped-steel construction eliminates sharp edges and corners:
Adjustable mower wheels, positioned just above ground level give a more even cut and reduce scalping.
Optional MulchControl™ enables you to mulch frequently:
Optional 6.5-bu (230-L) rear bagger with a 42-in. (107-cm) mower deck for collecting grass clippings and leaves.
The Z300R Electric ZTrak Mowers are powered by lithium-ion batteries that have up to twice the capacity of competitors:
*Actual mowing area per charge will vary based on conditions and attachment usage.
The efficient Accel Deep Mower Decks with optimized blades extends runtime:
Go home mode gets you back:
The electric transaxle has the same 7-mph (11.3-km/h) maximum forward travel speed as the transaxle used on gas-powered Z300 ZTrak Mowers.
The wider 48-in. (122-cm) and 54-in. (137-cm) mower decks are more productive and extend further leftward, which improves trimming.
Z370R Electric ZTrak™ Mower
Z370RS Electric ZTrak Mower
A Z300 Electric ZTrak Mower frees you from the hassles of gasoline.
Owning an Electric ZTrak Mower avoids spilling, smelling, transporting, or storing gasoline. Start your weekend with the scent of freshly cut grass instead of a trip to the gas station.
Electric ZTrak Mowers avoid many of the maintenance hassles of gasoline-powered mowers:
Customer-provided extension cord is used to charge Z370R and Z380R Electric ZTrak Mowers
An onboard smart charger is built into the Z370R and Z380R Electric ZTrak Mowers:
Z370RS Electric ZTrak external charger
The Z370RS Electric ZTrak includes an external smart charger. When the charger is connected to the mower, all six batteries are charged and maintained. The charger will completely charge a set of depleted batteries in 4 to 5 hours. Charge time may vary depending on temperature and condition of the batteries.
The built-in charging hardware also serves as a six-battery charging hub, enabling you to use the mower’s charged batteries in your EGO tools. The high-capacity batteries from the mower are especially helpful with high-power draw EGO tools like snow blowers, power inverters, walk-behind mowers, and pressure washers.
Both the onboard and external chargers are smart chargers that continuously monitor the batteries:
EGO is a trademark of Nanjing Chervon Industry Co., Ltd
Z370RS Electric ZTrak
A Z370RS Electric ZTrak features swappable batteries that provide homeowners with several advantages:

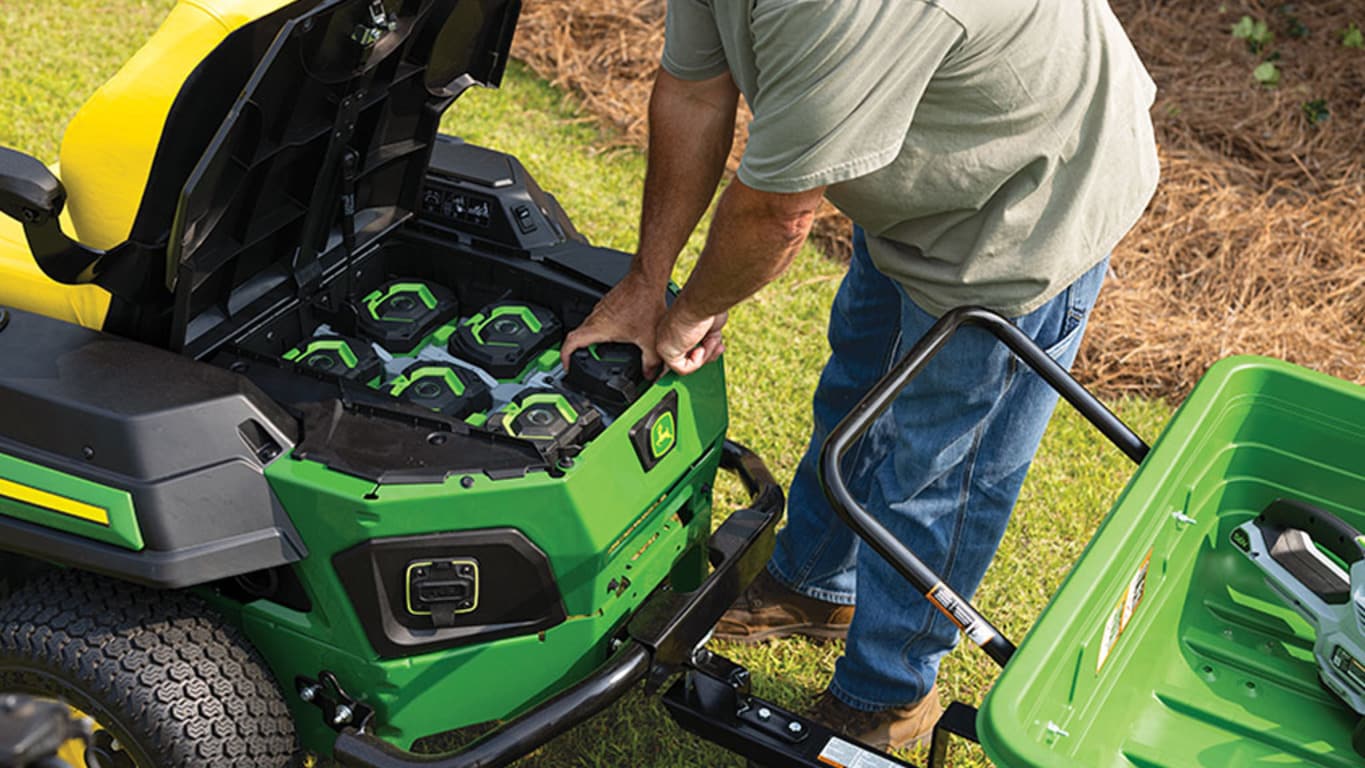

Six EGO batteries installed in Z370RS Electric ZTrak Mower
The Z370RS Electric ZTrak is shipped with six (two 10 amp-hour and four 6 amp-hour) 56 V EGO lithium-ion batteries. The six batteries provide 2.46 kilowatt hours of power that can mow up to 1.25 acres* of lawn.
While it is recommended to mow with four to six batteries, only two batteries are required to operate the mower, allowing homeowners with smaller properties to use batteries for other tasks and tools.
The batteries are accessed under a cover on the back of the mower. The cover is equipped with a gas spring to hold it open. To protect the batteries from tampering, the cover can be locked.
*Actual mowing area per charge will vary based on conditions and attachment usage.
The Z370RS charging hardware serves as a six-battery charging hub, freeing space while enabling you to use the mower’s charged batteries in your EGO tools. The high-capacity batteries from the mower are especially helpful with high-power draw
EGO tools like snow blowers, power inverters, walk-behind mowers, and pressure washers.
The Z370RS Electric ZTtrak is designed to withstand dust and water. The mower deck may even be washed with a water hose. While the rear cover provides additional protection to the swappable batteries, it is not recommended to wash the entire mower with water.
The EGO batteries included in the Z370RS are backed by a 5-year or 200-hour, whichever comes first, battery warranty.
EGO is a trademark of Nanjing Chervon Industry Co., Ltd
Z370R Electric ZTrak™ Mower
Z370R Electric ZTrak Mower
A Z300R Electric ZTrak Mower is built tough to provide many years of trouble-free service. Several proven components, including the frame and the Accel Deep™ Mower Decks, are shared with the gas-powered Z300 ZTrak models.
Z370R Electric ZTrak Mower
The Z300R Electric ZTrak Mower frame is constructed of heavy-duty formed and welded steel for strength, reliability, and long life:
42-in. (107-cm) Accel Deep Mower Deck
48-in. (122-cm) Accel Deep Mower Deck
54-in. (137-cm) Accel Deep Mower Deck
The Accel Deep Mower Decks are forged from heavy-gauge steel:
To withstand impacts both decks feature:
The 48-in. (122-cm) and 54-in. (137-cm) Accel Deep Mower Decks include a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra protection.
Sealed mower deck motor
Mower deck motor connectors
The same weatherization technology used on John Deere’s agriculture and construction products is found on Electric ZTrak Mowers for dependable, trouble-free performance. The mower deck motors are also sealed to keep dust and water from entering. High-quality electrical connectors are also used throughout the mower.
Z370R Electric ZTrak Transaxle
The electric transaxle is maintenance free and reliable:
All John Deere mowers are painted with a dual-stage E-coat process using powder-paint coatings to provide protection from fading and corrosion.
Z370R Electric ZTrak™ Mower
Z370RS Electric ZTrak Mower
Look forward to the weekend and mowing with your Z300R Electric ZTrak Mower. The mower’s seat, operator station, styling package, ergonomic controls, even the mower deck are designed to give a clean, quiet, and a smooth riding experience.
20-in. (51-cm) custom-tailored seat
Z300R Electric ZTrak Mowers are equipped with a 20-in. (51-cm) cut-and-sewn seat:
Z300R Electric ZTrak Mowers are a delight to operate:
Z370R operator platform
Optional boarding step
The Z300R Electric ZTrak Mowers were designed with the operator in mind:
Covered storage compartment charging a cell phone
Z370R lighting pattern
Z300R Electric ZTrak Mowers have additional creature comforts that make mowing enjoyable:
Z370R and Z380R display panel and controls
Z370RS display panel and controls
The Z300R Electric ZTrak™ is designed to be intuitive to use, with controls at your fingertips.
Power button
Removing key pin from power button
A simple hold of the power button activates a Z300R Electric ZTrak. A key pin can be removed to prevent unintended access.
Z370RS Display panel
Status display
Display panel
Status display

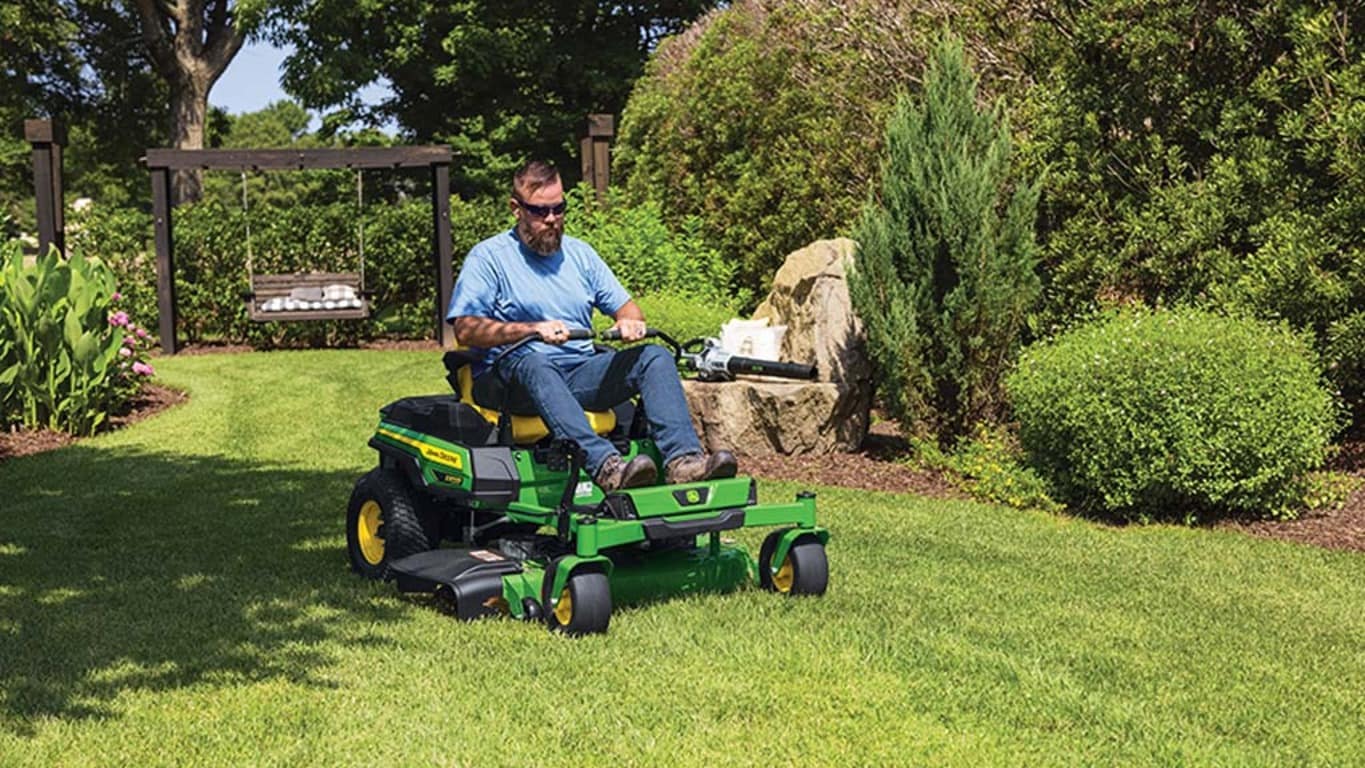

Z370R Electric ZTrak mowing
Mode and PTO switch
The electric transaxle of the Z300R Electric ZTrak is tuned to be smooth, responsive, and operate like a gas-powered ZTrak Mower.
Three operating modes enable you to tailor the performance to your preferences and yard conditions:
Operating mode can be changed using the mode switch
Material collection is only available on the Z370RS and Z370R with the 42-in. (107-cm) mower deck.
Motion-control levers in park position
Motion-control levers in operating position
The integrated park brake is automatically applied when motion control levers are stowed outward and disengaged when levers are placed into operating position.
Cut-height adjustment knob
Foot-pedal lift and cut-height adjustment knob
A foot-lift pedal and a cut-height preset work together to set the cut height and ensure the mower deck returns to the correct position:
The foot-lift pedal also provides a convenient way to temporarily raise the mower deck over an obstruction while mowing.
A Z300R Electric ZTrak™ Mower has several features to simplify maintenance.
Deep flat-top mower deck
The Z300 Electric ZTrak Mowers are designed to minimize cleaning hassles:
Example quick-response (QR) code label
QR code label on Z300 ZTrak Mowers
John Deere riding lawn mowers are equipped with a QR code label that links to an owner support website. The label can be found on the front panel under the seat.
Upper portion of owner support web page
Lower portion of owner support web page
The owner support website is formatted for smart phones and available without setting up an account and password. The QR code includes the mower’s serial number, enabling the owner support website to provide a maintenance schedule, service parts, attachments, how-to guide, videos, warranty information, and an operator’s manual for the specific mower.
The owner support website also allows users to purchase service parts, schedule dealer service, purchase extended warranties, and download the Equipment Mobile app. The Equipment Mobile app enables users to maintain a shared digital service record with their dealer.
Service interval chart
The service interval decal includes recommended service points, intervals, and part numbers. On Z300 ZTrak Mowers the label is located on the bottom of the seat pan.
Push-mode switch
If you need to push or tow the mower you can activate the push-mode switch which allows the drive wheels to roll freely.
Front and rear tie-down locations are provided for convenience and safety when trailering the mower.
Z370R Electric ZTrak™ Mower
A Z300 Electric ZTrak is covered by a 3-year or 200-hour, whichever comes first, bumper-to-bumper warranty.
The batteries feature a longer 5-year or 200-hour, whichever comes first, coverage period.
An optional PowerGard™ Lithium-Ion Battery Protection Plan, with a 10-year or 400-hour coverage period, whichever comes first, is available for the sealed batteries used in Z370R and Z380R models.
An optional PowerGard Protection Plan Residential is available to cover the remaining components of all Z300 Electric ZTrak models. PowerGard Protection Plans are only available in the United States.
All warranty repairs are serviced and administrated by your John Deere dealer; dealer, there is no need to file claims with component suppliers.
A Z300 Electric ZTrak provides accepts the same versatile attachments as gasoline-powered Z300 ZTrak Mowers.
Z370RS Electric ZTrak with cart
Z380R Electric ZTrak with spreader
A standard rear hitch provides the ability to pull 250 lb (113 kg) of weight. Use the hitch with carts, tow-behind spreaders, aerators, and thatchers.
MulchControl™ handle (shown on similar Z315E mower deck)
6.5-bu (229-L) rear bagger, chute, and ballast (shown on similar Z315E model)
An optional MulchControl attachment enables you to mulch frequently and gives you the option to convert to side discharge in seconds if the grass is too tall to mulch.
An optional 6.5-bu (230-L) rear bagger collects grass clippings and leaves. The bagger only available on Z370RS and Z370R models equipped with the 42-in. (107-cm) Accel Deep™ Mower Deck.
Boarding step installed
An optional boarding step allows for easier mounting and dismounting of a zero-turn mower. The step attaches to the left side of the mower frame for convenient access.
Rear bumper
Protective cover
An optional rear bumper is available to protect the back of the mower. Optional seat covers and protective covers protect your investment from sun damage, rain, and dust.
X350 Tractor
Z370R Electric ZTrak™ Mower
Keep your John Deere equipment running its best with the John Deere Equipment Mobile App. Download the app from the mobile device’s app store, then add all your John Deere equipment by scanning the serial number bar codes. Once your equipment is added, you can access all your product’s model, serial number, and model year information in one place. The app also provides maintenance, parts, and support resources that are specific to your serial number(s).
Use Equipment Mobile to find the right parts
It is important to get the right parts the first time. When you load your equipment list, Equipment Mobile provides parts information specific to your serial number(s). This is helpful to you and your John Deere dealer, as some parts can vary by serial number range.
Maintenance plan screen
Maintenance parts and notes screen
Equipment Mobile includes comprehensive maintenance plans for each piece of your equipment. The maintenance plan screen keeps track of completed tasks, provides a place for your notes, and provides parts listings. You can also share your maintenance plan with your dealership, enabling tasks completed by the dealer to be included.
A machine’s operator’s manual is a go-to resource that is available in Equipment Mobile. You can search, view, and download a copy. The operator’s manual is specific to the serial number(s) of your equipment.
Smart Connector
BUC10537 smart connector, wiring harness, and twist ties
A smart connector links the mower to the Equipment Mobile App and transmits vehicle information via Bluetooth® wireless technology to provide:
Optional BUC11960 smart connector is for use with:
Hours, fuel level, key switch status, and battery level are updated whenever the Equipment Mobile device is in range of a mower with a BUC11960 smart connector.
Optional BUC10537 smart connector is for use with:
Hours, fuel level, key switch status, and battery level are updated whenever the mower’s key is turned on and the Equipment Mobile device is in range of a mower with a BUC10537 smart connector. The X350R Tractor does not report exact fuel level, it only indicates if the mower is low on fuel.
The Z370R, Z370RS, and Z380R Electric ZTrak Mowers include the smart connector in base equipment.
On Electric ZTrak Mowers the battery level, charging status, and hours are transmitted when the Equipment Mobile device is in range of the mower, and the mower is on or actively charging. Equipment Mobile can also update an Electric ZTrak Mower’s controller software.
A smart connector requires the Equipment Mobile App. The John Deere Equipment Mobile App can be found in the mobile device’s app store.
Bluetooth is a trademark of Bluetooth SIG, Inc.
| Specifications | ||||
|---|---|---|---|---|
| John Deere Z370RS Electric ZTrak™ Mower |
| Battery | One 58 V lithium-ion, 3.56 kilowatt-hour maximum (3.20 kilowatt-hour nominal), sealed and meets IP66 rating | |||
|---|---|---|---|---|
| Charger | On board, 700 Watts, 120 V input | |||
| Engine power | ||||
| Engine model number | ||||
| Forward speed | 0-7 mph 0-11.3 km/h |
|||
| Front caster tires | 11x6-5 | |||
| Drive tires | 42A: 18x8.5-8 48A: 20x10-8 |
|||
| Seat back height | High back with armrests, 20 in. 51 cm |
|||
| Width of cut | Accel Deep™ mower deck, 42 in. 107 cm Accel Deep™ mower deck, 48 in. 122 cm |
|||
| Mulching system | Optional MulchControl™ attachment | |||
| Warranty | 3 year or 200 hour bumper-to bumper; 5 year or 200 hour battery* (*Terms limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Power | ||||
|---|---|---|---|---|
| Model number | ||||
| Displacement | ||||
| Cylinders | ||||
| Lubrication | ||||
| Type | ||||
| Battery | ||||
| Choke/speed control | ||||
| Cooling method | ||||
| Fuel tank capacity | ||||
| Fuel gauge |
| Battery | One 58 V lithium-ion, 3.56 kilowatt-hour maximum (3.20 kilowatt-hour nominal), sealed and meets IP66 rating | |||
|---|---|---|---|---|
| Charger | On board, 700 Watts, 120 V input | |||
| Dual hydros | ||||
| Hydraulic pumps | ||||
| Wheel motors | ||||
| Transmission | Dual electric motor with 1-in (2.5-cm) axles |
| Forward speed | 0-7 mph 0-11.3 km/h |
|||
|---|---|---|---|---|
| Reverse speed | 0-3.5 mph 0-5.6 km/h |
|||
| Speed and direction control | Twin levers | |||
| Control adjustment | 3 height, 11 positions |
| Frame | Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing | |||
|---|---|---|---|---|
| Primer/paint | E-coat/powder | |||
| Front caster tires | 11x6-5 | |||
| Front caster bearings | Sealed ball bearings | |||
| Drive tires | 42A: 18x8.5-8 48A: 20x10-8 |
|||
| Hour meter | Yes | |||
| Service interval decal | Yes | |||
| Storage compartment | Standard covered | |||
| Cup holder | Yes | |||
| Maximum towing capacity | 250 lb 113 kg |
| Seat back height | High back with armrests, 20 in. 51 cm |
|||
|---|---|---|---|---|
| Fore-aft adjustment | 2.9 in. 7 cm |
|||
| Seat suspension | Two springs |
| Type | Foot lift | |||
|---|---|---|---|---|
| Mower cut height | 1.25-4.5 in. 3-11 cm |
|||
| Cut height increments | 0.25 in. 0.64 cm |
|||
| Preset cut height | Yes |
| Width of cut | Accel Deep™ mower deck, 42 in. 107 cm Accel Deep™ mower deck, 48 in. 122 cm |
|||
|---|---|---|---|---|
| Type | Side discharge | |||
| Mower deck material | 42A: 12 gauge 0.105 in. 2.7 mm 48A: 10 gauge 0.135 in. 3.4 mm |
|||
| Mower drive system | Electric motors |
| Type | ||||
|---|---|---|---|---|
| Drive |
| Wheelbase | 49.4 in. 1255 mm |
|||
|---|---|---|---|---|
| Overall length | 75.4 in. 1915 mm |
|||
| Width without mower | 43.3 in. 1100 mm |
|||
| Width with mower | 42A: 50.4 in. 1280 mm 48A: 62.6 in. 1590 mm |
|||
| Width with mower (deflector raised for storage) | 42A: 46.5 in. 1180 mm 48A: 52.8 in. 1340 mm |
|||
| Height | 43.3 in. 1100 mm |
|||
| Weight | 42A: 490 lb 222 kg 48A: 540 lb 245 kg |
| Rollover protective structure (ROPS) | No | |||
|---|---|---|---|---|
| Slope operating limit | 13 degrees; 10 degrees with Material Collection System | |||
| Operator presence system | Yes | |||
| Park brake interlock | Yes | |||
| Operator video | Yes, online |
| Note 1 | Mow 2 acres (42-in. [107-cm] mower deck) or 1.8 acres (48-in. [122-cm] mower deck) on a charge with confidence, 3.56 kilowatt-hour maximum (3.20 kilowatt-hour nominal) battery has up to 40 percent more capacity than competitor’s batteries | |||
|---|---|---|---|---|
| Note 2 | Smart charger is built into the mower, charge anywhere with a standard 120-volt outlet and grounded extension cord | |||
| Note 3 | Sealed battery meets IP66 rating, allowing you to wash the mower with a water hose | |||
| Warranty | 3 year or 200 hour bumper-to bumper; 5 year or 200 hour battery* (*Terms limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Mulching system | Optional MulchControl™ attachment | |||
|---|---|---|---|---|
| Rubber floor mat | Standard | |||
| Sun shade | ||||
| Mounted sprayer | ||||
| Protective cover | Optional | |||
| Light kit | Standard | |||
| Material collection system | 42A: Two-bag cut-and-throw MCS, 6.5 bu 229 L 48A: No material collection system |
| Manufacturing location | Greeneville, Tennessee, USA | |||
|---|---|---|---|---|
| Date collected | 2-Oct-2023 |
2Actual mowing area per charge will vary based on conditions and attachment usage.
3For a copy of the product warranty statement or for details on the warranty terms and conditions for products purchased in the United States and Canada, please see Deere.com or contact your local John Deere Dealer.
*Manufacturer's suggested price does not include taxes, freight, setup, delivery, and optional accessories or attachments. Model and equipment availability vary by dealer and region, and not all products, options, and accessories are available in all regions. See Dealer for availability, details, and final price.
Images of equipment models may be digitally or AI generated, are for illustration purposes only, and are subject to change. Equipment models shown are typically base models and may not reflect the actual product, features, options, or attachments. Equipment availability may be limited. See your John Deere dealer for additional information.
