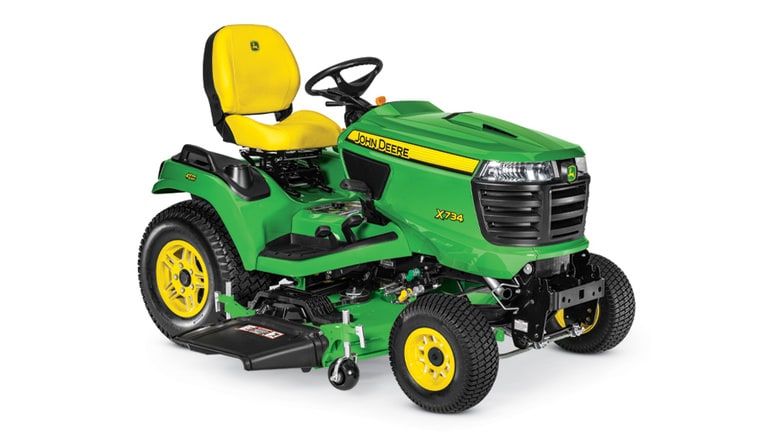

X734 4-Wheel Steering | Riding Lawn Tractors

Engine is smooth running and reliable V-twin liquid-cooled design

25.5-hp (19-kW) engine

The V-twin, liquid-cooled John Deere iTorque power system with electronic fuel injection (EFI) provides exceptional performance and has the durability to handle commercial-use applications. The John Deere iTorque power system includes a combination of engine features that provide more lugging ability, even cooling, and durability.

iTorque stands for intelligent design (to get a task done efficiently) and torque (good lugging ability). It is used exclusively on gasoline-powered Select Series™ and Signature Series Tractors.

Hood opened to show engine

The 25.5-hp (19-kW) liquid-cooled V-twin engine has a large 45.5-cu in. (745-cc) displacement to provide plenty of power and torque for excellent performance in any operating condition. The one-piece hood is hinged to open for convenient engine service.

Key engine features include:

Liquid cooling
- Longer engine life
- Quieter operation
- Improved fuel economy
V-twin cylinder design
- Smoother running
- Easier starting
Overhead valve (OHV) design to provide more efficient airflow for improved combustion
- More horsepower and torque per cubic inch of displacement
- Better cooling for longer engine life
- Reduced oil consumption
- Improved fuel economy
Full-pressure lubrication with replaceable oil filter that provides plenty of clean oil for long engine life
Horizontal crankshaft with a drive shaft connection to the transmission for positive power transfer
Aluminum block and cast-iron cylinder liners
- Efficient heat dissipation
- Strength and durability with less weight
Low exhaust emissions to meet U.S. Environmental Protection Agency (EPA) clean air standards
- Liquid cooling for consistent operating temperatures
- OHV for efficient lean burn combustion
- Precise air-to-fuel ratio control with electronic fuel injection
- Closed crankcase ventilation re-circulates and burns crankcase hydrocarbons
Oil drain valve with hose and oil filter drip tray for easy, no-mess maintenance
Electronic ignition for quick, sure starts
Rubber engine mounts
- Vibration-free operation
- Lower noise
Electric fuel pump ensures positive fuel delivery for fast starts and smooth running
Solenoid-shift starter ensures that starter stays engaged until key switch is released for fast cold-weather starts

Air intake system

Air intake screens on hood and pedestal

Radiator screen pulled out for cleaning

Engine intake air is drawn in through screened panels at the base of the pedestal and on the right and left sides of the tractor hood:

Cleanest and coolest area of the tractor
Pre-cleans the air to keep large chaff and debris from entering the radiator or air cleaner
Easy to clean and service so engine operates at optimum temperature

An inertia-discharge canister with dry-type paper element surrounded by a foam precleaner cleans intake air for long engine life:

Ejects large dirt particles before they make contact with the filter
Provides dual protection against dirt entering the engine
Easily removed for cleaning or replacement
Recommend the air filter be replaced and the precleaner cleaned annually or every 200 hours, whichever comes first

Electronic fuel injection

Electronic fuel injection (EFI) offers many important performance advantages:

Immediate starting in hot or cold ambient temperatures or after long periods of seasonal storage
No choke linkage for the user to operate
No engine warmup required, so the implement can be engaged immediately after the engine starts
Greater horsepower and torque responsiveness
Higher reliability with the elimination of vapor locking, misfiring, run-on, and after-bang
Automatic altitude compensation
Delivers fuel precisely

Reduces the potential for plug fouling

Fuel tank has a large 5.2-U.S. gal. (19.7-L) capacity

Fuel cap and tank (shown on X758 Diesel Tractor)

A large, 5.2-U.S. gal. (19.7-L) capacity fuel tank holds enough fuel for extended operation between refills:

Fuel-fill location is on the left fender for easy access, increased safety, fewer spills, and convenience during filling.
In-tank electric fuel pump supplies ample fuel flow to eliminate vapor lock and ensure quick engine starts, even after months of storage.

Battery and alternator are large capacity

Battery located at front of tractor frame

A high-capacity regulated alternator charging system provides plenty of power to quickly recharge the battery and run electrical equipment, such as lights or a sprayer:

20-amp alternator is provided as standard equipment on gasoline engines.
An optional 20-amp auxiliary alternator kit operates in parallel with the standard 20-amp engine-equipped alternator to bring the total of 12-V electric power to 40 amps.

A large-capacity, 340 cold-cranking amp battery provides plenty of cranking power for quick, sure starts in cold weather:

Mounted at the front of the tractor frame for easy accessibility

54-in. (137-cm) and 60-in. (152-cm) High-Capacity (HC) Mower Decks are heavy duty

X739 Tractor mowing with 60-in. (152-cm) HC Mower Deck

Side view of mower deck

A deep-deck design of 5.5 in. (14 cm) delivers excellent airflow so material can be processed quickly and efficiently. The deck is forged from 9-gauge, 0.15-in. (3.8-mm) steel and has welded-on reinforcement at the bottom edge for extra strength and durability.

60-in. (152-cm) HC Mower Deck top view

High-capacity mower decks are formed in a hydraulic press to minimize the number of welds and provide a smooth underside for reduced material buildup:

Wider and higher discharge opening provides an even clipping dispersal for an excellent finished appearance in all conditions.
Durable plastic deflector spreads grass clippings evenly across the lawn, is hinged, and can be raised to minimize the storage space required.
1-in. (2.5-cm) cold-forged spindles are heat-treated for strength and supported by ball bearings.
Front edge is raised above the blade plane to allow even cutting of tall grass.
Blade overlap is greater than many conventional decks for a clean cut.
Mower can side-discharge, mulch (optional), or use a Power Flow™ collection system (optional).

Tire-grab feature and shark tooth shaped grips

Drive-over ramp removed for spindle access

Ramps are provided to permit driving over the mower deck for installing and removing it from the tractor:

Constructed of 30 percent glass-filled polypropylene for strength to carry the weight of the tractor
Polypropylene material will not rust or corrode for lasting good appearance
Shark tooth shaped grips designed into the ramp inclines for added wheel traction when driving onto the mower deck
Tire grab at the rear of the ramp gives extra wheel traction
Ramps removed and replaced without tools to permit convenient servicing of the mower spindles

Mower wash port

Mower wash port with hose connector

A wash port is provided to make cleaning the underside of the mower deck easy:

Hose connector is included with the mower deck.

Optional high-performance mulching attachment

Mulching attachment components (48 HC shown)

The high-performance mulching attachment provides excellent mulching performance:

This is a high-performance mulching attachment that includes formed steel baffles to control the material and special mulching blades for superior performance.
- The special mulching blades that are included can also be used for side discharging and collecting, though overall performance may be slightly less than with the standard blades.
Order: BM23977, 54 HC mulching attachment or BM23978 60 HC mulching attachment

Optional MulchControl™ attachment

MulchControl with baffle closed (shown on 54-in. [137-cm] High-Capacity Mower Deck)

MulchControl with baffle open (shown on 54-in. [137-cm] High-Capacity Mower Deck)

The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:

A beautiful looking lawn
Grass clippings not blown onto the operator, driveways, or flower beds
Less fertilizer use
Elimination of the effort needed to dispose of clippings

MulchControl is an innovative, simple design that is easy to use and maintain:

The MulchControl attachment includes baffles to control the flow of material under the deck.
The left mower blade area is completely enclosed and optimized for mulching, thus will mulch even when the mower is in the side-discharge mode.
Baffles around the center and right blades are optimized for mulching when the discharge baffle is closed.

MulchControl operation

MulchControl handle (standard with MulchControl)

Hydraulic MulchControl actuator option

The optional MulchControl attachment comes with a handle on top of the mower deck that is used to open and close the discharge baffle:

The operator is required to get off of the machine in order to engage or disengage mulch mode.

An optional hydraulic MulchControl actuator attachment is available to replace the standard control lever and allow the operator to control MulchControl from the seat using the tractor’s hydraulic control lever.

NOTE: To have hydraulic control of the MulchControl baffle, both MulchControl and hydraulic MulchControl actuator attachments must be ordered. The hydraulic MulchControl actuator is an extra-cost option for the MulchControl attachment.

Changing from mulching to side discharge or vice versa with the hand lever or hydraulic MulchControl actuator option takes only a few seconds.

MulchControl is well-suited to the following mowing situations:

Usually mulch, but side discharge when grass gets too long
Usually side discharge, but would like to be able to close the chute to control clippings
Always mulch a main lawn, but often side discharge secondary lawns
Bag clippings, but want to go farther before emptying bags

MulchControl puts the operator in control of the clippings. Now the operator can have all the benefits of mulching with the ability to easily change to side-discharge or bagging when needed.

MulchControl limitations

While in the side-discharge mode, MulchControl will still mulch about one-third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:

When cutting strong southern grasses, such as Zoysia and Bermuda
When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
When optimum bagging and lawn clean-up is desired

MulchControl compatibility

MulchControl is a field-installed attachment. Mulching blades are included:

MulchControl is for 2015 and newer X700 Signature Series Tractor and:

9074M 54-in. (137-cm) HC Mower Deck (serial number 030,001-070,000)
9078M 54-in. (137-cm) HC Mower Deck (serial number 070,001-)
9075M 60-in. (152-cm) HC Mower Deck (serial number 030,001-070,000)
9079M 60-in. (152-cm) HC Mower Deck (serial number 070,001-)

Optional hydraulic MulchControl actuator (BUC10536) is available for model year 2019 and newer mower decks (9078M and 9079M) only. In addition, mower must be equipped with the basic MulchControl attachment.

NOTE: The hydraulic MulchControl actuator is not available for the 48-in. (122-cm) Accel Deep™ Mower Deck.

Order:

BM26300 MulchControl attachment (54 HC)

BM25258 MulchControl attachment (60 HC)

BUC10536 Hydraulic MulchControl actuator

Mower deck attachability

X739 Tractor driving onto high-capacity mower deck

High-capacity mower decks have ramps positioned on top of the deck for easy installation:

On a four-wheel drive (4WD) tractor, the operator can simply drive onto and over the deck.
On a two-wheel drive (2WD) tractor, the operator must back onto and over the deck.

To remove the mower deck:

Disconnect the drive shaft.
Unlock the draft arm locks.
Back or drive the tractor onto and off the mower deck.
- On a 4WD tractor, the operator can simply back onto and off the deck.
- On a 2WD tractor, the operator can simply drive forward onto and off the deck.

Optional AutoConnect™ drive

AutoConnect option installed on X758 Tractor

The AutoConnect driveshaft is an optional kit that will automatically connect or remove the drive from the mower deck to the tractor's mid power take-off (PTO) shaft.

The AutoConnect drive does not need to be removed from the tractor when using front-powered equipment.

Drive-over mower quick reference (major steps)

John Deere has designed a system that makes it easy to remove and reinstall the mower deck. A few steps need to be followed carefully to ensure success.

The list below includes the major steps. Refer to the operator’s manual for a more detailed procedure. The tractor most likely has the mower already installed, so these steps begin with the removal procedure.

DRIVEJD - Always Dependable Product

Mower removal steps

Drive tractor to level area.

Ready mower deck.

Adjust wheels and lower mower deck
Draft arms removed (front) and released (rear)
Power take-off (PTO): disconnect if manual PTO-connect system, then back up to clear rear draft arms (If equipped with AutoConnect™, backing up also disconnects the PTO)
- Raise rear draft arms

Increase engine speed, engage traction assist, and drive over.

Mower installation steps

Verify tractor and mower are ready.

Alignment of tractor and mower deck
Draft arms up
PTO in correct position (If manual PTO connect, place shaft in mower hanger)

Engage traction assist, increase engine speed, and drive or back over.

Join mower to tractor.

Alignment and attachment verified and PTO connected
Draft arms hookup, front
Position mower wheels

Done! Set mower deck height and mow.

Four-year or 700-hour bumper-to-bumper warranty is standard

An exclusive 4-year or 700-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere X700 Series Tractors.

The warranty is hassle free, with both the mower and the engine covered by a single warranty.
If the mower is sold, the remaining warranty term is transferable to a new owner.
Premium features of X700 Series Tractors allow for this longer warranty period, with more coverage than comparable tractors.

*Term limited to years or hours used, whichever comes first, and varies by model. U.S. and Canada only. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

Four-wheel power steering for superior maneuverability and trimming

X739 Tractor trimming around a tree

Power steering is standard equipment on all X700 Series Tractors. It provides effortless, automotive-like control:

Reduced operator fatigue
Better maneuverability
Increased productivity

Four-wheel power steering on the X734, X739, and X754 Tractors provides very significant maneuverability and trimming advantages over two-wheel-steering equipped tractors:

1. The uncut circle diameter is greatly reduced, eliminating or greatly reducing the need to back up when trimming around trees, shrubs, etc.

Cutting inside turns created by landscaping, flower beds, etc. can also be done much more efficiently with a four-wheel-steer equipped tractor.

2. Interference from the mower and tractor wheels is eliminated because they are several inches away from the object being trimmed around.

When cutting rectangle-shaped areas, square corners can be cut more effectively and efficiently.

3. The outside turning circle is reduced, decreasing the time spent turning and increasing mowing efficiency.

The X739 Tractor has both full-time four-wheel drive (4WD) and four-wheel steering, which gives it the optimum in both traction and maneuverability.

	Two-wheel steer (X730, X750)	Four-wheel steer (X734, X754)	Full-time 4WD (X738, X758)	Full-time 4WD with four-wheel steer (X739)
Turning radius	25 in. (63.5 cm)	21 in. (53.3 cm)	25 in. (63.5 cm)	21 in. (53.3 cm)
Uncut circle radius (60- in. (152-cm) mower deck)	28 in. (71.1 cm)	6 in. (15.2 cm)	28 in. (71.1 cm)	6 in. (15.2 cm)
Turns lock-to-lock left	2.4	2.5	2.3	2.2
Turns lock-to-lock right	2.4	2.5	3.1	2.8

Operator station is comfortable and convenient

X739 Tractor mowing

Tilt steering wheel

The tilt steering wheel can be adjusted for optimum operator comfort:

Six positions can be selected with the push of a lever for the most comfortable setting.
The full-up position makes getting on and off the tractor easy.
The steering wheel is designed for comfortable, no-slip operation.

Two-piece tilt-back seat

Seat has convenient tilt-back feature

Seat tilted forward

Two-piece, 21-in. (53-cm) high-back seat, with John Deere branded embroidery, has a thick seat cushion for lasting comfort, even after a full day of use. The back can be angled to maximize operator comfort by using a convenient lever on the side of the seat.

A four-bar adjustable seat suspension and 7-in. (18-cm) slide-rail fore-aft adjustment are provided to optimize operator comfort.

Optional armrest kit

Adjustable armrest option

Left armrest in raised position

Optional armrests increase operator support and comfort, thus reducing fatigue and improving productivity, especially when mowing for extended periods of time. Armrests are adjustable to suit the operator. The embroidered logo on the seat back makes this upscale seat look as good as it feels.

Optional air-ride suspension seat

Seat pressure switch and fore-aft adjustment lever

The optional air-ride seat minimizes vibration the operator feels while using the tractor and provides a very smooth ride. This seat has a full pneumatic suspension that is easy for operators to adjust to suit their individual needs. Wide, shaped ergonomic cushions are comfortable and reduce back strain.

Features include:

Simple switch on the front of the seat makes adjustment easy
Back-angle adjustment
Three-position lumbar adjustment
Armrest height adjustment
7-in. (18-cm) fore-aft adjustment

Key benefits of the seat:

Provides maximum ride comfort and quality, thus minimizing operator fatigue
Dampens lower frequency vibration better than mechanical suspensions

NOTE: The air-ride seat is compatible with all X700 Signature Series Tractors, model year 2013 and later (serial number 010,001-). Plug and play wiring harness for use with the air-ride suspension seat has been added to model year 2019 tractors (serial number 70,001-) to reduce seat-installation time. Model year 2013-2018 (serial number 010,001-070,000) requires AM146765 wiring harness. See DTAC solution 115258 for more information.

Foot pads

Foot pads help isolate the operator's feet from vibration:

Provide a non-slip surface for safer mounting or dismounting the tractor
Attractive styling

Handgrips, toolbox, cup holder, and 12-V outlet

Toolbox and handgrip

Toolbox with cover open and cup holder

The fender handles provide a convenient handhold to use when getting on and off the tractor and when operating on slopes:

Plastic material is durable and will not rust.
The cup holder is designed to hold a variety of drink container sizes.
Toolbox provides a safe and convenient location to store tools and supplies.
Exact Adjust mower leveling tool and gauge storage features are provided in the tool box.

12-V outlet

12-V outlet with cover open

12-V outlet located for the convenience of connecting a variety of electrical and electronic equipment:

Outlet switch is located on the dash for starting and stopping an electric spreader or sprayer.

Headlights and taillights provide good visibility

Two high-quality headlights

Large, automotive-type headlights and taillights provide unsurpassed nighttime illumination:

Standard 37-W halogen headlights provide excellent nighttime visibility.
Large automotive-type taillights enhance the tractor's appearance and safety.
Headlights, taillights, and rear work lights are easily operated with a single dash-mounted switch.

Taillights, work lights, and backup lights

Rear lights provide visibility for the tractor operator and others:

Standard backup lights can be turned on full time to double as rear work lights.
Backup lights come on automatically when the operator depresses the reverse pedal.

Snow removal and yard care equipment

An advantage of X700 Series Garden Tractors is their ability to use attachments for snow removal and a variety of other yard-care tasks.

The front quick-hitch mounting system allows for a tool-free change between the front blade, rotary broom, and snow blower. Additional attachments available for use with the equipment listed below include:

Quik-Tatch tractor frame weights to add ballast for traction and stability
NOTE: Ballast is required for some applications.
Tire chains or TerraGrip traction belts for extra traction when using snow-removal equipment
Weather protection (shown below) for operator protection and comfort

47-in. (119-cm) and 54-in. (137-cm) Quick-Hitch Snow Blowers

54-in. (137-cm) Snow Blower on X739 Tractor

The 47-in. (119-cm) and 54-in. (137-cm) Snow Blowers have the capacity to handle big snow-removal jobs.

The front quick-hitch mounting system allows for a tool-free change between the front blade, rotary broom, and snow blower.

54-in. (137-cm) and 60-in. (152-cm) Quick-Hitch Front Blades

54-in. (137-cm) Quick-Hitch Front Blade

60-in. (152-cm) Quick-Hitch Front Blade

The 54-in. (137-cm) and 60-in. (152-cm) Front Blades are excellent for moving snow, gravel, dirt, sand, or other loose material. They can be hydraulically angled up to 27 degrees right or left or used in the straight-ahead position.

52-in. (132-cm) and 60-in. (152-cm) Rotary Brooms

52-in. (132-cm) Rotary Broom

60-in. (152-cm) Heavy-Duty Rotary Broom

The 52-in. (132-cm) and 60-in. (152-cm) Rotary Brooms increase tractor versatility by allowing use for a variety of sweeping jobs. The broom effectively meets the needs of commercial, farm, home, and estate operators with four-season versatility:

Spring
Rotary brooms can be used to dethatch lawns and clean off tennis courts and other areas quickly and effectively.

Summer
Rotary brooms effectively perform a wide variety of sweeping jobs, including cleaning sidewalks, parking lots, driveways, construction job sites, and barns. They can also be used for backfilling trenches.

Fall
Rotary brooms can be used to sweep leaves and windrow pine needles. They sweep artificial turf and clean up spectator areas after sporting events.

Winter
Rotary brooms effectively move up to 2 in. (5 cm) of snow, which may eliminate the need for a snow thrower, depending on the geographic area.

47-in. (122-cm) Rotary Tiller

647 Rotary Tiller

The 647 Rotary Tiller is 47-in. (122-cm) wide and ideal for preparing seedbeds, controlling weeds, and other tillage jobs for homeowners, golf courses, hospitals, schools, and estates. It requires a tractor equipped with a Category 1, 3-point hitch and 540-rpm rear power take-off (PTO).

Weather enclosure and hard-side cab

Weather enclosure

Hard-side cab with optional outside mirrors and work lights

The roomy steel-frame weather enclosure shields the operator against snow, rain, sun, and wind.

This hard-side cab is rollover protection structure (ROPS) certified for extra protection:

An electric front windshield wiper is included.
Optional attachments for the hard-side cab include a heater, heater disconnect kit, inside and outside mirrors, rear window wiper, strobe light, work lights, switch panel fuse block kit, and optional tractor alternators to provide extra capacity to operate the cab accessories.

Instruments and controls are easy to find and use

Instrumentation and controls (switch turned off)

Gauges and indicator lights (switch turned on to illustrate functions)

The contoured dash has clean, attractive styling and ergonomic controls for easy use:

Controls are color coded for easy identification by the operator.
Controls are logically placed and easy to reach.
The power take-off (PTO) switch allows the operator to get fingers underneath it, like a T-handle, to pull up for easy activation.
The reverse implement option (RIO) switch is an easy-to-see and easy-to-use yellow button.
Cruise control activation is handled by an automotive-style button.
Functional design of the throttle control provides good appearance and a comfortable feel.

Display panel illustration with descriptions

The instrument display has the look and feel of a modern automobile. A power-up sequence cycles lights and gauges to indicate they are working:

Display features dark-cockpit design to minimize operator distractions.
Display is back lit for night visibility.
- Night visibility is especially useful with snow blower use.
Hour meter makes it easy to tell when oil changes and other maintenance should be performed.
Electronic fuel gauge provides real-time fuel level information.
A tachometer graphically displays engine speed.
- Target-zone graphics inform the operator of the engine speed range to use for best cut quality.
An indicator tells the operator when the PTO is operating.
Bright caution and stop lights capture the operator's attention when important information is on the instrument cluster.
- Damage can be prevented and repair costs reduced by addressing problems early.
Operators are advised of what the problem is if they attempt to operate the mower with unsatisfied PTO, seat, or park brake interlocks.
- The indicators are also useful to identify the reasons the PTO or engine may have shut off when an interlock is unsatisfied.
Operators are advised if battery voltage is low, normal, or excessive.
The service indicator light illuminates to indicate a diagnostic error code is stored.
- On-board diagnostics provides trouble codes for use by trained technicians.
  - For example, a technician will be able to test switch functionality and circuit continuity without tools.

Twin Touch™ foot control is easy to use and has cruise control

Twin Touch foot control

Cruise control

Twin Touch foot pedals control the speed and direction of travel:

Automotive-type accelerator control for easy operation
Twin Touch design that allows operator to change direction without lifting foot off platform
Large pedal surface for increased operator comfort

When the master brake pedal is depressed, the PTO and cruise control disengage.

Cruise control is standard equipment:

To engage, push in on the cruise lever and hold until the foot is removed from the forward pedal.
For emergency stop, the cruise control can be released by pushing on the master brake pedal or pushing down on the forward pedal.

Differential lock

Differential lock control

A foot-operated differential lock supplies positive power to both rear drive wheels for increased traction:

Differential lock button is conveniently located on the left footrest for easy engagement.

Two-function hydraulics give effortless control of equipment

Dual hydraulic control levers

A two-function hydraulic control system is standard equipment.

The hydraulic system allows effortless equipment control:

Raising and lowering
Angling and spout rotation
Control levers

Levers are positioned on the steering pedestal for quick, easy, and precise fingertip control of equipment.
Lower lever has a float position, allowing front-mounted equipment such as a blade, snow blower, or rotary broom to follow the contour of the ground.

Hydraulic power steering gives effortless control

X739 Tractor trimming around a tree

Power steering control valve

Power steering is standard equipment. It provides effortless, automotive-like control:

Reduced operator fatigue
Better maneuverability
Increased productivity

	Two-wheel steer (X730, X750)	Four-wheel steer (X734, X754)	Full-time four- wheel drive (X738, X758)	Full-time four-wheel drive with four- wheel steer (X739)
Turning radius	25 in. (63.5 cm)	21 in. (53.3 cm)	25 in. (63.5 cm)	21 in. (53.3 cm)
Uncut circle radius (60- in. (152-cm) mower deck)	28 in. (71.1 cm)	6 in. (15.2 cm)	28 in. (71.1 cm)	6 in. (15.2 cm)
Turns lock-to-lock left	2.4	2.5	2.3	2.2
Turns lock-to-lock right	2.4	2.5	3.1	2.8

Parking brake control

Controls shaped and located for easy use

Park brake control and brake pedal

The parking brake control is conveniently located below the key switch on the steering pedestal:

Holds the brake pedal securely in the locked position

Depressing the brake pedal disengages the PTO and cruise control:

Allows the engine to be started
Applies wet-disk brakes (internal in transmission) for use as a parking brake

Mower deck height-of-cut control

Exact Adjust ports

The depth stop allows setting the mower height from the operator's seat:

Locks the mower in fully raised position so 3-point hitch equipment can be raised or lowered independently of the mower
Returns mower deck to the same preset height each time it is lowered
Provides a mower cut-height range from 1 in. to 5.25 in. (2.5 cm to 13.3 cm)
Informs the operator of the approximate mower cut-height through an indicator

Exact Adjust ports on either side of the fender deck allow access to the rear mower deck height adjusting links:

Allow mower deck to be easily leveled side-to-side
Leveling can be done from above the fender deck by using the Exact Adjust tool

Exact Adjust

Exact Adjust tool and mower leveling gauge

Exact Adjust tool and mower deck leveling gauge are stored in the toolbox to provide a convenient means of checking and adjusting the deck level:

Used in conjunction with Exact Adjust ports for easy and accurate leveling of the mower deck for optimum mowing performance

Deck-leveling gauge placed under deck

Using included ball-hex tool to level mower deck

Consult the operator's manual for the correct adjusting procedure. Basic adjusting steps to properly level the mower deck include:

Park the tractor on a level surface.
Inflate tires to the correct pressure.
Consult the label for the cutting-height knob that is located on the console of the machine. This label shows deck-leveling position and location of deck-leveling adjustment points.
Set mower cutting-height knob to the correct deck-leveling position.
Adjust mower wheels as necessary so they do not contact the ground surface.
Remove the onboard deck-leveling gauge and Exact Adjust tool that are located in the tractor toolbox.
Using the Exact Adjust ports and tool, adjust mower deck side-to-side level so the deck-leveling gauge just slips under the left and right lower deck rim. The location of adjustment points will vary slightly between decks.
- Left- and right-rear adjustment points are under the deck rim near the rear mower wheels.
Adjust mower deck front-to-back level, if necessary.
- Loosen rear nuts equally on each side of front lift rod.
- Turn front nut equally on each side clockwise to raise front of mower or counterclockwise to lower it until gauge just slips under the front adjustment point.
  - Front adjustment point varies by mower deck
- Tighten rear nuts after adjustment is complete.
Return the gauge and tool to their storage position in the toolbox.

NOTE: The adjusting tool supplied with the tractor is an 8-mm ball-hex key. The rounded end allows for some misalignment with the bolt as the deck is adjusted.

Hydraulic outlets

Four hydraulic couplers with color-coded covers are available for quick, easy connections.

Using reverse implement option (RIO)

Power take-off (PTO)/RIO switch (yellow switch)

Left-hand RIO switch (yellow button)

CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:

Carefully check the area around the machine.
Disengage the mower before backing up.

NOTE: Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.

Stop forward travel.
Look behind the machine to be sure there are no bystanders.
Push and hold in the RIO switch while depressing the reverse pedal slightly
NOTE: If the mower or other attachment stops while repositioning the machine, return the attachment engagement switch to the off position. Start the engine and engage mower or other attachment. Begin again with step 2.
Release the RIO switch and reposition the machine as the machine begins to move rearward.
Resume forward travel. The mower or other attachment should continue operating.
Repeat procedure to position the machine again.

NOTE: For tractors equipped with an optional front PTO kit installed, the front implements will rotate while backing up without engaging RIO.

Interlock switches

The hydrostatic transmission foot pedals must be in neutral, with brake depressed, PTO disengaged, and the ignition key used, before the tractor will start.

Once the tractor is running, the engine automatically shuts off if the operator leaves the seat with the PTO engaged, brake pedal unlocked, or hydrostatic foot controls out of the neutral position.

Modern styling has a functional design

Functional and attractive design includes alloy wheels

Styled hood and seat

John Deere Signature Series are the very best mowing tractors available and can also handle a wide range of other yard care chores, such as snow removal, lawn cleanup, and landscaping work. These heavy-duty tractors include models with two-wheel drive (2WD) and four-wheel drive (4WD), two- and four-wheel steering, and even a model with full-time 4WD and four-wheel steering.

Standard equipment styled alloy wheels and John Deere brand embroidery:

Standard equipment styled alloy wheels give X700 Series Tractors a fresh, upscale appearance that goes well with their high-quality standards and superior performance.
John Deere brand embroidery has been added to the standard equipment 21-in. (53-cm) two-piece adjustable seat to make it look as good as it feels.

The open platform is roomy and uncluttered:

Makes getting on and off the tractor easy
Provides ample legroom with built-in heel pockets for comfortable operation

The single-piece hood completely encloses the engine:

Improves appearance
Provides quieter operation
Easy to remove for service accessibility
Painted hood
- More scratch and scuff resistant than molded-in color
- Deep scratches repairable with paint

Important advantages for superior mowing performance and equipment versatility

X739 Tractor mowing

Available mower decks include a 48-in. (122-cm) Accel Deep™ Mower Deck or 54-in. (137-cm) or 60-in. (152-cm) Edge™ High-Capacity Mower Deck. All mowers have premium design features to give a clean, level cut and excellent performance, whether side discharging, mulching, or collecting lawn material.

X700 Signature Series Tractors offer these important performance advantages:

Heavy-duty robotically welded frame for the strength to operate a wide variety of equipment
Plenty of engine horsepower and torque to operate larger equipment
Electronic fuel injection (X730, X734, X738, X739)
- Fast and sure starts
- Better fuel economy than carbureted engines
- Reduced emissions
Diesel models (X750, X754, X758)
- Increased durability
- Improved fuel economy
- U.S. Environmental Protection Agency (EPA) Final Tier 4 compliant
Easy-to-operate Twin Touch™ foot-controlled hydrostatic transmission
Power steering for quick, precise control
Four-wheel drive for optimum traction in any use and ground condition (X738 and X758)
Four-wheel steering for unsurpassed trimming ability (X734 and X754)
Full-time four-wheel drive and four-wheel steering for unsurpassed traction, maneuverability, and trimming ability (X739)
Differential lock for increased traction control
Hydraulic power take-off (PTO) clutch with soft, modulated engagement
Shaft-driven equipment versus a belt drive
Shaft-driven transmission versus a belt drive
Automotive-type dash instrument cluster with gauges and indicator lights
Two-spool hydraulic control valve with outlets
From-the-seat adjustable mower depth stop with gauge
Exact Adjust mower-leveling feature with onboard gauge and adjusting tool
Automotive-type headlights and taillights
Optional 540-rpm rear PTO
Optional limited Category 1 3-point hitch for rear-mounted equipment

Frame is full-length welded steel for strength

Full-length welded steel frame

The full-length, welded C-channel steel frame provides plenty of strength to handle heavy equipment:

Frame side rails are formed from 7-gauge, 0.18-in. (4.6-mm) steel for extra strength.
The front bumper/weight bracket is formed from heavy, 0.375-in. (9.5-mm) steel.

The frame is robotically metal inert gas (MIG) welded:

Consistent welds for maximum strength
No bolts to come loose

A front Quik-Tatch weight bracket is designed into the frame:

Provides a convenient way to add up to 168 lb (76 kg) of weight to the front of the tractor using four suitcase weights
Extends ahead of the hood to act as a bumper

Front receiver hitch

Optional drawbar/ball mount and hitch ball shown

A front receiver hitch is designed into the frame:

Optional drawbar/ball mount and hitch balls are available.
Excellent for positioning trailers, boats, etc., in tight quarters.

An optional rear receiver hitch is available.

Front axle and wheel spindles are heavy duty

Heavy-duty cast-iron front axle (2WD shown)

Heavy-duty cast front axle (4WD shown)

The front axles are made of strong, shock-resistant cast iron:

Will not bend or deform, as is possible with steel-fabricated axles
Replaceable bushings are used at the center axle pivot and spindles
- Provide excellent wear resistance
- Easy service and maintenance with grease fittings

1-in. (2.5-cm) diameter front-wheel spindle (2WD)

Cast-iron front spindle/wheel motor (4WD)

The 2WD tractors use large, 1-in. (2.5-cm) diameter wheel spindles for durability:

Have the strength to handle heavy front implements
Provide long life at bearing surfaces
Use sealed precision bearings in the front wheels for long life

The 4WD tractors use heavy-duty cast and machined front spindle and wheel motor assemblies for durability and long life.

Hydrostatic drive with Twin Touch™ control is easy to operate

Twin Touch foot control

Cruise control

Twin Touch foot pedals control the speed and direction of travel:

Automotive-type accelerator control for easy operation
Twin Touch design that allows operator to change direction without lifting foot off platform
Large pedal surface for increased operator comfort

When the master brake pedal is depressed, the power take-off (PTO) and cruise control disengage.

Cruise control is standard equipment:

To engage, push in on the cruise lever and hold until the foot is removed from the forward pedal.
For emergency stop, the cruise control can be released by pushing on the master brake pedal or pushing down on the forward pedal.

Heavy-duty two-wheel steer or four-wheel steer transaxle

X739 four-wheel steer transaxle

A rugged, heavy-duty commercial hydrostatic transaxle handles a wide variety of ground-engaging applications and commercial mowing usage. A hitch for tow-behind equipment is included. The tractor frame extends behind the transaxle to provide mounting points for the category 1 3-point hitch and Click N Go™ mounting brackets.

Many quality features are provided:

Universal joint splined drive shaft between the engine and transmission is durable and gives efficient power transfer (no belts, no slippage, no power loss).
Shaft drive output through continuous live transmission PTO has no belts to slip or wear out.
Internal hydraulic PTO with a multi-disk clutch pack:

Soft, smooth clutch engagement
Longer disk life with continuous oil bath
No service required, as disks are self-adjusting

Internal, wet-disk brakes:

Isolated from dirt, rust, ice, or other contaminants for effective brake operation
Constantly cooled by transmission fluid to minimize wear and eliminate the loss of brakes from overheating

Quiet design virtually eliminates hydrostatic whine.
Large, efficient 6-cc charge pump produces excellent flow and pressure to allow operating a variety of hydraulic-powered equipment.
Externally mounted, oil-filled shock absorber in the control system ensure smooth starts and stops.
Exceptional strength and durability:

Automotive-type forged flanged axles
Heavy ribbed aluminum die-cast axle housings
Uses an axial piston-type pump and motor versus less-efficient ball-type rotating groups

Two-wheel steer hydrostatic transaxle

Four-wheel steer hydrostatic transaxle

Two-wheel drive (2WD) and four-wheel drive (4WD) tractors use similar transaxles, however, four-wheel steer tractors have additional features that allow the rear wheels to turn.

Differential lock control

Infinite control of ground speed and smooth change of direction provide efficiency and operator convenience. The differential lock provides positive power to both drive wheels for increased traction. It can be engaged by the operator as needed.

Forward	0 to 8.5 mph (0 to 13.7 km/h)
Reverse	0 to 6 mph (0 to 9.7 km/h)

Transmission oil cooler

A transmission oil cooler is standard equipment:

Helps keep oil temperatures cooler during high draft-load operations
Separate automotive-style cooler to provide increased capacity for the oil cooler as well as the radiator, when compared to an oil cooler internal to the radiator

Convenient maintenance is supported by trusted self-service resources

Example quick-response (QR) code label

John Deere riding lawn mowers are equipped with a QR code label that links to an owner support website. The label can be found on the rear fender, to the left of the seat.

Upper portion of owner support web page

Lower portion of owner support web page

The owner support website is formatted for smart phones and available without setting up an account and password. The QR code includes the mower’s serial number, enabling the owner support website to provide a maintenance schedule, service parts, attachments, how-to guide, videos, warranty information, and an operator’s manual for the specific mower.

The owner support website also allows users to purchase service parts, schedule dealer service, purchase extended warranties, and download the Equipment Mobile app. The Equipment Mobile app enables users to maintain a shared digital service record with their dealer.

Serviceability is convenient with an easy-open hood

One-piece hood is easy to open and remove

Service interval decal located under hood

The one-piece hood opens easily to permit checking and servicing the engine:

A service-interval decal is provided inside the tractor hood for convenience when servicing the tractor.

Hood pivot and wiring connector

Hood removed for service

If necessary to do more extensive service, the hood can easily be completely removed without tools:

Wiring connector allows headlight wiring to be easily disconnected.
Hood can be raised off pivots and easily removed without use of any tools.

Radiator screen pulls out for easy cleaning

Deck-leveling gauge and tool stored in tractor toolbox

A screen keeps material from building up on the radiator and can be easily removed for cleaning.

A convenient deck-leveling gauge and Exact Adjust tool are provided:

Exact Adjust tool and mower deck leveling gauge are stored in the toolbox to provide a convenient means of checking and adjusting the deck level.
- Used in conjunction with Exact Adjust ports for easy and accurate leveling of the mower deck for optimum mowing performance

MulchControl™ system provides superior mulching performance and rapid conversion

X739 Tractor mowing

MulchControl handle (shown on 60-in. [152-cm] Mower Deck)

The optional MulchControl system makes mulching more practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:

Creates a beautiful looking lawn
Smaller grass clippings disappear into the lawn canopy
Reduces fertilizer needs
Grass clippings are not blown onto the operator, driveways, or flower beds
No need to dispose of bags of clippings

How MulchControl works

MulchControl baffle open (shown on 54-in. [137-cm] High-Capacity Mower Deck)

MulchControl baffle closed (shown on 54-in. [137-cm] High-Capacity Mower Deck)

MulchControl is an innovative, simple design that is easy to use and maintain:

The MulchControl system includes an adjustable MulchControl baffle near the discharge chute and fixed baffles to control the flow of material under the deck.
The MulchControl handle, or a hydraulic actuator, is on top of the mower deck and is used to open and close the MulchControl baffle.
When the MulchControl baffle is open, most of the material flows freely out the discharge deflector or into a material collection system.
When the MulchControl baffle is closed, material stays within the deck and gets chopped into mulch and deposited in the turf.

MulchControl is well-suited to the following mowing situations:

For operators who usually mulch, but side discharge when grass gets too long
For operators who usually side discharge, but would like to close the chute to control clippings in some areas
For operators who always mulch a main lawn, but often side discharge secondary lawns
For operators who collect clippings but want to go farther before emptying the material collection system

MulchControl puts the operator in control of the clippings.

Hydraulic MulchControl actuator option (model year 2019 and newer 54 HC and 60 HC Mowers Decks only)

An optional hydraulic MulchControl actuator is available to shift the MulchControl baffle using the tractor’s hydraulic control lever. Operators can convert between modes without interrupting the mowing process, making it possible to change between modes:

When approaching driveways or flowerbeds where clippings would be undesirable
When a breeze blows clippings back onto the operator
For side discharge mowing only the areas of the property where grass is too thick for mulching
For collecting only the areas of the property where grass is too tall or thick for mulching

MulchControl limitations

While in the side-discharge mode, MulchControl still mulches about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:

When cutting strong southern grasses, such as Zoysia and Bermuda
When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
When optimum bagging and lawn cleanup is desired

The MulchControl baffle can be opened or closed with the Power Flow™ blower installed. The Power Flow blower runs without material when the baffle is closed.

MulchControl compatibility

Each MulchControl system is an optional field-installed attachment and includes everything needed for handle actuation: baffles, handle, and mulch blades. If desired the optional hydraulic actuator needs to be ordered separately.

MulchControl is compatible with model year 2013 and newer X700 Signature Series Tractors (serial number 10,001-) with one of the following mower decks:

9077M 48-in. (122-cm) Accel Deep Mower Deck
Model year 2015 to 2018 9074M 54-in. (137-cm) or 9075M 60-in. (152-cm) High Capacity Mower Deck (serial number 030,001-070,000)
Model year 2019 and newer 9078M 54-in. (137-cm) or 9079M 60-in. (152-cm) High Capacity Mower Deck (serial number 070,001-)

Optional hydraulic MulchControl actuator (BUC10536) is available for model year 2019 and newer 9078M 54-in. (137-cm) or 9079M 60-in. (152-cm) High Capacity Mower Deck (serial number 070,001-). Mower must be equipped with a basic MulchControl attachment:

Hydraulic MulchControl is not available for the 9077M 48-in. (122-cm) Accel Deep Mower Deck.

Order:

BUC10705 48-in. (122-cm) Accel Deep MulchControl

BM26300 54-in. (137-cm) High Capacity MulchControl

BM25258 60-in. (152-cm) High Capacity MulchControl

BUC10536 Hydraulic MulchControl actuator

Power Flow™ material collection systems make lawn cleanup easy

Power Flow blower and chute

7-bu (247-L), two-bag Power Flow hopper (shown on X590 Tractor)

14-bu (500-L), three-bag Power Flow hopper

19-bu (670-L) MC519 Power Flow cart

The 48-in. (122-cm) Accel Deep™ (48A) Mower Deck, 48-in. (122-cm) Edge™ Xtra Mower,* and 54-in. (137-cm) and 60-in. (152-cm) Edge High Capacity (HC) Mowers use a high-performance Power Flow blower to collect material into a variety of material collection systems:

Features are as follows:

Blower is hinged to provide easy installation.
Blower is easy to swing out for easy cleanout.
Blower fan runs in a clockwise direction (viewed from the right side) to efficiently move material up the chute.

The Power Flow blower works well with either the standard mower blades or the mulching blades.

Each of the John Deere material collection systems has durable construction for long life in homeowner or commercial applications.

*NOTE: The three-bag, 14-bu (493-L) Power Flow is not compatible with a X729, X739, or X749 Tractor equipped with a 48X Mower Deck because the chute can contact the rear tire in a turn. However, it is compatible with the 48 Accel Deep (48A) Mower because the increased deck height and the height of its Power Flow blower housing lift the chute high enough to clear the wheel and fender with the three-bag hopper installed.

48-in. (122-cm) Accel Deep™ Mower Deck cuts clean and is versatile

X730 Tractor with 48A Mower Deck

The 48-in. (122-cm) Accel Deep Mower Deck is a forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:

4.83-in. (12.3-cm) depth throughout the entire deck shell for optimum mowing, mulching, and bagging performance
- Optional MulchControl™ system provides superior mulching performance and versatility.
Forged-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance
Mower deck is suspended from the vehicle for a smooth and level cut
- Adjustable mower wheels, positioned just above ground level, help reduce scalping
0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height
Compatible with high-performance Power Flow™ material collection systems
For use on X730, X734, X738, X739, X750, X754, and X758

NOTE: The 9077M 48A Mower Deck requires a standard connect or auto connect attachment (similar to 54 HC and 60 HC Mower Decks). Unlike the 54 HC and 60 HC, the shaft drive 48A Mower Deck is not a drive-over deck. Operators can rotate the mower wheels 90 degrees and roll the 48A Mower Deck under an X700 Signature Series Tractor and utilize the auto connect to connect the power take-off (PTO) shaft.

Excellent cut quality

48A Mower Deck underside (similar Z300 shown)

Deep mower-deck forging gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:

Reducing the amount of recutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
- Helps maintain excellent cut quality at faster mowing speeds
Clean flow of material out of discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings.
Exact Adjust deck-leveling system allows for easy and accurate leveling of the mower deck

Productivity - getting the job done fast

Deep mower-deck forging gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:

Greatly improves mowers capacity to maintain excellent mowing performance in difficult mowing conditions and at higher speeds

Large discharge opening is both high and wide to handle more material:

Gives a smooth, even discharge of clippings at all mowing speeds
Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass and when bagging
The 48A Power Flow blower has an inlet housing with over 50 percent greater area than the 48X Power Flow blower used on previous machines.

Cleanliness - for the mower and the operator

Left side of Accel Deep 48A Mower Deck (shown on X584 Tractor)

The flat-top shape of the deck forging is optimal for keeping itself and the operator clean:

There are few places to catch and hold material on top and underneath the deck.
- Top of deck stays cleaner, reducing time and effort needed for cleaning and service
- Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings
- Less need to clean and remove buildup of material from the underside of the deck
The depth of the Accel Deep mower deck minimizes the amount of material that escapes from the front of the deck.
- Limited amount of material drifts onto the operator and mower deck.
- Even for material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator.
- Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations.

Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:

The flat-top design reduces places for material to build up and makes material that does collect easy to remove.

Power Flow material collection systems

Optional 7-bu (247-L) two-bag Power Flow rear bagger shown on X590 Tractor

Power Flow blower shown on X590 Tractor

A variety of material collection systems is available for use with the Power Flow blower:

7-bu (247-L) two-bag Power Flow rear bagger
14-bu (493-L) three-bag Power Flow rear bagger
19-bu (670-L) MC519 Cart

The Power Flow blower and chute are easy to install. The Power Flow blower swings out for easy cleanout and cleanup.

Mower wash port

Mower wash port with hose connector

A wash port is provided to make cleaning the underside of the mower deck easy.

Hose connector is included with the mower deck.

Superior durability is designed in

Spindle pocket with flip-up cover

Easy-to-adjust mower wheel and mower side reinforcement

The 48A Mower Deck has strong spindle pockets to keep the blades aligned, even after years of tough service:

Forged from strong 10-gauge, 0.135-in. (3.4-mm) steel
Ribs in the deck shell add strength where it is needed.
The 48A has a 23 percent heavier overall weight than the Edge™ Xtra 48-in. (122-cm) Mower Deck used on previous machines.

Mower wheels are heavy duty:

Provides greater strength and durability for longer, trouble-free life.
Setting wheels to the correct height for the cutting height is quick and easy.

The 48A Mower Deck features a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra strength and protection.

Dual-stage E-coat and powder-paint coatings provide extra protection from rust.

Versatility - easy to change between side discharge, mulch, and bagging modes

The 48A Mower Deck is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:

With the optional MulchControl system installed (along with the special mulching blades), changing from side discharge to mulching or vice versa is done with the simple flip of a lever.
- It is not necessary to change blades when changing discharge modes because the mulching blades are designed for side discharge as well.
The Power Flow rear bagger can be used with MulchControl by simply placing the MulchControl lever in the side-discharge position.

Mower blades

Side-discharge blades can be used with the Power Flow system when bagging.

Mulching blades are included with the optional MulchControl system. They can be used for mulching, side discharging, and bagging.

Mower blade use chart

Mode(s) of operation	Mower blade
Side discharging mode only	Side-discharge blade (shipped with mower)
Mulching mode only	Mulching blade (shipped with MulchControl)
Side discharge and mulching	Mulching blade (shipped with MulchControl)
Bagging	Either side-discharge or mulching blade

Keep your mower ready to go with the Equipment Mobile App and smart connector

X350 Tractor

Z370R Electric ZTrak™ Mower

Overview

Keep your John Deere equipment running its best with the John Deere Equipment Mobile App. Download the app from the mobile device’s app store, then add all your John Deere equipment by scanning the serial number bar codes. Once your equipment is added, you can access all your product’s model, serial number, and model year information in one place. The app also provides maintenance, parts, and support resources that are specific to your serial number(s).

Find the right parts the first time

Use Equipment Mobile to find the right parts

It is important to get the right parts the first time. When you load your equipment list, Equipment Mobile provides parts information specific to your serial number(s). This is helpful to you and your John Deere dealer, as some parts can vary by serial number range.

Plan, track, and coordinate maintenance with your dealer

Maintenance plan screen

Maintenance parts and notes screen

Equipment Mobile includes comprehensive maintenance plans for each piece of your equipment. The maintenance plan screen keeps track of completed tasks, provides a place for your notes, and provides parts listings. You can also share your maintenance plan with your dealership, enabling tasks completed by the dealer to be included.

Operator’s manual in the palm of your hands

A machine’s operator’s manual is a go-to resource that is available in Equipment Mobile. You can search, view, and download a copy. The operator’s manual is specific to the serial number(s) of your equipment.

Smart Connectors

Smart Connector

BUC10537 smart connector, wiring harness, and twist ties

A smart connector links the mower to the Equipment Mobile App and transmits vehicle information via Bluetooth® wireless technology to provide:

Engine hours, that enable maintenance reminders
Key switch status and battery level to warn if the battery is low
Fuel level - even when away from the mower, the app remembers the fuel level so you can make sure the mower is fueled when it is time to mow

Optional BUC11960 smart connector is for use with:

S120, S130, S160, S170, and S180 Tractors
Model year 2021 and newer S240 Tractors (serial number 880,001-)
Z515E, Z530M, Z530R, and Z545R ZTrak™ Mowers

Hours, fuel level, key switch status, and battery level are updated whenever the Equipment Mobile device is in range of a mower with a BUC11960 smart connector.

One end of the wiring harness plugs into the back of the fuel gauge. The other ends plug into the smart connector and the tractor's wiring harness. Z500 ZTrak Mowers come with a dedicated connectivity connector, so the new wire harness is not needed.

Optional BUC10537 smart connector is for use with:

Model year 2016 and newer Select Series X300 and X500 Tractors

Hours, fuel level, key switch status, and battery level are updated whenever the mower’s key is turned on and the Equipment Mobile device is in range of a mower with a BUC10537 smart connector. The X350R Tractor does not report exact fuel level, it only indicates if the mower is low on fuel.

One end of the wiring harness plugs into the back of a Select Series X300 or X500 Tractor instrument cluster. The other ends plug into the smart connector and the tractor's wiring harness.

The Z370R and Z380R Electric ZTrak Mowers include the smart connector in base equipment.

On Electric ZTrak Mowers the battery level, charging status, and hours are transmitted when the Equipment Mobile device is in range of the mower, and the mower is on or actively charging. Equipment Mobile can also update an Electric ZTrak Mower’s controller software.

A smart connector requires the Equipment Mobile App. The John Deere Equipment Mobile App can be found in the mobile device’s app store.

Bluetooth is a trademark of Bluetooth SIG, Inc.

Engine power	25.5 hp 19 kW
Oil change
Engine manufacturer/model	FD750D EFI
Transaxle type	K90 hydrostatic integrated with transaxle
Transaxle control	Twin Touch™ pedals
Rear tires	26x10.5-12 turf
Lift system type	Two-function hydraulic
Cutting width	Accel Deep™ mower deck, 48 in. 122 cm High capacity mower deck, 54, 60 in. 137, 152 cm
U.S. warranty	4 year/700 hour bumper-to-bumper (Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Power	25.5 hp 19 kW
Displacement	45.5 cu in. 745 cc
Manufacturer/model	FD750D EFI
Type	Electronic fuel injection (EFI), overhead valve, full-pressure lube, oil filter
Cylinders	V-twin, cast-iron liners
Governor	Mechanical
Choke/speed control	No choke required
Cooling method	Liquid
Air cleaner	Dry, replaceable with foam precleaner
Oil change	No tools

Type	Gasoline
Fuel delivery	Electronic fuel injection
Fuel gauge	Gauge on dash
Fuel tank location	Rear
Fuel fill opening	On left fender, 3 in. 7.6 cm
Fuel tank capacity	5.2 U.S. gal. 19.7 L

Battery	12 V 340 CCA
Charging system	Flywheel alternator, regulated, 20 amp
Engine starter	Solenoid shift
Hour meter	Yes
Headlights	Two standard, halogen, 37 W
Taillights or reflector	Taillights
Backup lights	Yes
Rear work lights	Yes
12-V outlet	Yes

Type	K90 hydrostatic integrated with transaxle
Control	Twin Touch™ pedals
Cruise control	Yes
Oil cooler	Yes
Oil filter	Replaceable suction side 10 micron
Differential lock	Standard
Forward speed	0-8.5 mph 0-13.7 km/h
Reverse speed	0-6 mph 0-9.7 km/h
Brakes	Internal wet disc

Mowers	48A, 54 HC, 60 HC
Rear bagger	7, 14, 19 bu 250, 500, 670 L
Powered material collection	Power Flow, 7, 14, 19 bu 250, 500, 670 L
Mulching system	Yes, MulchControl™
Front thatcher	38, 46, 54 in. 96.5, 116.8, 137.2 cm
Front blade	54 in. 137.2 cm
Mid-mount blade
Snow blower	Two-stage, 47, 54 in. 119.4, 137.2 cm
Rotary broom	52, 60 in. 132.1, 152.4 cm
Rotary tiller	42, 48 in. 106.7, 121.9 cm
Sleeve hitch
3-point hitch	Category 1
Rear power take-off (PTO)	540 rpm
Plow, moldboard	Adjustable, 8-14 in. 20.3-35.6 cm
Box scraper	48 in. 121.9 cm
Cultivator	Adjustable, 30-46 in. 76.2-116.8 cm
Rear blade	60 in. 152.4 cm
Disk harrow	Adjustable, 42-52 in. 106.7-132.1 cm
Landscape rake	60 in. 152.4 cm
Sprayer	Tow-behind, 15, 25, 45 U.S. gal. 56.8, 94.6, 170.3 L Mounted, 25 U.S. gal. 94.6 L
Spreader	Tow-behind, 125, 175 lb 57.7, 79.4 kg Mounted, 125 lb 57.7 kg
Front bumper	Standard bumper/weight bracket
Brush guard	Yes
Weather protection	Hard-side cab, weather enclosure
Sun canopy
Rear receiver hitch	1.25 x 1.25 in. 3.18 x 3.18 cm
Bucket holder	Yes, double bucket
Grass striping	Grass groomer kit, 48-in. (122-cm) mower only
Tractor shovel	54 in. 137.2 cm
Front loader	Not available
Other equipment
Tow-behind tools	21

Height	54.5 in. 1384 mm
Overall length	75 in. 1905 mm
Wheelbase	54.5 in. 1384 mm
Width with mower	48A: 62.5 in. 1588 mm 54 HC: 64.5 in. 1638 mm 60 HC: 74 in. 1880 mm
Width with mower (deflector raised for storage)	48A: 53.6 in. 1362 mm 54 HC: 57.5 in. 1461 mm 60 HC: 62 in. 1575 mm
Width without mower	47 in. 1195 mm
Weight	No fuel or mower, 912 lb 414 kg

Manufacturing location	Horicon, Wisconsin, USA
Date collected	1-Aug-23

X734Signature Series Lawn Tractor

SHARE

Features

Air intake system

Electronic fuel injection

Fuel tank has a large 5.2-U.S. gal. (19.7-L) capacity

Battery and alternator are large capacity

MulchControl operation

Mower deck attachability

Optional AutoConnect™ drive

Two-piece tilt-back seat

Optional armrest kit

Optional air-ride suspension seat

Foot pads

Handgrips, toolbox, cup holder, and 12-V outlet

12-V outlet

Headlights and taillights provide good visibility

47-in. (119-cm) and 54-in. (137-cm) Quick-Hitch Snow Blowers

54-in. (137-cm) and 60-in. (152-cm) Quick-Hitch Front Blades

52-in. (132-cm) and 60-in. (152-cm) Rotary Brooms

47-in. (122-cm) Rotary Tiller

Weather enclosure and hard-side cab

Twin Touch™ foot control is easy to use and has cruise control

Differential lock

Two-function hydraulics give effortless control of equipment

Hydraulic power steering gives effortless control

Parking brake control

Mower deck height-of-cut control

Exact Adjust

Using reverse implement option (RIO)

Interlock switches

Important advantages for superior mowing performance and equipment versatility

Frame is full-length welded steel for strength

Front axle and wheel spindles are heavy duty

Heavy-duty two-wheel steer or four-wheel steer transaxle

Transmission oil cooler

Serviceability is convenient with an easy-open hood

How MulchControl works

Hydraulic MulchControl actuator option (model year 2019 and newer 54 HC and 60 HC Mowers Decks only)

MulchControl limitations

MulchControl compatibility

Order:

Excellent cut quality

Productivity - getting the job done fast

Cleanliness - for the mower and the operator

Power Flow material collection systems

Superior durability is designed in

Versatility - easy to change between side discharge, mulch, and bagging modes

Mower blades

Overview

Find the right parts the first time

Plan, track, and coordinate maintenance with your dealer

Operator’s manual in the palm of your hands

Smart Connectors

Specs & Compare

Add Model

Key Specs

Engine

Fuel system

Electrical system

Transaxle

Chassis

Steering

Seat

Lift system

Mower deck

Mower attachability

Safety

Buyer's notes

Optional equipment

Dimensions

Additional information

Offers and Discounts

Related Products

Shop and Buy

Maintenance and Support

You May Also Be Interested In
