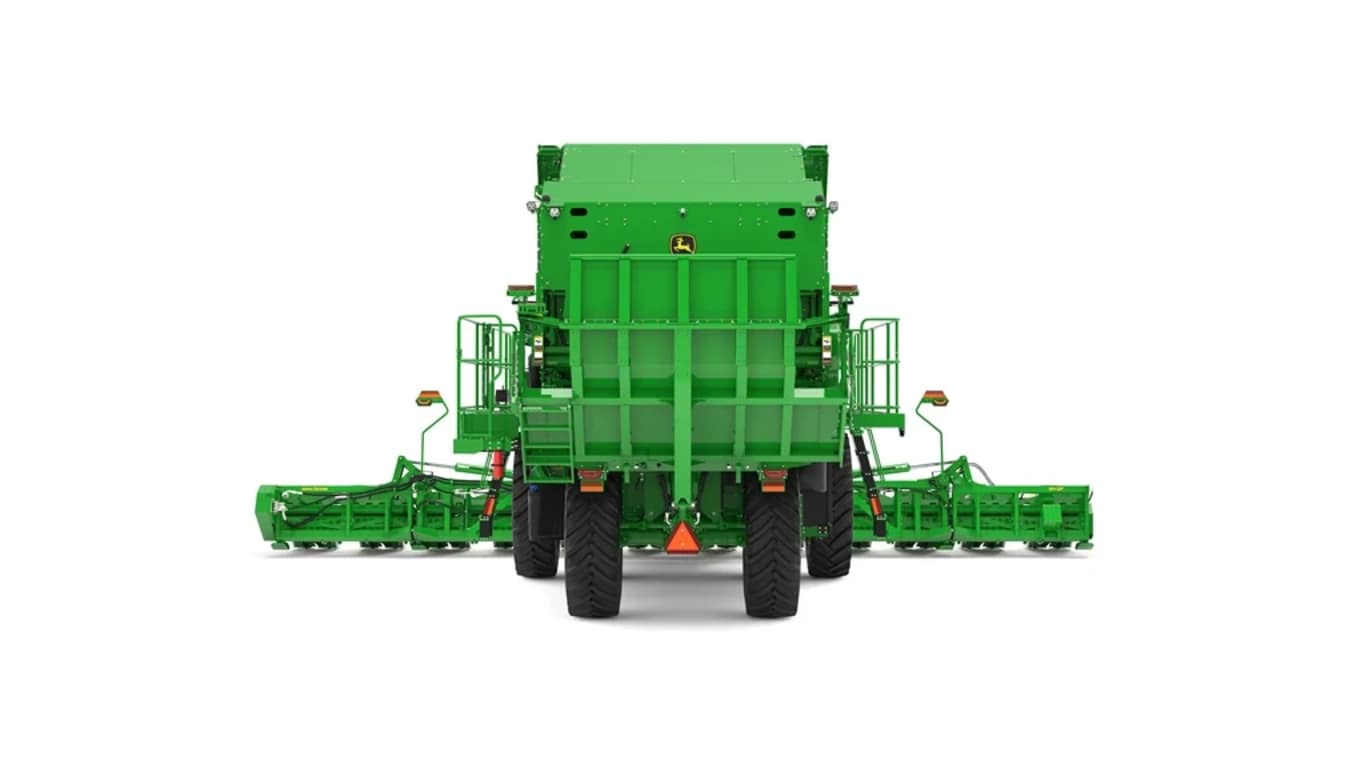

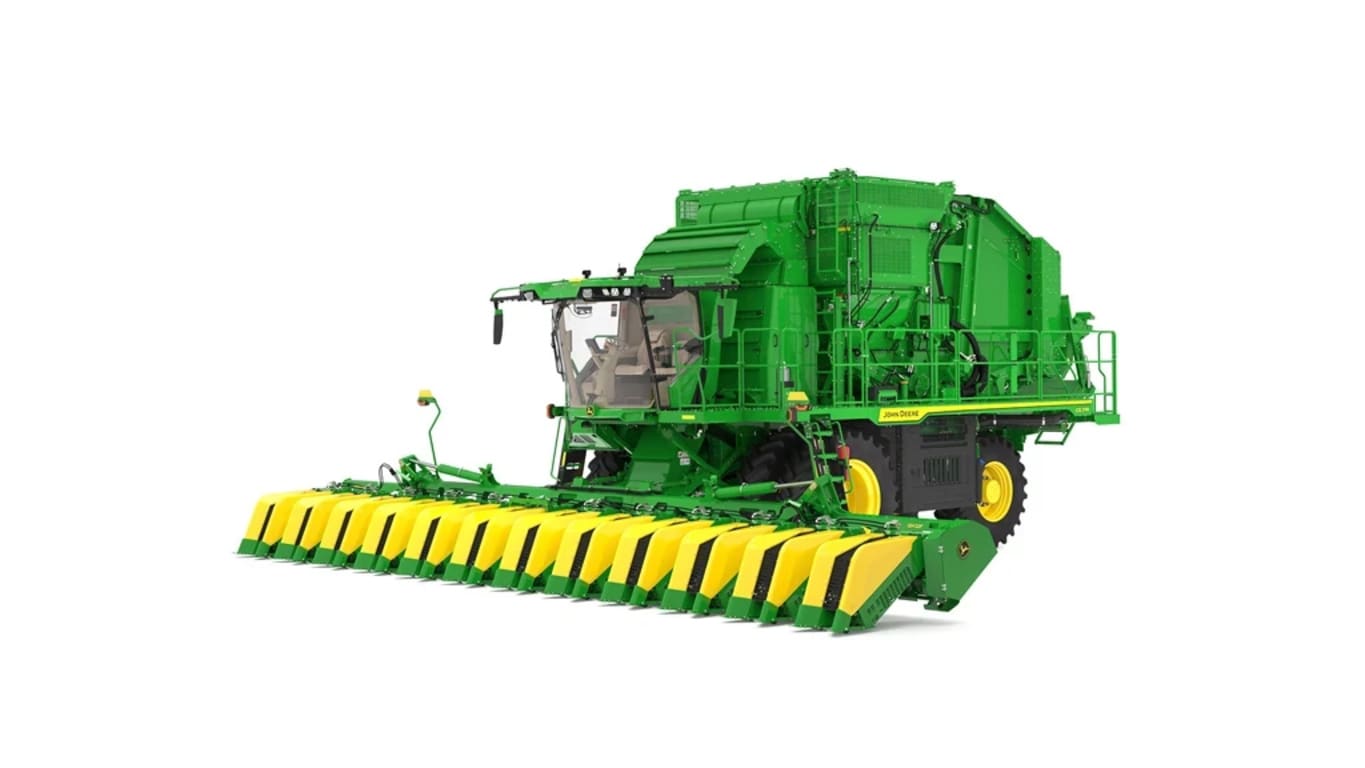

CS770Cotton Stripper
- 13.6 L, 515 HP engine
- Available 8- and 12- row heads
- 15% greater fuel efficiency1
- 12% reduction in wrap and hauling costs1
Everything you want. And more.
Whether it's the comfort of its spacious cab, the legendary power from its JD engine, or the revolutionary design of its module building and handling system, every feature on your C770 harvester is designed to save you time, costs, and stress when it counts most.1
Click Icons Below To Learn More
Save 8%-12% on Wrap and Hauling1
Use 15%-20% Less Fuel1
Pick 5% faster1
Enjoy a 30% Larger Cab1
Cotton's Most Advanced Technology
MODULE BUILDING AND HANDLING
Save up to 12% on Wrap and Hauling*
To help maximize cost efficiency, we redesigned the round module builder as well as the wrapping and handling system; both the CP770 and CS770 now pack more cotton into each module, reducing the per-pound cost of module wrap and module hauling.
*Internal John Deere comparisons between CP770 and CP690, and between CS770 and CS690. Individual results may vary.
MODULE BUILDING AND HANDLING
Improved Wrap Feeding
Experience consistent wrap feeding, module after module, with the new positive drive wrap system…operators will appreciate the reliability of the system, along with the simplicity of loading.
MODULE BUILDING AND HANDLING
Denser Bales = Less Wrap Per Pound
Picker customers, the new CP770 returns a solid 8% savings in wrap and hauling costs per lint pound, compared to its predecessor; stripper growers, the CS770 gives you a 12% reduction per lint pound in wrap and hauling.*
*Internal John Deere comparisons between CP770 and CP690, and between CS770 and CS690. Individual results may vary.
MODULE BUILDING AND HANDLING
Reduced Module Wrap Time
Our next-generation module handling system cuts the module wrap-eject cycle time by 33%, from 48 seconds to 32 seconds, allowing you to stay at harvest speeds longer, and making every harvest day more productive.*
*Internal John Deere comparisons between CP770 and CP690, and between CS770 and CS690. Individual results may vary.
ENGINES AND HYDRAULIC POWER
Efficient, Quiet, Usable Power
At the heart of the C770 Series is the John Deere 13.6 L PowerTech™ engine, tuned to deliver the power you need, when you need it, with less fuel consumption, lower noise levels, and higher transport speed.*
*Internal John Deere comparisons between CP770 and CP690, and between CS770 and CS690. Individual results may vary.
ENGINES AND HYDRAULIC POWER
Increased Fuel Efficiency
Improved fuel efficiency lets you harvest more with every gallon. The CP770 uses 20% less fuel than its predecessor, while the CS770 uses 15% less fuel than the previous stripper.*
*Internal John Deere comparisons between CP770 and CP690, and between CS770 and CS690. Individual results may vary.
ENGINES AND HYDRAULIC POWER
Higher Transport Speed
You and your operators will appreciate the increased transport speed…you can run from field to field at 20 mph, up from 17 mph over previous models.
ENGINES AND HYDRAULIC POWER

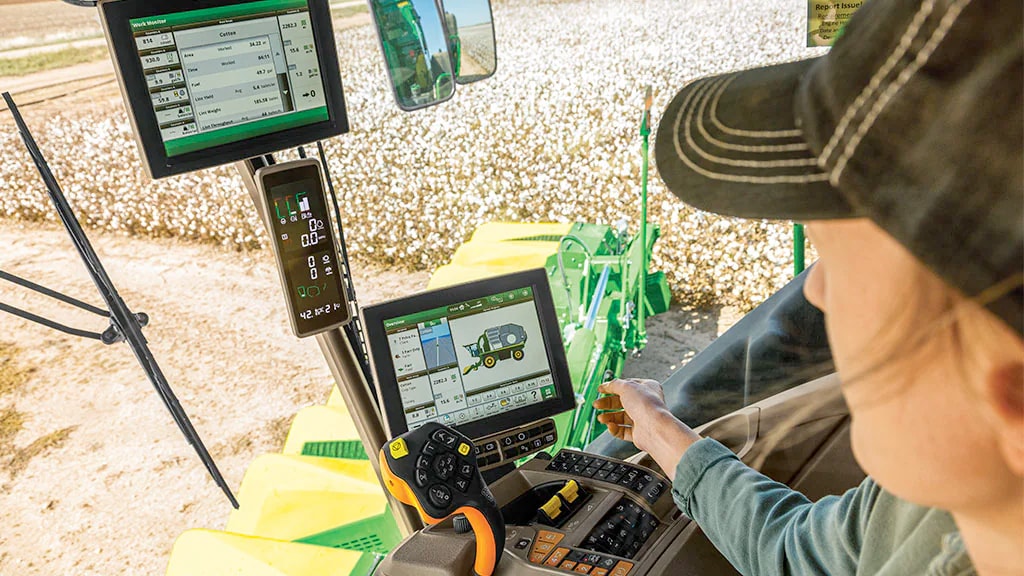

Reduced Noise
With the engine working at an easy 1,900 RPM, you'll notice reduced noise in the cab…3 dBA less in the CP770, 5 dBA less in the CS770.*
*Internal John Deere comparisons between CP770 and CP690, and between CS770 and CS690. Individual results may vary.
ENGINES AND HYDRAULIC POWER
Reduced Complexity
We've redesigned the engine and hydraulic power module to use fewer unique parts, reducing complexity and improving maintenance and serviceability.
PICKER ROW UNITS
Pick Another 4.4 Acres per Day
You know better than anyone…the longer cotton stays in the field after defoliation, the more the lint quality degrades. So we gave our row units the speed you need to get out of the field faster.*
*Internal John Deere comparisons between CP770 and CP690, and between CS770 and CS690. Individual results may vary.
PICKER ROW UNITS

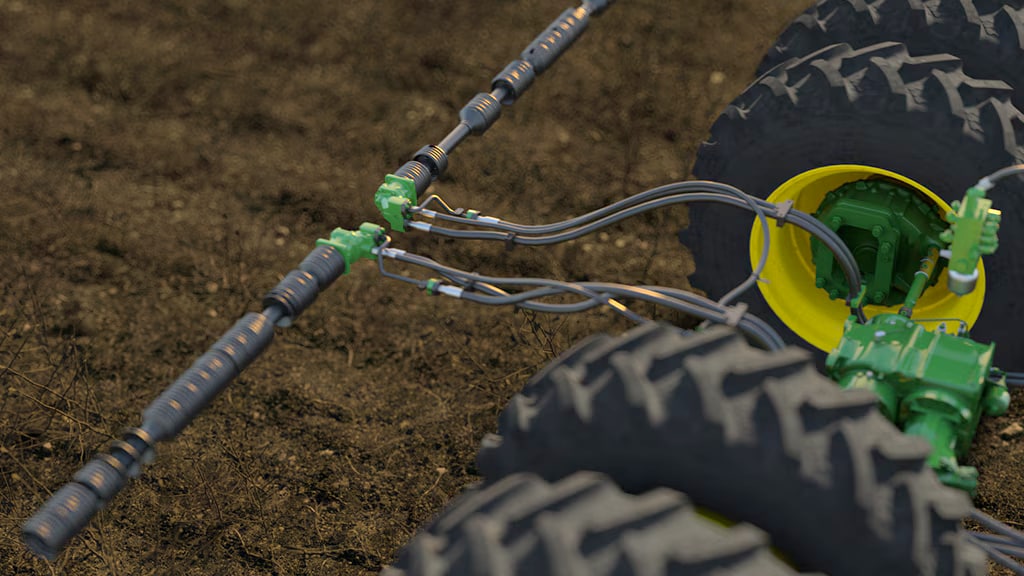

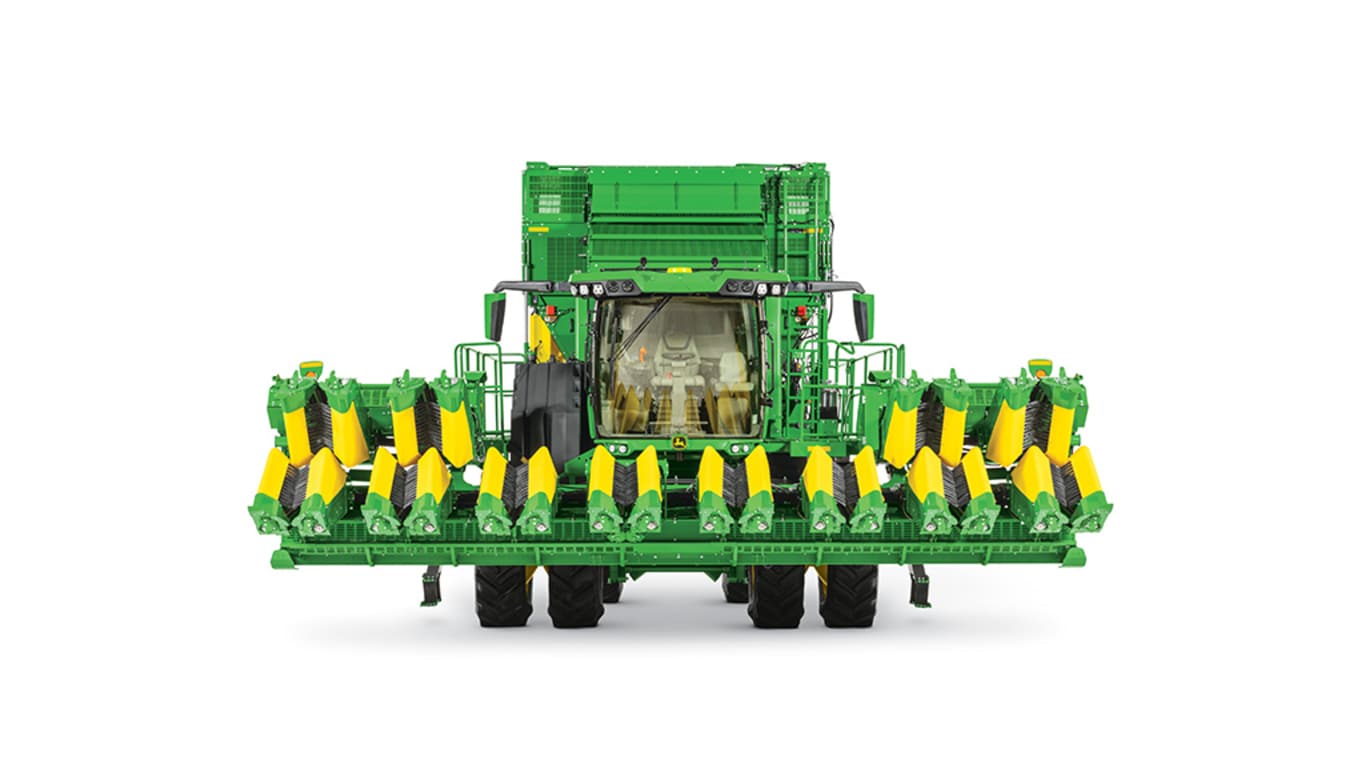

New Direct-Drive Gearboxes
Direct-drive gearboxes in the new PRO16 HS Row Units deliver smooth, efficient power, while contributing to overall fuel savings, and reducing maintenance and complexity.*
PICKER ROW UNITS

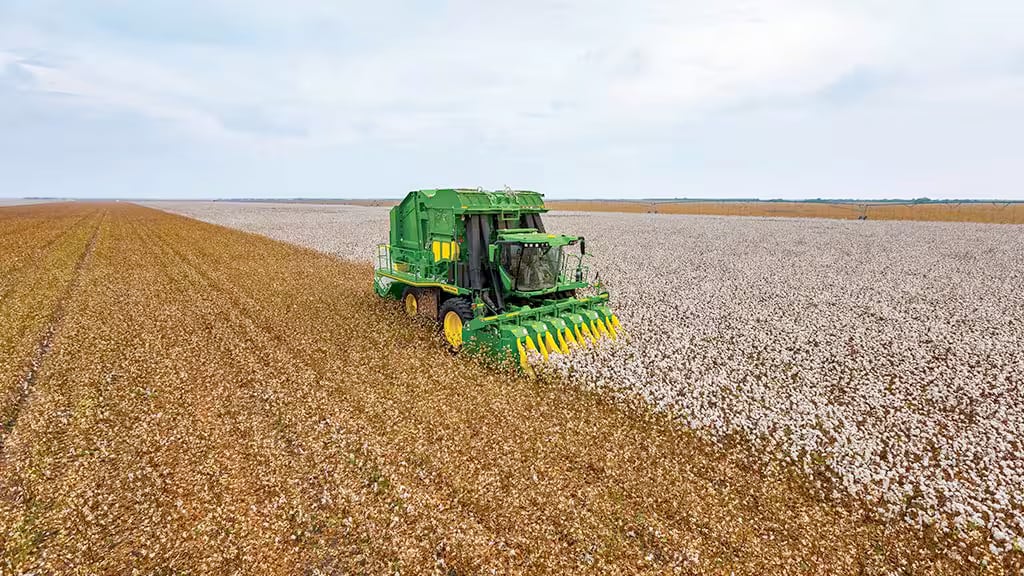

Harvest Speed
The PRO16 HS Row Units allow for a 5% increase in picking speed, to 4.6 mph, compared to 4.4 for our previous row units. That means you can harvest an additional 4.4 acres during a typical 10-hour harvest day.
PICKER ROW UNITS

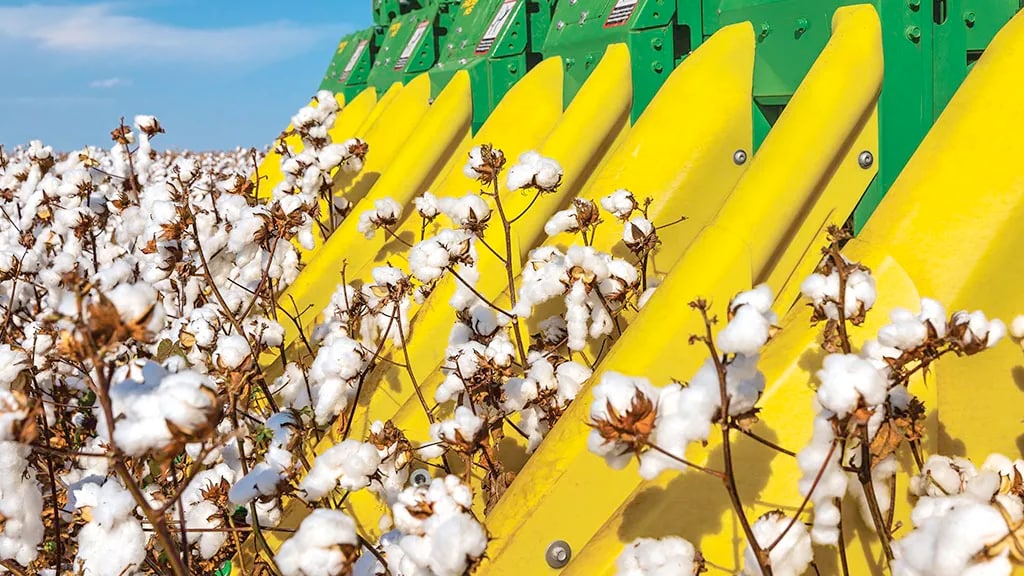

Stalk Lifters
New high-speed stalk lifters gently transition the crop into the row unit's picking zone, reducing boll loss and enabling the PRO16 HS units' higher picking speeds.
STRIPPER HEADERS
More Acres with Less Hassle
Stripper-cotton producers…if you'd like to harvest more acres per day, we have your answer: the new SH12F Folding Stripper Header. We put major productivity and transportability into an easy-folding header, then redesigned the header attachment system for quicker, easier hookup.
STRIPPER HEADERS

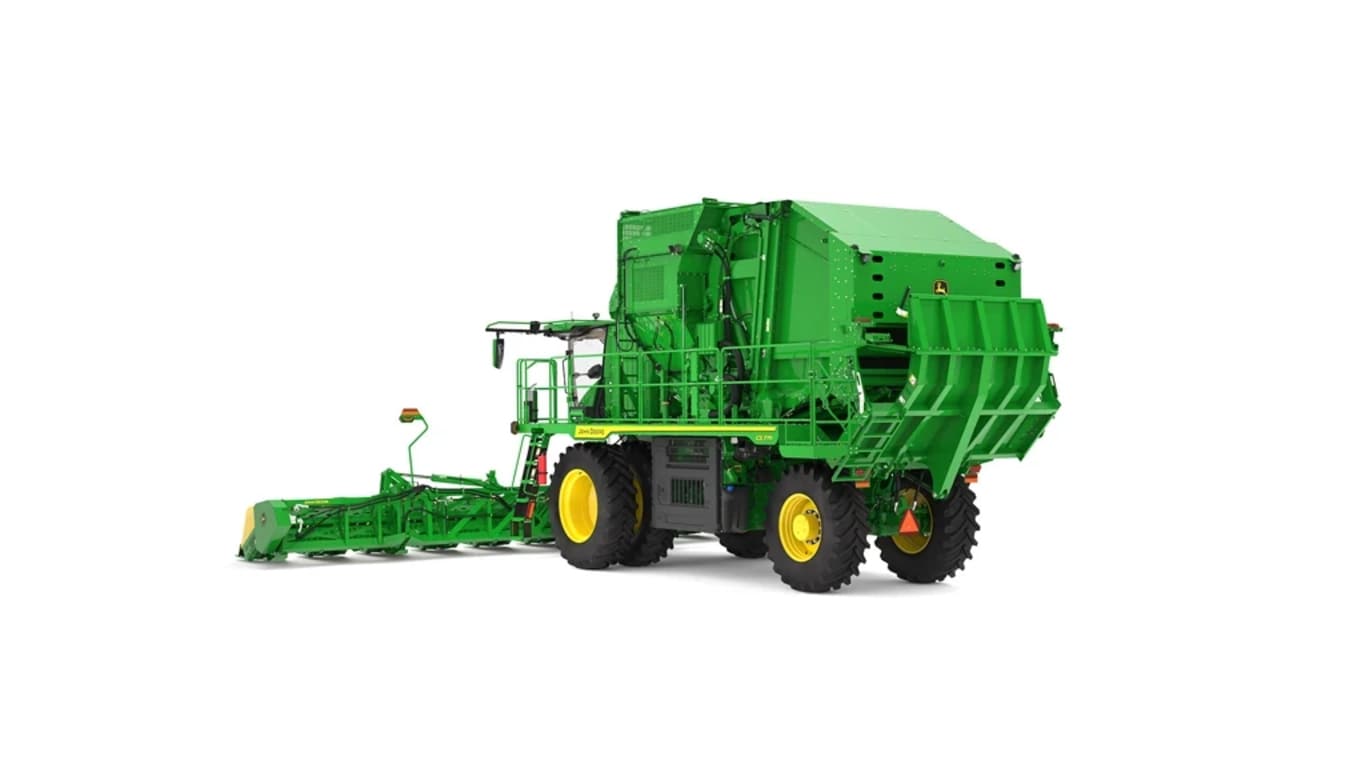

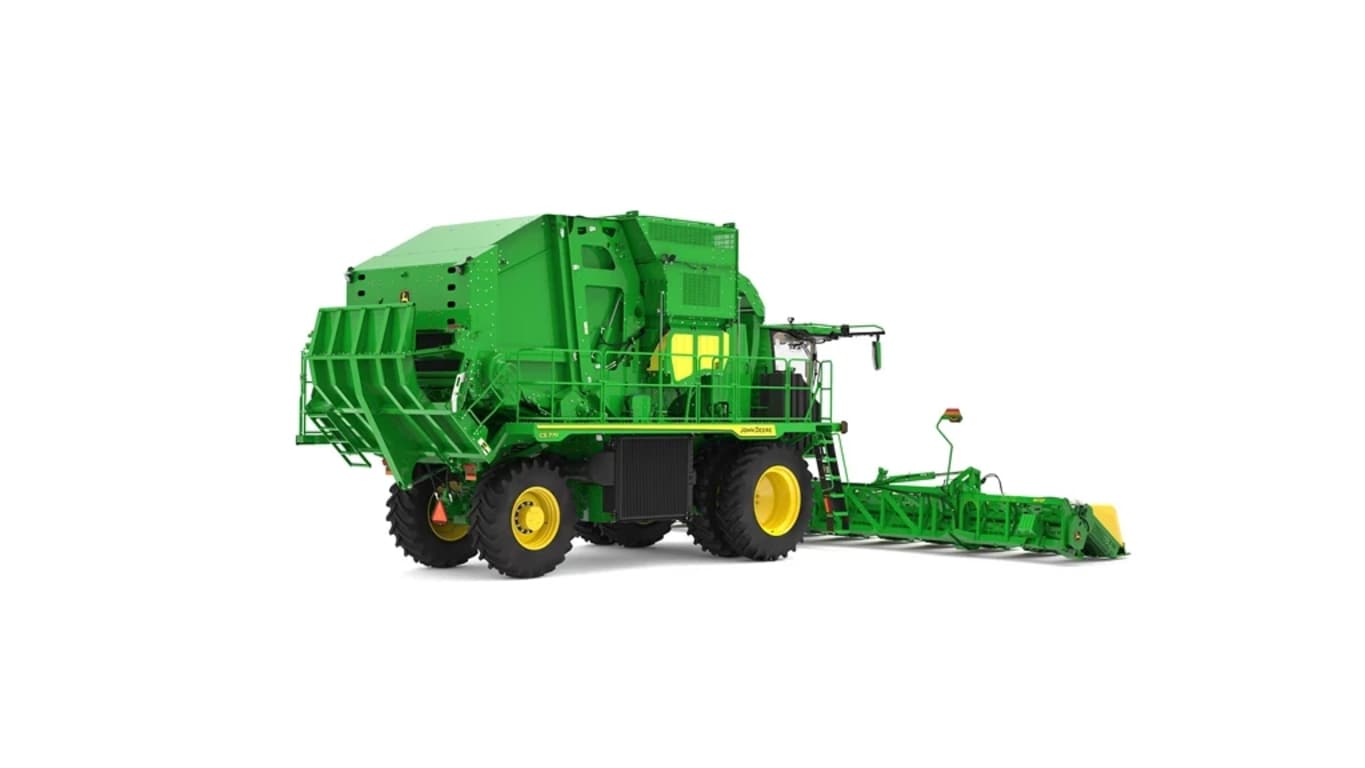

12-Row folding header
The new SH12F 12-row Folding Stripper Header lets you cover 48% more acreage per hour than an 8-row header on our previous stripper. The SH12F folds in under a minute, and can be transported without removing it.
STRIPPER HEADERS

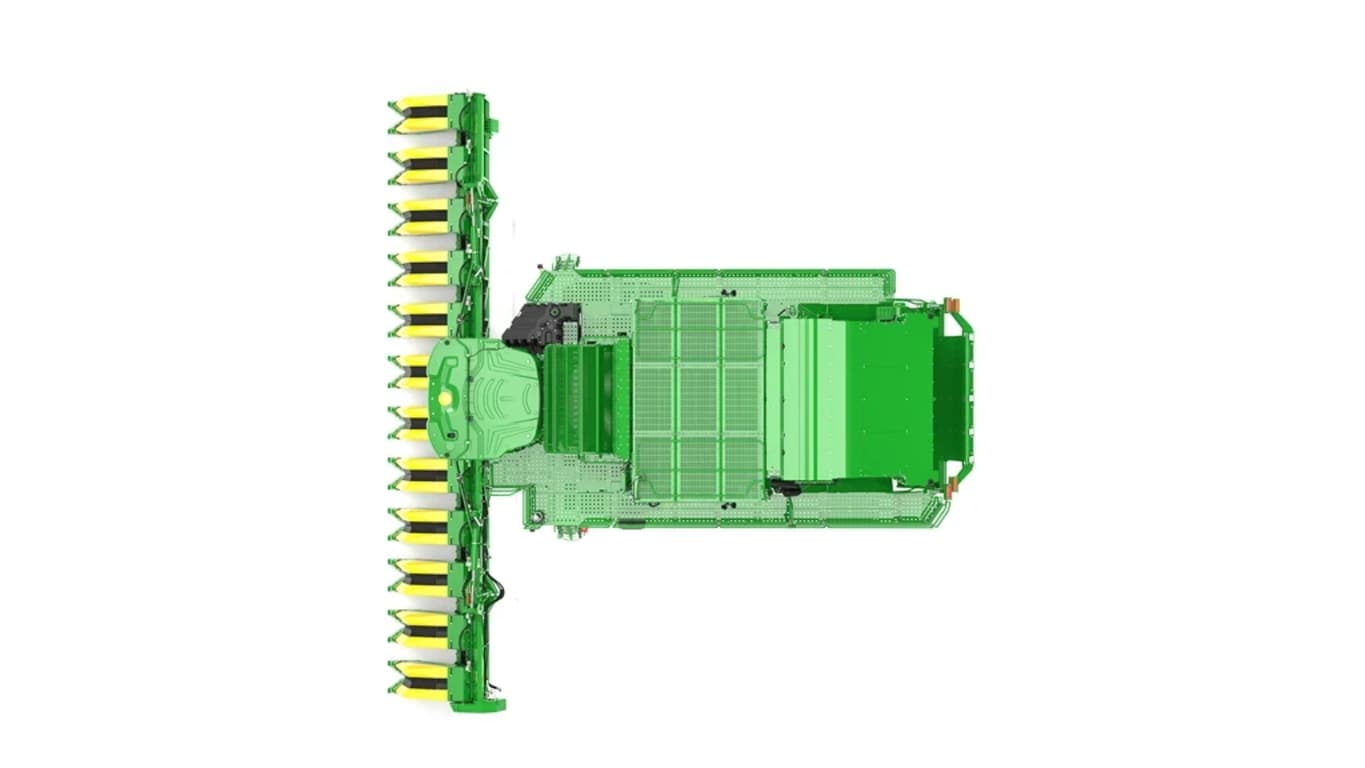

Three Available Headers
The SH12F joins our SH8R 8-row and SH12R 12-row rigid headers to create a complete lineup of stripper headers. The SHR can accommodate 36-, 38-, and 40-inch rows; the SH12R can handle 30-, 32-, and 36-inch rows, while the SH12F takes on 38- and 40-inch rows.
STRIPPER HEADERS
Improved Header Hookup
When you do need to attach and detach the header, new no-tool hydraulic hookup cuts the time in half, to an easy-to-handle 15 minutes.
COMFORT AND CONVENIENCE

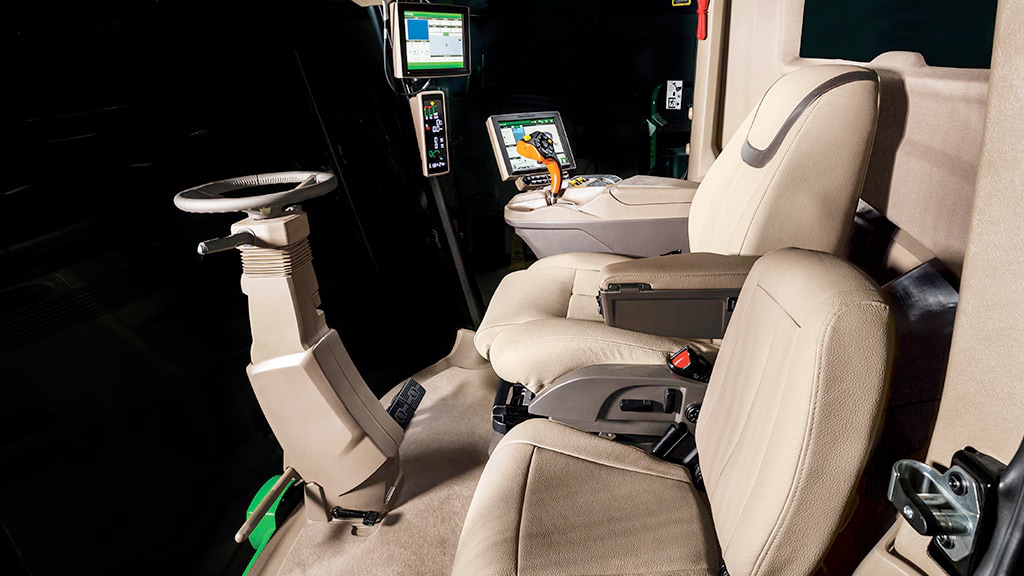

30% Larger Cab*
From the shock-absorbing ActiveSeat™ II to the hard-driving sound system, we have the standard and available features you need to build the harvest-time office of your dreams. We'll start with a cab that not only has 30% more space than the previous harvesters, but also features familiar, automotive styling, heat-to-feet HVAC ducts, a display that swivels with the seat, and plenty of USB ports for your devices.
*Internal John Deere comparisons between CP770 and CP690, and between CS770 and CS690. Individual results may vary.
COMFORT AND CONVENIENCE
ActiveSeat™ II Suspension
ActiveSeat II Suspension reduces vertical seat motion by up to 90 percent, as compared to an air-suspended seat. Standard with Ultimate Cab Package.
COMFORT AND CONVENIENCE
Touchscreen Radio
Available in our Premium and Ultimate Cab Packages, the SiriusXM-ready radio lets you listen to your favorite music, podcasts, or audiobooks. Two speakers plus a subwoofer give you the ultimate audio experience.
COMFORT AND CONVENIENCE
Foot Rests
Take a load off and get comfortable with our foot rests, available in the Premium and Ultimate Cab Packages.
COMFORT AND CONVENIENCE
Refrigerator
Order our Premium or Ultimate Cab Package, and you'll get a roomy fridge, perfect for keeping lunch and drinks cold.
TECHNOLOGY

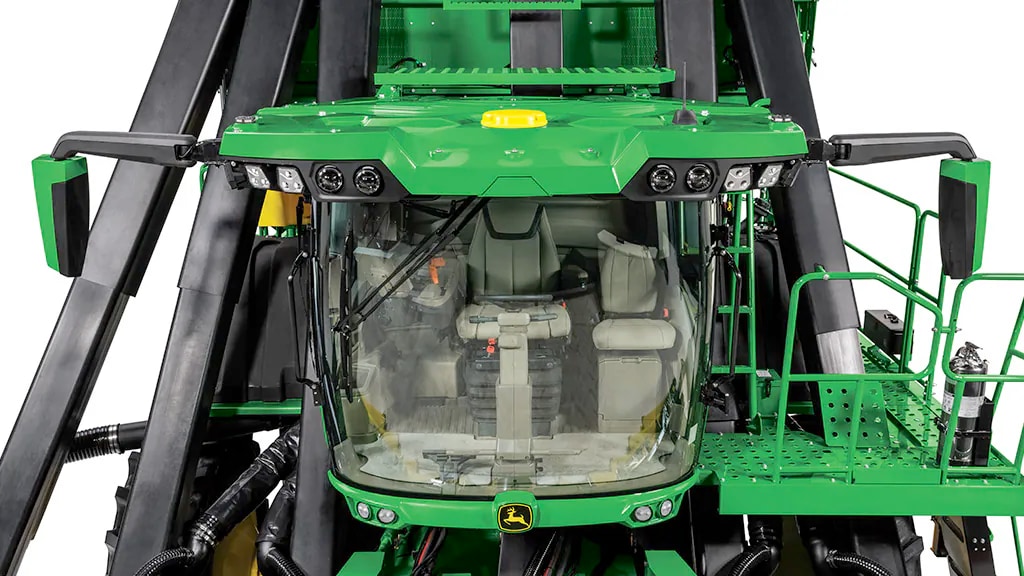

The Most Complete Tech Package Available
Your guidance, mapping, tracing, data-sharing, and remote-diagnostic capability begins with the integrated Generation 4 4600 CommandCenter™ Display and StarFire™ 7500 Receiver; from there, our standard technology products and applications help you, your consultants, and your ginners make informed decisions that maximize productivity and profitability.
TECHNOLOGY
JDLink™ Connectivity*
The C770 Series comes with JDLink connectivity, giving you easy communication with your machines, your operators, and your dealer. Analyze progress and performance, transfer data to and from machines, and use Machine Alerts and Service ADVISOR remote to pre-empt or diagnose issues.
*JDLink hardware comes standard with the machine. You can turn on JDLink connected service in your John Deere Operations Center™ account for free. JDLink requires a cellular connection to transfer information from machine to Operations Center. Consult your John Deere Dealer for coverage availability.
TECHNOLOGY
Operations Center
Access field, crop, and machine information anytime on your desktop computer or mobile device through your John Deere Operations Center™ account. Plus, with many connected software tools, including major farm management systems, you can make the most out of your data.
TECHNOLOGY
HID Cotton Pro
Capture, analyze, and share harvest information down to the module with Harvest Identification, Cotton Pro. Track module moisture and weight, then share that information with your gin to help prioritize module movement. Together, Harvest Identification, Cotton Pro allow for traceability from field to end use.
TECHNOLOGY
RowSense and AutoTrac Guidance
Stay on track with Row Sense and AutoTrac Guidance, both standard from the factory. RowSense uses mechanical sensors to guide you through standing crop; AutoTrac then provides secondary GPS guidance to help steer through any gaps. Together, they offer the most accurate guidance available.
TECHNOLOGY
Documentation and Field Analyzer
Make informed decisions by reviewing your documentation data in Field Analyzer. Track your yields from field to field, then generate and share detailed yield maps with your consultants, seed reps, scouts or other advisors through your Operations Center account.
Features
Expand All
Collapse All

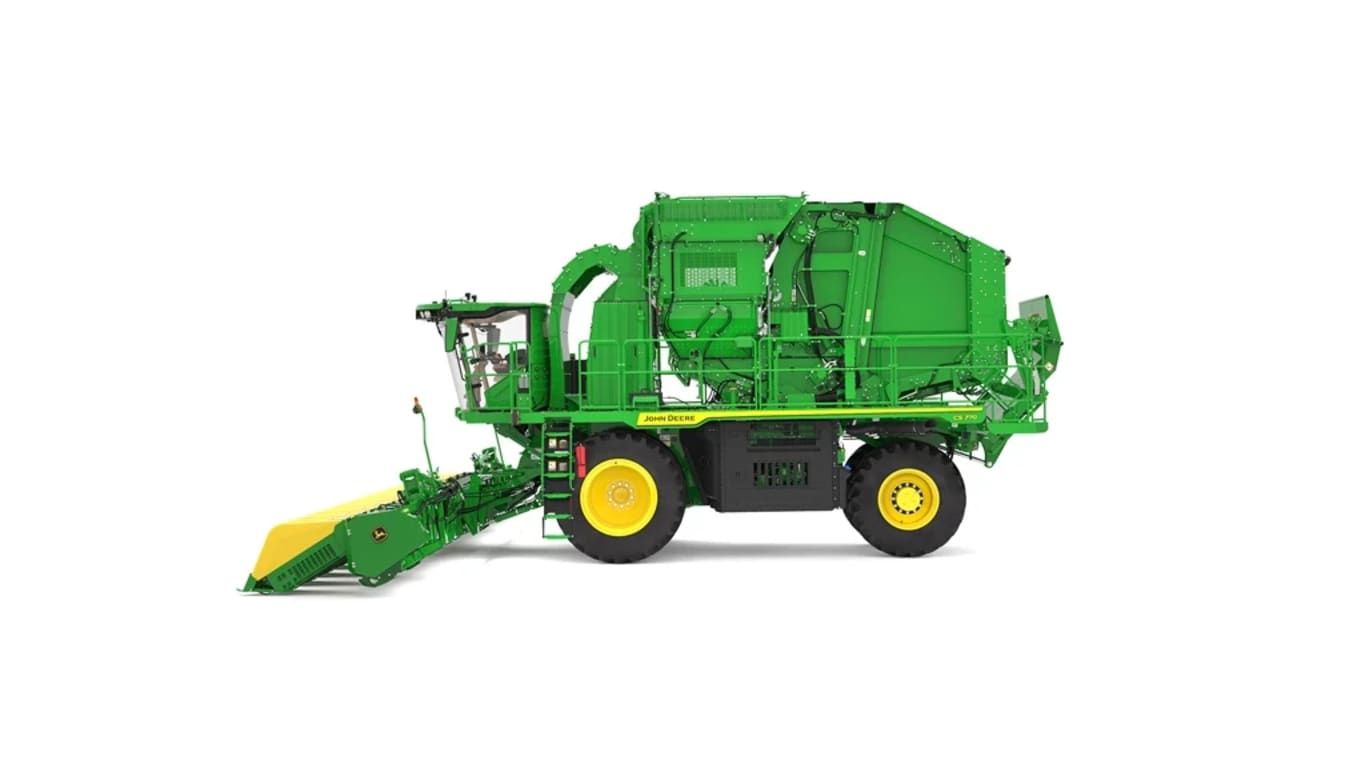

Round modules

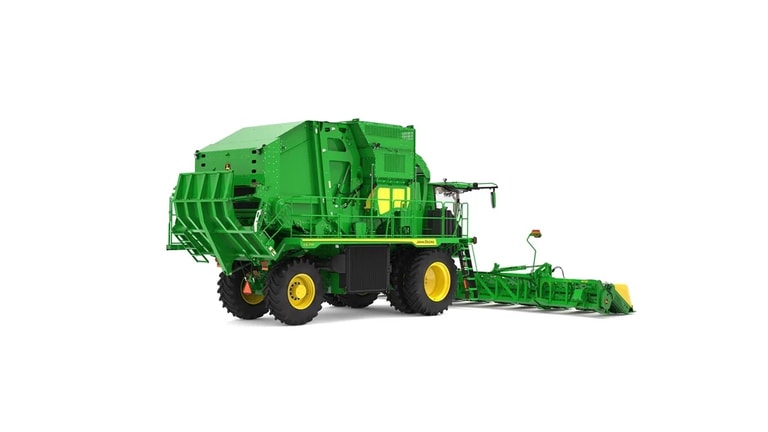

CS770 harvesting cotton

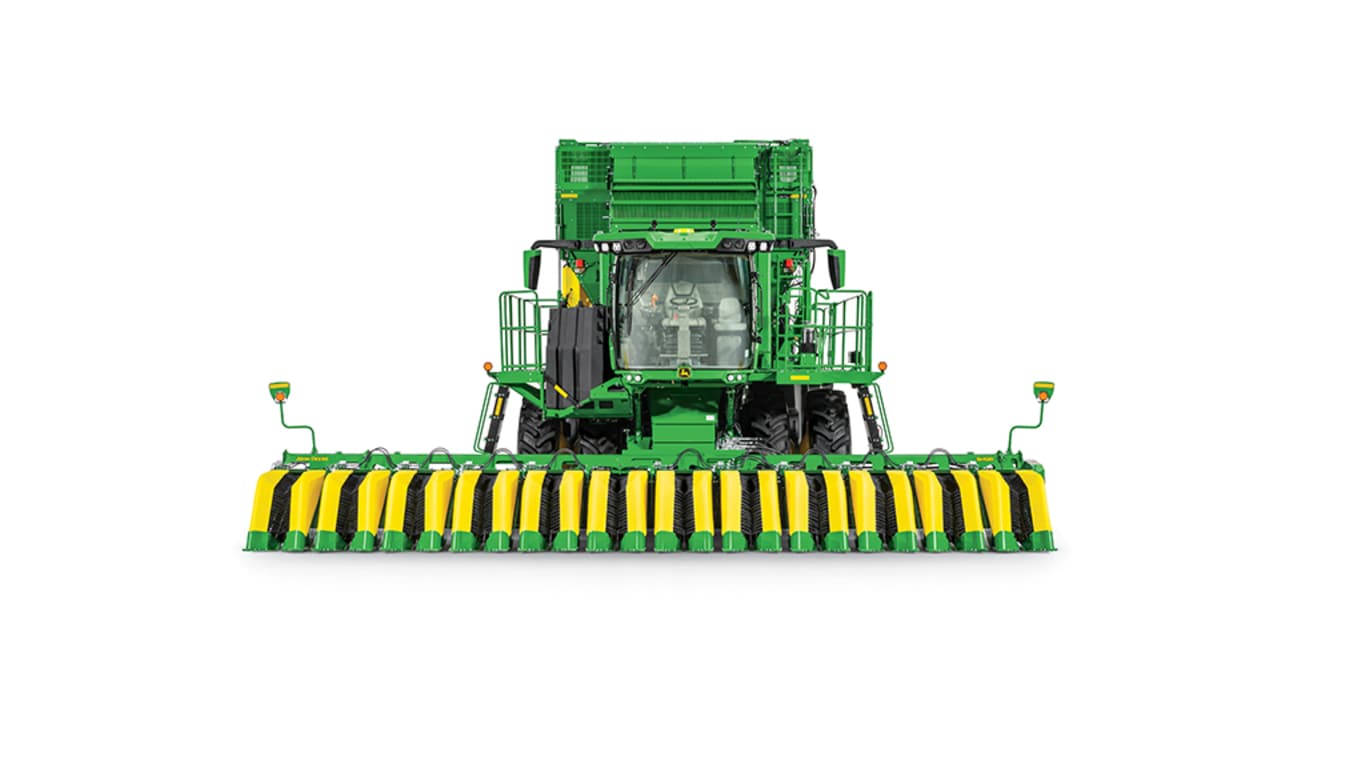

CS770 harvesting cotton by day

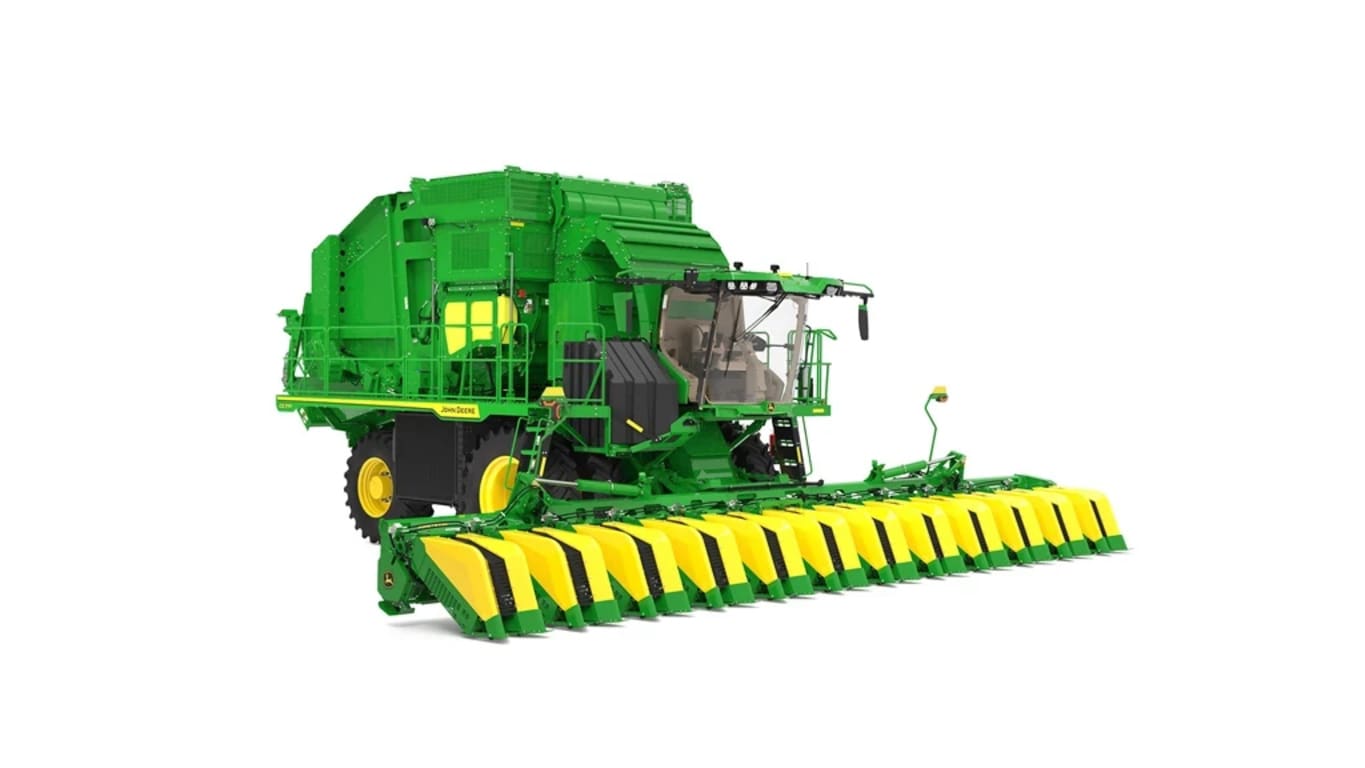

CS770 harvesting cotton at night
Three-drum onboard cleaner

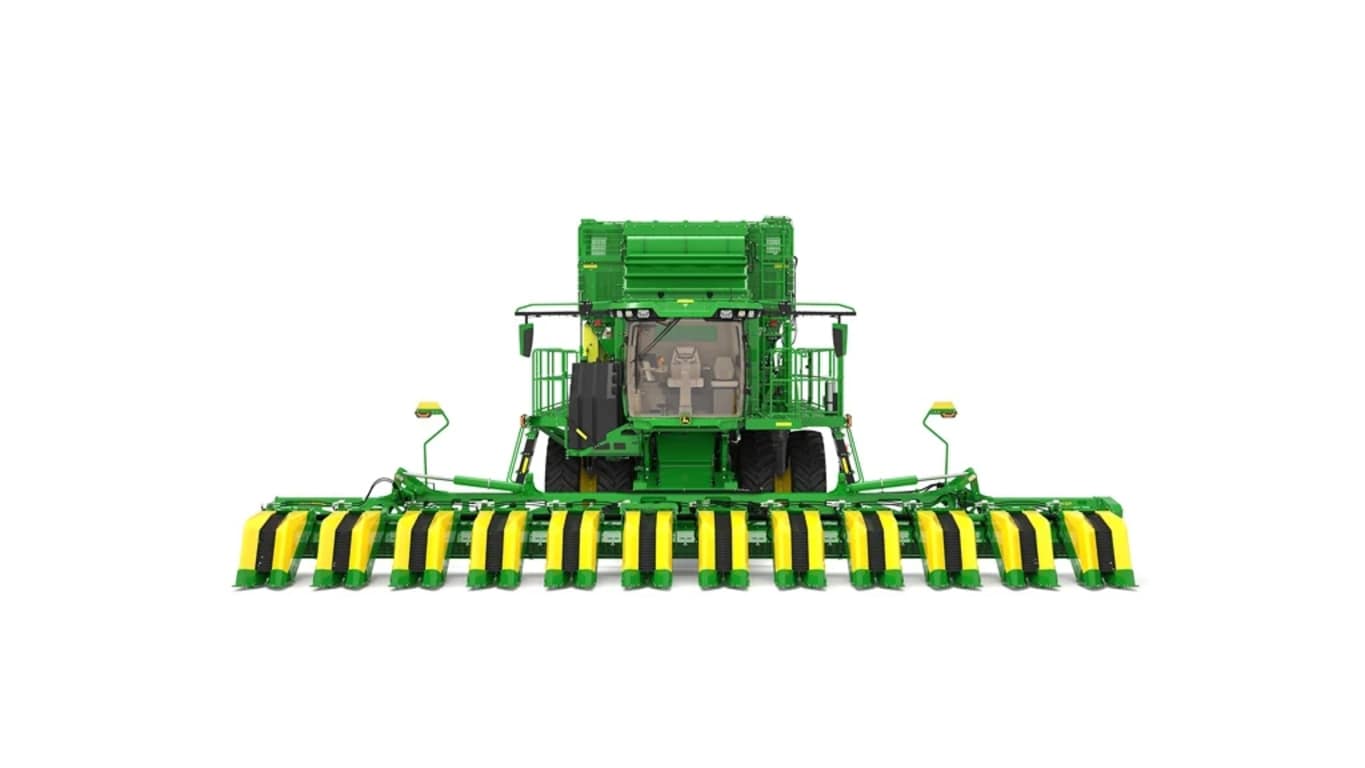

CS770 Cotton Picker harvesting cotton

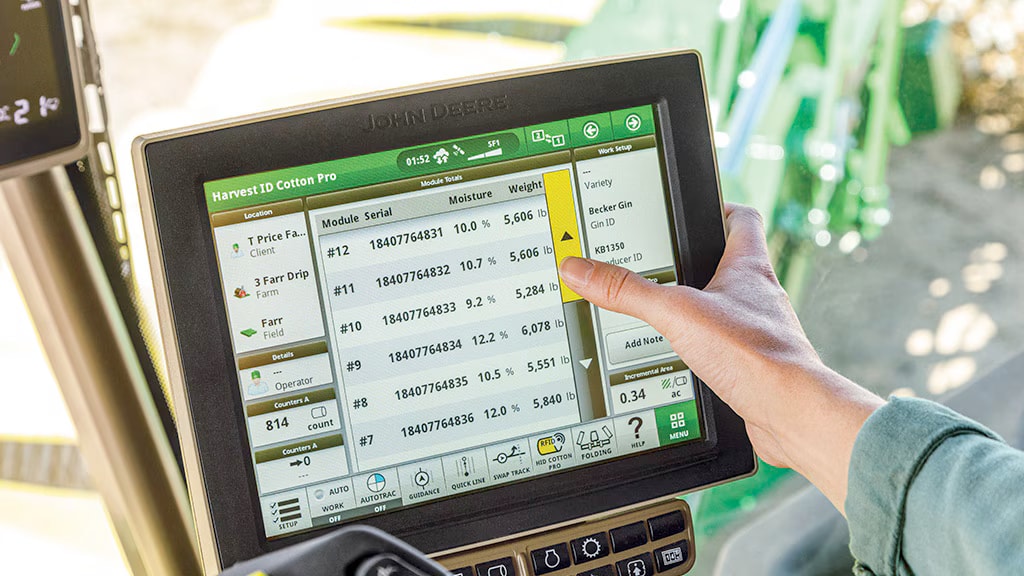

Harvest Identification, Cotton Pro run page
HID, Cotton Pro data in the John Deere Operations Center Field Analyzer tool
Field Analyzer with HID, Cotton Pro data
CP770 right-hand platform

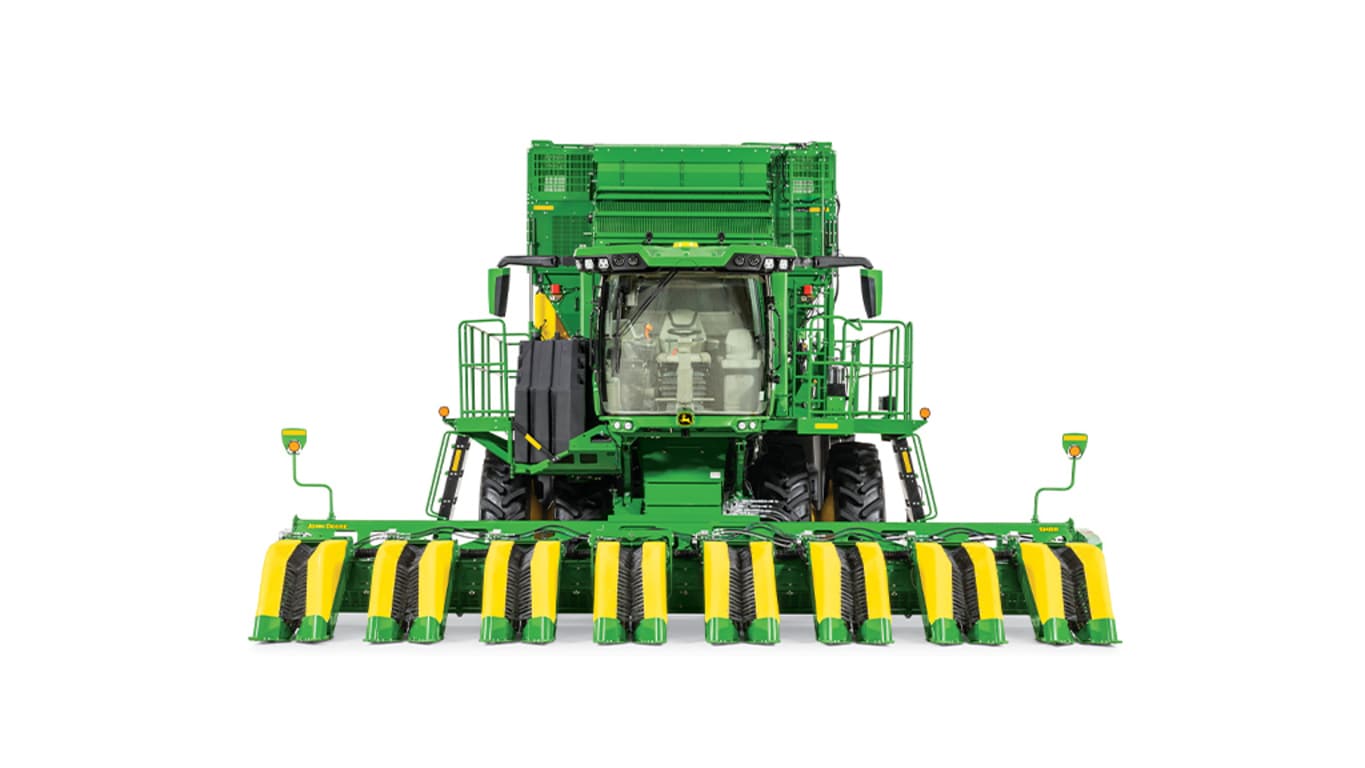

CS770 right-hand platform
C770 easy-open belly shields

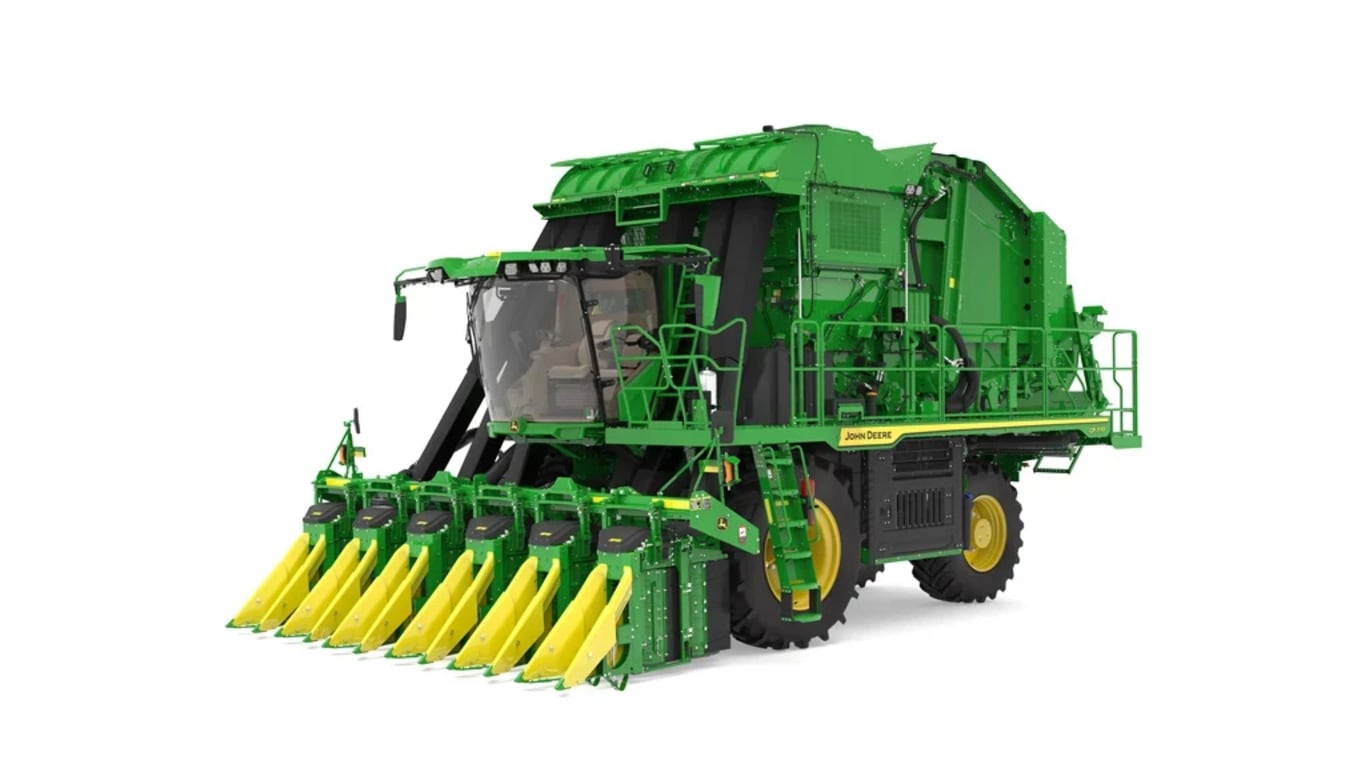

C770 cab
Inside the CP770 cab
Lower your harvest costs with more seed cotton per module
Round modules

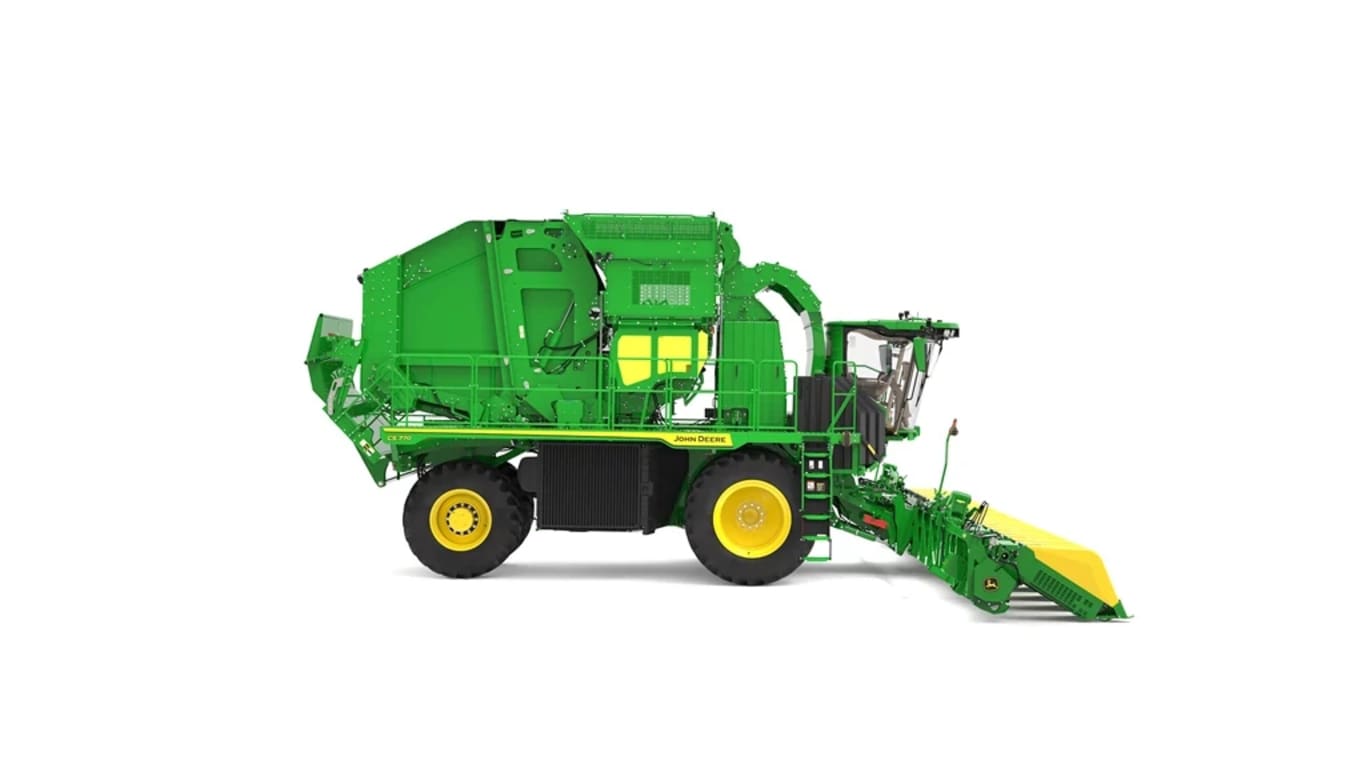

CS770 harvesting cotton
The CS770 helps lower wrap and hauling costs by 12 percent per lint pound through cleaner, denser, and larger diameter round modules. The TamaWrap+™ round module wrap protects your cotton from the harvester to the gin.
- 3 percent denser round modules – The second-generation cotton handling system packs more seed cotton in each round module than the previous model, lowering your yearly wrap costs.
- 2 percent larger diameter round modules – The CS770 updated round module builder allows you to make round modules from 229 cm to 244 cm (90 in. to 96 in.) in diameter. This increase in diameter puts even more cotton in the same portion of module wrap. When adding up wrap cost savings from denser and larger diameter round modules, you enjoy a reduction in wrap and hauling costs up to 12 percent per lint pound.
- Two-point increase in turnout – The three-drum, 190.5-cm (75-in.) wide field cleaner increases turnout by up to two points through increased cleaning, reduced seed cotton loss, and improved cleaning efficiency. Producers will visibly notice more burs, sticks, and plant material removed from the onboard cleaner in the field, which contributes to more seed cotton per module, meaning lower wrap, hauling, and ginning costs.
TamaWrap+ is a trademark of Tama Plastic Industry.
Harvest more modules per hour and more acres per day
CS770 harvesting cotton by day
CS770 harvesting cotton at night
John Deere knows how important it is for you to get your cotton out of the field to protect its quality. Therefore, 12-row headers were developed that increase transport speeds by 18 percent and reduce the time to wrap and eject a module by 33 percent. All this means you can cover up to an extra 40.5 ha (100 acres) in a 10-hour harvest day.
- Deliver maximum harvesting productivity – The CS770 Cotton Stripper can be equipped with an eight-row, 12-row narrow, or a 12-row wide stripper header. The SH12F wide row stripper header increases productivity up to 48 percent in dryland cotton compared to the CS690 it replaces.
- Increased turnout with the high-capacity cleaner – The three-drum onboard field cleaner removes more burs, sticks, and plant material than the previous cotton stripper. This impressive field cleaner improves cleaning efficiency by 10 percent or more to deliver the cleanest seed cotton to the round module. This field cleaner delivers results that lower wrap cost and reduce hauling and ginning costs.
- Increased throughput with the Generation 2 cotton handling system – The next-generation module handling system cuts the module wrap-eject cycle time by 33 percent from 48 seconds to 32 seconds, allowing you to stay at harvest speed in higher yielding cotton while making every harvest day more productive.
- Transport faster between fields – You and your operators will appreciate the increased transport speed with the ProDrive™ transmission. You can run from field to field at 32.2 km/h (20 mph), an 18 percent increase over the CS690.
Three-drum onboard cleaner
Power through harvest while using less fuel
CS770 Cotton Picker harvesting cotton
The CS770 Cotton Stripper was designed to make you more productive while reducing fuel costs by up to 15 percent per lint pound of seed cotton harvested. Teamed with the engine, the variable pitch reversible fan uses less power, and the updated hydraulic system is more efficient - all contributing to the reduction in fuel usage.
- 15 percent better fuel efficiency per lint pound of seed cotton harvested – Run 12 hours without stopping for fuel and enjoy fuel savings up to 15 percent or more as measured in gallons per lint pound. The John Deere JD14P 13.6L (830-cu in.) engine runs at 1900 rpm during harvest, reducing fuel usage, noise, and wear.
- Reduce cooling power requirements – Variable pitch fan blades automatically adjust to cooling needs, reducing the horsepower needed to cool the radiators. By adjusting the angle of the cooling fan blades, the airflow is reversed to clean the radiators without operator input, keeping you more productive harvesting your crop.
- Dry sump hydraulic system reduces parasitic loss – The updated hydraulic system features a dry sump design that reduces parasitic loss to improve fuel efficiency. Another feature of this system you will appreciate is the ease of checking hydraulic oil level in one location compared to three separate locations on the previous harvester.
Track modules and protect fiber quality with Harvest Identification, Cotton Pro
Harvest Identification, Cotton Pro run page
Overview
Harvest Identification, Cotton Pro (HID, Cotton Pro) ensures each of your round modules are tracked from the field and the information is available to share with your trusted partners, such as your cotton ginner, seed sales representative, and agronomist. This information also helps with logistics from field to gin.
- View every round module made in your fields – HID, Cotton Pro tracks each round module harvested in your field and provides pertinent information on the HID, Cotton Pro run page. You can easily track moisture and weight for each module and make decisions on when to start and end harvest to protect your cotton quality.
- Add a note to a module with a touch of a button – Adding a note to a module is easier than ever with the touch of a button on the HID, Cotton Pro run page. These notes are documented and shared with the cotton gin when your HID, Cotton Pro data is shared from John Deere Operations Center.
- Easily view module attributes with John Deere Operations Center™ – John Deere offers multiple tools to manage, visualize, and share your cotton production systems data in John Deere Operations Center. Utilize the Analyze tool to view and export a macro-level spreadsheet of your recent and historical harvest data. Field Analyzer is your tool to dig deeper and view high-resolution yield data and HID, Cotton Pro data where each module is displayed in its creation location in each field along with weight and moisture information.
Producer benefits
- Merge module data with yield mapping to visualize trends
- Enable traceability across farms, fields, and operators
- Easily view module attributes within John Deere Operations Center web and mobile
- Improved communication with the gin
- Prioritize module movement
- Accountable records
Ginner benefits
- Forecast what is coming from the field before arrival
- Increased accuracy of inventory records
- Gin the right cotton at the right moisture at the right time
- Trace movement of modules from point of entry at the gin yard to feed floor
- Plan ginning schedule with more accurate moisture data
HID, Cotton Pro data in the John Deere Operations Center Field Analyzer tool
Field Analyzer with HID, Cotton Pro data
Easy daily service to keep you in the field longer
CP770 right-hand platform
CS770 right-hand platform
Daily maintenance and cleaning are easier than ever on the C770 Cotton Harvesters. You will appreciate the full access doors on the power module, extended platforms, and easy-open belly shields – all features to reduce the time it takes to maintain and clean the harvester.
- Reduce time spent cleaning the harvester – Your time is important, and John Deere listened to your feedback in making the harvester easier to clean. You will appreciate all the changes to make cleaning faster than the C690 Harvesters, especially the easy-to-open belly shields that are opened by two levers from ground level.
- Easy daily maintenance – Checking oil is easy with a convenient single hydraulic oil sight gauge and a large access door for the engine oil dipstick. Additional service lights are positioned to provide extra visibility when cleaning and performing maintenance.
C770 easy-open belly shields
All-day comfort in the industry-leading cab
C770 cab
Inside the CP770 cab
All C770 Cotton Harvesters provide a quiet, comfortable ride with visibility, control, and convenience unmatched in the industry. Choose from two Comfort and Convenience packages to find a cab that fits you best.
- 30 percent larger cab offers more room and a quiet oasis during harvest – The cab on the C770 Cotton Harvesters is 30 percent larger than the cab on the C690 Harvesters. You’ll love the convenience of five cup-holders, an accessory rail with an iPad® tablet mount, USB and power outlets, and closed storage. Also, you will find this is the quietest cab ever offered on a John Deere cotton harvester, quiet enough to take a phone call without worry.
- Leather seat with massage, heating and cooling, electronic controls, and increased swivel (up to 16 degrees left and right) – When you sit down in the plush leather seat, the long days and nights won’t seem so long. Activate the heating or cooling features to make your time in the seat even more enjoyable, but don’t forget about the massaging feature. This feature makes sure your muscles never get sore so that at the end of the day, you are as refreshed as when you started harvest.
- Smooth out 90 percent of vertical movements with ActiveSeat™ equipment suspension – The electric motor responds instantly to the ruts, bumps, and jolts, delivering an unbelievably comfortable ride. While you’re harvesting more acres per hour, you’ll stay refreshed and alert.
- Get unmatched visibility – The 360-degree light-emitting diode (LED) lighting package turns night into day, making harvesting during the night a pleasure. There are front and right-hand side wipers to clean the windows when they become dusty. Two factory-installed cameras are included (one rear facing and one mounted in the round module builder) with the field-installed Upper Accumulator Camera in base and the option of adding an additional camera to provide the ultimate visibility during harvest.
iPad is a trademark of Apple Inc.
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere CS770 Cotton Stripper |
Key Specs
| Engine | Rated power 384 kW 515 hp Power boost 24.6 kW 33 hp John Deere JD14P 13.6 L 830 cu in. |
|||
|---|---|---|---|---|
| Module shape | Round/cylindrical | |||
| Module dimensions | Diameter up to 244 cm 96 in. Width up to 239 cm 94 in. |
|||
| Module weight | 1,995-2,449 kg 4,400-5,400 lb |
|||
| Configurations | Number of rows Eight or twelve SH8R, SH12R, SH12F |
|||
| On-board cleaner | Type Three drum Yes |
Power train
| Engine | Emission level Stage IIIA and Final Tier 4 (FT4) Rated speed 1900 rpm Rated power 384 kW 515 hp Maximum power 422 kW 566 hp Power boost 24.6 kW 33 hp Displacement 13.6 L 830 cu in. Cylinders Six Turbocharged/aftercooled Yes Alternator Single 330 amp John Deere JD14P 13.6 L 830 cu in. |
|||
|---|---|---|---|---|
| Cooling system | Variable pitch reversible fan Yes Ground-level access to coolers Yes |
|||
| Fuel system | Type Electronic unit direct injection Governor Electronic On-board diagnostics Yes |
|||
| Transmission | Gears Two range Field mode 1 (4WD) 0 to 8.1 km/h 0 to 5 mph Field mode 2 (4WD) 0 to 14.5 km/h 0 to 9 mph Field transport mode 3 (4WD) 0 to 14.5 km/h 0 to 9 mph Road transport mode 4 (4WD) 0 to 32.2 km/h 0 to 20 mph ProDrive™ automatic-shift (AST) |
|||
| Hydrostatic system | Type Hydrostatic/mechanical drive Wet, multiple disc |
|||
| Brakes | ||||
| Tires | Standard drive tire 520/85R42 (20.8R42) R1W Dual wheels Yes Dual tire size (standard) 520/85R42 (20.8R42) R1W Standard steering tire IF580/80R34 R1W |
|||
| Rear wheel drive | Yes (full time) |
Basket
| Capacity | ||||
|---|---|---|---|---|
| Dump height | ||||
| Conveyor | ||||
| Compaction |
On-Board Module Builder
| Module Shape | Round/cylindrical | |||
|---|---|---|---|---|
| Module Dimensions | Diameter up to 244 cm 96 in. Width up to 239 cm 94 in. |
|||
| Module Weight | 1,995.8-2,449.4 kg 4,400-5,400 lb |
|||
| Unload on-the-go | Yes | |||
| Wrap system carrying capacity | 120 portions |
Row units
| Configurations | Number of rows Eight or twelve Spacings 76.2, 81.3, 91.4, 96.5, 101.6 cm 30, 32, 36, 38, 40 in. SH8R, SH12R, SH12F |
|||
|---|---|---|---|---|
| Stripping units | Style Bat/brush stripping units Unit drive protection Slip clutch – one per unit |
|||
| Row guidance | Manual RowSense™ system / AutoTrac™ RowSense system | |||
| On-board cleaner | Type Three drum Drum diameter 33.7 cm 13.25 in. Drum width 190.5 cm 75 in. Bypass system Yes Yes |
|||
| Tank capacities | Fuel tank 1,022 L 270 gal. Water solution tank 257 L 68 gal. Diesel exhaust fluid tank 104.4 L 27.5 gal. |
|||
| Hydraulic system | Pump type Pressure/ flow compensated Pressure 210 bar 3,050 psi Flow 223 L/min 59 gpm |
Dimensions
| Lengths | Overall length 11.1 m 36.5 ft Wheelbase 4.3 m 14.2 ft |
|||
|---|---|---|---|---|
| Heights | Transport Position 4.8 m 15.7 ft Full Height Position 5.3 m 17.5 ft |
|||
| Weight (4-row) | Less Header 27,300 kg 60,200 lb SH8R - 8-row rigid (8-row, 101.6 cm [40 in.]) 30,481 kg 67,200 lb SH12R - 12-row rigid (12-row, 76.2 cm [30 in.]) 31,797 kg 70,100 lb SH12F - 12-row folding (12-row, 101.6 cm [40 in.]) 32,477 kg 71,600 lb |
Additional information
| Date collected | 2-Aug-2021 |
|---|
