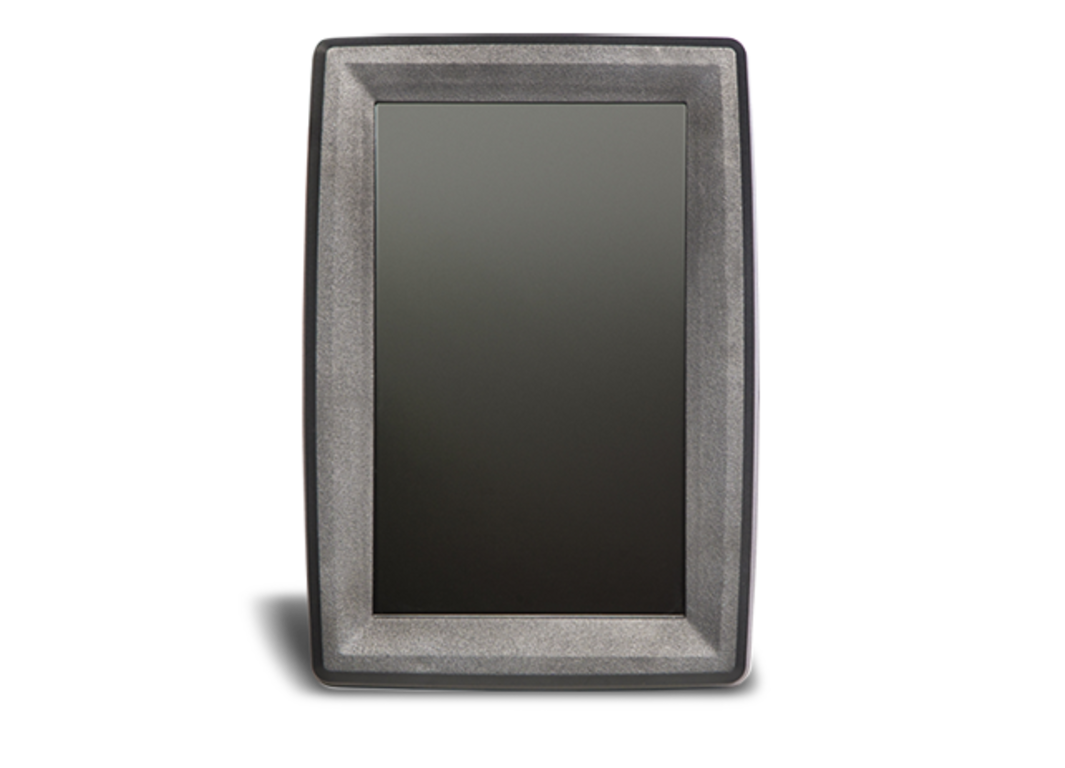

Integrated Displays

  • 7” diagonal TFT LCD
  • Color WVGA (800 x 480) active matrix
  • Sunlight readable, LED backlighting
  • Luminance 700 cd/m2
  • Contrast ratio 500:1
  • Horizontal viewing angle +/- 60°
Print

Features

User Interface Characteristics

  • 7” diagonal TFT LCD
  • Color WVGA (800 x 480) active matrix
  • Sunlight readable, LED backlighting
  • Luminance 700 cd/m2
  • Contrast ratio 500:1
  • Horizontal viewing angle +/- 60°

Electronics Platform

  • 32-bit softcore microprocessor
  • 128 MByte maximum application code flash memory
  • 256 MByte maximum DDR II
  • 16 Kbit EEPROM
  • J1939 CAN
  • Alarm driver and wake output
  • Crank development software

Applications

Crank storyboard architecture is made up of applications composed of a hierarchy of model elements: Screens, layers and controls.

Specifications

Environmental Specifications

  • Operating Temperature: -30°C to 70°C
  • Survivable Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Operating Humidity: 0-95%, at ≤ 40°C
  • Electrostatic Discharge: 8 kV Contact Discharge
  • EMC Immunity: 200 mA BCI from 500 kHz to 400 MHz and 100 V/m from 400 MHz to 1 GHz
  • EMC Emissions: Meets ISO 14982

Operational Specifications

  • Operating Voltage: 12 V or 24 VDC systems (wide range ofoperation 9 V to 32 V)

Communications & I/O

  • Network Communications: J1939 CAN Communications
  • Video Input: NTSC/PAL Video Input
  • Alarm: Alarm Driver Output
  • Output: Wake Output
  • Debug: RS-232 Debug Port
  • Mating Connector: Delphi GT150 Sealed Series, Delphi P/N 15326856
