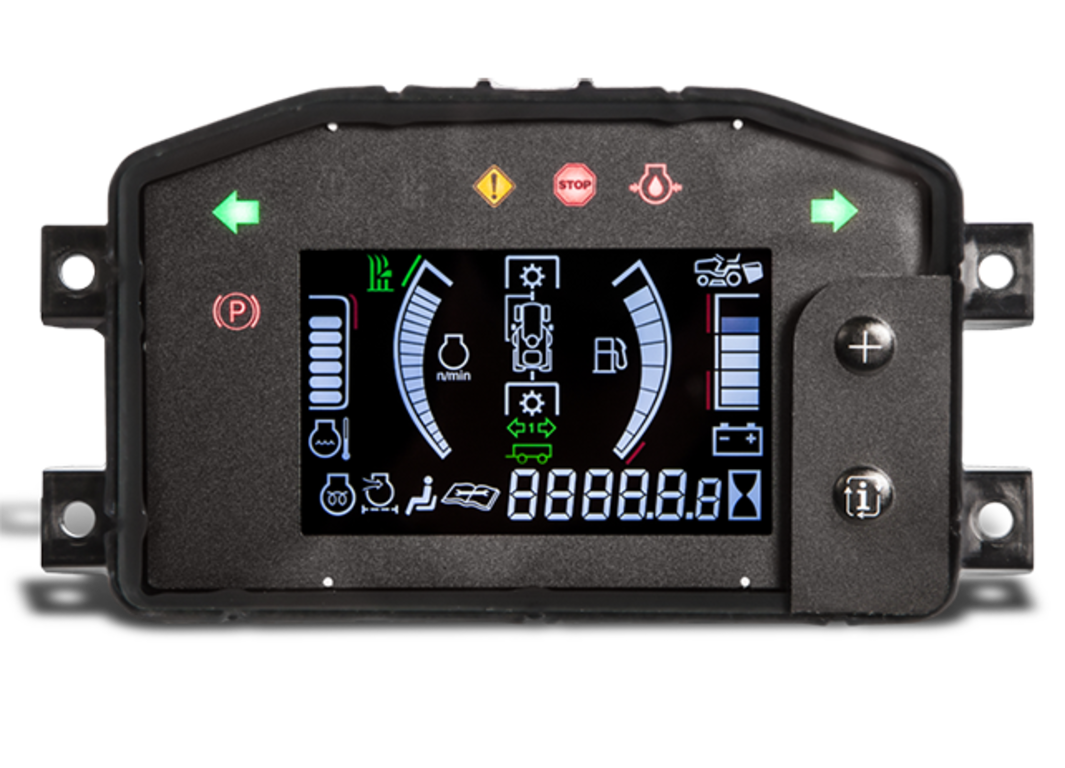

DF4.6-L

-60 mm x 100 mm TN LCD Display with 120 fixed segments

-Three frequency inputs

-LED backlighting

-Two analog inputs

-Nineteen digital inputs

-Eleven telltale icons

-Two tactile button
Print

Electronics Specifications

  • XC2263N Infineon microcontroller
  • 320 Kbyte Maximum application code flash Memory
  • 32 Kbyte maximum RAM
  • 2 Kbyte EEPROM
  • J1939 CAN communications
  • Nineteen digital inputs
  • Two analog inputs
  • Three frequency inputs
  • Eight high side driver outputs
  • One magneto kill output
  • Segmented PMVA display
  • LED backlighting
  • Eleven telltale icons
  • Two tactile button

Environmental Specifications

  • Operating Voltage: 9-16 volts
  • Operating Temperature: -30oC to 70oC
  • Survivable Temp Range: -40oC to 85oC
  • Storage Temp Range: -40oC to 85oC
  • Operating Humidity: 0-95%, at ≤ 40oC
  • Reverse Polarity Protection: Yes
  • Electrostatic Discharge: 8 kV Contact Discharge
  • EMC Immunity: 200 mA BCI from 500 kHz to 400 MHz and 100 V/m from 400 MHz to 1 GHz
  • EMC Emissions: Meets ISO 14982

Additional Specifications

  • Operating Voltage: 9-16 volts
  • Network Communications: J1939 CAN Communications
  • Mating Connector: Molex MX150 20 pin connector part number 334722001
