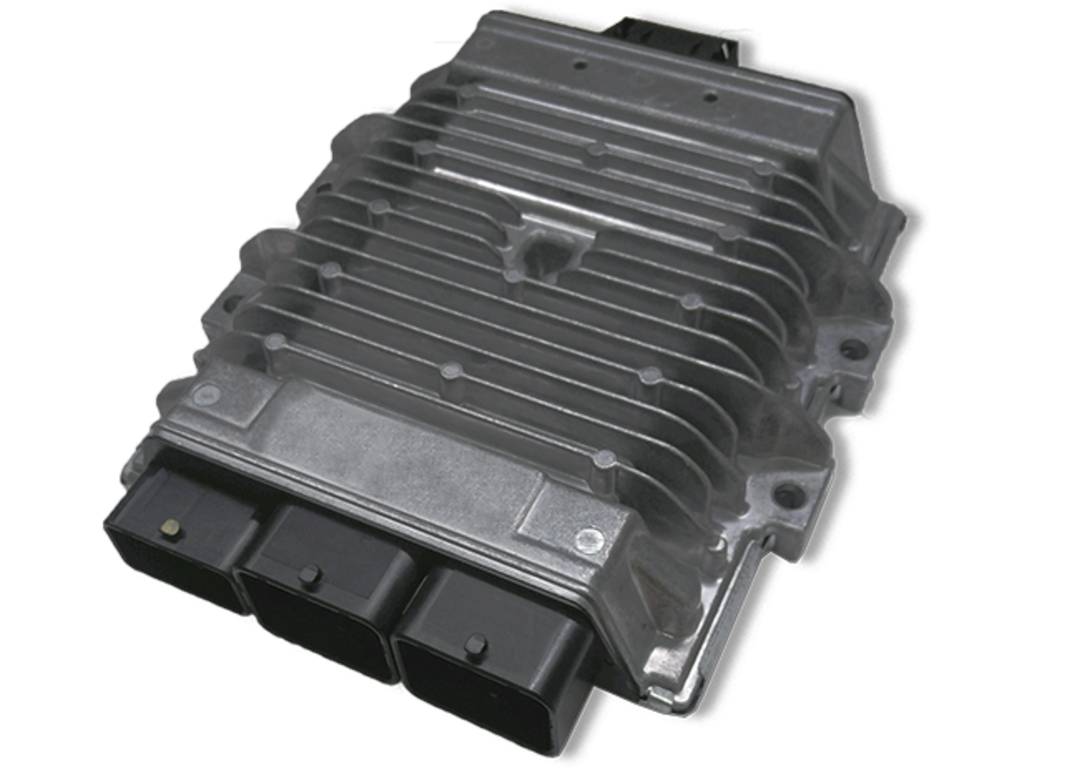

M-700

  • Micro:   Infineon XC2287-96F80  @ 64 MHz
  • Memory:   External Flash – 256K x 8
  • Internal Flash – 768kB Internal Ram – 82KB
  • External SRAM – 64K x 16
  • Communications:   3 CAN (11 or 29 bit) LIN (optional)
Print

Inputs

66 external switch inputs (7 direct coupled frequency inputs possible)

  • 7 5V, 2.21 kΩ pull up (PU)
  • 3 High Current PU to Switched Battery
  • 8 High Current pull down (PD) with wake-up
  • 2 High Current PD
  • 16 Software selectable PU/PD
  • 33 PD, software selectable current

 Analog Inputs: 26 external analog inputs with 2 pole low pass filter

  • 19 PD, 100 kΩ
  • 3 1.2 kΩ PD Divide voltage by 4
  • 1 PD 47 kΩ, 1 PD 50 kΩ (special filter)
  • 1 PU to switched battery 1.2 kΩ, 1 PU to 2 kΩ

Outputs

 Current Controller Outputs:
  • 1 CC HSD, LSD pair 2.2 amp (+/- 1.5% accuracy (dither frequency 50 to 200 Hz))
  • 1 CC HSD, LSD pair 1.1 amp (CC off state less than 1mA (dither frequency 50 to 200 Hz))

High Side Driver Outputs: 27 High Side Drivers

  • 5 HSD 0.6 amp
  • 8 HSD 2.5 amp, 4 with flyback protection
  • 10 HSD 7 amp, 5 with flyback protection
  • 4 HSD 12 amp, 2 with flyback protection

Other

  • Outputs 1 ID output
  • 7 LSD, 0.5 amp
