Blade and Scraper Attachments for John Deere

Blades and Scrapers for Construction Equipment

Dozer Blades

The rugged design of these blades delivers maximum uptime in a wide variety of tasks – from stripping clay to finish grading. Snow/utility blades provide additional productivity in snow removal and light dirt work and the blade oscillates 5 degrees, right or left.  These dozer blades are optimized to work with John Deere skid steers loaders, compact track loaders, and compact wheel loaders.

Download Blades Brochure >

ModelWeightOverall Width

DB84 Dozer Blade

1,550 lb. (703 kg)

84.0 in. (2133 mm)

DB96 Dozer Blade

1,625 lb. (737 kg)

96.0 in. (2438 mm)

Snow/Utility Blades

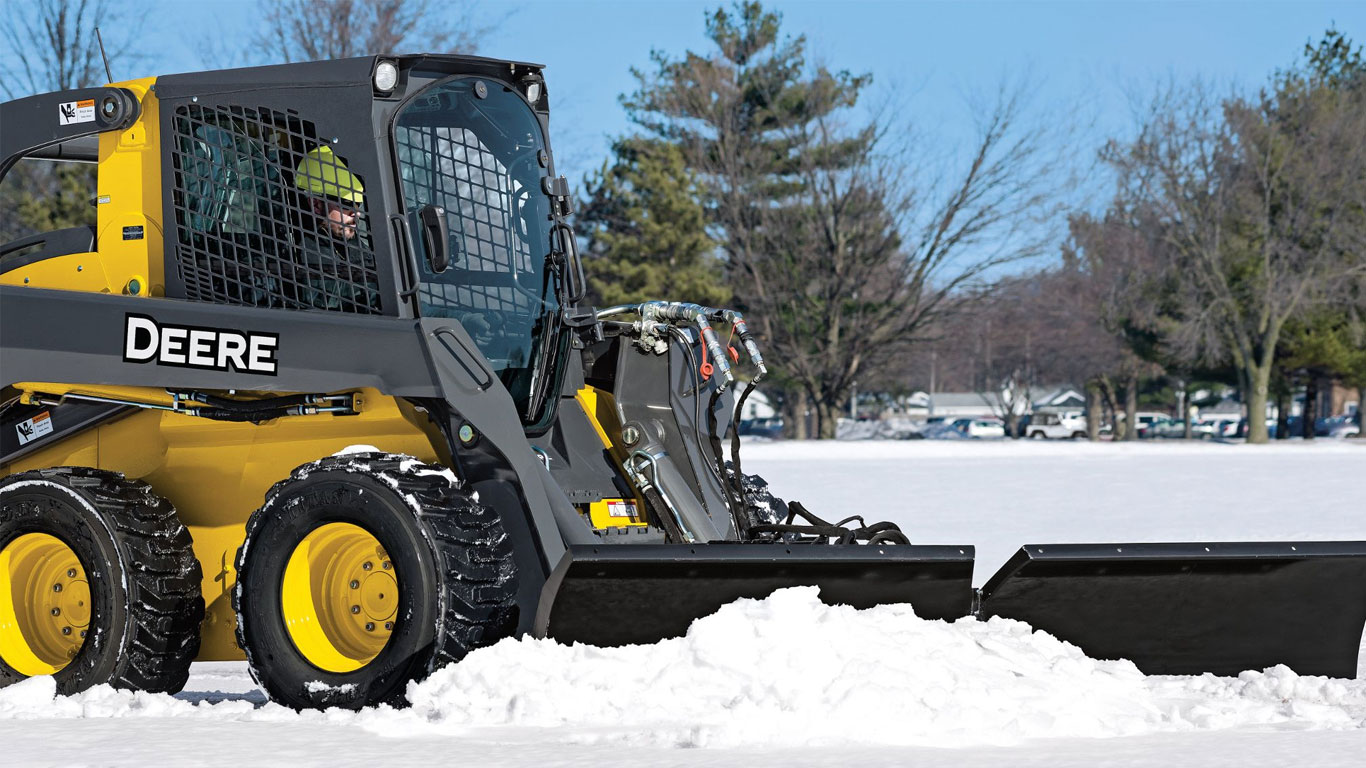

John Deere snow/utility blades provide additional productivity in snow removal and light dirt work. Blade angles hydraulically 30 degrees, right or left and oscillates 5 degrees, right or left.  These blades are optimized to work with John Deere D-Series Skid Steers and Compact Track Loaders . They’re also compatible with many competitive models.

Download Snow/Utility Blades Brochure >

ModelWeightAngled WidthWidth

BL6B Snow/Utility Blade

432 kg (954 lb.)

1575 mm (62 in.)

1829 mm (72 in.)

BL7B Snow/Utility Blade

461 kg (1016 lb.)

1829 mm (72 in.)

2134 mm (84 in.)

BL8B Snow/Utility Blade

489 kg (1078 lb.)

2108 mm (83 in.)

2438 mm (96 in.)

BL9B Snow/Utility Blade

512 kg (1128 lb.)

2362 mm (93 in.)

2743 mm (108 in.)

BL10B Snow/Utility Blade

540 kg (1190 lb.)

2591 mm (102 in.)

3048 mm (120 in.)

Snow/Utility V-Blades

John Deere snow/utility V-blades provide multifunction versatility for snow removal and light dirt work. Blades angle hydraulically to four positions: straight for larger cuts, V-configuration for pushing through hard pack, scoop (both sides inward) for easy snow stacking, and 30 deg. right or left. These V-blades are optimized to work with John Deere G-Series Skid Steer Loaders and Compact Track Loaders, and L-Series Compact Wheel Loaders. They’re also compatible with many competitive models.

Download Snow/Utility V-Blades Brochure >

ModelWeightWidth (Straight)Width (V-Configuration)

BV6 Snow/Utility V-Blade

441 kg (972 lb.)

1880 mm (74 in.)

1638 mm (64.5 in.)

BV8 Snow/Utility V-Blade

480 kg (1,058 lb.)

2489 mm (98 in.)

2172 mm (85.5 in.)

BV9 Snow/Utility V-Blade

500 kg (1,102 lb.)

2794 mm (110 in.)

2438 mm (96 in.)

Scrapers

Rubber cutting edges are ideal for work on hard surfaces and standard pull-back edge works well for cleaning out corners.  These scrapers are optimized to work with John Deere skid steers and compact track loaders.  Push or scrape manure, mud, light snow, or other wet and sloppy materials.

Download Scrapers Brochure >

ModelWeightWidth

MS60 Scraper

458 lb. (208 kg)

60 in. (1524 mm)

MS72 Scraper

516 lb. (234 kg)

72 in. (1829 mm)

MS84 Scraper

589 lb. (267 kg)

84 in. (2134 mm)

MS96 Scraper

656 lb. (298 kg)

96 in. (2438 mm)

Box Blades

Push-pull design moves the material for fine grading.  These Level Best box blades are optimized to work with John Deere skid steer loaders and compact track loaders.  They're also compatible with most competitive models.

Download Box Blades Brochure >

ModelWeightWidth

PD-72 Box Blade

1,885 lb. (855 kg)

75.2 in. (1910 mm)

PD-84 Box Blade

1,935 lb. (878 kg)

87.2 in. (2220 mm)

PD-96 Box Blade

1,985 lb. (900 kg)

99.2 in. (2520 mm)

In the Field

Quick-Tatch Attachment System for John Deere

Quik-Tatch™

With our universal, self-cleaning Quik-Tatch easy-attachment system, you can switch from one type of attachment to another in no time flat.

How to Buy

Start by contacting your dealer directly. Or check out our complete line of compact equipment to pair with our attachments.
