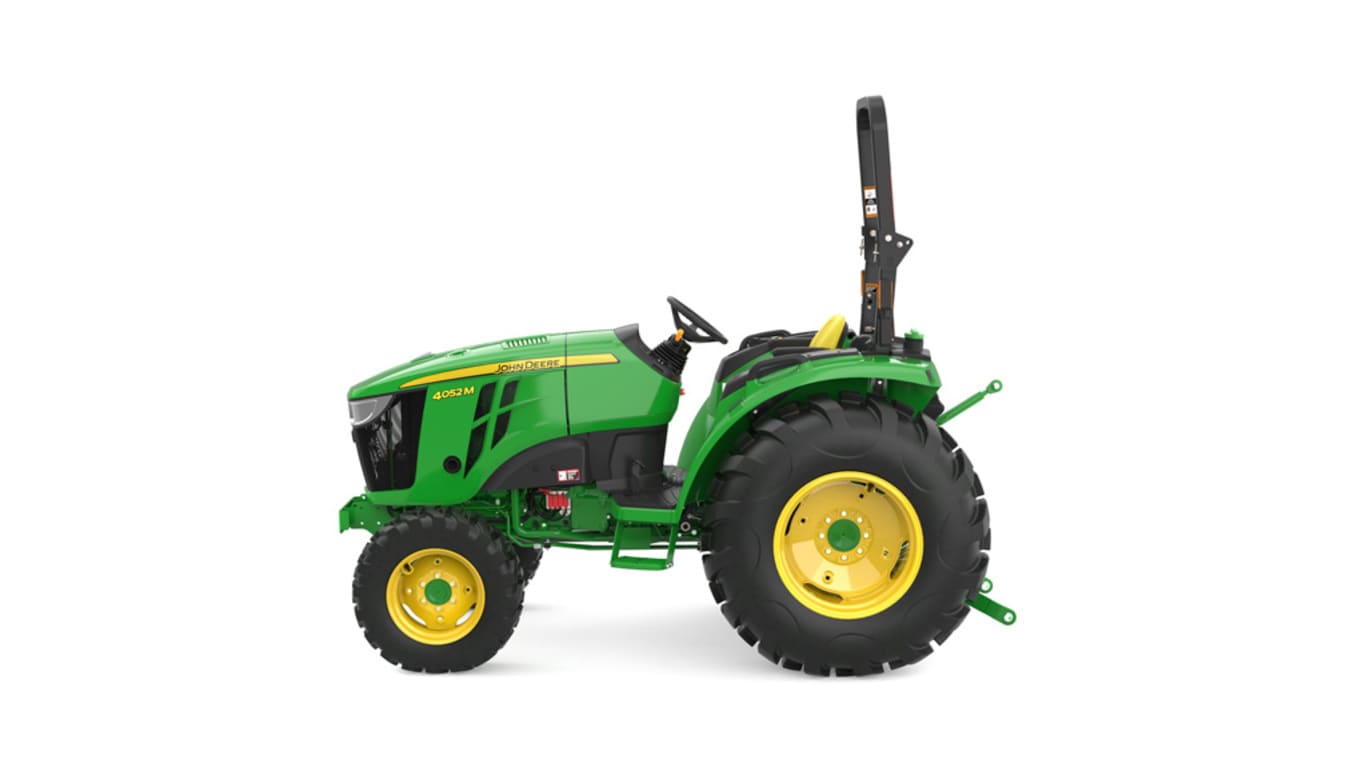

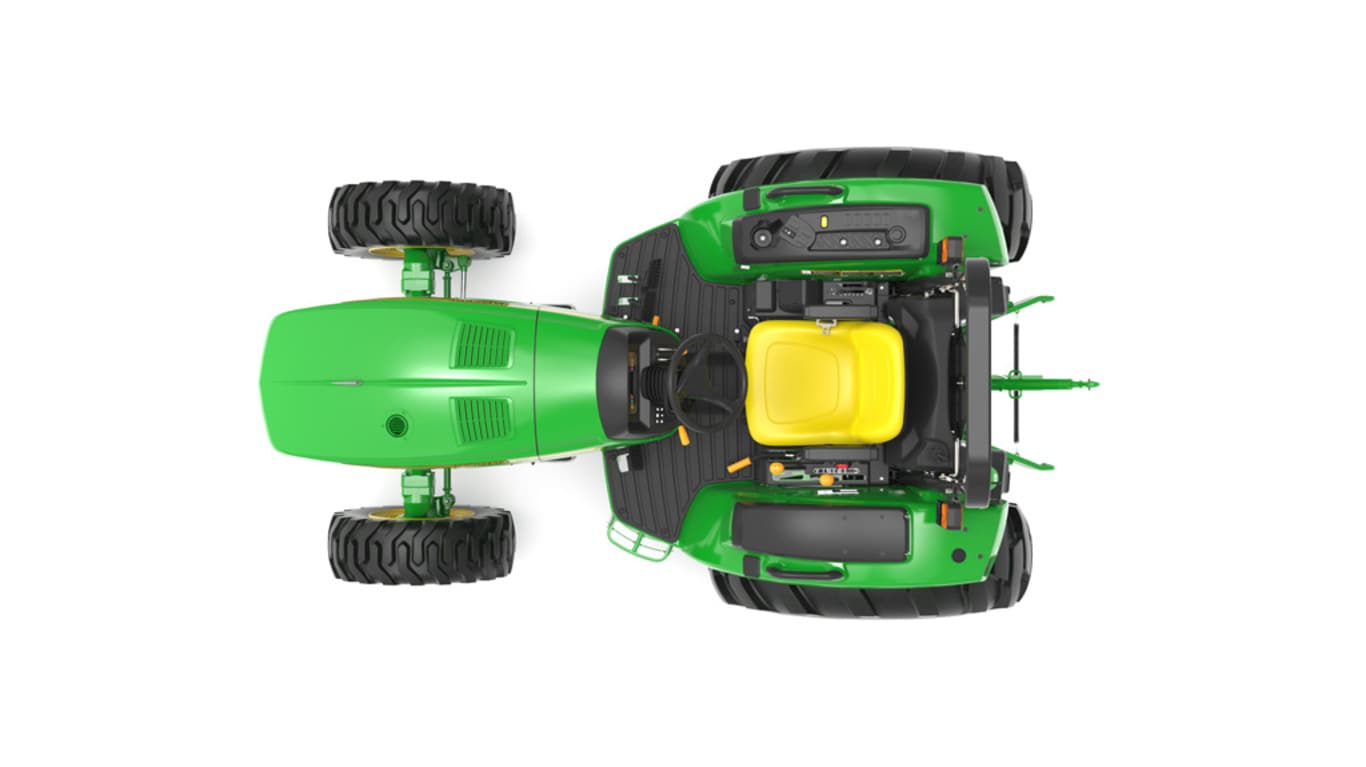

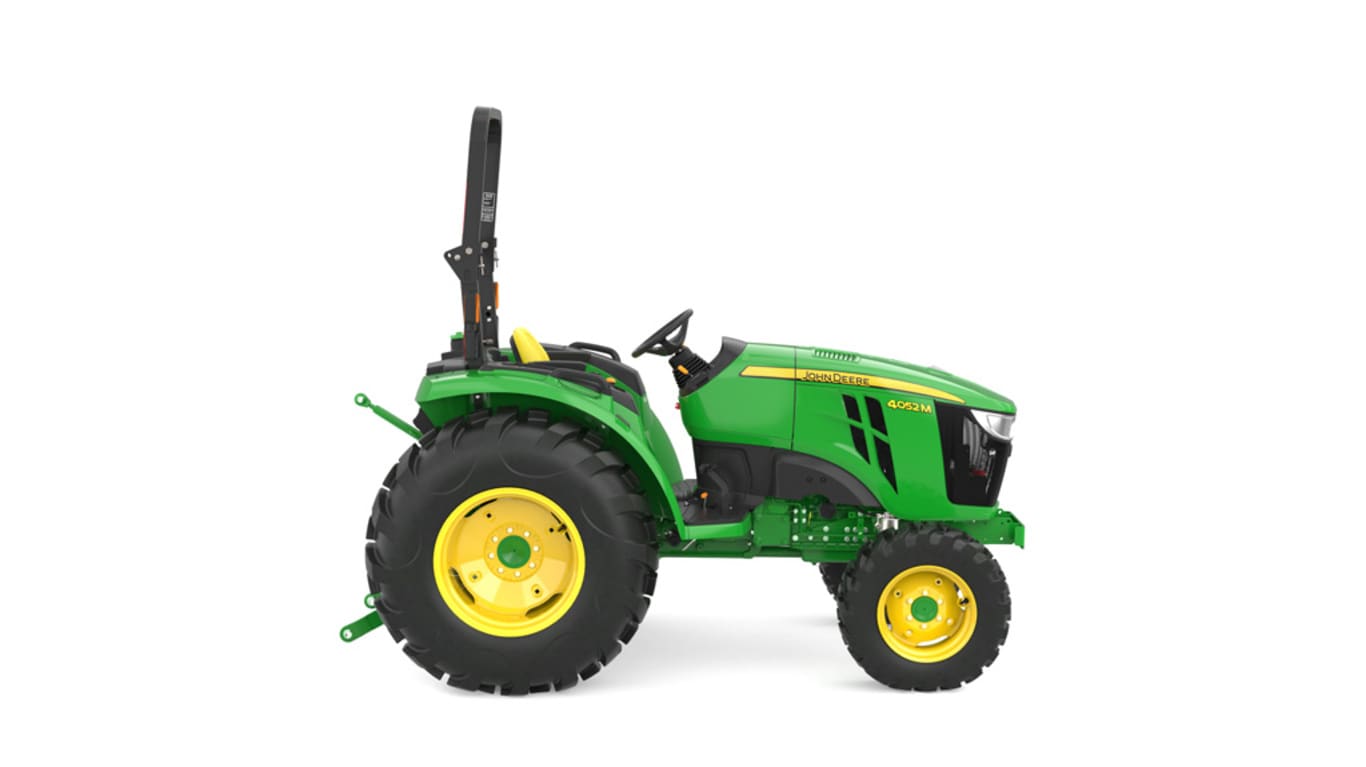

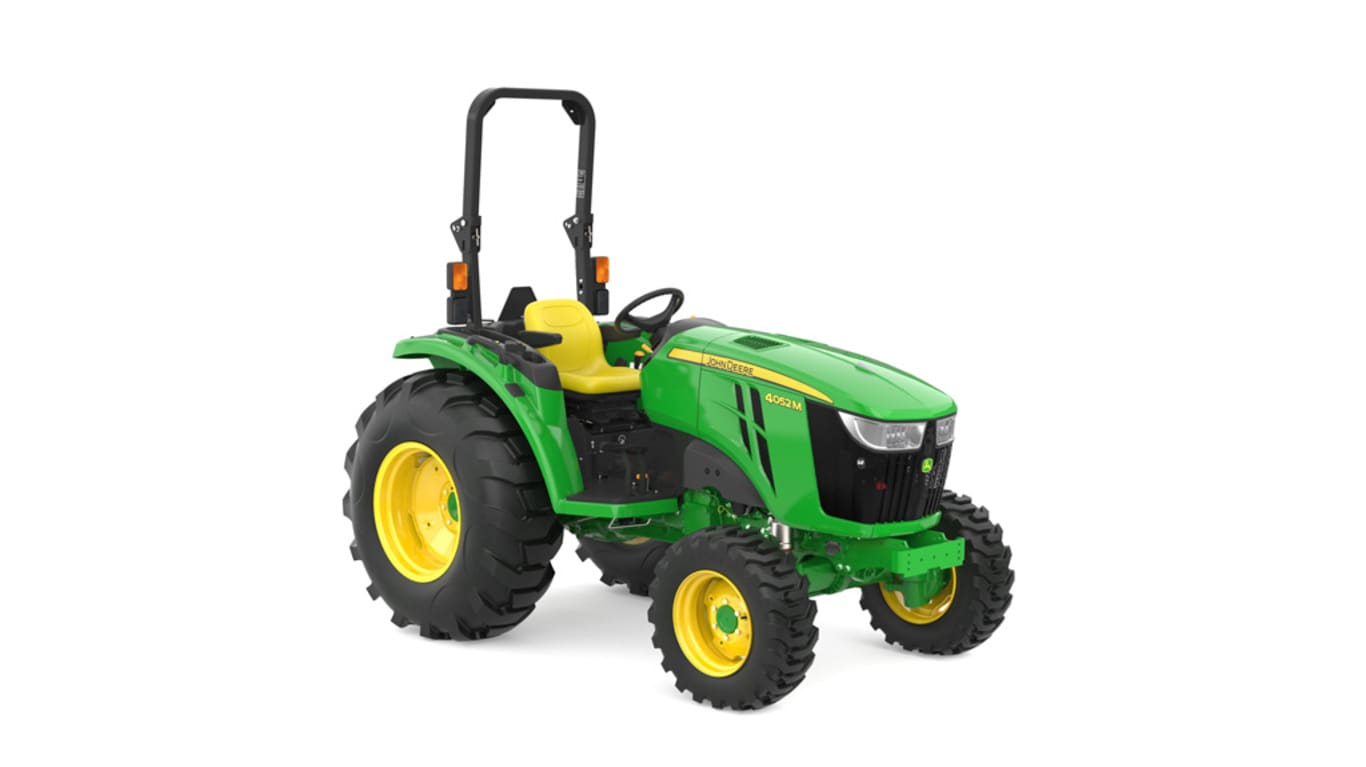

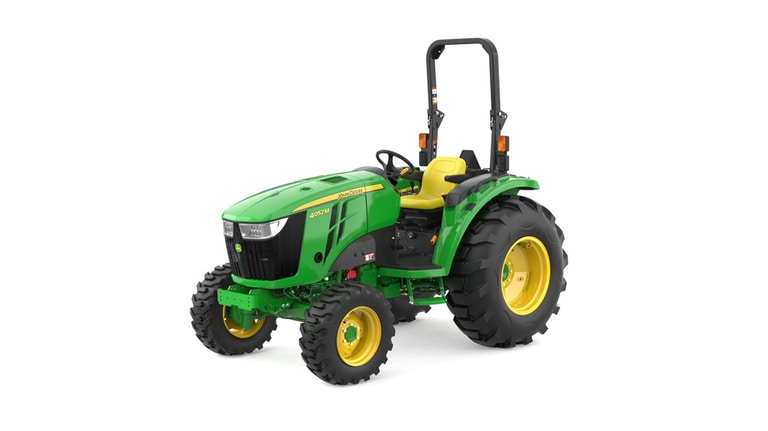

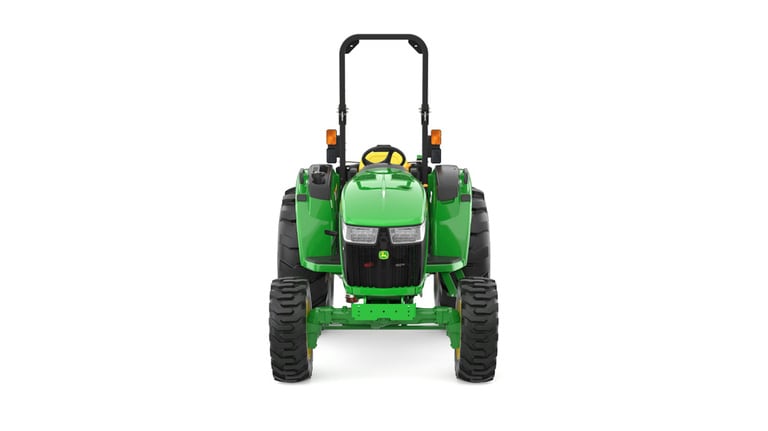

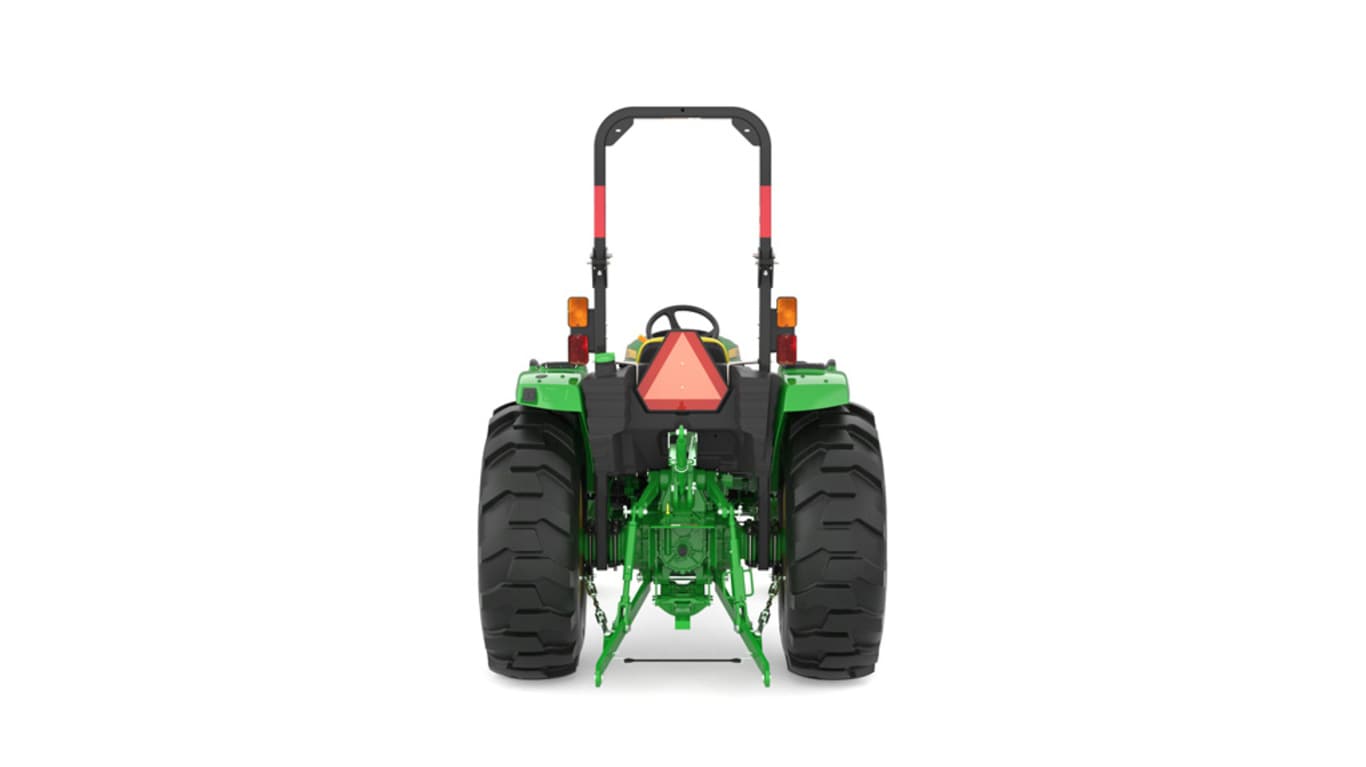

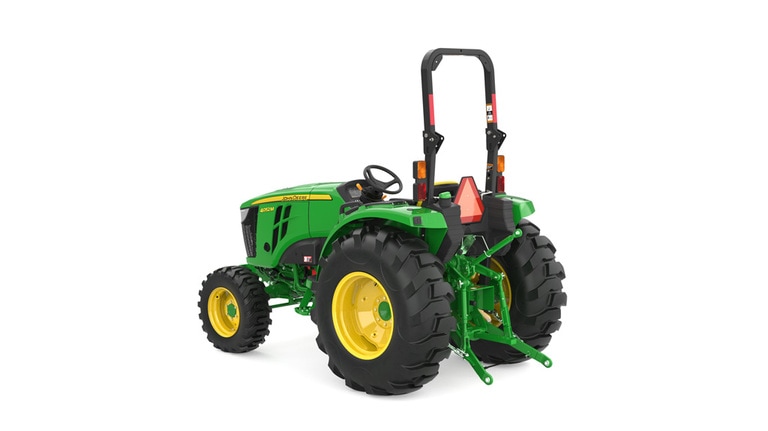

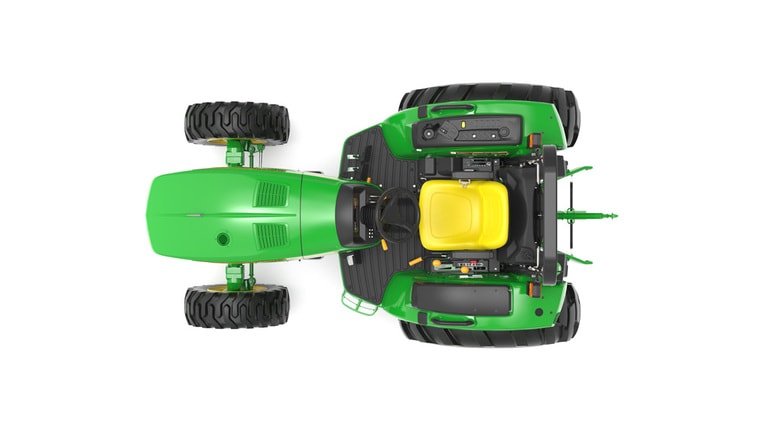

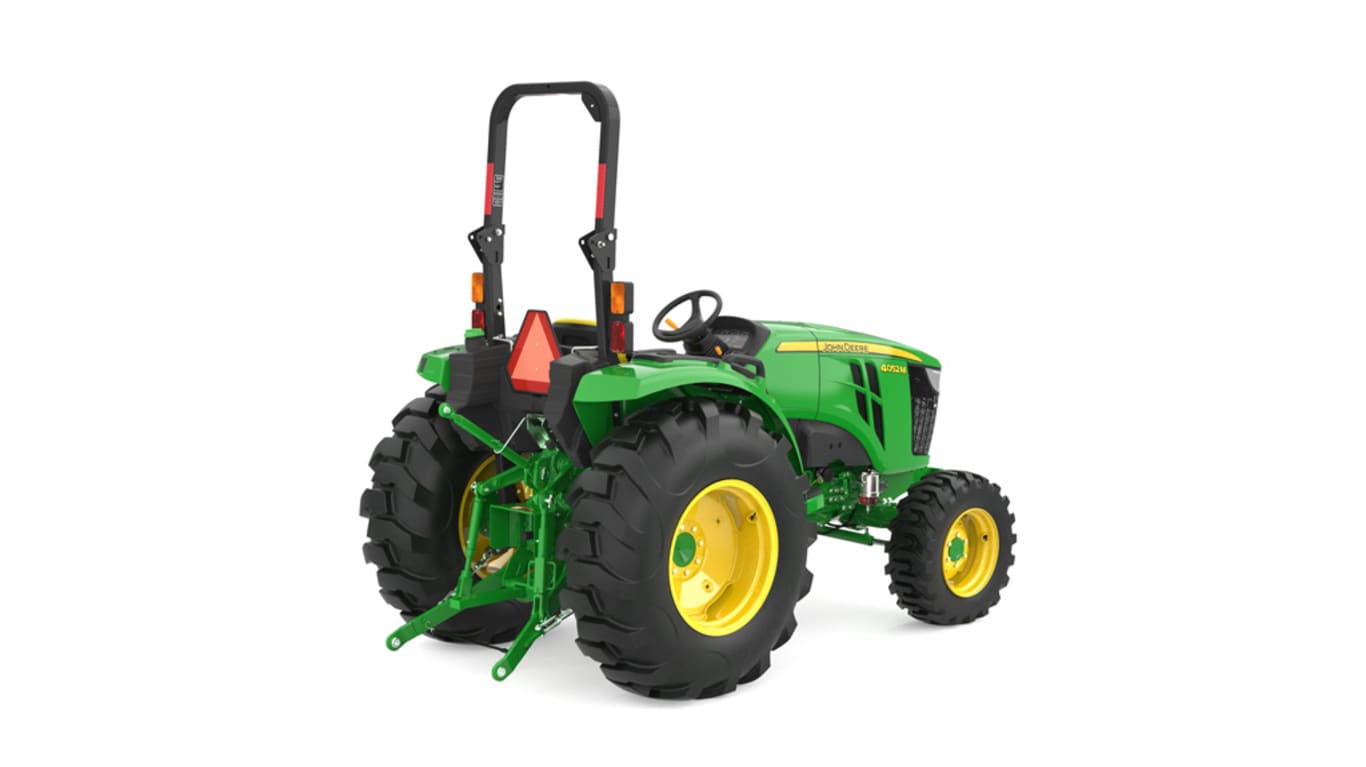

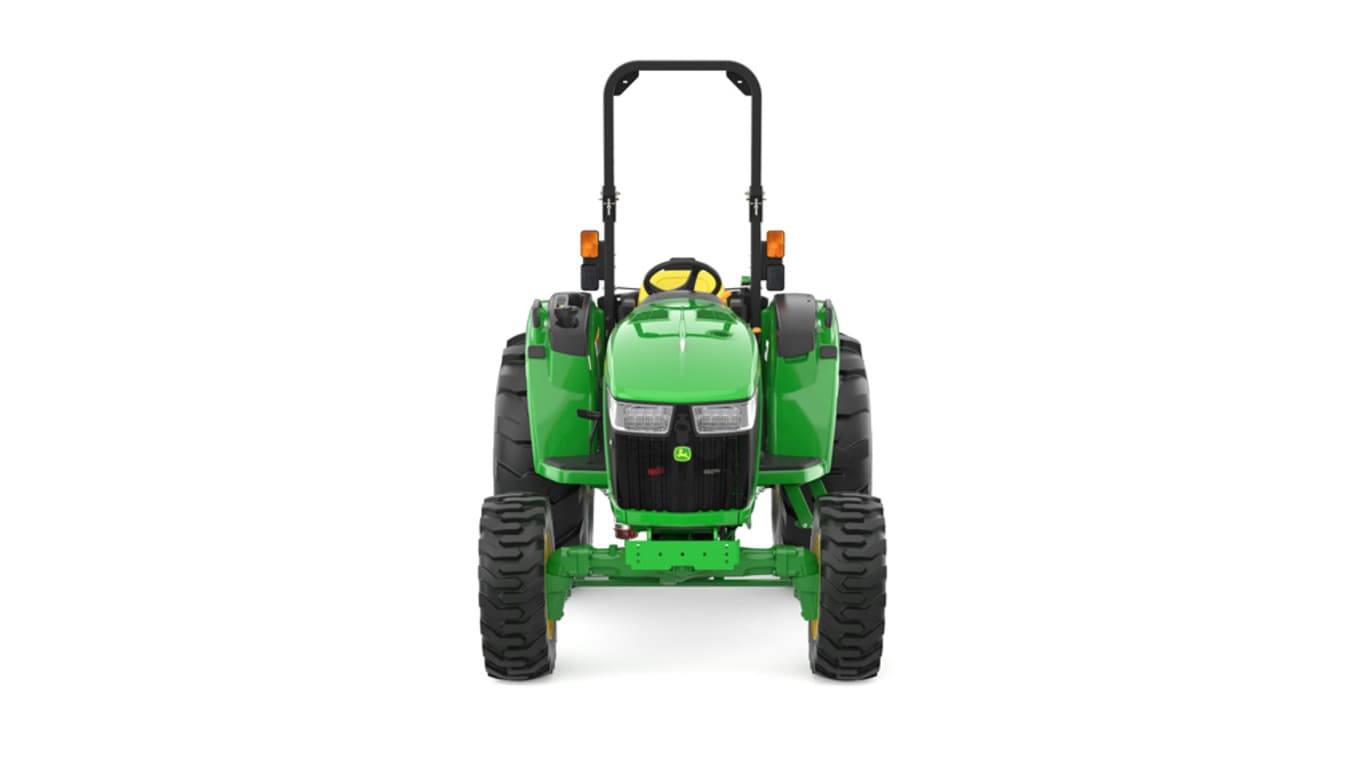

4052M | Compact Tractors

Attractive styling provides improved visibility and serviceability

4R Tractor

The bold styling of the 4M and 4R Tractors provide an attractive and functional appearance similar to that of the larger agricultural tractors. Benefits of this styling include:

Easy tractor family identification
Updated fixed grille and side panel hood design allows for optimum sealing of the cooling compartment
- Front grille slides up to an integrated maintenance position for easy battery access
Easily removable cowl, allowing for serviceability access
Wraparound-style halogen headlights
- Premium integrated automotive style headlight bezels
Bold graphics
Aggressively sloped hood design, giving a softer, smoother look and providing improved visibility
Hybrid exhaust in base on cab tractors for clear operator visibility and safety
- At low speed and when tractor is in a filter cleaning process, exhaust will be routed through vertical exhaust outlet. In all other cases, the exhaust will be routed through the downward exhaust outlet.
- Side exhaust in base on open operator station tractors and ensures minimal heat impact to operator

The result gives the tractor a distinctive appearance and feel.

NOTE: If the tractor is equipped with an optional field-installed vertical exhaust, exhaust pipe must be removed before opening and closing the hood of the tractor.

Powerful Yanmar® diesel engine delivers plenty of power under heavy loads

Powerful Yanmar engine

The Yanmar diesel engine has a high-torque reserve that provides plenty of power under heavy load.

This 4-cylinder engine features lower levels of exhaust emissions and reduced noise levels. It meets EPA Final Tier 4 (FT4) emission standards.

Model	Number of cylinders	Engine displacement	Aspiration	Rated rpm	Gross engine hp*	Gross engine ps*	PTO hp
4044M/R	4	2.2 L	Natural	2600	42.5	43.1	32.5
4052M/R	4	2.1 L	Turbocharged	2600	50.8	51.5	39.9
4066M/R	4	2.1 L	Turbocharged	2600	65.0	65.9	52.0

*Engine hp (kW), gross SAE J1995: 43.1 (31.7) at 2600 rpm, PS
Displacement, cu in. (L):134.25 (2.2)
*Engine hp (kW), gross SAE J1995: 51.5 (37.9) at 2600 rpm, PS
Displacement, cu in. (L):128.15 (2.1)
*Engine hp (kW), gross SAE J1995: 65.9 (48.5) at 2600 rpm, PS
Displacement, cu in. (L):128.15 (2.1)

The engine uses the latest technologies to optimize fuel economy, improve control and accuracy, and reduce environmental impact.

The common rail system (CRS) optimizes fuel economy and reduces operating costs*. High-pressure injection atomizes fuel into finer particles which burn more completely. It results in improved fuel economy and lower cost of operation.

The electronic control unit (ECU) provides optimum fuel control and accuracy. ECU monitors and controls the engine. It continuously monitors engine conditions and adjusts the fuel delivery accordingly to ensure optimum performance and emissions.

The new engine comes with an after treatment system. The system operates automatically. The exhaust filter consists of a diesel particulate filter (DPF) which captures particulate matter (PM) contained in the exhaust gas. Using a natural cleaning process, most of the PM trapped in the exhaust filter is eliminated by the heat of the exhaust stream generated by normal use. In situations of low temperature, engine speed or load factor, an active cleaning cycle is initiated. In this cleaning cycle, the exhaust gas temperature is raised by injecting additional fuel during the exhaust stroke of normal vehicle operation to the diesel oxidation catalyst (DOC).

After many hours of use, the exhaust filter may require an ash removal service.

NOTE: *As compared to engines not using CRS technology.

DPF cleaning

Depending on the load that the tractor is under, as well as ambient temperature, humidity, and engine speed, the DPF may build up with particulate matter, thus requiring cleaning. Filter cleaning is determined by one of three conditions:

A prescribed time-based estimation of needed filter cleaning
DOC/DPF pressure sensors
A particulate matter buildup estimation based on load conditions

Once one of the three conditions has been met, filter cleaning will occur.

There are three different types of filter cleaning processes:

Passive filter cleaning
Active filter cleaning
Parked filter cleaning

Passive filter cleaning

Passive filter cleaning occurs naturally when the engine is generating enough heat to oxidize particulate matter. This automatic process occurs continuously during normal operating conditions. No tractor icons or symbols appear on the display during passive filter cleaning.

NOTE: Passive filter cleaning requires no operator involvement, and there is no interruption to tractor operation.

Active filter cleaning

If conditions (temperature, load, or speed) for passive filter cleaning cannot be achieved, then PM is removed using active filter cleaner.

To achieve the required conditions, exhaust temperature management (ETM) manages the initiation and duration of active filter cleaning. ETM can adjust numerous engine parameters and/or inject a small quantity of fuel into the exhaust stream for a short duration. The fuel turns to vapor and chemically reacts with the catalysts in the DOC to create heat to oxidize PM.

It is important to note that at no time is the fuel in the DOC/DPF ignited, and there is no flame within the DOC/DPF.

Like passive filter cleaning, active filter cleaning requires no operator involvement, and there is no interruption to tractor operation.

Parked filter cleaning

In some instances where passive and active filter cleaning have not fully cleaned the PM from the system, a parked filter cleaning may need to take place. Most likely, the only time a parked filter cleaning will need to occur is when automatic filter cleaning has been disabled for an extended period of time and multiple warnings to engage filter cleaning were ignored or if the tractor has been used during light load conditions. Additionally, when the automatic filter cleaning process has been deliberately interrupted multiple times, or if active filter cleaning has failed numerous times due to a failed component, a parked filter cleaning may be requested. In these rare instances the operator will have to park the tractor and start the filter cleaning process.

The parked filter cleaning process needs to be activated based on usage and operation of the tractor. The process will take approximately 30 minutes. See operator’s manual for more details.

This system constantly monitors the soot level of the tractor, making sure the tractor is always in peak performance condition. This ensures high performance at all times.

NOTE: Number of hours since last regeneration and soot level percentage viewable on LCD display.

Key features of the engine are:

Lower rated speed for 540 rpm power take-off (PTO) operation means better fuel economy, less noise and vibration, and longer overall engine life
Cast-in-block cylinder design for good cooling and long life
Hydraulic lifters are quieter and require no adjustment
Heavy-duty crankshaft provides more bearing surface area for added durability
CRS optimizes fuel economy, lowering the cost of operation
ECU provides optimum control and accuracy
Direct fuel injection
- Improves starting
- Injects fuel directly on top of pistons for more efficient combustion
- Develops more horsepower per gallon of fuel
- Glow plugs (cold starting aid)
Engine oil cooler, cools engine oil for longer engine life
Key start and shutoff eliminates fuel shutoff knob
- Electric solenoid shuts fuel supply off immediately when key is turned off
See-through coolant recovery tank permits operator to check coolant level without removing radiator cap
- Sealed radiator compartment keeps trash and debris on outside of hood

Dry-type air cleaner

Dry-type air cleaner with safety element and electronic air service indicator
- Electronic air restriction indicator alerts operator when air filter servicing is required
- Dual-element design for added engine protection
- Easy to service
Standard side exhaust
Discharges fumes away from the operator, reducing engine noise
Improves operator visibility when using a loader or front implement
Optional vertical exhaust

Yanmar is a trademark of Yanmar Company Limited.

PowrReverser™ transmission allows for clutchless direction changes

PowrReverser transmission allows for clutchless direction changes

PowrReverser transmission lever

The 12/12 PowrReverser transmission is available on the 4M and 4R Tractors.

The PowrReverser transmission offers a hydraulically shifted forward-to-reverse transmission. This allows for clutchless shuttle shifting between forward and reverse with one lever for quick and easy direction change.

PowrReverser transmission does not require the operator to use the clutch to shift between forward and reverse

The PowrReverser transmission features a hydraulically actuated wet clutch. Two multi-disk clutch packs (one forward and one reverse) are hydraulically engaged when the directional (reverser) lever is placed in either the forward or reverse position.

Each clutch pack consists of three large, 5-in. diameter clutch disks that operate in oil and are oil-cooled, allowing excellent heat dissipation and extended clutch life.

Forward/reverse clutches

Clutch A is used for the forward operation of the tractor
Clutch B is used for the reverse operation of the tractor

Key features of the PowrReverser transmission:

12 forward/12 reverse (12F/12R) speeds
Reverser lever, located on the left side of the instrument console, allows the operator to make direction changes without clutching
- Fast shuttle shift for improved loader operation
Dual-cone synchronizers allow for synchronized shifts between gears for on-the-go shifting with the use of the clutch
Dual-cone synchronizers permit on-the-go, low-effort shifting between gears
Helical-cut gears for quiet operation

Helical-cut gears

Well-spaced speeds for turf, loader, and transport work
Neutral start switch prevents tractor from starting when transmission (main range) is not in neutral
Dual wet-disk clutches provide long clutch life
Shifts between ranges are not synchronized
PowrReverser transmission models have both hand and foot throttle controls
Especially handy when using a loader

Maximize productivity with an eHydro™ transmission

The tractor is available with a three-range electronic hydrostatic (eHydro) transmission.

Fluid under pressure transmits engine power to the drive wheels using a pump and motor
Functions both as a clutch and transmission
Provides high torque for startup
Reduces powertrain shock loads

Danfoss® company supplies both the pump and motor. This ensures that the components are matched to each other, providing maximum efficiency.

The electronic hydrostatic transmission is ideally suited for jobs where productivity is a must, such as loader or mower applications.

Twin Touch™ foot controls allow the operator to select both directions of travel and speed with a touch of the toe.

Key features of the eHydro transmission:

Infinitely variable ground speeds, in each range, allow the operator to match the speed of the tractor to the job.
No clutching for fast and easy direction changes
Twin Touch foot pedals for quick and easy forward/reverse operation
Cruise control is optional equipment
- Cruise control switch is located on the right-hand console for easy access
- Cruise control is electronically engaged and disengaged, which allows for precise setting of speed

Danfoss eHydro transmission

Danfoss eHydro transmission is used for reliable operation. Durability features include:

Large forged trunnion shaft with larger support bearings that reduce vibration and noise.
Center section made from ductile iron (much stronger than grey iron used in many competitive transmissions).
Transmission oil cooler cools transmission oil for longer transmission life.

Safety features of the eHydro transmission include:

The tractor will start with one or both foot pedals depressed, but it will not move until both pedals first return to neutral
Operator presence - the tractor will come to a stop if the operator leaves the seat but will not shut off unless the power take-off (PTO) is also running

Key John Deere advantage

Twin Touch foot controls

John Deere's Twin Touch foot controls offer several key advantages over competitive hydro model tractors.

Some competitive hydrostatic tractors use a treadle pedal (toe-heel) design foot control for operation of the hydro
- Requires the operator to use both toe and heel to change direction, resulting in increased operator fatigue

Optional cruise control

Optional cruise control on 4M Tractors

A true-speed cruise control is optional equipment on 4M Tractors with eHydro transmission. Cruise control is electronically engaged and disengaged and is located on the operator console to the right of the operator.

Maintains desired forward speed without pressure on the foot pedal
Cruise control is set by engaging the switch when the desired speed is reached
A speed sensor also allows the tractor to maintain preset speed driving up and down hills
To disengage the cruise control, either:

Apply pressure to the turn brakes opposite the eHydro pedals
Disengage cruise control switch
Briefly depress the reverse control pedal

LoadMatch™ power management system

LoadMatch is a standard feature on the 4M Series Tractors.

If torque requirements increase significantly, the transmission will reduce the tractor's drive speed to compensate for the increased load on the transmission, maximizing torque to drive wheels and minimizing stalls.

Controls automatically adjust LoadMatch compensation depending on the tractor’s application. PTO applications require less engine speed fluctuation, therefore adjusting the amount of droop depending on PTO speed. This adjustment increases efficiency and optimizes engine speed and torque output based on tractor application.

While typically left on, LoadMatch can be turned off through the center console display.

MotionMatch™ system

MotionMatch, standard on the 4M Series Tractors, is adjustable through the center console display. It offers variable adjustments to either lengthen or shorten the rollout when the HST pedal is depressed or released.

Serial number break information

All model year 2016 and newer tractors with serial numbers after those listed below are equipped with LoadMatch and MotionMatch features from the factory

4044M: 1LV4044MCGG100594
4052M: 1LV4052MVGG100273
4066M: 1LV4066MHGG100181

For model year 2016 tractors with serial numbers before those listed above and previous model year tractors, these features are available with a machine software update.

Danfoss is a trademark of Danfoss Incorporated.

Operator station is comfortable and convenient

Addition of optional center console toolbox

Easy entry and exit from the operator's station

The operator's station is designed for easy entry and exit from the tractor.

Conveniently placed brake pedals, as well as repositioned operator controls, provide for a clean and flat platform design giving the operator plenty of legroom.

Hood and fenders are made from impact-resistant polymer material designed to eliminate the possibility of rusting and to resist dents that can occur with metal hoods or fenders.
The hood is painted to an automotive-like finish, providing a high-luster appearance with excellent resilience and resistance to fading from sunlight.

Comfortable and convenient design

Key features of the operator's station include:

Large grab handles on each fender make getting on and off the tractor easy.
Controls are shape and color-coded for easier identification and operation.
Optional mechanical suspension seat improves operator comfort and reduces fatigue.
A left-side step is in base equipment to enhance access to the operator's station.
The mechanical suspension seat gives the operator a comfortable ride. The seat flips forward for protection from the elements.
Seat suspension is adjustable for the operator's weight and height.
Operator weight adjustment adjusts to the operator’s weight 52 kg to 125 kg (115 lb to 275 lb).
The seat is adjustable fore and aft for the operator’s height using the lever located under the seat.

Retractable seat belts

Retractable seat belts prevent belts from becoming tangled in seat suspension and controls

Built-in safety features for operator peace of mind

Safety is designed into all 4M and 4R Series Tractors.

Operator presence system ensures the operator is in the seat to run the tractor
- If the operator leaves the seat when front or rear power take-off (PTO) is engaged, the engine shuts down.
- For stationary PTO work, the tractor must be in neutral and the park brake fully set.
The rollover protective structure (ROPS) is designed for operation safety
Reflective ROPS strips for better tractor visibility
Key switch interlock prevents bypass starting
Visual PTO warning light alerts operator when rear PTO is running
Placing the transmission in neutral and setting the park brake allows operator to run rear PTO safely when off the tractor seat
Turn signal and flashing warning lights operate according to ASAE S279.10 standard
Taillights for road transport
Slow moving vehicle (SMV) sign for road transport

Optional iMatch™ Quick-Hitch allows for easy implement hookup

iMatch Quick-Hitch

iMatch Quick-Hitch with rotary cutter hookup

iMatch Quick-Hitch (LVB25976)

iMatch Quick-Hitch with rotary cutter hookup (LVB25976)

One of the greatest customer concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.

The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements that are designed to meet the ASAE Category 1 Standard S278.6 for quick-attach hitches.

All implements require a set of bushings in order for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.

NOTE: The bushing set can be seen in the picture above. These bushings allow the hooks on the iMatch and the pins on the implement to fit together properly. All other implements (box blades, tillers, rear blades, etc.) will require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).

Upper bushing
- Inside diameter: 1.93-1.06 cm (0.76-0.77 in.)
- Outside diameter: 3.15 to 3.43 cm (1.24-1.25 in.)
Lower bushings
- Inside diameter: 2.24 to 2.26 cm (0.88 to 0.89 in.)
- Outside diameter: 3.63 to 3.66 cm (1.43 to 1.44 in.)

Excellent serviceability reduces operational costs and improves productivity

Regular service and maintenance are essential to the performance, productivity, and longevity of the tractor.

Easy access to regular service points minimizes service time.
Easily removable cowl and side panels, improved hood design, and integrated maintenance position on the grille provide easy accessibility for routine maintenance.
Tractors are equipped with extensive onboard self-diagnostic capabilities and are fully compatible with John Deere’s exclusive Service ADVISOR™ system.
Daily service requirements are minimal and simple to accomplish. Most service interval requirements can be performed with a basic understanding of procedures and common tools.
Improved cost of ownership
- Hydraulic oil service interval changed from 400 to 1200 hours (or 3 years) when using Hy-Gard™ products

Removable side panels

Integrated grille maintenance position

Removable cowl

All items in the daily service schedule can be performed without the use of tools:

Engine oil, hydraulic oil, coolant level, and the water separator can be conveniently accessed
The engine can be easily accessed by simply raising the hood for more periodic maintenance checks
A single-point latch mechanism and self-contained leash ensure easy hood opening and closure

NOTE: Always refer to the operator’s manual for complete maintenance and service recommendations.

Engine power (gross)	SAE J1995 rated power: 37.9 kW 50.8 hp 51.5 PS at 2600 rpm
Power take-off (PTO) power	29.2 kW 39.1 hp
Steering hydraulics	23.5 L/min 6.2 gpm
Implement hydraulics	42.3 L/min 11.2 gpm
Hitch type	Category 1
Lift capacity, 24-in. behind link arms	1135 kg 2500 lb
Standard transmission; forward/reverse	PowrReverser transmission
Cruise control	Optional
Approximate shipping weight (open-station; cab)	Open station with hydrostatic transmission: 1664 kg 3668 lb Cab with hydrostatic transmission: Not applicable Open station with PowrReverser transmission: 1703 kg 3754 lb Cab with PowrReverser: Not applicable
Wheelbase	185.5 cm 73 in.

Family	EYDXL2.09TDA FYDXL2.09TDA GYDXL2.09TDA
Manufacturer	Yanmar®
Engine model	4TNV86CT-MJT
Engine power (gross)	SAE J1995 rated power: 37.9 kW 50.8 hp 51.5 PS at 2600 rpm
Power take-off (PTO) power	29.2 kW 39.1 hp
Rated engine speed	2600 rpm
Type	Diesel
Injection pump type	High pressure common rail direct injection
Aspiration	Turbocharged
Emissions compliance	Final Tier 4
Cylinders/displacement	4 / 2.091 L 4 / 127.6 cu in.
Number of cylinders	Four
Cylinder liners	Cast-in-block
Bore and stroke	86 x 90 mm 3.4 x 3.54 in.
Compression ratio	19.1:1
Lubrication	Pressurized
Cooling system	Liquid
Air cleaner	Dual element
Engine torque at rated speed	139 Nm 102.5 lb-ft
Fuel tank capacity	56.9 L 15 U.S. gal.

Battery size	770 CCA
Alternator (12-V)	75 amp
Starter size	2 kW 2.68 hp

Standard transmission; forward/reverse	PowrReverser transmission
Optional transmission; forward/reverse	eHydro transmission
Left-hand reverser	PowrReverser transmission only
Transmission gear ranges	PowrReverser: 12F/12R eHydro: Infinitely-variable three range
Final drive	Planetary
Brakes	Multi-plate wet disc
Steering	Hydrostatic power steering
Clutch, wet/dry	Wet
Clutch disk diameter wet clutch	129 mm 5.08 in.
Axle capacity	Front 1600 kg 3528 lb Rear 2400 kg 5292 lb
Creeper
Cruise control	Optional
Differential lock	Yes
Drawbar maximum vertical load

Type	Open center
Pump rated output	Steering 23.5 L/min 6.2 gpm Implement 42.3 L/min 11.2 gpm 65.8 L/min 17.4 gpm
Pump type	Single gear
Maximum operating pressure
Draft control sensing	Position control
Remote control valves available	Up to three rear remotes

Crankcase with filter	5.3 L 1.4 qt
Transmission and hydraulic system	47.3 L 12.5 gal.

Rollover protective structure	Type Foldable Yes
Platform - flat/straddle	Flat
Gear shift location - console/floor	PowrReverser - Left-hand side

Compliance
Visibility
Air conditioning, temperature differential
Doors
Noise rating
Seat equipment

Front	Farm - 8-16 Turf - 27x10.5-15 Industrial - 10-16.5
Rear	Farm - 13.6-28 Turf - 44x18-20 or 22.5LL-16.1 Industrial - 16.9Lx24
Front tread range	148.1 cm 58.3 in.
Rear tread spacing	137.2 cm 54 in.

4052MCompact Utility Tractor

SHARE

Features

DPF cleaning

PowrReverser transmission allows for clutchless direction changes

Key John Deere advantage

Optional cruise control

LoadMatch™ power management system

MotionMatch™ system

Addition of optional center console toolbox

The Compact Utility Tractor Composite Hood

Specifications

Add Model

Key Specs

Engine

Electrical

Fuel system

Transmission

Hydraulics

3-point hitch

Power take-off (PTO)

Fluid capacities

Final drive

Operator station

Cab

Dimensions

Tires

Miscellaneous

Additional information

Offers and Discounts

Related Products

Reviews

Shop and Buy

Maintenance and Support

You May Also Be Interested In
