Yanmar 3-cylinder, TNV series diesel engine

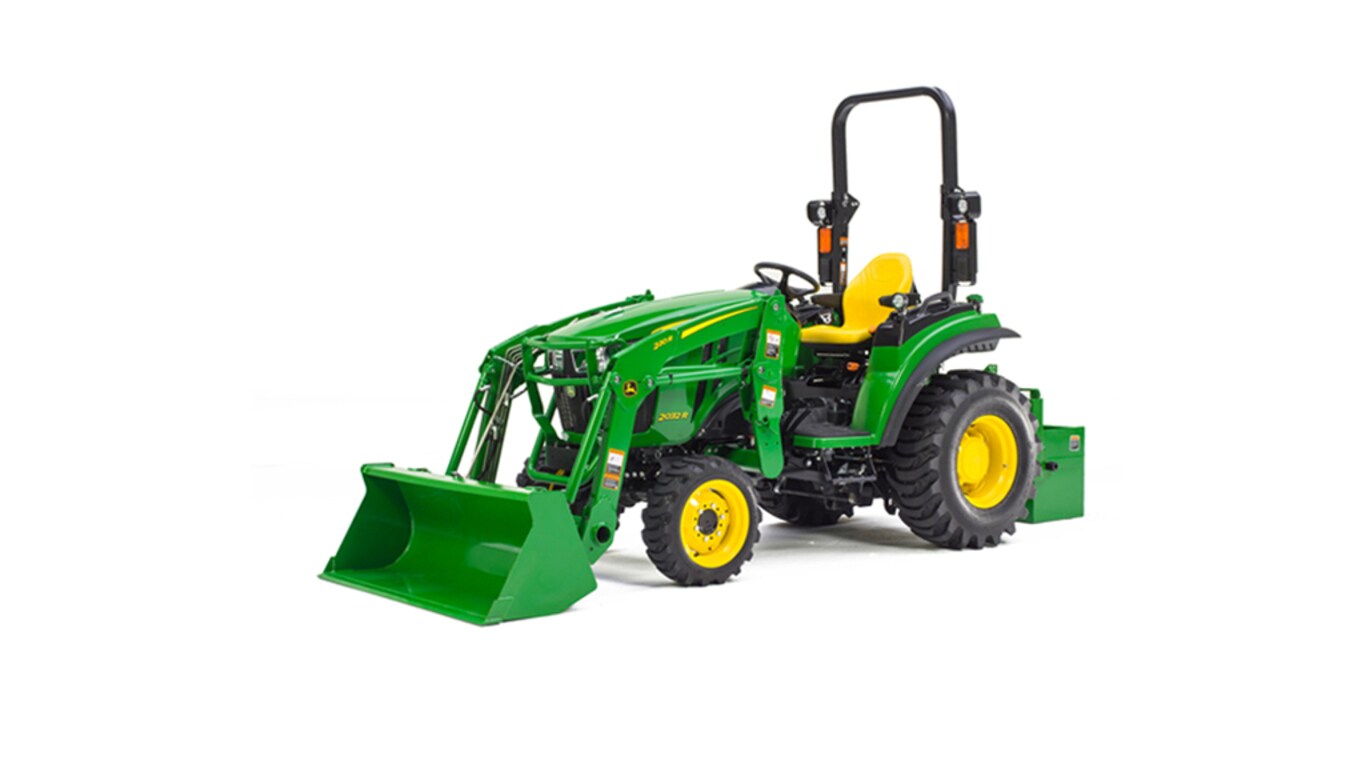

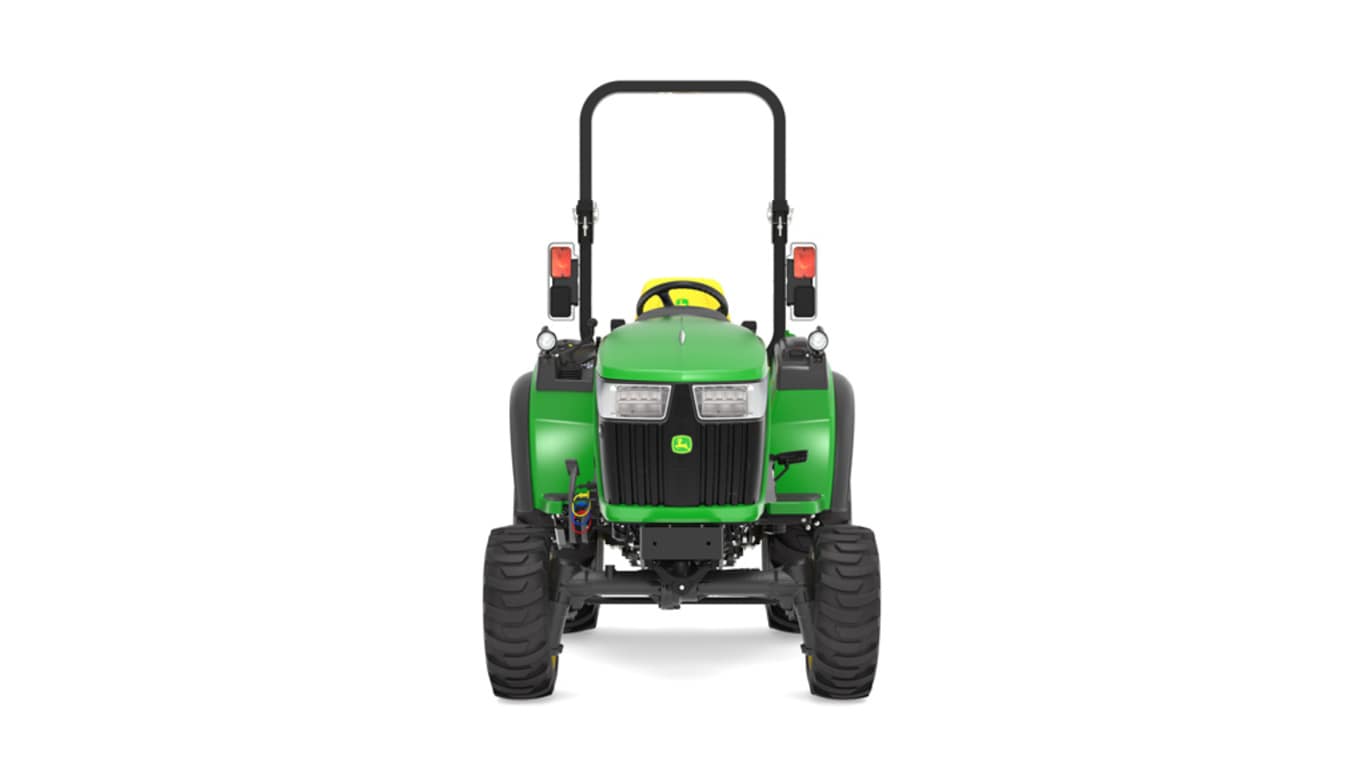

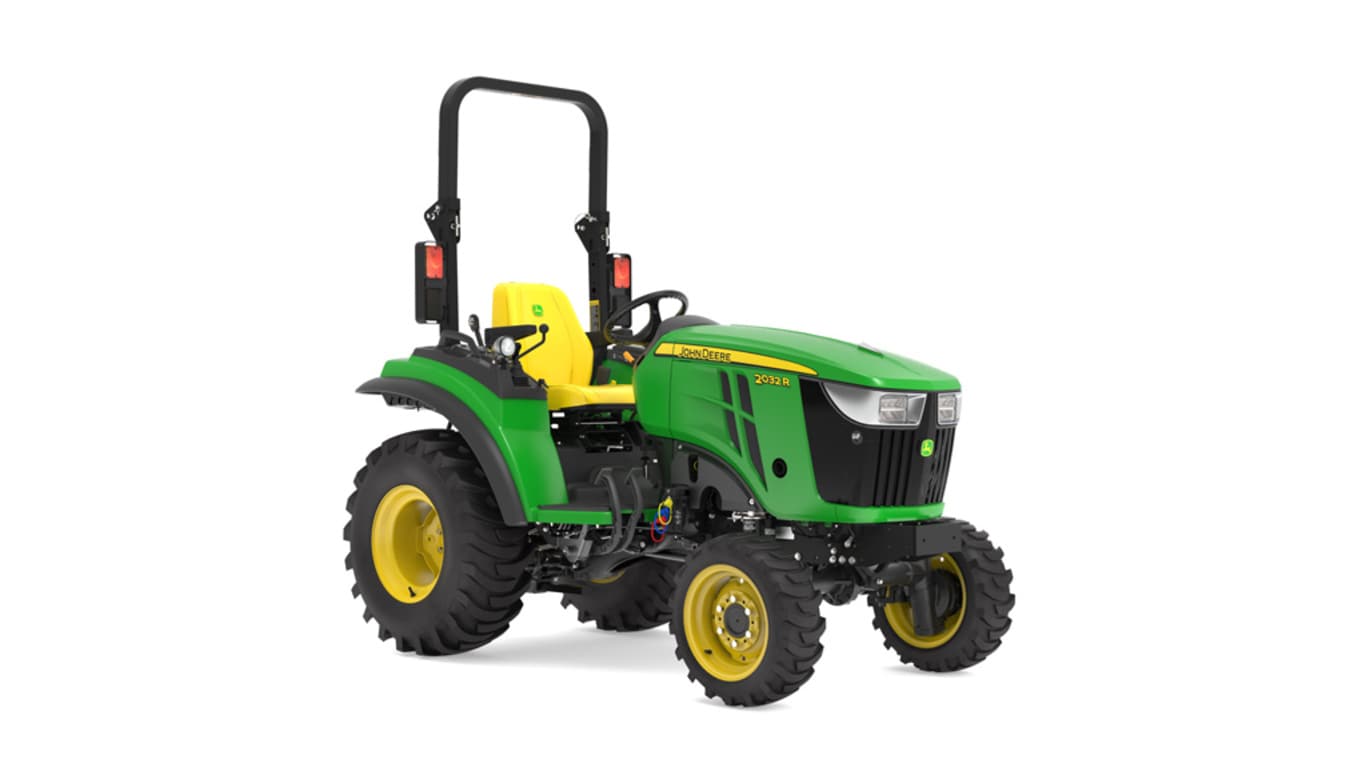

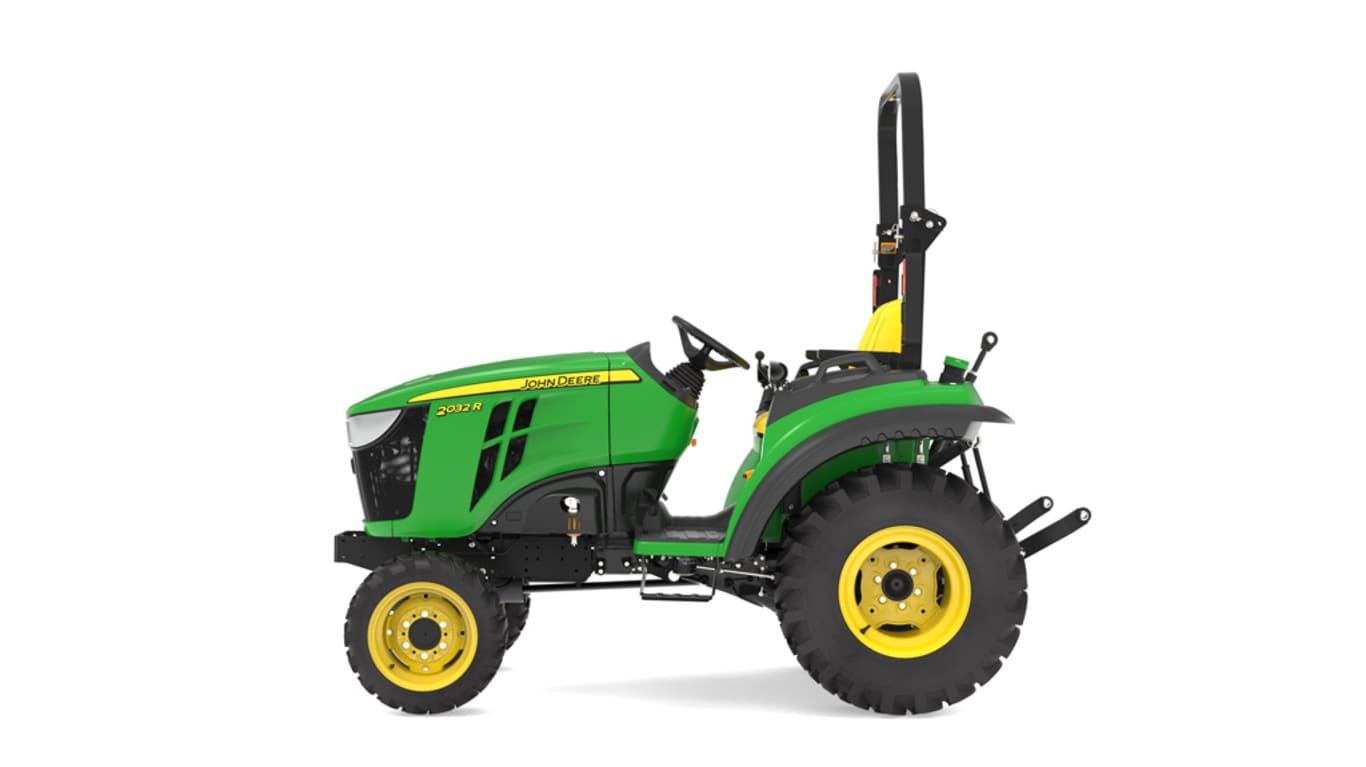

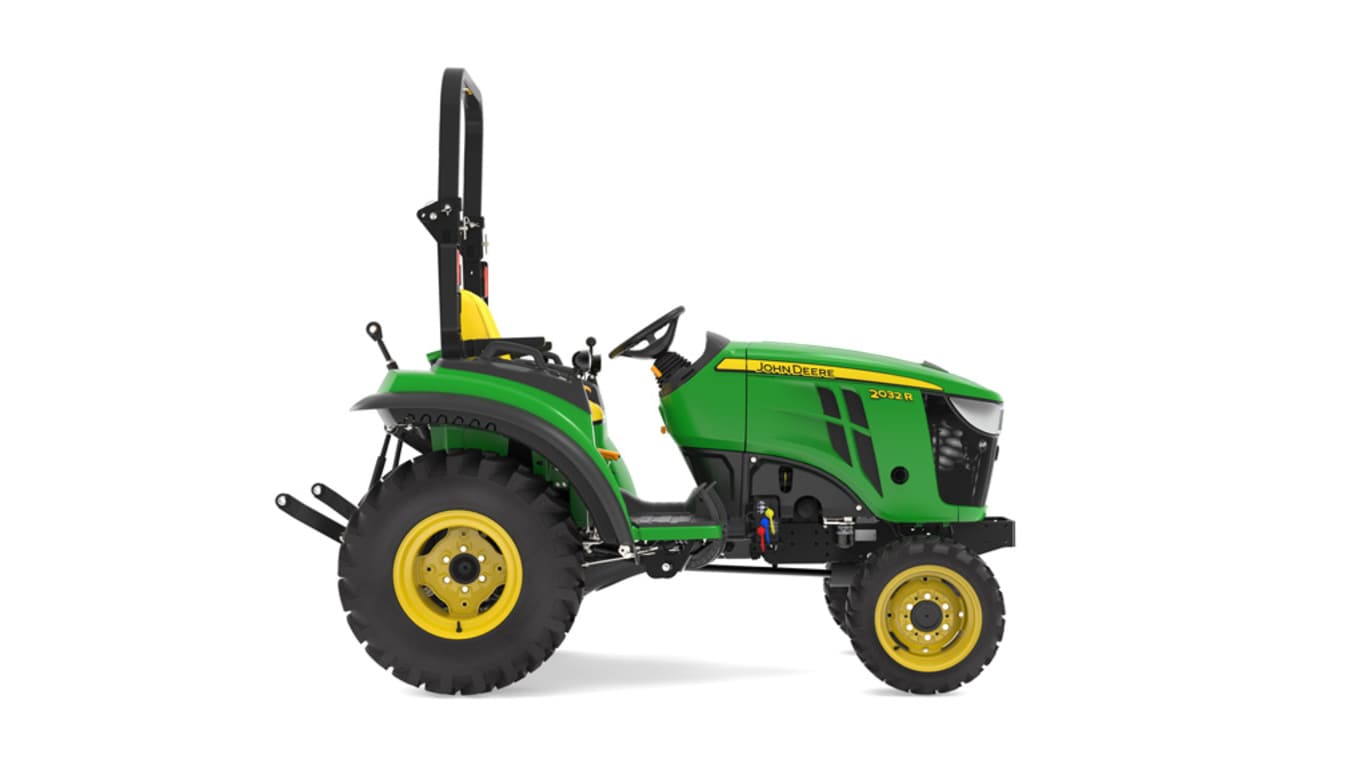

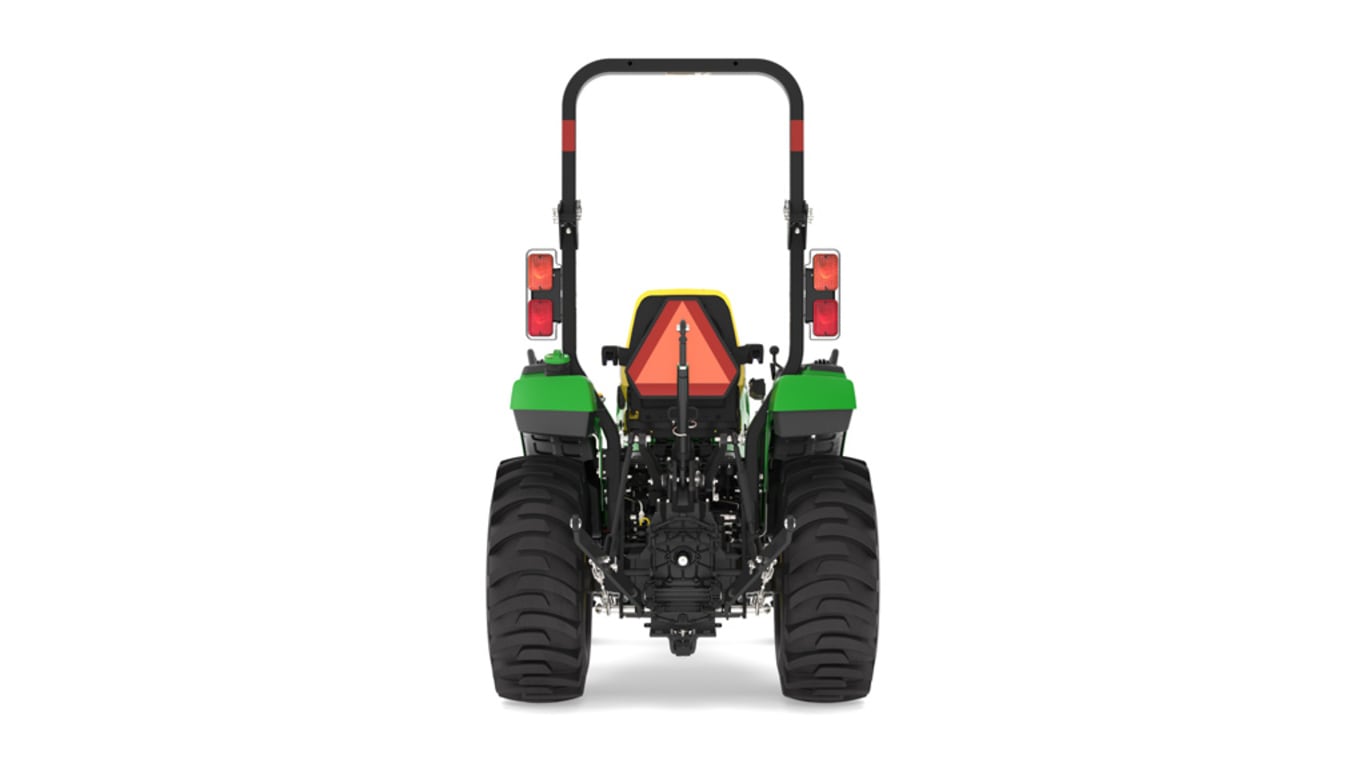

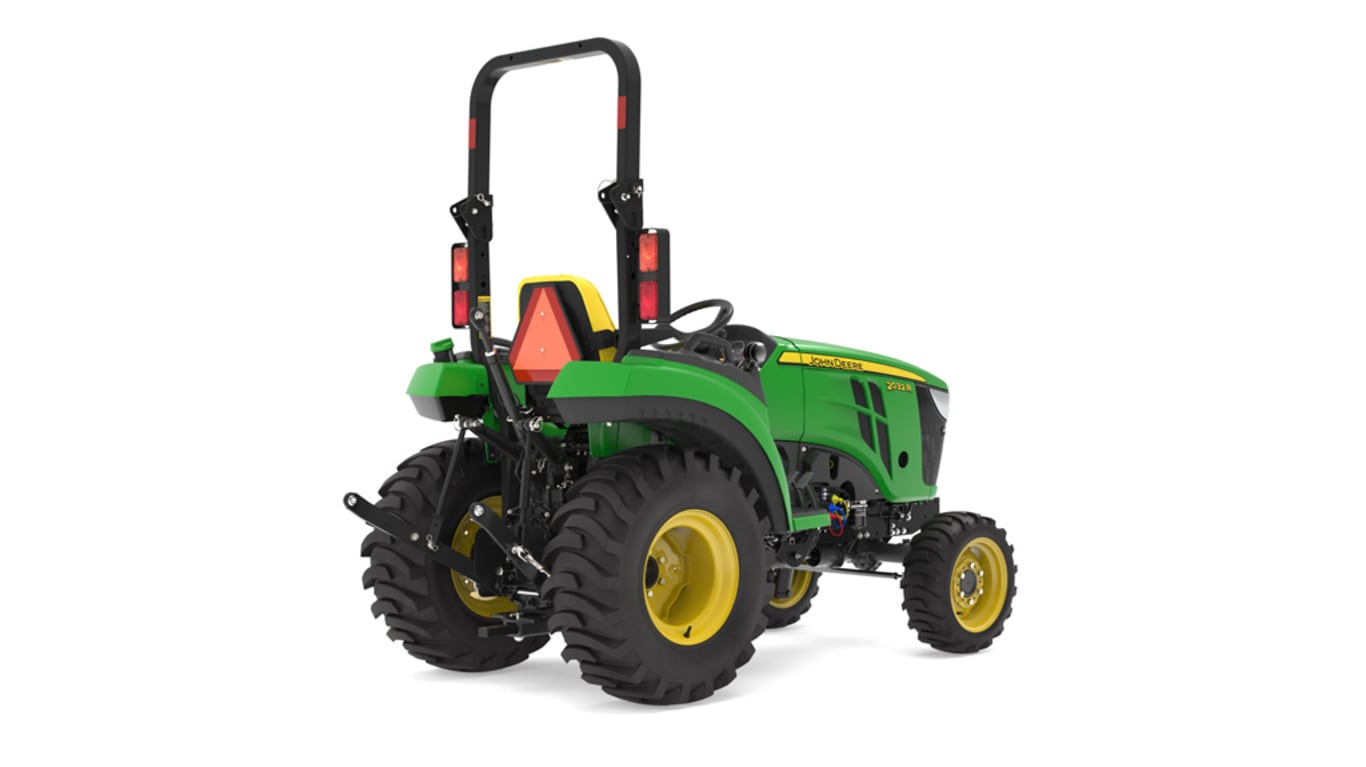

2032R
The 1.642-L (100.2-cu in.) displacement, liquid-cooled 3TNV88C-NJT Yanmar® diesel engine provides 22.9 kW ( 30.7 hp) to the 2032R.
Model |
Number of cylinders |
Engine displacement |
Aspiration |
Gross engine power* |
Gross engine PS* |
Power take-off (PTO) power* |
2032R |
3 |
1.642 L (110.2 cu in.) |
Natural |
22.9 kW (30.7 hp) |
31.2 PS |
18 kW (24.2 hp) |
*Engine kW (hp), gross SAE J1995: 22.9 (30.7) at 2500 rpm, PS
Displacement, L (cu in).: 1.642 (100.2)
2038R
The 1.568-L (95.8-cu in.) displacement, turbocharged liquid-cooled 3TNV86T-NJT Yanmar diesel engine provides 27.4 kW ( 36.7 hp) to the 2038R.
Model |
Number of cylinders |
Engine displacement |
Aspiration |
Gross engine power* |
Gross engine PS* |
PTO power* |
2038R |
3 |
1.568 L (95.8 cu in.) |
Turbocharged |
27.4 kW (36.7 hp) |
37.2 PS |
22.7 kW (30.4 hp) |
*Engine kW (hp), gross SAE J1995: 27.4 (36.7) at 2500 rpm, PS
Displacement, L (cu in.): 1.568 (95.8)
The engine uses the latest technologies to optimize fuel economy, improve control and accuracy, and reduce environmental impact.
The common rail system (CRS) optimizes fuel economy and reduces operating costs. High-pressure injection atomizes fuel into finer particles which burn more completely. It results in improved fuel economy and a lower cost of operation.
The electronic control unit (ECU) provides optimum fuel control and accuracy. ECU monitors and controls the engine. It continuously monitors engine conditions and adjusts the fuel delivery accordingly to ensure optimum performance and emissions.
The engine comes with an aftertreatment system. The system operates automatically. The exhaust filter consists of a diesel particulate filter (DPF) which captures particulate matter (PM) contained in the exhaust gas. Using a natural cleaning process, most of the PM trapped in the exhaust filter is eliminated by the heat of the exhaust stream generated by normal use. In situations of low temperature, engine speed or load factor, an active cleaning cycle is initiated. In this cleaning cycle, the exhaust gas temperature is raised by injecting additional fuel during the exhaust stroke of normal vehicle operation to the diesel oxidation catalyst (DOC).
After many hours of use, the exhaust filter may require an ash removal service.
In some instances where passive and active filter cleaning have not fully cleaned the particulate matter from the system, a parked filter cleaning may need to take place. Most likely, the only time a parked filter cleaning will need to occur is when automatic filter cleaning has been disabled for an extended period of time and multiple warnings to engage filter cleaning were ignored or if the tractor has been used during light load conditions. Additionally, when the automatic filter cleaning process has been deliberately interrupted multiple times, or if active filter cleaning has failed numerous times due to a failed component, a parked filter cleaning may be requested. In these rare instances the operator will have to park the tractor and start the filter cleaning process.
The parked filter cleaning process needs to be activated based on usage and operation of the tractor. The process will take approximately 30 minutes. See operator’s manual for more details.
The emissions system on this engine constantly monitors the soot level of the tractor, making sure the tractor is always in peak performance condition. This ensures high performance at all times.
NOTE: Number of hours since last regeneration and soot level percentage viewable on LCD display.
For more information regarding Environmental Protection Agency (EPA) regulations and the technology behind John Deere Integrated Emissions Control systems, click here.
Yanmar TNV Series engine offers these features:
Yanmar is a trademark of Yanmar Co., Ltd.
Depending on the load that the tractor is under, as well as ambient temperature, humidity, and engine speed, the DPF may build up with particulate matter, thus requiring cleaning. Filter cleaning is determined by one of three conditions:
Once one of the three conditions have been met, filter cleaning will occur. There are three different types of filter cleaning processes:
Passive filter cleaning occurs naturally when the engine is generating enough heat to oxidize particulate matter. This automatic process occurs continuously during normal operating conditions. No tractor icons or symbols appear on the display during passive filter cleaning.
NOTE: Passive filter cleaning requires no operator involvement, and there is no interruption to tractor operation.
If conditions (temperature, load, or speed) for passive filter cleaning cannot be achieved, then particulate matter is removed using active filter cleaner.
To achieve the required conditions, exhaust temperature management (ETM) manages the initiation and duration of active filter cleaning. ETM can adjust numerous engine parameters and/or inject a small quantity of fuel into the exhaust stream for a short duration. The fuel turns to vapor and chemically reacts with the catalysts in the DOC to create heat to oxidize particulate matter.
It is important to note that at no time is fuel in the DOC/DPF ignited, and there is no interruption to tractor operation.
Like passive filter cleaning, active filter cleaning requires no operator involvement, and there is no interruption to tractor operation.
The 2032R and 2038R Tractors are equipped with a two-range hydrostatic transmission (HST) incorporated in a die-cast aluminum transmission case. Fluid under pressure transmits engine power to the drive wheels via a closed-loop pump and motor arrangement. Infinite ground speeds allow the operator to match the speed of the tractor to the job.
Safety features of the HST transmission include:
Twin Touch foot controls
Key John Deere advantages – John Deere’s Twin Touch foot controls offer several key advantages over competitive HST models tractors.
An electronic cruise control is standard equipment on the 2032R and 2038R Tractors. Cruise control is electronically engaged and disengaged using a toggle switch located on the right-hand console.
Sauer-Danfoss is a trademark of Sauer-Danfoss Incorporated.

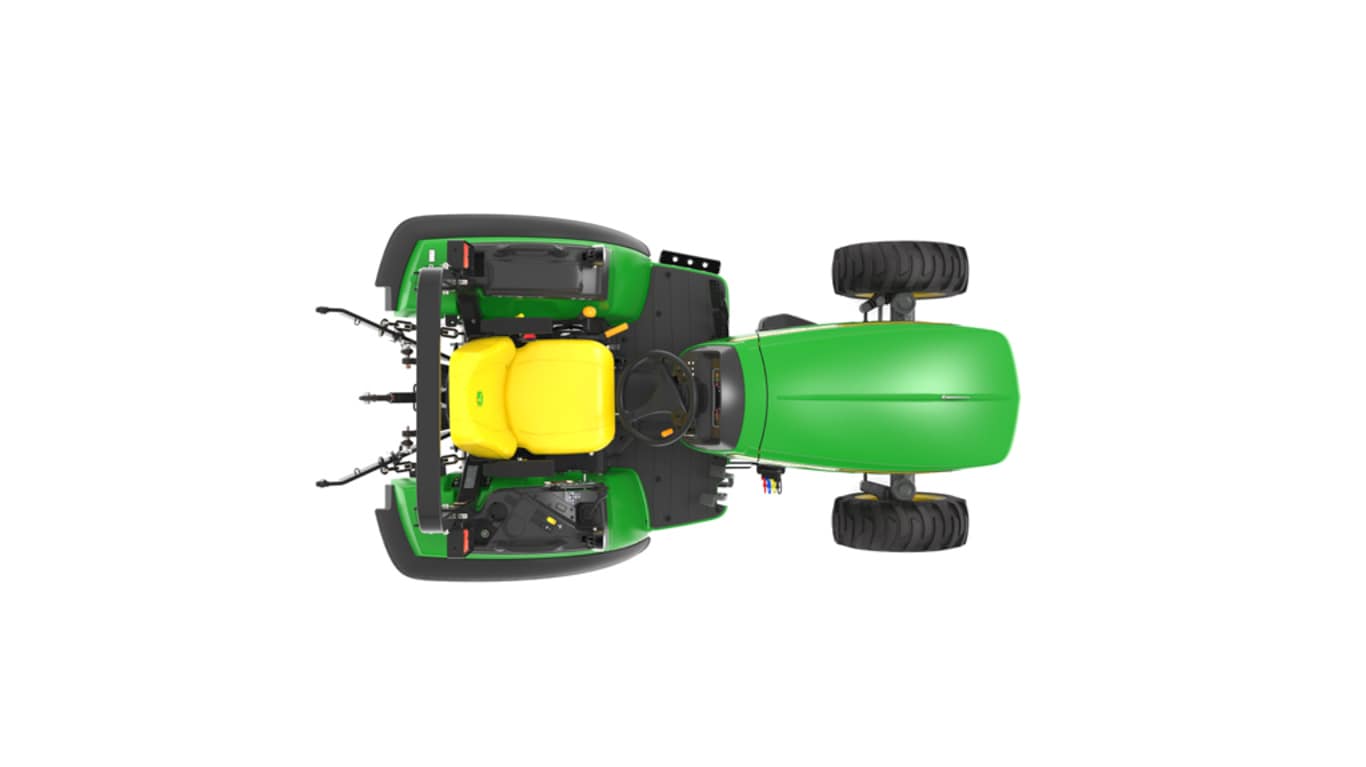

Operator Station
The operator station has been designed to allow for greater operator comfort and increased visibility. The ergonomic layout and convenient color coded controls allow for easy identification and operation. The design of the operator station allows operators to sit “in” as opposed to “on” which provides comfort and increased stability.
Below are other key features of the 2032R and 2038R Tractor operator’s station:
Left-side entrance step
Premium high-back seat
The thick, soft padding on this seat provides a smooth and comfortable ride with added weather resistance from marine grade vinyl that is easy to clean. A high, scalloped back makes it easier for the operator to turn to view rear implements.
Key features of the operator’s station include:
Tilt steering lever
iMatch Quick-Hitch (LVB25976)
One of the greatest operator concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.
The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements that are designed to meet the American Society of Agricultural and Biological Engineers (ASABE) Category 1 Standard S278.6 for quick-attach hitches.
NOTE: The bushing set can be seen in the picture above. These bushings allow the hooks on the iMatch and the pins on the implement to fit together properly. All other implements (box blades, tillers, rear blades, etc.) will require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).
Instrument panel
CommandCut™ controls
The 2032R and 2038R tractors features the CommandCut™ mower deck lift system, which allows quick and accurate adjustments of the mower deck with the turn of a dial and the bump of a lever. Control callouts make operation simple and repeatable. The height of cut setting dial and raise/lower lever are conveniently located on the right-hand console and easily accessible by the operator. Some of the key benefits of this system are:
Regular service and maintenance are essential to the performance, productivity, and longevity of the tractor.
Quarter turn fasteners
Right tractor side panel removed
Air filter restriction sensor
Fuel Tank
Gas-lift hood shocks
All items in the daily service schedule can be performed without the use of tools:
NOTE: Always refer to the operator’s manual for complete maintenance and service recommendations.

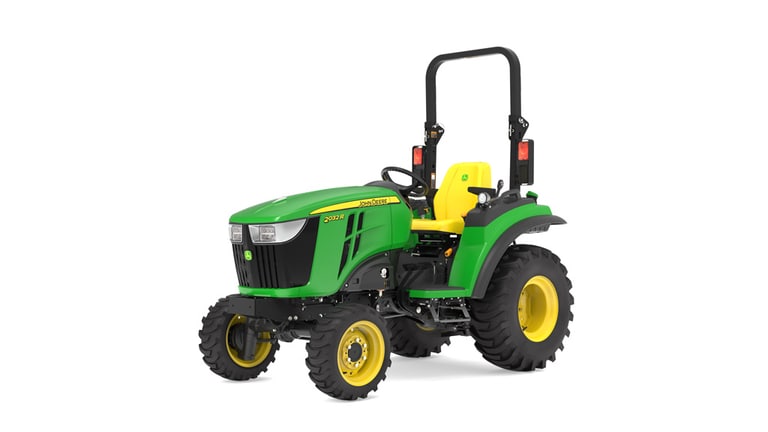

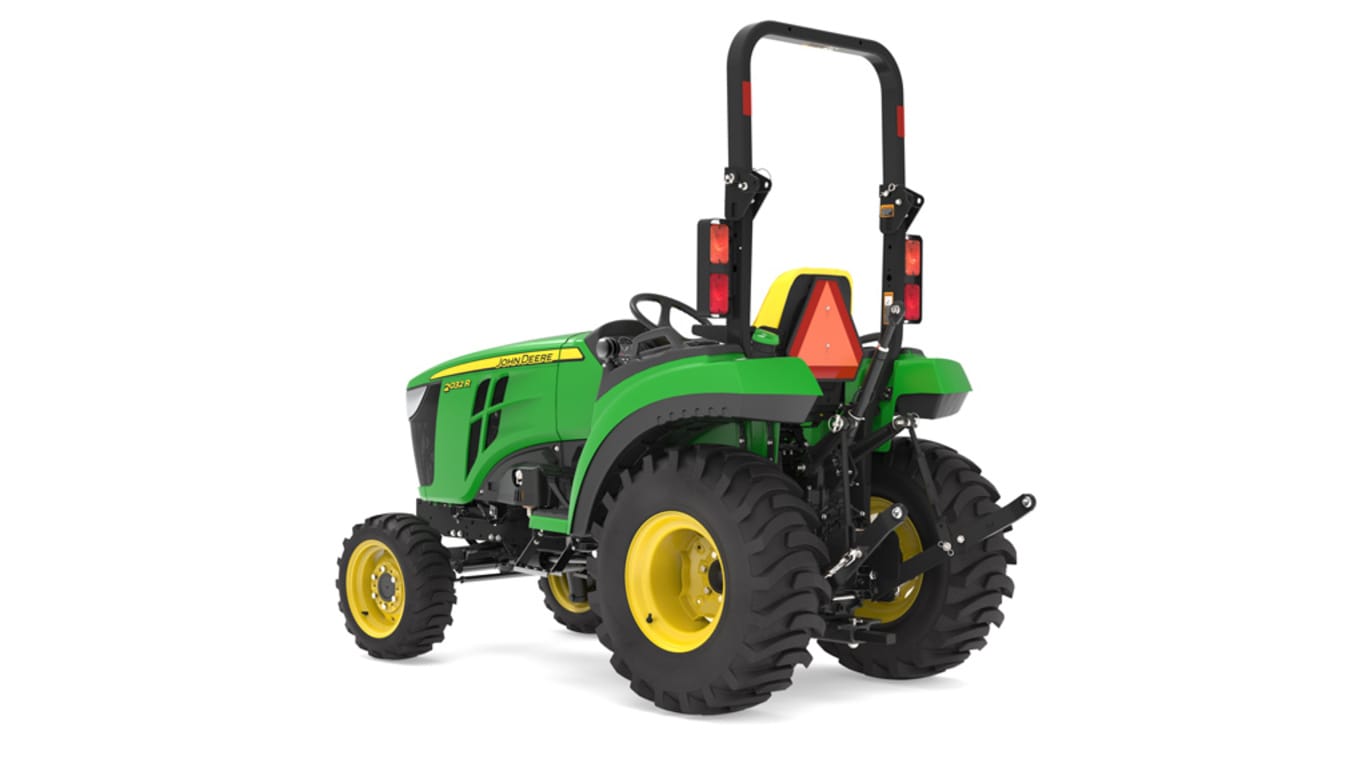

| Specifications | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 2032R Compact Tractor |
| Engine power (gross) | SAE J1995 rated power: 22.9 kW 30.7 hp 31.2 PS at 2500 rpm |
|||
|---|---|---|---|---|
| Power take-off (PTO) power | 18 kW 24.2 hp |
|||
| Steering hydraulics | 15 L/min 4 gpm |
|||
| Implement hydraulics | 20.2 L/min 5.3 gpm |
|||
| Hitch type | Category 1 | |||
| Lift capacity, 24-in. behind link arms | 615 kg 1356 lb |
|||
| Standard transmission; forward/reverse | Hydrostatic transmission (HST) | |||
| Cruise control | Standard | |||
| Approximate shipping weight (open-station; cab) | Open station: 1306 kg 2879 lb Cab: Not applicable |
|||
| Wheelbase | 1723 mm 67.8 in. |
| Family | ||||
|---|---|---|---|---|
| Manufacturer | Yanmar® | |||
| Engine model | 3TNV88C-NJT2 | |||
| Engine power (gross) | SAE J1995 rated power: 22.9 kW 30.7 hp 31.2 PS at 2500 rpm |
|||
| Power take-off (PTO) power | 18 kW 24.2 hp |
|||
| Rated engine speed | 2500 rpm | |||
| Type | Direct Injection | |||
| Injection pump type | Direct Injection | |||
| Aspiration | Natural | |||
| Emissions compliance | Final Tier 4 | |||
| Cylinders/displacement | Three cylinders: 1.642 L 100.2 cu in. |
|||
| Number of cylinders | Three | |||
| Cylinder liners | Cast-in-block | |||
| Bore and stroke | 88x90 mm 3.46x3.54 in. |
|||
| Compression ratio | 19.1:1 | |||
| Lubrication | Pressurized | |||
| Cooling system | Water pump | |||
| Air cleaner | Dual element | |||
| Engine torque at rated speed | 87.5 Nm 64.5 lb-ft |
|||
| Fuel tank capacity | 32 L 8.5 U.S. gal. |
| Battery size | 500 CCA | |||
|---|---|---|---|---|
| Alternator (12-V) | 85 amp | |||
| Starter size | 1.4 kW 1.9 hp |
| Type | Direct Injection | |||
|---|---|---|---|---|
| Fuel consumption |
| Standard transmission; forward/reverse | Hydrostatic transmission (HST) | |||
|---|---|---|---|---|
| Optional transmission; forward/reverse | ||||
| Left-hand reverser | ||||
| Transmission gear ranges | ||||
| Final drive | Spur gear | |||
| Brakes | Wet disc | |||
| Steering | Power steering | |||
| Clutch, wet/dry | ||||
| Clutch disk diameter wet clutch | ||||
| Axle capacity | Front 880 kg 1940 lb Rear 1800 kg 3968 lb |
|||
| Creeper | No | |||
| Cruise control | Standard | |||
| Differential lock | Yes | |||
| Drawbar maximum vertical load |
| Type | Open center | |||
|---|---|---|---|---|
| Pump rated output | Steering 15 L/min 4 gpm Implement 20.2 L/min 5.3 gpm 35.2 L/min 9.3 gpm |
|||
| Pump type | Dual gear | |||
| Maximum operating pressure | 172 bar 2495 psi |
|||
| Draft control sensing | Position control | |||
| Remote control valves available | Up to three |
| Type | Category 1 | |||
|---|---|---|---|---|
| Lift capacity, 24-in. behind link arms | 615 kg 1356 lb |
| Standard | Rear: 543 rpm Mid: 1998 rpm |
|||
|---|---|---|---|---|
| Optional | ||||
| Control | Independent | |||
| Clutch | Wet disc | |||
| Brake (for mid and rear PTO) | Wet disc | |||
| Engagement method |
| Crankcase with filter | 4.5 L 4.8 qt |
|||
|---|---|---|---|---|
| Transmission and hydraulic system |
| Type | Spur Gear | |||
|---|---|---|---|---|
| Differential lock | Yes |
| Rollover protective structure | Type Foldable ASABE S478 |
|||
|---|---|---|---|---|
| Platform - flat/straddle | Semi-flat | |||
| Gear shift location - console/floor |
| Compliance | ||||
|---|---|---|---|---|
| Visibility | ||||
| Air conditioning, temperature differential | ||||
| Doors | ||||
| Noise rating | ||||
| Seat equipment |
| Height | ||||
|---|---|---|---|---|
| Wheelbase | 1723 mm 67.8 in. |
|||
| Front axle clearance | ||||
| Turning radius with brakes | 2.46 m 8.07 ft |
|||
| Turning radius without brakes | ||||
| Limited slip differential | ||||
| Approximate shipping weight (open-station; cab) | Open station: 1306 kg 2879 lb Cab: Not applicable |
| Front | R1 Ag 7.00-12 R3 Turf 23x8.50-14 R4 Industrial 23x8.50-14 R3 Turf Radial 200/60 R15 |
|||
|---|---|---|---|---|
| Rear | R1 Ag 12.4-16 R3 Turf 14-17.5 R4 Industrial 14-17.5 R3 Turf Radial 300/70 R20 |
|||
| Front tread range | ||||
| Rear tread spacing |
| Toolbox | Yes | |||
|---|---|---|---|---|
| Tilt steering wheel | Yes | |||
| 12-V Outlet | Yes |
