Meet the redesigned 1 Series Sub-Compact Utility Tractors—built for the jobs that come with owning and enjoying your property. From digging and mowing to snow removal, the 1 Series is designed to switch tasks fast, keeping you comfortable and in control.
Drive-over deck makes connection simple
1 Series Tractors are designed to minimize the time and effort needed to switch-out implements to accommodate different jobs.
1 Series Tractors can have up to three implements mounted simultaneously due to standard dual selective control valves (SCVs), allowing you to switch from using one implement to another without stopping to adjust. When a third SCV kit is added, the number of possible combinations is greatly increased.

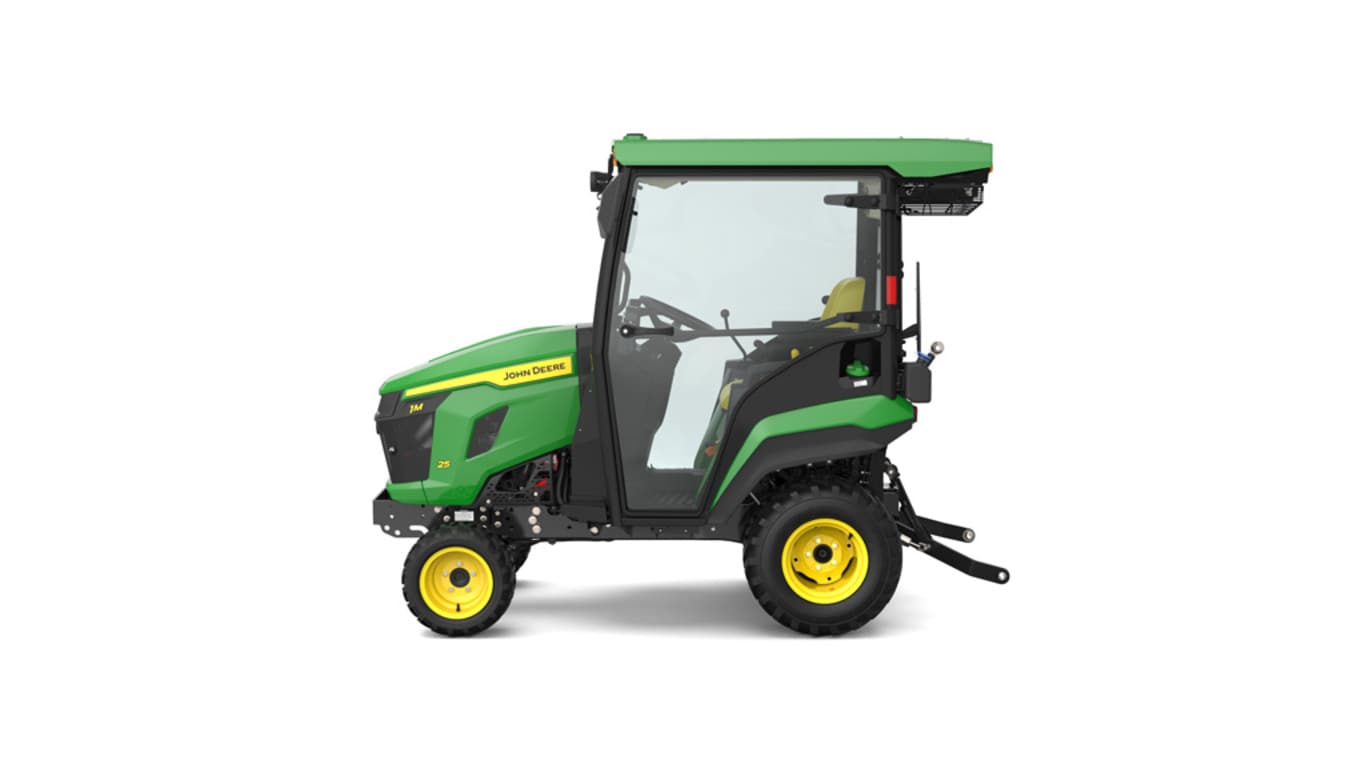

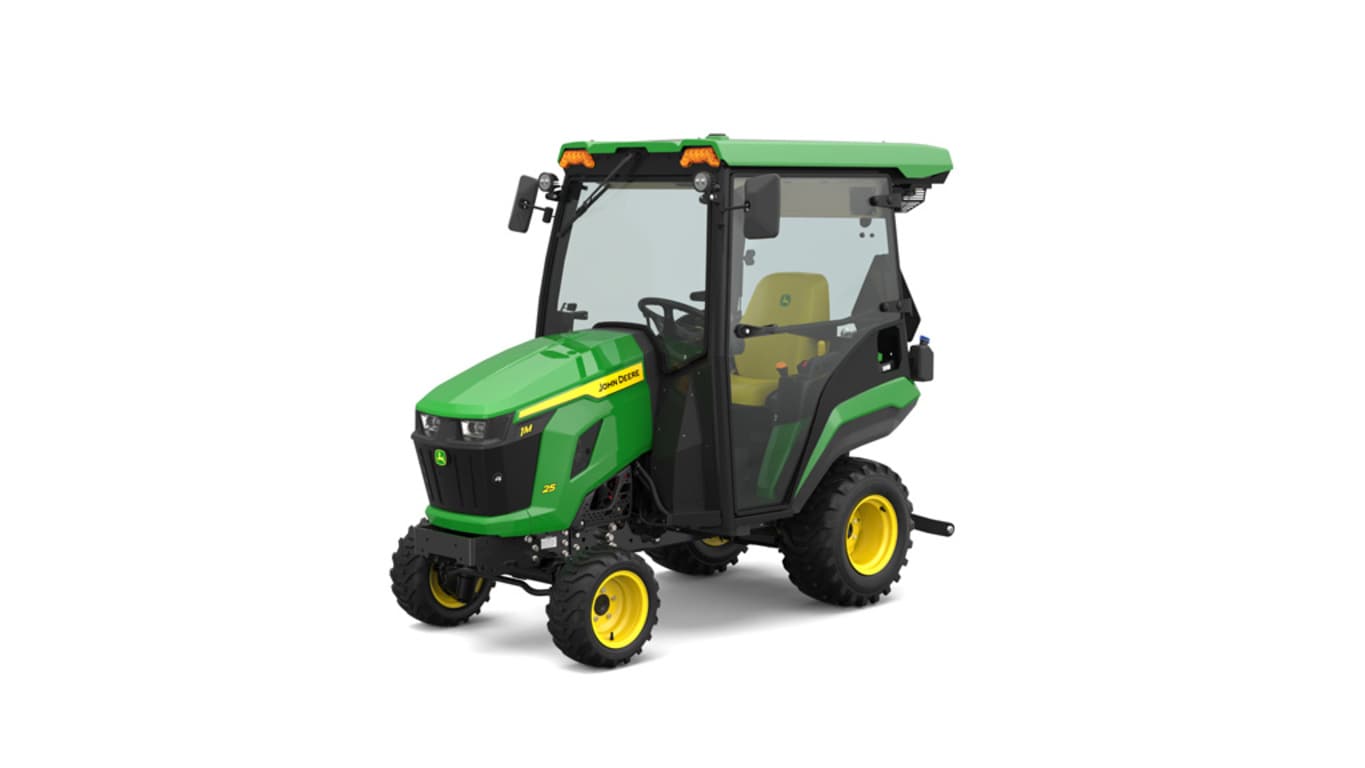

1M 25 HVAC Cab
The HVAC Cab is about comfort, security, and helping you get year-round performance. The cab offers protection from the elements to expand the versatility of 1 Series Tractors to perform in all climates.
Twin Touch™ foot controls
Twin Touch™ foot controls allow you to select both speed and direction of travel with a touch of the toe. Ideally suited for jobs where productivity is a must, such as loader or mower applications.
Equipment Mobile Resources
Setup, operate, and maintain your tractor with Equipment Mobile and a John Deere Smart Connector.
To download the free Equipment Mobile app, visit the Apple® App Store® or Google Play™ store.
You can now view information about your tractor with a Smart Connector in Equipment Mobile. Take advantage of familiar TractorPlus features in Equipment Mobile such as the Live Dashboard and Diagnostic Trouble Code alerts. Equipment Mobile offers additional tools to help you manage not just your tractor, but your entire fleet in one place.
Any size and type of operation will appreciate the features in Equipment Mobile. View help documentation to learn more about the application.
A John Deere account is needed to use the Equipment Mobile app. Here’s a great overview of how to do it: How to Create A John Deere Account | John Deere (youtube.com)
Equipment Mobile:
Please note that Smart Connectors offer local connectivity via Bluetooth, while JDLink modems enable remote connectivity and provide valuable data including location, machine performance metrics, health data, access to John Deere Connected Support services, and more.
Users can still benefit from Equipment Mobile if they do not have a Smart Connector.
Installing the Smart Connector will offer additional capabilities to help monitor equipment by sending information from the tractor to the user’s mobile device using Bluetooth® wireless capability. The following table outlines the differences between using Equipment Mobile with and without a Smart Connector.
Equipment Mobile app |
Additional Equipment Mobile app features with Smart Connector |
|
|
Wireless Trouble Code Access
Live equipment dashboard in Equipment Mobile
To pair the John Deere Smart Connector with a phone and tractor, you must first be in range with the tractor equipped with the John Deere Smart Connector. Once the Smart Connector is plugged in and the tractor is keyed on, the Smart Connector will be available to pair within Equipment Mobile. The flow of pairing a Smart Connector in Equipment Mobile is shown below.
Step 1
Step 2
Step 3
Apple and App Store are trademarks of Apple Inc. Google Play, and YouTube are trademarks of Google LLC. Bluetooth is a trademark of Bluetooth SIG, Inc.
| Specifications | ||||
|---|---|---|---|---|
| John Deere 1M 25 Sub-Compact Tractor |
| Engine power (gross) | SAE J1995 rated power: 17.8 kW 23.9 hp 24.2 PS at 3200 rpm |
|||
|---|---|---|---|---|
| Power take-off (PTO) power | Hydrostatic transmission: 13.6 kW 18.2 hp |
|||
| Steering hydraulics | 13.2 L/min 3.5 gpm |
|||
| Implement hydraulics | 13.2 L/min 3.5 gpm |
|||
| Hitch type | Limited Category 1 | |||
| Lift capacity, 24-in. behind link arms | 344 kg 758 lb |
|||
| Standard transmission; forward/reverse | Hydro Transmission (HST) | |||
| Cruise control | Standard | |||
| Approximate shipping weight (open-station; cab) | Open station: 706 kg 1556 lb Cab: 906 kg 1996 lb |
|||
| Approximate shipping weight | ||||
| Wheelbase | 1450 mm 57.1 in. |
|||
| Approximate weight |
| Family | ||||
|---|---|---|---|---|
| Manufacturer | Yanmar® | |||
| Engine model | 3TNV80F-NCJT | |||
| Engine power (gross) | SAE J1995 rated power: 17.8 kW 23.9 hp 24.2 PS at 3200 rpm |
|||
| Power take-off (PTO) power | 13.6 kW 18.2 hp |
|||
| Rated engine speed | 3200 rpm | |||
| Type | Diesel | |||
| Injection pump type | Indirect injection | |||
| Aspiration | Natural | |||
| Emissions compliance | Final Tier 4 | |||
| Cylinders/displacement | 1.267 L 77.3 cu in. |
|||
| Number of cylinders | 3 | |||
| Cylinder liners | ||||
| Bore and stroke | 80 x 84 mm 3.15 x 3.31 in. |
|||
| Compression ratio | ||||
| Lubrication | ||||
| Cooling system | Water pump | |||
| Air cleaner | Dual element with mechanical restriction indicator | |||
| Engine torque at rated speed | ||||
| Fuel tank capacity | 24 L 6.3 U.S. gal. |
| Battery size | 500 CCA | |||
|---|---|---|---|---|
| Alternator (12-V) | 40 amp | |||
| Starter size |
| Type | ||||
|---|---|---|---|---|
| Fuel consumption |
| Standard transmission; forward/reverse | Hydrostatic - two range | |||
|---|---|---|---|---|
| Optional transmission; forward/reverse | ||||
| Left-hand reverser | ||||
| Transmission gear ranges | ||||
| Final drive | ||||
| Brakes | Wet disc (left-hand pedal) | |||
| Steering | Power steering | |||
| Clutch, wet/dry | ||||
| Clutch disk diameter wet clutch | ||||
| Axle capacity | Front 612 kg 1349 lb Rear 715 kg 1576 lb |
|||
| Creeper | ||||
| Cruise control | Standard | |||
| Differential lock | ||||
| Drawbar maximum vertical load |
| Type | Open center | |||
|---|---|---|---|---|
| Pump rated output | Steering 13.2 L/min 3.5 gpm Implement 13.2 L/min 3.5 gpm 24 L/min 6.3 gpm |
|||
| Pump type | ||||
| Maximum operating pressure | ||||
| Draft control sensing | Position control | |||
| Remote control valves available | Three |
| Type | Limited Category 1 | |||
|---|---|---|---|---|
| Lift capacity, 24-in. behind link arms | 344 kg 758 lb |
| Standard | Rear - 540 rpm Mid - 2100 rpm |
|||
|---|---|---|---|---|
| Optional | ||||
| Control | Independent | |||
| Clutch | Wet disk | |||
| Brake (for mid and rear PTO) | Wet disk | |||
| Engagement method |
| Crankcase with filter | ||||
|---|---|---|---|---|
| Transmission and hydraulic system |
| Type | ||||
|---|---|---|---|---|
| Differential lock |
| Rollover protective structure | Type Foldable Yes |
|||
|---|---|---|---|---|
| Platform - flat/straddle | ||||
| Gear shift location - console/floor |
| HVAC | Yes | |||
|---|---|---|---|---|
| Compliance | ||||
| Visibility | ||||
| Air conditioning, temperature differential | ||||
| Doors | Two | |||
| Noise rating | ||||
| Seat equipment | Suspension Seat |
| Height | ||||
|---|---|---|---|---|
| Width | ||||
| Altura do volante | ||||
| Wheelbase | 1450 mm 57.1 in. |
|||
| Front axle clearance | 195 mm 7.7 in. |
|||
| Turning radius with brakes | 2.51 m 8.2 ft |
|||
| Turning radius without brakes | 2.32 m 7.61 ft |
|||
| Limited slip differential | ||||
| Approximate shipping weight (open-station; cab) | Open station: 706 kg 1556 lb Cab: 906 kg 1996 lb |
| Front | R3 Turf: 18x8.50-10 R3 Turf Radial: 18x8.50-10 R4: 18x8.5-10 |
|||
|---|---|---|---|---|
| Rear | R3 Turf: 26x12-12 R4: 26x12-12 |
|||
| Front tread range | 915 mm 36 in. |
|||
| Rear tread spacing | 896 mm 35 in. |
| Toolbox | Yes | |||
|---|---|---|---|---|
| Tilt steering wheel | Yes | |||
| 12-V Outlet | Yes | |||
| USB Port | Yes |
| Country of manufacture | ||||
|---|---|---|---|---|
| Date collected |
