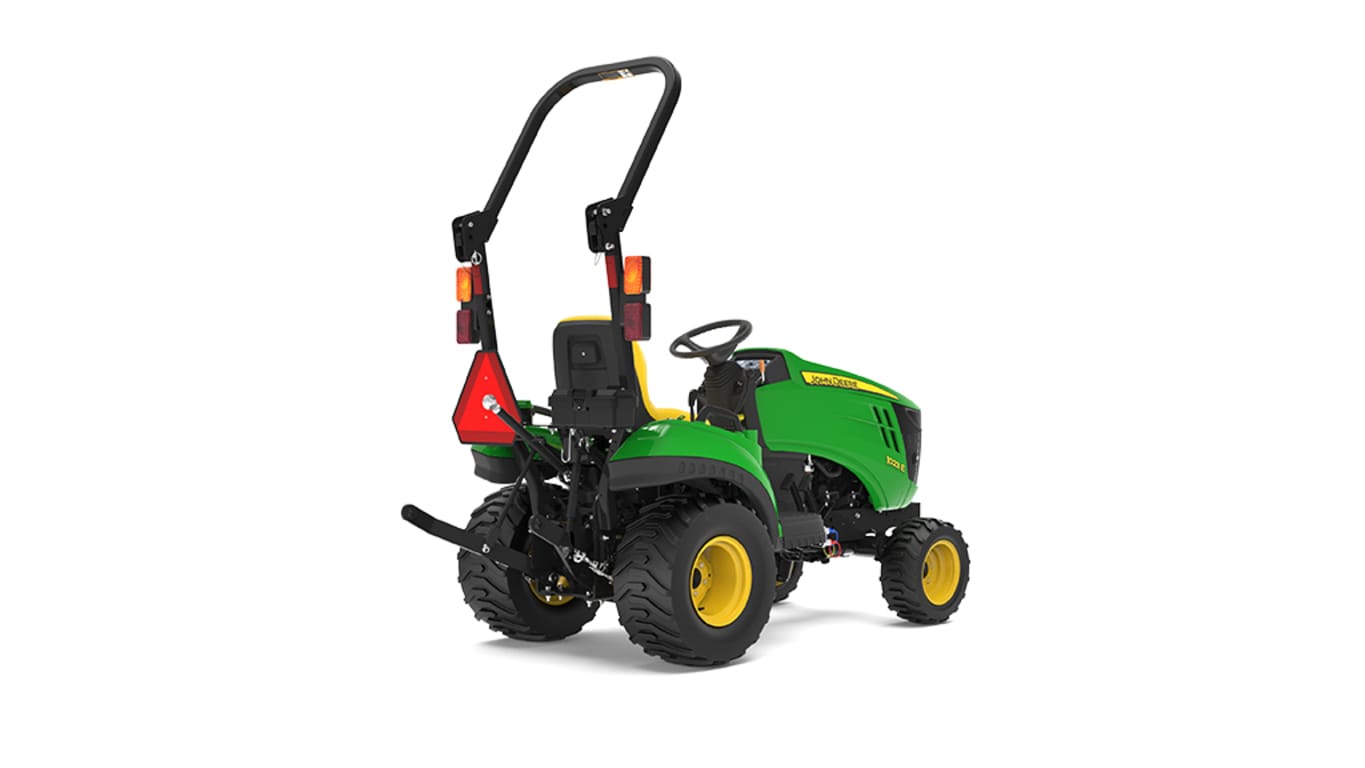

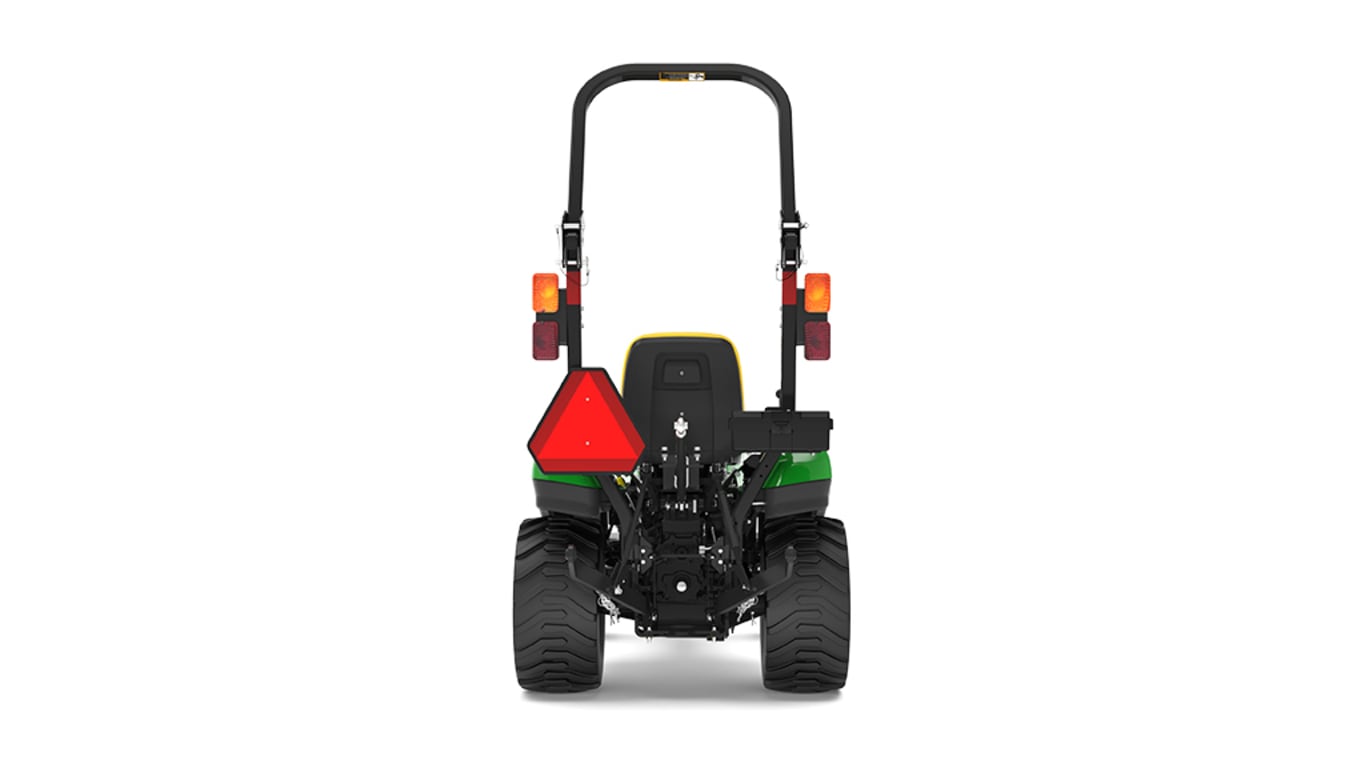

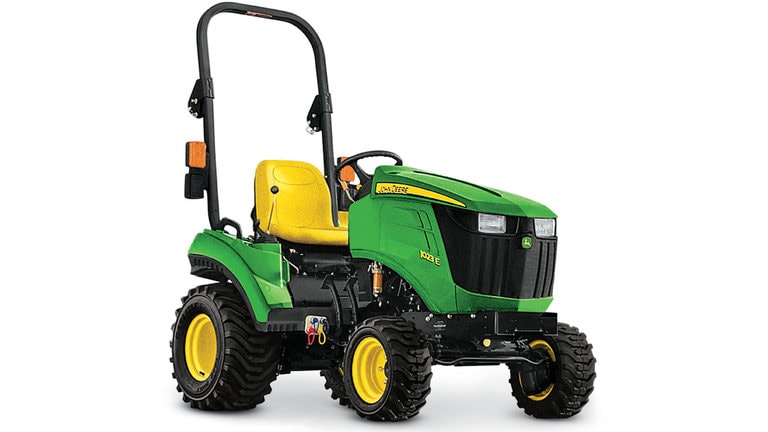

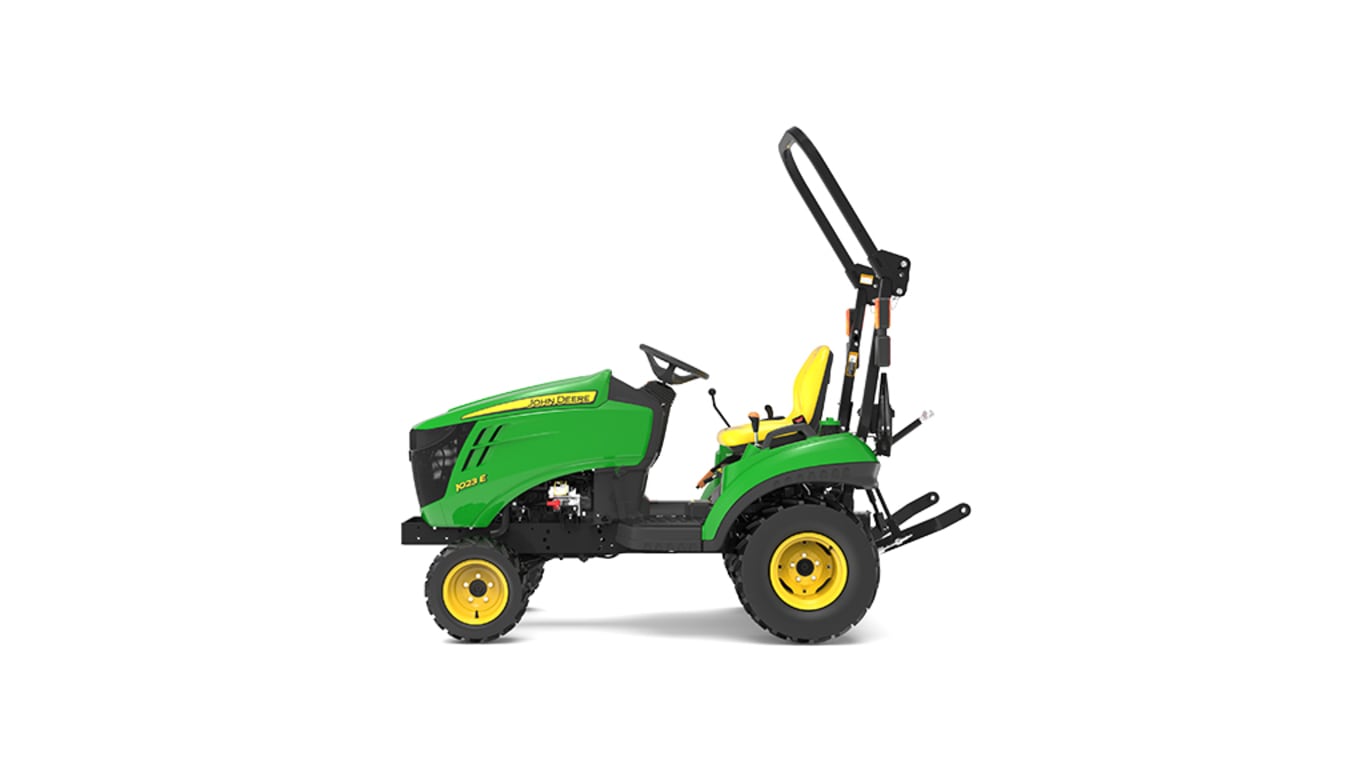

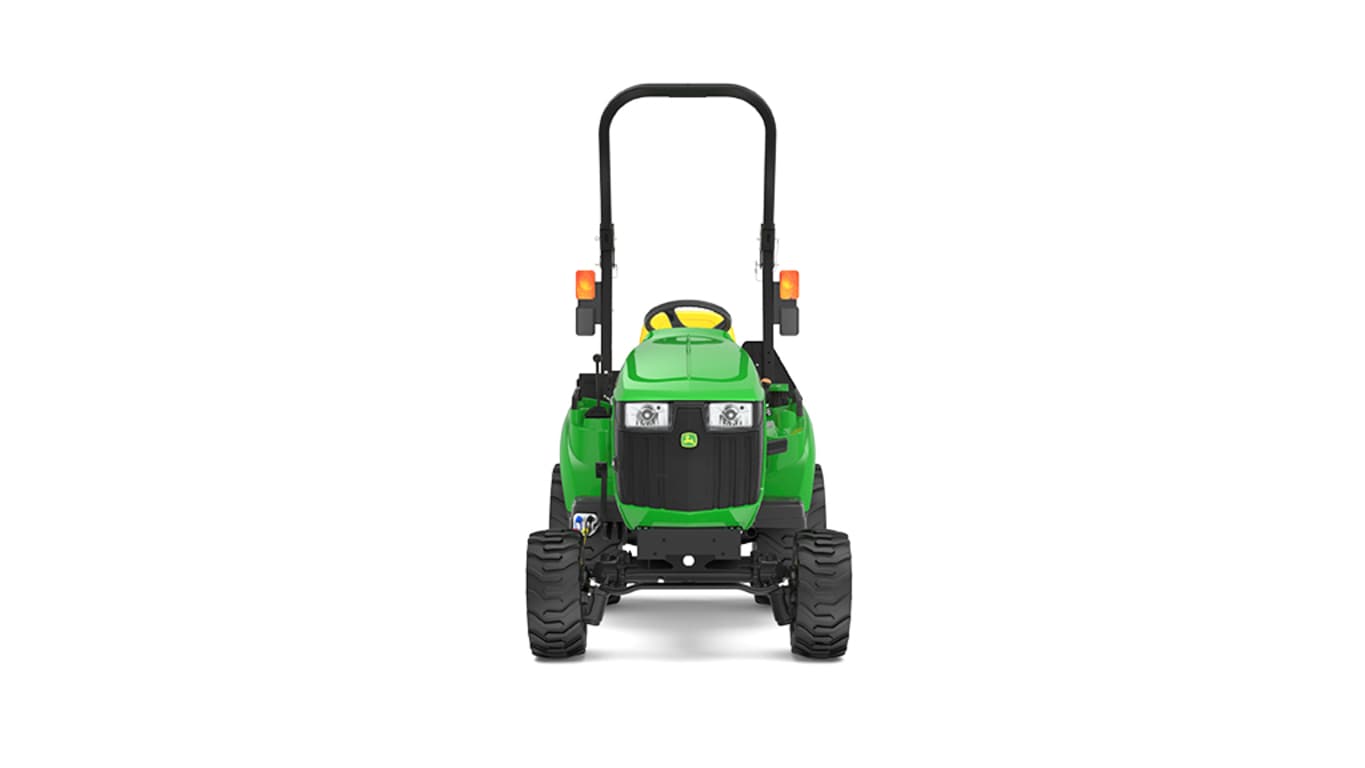

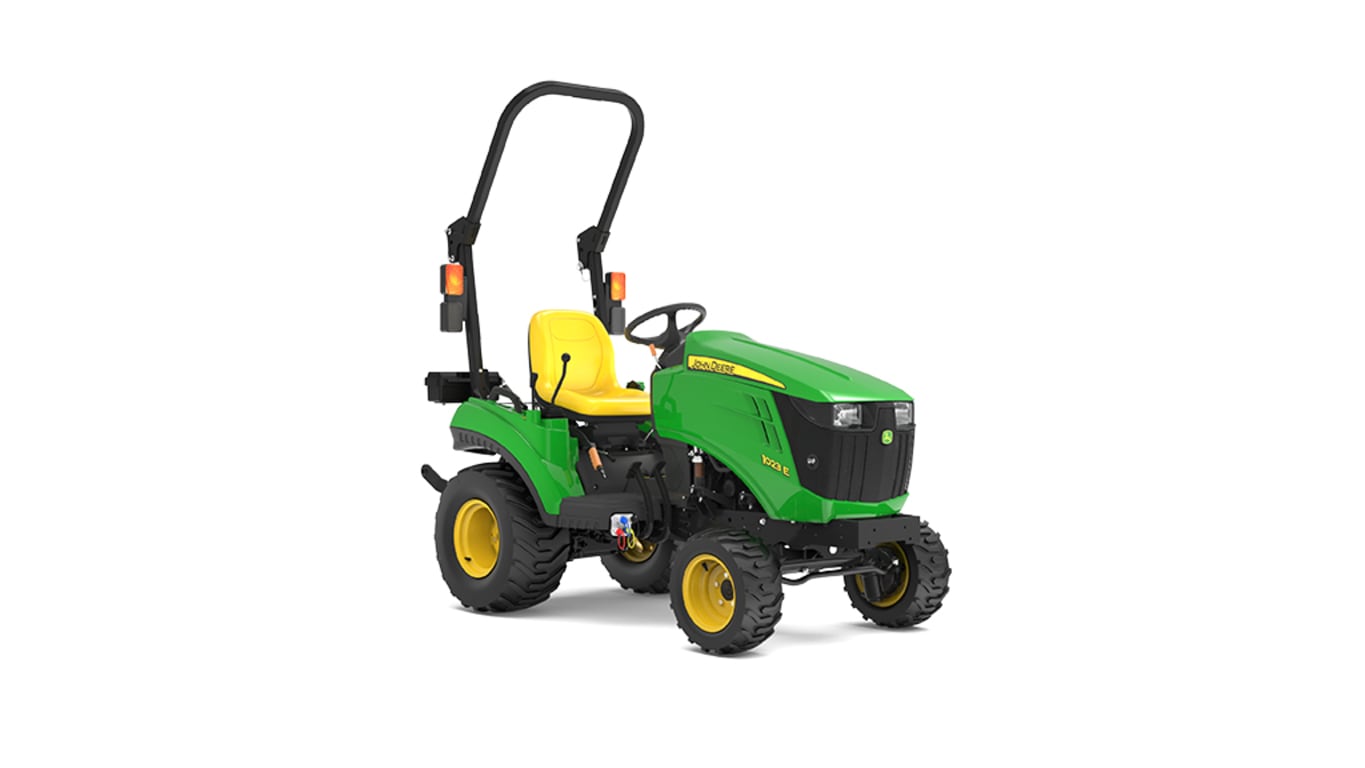

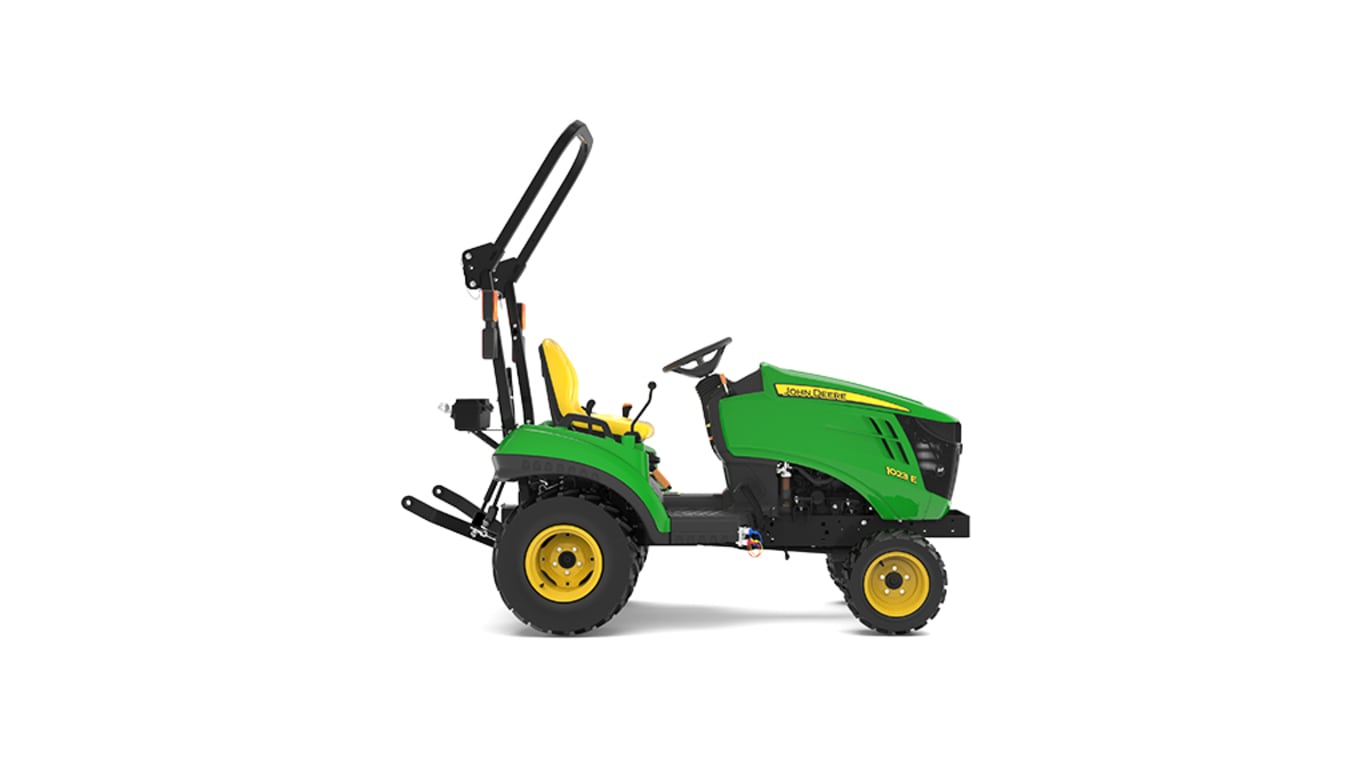

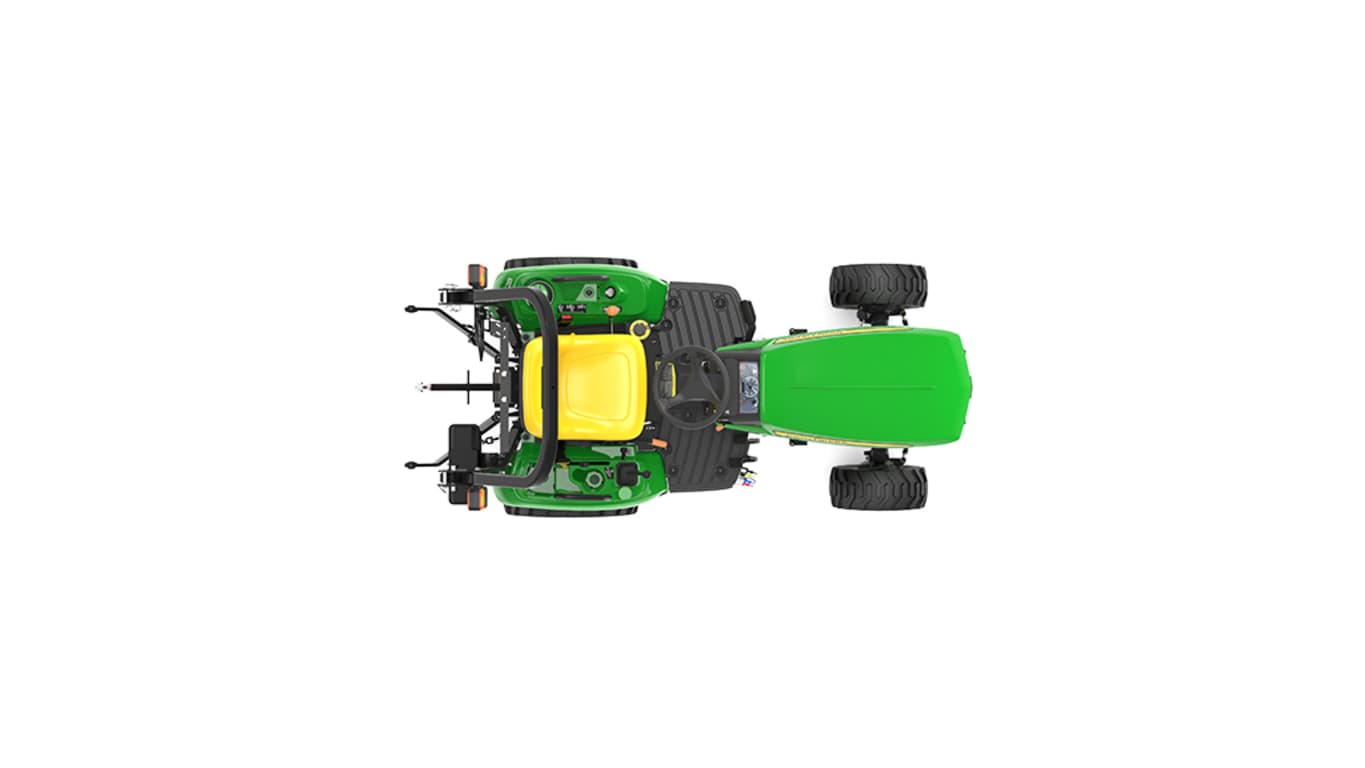

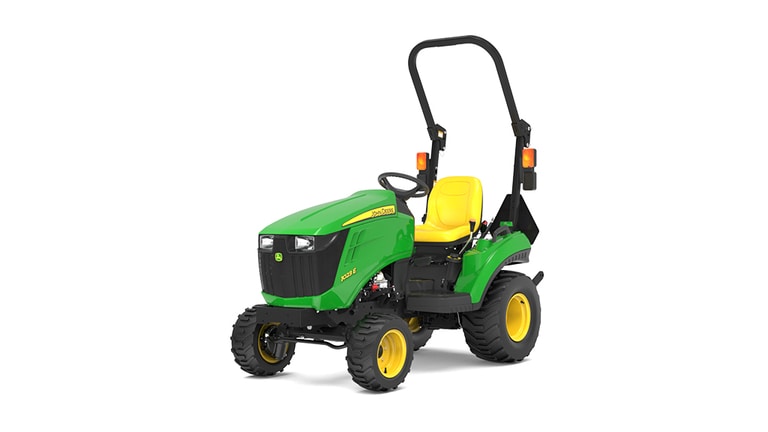

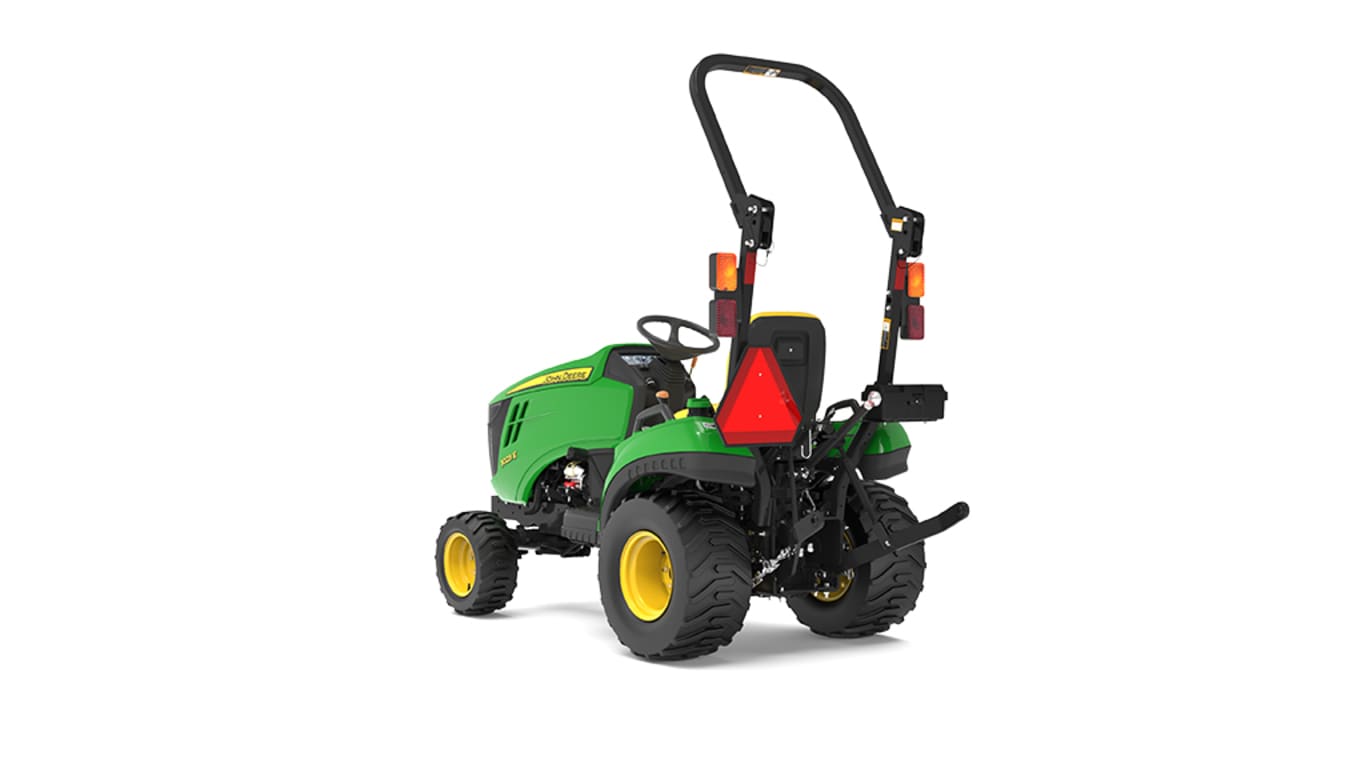

1023ESub-Compact Utility Tractor

Powerful engine

• Tier 4-compliant isolated Yanmar® TNM clean and silent diesel engine
• 22.4 gross hp (PS) - 16.5 power take-off (PTO) hp
• 3200 rpm rated speed

Strong hydraulics

• Standard dual mid-selective control valve (SCV) with integrated loader joystick
• Third SCV kit
• Power beyond kit
• Independent hydraulic-lift kit
• Rear-hydraulic coupler kit

Comfortable operator station and controls

• Ag tractor family styling with sloping hood design
• Folding rollover protective structure (ROPS)
• Spring suspension seat
• Cup holder and additional storage

Versatile implements

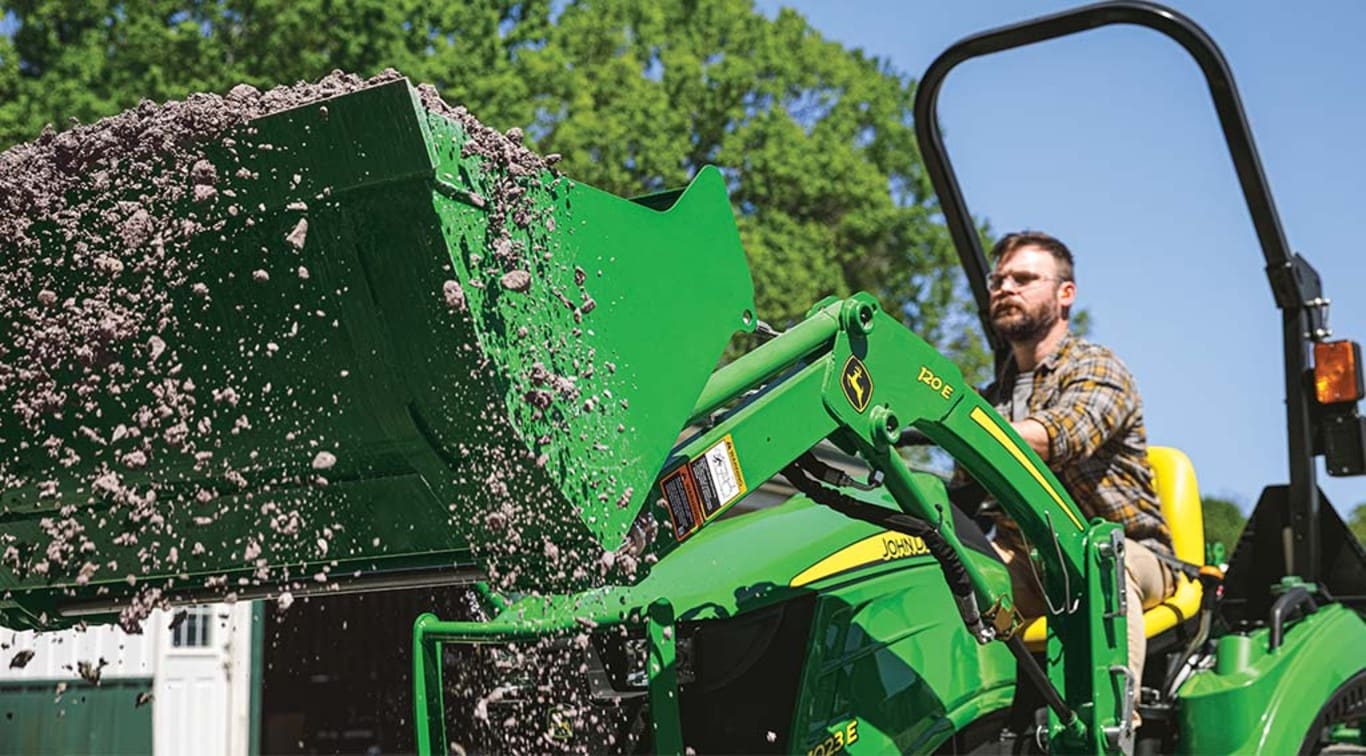

• D120 and H120 Loaders
• 54D AutoConnect™ and 60D AutoConnect 7-Iron™ mower decks
• Material-collection system
• 260 Backhoe
• iMatch™ AutoHitch™ system
• Rotary brooms 132.1 cm and 152.4 cm (52 in. and 60 in.)
• Front blade 137.2 cm (54 in.)
• Snow blowers 119.4 cm and 137.2 cm (47 in. and 54 in.)
• Rotary tillers (647 and 655)

Yanmar is a trademark of Yanmar Company limited.

Both 4WD and power steering are standard equipment on the 1023E. This combination allows for excellent maneuverability and ease of operation of the tractor.

• Narrow overall width allows the 1023E to work in tight areas where most compact tractors just can't fit, yet the 144.8 cm (57-in.) wheel base and 119.4 cm (47-in.) overall width gives great stability for all type of terrains.
• Power steering requires less effort than manual steering; especially valuable when mowing around obstacles or when the tractor is used with a front loader.
• High horsepower-to-weight ratio makes the 1023E a good choice for a variety of tasks; overall tractor weight reduces ground compaction and makes the 1023E an excellent mowing tractor.
• The power take-off (PTO) on the 1023E is fully independent PTO, allowing engaging and disengaging of the PTO without stopping tractor movement. This is important when driving across obstacles such as driveways while mowing.

• Front Quik-Tatch™ hitch makes changing front implements quick and easy
• All front implements (blade, brooms, and snow blowers) use a common hitch
• AutoConnect™ mid-mount mower decks, D120 and H120 Loaders, and 260 Backhoe can be taken on or off within 5 minutes, and no tools are necessary
• Changing rear implements is a snap with the iMatch^TM Quick-Hitch, which has three fixed points to back in and pick up a rear implement that is iMatch compatible

*Features shown are available with all current model year tractors.

Implement compounding (1025R Tractor shown)

• Allows mounting more than one implement at a time, eliminating implement changeover
• Loader, mid mower, backhoe, and a variety of 3-point hitch implements can be attached to the tractor at the same time

3-cylinder Yanmar TNM Series diesel engine

Power is provided by a compact and high-performance 3-cylinder Yanmar® TNM Series diesel engine.

This series of engines was developed to meet Tier 4 environmental protection agency (EPA) environmental requirements by featuring low levels of both exhaust and emissions.

Yanmar TNM Series engine offers these features:

• Economical for good cooling and long life
• Isolated engine provides reduced vibration and noise for the operator; indirect fuel injection uses a pre-combustion chamber to give the engine a smooth and quiet operation; aluminum alloy piston with built-in steel struts are lightweight to reduce connection rod bearing loads and provide good heat transfer characteristics
  • Design permits tighter tolerances and neutralizes expansion of the piston, thereby reducing blow-by gas and less noise from the piston slap
  • Higher top rings on the piston and a thinner-head gasket greatly reduces the volume of unburned waste gases and increases combustion efficiency
• Timing-gear teeth have a designed roll-off profile giving almost no clash, no noise, and no backlash
• High-torque reserve provides plenty of power under heavy load, yet retains excellent fuel economy
• Fuel filter with replaceable element
• Full-pressure lubrication system provides filtered oil under pressure to all vital engine parts
• Glow plugs provide quick starts in temperatures down to -18°C (0°F). (Optional engine coolant heater attachment will assist starting under more extreme conditions.)
• Auto-bleed fuel system means there is no special bleeding required if the tractor runs out of fuel; this system will self-prime the injection pump, lines, and injectors, providing fast fuel recovery
• Key start and shut off eliminates fuel shut-off knob
• Electric solenoid shuts fuel supply off immediately when key is turned off
• See-through coolant recovery tank permits operator to check coolant level without removing radiator cap

• Dry-type air cleaner with safety element keeps dirt and other contaminants out of the engine

  • Safety element (second filter) will protect engine if primary filter would develop a leak
  • Protects engine when servicing primary filter
• Side-screen panels and front-grille screen provide excellent flow of air to the engine compartment
• Sealed-radiator compartment keeps trash and debris on outside of hood
• Single-piece side panels can be removed for easy and quick access to the engine
• Horizontal exhaust discharges fumes away from the operator station, reducing noise and improving operator visibility and comfort

Yanmar is a trademark of Yanmar Company Limited.

The 1023E and 1025R Tractors feature a HST.

• Fluid under pressure transmits engine power to the drive wheels through a hydraulic pump and motor
• The hydrostatic-drive unit functions both as a clutch and transmission

Twin Touch foot controls

Twin Touch foot controls allow selecting both speed and direction of travel with a touch of the toe. Ideally suited for jobs where productivity is a must, such as loader or mower applications.

• Infinite ground speeds, even at full throttle, to match the job
• No clutching for fast direction changes
• Faster, easier, and more precise to operate than competitive tractors with treadle pedal design (toe-heel)
• Provides high torque for start up
• Reduces power train shock loads
• Large foot pedals were designed for operator comfort and allow for convenient operation of the tractor

Two-speed transmission

Transmission has two speeds - Hi and Lo range.

• The range lever is located next to the seat, conveniently within reach of the operator
• Lo range allows performing tougher tasks at higher speeds than competitive tractors equipped with a three-range transmission (that is, lo range on three-speed transaxle is slower than lo range on a two-speed transaxle)

Durability features include:

1. Large forged one-piece trunnion shaft with larger support bearings that reduce vibration and noise.
2. Innovative transaxle combines an HST, gear reduction axle, and clutch.
3. Pressure side filtration allows using a finer-mesh filter (10 micron) than suction filtration systems use on many competitive tractors.
4. One pump to supply charge pressure and implement flow. A flow divider splits the flow to various circuits throughout the tractor.
5. The transaxle has an oil cooler which provides improved hydraulic cooling performance.

Open operator's station (1025R shown)

The 1023E operator's station has been designed to allow for greater operator comfort and increased visibility. Large and easy-to-grab handrails are located on each fender for an easier on and off of the tractor from either side.

• Sloping hood design provides improved visibility
• Operator station provides plenty of room for comfortable operation
• Step-through textured flat operator station makes getting on and off the tractor easy from either side of the tractor
• Fender-mounted handrails are large and easy to grab; located on each fender, they assist the operator in getting on and off the tractor
• Controls are located next to the fenders for operator convenience
• Operator controls are color-coded for easy identification of operation
• Front-horizontal exhaust for increased operator visibility

*Features shown are available on current model year tractors.

Operator presence system

• If the operator leaves the tractor seat when the transmission, mid- or rear-power take-off (PTO) is engaged, the engine will shut down

Foldable Roll-Gard ROPS

Foldable Roll-Gard™ rollover protective structure (ROPS) and retractable seat belt are standard equipment to protect the operator in the event of a tractor tip over, as well as improve the ability to store tractor in a garage.

Seat belt is within easy reach of the operator, to encourage the use of it whenever operating the tractor.

*Features shown are available on current model year tractors.

Lighting

Standard lighting shown

Standard equipment lighting includes:

• Two front-mounted sealed-beam halogen headlights
• Two amber flashing warning/hazard lights mounted on the side of the ROPS with reflectors
• Built-in tail light on one warning/hazardous light
• Additional front- and rear-light kits are available

*Features shown are available on current model year tractors.

iMatch Quick-Hitch

iMatch Quick-Hitch with rotary cutter hookup

iMatch Quick-Hitch (LVB25976)

iMatch Quick-Hitch with rotary cutter hookup (LVB25976)

One of the greatest operator concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.

The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements that are designed to meet the American Society of Agricultural and Biological Engineers (ASABE) Category 1 Standard S278.6 for quick-attach hitches.

• All implements require a set of bushings in order for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.

NOTE: The bushing set can be seen in the picture above. These bushings allow the hooks on the iMatch and the pins on the implement to fit together properly. All other implements (box blades, tillers, rear blades, etc.) will require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).

• Upper bushing
  • Inside diameter: 1.93-1.95 cm (0.76-0.77 in.)
  • Outside diameter: 3.15-3.18 cm (1.24-1.25 in.)
• Lower bushings
  • Inside diameter: 2.24-2.26 cm (0.88 to 0.89 in.)
  • Outside diameter: 3.63-3.66 cm (1.43 to 1.44 in.)

Gas-lift spring

• The under-hood gas-lift support provides easy one-finger access to the engine compartment and eliminates the need for a mechanical prop rod.
• This design of the support structure provides excellent rigidity for the hood.

1025R Tractor

• The 1 Family tractors includes factory-installed mechanical deck lift components.
• The addition of these components from the factory significantly reduces the time required to do the initial mower deck installation at the time of purchase.
• Refer to the mowers and material collection page for more details on mower deck installation and compatibility.

Ballast box

Ballast box with 3E Tractor

A ballast box can be used to carry additional ballast for greater tractor stability.

A 23-cm (9-in.) high extension can be added to ballast box for even greater capacity.

Ballast box extension

The hitch utilizes a standard Category 1 configuration for connection to the tractor Category 1 hitch.

A bushing kit is required for the ballast box to be used with the iMatch™ Quick-Hitch.

Ballast box with extension

The ballast box can be used to carry additional ballast for greater tractor stability.

A 23-cm (9-in.) high extension can be added to ballast box for even greater capacity.

The hitch utilizes a standard Category 1 configuration for connection to the tractor Category 1 hitch.

A bushing kit is required for the ballast box to be used with the iMatch™ Quick-Hitch.

The ballast box extension is only available through Parts; it is not a factory option.

Adapter parts

Adapter attaches to the engine cylinder block.

Engine coolant heater

The coolant heater allows for faster, smoother engine starts when the engine is cold.

Heater plugs into a 120-V electrical outlet to warm the engine for fast cold weather starts. It has a 400 W rated output:

• For Yanmar® engines

Yanmar is a trademark of Yanmar Company Limited.

Magnetic hitch pin

Fits John Deere lawn and garden tow behind attachments.

• Strong magnetic grip
• Rust resistant
• Easy to install, secure fit

Ordering information

Customers, please contact your local John Deere dealer for availability and pricing information.

Magnetic hitch pin

Order number: LP63768

Engine coolant heater kit

Attached to the engine cylinder block, the engine coolant heater plugs into a 120-V electrical outlet to warm the engine for fast cold-weather starts.

NOTE: It is recommended to install optional engine coolant heater, transmission oil heater, and battery heating pad (A22400P - ordered through A and I) if operating machine in temperatures below -18 ⁰C (0⁰F).

Third SCV kit

Includes single-lever control, hydraulic lines, and rear-mounted couplers with one set of outlets.

• Allows using third spool on SCV
• Provides a single set of rear SCV outlets for added versatility

Rear-hydraulic outlet kit

The rear-hydraulic outlet kit routes hydraulic power from dual mid-selective control valves to two sets of couplers at the rear of tractor.

Rear work light

This kit provides light to the rear of the tractor for evening work.

For open-station tractors only, this kit contains individual light.

Allow 30 minutes to install.

NOTE: Kit includes one rear light.

NOTE: Both the rear- and forward-work lights are compatible together and with the light-brush guard kits. The light kit contains a two-to-four pigtail that plugs into the main harness, as if only plugging one set of lights, providing two sets of plugs to use for forward and rear-work lights. The forward light is installed on top of the brush guard, and the rear light is installed inside the ROPS using the bolt holding the light and brush guard on.

NOTE: For 102E3 and 1026R Tractors – kit interference during backhoe operations (mounted inside ROPS) – use LVB25546 forward-light kit as an alternative.

The forward-lighting kit provides extra visibility when working in dark conditions. Lights attach to the brush guards located on the rollover protective structure (ROPS). Each kit contains two lights.

NOTE: Requires BLV10400 warning light brush guard kit and LVB26026 light kit harness. Not compatible with LVB25547 rear work light kit (1023E).

NOTE: Requires BLV10400 warning light brush guard kit. Not compatible with LVB25547 rear work light kit (1025R, 2025R, 2032R, 2038R, 3025E, 3032E, 3038E, 4105, 4044M, 4052M, 4066M).

NOTE: Requires BLV10620 premium warning light brush guard kit. Not compatible with LVB25547 rear work light kit (3033R, 3039R, 3046R, 4044R, 4052R, 4066R).

 Rollover protective structure (ROPS) mounted LED work lights

An optional LED work light kit is available for all open-station compact utility tractors. These lights provide extra visibility when working in dark conditions and have 180-degree rotation to face forward or backward. The kit contains two lights and the mounting hardware required for installation.

This lighting kit is mounted to the warning light brush guard kit, which is mounted to the ROPS and requires attachment BLV10400 for installation.

The halogen work light kit attachment is still available (LVB25546).

Light wire harness required to use with LVB25547 rear-work light kit and LVB25546 forward-lighting kit on 1023E Tractors.

Shown on 4000 TEN Series Tractor

ROPS warning-light brush guards protect turn signal/warning lights from damage caused by low branches on trees.

For open-station tractors only.

Two guards included in each kit.

Typical home maintenance kit

Filter Paks are a handy and convenient way for dealers to supply a customer with the maintenance-interval parts as specified in their operator's manual. These kits contain an oil filter, air filter, fuel filter and hydraulic filter, offering a complete solution for all your customers’ maintenance needs to keep their tractors running at peak performance.

Benefits of Filter Paks:

• Convenience – all filters in one package
• Value – better pricing than purchasing individual components
• Performance – you get the most out of the capability of your tractor

Easy to understand – indicates models and contents so you never have to worry about the right filters for your compact utility tractor

Large seat cover

• Cushioned seat for extra comfort
• Fabric coated for maximum water resistance and repellency
• Elastic cord locks around safety sign on seat back
• Elastic cord in bottom hem for a custom fit
• Handy zippered storage case

Ordering information

Please contact your local John Deere dealer for availability and pricing information.

Large seat cover
Order number: LP95233

Spark arrester

Allows the Gator™ TX Turf to meet specific regulatory requirements.

iMatch Quick-Hitch bushing

Ordering information

Customers, please contact your local John Deere dealer for availability and pricing information.

iMatch Quick-Hitch Bushings
Order number: LP19969

iMatch Quick-Hitch (LVB25255)

iMatch Quick-Hitch with rotary cutter hookup (LVB25255)

iMatch Quick-Hitch (LVB25976)

iMatch Quick-Hitch with rotary cutter hookup (LVB25976)

One of the greatest customer concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.

The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements that are designed to meet the ASAE Category 1 Standard S278.6 for quick-attach hitches.

• All implements require a set of bushings in order for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.

NOTE: In the picture above, you see the bushing set. These bushings allow the hooks on the iMatch and the pins on the implement to fit together properly. All other implements (box blades, tillers, rear blades, etc.) will require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).

• Upper bushing
  • Inside diameter: 0.76-0.77 in.
  • Outside diameter: 1.24-1.25 in.

• Lower bushings
  • Inside diameter: 0.88 to 0.89 in.
  • Outside diameter: 1.43 to 1.44 in.

iMatch quick-coupler bushing kit

This bushing kit is for use with Category 1 implements (ballast box) to make them function correctly with the iMatch Quick-Hitch.

Tire chains

Tire chains increase traction dramatically under ice and snow conditions.

NOTE: Not intended for use on all four rear tires on the TH 6x4.

One or two 23-kg (50-lb) cast-iron weights may be installed on each rear wheel to provide extra traction and stability.

• Made of durable cast iron and painted John Deere yellow
• May be installed with wheel in either the narrow or wide position
• To stack the weights and install two on a wheel, two 1/2x8-in. bolts are required per wheel (not furnished)

23-kg (50-lb) plastic-shell rear-wheel weight

One 23-kg (50-lb) plastic-shell rear-wheel weight may be installed on each rear wheel to provide extra traction and stability.

• Outer shell made of tough polyethylene plastic
• Filled with a heavy granular material that contains a high iron percentage
• A bonding substance is added to hold the material together so that it will remain intact even if shell is damaged

Multiple stacking is not recommended.

Overall width of the tractor will be increased by approximately 5 cm (2 in.) when weights are installed.

Schematic of weight installed on wheel

Weights are packaged one per carton, with necessary hardware for installation on a wheel, in either the narrow or wide position.

70-lb (32-kg) cast-iron starter weight

Starter weight with 50-lb (22.7-kg) cast-iron weight

70-lb (32-kg) cast-iron starter weights can be bolted to the outside of the rear wheels for ballast.

Additional 50-lb (22.7-kg) cast-iron wheel weights may be bolted to the starter weight.

NOTES:

1. For 26-in. (660-mm) tire and rim only.

2. Starter weight not for use on all-wheel-steer tractors.

3. X700 Special Edition Tractors (model year 2012 and prior) and X738, X739, and X758 Signature Series Tractors require a BM21497 wheel weight adapter ring on each rear wheel on which weights are to be installed.

NOTE: Plastic rear-wheel weight comes with necessary hardware for installation.

23-kg (50-lb) cast-iron wheel weights

For 23-kg (50-lb) cast-iron wheel weights on 26x12-in. rear tyres:

NOTE: Order two sets for both sides of the tractor.

33-kg (72-lb) starter cast-iron wheel weight

For 33-kg (72-lb) starter cast-iron wheel weight on 26x12-in. rear tyres:

NOTE: Order two sets for both sides of the tractor.

33-kg (72-lb) starter and 23-kg (50-lb) cast-iron weight(s)

For 33-kg (72-lb) starter and 23-kg (50-lb) cast-iron weight(s):

NOTE: Order two sets for both sides of the tractor

NOTE: Plastic rear-wheel weight comes with necessary hardware for installation.

23-kg (50-lb) cast-iron wheel weights

For 23-kg (50-lb) cast-iron wheel weights on 26x12-in. rear tyres:

NOTE: Order two sets for both sides of the tractor.

33-kg (72-lb) starter cast-iron wheel weight

For 33-kg (72-lb) starter cast-iron wheel weight on 26x12-in. rear tyres:

NOTE: Order two sets for both sides of the tractor.

33-kg (72-lb) starter and 23-kg (50-lb) cast-iron weight(s)

For 33-kg (72-lb) starter and 23-kg (50-lb) cast-iron weight(s):

NOTE: Order two sets for both sides of the tractor

NOTE: Plastic rear-wheel weight comes with necessary hardware for installation.

23-kg (50-lb) cast-iron wheel weights

For 23-kg (50-lb) cast-iron wheel weights on 26x12-in. rear tyres:

NOTE: Order two sets for both sides of the tractor.

33-kg (72-lb) starter cast-iron wheel weight

For 33-kg (72-lb) starter cast-iron wheel weight on 26x12-in. rear tyres:

NOTE: Order two sets for both sides of the tractor.

33-kg (72-lb) starter and 23-kg (50-lb) cast-iron weight(s)

For 33-kg (72-lb) starter and 23-kg (50-lb) cast-iron weight(s):

NOTE: Order two sets for both sides of the tractor

42-lb (19-kg) Quik-Tatch weight

42-lb (19-kg) weights and optional mounting bracket

The 42-lb (19-kg) Quik-Tatch can be used to counterbalance a heavy front or rear attachment and/or provide greater stability, especially when operating on hills.

This weight is constructed of cast iron and weighs approximately 42 lb (19 kg).

Some vehicles have built-in front and/or rear weight brackets to hang the weights on; others require a weight bracket that must be ordered separately.

X400/X500 Heavy-Duty Garden Tractors and X700 Series Tractors require the following parts when weights are installed on the front of the tractor:

• One  M147986 weight retaining rod (Parts)
• Two  M40461 spring clip (Parts)
