Tillage | Disks | 2633VT Vertical Tillage

Six sizes available to fit right machine to any size operation

Ground-engaging components on 2633VT

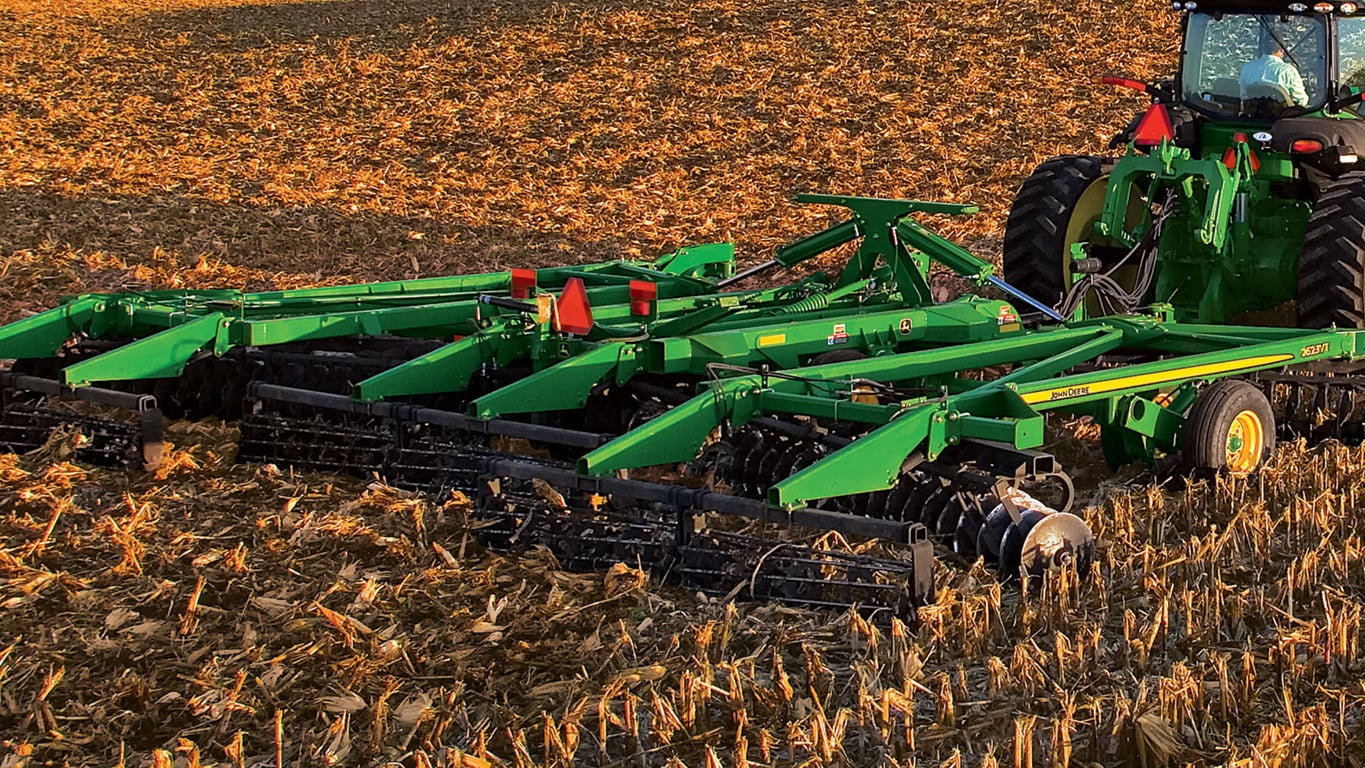

2633VT pulled by 8370RT

The John Deere 2633VT offers six different sizes to fit any size operation, big or small.

Model	2633VT
Purpose	Vertical tillage
Working depth	Up to 75 mm (3 in.)
Standards	C-spring
Gang angle	21 degrees front 19 degrees rear
Front gang blades	560 mm x 5 mm (22 in. x 0.197 in.) solid shallow concavity spherical Optional 560 mm x 6.5 mm (22 in. x 0.256 in.) solid shallow concavity spherical
Rear gang blades	560 mm x 5 mm (22 in. x 0.197 in.) solid shallow concavity 13 wave
Blade spacing	185 mm (7.25 in.)
Gang bolt	50 mm (2 in.)
Horsepower	27 to 36 hp/m (8.5 to 11 hp/ft)
Working widths	6.3 m to 12.4 m (20 ft, 9 in. to 40 ft, 8 in.)
Operating speed	11 to 16 km/h (7 to 10 mph)

Size	6.3 m (20 ft, 9 in.)	8 m (26 ft, 5 in.)	8.9 m (29 ft, 3 in.)	9.3 m (30 ft, 8 in.)	10.2 m (33 ft, 7 in.)	12.4 m (40 ft, 8 in.)
Weight	6796 kg (14,983 lb)	9060 kg (19,976 lb)	9230 kg (20,343 lb)	9920 kg (21,871 lb)	10025 kg (22,100 lb)	12991 kg (28,641 lb)
Number of blades	68	88	96	104	112	136
Weight per blade	100 kg (220 lb)	103 kg (227 lb)	96 kg (211 lb)	95 kg (210 lb)	90 kg (197 lb)	95 kg (210 lb)
Horsepower requirement (power take-off [PTO])	131.2-170 kW (176-228 hp)	164.8-213.3 kW (221-286 hp)	184.2-237.9 kW (247-319 hp)	196.1-254.3 kW (263-341 hp)	208.8-270.7 kW (280-363 hp)	259.5-335.6 kW (348-450 hp)
Transport height	3.05 m (10 ft)	3.90 m (12 ft, 10 in.)	4.30 m (14 ft, 1 in.)	4.21 m (13 ft, 10 in.)	4.62 m (15 ft, 2 in.)	3.75 m (12 ft, 4 in.)
Transport width	4.11 m (13 ft, 6 in.)	4.11 m (13 ft, 6 in.)	4.11 m (13 ft, 6 in.)	4.77 m (15 ft, 8 in.)	4.77 m (15 ft, 8 in.)	4.95 m (16 ft, 3 in.)

Unique blade configuration on 185-mm (7.25-in.) spacing optimizes one pass sizing and mixing

John Deere's 2633VT comes equipped on 185-mm (7.25-in.) spacing with solid shallow concavity spherical blades on the front gang and solid shallow concavity wavy blades on the rear gang to size residue and mix soil.

Most of the sizing is going to be done by the front gang, and the rear gang is going to do the mixing. John Deere designed its vertical tillage tool to chop stalks to an acceptable size and begin soil mixing for breakdown yet leave a considerable amount of residue on the cover.

The 2633VT comes equipped with 185-mm (7.25-in.) spacing on the front and rear gang. Both blade sizes on front and rear gang are 560 mm x 5 mm (22 in. x 0.197 in.). Optional 560-mm x 6.5-mm (22-in. x 0.256-in.) blades are available on front gang only.

Front solid shallow concavity spherical blade

Solid shallow concavity spherical blade

Chops and sizes residue
Manages weeds
Manages root balls
Removes field ruts

Rear solid shallow concavity wavy blade

Solid shallow concavity wavy blade

Mix soil and residue
Aerates soil
Anchors residue

Front and rear 185-mm (7.25-in.) spacing

185-mm (7.25-in.) blade spacing

Ideal for seedbed preparation
Maximizes chemical incorporation

Blade type	Solid spherical blade	Solid wavy blade
Thickness	5 mm (0.197 in.) Optional 6.5 mm (0.256 in.)	5 mm (0.197 in.)
Concavity	Shallow	Shallow
Diameter	560 mm (22 in.)	560 mm (22 in.)
Recommended soil types	All soil types	All soil types

Easily tension gang bolts

51-mm (2-in.) gang bolts

Gang tension system

The John Deere 2633VT Vertical Tillage tool provides an innovative approach to tension gang bolts.

Versatile design of gang angle manages residue in fall and spring conditions

Residue management

Whether the plan is to use the 2633VT in the spring or fall, this machine was designed to handle any residue management situation. With a 21-degree angle on the front gang and 19-degree gang angle on the rear gang, this tool was created to have aggressive sizing and chopping ability in tough residue in the fall and to have finishing characteristics to build an ideal seedbed in the spring.

Shallow gang angle

Aggressive gang angle

Shallow gang angle vertical tillage tools can leave a wavy, washboard effect unsuitable for a proper seedbed. The 2633VT implement has an aggressive gang angle to help anchor residue, manage weeds and root balls, and create an even, smooth seedbed under the topsoil.

As crop yields increase, so does the amount of residue after harvest. The John Deere 2633VT allows producers to prepare soil for planting in the spring and residue management in the fall.

Active hydraulic rolling baskets create ideal seedbed

Hydraulic rolling basket with down pressure

Hydraulic rolling basket - in raised position

The 2633VT offers active hydraulic rolling baskets that give the operator wide-ranging adjustability for a variety of conditions. The drawbars and rolling basket on the rear harrow are built with strength in mind for demanding vertical tillage conditions.

The system was designed to run the rolling baskets in three different positions:

Raised
- Allows the operator to raise the rolling baskets in harsh, muddy conditions
Float
- Allows the operator to float the rolling baskets to lightly fluff soil
Apply down pressure
- Allows the operator to adjust the basket pressure to provide consistent contact with the ground
- Provides a firm seedbed
- Shatters root balls

The hydraulic rolling basket is offered with a round bar, or knife-edge. The knife-edge is best for heavier, wet soil.

With these rolling baskets, a cast frame was designed to encase the bearing in a high-density polymer liner to allow dynamic movement and maintenance-free characteristics. Similar to the gangs on the 2633VT, the active hydraulic rolling baskets feature maintenance-free bearings to minimize non-productive activities.

Hydraulic rolling basket down pressure valve

Hydraulic round bar rolling basket harrow

Hydraulic knife-edge rolling basket harrow

To change the rolling basket down pressure, simply rotate the down pressure valve dial clockwise to increase pressure and counterclockwise to decrease pressure.

Extended-life bearings improve productivity

John Deere 2630 Series Disks and Vertical Tillage Implements feature extended-life bearings. These more durable and reliable bearings allow producers to customize bearing maintenance for specific growing conditions and soil types.

The flange-mounted bearing and sealing system features improved contamination resistance. The advanced seal material is highly resistant to wear and damage caused by abrasive soils and other crop materials. The design of these is more durable and reliable than previous bearings.

The design of this bearing system allows for dynamic self-alignment to the gang bolt, as opposed to trunnion-mounted bearings that have limited alignment capability. This system features additional freedom of movement, accommodating a wider variety of field conditions. The bearing system has been designed to decrease stress and fatigue on the inner rolling surfaces, supporting extended bearing life.

The bearing and seal design allows for a limited, seasonal maintenance interval to minimize downtime. They also allow producers to customize the maintenance for specific growing conditions and soil types. The multi-lipped sealing system cannot be damaged by frequent greasing. It allows bearings to accept grease within the bearing as well as provide grease to the outer bearing surface to eliminate wear between the bearing and housing. With this design, the bearings can accept grease even if misaligned to the housing.

Multiple enhancements made to 2630 Series Disks

2630 Disk in the field

The 2630 Series Disks offer multiple upgrades and additional items as options versus the 2620 Series Disks to enhance the machine. Check out the following video to see more about the 2630 Series Disks.

Extended-life bearings

John Deere 2630 Series Disks and Vertical Tillage Implements feature extended-life bearings. These more durable and reliable bearings allow producers to customize bearing maintenance for specific growing conditions and soil type.

TruSet™ side-to-side feature

John Deere TruSet system is featured in base equipment for the 2630 Series Disks and Vertical Tillage Implements. TruSet side-to-side is also available and features individual section leveling.

Knife-edge hydraulic rolling basket

The hydraulic rolling basket is offered with a round bar or knife-edge. The knife-edge is best for heavier, wet soil, and can be used in rocky conditions.

Radial tires

The 2630 Series Disks and Vertical Tillage Implements feature radial tires for the mainframes in base equipment. Radial tires are available as an option on the wing frame and stabilizer wheels. These tires are designed to offer longer wear life and help minimize compaction with a wider plate and lower inflation pressures.

Stabilizer wheels

Producers can choose either mechanical stabilizer wheels or TruSet hydraulic stabilizer wheels as an option. Stabilizer wheels help to maintain a consistent, level depth and are recommended for operation on rolling ground. The mechanical stabilizer wheels can be manually adjusted with a turnbuckle. TruSet with side-to-side leveling capabilities also enables operators to control the TruSet hydraulic stabilizer wheels from the cab while on the go.
