Disks

2630 Series Disks and Vertical Tillage

ModelsWorking DepthWorking SpeedRequired HP (PTO)/FTWeight /bladeResidue ConditionsDepth Control

up to 5 in (127 mm)

5 to 7 mph (8-11.3 km/h)

7 to 11 (17.15-26.95 kw/m)

179 lbs to 209 lbs (81.2-94.8 kg)

light/medium

TruSet/Single-point

up to 6 in (152 mm)

5 to 7 mph (8-11.3 km/h)

7 to 11 (17.15-26.95 kw/m)

201 lbs to 243 lbs (91.2-110.2 kg)

light/medium/heavy

TruSet/Single-point

up to 8 in (203 mm)

5 to 7 mph (8-11.3 km/h)

9 to 12 (22.05-29.4 kw/m)

280 lbs to 286 lbs (127-129.7 kg)

medium/heavy

TruSet/Single-point

up to 3 in (76 mm)

7 to 10 mph (11.4-16 km/h)

8.5 to 11 (20.8-26.95 kw/m)

197 lbs to 227 lbs (89.4-103 kg)

light/medium/heavy

TruSet/Single-point

ModelsWorking DepthWorking SpeedRequired HP (PTO)/FTWeight /bladeResidue ConditionsDepth Control

up to 5 in (127 mm)

5 to 7 mph (8-11.3 km/h)

7 to 11 (17.15-26.95 kw/m)

179 lbs to 209 lbs (81.2-94.8 kg)

light/medium

TruSet/Single-point

up to 6 in (152 mm)

5 to 7 mph (8-11.3 km/h)

7 to 11 (17.15-26.95 kw/m)

201 lbs to 243 lbs (91.2-110.2 kg)

light/medium/heavy

TruSet/Single-point

up to 8 in (203 mm)

5 to 7 mph (8-11.3 km/h)

9 to 12 (22.05-29.4 kw/m)

280 lbs to 286 lbs (127-129.7 kg)

medium/heavy

TruSet/Single-point

up to 3 in (76 mm)

7 to 10 mph (11.4-16 km/h)

8.5 to 11 (20.8-26.95 kw/m)

197 lbs to 227 lbs (89.4-103 kg)

light/medium/heavy

TruSet/Single-point

When it’s time to work your land, Frontier™ Disks are built to handle a variety of unpredictable soil conditions.

  • Notched or spherical blades available aggressive or smooth cutting
  • Adjustable front-to-rear leveling

Build Your Own

Contact a Dealer

ModelWorking Width/Front/Rear Blade SpacingPTO HPHitch

DH1508

8 ft. (2.4 m)/ 7.5 in. (19.1 cm) space

35 – 55 hp (26.1 – 41.0 kW)

Drawn/Clevis

DH1508

8 ft. (2.4 m)/ 9 in. (22.9 cm) space

35 – 55 hp (26.1 – 41.0 kW)

Drawn/Clevis

DH1508

8 ft. (2.4 m)/ 9 in. (22.9 cm)/ 7.5 in. (19.1 cm) space

35 – 55 hp (26.1 – 41.0 kW)

Drawn/Clevis

DH1509

9 ft. 6 in. (2.9 m)/ 7.5 in. (19.1 cm) space

40 – 65 hp (29.8 – 40.5 kW)

Drawn/Clevis

DH1509

9 ft. 6 in. ((2.9 m)/ 9 in. (22.9 cm) space

40 – 65 hp (29.8 – 40.5 kW)

Drawn/Clevis

DH1509

9 ft. 6 in. (2.9 m)/ 9 in. (22.9 cm)/ 7.5 in. (19.1 cm) space

40 – 65 hp (29.8 – 40.5 kW)

Drawn/Clevis

DH1510

10 ft. 6 in. (3.2 m)/ 7.5 in. (19.1 cm) space

45 – 75 hp (33.6 – 55.9 kW)

Drawn/Clevis

DH1510

10 ft. 6 in. (3.2 m)/ 9 in. (22.9 cm) space

45 – 75 hp (33.6 – 55.9 kW)

Drawn/Clevis

DH1510

10 ft. 6 in. (3.2 m)/ 9 in. (22.9 cm)/ 7.5 in. (19.1 cm) space

45 – 75 hp (33.6 – 55.9 kW)

Drawn/Clevis

HH1512

12 ft. (3.7 m)/ 7.5 in. (19.1 cm) space

55 – 85 hp 41.0 – 59.7 kW)

Drawn/Clevis

DH1512

12 ft. (3.7 m)/ 9 in. (22.9 cm) space

55 – 85 hp 41.0 – 59.7 kW)

Drawn/Clevis

DH1512

12 ft. (3.7 M)/ 9 in. (22.9 cm)/ 7.5 in. (19.1 cm) space

55 – 85 hp 41.0 – 59.7 kW)

Drawn/Clevis

DH1610

10 ft. 6 in. (3.2 m)/ 9 in. (22.9 cm) space

60 – 80 hp (44.7 – 59.7 kW)

Drawn/Clevis

DH1612

12 ft. (3.7 m)/ 9 in. (22.9 cm) space

75 – 125 hp (55.9 – 93.2 kW)

Drawn/Clevis

DH1613

13 ft. 6 in. (4.1 m)/ 9 in. (22.9 cm) space

75 – 125 hp (55.9 – 93.2 kW)

Drawn/Clevis

DH1615

15 ft. (4.6 m)/ 9 in. (22.9 cm) space

80 – 140 hp (59.7 – 104.4 kW)

Drawn/Clevis

Break up hard, fallow ground with a Frontier™ Heavy Offset Disk. Large, heavy-duty blades on rugged, reinforced frames provide ground-breaking force, penetration, and High load absorption to withstand punishing tillage jobs.

  • 240 to 868 ob. (108.9 to 393.7 kg) per blade
  • Tapered roller gang bearings with oil bath lubrication
  • Adjustable disk blade scrapers keep disk blades working in wet and sticky soils
  • DH51 and DH52 Series feature 26 to 28 in. (66 to 71.1 cm) diameter disk blades (available in smooth or notched)
  • DH53 Series features 28 to 32 in. (71.1 to 81.3 cm) diameter disk blades (available in notched only)
  • DH54, DH55, and DH56 Series deliver 503 lb. to 868 lb. (228.2 to 393.7 kg) per blade
  • Two independent control arms for transport and ground leveling

Build Your Own

Contact a Dealer

ModelWorking WidthPTO HPHitch

DH5108

8 ft. (2.4 m) rigid

94 – 106 hp (71.6 – 79 kW)

Cast link

DH5110

10 ft. (3.0 m) rigid

106 – 129 hp (79 – 96.2 kW)

Cast link

DH5112

12 ft. (3.7 m) rigid

129 – 159 hp (96.2 – 118.6 kW)

Cast link

DH5114

14 ft. (4.3 m) rigid

165 – 188 hp 123 – 140.2 kW)

Cast link

DH5116

16 ft. (4.9 m) rigid

188 – 212 hp (140.2 – 158.1 kW)

Cast link

DH5210

10 ft. (3.0 m) rigid

118 – 141 hp (88 – 105.1 kW)

Cast link

DH5212

12 ft. (3.7 m) rigid

129 – 159 hp (96.2 – 118.6 kW)

Cast link

DH5214

14 ft. (4.3 m) rigid

147 – 182 hp (109.7 – 135.7 kW)

Cast link

DH5216

16 ft. (4.9 m) rigid

176 – 194 hp (131.2 – 144.7 kW)

Cast link

DH5217

17 ft. (5.2 m) rigid

188 – 212 hp (140.2 – 158.1 kW)

Cast link

DH5219

19 ft. (5.8 m)

200 – 235 hp (149.1 – 175.2 kW)

Cast link

DH5221

21 ft. (6.4 m) rigid

212 – 247 hp (158.1 - 184.2 kW)

Cast link

DJ5212F

21 ft. (6.4 m) folding

212 – 259 hp (158.1 – 193 kW)

Cast link

DH5222F

22 ft. (6.7 m) folding

224 – 282 hp (167 – 211 kW)

Cast link

DH5224F

24 Ft. (7.3 m) folding

235 – 306 hp (175 – 228 kW)

Cast link

DH5308

8 ft. (2.4 m) rigid

118 – 153 hp (88 – 114.1 kW)

Cast link

DH5310

10 ft. (3.0 m) rigid

141 – 176 hp (105.1 – 131.2 kW)

Cast link

DH5312

12 ft. (3.7 m) rigid

165 – 200 hp (123 – 149.1 kW)

Cast link

DH5314

14 ft. (4.3 m) rigid

200 – 235 hp (149.1 – 175.2 kW)

Cast link

DH5316

16 ft. (4.9 m) rigid

212 – 247 hp (158.1 - 184.2 kW)

Cast link

DH5410

10 ft. (3.0 m)

175 – 225 hp (130.5 – 167.8 kW)

Cast link

DH5411

11 ft. (3.4 m)

200 – 225 hp (149.1 – 167.8 kW)

Cast link

DH5412

12 Ft. (3.7 m)

225 – 250 hp (167.8 – 186.4 kW)

Cast link

DH5413

13 ft. (4.0 m)

275 – 300 hp (205.1 – 223.7 kW)

Cast link

DH5414

14 ft. (4.3 m)

300+ hp (223.7+ kW)

Cast link



DH5510

10 ft. (3.0 m)

200+ hp (149.1+ kW)

Cast link

DH5511

11 ft. (3.4 m)

225+ hp (167.8+ kW)

Cast link

DH5513

12 ft. 6 in. (3.8 m)

250+ hp (186.4+ kW)

Cast link

DH5514

13 ft. 9 in. (4.2 m)

300+ hp (223.7+ kW)

Cast link

DH5610

10ft. (3.0 m)

225+ hp (167.8+ kW)

Cast link



DH5612

11 ft. 6 in. (3.5 m)

275+ hp (205.1 kW)

Cast link

DH5613

13 ft. (4.0 m)

325+ hp (242.4+ kW)

Cast link

DH5615

14 ft. 6 in. (4.4 m)

350+ hp (261+ kW)

Cast link

Large producers and commercial operators want to cover a lot of ground in a hurry, and they can do just that with a Tandem Disk from Frontier™ Equipment. Large blades, deep penetration, and heavy-duty frames make even the largest projects manageable.

  • Tapered roller gang bearings with oil bath lubrication
  • Penetrates soil up to 9 in. (22.9 cm)
  • 10.5 in. (26.7 cm) blade spacing
  • 26 to 28 in. (66 to 71.1 cm) diameter disk blades (available in smooth, notched, or wavy)
  • 265 to 370 lb. (120.2 to 167.8 kg) per blade

Build Your Own

Contact a Dealer

ModelWorking WidthDrawbar HPHitch

TM5118

18 ft. (5.5 m) folding

160 – 180 hp (119.3 – 134.2 kW)

Cast link

TM5120

19 ft. 6 in. (6.1 m) folding

170 – 200 hp (126.8 – 149.1 kW)

Cast link

TM5121

21 ft. (6.4 m) folding

190 – 210 hp (141.7 – 156.6 kW)

cast link

TM5124

23 ft. 6 in. (7.3 m) folding

220 hp (164 kW)

Cast link

TM5129

29 ft. (8.8 m)

260 hp (194 kW)

Cast link

TM5132

32 ft. (9.8 m)

280 hp (209 kW)

Cast link

The Frontier™ VT17 Series Vertical Tillage tools provide speed, versatility, and residue management performance for growers.

  • Adjustable gang angles for desired aggressiveness
  • Simple adjustments for increased uptime
  • Rolling baskets and blade options enable a smooth field finish

Build Your Own

Contact a Dealer

ModelWorking WidthPTO HPHitch

VT1710

10 ft. 6 in. (3.2 m)

70 – 90 hp (51.5 – 66.2 kW)

Drawn/Clevis

VT1712

13 ft. 8 in. (4.2 m)

80 – 100 hp (58.8 – 73.6 kW)

Drawn/Clevis

VT1713

14 ft. 8 in. (4.5 m)

90 – 110 hp (66.2 – 91 kW)

Drawn/Clevis

VT1715

16 ft. 6 in. (5 m)

101 – 125 hp (74.3 – 92 kW)

Drawn/Clevis

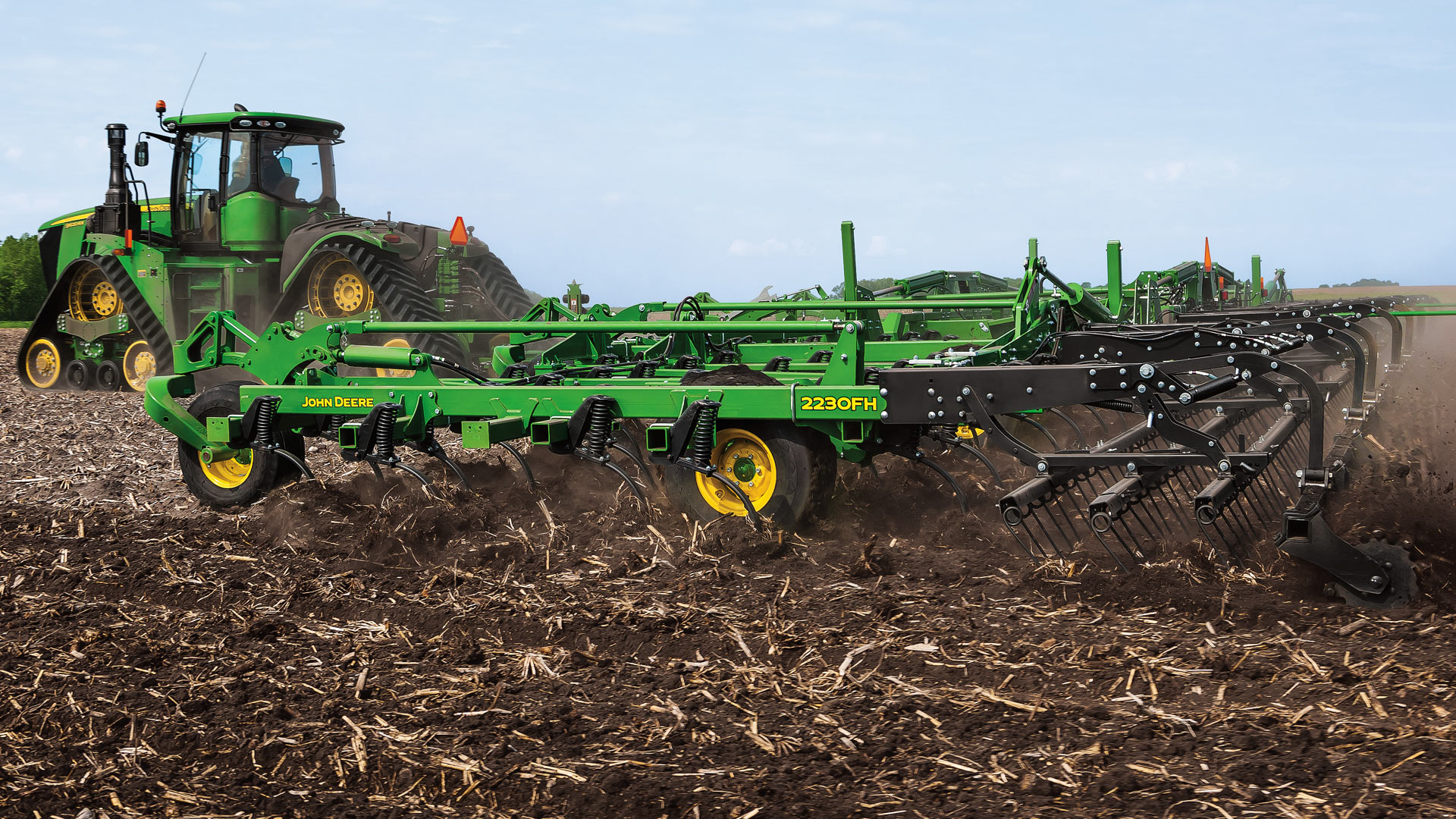

seedbed equipment moving through field
