Bucket Teeth

TK-Series Tooth System

Engineered for maximum strength and impact absorption, this breakthrough design delivers speedy installation and pin retention. Using the hammer-free installation, these wear parts let you work smarter and increase profits by slashing machine downtime.

TK-Series Tooth Shapes

Which teeth are right for your next job?

fanggs bucket tooth

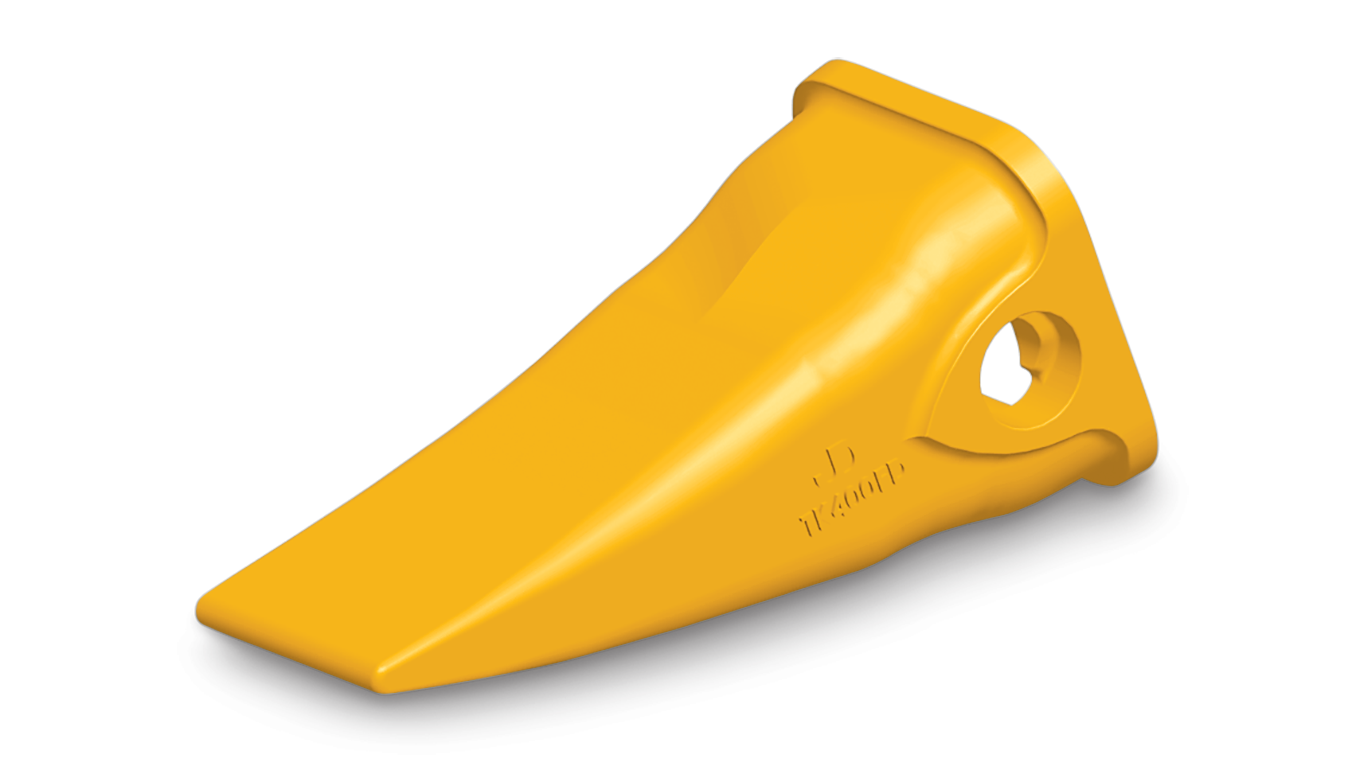

Fanggs

The FanggsTM (FD) tooth is an excellent choice for general-purpose applications. Its strong, curved shape increases bucket fill and provides good penetration.

chisel bucket tooth

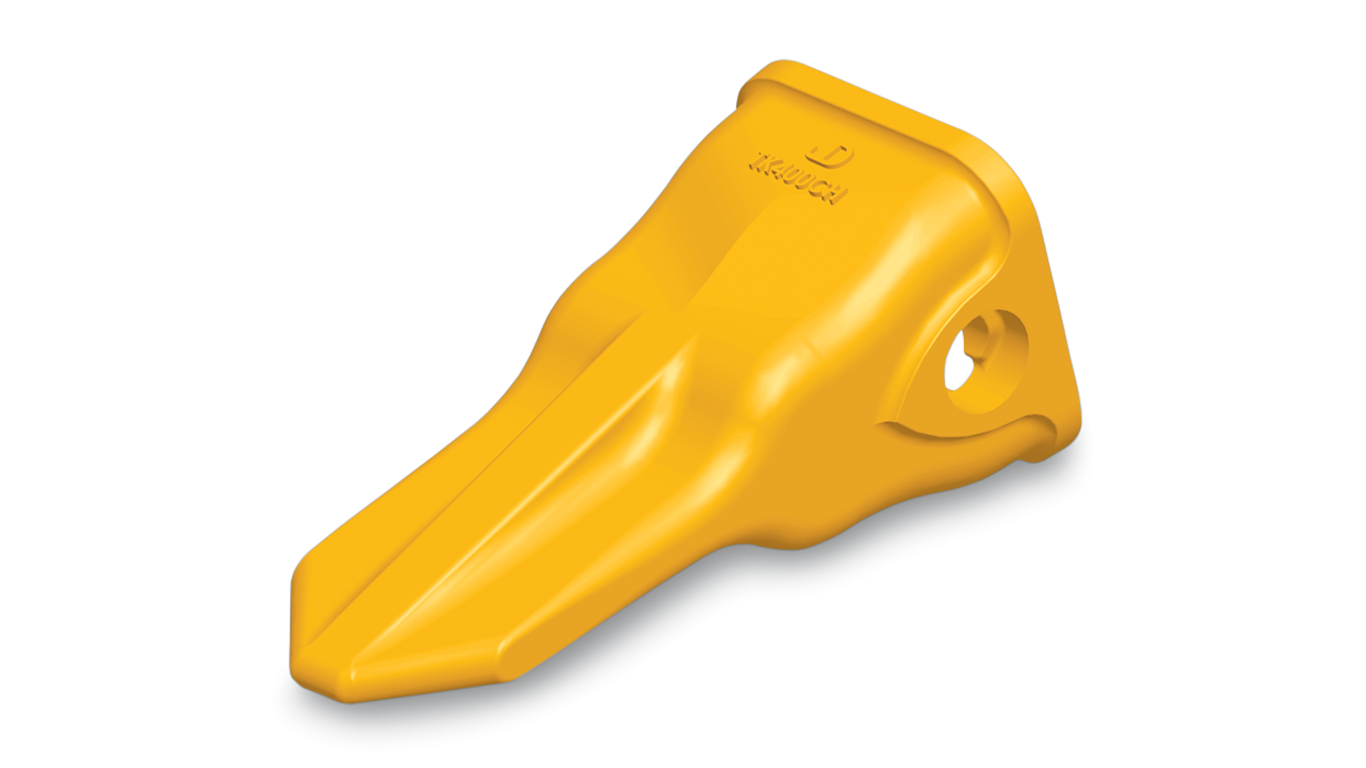

Chisel

The Chisel (CH) tooth is built for rock applications, thanks to its good penetration and self-sharpening profile.

tiger bucket teeth

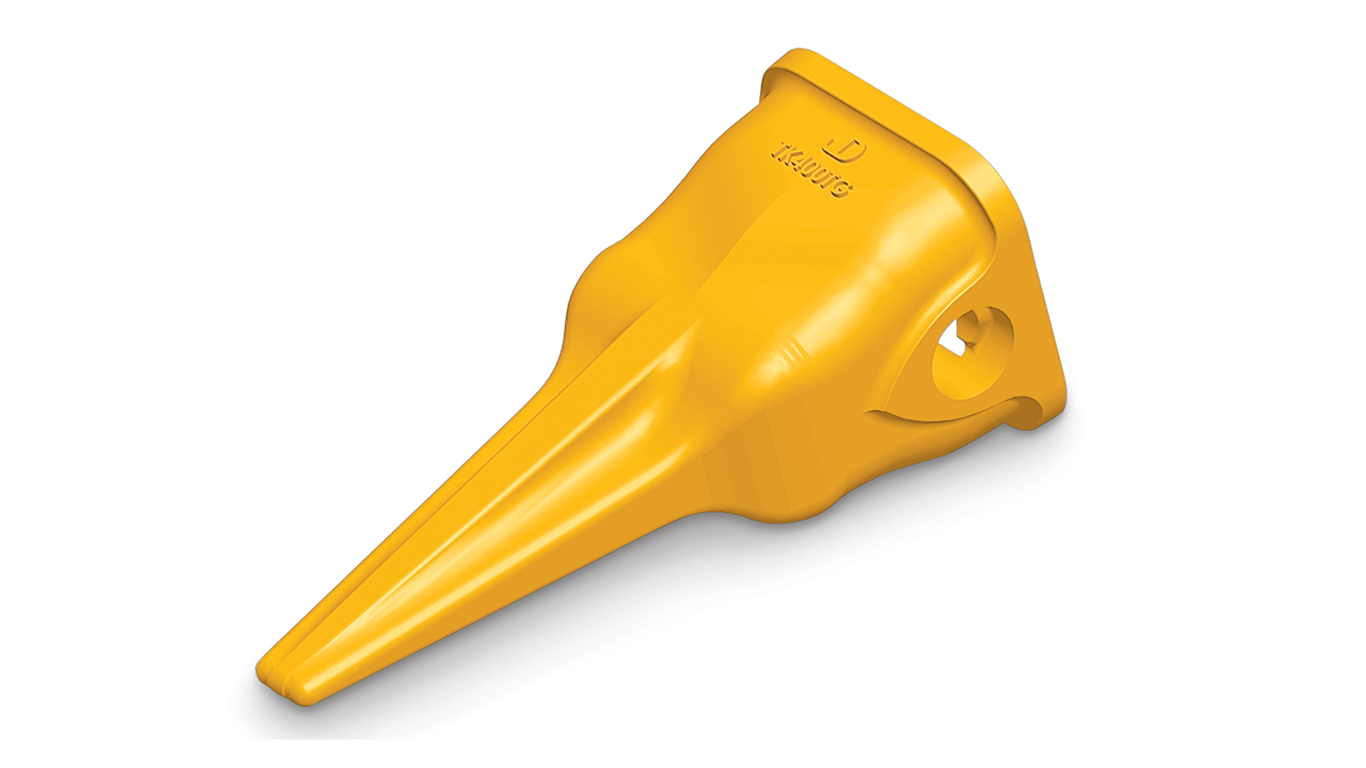

Tiger

The Tiger (TG) tooth provides maximum penetration for tightly compacted soils, clay, and even rock.

loader bucket tooth

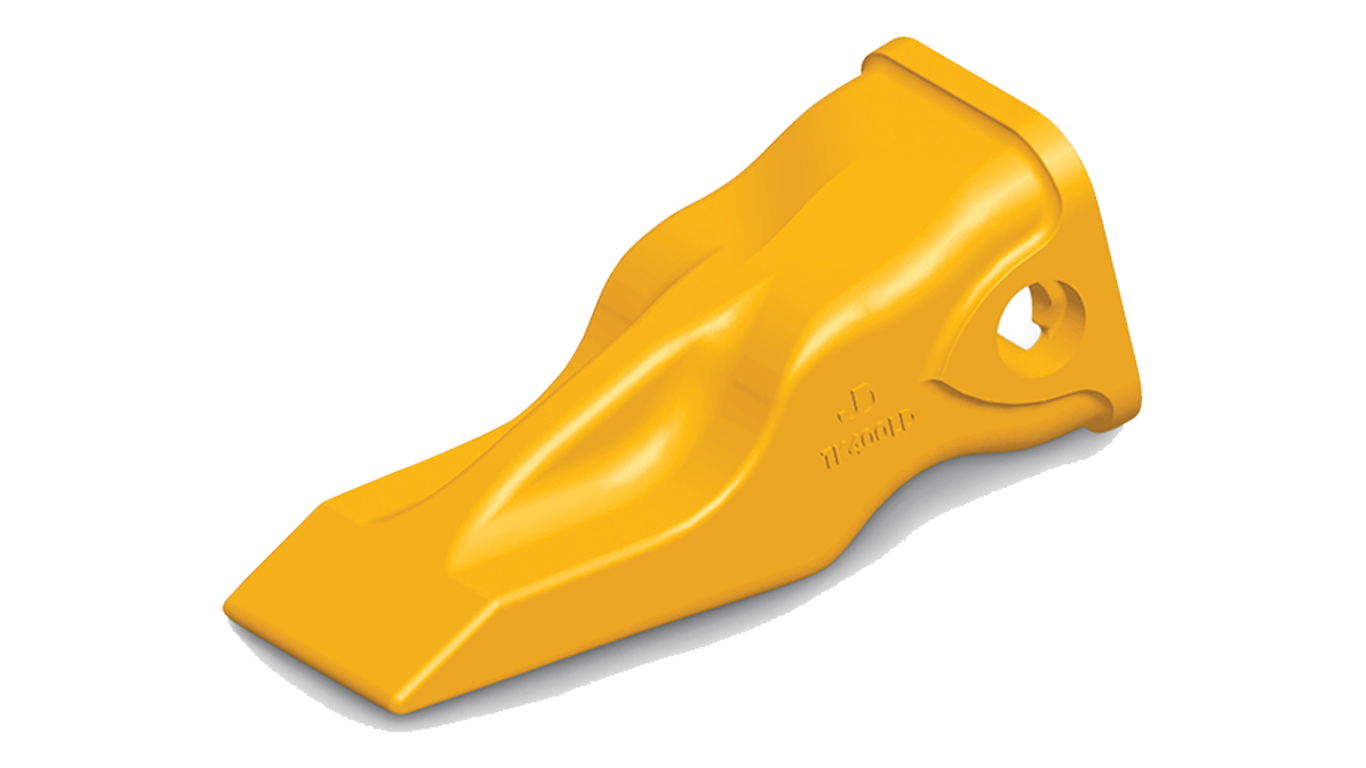

Loader

The Loader (LD) tooth is specifically designed for loaders. The bottom of the tooth aligns with the bottom of a level loader bucket, resulting in a clean floor.



severe duty bucket teeth

Severe-Duty

The Severe-Duty (SD) tooth boasts 20-percent more material than our Fanggs model. Designed for your toughest jobs, it’s ready to tackle highly abrasive applications where tooth wear is an issue.

flare bucket teeth

Flare

The Flare (FR) tooth’s bucket-fill capabilities are perfect for softer soils and applications that require a clean, flat-bottomed surface.

twin tiger bucket tooth

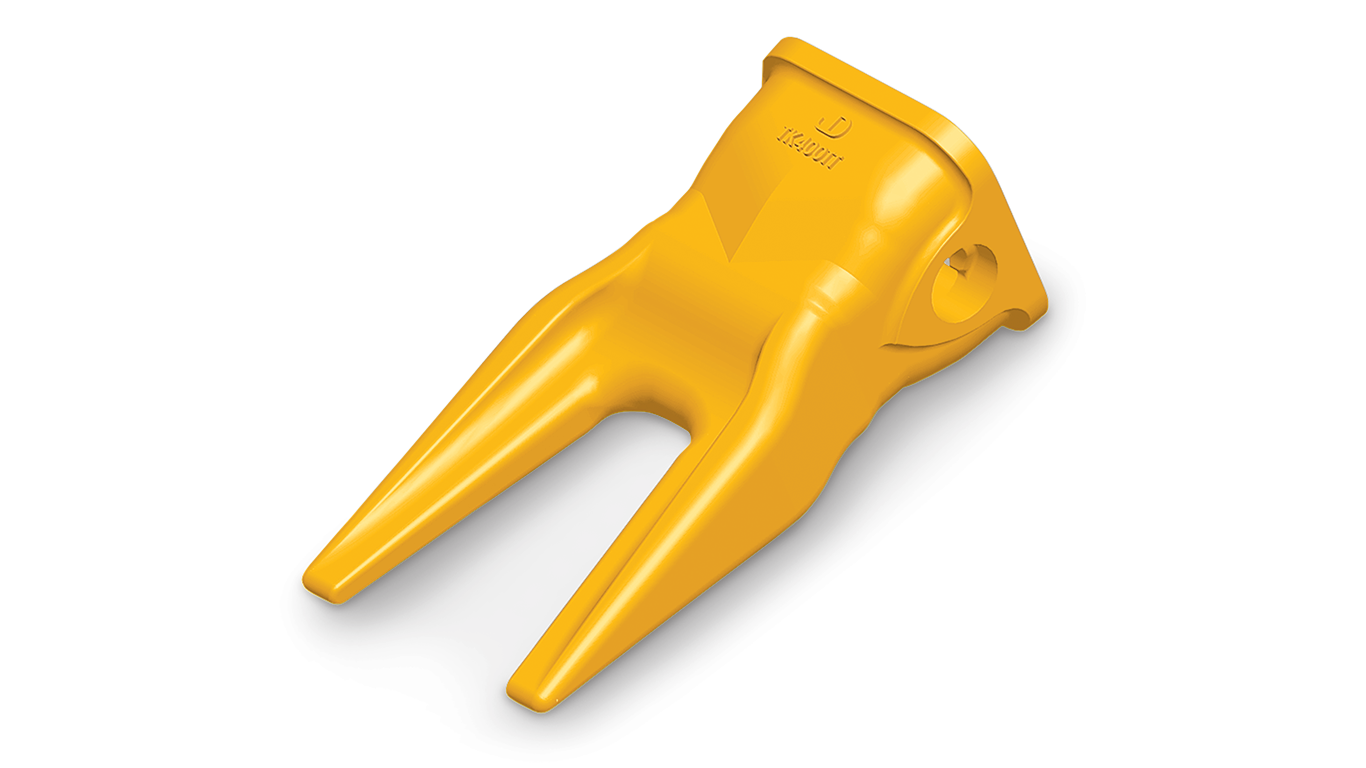

Twin Tiger

The Twin Tiger (TT) tooth features two points designed for optimum penetration. This wider style is commonly used with TG teeth fitted to the outside corner positions of your bucket to maximize clearance during the dig cycle.

heavy duty loader bucket tooth

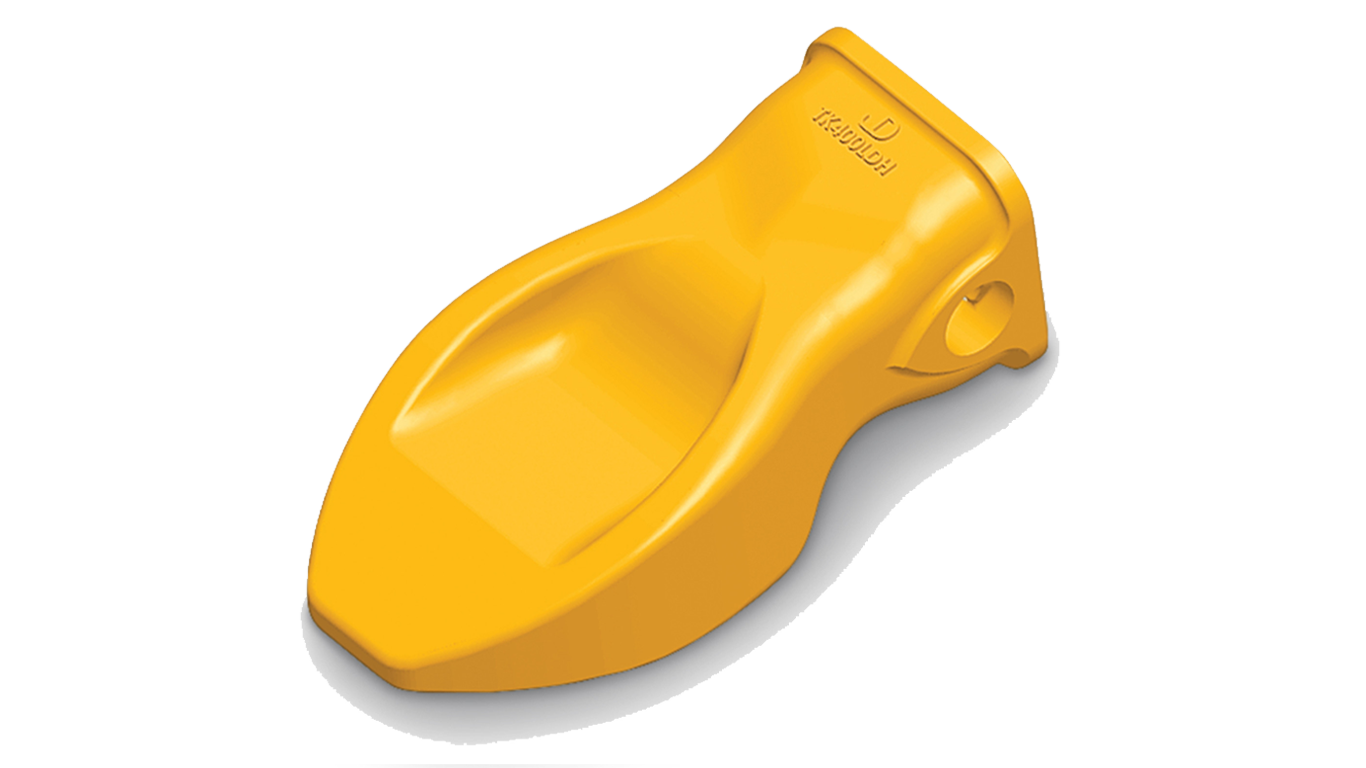

Heavy-Duty Loader

The Heavy-Duty Loader (LDH) tooth is 38-percent heavier than the comparable-sized loader tooth. With this profile, penetration is maintained while additional wear material is available.

All-Makes Replacement Teeth

Expand AllCollapse All

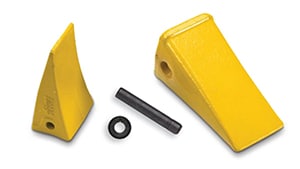

John Deere 'Original Line' Teeth

John Deere builds rugged replacement teeth and adapters for most brands of backhoes, excavators, loaders, scrapers, and graders. John Deere teeth are available in either split-washer or two-piece-pin configurations to make replacement of these critical wear parts as quick and cost efficient as possible.

John Deere Original Line Bucket Teeth

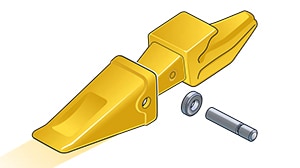

Caterpillar Replacement Teeth

The oversized pocket characteristics of these teeth with the extended adapter nosepiece provide a nose fit between the tooth and adapter which results in strong impact resistance with a loose fit in the ramps. Cat style teeth use a horizontal pin and retainer.

Caterpillar Replacement Bucket Teeth

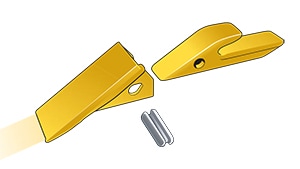

H&L Replacement Teeth

H&L style teeth are designed for backhoes and excavators. They are available in a multitude of shapes offering superb performance and reliability in all digging conditions. H&L style teeth use a horizontal flex pin.

H&L Replacement Bucket Teeth

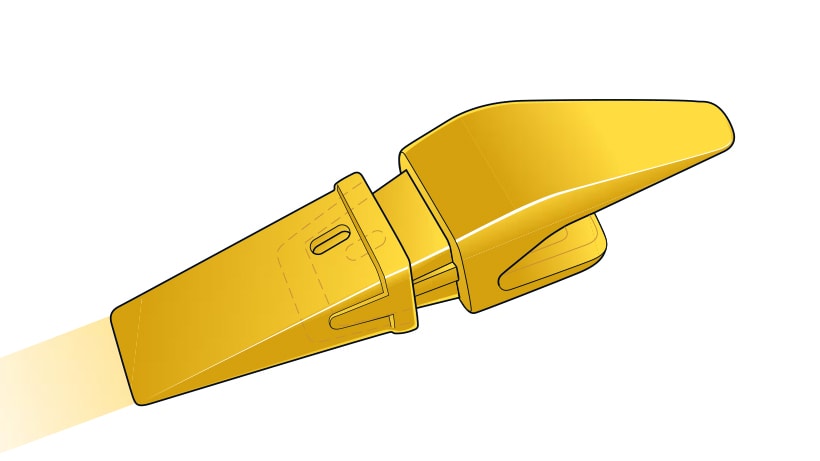

Hensley Replacement Teeth

The parabolic (dished-out) design creates a wedging and self-tightening fit. A recessed channel on the inside sidewall of the tooth matches a tapered extension on the adapter nosepiece forming  a locking fit. The design absorbs impact loads. Most Hensley style teeth use a vertical roll pin; flex pin or steel keeper, depending on size.

Hensley replacement bucket teeth

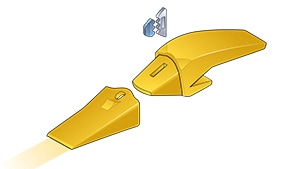

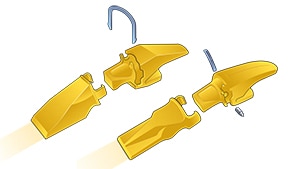

ESCO Helilok®/Vertalok® System

John Deere builds rugged replacement teeth and adapters for most brands of backhoes, excavators, loaders, scrapers, and graders. John Deere teeth are available in either split-washer or two-piece-pin configurations to make replacement of these critical wear parts as quick and cost efficient as possible.

Helilok and Vertalok replacement bucket teeth

ESCO Conical Teeth

The "conical" design mating system between tooth and adapter creates self-tightening action. The raised center area on the top and bottom of the adapter nosepiece fits tightly into the formed area on the top and bottom of the tooth pocket. The design reduces tooth movement both vertically and horizontally. Conical teeth use a vertical pin and rubber lock.

Esco conical replacement bucket teeth

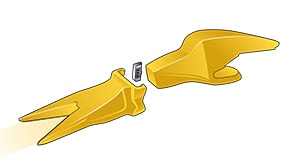

ESCO Super V™

The Super V tooth twists a quarter turn onto the adapter and "butts up" against the adapter nose to match breakout forces more closely. The unique, 1-piece, vertical, drive-thru pin locks to the tooth ear for excellent point retention. It is completely covered by the tooth ear to reduce wear and avoid pin walk. The 1-piece pin provides easier changeover and is reusable for 29 Series sizes and larger.

Esco Super V Replacement Teeth

All-Makes RVJ Tooth System

We engineered this system to deliver hammerless technology to existing J-Series adapters.
