A 24-hp (17.9-kW) V-twin extended-life series (ELS) engine provides plenty of power and torque to handle tough mowing, mulching, and bagging:
The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as twisting on a new oil-filled filter. Oil does not need to be drained from the engine.
The John Deere Easy Change filter is an additional engine oil reservoir. Changing the filter removes the captured contaminants and replaces about 0.8 qt (0.76 L) of engine oil.
The functionality does not stop with ease of use. The Easy Change oil system has several meaningful benefits over the traditional oil filter system of the 100 Series:
Partly due to these improvements, it is not necessary to remove and dispose of all the oil in the engine during service.
Everyone who uses the John Deere Easy Change system saves time and avoids the mess of a traditional oil change. In the past, many 100 Series Lawn Tractor owners rarely or never got around to changing their engine oil. With the 30-second oil change, even people who previously would not consider changing the oil themselves can easily do it. The Easy Change system is a no-mess, no-fuss solution the competition cannot match.
Installation instructions are in the Operator’s Manual and in the John Deere Easy Change service part box.
Please recycle. Many local government recycling programs, authorized retailers, auto-service centers, and auto-parts stores will puncture and recycle used oil filters and oil.
This full-featured engine is engineered to deliver world-class endurance and power. A step above the competition, it is designed to be more dependable and longer lasting, saving time and money over the long run.
Built to exceed demanding needs by incorporating premium features and innovative designs:
Teflon is a trademark of The Chemours Company FC, LLC.
The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.66-mm) steel:
The front axle is constructed of solid cast iron that will not bend:
The front bumper is included on the S130, S140, S160, S170, and S180. It is available as an optional attachment for the S100, S110, and S120.
The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.
An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.
Equipment available for snow removal includes:
A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:
Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:
Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Mfg. Co., Ltd.
The operator station is designed for operator comfort and easy operation:
Controls are easy to see and use:
Wide footrest areas with non-slip, anti-vibration rubber floor mats are provided for operator comfort:
Operator comfort is enhanced with a 15-in. (38-cm) high-back, two-piece seat with an open back:
Two long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.
The seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.
A beverage holder and storage compartment, located on the right fender, are conveniently located and easy to use.
Fender flares cover the tires more completely and add style to the tractor. Handgrips give extra comfort for the operator, especially when operating on hillsides. Reflectors make the tractor more visible.
The contoured dash has clean, attractive styling:
The easy-read fuel gauge shows how much fuel is in the tank and can be seen on the dashboard:
Side-by-side foot pedals control the speed and direction of travel:
Cruise control is available on the S120, S130, S160, S170, and the S180:
A spring-assisted, ergonomically designed lift lever simplifies adjusting the mower cut height:
The parking brake control is conveniently located on the tractor pedestal for easy access. It holds the brake pedal securely in the locked position.
The heavy-duty electric PTO clutch is operated with a convenient dash-mounted switch.
CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:
NOTE: Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.
NOTE: If the engine and mower or other attachment stops while repositioning the machine, return the attachment engagement lever/switch to the off position. Start the engine and engage mower or other attachment. Begin again with step 2.
The one-piece hood opens easily to permit checking and servicing the engine:
The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as removing the old oil-filled filter and twisting on a new oil-filled filter.
The seat tilts up and out of the way to make adding fuel easy.
John Deere riding lawn mowers are supported by owner information web pages that include links to:
To speed access to owner information web pages, a QR code is printed onto a PIN label located near the fuel fill. Since each vehicle model has its own web page, the links are specific to the owner’s model. The QR code also includes the vehicle’s unique PIN, which enables warranty registration without the need to manually enter the vehicle’s PIN.
Keep a mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the mower’s barcode to get custom information about the mower.
To download the free MowerPlus app, visit the Apple® App Store® or Google Play™ store.
Three MowerPlus connectors are available to transmit vehicle information to the MowerPlus app.
BUC10510 MowerPlus Hour Meter Connector is for use with:
BUC10929 MowerPlus Deluxe Smart Connector is for use with:
BUC10537 MowerPlus Smart Connector is for use with:
All the MowerPlus connectors transmit engine hour information to the app, making it easy to track maintenance intervals. The MowerPlus Smart Connector and MowerPlus Deluxe Smart Connector also transmit the fuel level.
MowerPlus connectors require the MowerPlus app on a mobile device to use. The John Deere MowerPlus app and operating system requirements can be found in the mobile device’s app store. The MowerPlus app is only available in the English language, and it is not available in all countries. BUC10510 MowerPlus Hour Meter Connector requires iOS® version 10 or higher and is not compatible with Android™ operating systems.
Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc.
MowerPlus connectors (sold separately)
The Edge cutting system has been trademarked to emphasize the advantages of the John Deere mower deck designs. They give superior mowing performance, convenience, and reliability:
The 54-in. (137-cm) Edge Mower Deck is a three-spindle design with heavy-duty characteristics:
A wash port is provided to make cleaning the underside of the mower deck easy:

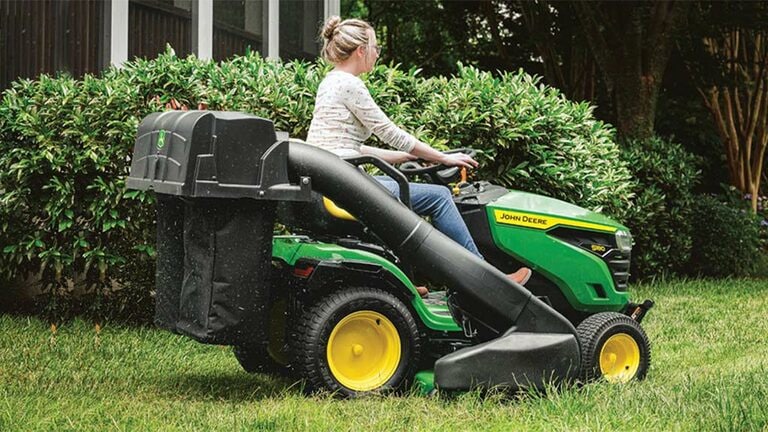

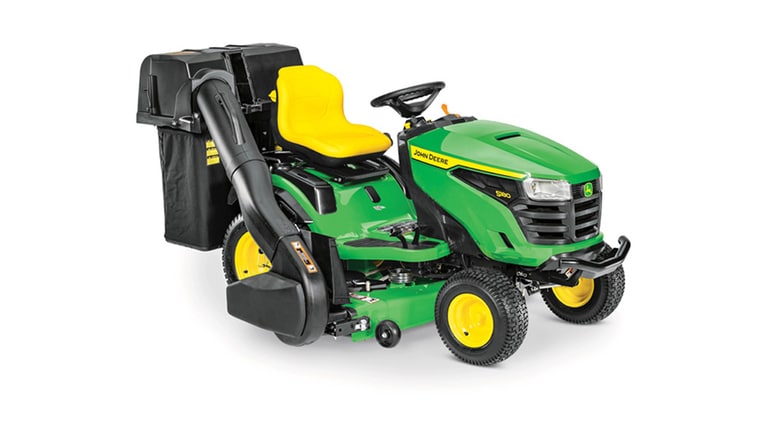

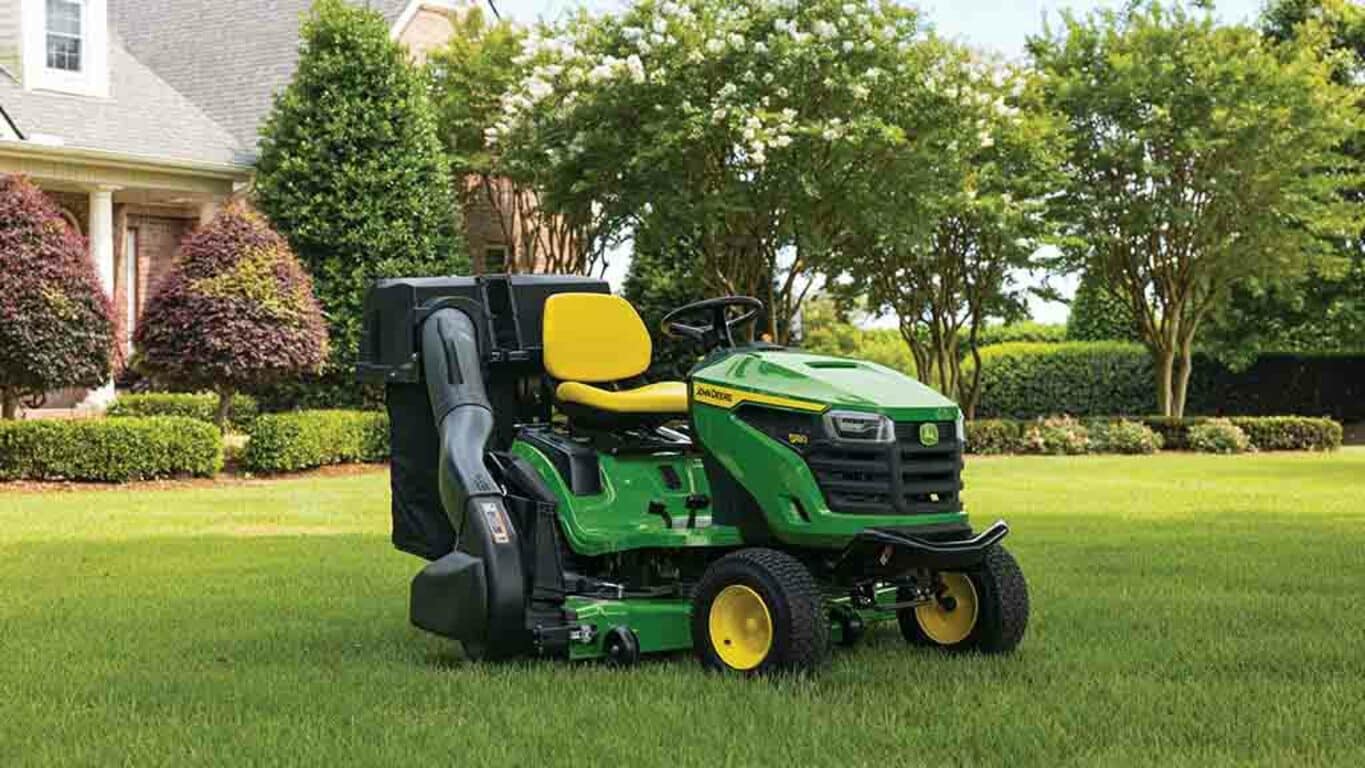

A 6.5-bu (229-L) Power Flow bagger is sold separately. The bagger kit provides efficient bagging performance and has easy-to-empty bags.
An exclusive 2-year or 120-hour single-source, bumper-to-bumper warranty* is included for all John Deere 100 Series Tractors.
The warranty is hassle free, with John Deere handling the service and paperwork.
*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.
|Specs & Compare|
|Engine power||24 hp
|Oil change||John Deere Easy Change™ 30-second oil change system|
|Engine manufacturer/model||44U877 (M44)|
|Transaxle type||K46 heavy-duty hydrostatic, two-wheel drive|
|Transaxle control||Side-by-side pedals|
|Lift system type||Spring-assisted hand-grip lever|
|Cutting width||Edge™ mower deck, 54 in.
|U.S. warranty||2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)|
|Displacement||44.2 cu in.
|Type||Overhead valve, full-pressure lube, oil filter|
|Cylinders||V-twin - extended life series (ELS)|
|Choke/speed control||Single lever with spring-return on choke|
|Air cleaner||Cartridge with prefilter|
|Oil change||John Deere Easy Change 30-second oil change system|
|Fuel delivery||Pulse pump and carburetor|
|Fuel gauge||Easy-read on dash|
|Fuel tank location||Rear|
|Fuel fill opening||Center, 1.75 in.
|Fuel tank capacity||2.4 U.S. gal.
|Charging system||Regulated, 14 amp|
|Engine starter||Bendix type|
|Headlights||Two standard, incandescent|
|Taillights or reflector||Reflectors|
|Rear work lights||No|
|Type||Hydrostatic, 2-wheel drive|
|Oil cooler||Fins and fan on transaxle|
|Oil filter||Yes, not serviceable|
|Forward speed||0-5.5 mph
|Reverse speed||0-3.2 mph
|Brakes||Internal wet disk|
|Frame||Full-length welded steel|
|Weight bracket||Optional rear|
|Front axle||Cast iron front axle, front wheel sealed ball bearings|
|Hood material||Molded-in color material reduces sound, will not rust or dent|
|Fender deck material||Stamped steel|
|Floor mats||Yes, with debris removing channels|
|Storage||Storage tray with cover|
|Service interval decal||Yes|
|Equipment mounting||CargO Mount™ system|
|Maximum towing capacity|
|Type||Sector and pinion with single drag link and tie rod|
|Four-wheel steer||Not available on this model|
|Steering wheel||Deluxe, diameter - 14 in.
|Tilt steering wheel||No|
|Turning radius||18 in.
|Uncut circle radius||18 in.
|Type||One piece with lumbar adjustment|
|Seat back height||15 in.
|Fore-aft adjustment||While seated, 5.5 in.
|Seat suspension||Tilt, two coil springs|
|Type||Spring-assisted hand-grip lever|
|Mower cut height||13 positions, 1-4 in.
|Cut height increments||0.25 in.
|Preset cut height||No|
|Cutting width||Edge™ mower deck, 54 in.
|Construction||Stamped steel deck shell|
|Mower deck material||Steel, 11 gauge
|Mower wash port||Yes|
|Mower drive system||Electric power take-off (PTO) clutch|
|Mower wheel adjustment||One bolt|
|Mower level adjustment||Easy-level deck|
|Type||Slide under tractor|
|Front draft arms||One spring clip|
|Rear draft arms||Two spring clips|
|Mower wheels rotate||No|
|Drive system||Single belt|
|Meets ANSI standard||Yes|
|Meets OPEI standard||Yes|
|Backup protection||Reverse Implement Option (RIO)|
|Notes||Molded-in color material reduces sound, will not rust or dent
Durable primer and powder paint finish
Large, 14-in. (36-cm) steering wheel for more comfortable operation
John Deere Easy Change 30-second oil change system
|Warranty||2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)|
|Rear bagger||2-bag, 6.5 bu
|Powered material collection||Power Flow™ blower|
|Mulching system||High performance plug|
|Front blade||46 in.
|Snow blower||Two-stage, 44 in.
|Rear power take-off (PTO)|
|Sprayer||Tow-behind, 15 U.S. gal.
Mounted, 15 U.S. gal.
Tow-behind only, 25 U.S. gal.
|Spreader||Tow-behind only, 125-175 lb
|Weather protection||Weather enclosure|
|Sun canopy||Sun canopy|
|Rear receiver hitch|
|Bucket holder||Yes, single bucket|
|Grass striping||Lawn striping kit|
|Overall length||75.3 in.
|Width with mower||67 in.
|Width with mower (deflector raised for storage)||57.1 in.
|Width without mower|
|Weight||Mower, no fuel, 526 lb
|Manufacturing location||Greeneville, Tennessee, USA|
