Optional accessories and attachments shown. See your dealer for available models, options, attachments and pricing. Product options and accessories may not be available in all regions.
|Specs & Compare|
|Select up to 4 models to compare specifications||

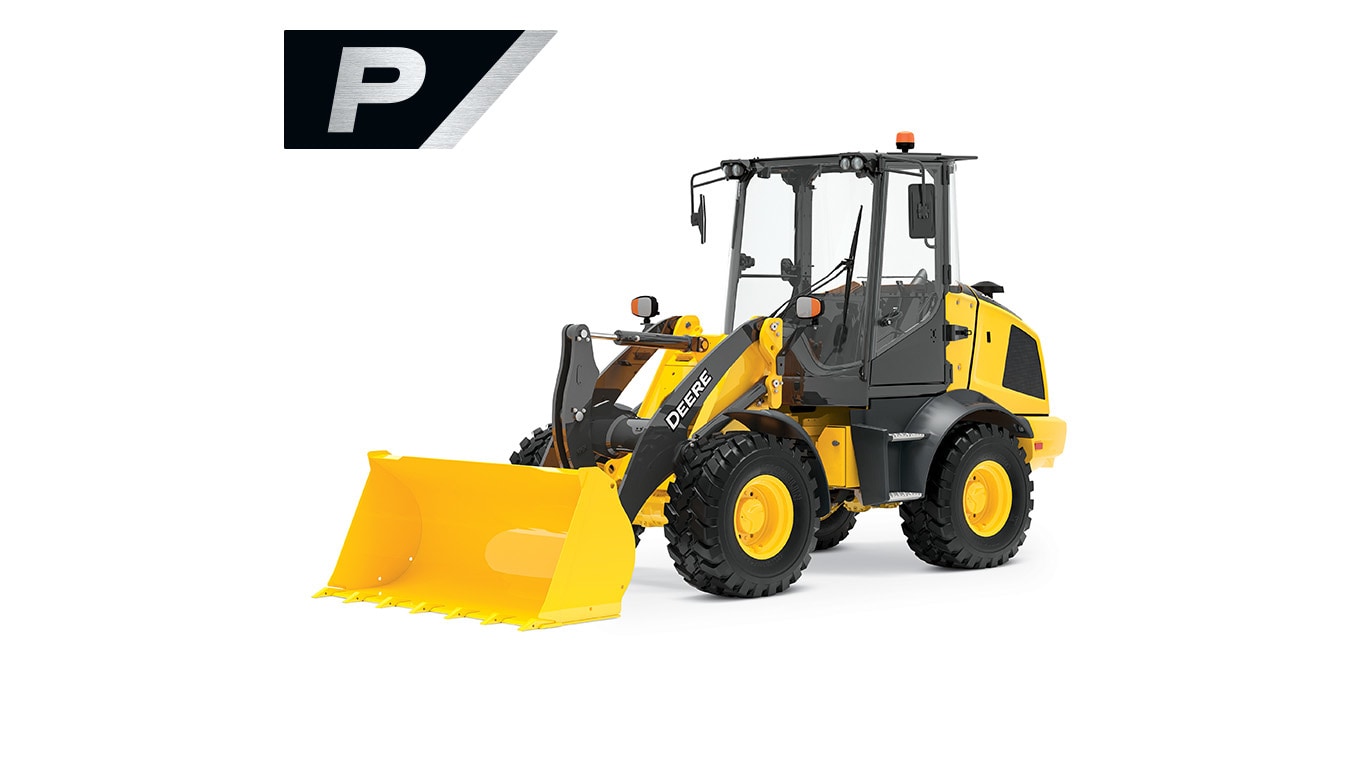

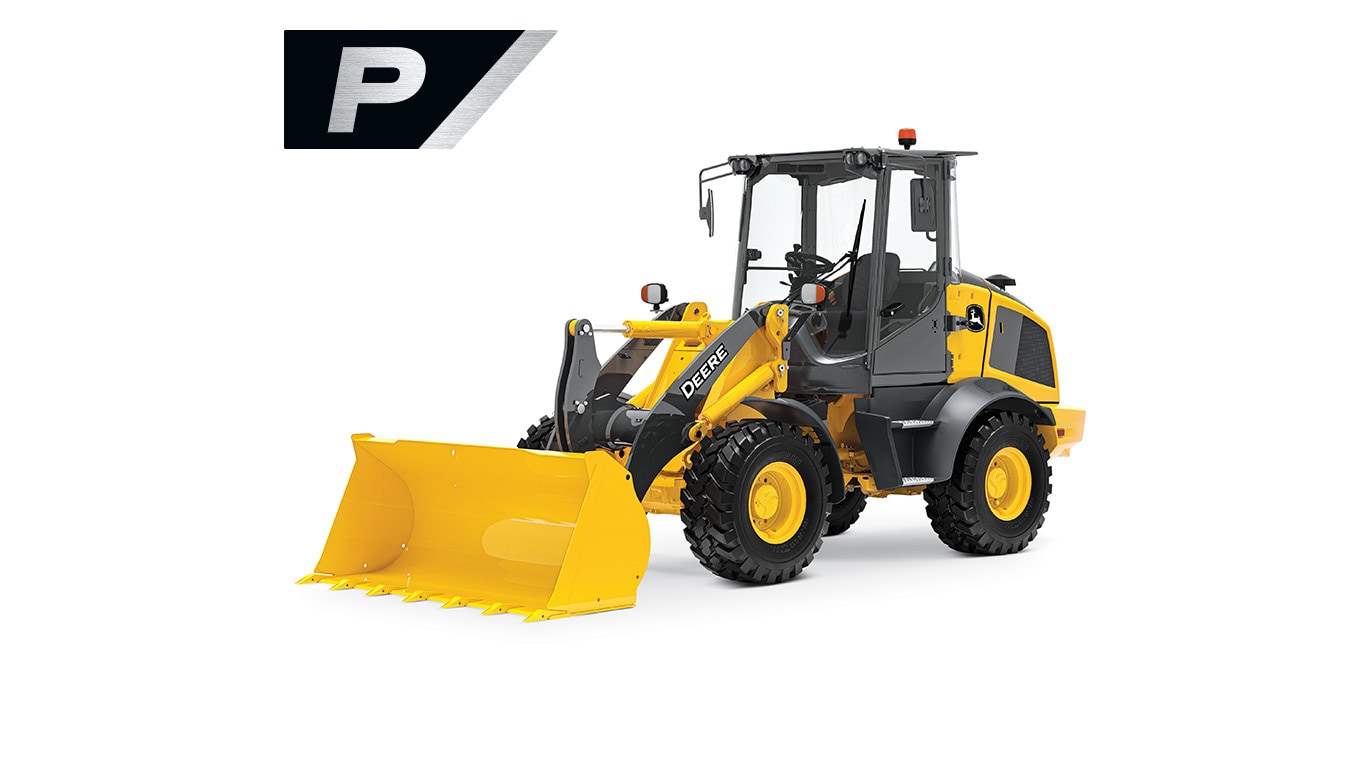

Compact Wheel Loader
|Displacement, ltr (Inches³)||3.3 (203)|
|Rated Speed, rpm||2400|
|Engine Output - Net, kW (hp)||52 (71)|
|Torque, Nm (lbf / ft)||280 (206)|
|Front Differential Type||Locking|
|Rear Differential Type||Open|
|Tire size - Standard||365 / 70 R18|
|Service Brake - Type||Wet Disc & Drum|
|Service Brake - Actuation||Hydraulic|
|Parking Brake - Type||Wet Disc|
|Height - Over Cab, mm (ft/in)||2750 (9 ft )|
|Wheelbase, mm (ft/in)||2150 (7 ft 1 in)|
|Ground clearance, mm (inches)||285 (11)|
|Width Over tires - Std, mm (ft/in)||1920 (6 ft 4 in)|
|Height - Pivot Pin, mm (ft/in)||3220 (10 ft 7 in)|
|Reach - At 2130mm 45° Dump, mm (ft/in)||1520 (5 ft )|
|Fuel Tank, ltr (gallons (US))||90 (23.8)|
|Hydraulic Tank, ltr (gallons (US))||66 (17.4)|
|Heaped Capacity, m³ (yd³)||0.8 (1)|
|Breakout - Bucket, kgf (lbf)||4895 (10792)|
|Ride Control System||Yes|
|Pump Flow - 1, lt/min (gallons (US) / min)||70 (18)|
|System Pressure, bar (PSI)||230 (3335)|
|Operating Weight, kg (lbs)||5560 (12258)|
Every John Deere machine comes with a level of comfort through our full machine standard warranty. It promises we’ll fix any defects in materials or workmanship on our compact equipment for two years after delivery or 2,000 hours.*
Get more work done more efficiently through our suite of precision construction solutions.
Stay up and running and lower your costs by making the most of our world-class dealer network.
You need a finance team that gets in the trenches to learn about your entire operation – not just your credit score.
Features and specifications are based on published information at the time of publication. Features and specifications are subject to change without notice.
