Combination Units

Compresserators™ and Welderartors™

Compresserators™ are perfect for any industrial application that requires both electrical power and air. Contractors and farmers alike will appreciate the convenience of the built-in generator system alongside the single or two-stage air compressor pump which when combined increases productivity on any job. This versatile machines are powered by overhead valve industrial engines.

Welderators™ offer the convenience of three machines in one compact platform. Powered by an industrial-duty Subaru engine, the Welderator combines a 170A arc (stick) welder, a two-stage air compressor, and a 5,000 max watt generator all in one piece of equipment. Save space, save money, and reduce your load capacity with this combination unit.

Find a Dealerabout

Compresserators™ and Welderartors™

Stationary

ImageProductDetails

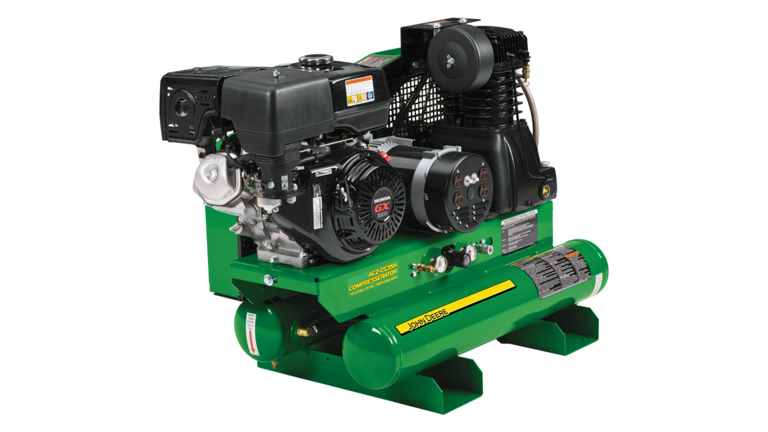

AC2-CG35H

List Price: $2,349.00 (USD)*

8-Gallon, Two-Stage Air Compressor/3500-watt Generator, Gas

  • 389cc Honda GX Engine
  • 15.4 CFM @ 175 PSI
  • Industrial 3500-watt generator, rated off-load
  • Stationary truck mount kit, used when installing stationary unit to truck bed

AC2-CG35H-30

List Price: $2,649.00 (USD)*

30-Gallon, Two-Stage Air Compressor/3500-watt Generator, Gas

  • 389cc Honda GX Engine
  • 15.4 CFM @ 175 PSI
  • Industrial 3500-watt generator, rated off-load
  • Stationary truck mount kit, used when installing stationary unit to truck bed

AC2-CG40M-30

List Price: $2,389.00 (USD)*

30-Gallon, Two-Stage Air Compressor/4000-watt Generator, Gas

  • 420cc John Deere branded OHV engine
  • 15.4 CFM @ 175 PSI
  • Industrial 4000-watt generator, rated off-load
  • Stationary truck mount kit, used when installing stationary unit to truck bed

Portable

ImageProductDetails

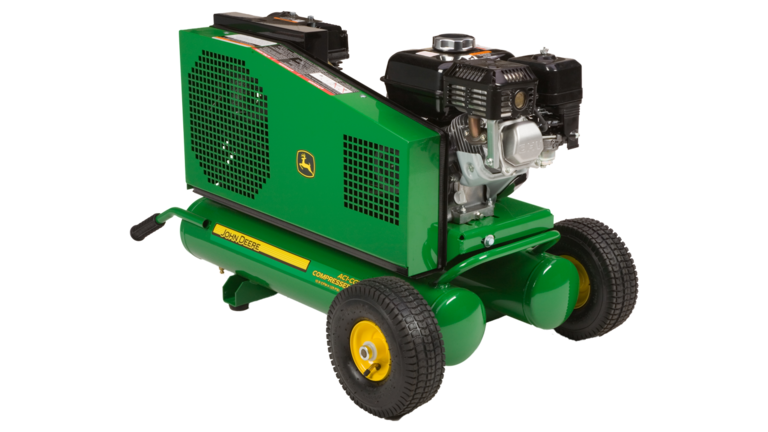

AC1-CG16H

List Price: $1,649.00 (USD)*

8-Gallon, Single-Stage Air Compressor/1600-watt Generator, Gas

  • 196cc Honda GX Engine
  • 11.6 CFM @ 100 PSI
  • Industrial 1600-watt generator, rated off-load
  • 12-in. flywheel for extra cooling

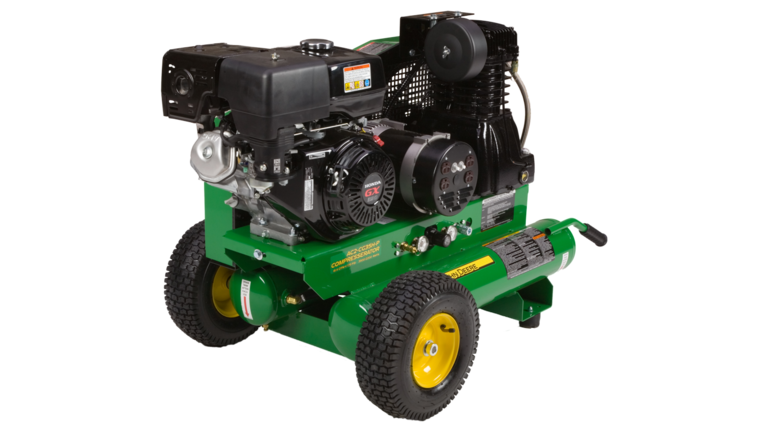

AC2-CG35H-P

List Price: $2,399.00 (USD)*

8-Gallon, Two-Stage Air Compressor/ 3500-watt Generator, Gas

  • 389cc Honda GX Engine
  • 15.4 CFM @ 175 PSI
  • Industrial 3500-watt generator, rated off-load

Diesel

ImageProductDetails

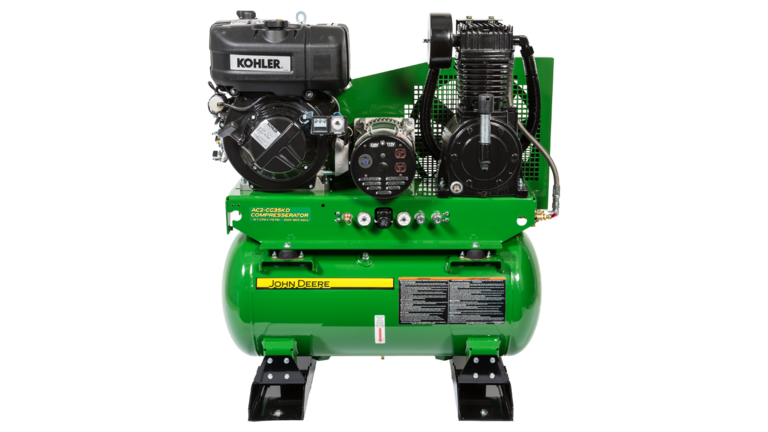

AC2-CG35KD

List Price: $5,149.00 (USD)*

30-Gallon, Two-Stage Air Compressor/3000-watt Generator, Diesel

  • 441cc, 9.1 HP Kohler OHV Engine
  • 15.7 CFM @ 175 PSI
  • Industrial 3000-watt generator, rated off-load Electric start standard, battery, box and cables not included
  • Glow plug equipped engine for easy starting in cold temperatures

ImageProductDetails

Part # AC2-CW5170M

List Price: $4,699.00 (USD)*

30-Gallon, Two-Stage Air Compressor/5000-watt Generator/ 170A Arc Welder

  • 420cc John Deere branded OHV engine
  • 15.4 CFM @ 175 PSI
  • Industrial John Deere branded engine with electric start; battery and cables
    not included
  • 4500-watt off-load; 3000-watt on-load
  • 41.7/20.8 max. amps (120V/240V) off-load
  • 37.5/18.7 cont. amps (120V/240V) off-load
  • Powder-coated ASME coded 30-gallon receiver tank
  • 3⁄16-in. base plate to reduce vibration

AC2-CW5170M-B

List Price: $4,279.00 (USD)*

Base Mount Two-Stage Air Compressor/ 5000-watt Generator/170A Arc Welder

  • 420cc John Deere branded OHV engine
  • 15.4 CFM @ 175 PSI
  • Industrial John Deere branded engine with electric start; battery and cables
    not included
  • 4500-watt off-load; 3000-watt on-load
  • 41.7/20.8 max. amps (120V/240V) off-load
  • 37.5/18.7 cont. amps (120V/240V) off-load
  • 3⁄16-in. base plate to reduce vibration

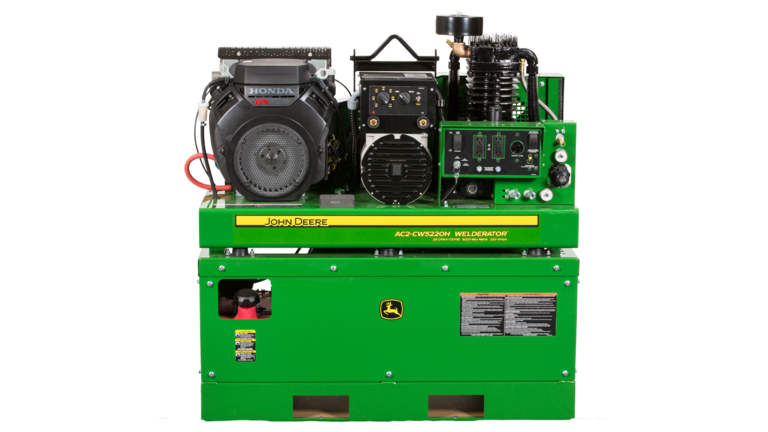

Part # AC2-CW5220H

List Price: $7,949.00 (USD)*

20-Gallon, Two-Stage Air Compressor/ 5000-watt Generator/220A Arc Welder

  • 688cc Honda GX Engine
  • 29.0 CFM @ 175 PSI
  • Industrial Honda V-twin GX engine with electric start; battery and cables not included
  • 4500-watt continuous rating
  • 41.5/20.8 max. amps (120V/240V)
  • 37.5/18.8 cont. amps (120V/240V)
  • 1⁄4-in. base plate to reduce vibration
  • 10-gallon auxiliary fuel tank
  • Removable front panel
  • Fork truck accessible

Keep the air power flowing

Need an equipment cover? Lifting hook? Find your John Deere Compresserator™ Accessories here.

ItemModel/Part NumberList Price (USD)*

Equipment Cover

AJ-1002

$89.00

Electric start engine option; without battery and cables
(Fits 389cc Honda engine models only)

AX-0019

$350.00

Lifting hook
(Fits two-stage models)

AX-0028

$35.00
Operating Manuals
  • Compresserators™
  • Welderartors™

Compresserators™

AC1-CG16H, AC2-CG35H, AC2-CG35H-P, AC2-CG35H-30, AC2-CG40S-30

Manual

AC2-CG35KD

Manual

CC2-CG35H-P, CC2-CG35H-30

Manual

CC2-CG35KD

Manual

Welderartors™

AC2-CW5170S, AC2-CW5170S-B, AC2-CW5220H

Manual

*Manufacturer's suggested list price at time of posting. Unless otherwise indicated, taxes, freight, setup and delivery not included. Dealers may sell for less. Equipment, models and prices may vary by dealer. Product features subject to change. Prices and offers valid in the United States. Prices in U.S. dollars and are subject to change without notice.
Third party trademarks referenced herein are trademarks of those third parties.
Please contact your local John Deere dealer for more detailed information.
