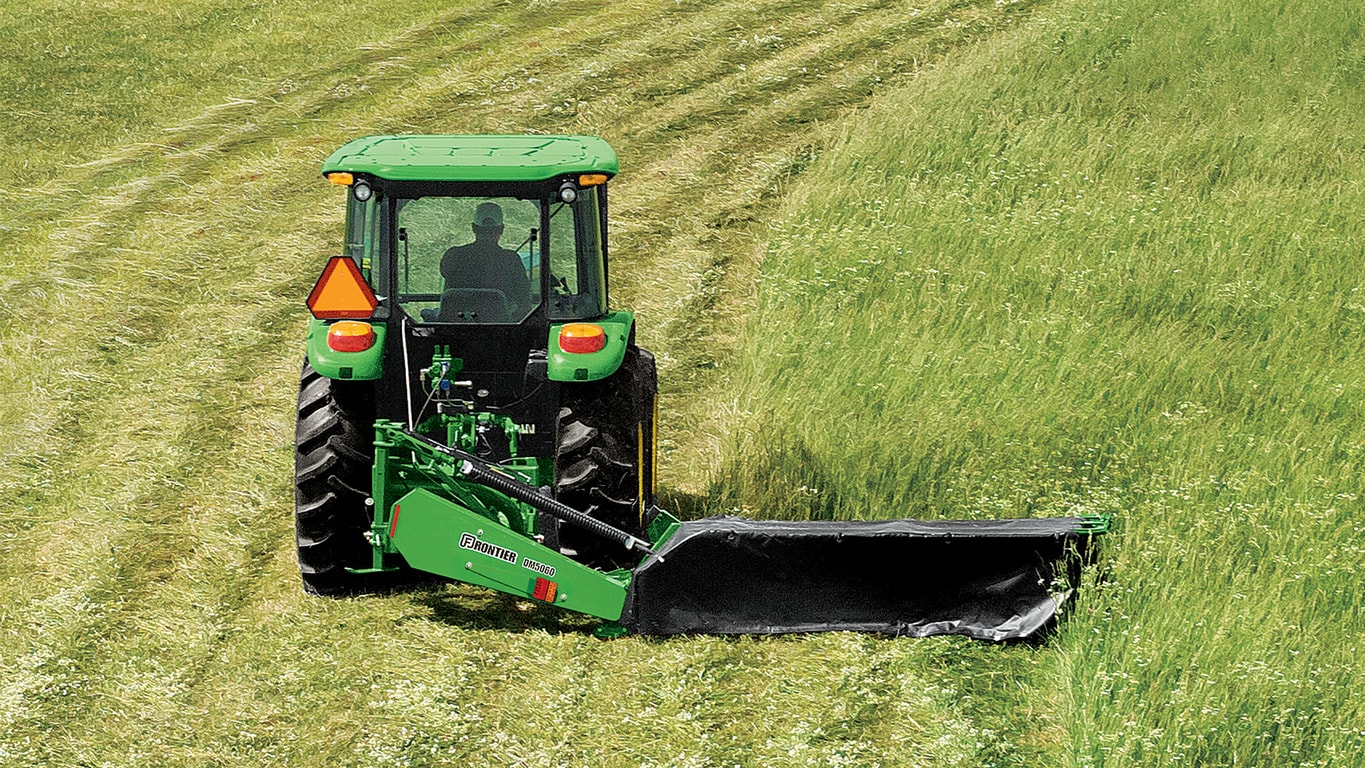

R310Disc Mower
- Easy-to-attach 3-point hitch tractor hookup

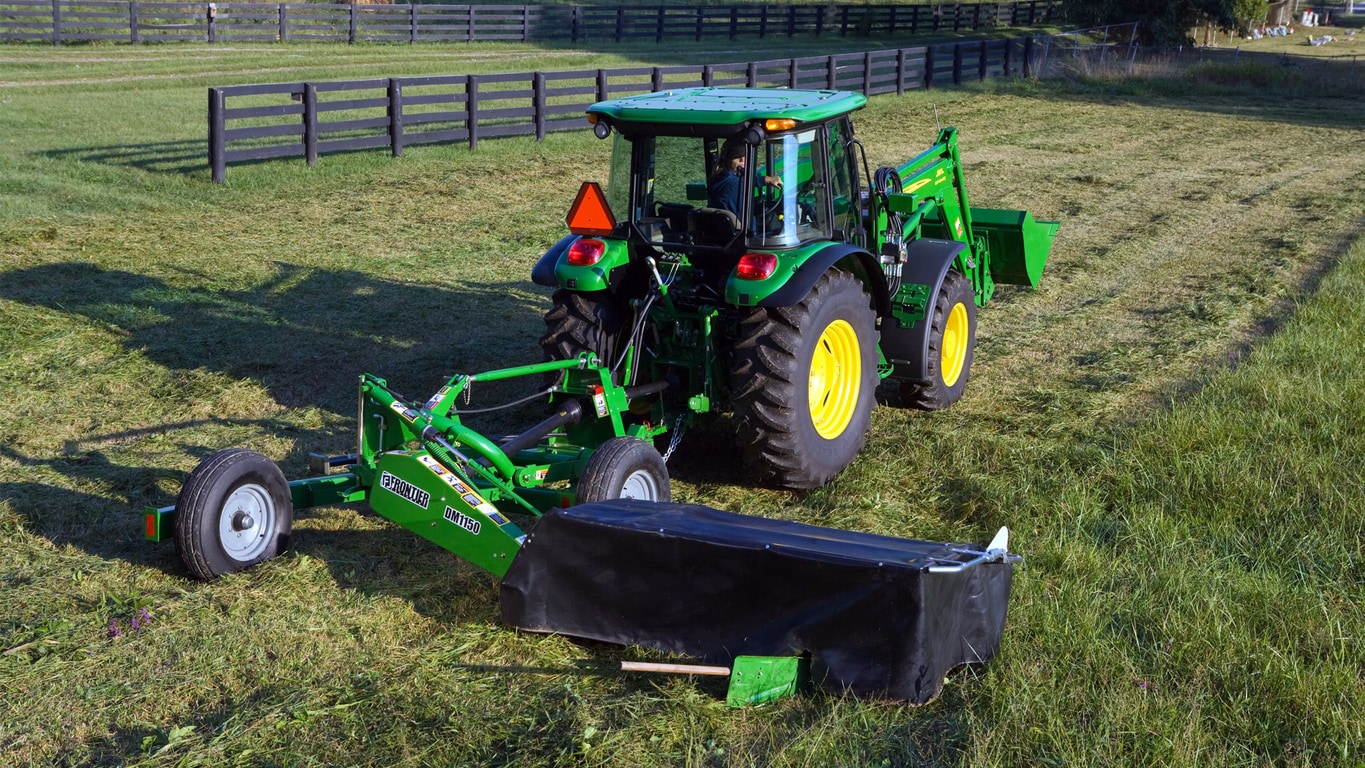

- Transport lift system
- High-clearance frame and suspension
- Disc quill easy to remove for serviceability
Features
Expand All
Collapse All
Easy-to-attach 3-point hitch
Adjustable lower hitch pins
Optional long hitch pin
Optional rearward-swinging hydraulic cylinder
Rotary disc cutterbar
Convenient belt adjustment location (R240, R260, R310)
High-speed rotary discs
Removable quill
Heavier floatation spring controlling ground pressure
Storage compartment with locking clip
Storage compartment open
Optional rearward-swinging hydraulic cylinder
Two extra hydraulic hoses for rearward-swinging cylinder
Easy-to-attach 3-point hitch tractor hookup
Easy-to-attach 3-point hitch
The R240, R280, and R310 Mowers attach to tractors with a Category 2 3-point hitch and all three models are quick-hitch compatible.
The R240, R280, and R310 models have a built-in parking lock that holds the 3-point arms up, making tractor hookup quick and easy.
Adjustable lower hitch pins
Lower hitch pins can be adjusted left or right to match the mower offset for tractors with wider tire spacing.
The R240, R280, and R310 models have an offset range of 105 mm (4 in.).
Optional long hitch pin
Adjustable lower hitch pins and an optional longer hitch pin allow for use with tractors of various tire spacing.
Available through Parts: an optional long hitch pin increases mower offset to 200 mm (8 in.) for tractors with even wider tire spacing.
Uptime |
Adjustable lower hitch pins and an optional longer hitch pin allow for use with tractors of various tire spacing. |
Heavy-duty driveline with overrunning clutch
Optional rearward-swinging hydraulic cylinder
A heavy-duty driveline with overrunning clutch is standard equipment on R240, R280, and R310 Mowers.
All mowers are equipped with a shielded, pullback-collar, telescoping power take-off (PTO) driveline.
Heavy-duty cutterbar for the toughest cutting conditions
Rotary disc cutterbar
A multi-V-belt drive system transfers power from the gearbox to each rotary disc.
Power is transmitted to the rotary discs through fully enclosed gears running in oil for a quiet, smooth, reliable operation.
Convenient belt adjustment location (R240, R260, R310)
All models have a spring-loaded belt tensioner for easier belt adjustment. The belt tension automatically compensates for initial belt stretch, increasing belt life.
High-speed rotary discs
Rotating at 2986 rpm, the high-speed discs cut in the toughest conditions.
The low-profile cutterbar allows a close cut while maintaining a level cutterbar. The cutting height is controlled by adjusting the tilt of the cutterbar.
Each disc has two free-swinging knives:
- Easy to remove and replace
- Two cutting edges, doubling the use life
Easy-to-remove disc quill
Removable quill
The cutterbar is protected from severe impact should an object be struck.
- Disc drive-shaft shears
- Reduces chance of internal damage to cutterbar
- Improves cutterbar reliability
Disc quills are easily removed from the top of the cutterbar for improved serviceability.
Each disc has two free-swinging knives:
- Easy to remove and replace
- Two cutting edges, doubling the use life
- Swings away to reduce possible damage if a solid object is struck
Lift and suspension system
Heavier floatation spring controlling ground pressure
A lift and suspension system allows for the R240, R280, and R310 models to raise the cutterbar off the ground without raising the tractor’s hitch.
The disc mowers use the hydraulic cylinder to lift the cutterbar from the cutting position to the transport position, and the cutterbar automatically locks into place.
A longer cylinder on the R240 and R280 allows for a cutting arc of +35 degrees to -25 degrees. A longer cylinder on the R310 allows for a cutting arc of +35 degrees to -30 degrees.
A heavier spring establishes even flotation along the full length of the cutterbar in a variety of different field conditions and topography.
Performance |
|
Onboard storage compartment
Storage compartment with locking clip
Storage compartment open
The R240, R280, and R310 models are standard equipped with an easy-to-access, built-in storage compartment. This convenient drawer is a perfect place for extra hardware such as nuts, bolts, and replacement knives.
Rearward-swinging hydraulic cylinder
Optional rearward-swinging hydraulic cylinder
Two extra hydraulic hoses for rearward-swinging cylinder
The R240, R280, and R310 models offer an optional rearward-swinging hydraulic cylinder. The optional hydraulic cylinder allows the operator to swing the mower away from the tractor, eliminating the need to fold up the protective curtain when putting the mower in transport.
Mowers with this option have two additional hydraulic hoses that control the hydraulic cylinder that swings the mower away from the tractor.
NOTE: The optional rear-swinging hydraulic cylinder will be available through Parts.
Specifications
Add Model
| Specifications | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere R310 Disc Mower |
Key Specs
| Mower | Number of disks Eight Number of knives 16 Width of cut 3.11 m 10.17 ft Weight 712 kg 1,570 lb Disk speed 2,986 rpm Cutting arc +35 to -30 degree (angle) Lift system Hydraulic Minimum PTO HP 41 kW 55 hp PTO speed 540 rpm |
|---|
Mower
| Number of disks | Eight | |||
|---|---|---|---|---|
| Number of knives | 16 | |||
| Width of cut | 3.11 m 10.17 ft |
|||
| Transport width | ||||
| Weight | 712 kg 1570 lb |
|||
| Disk speed | 2986 rpm | |||
| Cutting speed | ||||
| Cutting arc | +35 to -30 degree (angle) | |||
| Lift system | Hydraulic | |||
| Minimum PTO HP | 41 kW 55 hp |
|||
| PTO speed | 540 rpm | |||
| Tilt | ||||
| Breakaway | ||||
| Stroke | ||||
| Sickle speed | ||||
| Knife drive | ||||
| PTO drive |
