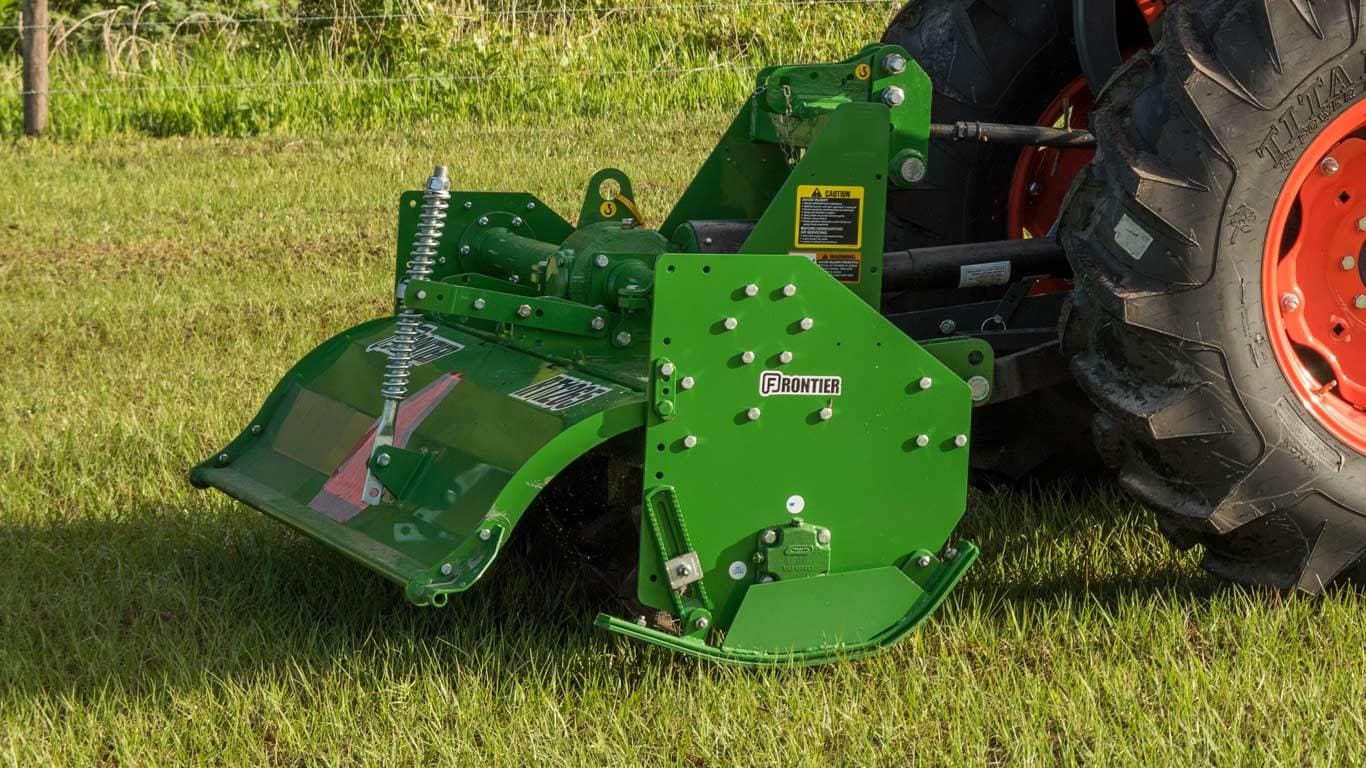

RT12 SeriesRotary Tillers
- Rotor is helical shaped for higher efficiency
- Skid shoes control depth
Features
Expand All
Collapse All
RT Series Rotary Tillers helical-designed rotor
Frontier™ RT Series Rotary Tiller skid shoes
Rotor is helical shaped for higher efficiency
RT Series Rotary Tillers helical-designed rotor
The helical-shaped rotor on the RT Series Rotary Tillers decreases horsepower required to drive units. They are designed so they enter the field at different times for more efficiency.
Skid shoes control depth
Frontier™ RT Series Rotary Tiller skid shoes
The working depth can be adjusted by the height of the skids, which is easily done with the adjustment bracket on the RT Series Rotary Tillers.
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere RT12 Series Rotary Tillers |
Dimensions
| Working width | 165.1 cm 65 in. |
|||
|---|---|---|---|---|
| Outside to outside width | 177.8 cm 70 in. |
Weight
| Operating with skid shoes | 279.4 kg 616 lb |
|||
|---|---|---|---|---|
| Operating with cage roller |
Tractor compatibility
| PTO speed rpm | 540 rpm | |||
|---|---|---|---|---|
| Minimum horsepower | 33.6 kW 45 hp |
|||
| Maximum horsepower | 45 kW 60 hp |
Gearbox
| Type | Single speed | |||
|---|---|---|---|---|
| Oil cooler |
Drive system
| Type | Chain | |||
|---|---|---|---|---|
| Chain, ASAE | ASA 100 |
Hitch
| 3-point compatible | Cat. 1, Cat. 2 | |||
|---|---|---|---|---|
| iMatch™ compatible (Cat. 1) | Yes | |||
| Quick coupler (Cat. 2) | Yes | |||
| Quick coupler (Cat. 3) | ||||
| Adjustable offset |
PTO shaft
| Clutch type | Friction |
|---|
Blade
| Shape | C-shape |
|---|
Rotor
| Flanges (quantity) | Eight | |||
|---|---|---|---|---|
| Blades (quantity) | Six |
Depth control
| Type | Skid shoes | |||
|---|---|---|---|---|
| Maximum working depth | 20 cm 7.9 in. |
Safety and markings
| Rear door support | Chain | |||
|---|---|---|---|---|
| Parking stand | Standard | |||
| Markings | Standard |
Duty
| Type | Medium |
|---|
Set-up time
| Labor hours | 0.6 |
|---|
Warranty
| Time period | 1 year |
|---|
Additional information
| Date collected |
|---|
-
PB10 Series Plows -

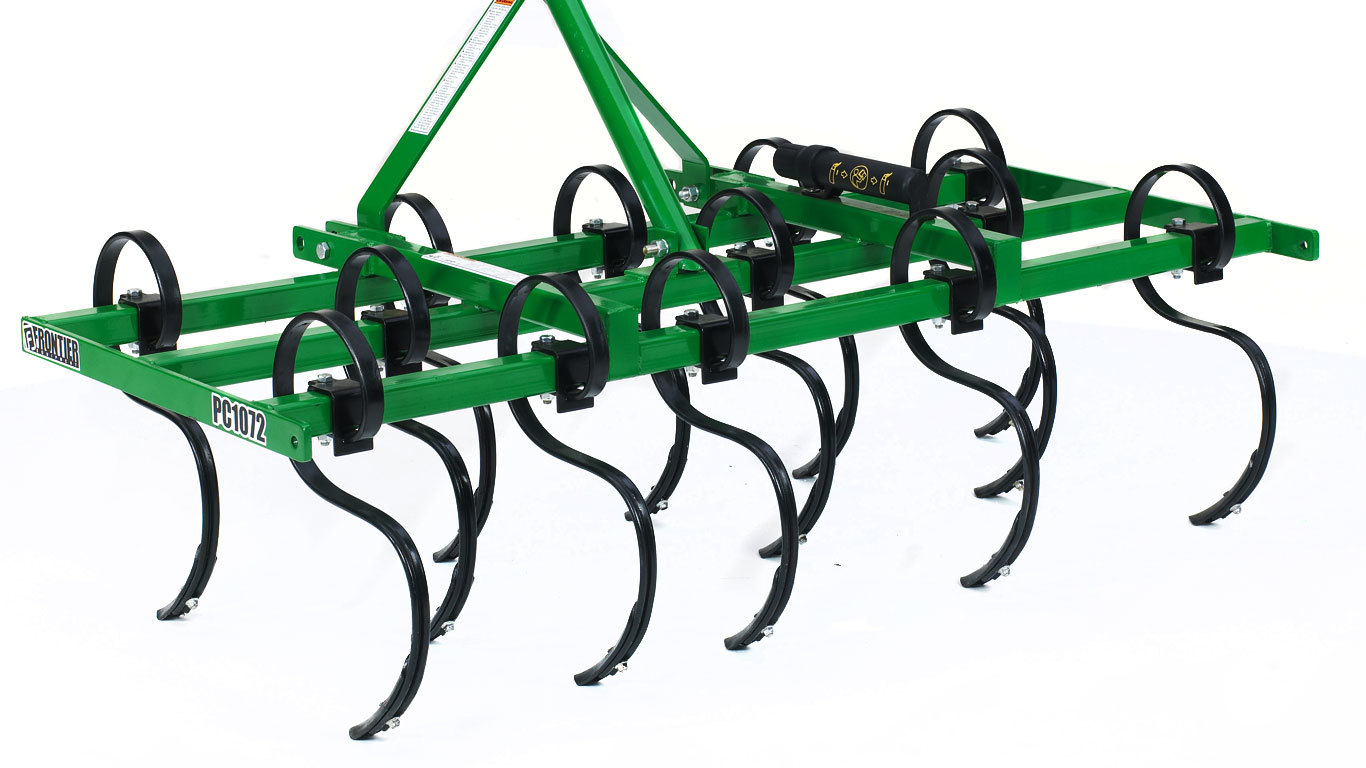

PC10 Series Cultivators -
PM10 Series Middle Buster -

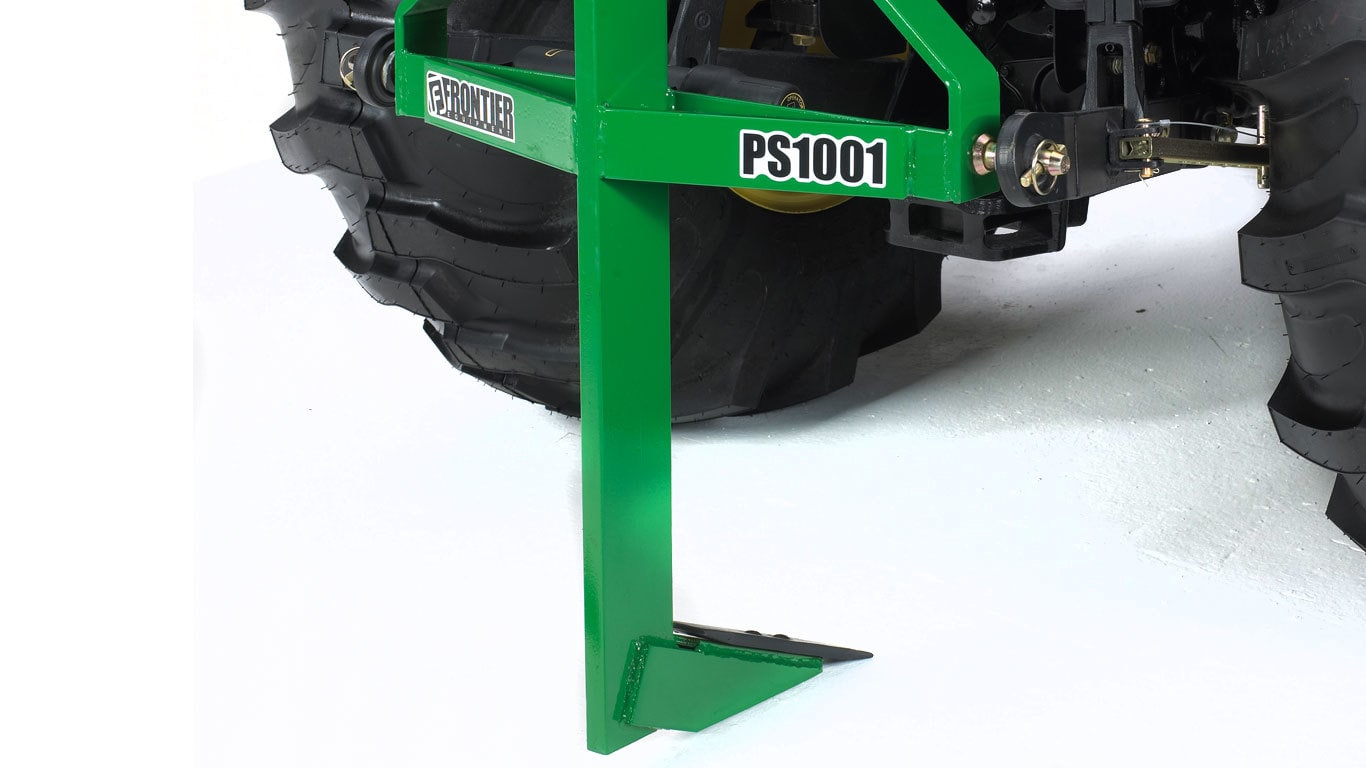

PS10 Series Subsoiler -
RT12 Series Rotary Tillers -
RT22 Series Rotary Tillers -

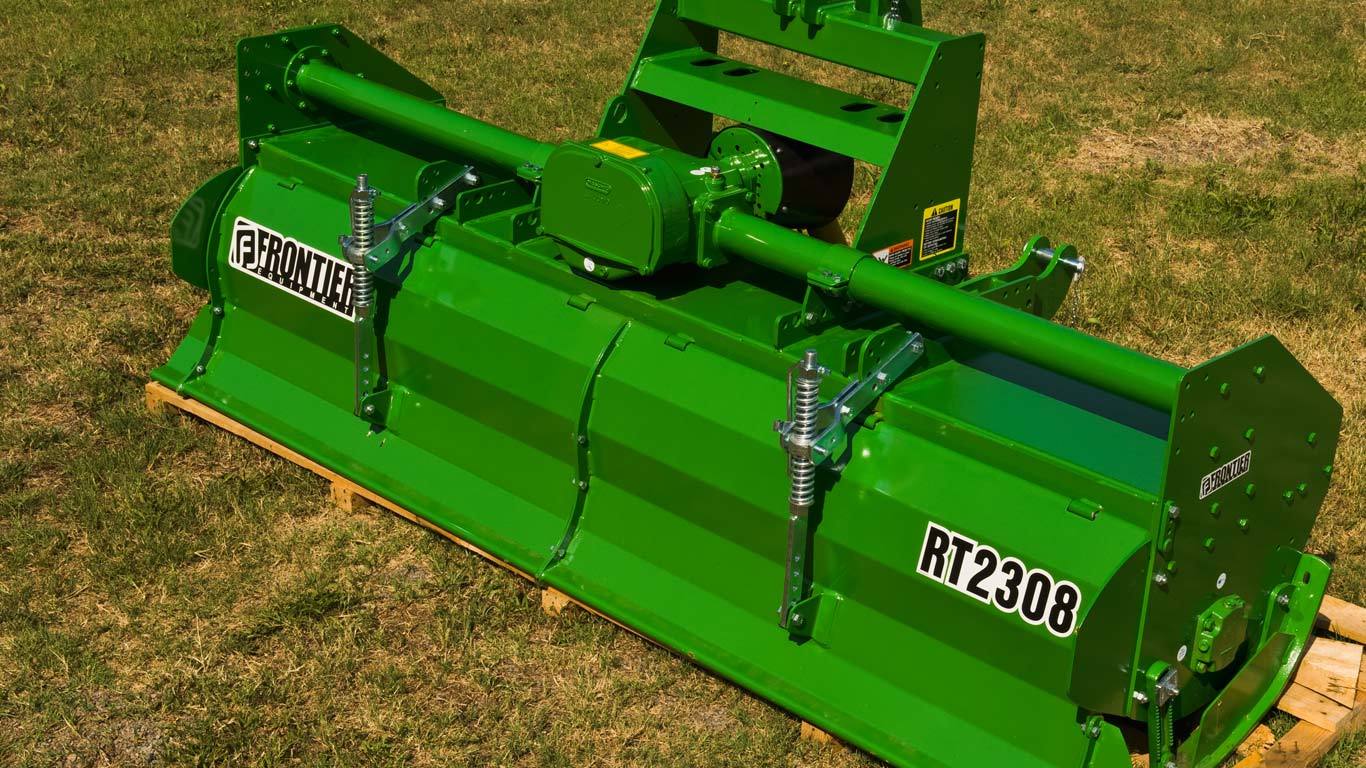

RT23 Series Rotary Tillers -
RT30 Series Rotary Tillers -

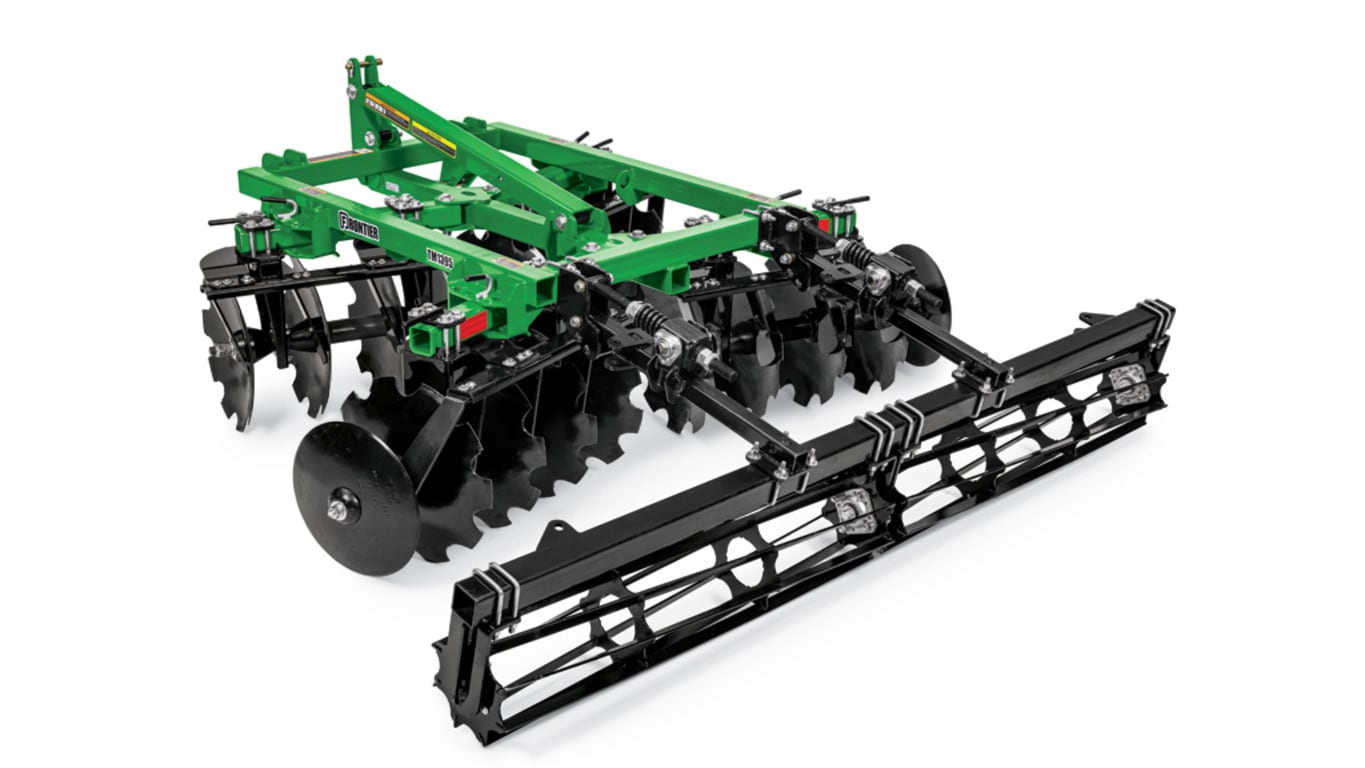

TM10L Series Tandem Disk Harrow -

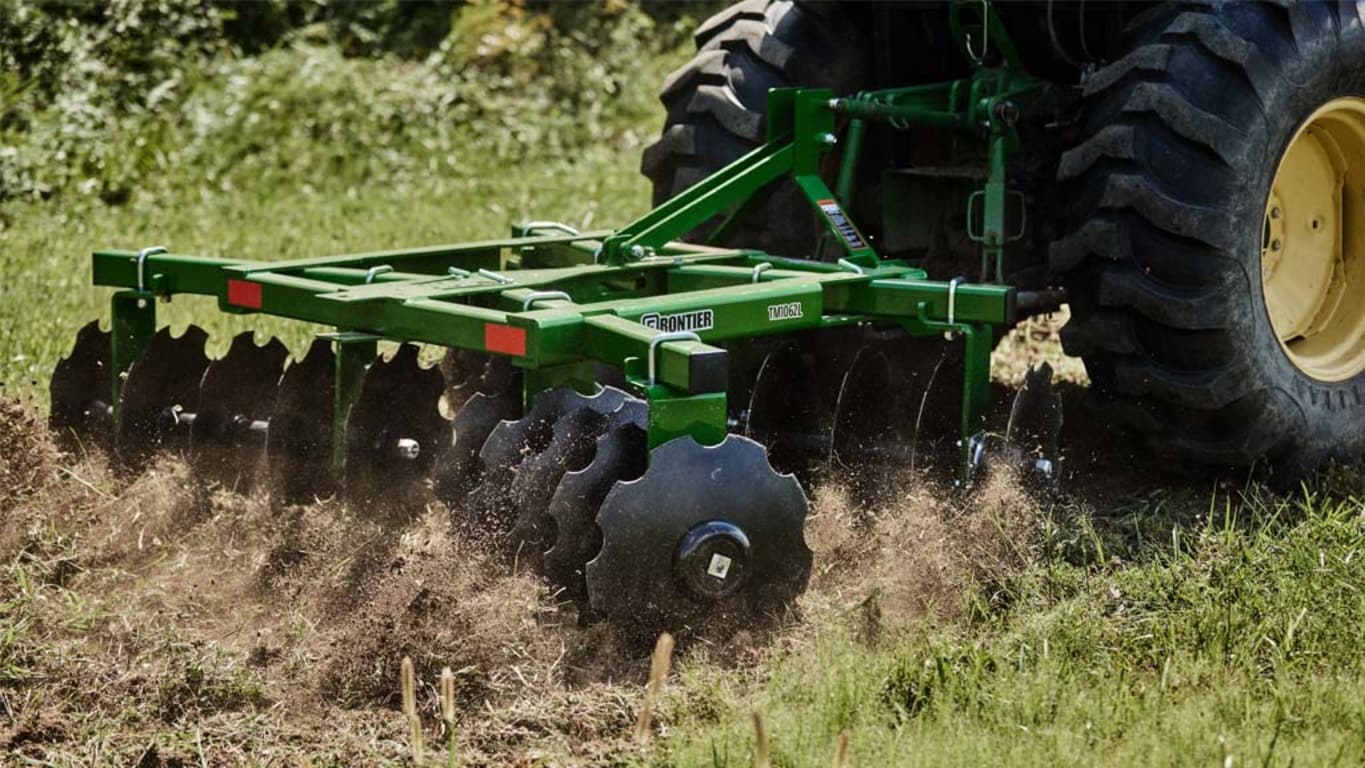

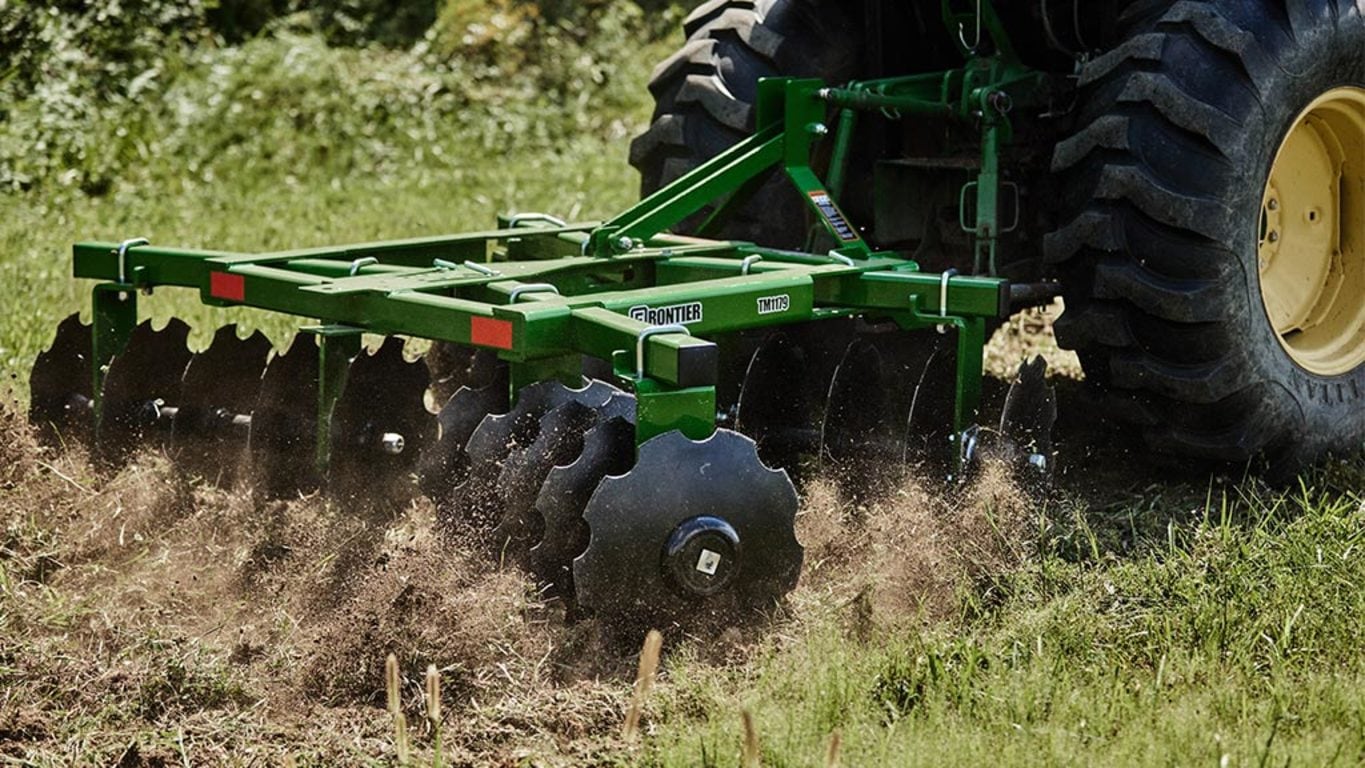

TM11 Series Tandem Disk Harrows -

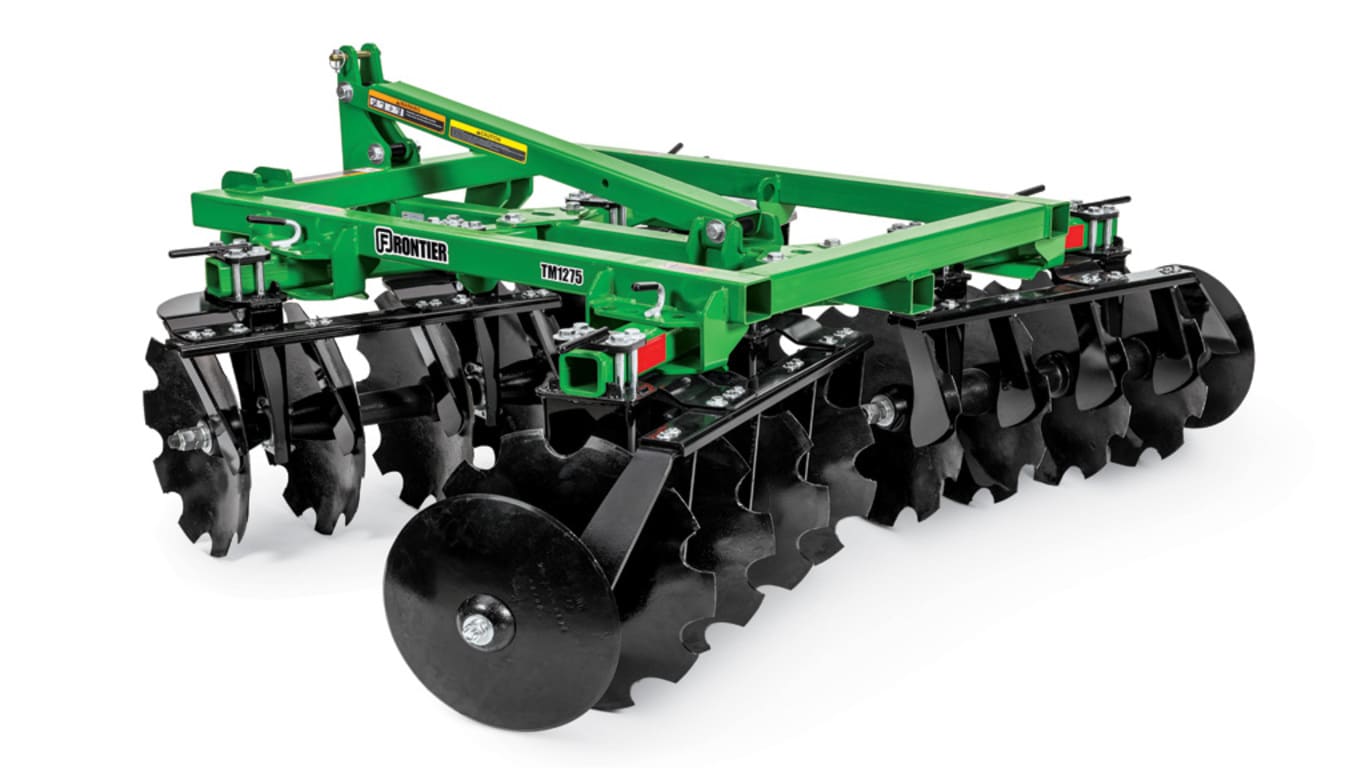

TM12 Series Tandem Disk Harrows -
