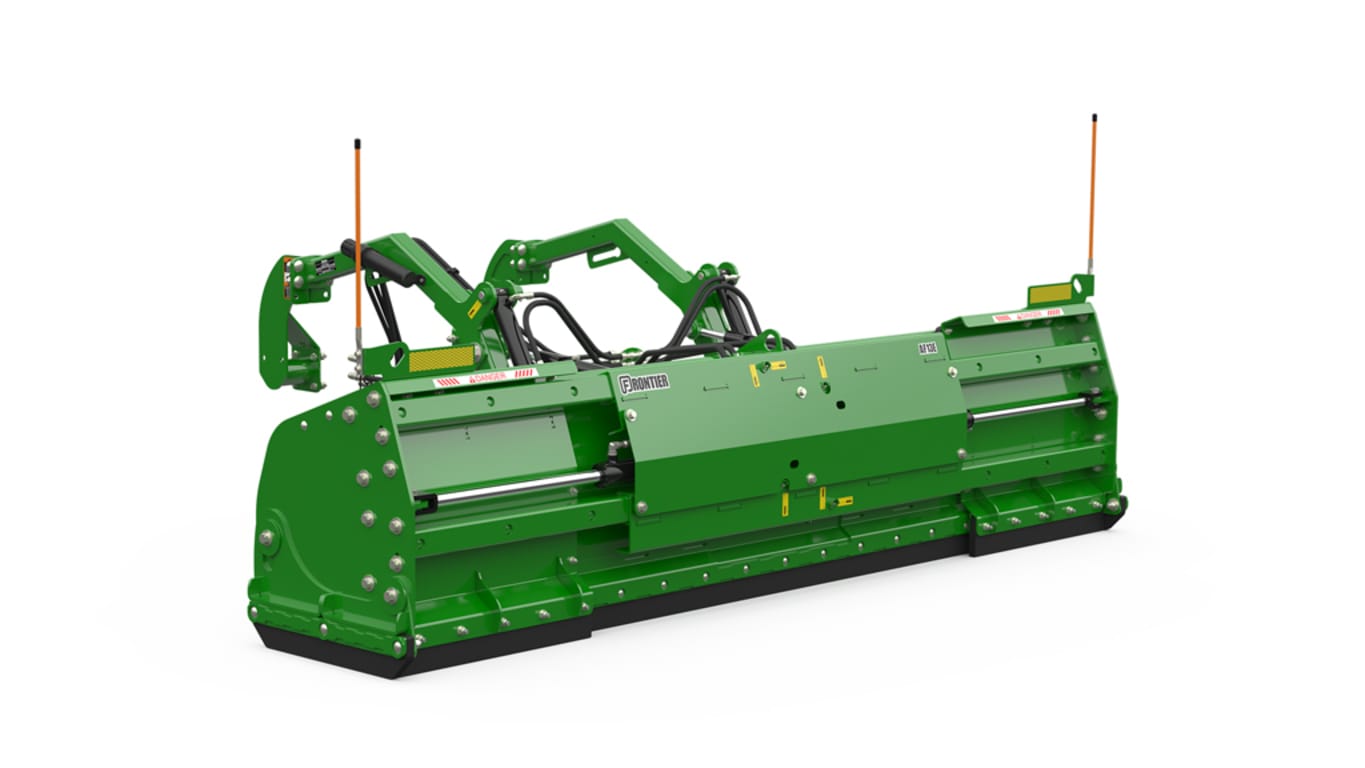

Improve Productivity with the Expandable Snow Blade

Reduce the number of passes and pull snow from enclosed spaces, the AF13E Series Front Snow Blade makes quick work of snow-removal jobs. Using hydraulics to expand the blade horizontally, the AF13E blade has 6-to-10’ of working width, creating professional-grade results in less time.

Front-Mount Improves Capacity and Visibility

The AF13E Series Front Snow Blade comes equipped with a front blade lift system allowing the snow blade to articulate up to 10°. Providing increased capacity and functionality, over loader-mounted blades, the lift mounts directly onto the loader-mount locations and tractor frame. The hydraulics utilize the dual mid-SVC to expand and contract the blade, eliminating the need for third function and saving costs. Sitting close to the tractor frame operators will also have improved visibility to the snow blade and snow.

Hydraulics Designed for Cold Temperatures

Designed for ultra-low temperatures, the AF13E hydraulic hoses use ultra-low temperature resistant synthetic rubber.

Inverted Blade Removes Snow Up Close

Pull snow out of enclosed areas and away from objects with the inverted blade on the AF13E Expandable Front Snow Blade. The inverted blade has the capability to reach snow that other blades cannot such as, up close to buildings, garage doors, walls, and other enclosed structures.

TIVAR Cutting Edge

Helping to reduce harsh contact and surface markings, the tivar cutting edge that comes standard on the AF13E, is the ultimate choice for a range of surface types, including fragile ones such as paved stone.

Easy Serviceability

Communized cylinder components make serviceability easier than ever.

Cutting width
Current series style
Moldboard
Angle/pivot

Type	Inverted
Tractor HP Requirements (min.-max.)	45-75 hp
Working Depth Control	Hydraulic

Width
Height
Depth
Cutting width
Width, Working MIN	6ft 5in. (1955 mm)
Width, Working MAX	10ft. 5in. (3175 mm)
Width, Overall MAX	10ft. 8.13in (3254 mm)
Height, Overall	56in. (1422mm)
Weight, Shipping	2000 lbs.
Weight, Operating	1680 lbs.
Height, Blade	29in. (736.6mm)
Weight, Blade	1147 lbs.
Depth, Blade	27in. (685.8mm)
Weight, Hitch	415 lbs.
Distance, To Ground lifted	21in. (533.4mm)
Distance, Under the ground	6in. (152.4mm)
Distance, Bumper to Cutting Edge	24.5in (622.3mm)

Height, Cutting Edge	5in. (127mm)
Thickness, Cutting Edge	1in. (25.4mm)
Type	UHMW

Height, Skid Shoe Cutting Edge	5in. (127mm)
Thickness, Skid Shoe Cutting Edge	1in. (25.4mm)
Type, Skid Shoe	UHMW
Skid Shoe Adjustment	-2 @ 8
