Engineered for the toughest conditions
Make your felling head feel like new with the best saw teeth from Deere. Stronger metal and sharper edges to maximize efficiency and productivity. The broader selection lets you fine tune your equipment to each project.
It’s all within your reach with John Deere swing-to-tree, drive-to-tree or rotate-to-tree felling heads. Our felling head attachments are designed to match the high production rates of Deere tracked and wheeled feller bunchers and keep you #1 in the Woods.
Compare Forestry Felling Head Models
Drive to Tree
| Model | Weight | Cut Capacity | Accumulation Capacity |
|---|---|---|---|
|

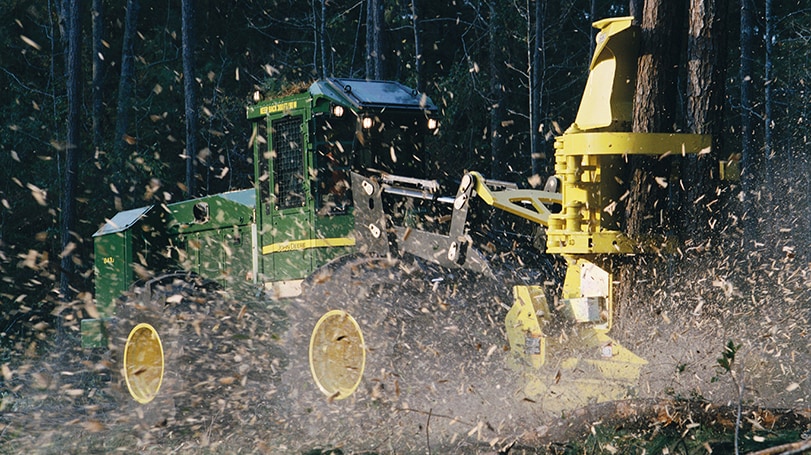

FD22B | Weight
3071 kg (6,770 lb.) | Cut Capacity
55.9 cm (22 in.) | Accumulation Capacity
0.48 m2 (5.2 sq. ft.) |
|

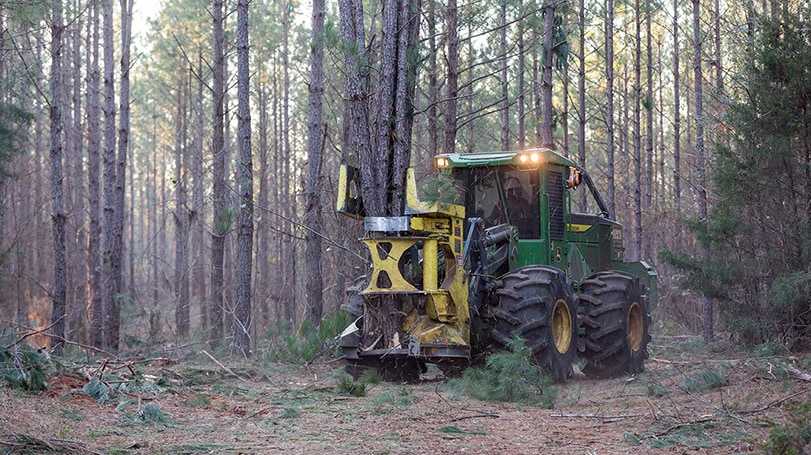

FD45 | Weight
2424 kg (5,345 lb.) | Cut Capacity
50.8 cm (20 in.) | Accumulation Capacity
0.65 m2 (7.0 sq. ft.) |
|

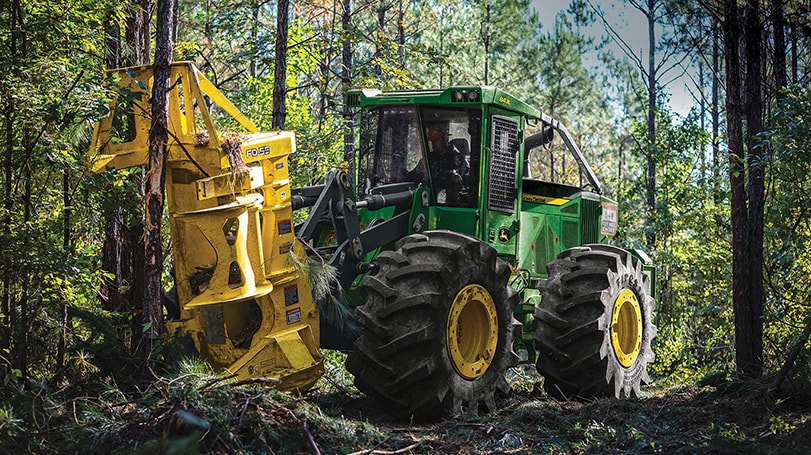

FD55 | Weight
2971 kg (6,550 lb.) | Cut Capacity
58.4 cm (23 in.) | Accumulation Capacity
0.63 m2 (6.8 sq. ft.) |
Swing to Tree
| Model | Weight | Cut Capacity | Accumulation Capacity | High Rotation Wrist |
|---|---|---|---|---|
|

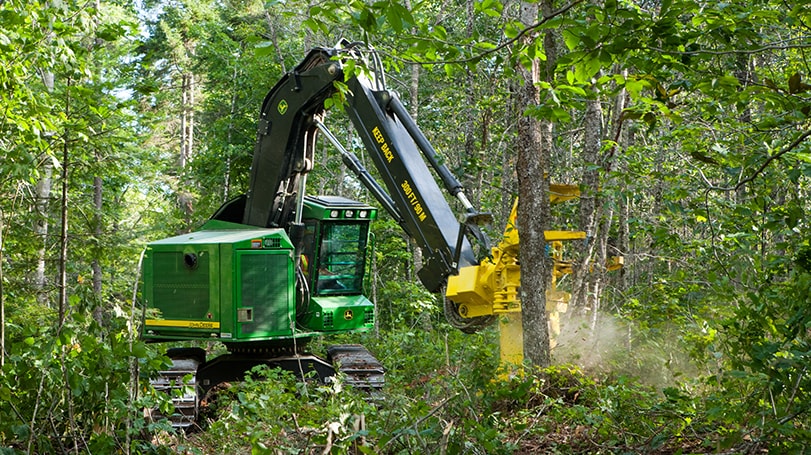

FR21B | Weight
3140 kg (6,920 lb.) | Cut Capacity
54.5 cm (21.5 in.) | Accumulation Capacity
0.46 m2 (5.0 sq. ft.) | High Rotation Wrist
•
|
|
FS22B | Weight
3550 kg (7,830 lb.) | Cut Capacity
55.9 cm (22 in.) | Accumulation Capacity
0.48 m2 (5.2 sq. ft.) | High Rotation Wrist
|
|
FR22B | Weight
3840 kg (8,470 lb.) | Cut Capacity
55.9 cm (22 in.) | Accumulation Capacity
0.48 m2 (5.2 sq. ft.) | High Rotation Wrist
•
|
|
FR27 | Weight
4220 kg (9,310 lb.) | Cut Capacity
68.6 cm (27 in.) | Accumulation Capacity
0.70 m2 (7.5 sq. ft.) | High Rotation Wrist
•
|
|
FS50 | Weight
3370 kg (7,430 lb.) | Cut Capacity
50.8 cm (20 in.) | Accumulation Capacity
0.64 m2 (6.9 sq. ft.) | High Rotation Wrist
|
|
FR50 | Weight
3660 kg (8,070 lb.) | Cut Capacity
50.8 cm (20 in.) | Accumulation Capacity
0.64 m2 (6.9 sq. ft.) | High Rotation Wrist
•
|
Directional Felling
| Model | Weight | Cut Capacity | Maximum Capacity |
|---|---|---|---|
|
FL100 | Weight
2995 kg (6,660 lb.) | Cut Capacity
100 cm (39.3 in.) | Maximum Capacity
0.78 m2 (8.4 sq. ft.) |
