Rake and Tiller Attachments for John Deere Compact Equipment

Rakes & Tillers for Construction Equipment

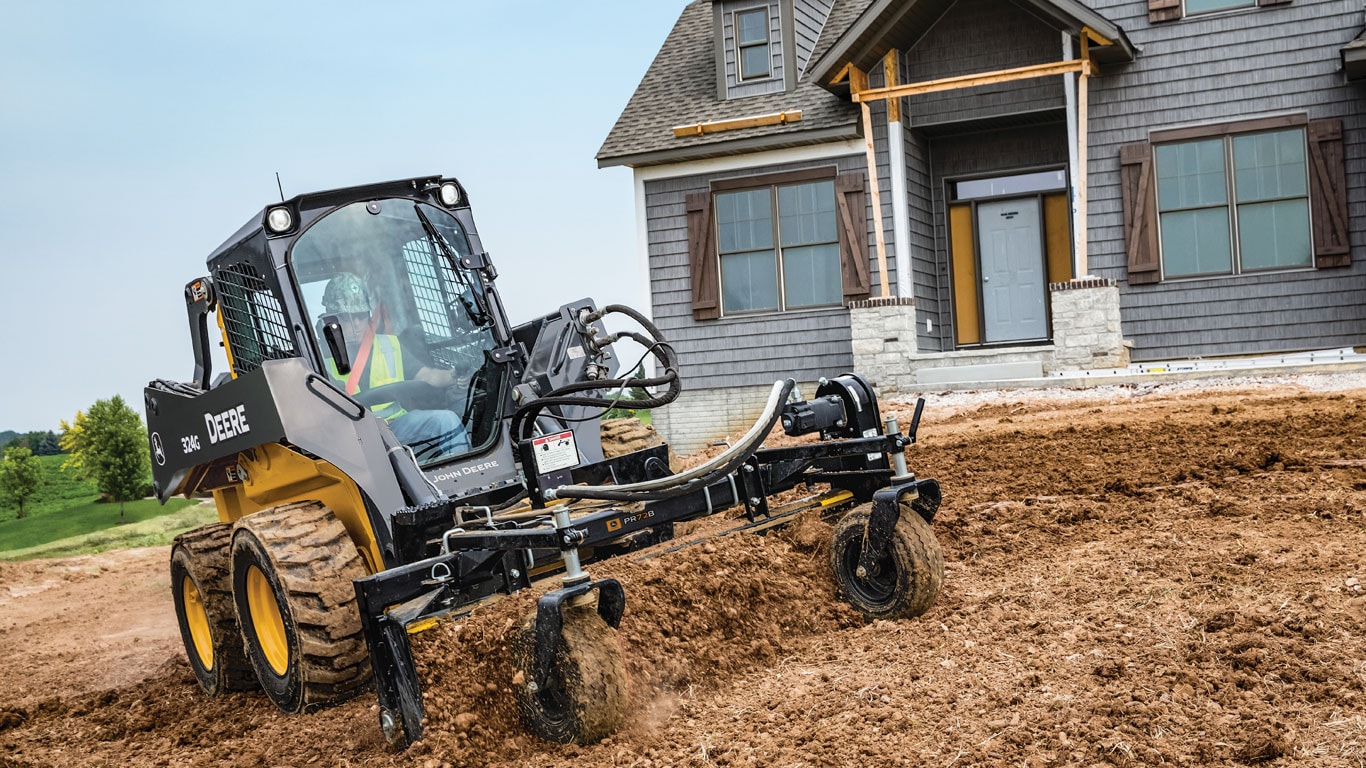

Power Rakes

Power rakes are perfect for landscape tasks such as seedbed preparation, rock raking, site development, and more. Like all John Deere attachments, power rakes are optimized to work with John Deere skid steers and compact track loaders, and are compatible with most competitive models.

ModelRaking WidthLengthWeightMin. Hydraulic Flow
Raking Width

62 in. (1575 mm)

Length

59 in. (1499 mm)

Weight

938 lb. (425 kg)

Min. Hydraulic Flow

49 L/min. (13 gpm)

Raking Width

938 lb. (425 kg)

Length

64 in. (1625 mm)

Weight

925 lb. (419 kg)

Min. Hydraulic Flow

49 L/min. (13 gpm)

Raking Width

84 in. (2134 mm)

Length

64 in. (1625 mm)

Weight

1,050 lb. (476 kg)

Min. Hydraulic Flow

60 L/min. (16 gpm)

Raking Width

90 in. (2438 mm)

Length

76 in. (1930 mm)

Weight

1,320 lb. (598 kg)

Min. Hydraulic Flow

60 L/min. (16 gpm)

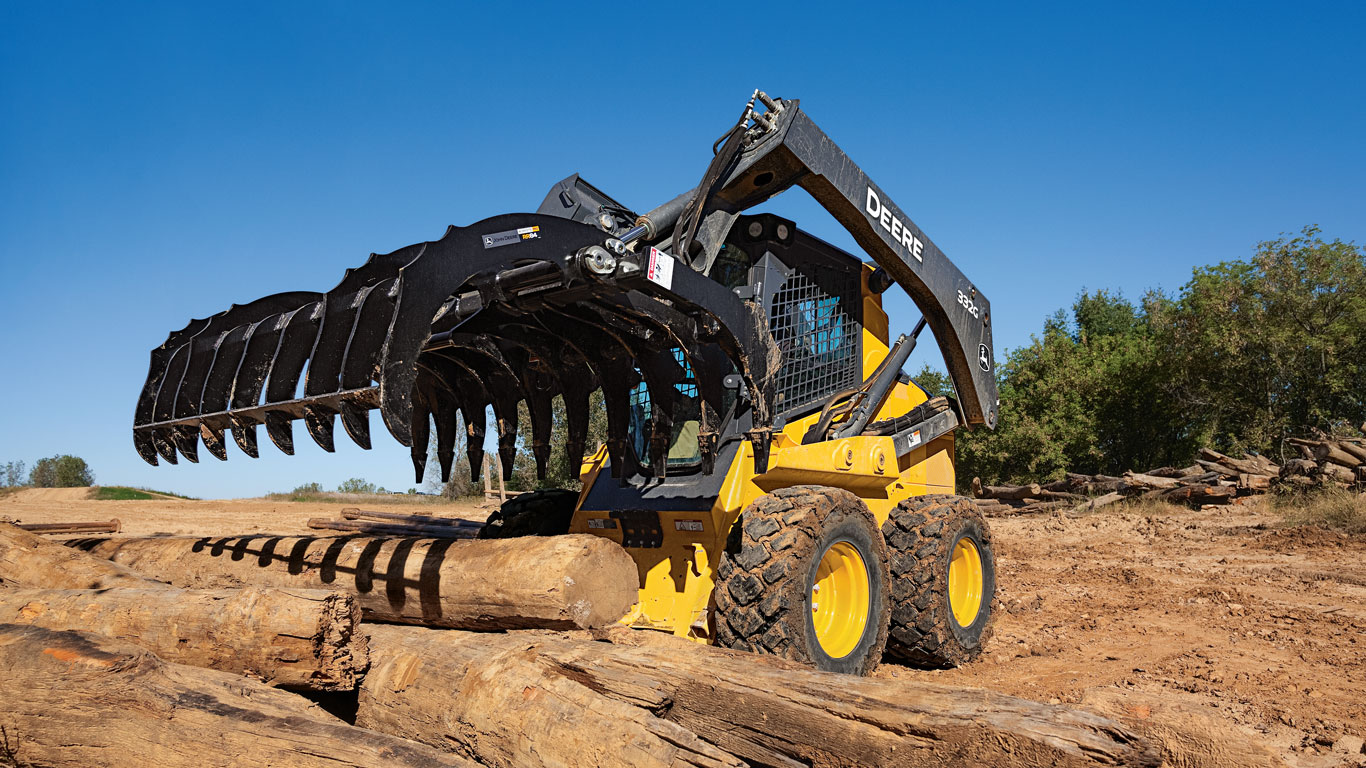

Root Rakes

Root rakes are designed specifically for land clearing, ground leveling, and moving materials away from buildings and obstructions. Large tine spacing allows gathering of rocks and debris while leaving the soil behind. Like all John Deere attachments, these root rakes are optimized to work with John Deere G- and E-Series Skid Steers and Compact Track Loaders, and K-Series Compact Wheel Loaders. They’re also compatible with many competitive models.

ModelOverall WidthTime SpacingWeight
Overall Width

72 in. (1830 mm)

Time Spacing

9.5 in. (240 mm)

Weight

1,095 lb. (497 kg)

Overall Width

78 in. (1980 mm)

Time Spacing

10 in. (255 mm)

Weight

1,150 lb. (522 kg)

Overall Width

84 in. (2135 mm)

Time Spacing

8.5 in. (215 mm)

Weight

1,220 lb. (553 kg)

Rotary Tillers

Tillers require only standard hydraulic flow for high quality performance. For increased efficiency, till in both forward and reverse directions.

Learn More About Rotary Tillers

ModelTilling WidthNumber of TinesOperating Weight

RT52 Tiller

Tilling Width

52 in. (1.3 m)

Number of Tines

24

Operating Weight

750 lb. (340 kg)

RT66 Tiller

Tilling Width

66 in. (1.7 m)

Number of Tines

32

Operating Weight

1,000 lb. (454 kg)

In the Field

Close up of the quik-tatch system for hooking an attachment to a machine

Quik-Tatch™

With our universal, self-cleaning Quik-Tatch easy-attachment system, you can switch from one type of attachment to another in no time flat.

How to Buy

Start by contacting your dealer directly. Or check out a select offering of compact equipment attachments available to order online.
