Snow Removal Equipment | 60-inch Heavy-Duty Snow Blower

Two-stage design is highly effective in deep snow

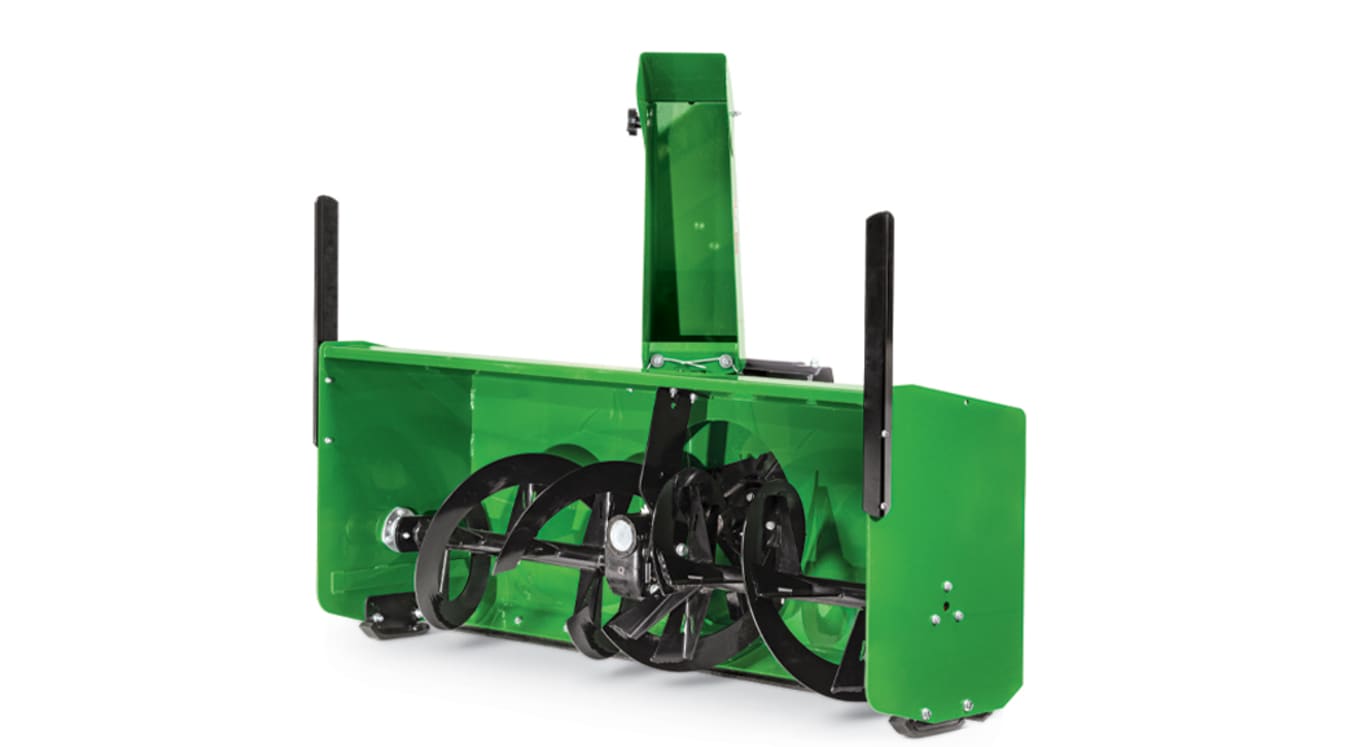

Auger with double center flighting on 60-in. (152-cm) Heavy-Duty Snow Blower

60-in. (152-cm) Heavy-Duty Snow Blower

The low-speed auger picks up snow and moves it toward the center of the machine into the high-speed impeller, where it is blown out of the discharge chute.

To increase snow processing capabilities the Heavy-Duty Snow Blowers feature:

23-in. (584-mm) housing height
7.25-in. (184-mm) spout diameter
16-in. (406-mm) diameter auger with double center flighting
Two drift cutters

Robust front 3-point hitch attaches implements in minutes

Front 3-point hitch with A-frame quick attach system

Front 3-point hitch and A-frame quick attach system

Snow blower portion of A-frame quick attach system installed on snow blower

The heavy-duty snow blowers mount using a front 3-point hitch. Advantages of front 3-point hitch mounting are:

Robust construction designed for added strength and longer life than a quick-hitch
Consistent levelness throughout lift travel that improves snow placement
Higher lift heights that increase maneuverability around uneven sidewalks and curbs
- On a 1025R Tractor, a heavy-duty snow blower lifts 1 in. (25 mm) higher than the quick-hitch snow blower.
Faster implement changes as portions of the front 3-point hitch can remain on the tractor when a loader or mid-mount mower deck is installed
The 3-point hitch’s A-frame quick attach system is an industry standard Category 0/1N design
- Shared with the 366 Front Blade and 60-in. (152-cm) Heavy-Duty Rotary Broom, allowing for tool-free, quick change between implements*

*NOTE: 60-in. (152-cm) Heavy-Duty Brooms use a front 3-point hitch on 3033R-3046R, 3120-3720, model year 2017 and newer 2032R, and 2038R Tractors. Does not apply to 60-in. (152-cm) Heavy-Duty Brooms installed using a quick-hitch on 1023E, 1025R, 1026R, and 2025R Tractors.

Heavy-duty drive

Telescoping drive shaft

Close-up of heavy-duty helical gearbox

The telescoping universal joint drive shaft provides easy attachment.

The heavy-duty cast-iron helical gearcase drives the impeller to maximize the engine horsepower and gives excellent throwing capacity and distance.

Durable auger drive

The worm gear drive features the following:

Durable cast-iron housing
5-to-1 reduction driving the snow-collecting augers at the most effective speed
Tapered roller bearings on both the input and output shafts for long life
Large output shafts, 1.25 in. (3.2 cm) in diameter, supported at each end of the auger housing by sealed ball bearings for smooth operation
Shear bolts (at the outer end of each half of the auger), protecting the auger and drive system from damage if a chunk of ice or other solid object should get caught in the auger
Four spare shear bolts in storage holes, located on the auger housing

Hydraulic chute control

The chute can be rotated hydraulically 200 degrees (patent number 4,409,748):

Allows blowing snow in desired direction
Faster and more convenient than manual control
Tractor must be equipped with dual selective control valve (SCV)

Spout deflector

The spout deflector can be changed manually to control the height in which snow is blown.

Width	Overall width: 61.5 in. 1562 mm Clearing width: 59 in. 1499 mm
Height of opening	23 in. 584 mm
Auger	Diameter 16 in. 406 mm Drive Splined-coupler power take-off (PTO) shaft to helical gearcase Auger drive gearbox Cast-iron worm gearcase with 1.25-in. (32-mm) output shafts Protection Shear bolt for each auger half, four shell-mounted extra shear bolts

Width	Overall width: 61.5 in. 1562 mm clearing width: 59 in. 1499 mm
Height of opening	23 in. 584 mm
Housing thickness	0.075 in. 1.9 mm
Side panel thickness	0.25 in. 6.35 mm
Height to top of chute deflector	51.8 in. 1315 mm
Housing depth	17 in. 432 mm

Diameter	16 in. 406 mm
Speed	189-199 rpm
Drive	Splined-coupler PTO shaft to helical gearcase
Auger drive gearbox	Cast-iron worm gearcase with 1.25-in. (32-mm) output shafts
Protection	Shear bolt for each auger half, four shell-mounted extra shear bolts

Speed	898-943 rpm
Blower fan material	Welded steel
Blower fan size	3.94 x 16 in. 100 x 406 mm
Bearing	Sealed ball bearings

Diameter	7.25 in. 184 mm
Rotation	200 degree (angle)
Rotation control	Hydraulic remote control
